Supported by the advanced technologies

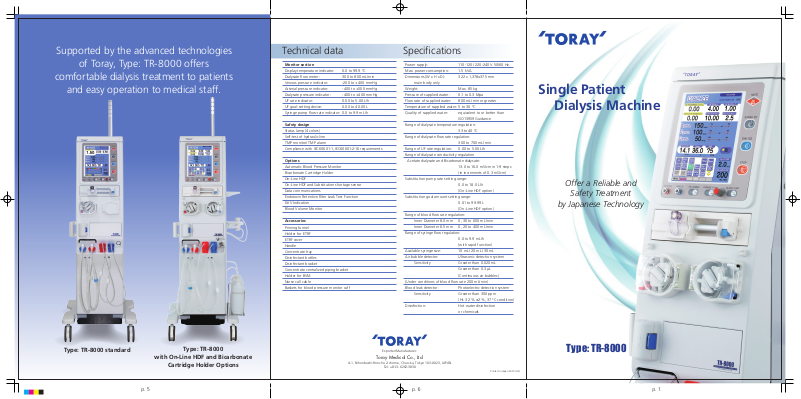

Technical data
Specifications
of Toray, Type: TR-8000 offers
comfortable dialysis treatment to patients
and easy operation to medical staff.
Monitor section
Display temperature indicator: 0.0 to 99.9 °C
Dialysate flow meter: 300 to 800 mL/min
Venous pressure indicator: -200 to +400 mmHg
Arterial pressure indicator: -400 to +500 mmHg
Dialysate pressure indicator: -400 to +400 mmHg
UF rate indicator: 0.00 to 5.00 L/h
UF goal-setting device: 0.00 to 40.00 L
Syringe pump flow-rate indicator: 0.0 to 9.9 mL/h
Safety design
Status lamp (4 colors)
Self-test of hydraulic line
TMP monitor/ TMP alarm
Compliance with IEC60601-1, IEC60601-2-16 requirements
Options
Automatic Blood Pressure Monitor
Bicarbonate Cartridge Holder
On-Line HDF
On-Line HDF and Substitution shortage sensor
Data communications
Endotoxin Retentive Filter Leak Test Function
Kt/V Indication
Blood Volume Monitor
Accessories
Priming funnel
Holder for ETRF
ETRF cover
Handle
Concentrate tray
Disinfectant bottles
Disinfectant bracket
Concentrate centralized piping bracket
Holder for BVM
Nurse call cable
Baskets for blood pressure monitor cuff
Power supply: 110-120 / 220-240 V 50/60 Hz
Max. power consumption: 1.5 kVA
Dimensions (W x H x D): 322 x 1,378×375 mm
main body only
Weight: Max. 85 kg
Pressure of supplied water: 0.1 to 0.3 Mpa
Flow rate of supplied water: 800 mL /min or greater
Temperature of supplied water: 5 to 30 °C
Quality of supplied water: equivalent to or better than
ISO13959 Guidance
Range of dialysate temperature regulation:
33 to 40 °C
Range of dialysate flow rate regulation:
300 to 700 mL/min
Range of UF rate regulation: 0.00 to 5.00 L/h
Range of dialysate conductivity regulation
Acetate dialysate and Bicarbonate dialysate:
13.0 to 16.0 mS/cm in 1-9 steps
(in increments of 0.3 mS/cm)
Substitution pump rate setting range:
0.0 to 18.0 L/h
(On-Line HDF option)
Substitution goal amount setting range:
0.01 to 99.99 L
(On-Line HDF option)
Range of blood flow rate regulation:
Inner Diameter 8.0 mm 0, 30 to 600 mL/min
Inner Diameter 6.5 mm 0, 20 to 400 mL/min
Range of syringe flow regulation:
0.0 to 9.9 mL/h
(with rapid function)
Available syringe size: 10 mL/ 20 mL/ 30 mL
Air bubble detector: Ultrasonic detection system
Sensitivity Greater than 0.020 mL
Greater than 0.3 μL
(Continuous air bubbles)
(Under conditions of blood flow rate 200 mL/min)
Blood leak detector: Photoelectric detection system
Sensitivity Greater than 300 ppm
(Ht. 32 % ±2 %, 37 °C condition)
Disinfection: Hot water disinfection
or chemicals
Single Patient
Dialysis Machine
Offer a Reliable and
Safety Treatment
by Japanese Technology
Type: TR-8000 standard
Type: TR-8000
with On-Line HDF and Bicarbonate
Cartridge Holder Options
Exporter/Manufacturer:
Toray Medical Co., Ltd.
4-1, Nihonbashi-Honcho 2-chome, Chuo-ku, Tokyo 103-0023, JAPAN
Tel: +81-3- 6262-3830
Type: TR-8000
Printed in Japan 2010 (G 2)
Page 2
TORAY’s Reliable and Safety Volumetric UF Control
Simple and Clean Treatment based on
(Closed circuit system)
The UF control of the TR-8000 is supported by a “Closed circuit
system” to ensure the accurate removal of excessive fluid.
Originally invented and developed by Toray, this system has been
accepted worldwide as the reliable technology for UF control.
The primary characteristic of each chamber has a silicone
membrane to separate fresh and used dialysate. These two
chambers alternately prepare fresh dialysate and discharge the used
one, continuously keeping the dialysate circuit closed. As the predetermined quantity of UF will be drawn from such closed circuit,
the targeted removal of excessive fluid is accomplished.
Easy Maintenance Mode
Maintenance Window
Operation of each component and indication value is
displayed on maintenance
window.
advanced technology
UPS (Uninterruptible Power System)
The backup power supply allows automatically the
operation of blood pump, syringe pump, LCD touch
panel, clamp of blood tubing line, displaying alarm
message, alarm sound and status lamp at time of
power failure.
Air bubble detector
The detector is integrated with venous clamp.
In order to avoid misfitting of blood tube.
clamp
Bypass nozzle cover
The cover is designed for
dialyzer coupler nozzle to
prevent contamination.
Various profile (chart)
The various profiles, such as UF,
Dialysate, Bicarbonate, Blood
flow rate and Syringe can be
programmed.
Caster base cover
Non-painted plastic cover
is equipped to improve
chemical resistance.
Useful function for comfortable dialysis treatment
760mm
Bicarbonate
Cartridge Holder
Bicarbonate
concentrated solution
is supplied by using
NaHCO3 powder in a
cartridge type container.
Position of the holder
is 760 mm from the
caster to set bicarbonate
cartridge easily.
Drip chamber level
Drip chamber fluid
level adjustment of
arteriovenous drip
chamber can be adjusted
conveniently by screen
operation.
BVM (Blood
Volume Monitor)
During hemodialysis, this
monitor is capable of
continuous noninvasive
monitoring percent
changes in blood volume
(ΔBV), the graph of ΔBV
is indicated to know the
event of decreased ΔBV
or abnormal changes in
ΔBV.
On-Line HDF
On-Line HDF treatment
is performed by putting
an additional substitution
pump, and making the
purifier dialysate through
2 pcs of ETRF (Endotoxin
Retentive Filter)
connected in series.
Kt/V indication
Kt/V indicated on the
display.
Automatic Blood
Pressure Monitor
Blood pressure is measured automatically, and
the monitor indication
screen summarizes and
displays the latest blood
pressure measurement
result.
