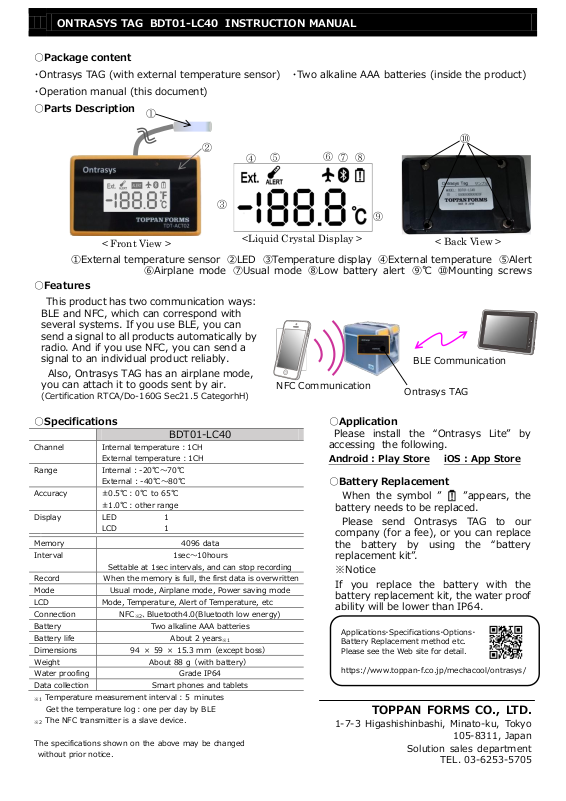

ONTRASYS TAG BDT01-LC40 INSTRUCTION MANUAL

BDT01-LC40

Channel

Internal temperature：1CH
External temperature：1CH

Range

Internal : -20℃～70℃
External : -40℃～80℃

Accuracy

±0.5℃：0℃ to 65℃
±1.0℃：other range

Display

LED 1
LCD 1

Memory

4096 data

Interval

1sec～10hours

Settable at 1sec intervals, and can stop recording

Record

When the memory is full, the first data is overwritten

Mode

Usual mode, Airplane mode, Power saving mode

LCD

Mode, Temperature, Alert of Temperature, etc

Connection

NFC※2、Bluetooth4.0(Bluetooth low energy)

Battery

Two alkaline AAA batteries

Battery life

About 2 years※1

Dimensions

94 × 59 × 15.3 mm（except boss）

Weight

About 88 g（with battery）

Water proofing

Grade IP64

Data collection

Smart phones and tablets

①

② ③ ④ ⑤ ⑥

⑦ ⑧ ⑩

Applications・Specifications・Options・
Battery Replacement method etc.
Please see the Web site for detail.

https://www.toppan-f.co.jp/mechacool/ontrasys/

< Front View >

< Back View >

<Liquid Crystal Display >

⑨

NFC Communication

BLE Communication

Ontrasys TAG

○Package content

・Ontrasys TAG (with external temperature sensor) ・Two alkaline AAA batteries (inside the product)
・Operation manual (this document)

○Parts Description

①External temperature sensor ②LED ③Temperature display ④External temperature ⑤Alert

⑥Airplane mode ⑦Usual mode ⑧Low battery alert ⑨℃ ⑩Mounting screws

○Features

This product has two communication ways:
BLE and NFC, which can correspond with
several systems. If you use BLE, you can
send a signal to all products automatically by
radio. And if you use NFC, you can send a
signal to an individual product reliably.

Also, Ontrasys TAG has an airplane mode,

you can attach it to goods sent by air.

(Certification RTCA/Do-160G Sec21.5 CategorhH)

○Specifications

Temperature measurement interval：5 minutes

※1

Get the temperature log：one per day by BLE

The NFC transmitter is a slave device.

※2

The specifications shown on the above may be changed

without prior notice.

○Application

Please install the “Ontrasys Lite” by

accessing the following.

Android : Play Store iOS : App Store

○Battery Replacement

When the symbol ” ”appears, the

battery needs to be replaced.

Please send Ontrasys TAG to our
company (for a fee), or you can replace
the battery by using the “battery
replacement kit”.

※Notice
If you replace the battery with the

battery replacement kit, the water proof
ability will be lower than IP64.

TOPPAN FORMS CO., LTD.

1-7-3 Higashishinbashi, Minato-ku, Tokyo

105-8311, Japan

Solution sales department

TEL. [phone]

ONTRASYS TAG BDT01-LC40 INSTRUCTION MANUAL

Warning

If you don’t observe this caution mark, it

may cause death or severe injury.

Attention

If you don’t observe this caution mark, you
may be injured or things may be damage.

Warning・Attention

Prohibited actions

Actions needed

to be taken

Warning

To prevent serious accidents

Do not convert, repair the device.

Do not store the device in chemicals or organic gas environment.
The device may become eroded. In addition, it may cause harm to users body due
to the hazardous substances attached to the product.

Do not replace the battery with wet hands.

This device is designed for general public welfare, industrial use. Please do not use

as medical equipment or systems which require a high level of safety.

Do not drop the device.
Do not expose it to heavy shock.

Do not cut the external temperature sensor.
Do not twist, pull, shake, and bend it.

To prevent data loss by static electricity, be sure to touch the nearby metals and
remove the body's static electricity prior to handling the product.

Store the device out of the reach of children.

We do not take responsibility or liability for any damage or loss caused through

our device and service.

Do not use other temperature sensors.

Stop using the device immediately in the event of any abnormalities such as heat

generation, smoke emission, unusual odor, or strange sound.

Replace the battery with a new one every year because it may leak or drip.
In addition, replace the packing together because the water-proof packing may be
inferior.

The case may crack due to contact with oil. If the product is used in a place where
oil scatters, please cover the product with a polyethylene bag or the like.

The battery should be replaced with two new alkaline AA4 batteries at the same
time. If the +- of the battery is reversed, not only will the device not work
normally but also might be broken.

Attention

Places not suitable for storage

Attention

Others

○For safety

We notify the precautions for safe and correct use to prevent harm to
customers and others and damage to property. Be sure to observe these
instructions when using the product.

Meaning of the pictograms

Meaning of the warning display

Meaning of the Symbols

・Places exposed to direct sunlight ・Places around fires and heaters
・Places at risk of wetness ・Humid places that are susceptible to condensation
・Places easy to become hot ・Places with vibrations ・Places with static electricity
・Places with much smoke and dust ・Places with strong magnetic forces

・Please protect the operating environment of this product and do not use it for any

purpose other than the intended purpose.

・We will not assume responsibility for any damage suffered by customers, users, or

third parties as a result of the failed communication due to the operation.

・This instruction may not be reproduced or altered without permission from TOPPAN

FORMS CO., LTD. Unauthorized copying of part or all of the contents of this manual
is prohibited.

・This manual may be changed without prior notice to improvement.
・Please contact us if you have any points to notice.

TOPPAN FORMS CO., LTD.

○Attention for Radio wave law

This product has certification of construction type of specified low-power

radio equipment. Be sure to follow the following points.
・Do not disassemble or remodel this device.
Disassembly / modification are prohibited by law.
・Do not remove the label of construction type certification.

Non-labeling is prohibited.

About the Radio of Bluetooth low energy

In use frequency bands of this product has many users, for example,
industrial, scientific, and medical equipment, mobile identification radio
stations that require licenses to be used by other similar radio stations,
specified low power radio stations that do not require licenses, and
amateur radio stations.

If a local radio station for mobile identification, a specified low-power radio
station, or an amateur radio station is operated near this product,
communication speed may decrease or communication error may occur.
Bluetooth® is a registered mark of Bluetooth SIG. Inc.

○About airborne

RTCA is an abbreviation of "Radio Technical for Aeronautics". That is the
technical standard for electric wave interference in the field of
environmental examination. In the field of current environmental
examination, RTCA D0-160D is almost an international standard. So, it's
necessary for the electronic equipment to satisfy the environmental
examination standard whether it is brought into the passenger seating
area or the cargo bay.

Because this product is authorized by RTCA/Do-160G Sec21.5 CategorhH,
you can put it on a plane

TEST REPORT can be confirmed as follows.
https://www.toppan-f.co.jp/mechacool/ontrasys/

We received approval for airborne usage from Japan Airlines Co., Ltd. and
All Nippon Airways Co., Ltd.. However, when loading, please contact the
airline.

○Federal Communications Commission (FCC) Statement

15.105(b)

This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

15.19

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:

1) This device may not cause harmful interference and

2) This device must accept any interference received, including interference that may

cause undesired operation of the device.

15.21

You are cautioned that changes or modifications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.

FCC RF Radiation Exposure Statement:

1. This Transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

2. This equipment complies with FCC RF radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated with a

minimum distance of 20 cm between the radiator and your body.
