Topfield TBF - 7110 User Manual
TBF - 7110
User Guide
High Definition
Digital Terrestrial Receiver
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to a person.
The exclamation point, within an equilateral triangle, is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the product.
iv CONTENTS
Contents
Contents iv
1 Introduction 1
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Controlling the digital receiver . . . . . . . . . . . . . . . . . . 2
1.2.1 The front panel . . . . . . . . . . . . . . . . . . . . . . . 3
1.2.2 The remote control . . . . . . . . . . . . . . . . . . . . . 4
2 Setup 6
2.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Rear panel connections . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Connecting up your digital receiver . . . . . . . . . . . . . . . 9
2.4.1 Connecting the antenna . . . . . . . . . . . . . . . . . . 9
2.4.2 Connecting to your television set . . . . . . . . . . . . 10
2.5 Inserting batteries in the remote control . . . . . . . . . . . . . 12
2.6 Switching on for the first time . . . . . . . . . . . . . . . . . . . 12
2.6.1 Powering on and checking picture . . . . . . . . . . . . 12
3 Preference Settings 13

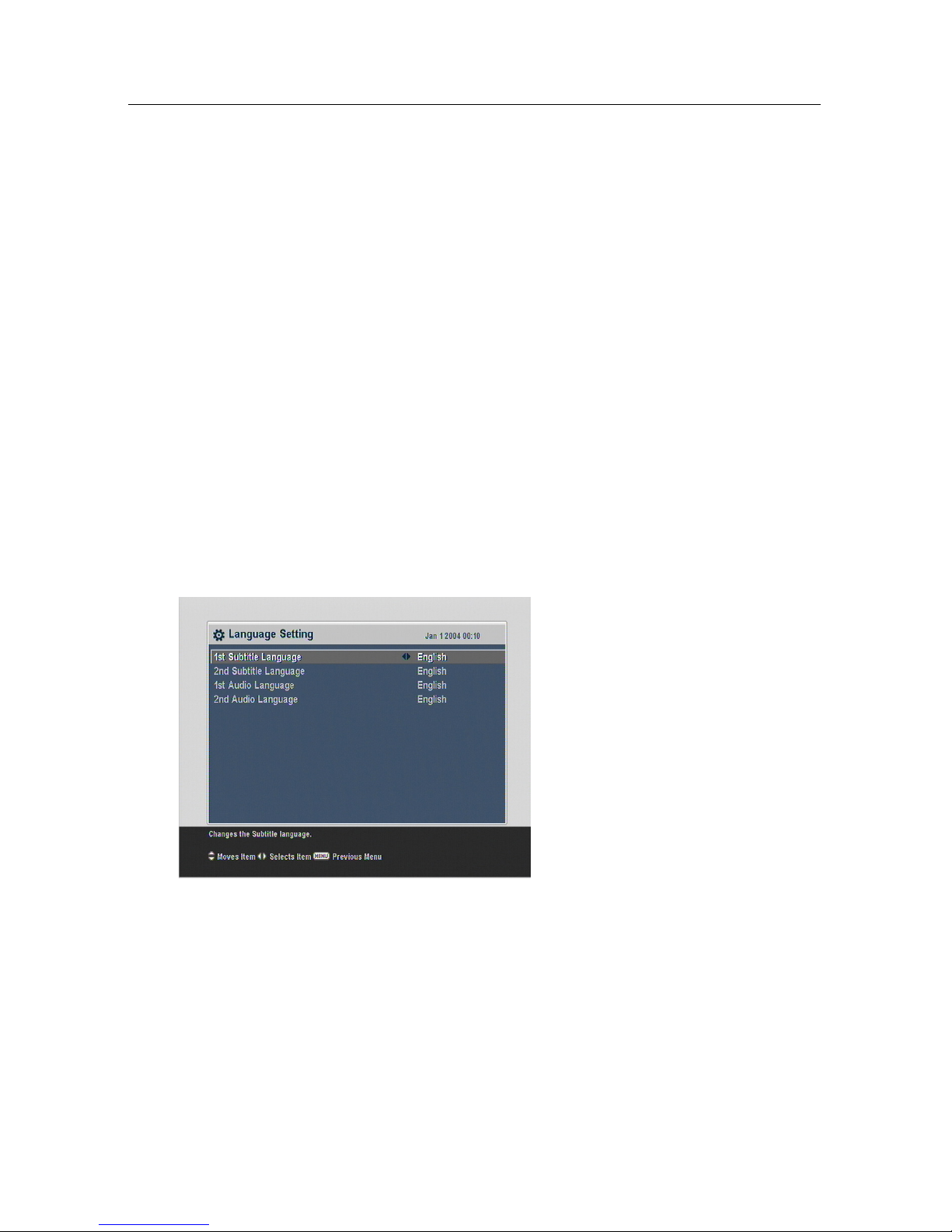

3.1 Language settings . . . . . . . . . . . . . . . . . . . . . . . . . . 13

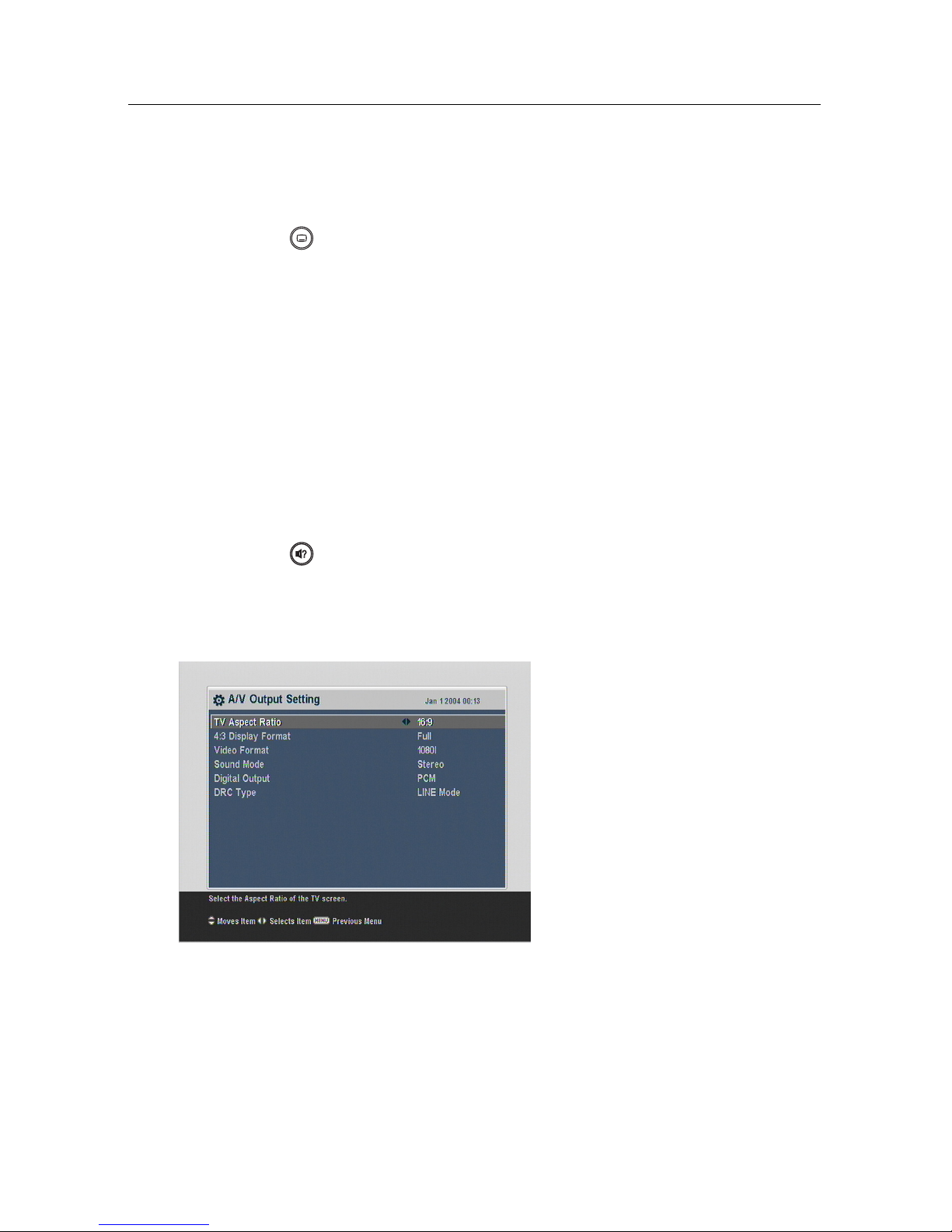

3.2 Video and audio settings . . . . . . . . . . . . . . . . . . . . . . 14

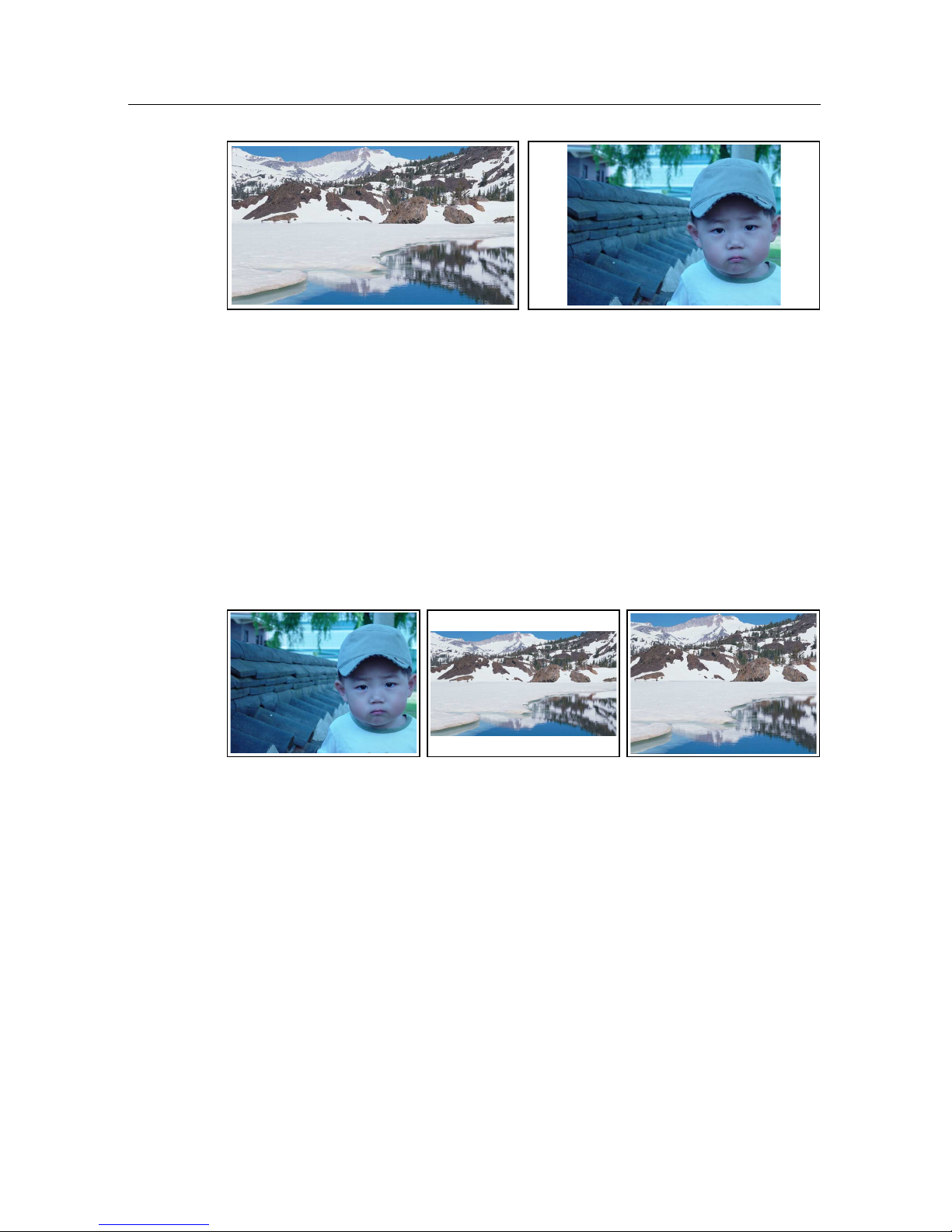

3.2.1 Television aspect ratio . . . . . . . . . . . . . . . . . . . 14
3.2.2 High definition television . . . . . . . . . . . . . . . . . 16
3.2.3 Audio mode . . . . . . . . . . . . . . . . . . . . . . . . 16
CONTENTS v

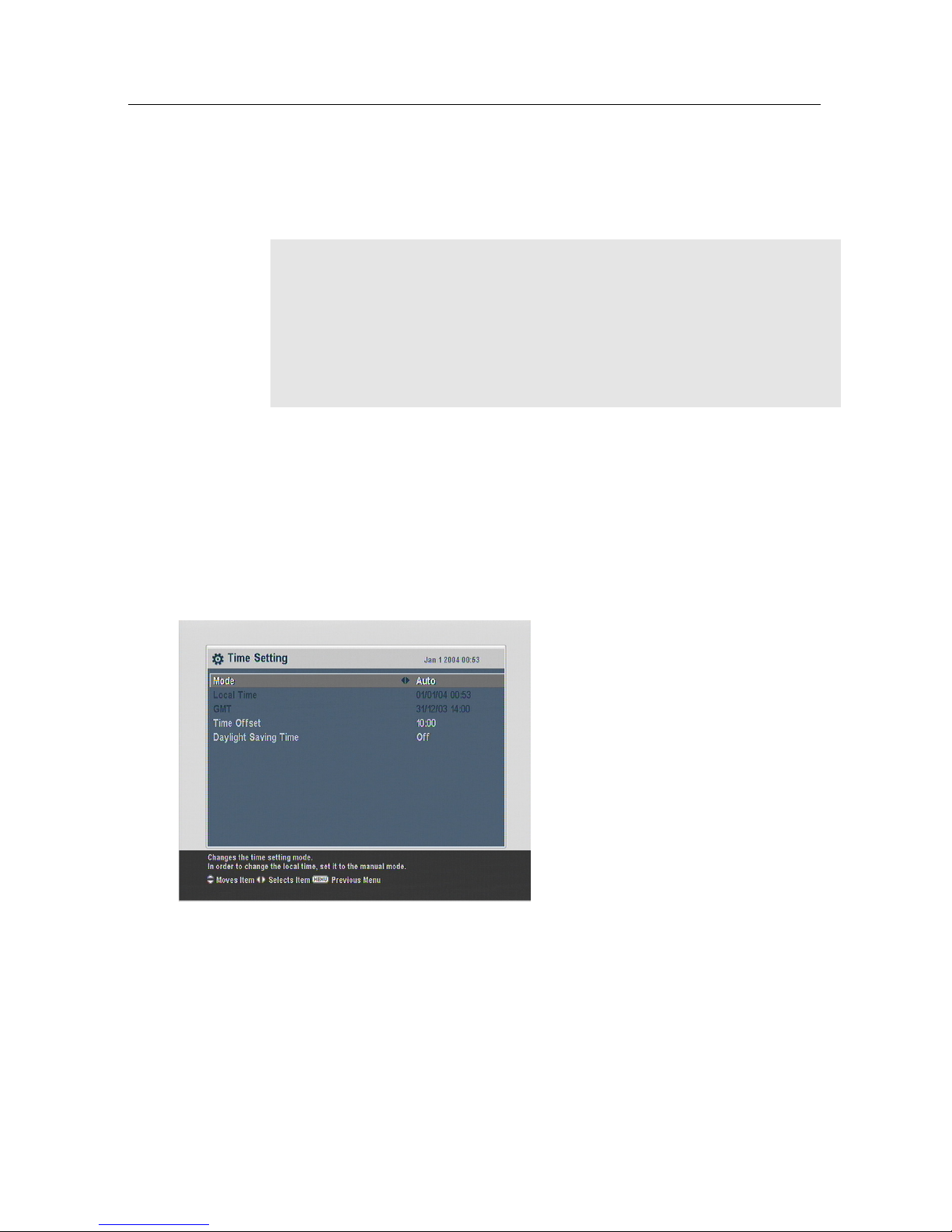

3.3 Local time setting . . . . . . . . . . . . . . . . . . . . . . . . . . 17

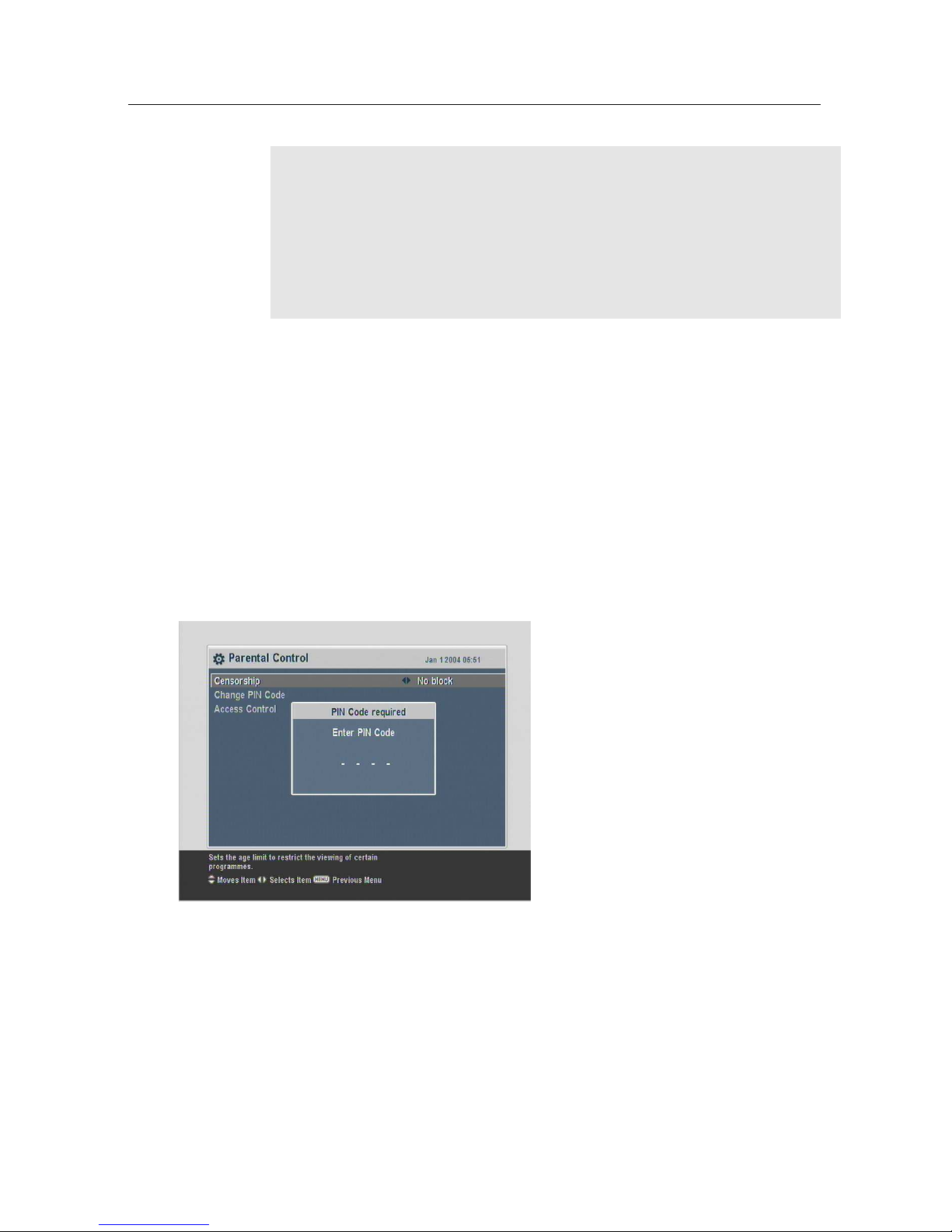

3.4 Parental control . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.5 Adjusting the On-Screen Display . . . . . . . . . . . . . . . . . 21
3.6 Displaying the time in standby mode . . . . . . . . . . . . . . 21
4 Service Search 22

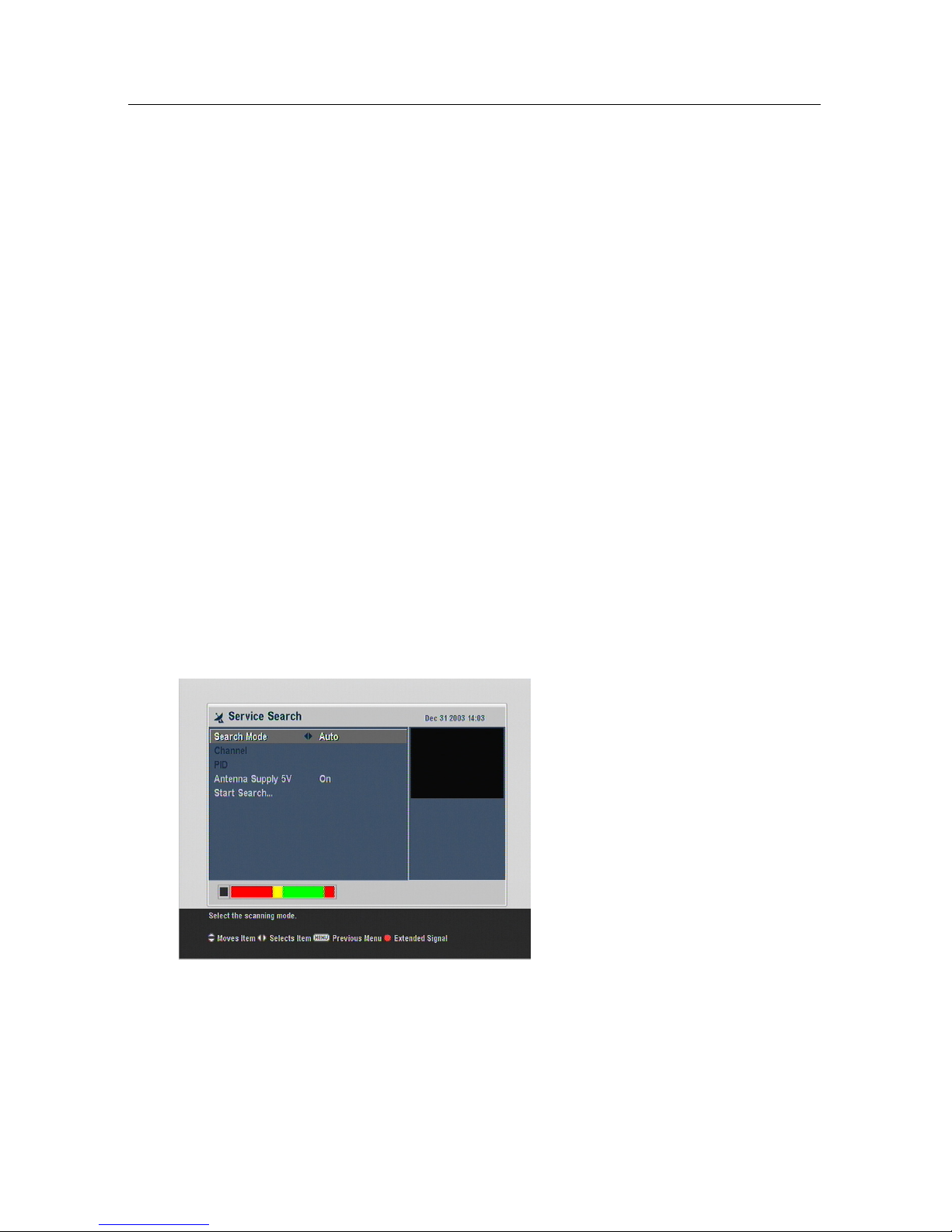

4.1 Searching broadcasting services . . . . . . . . . . . . . . . . . . 22
4.2 Resetting to factory settings . . . . . . . . . . . . . . . . . . . . 23
5 Daily Usage 24
5.1 Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.2 Watching television . . . . . . . . . . . . . . . . . . . . . . . . . 24

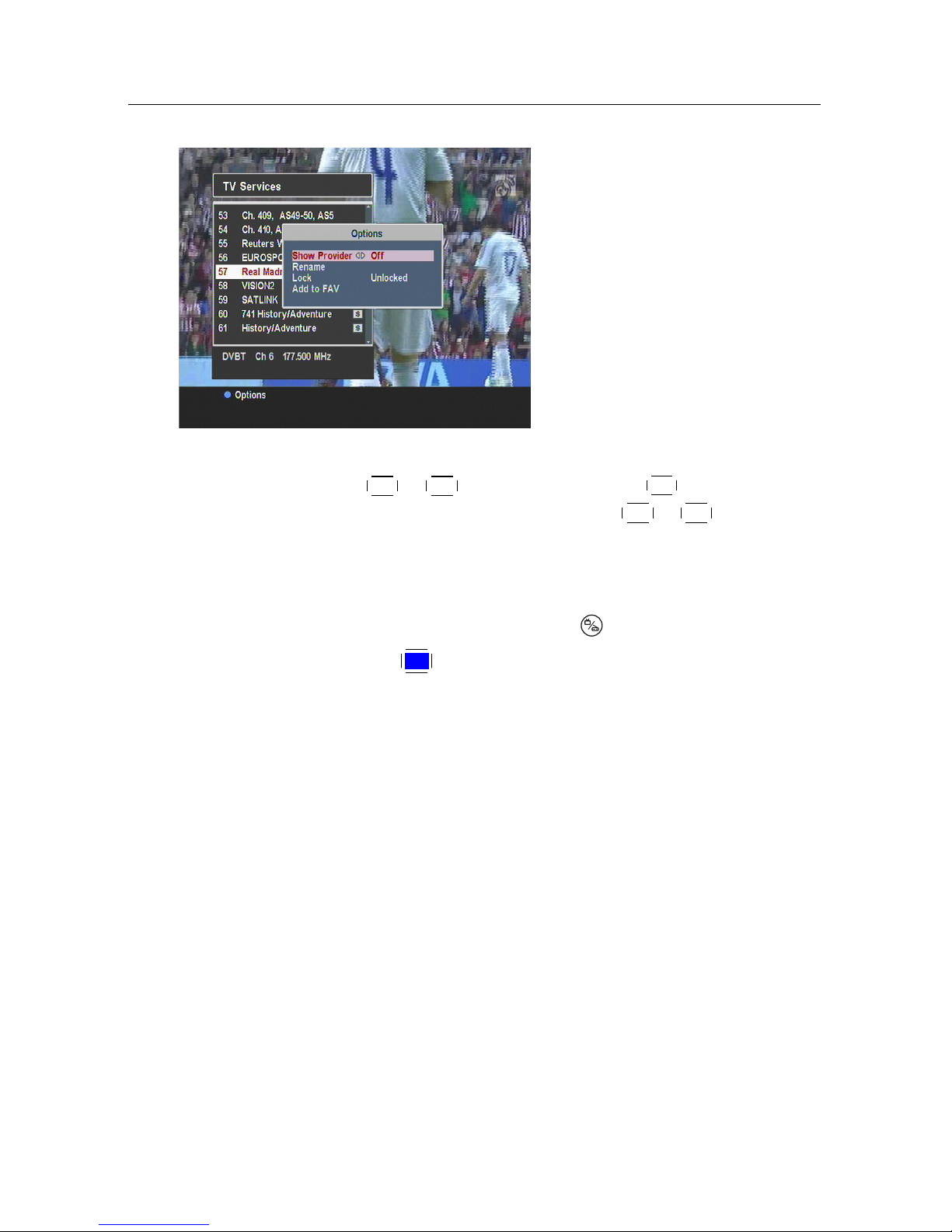

5.2.1 The services list . . . . . . . . . . . . . . . . . . . . . . . 24
5.2.2 The favourite services list . . . . . . . . . . . . . . . . . 26

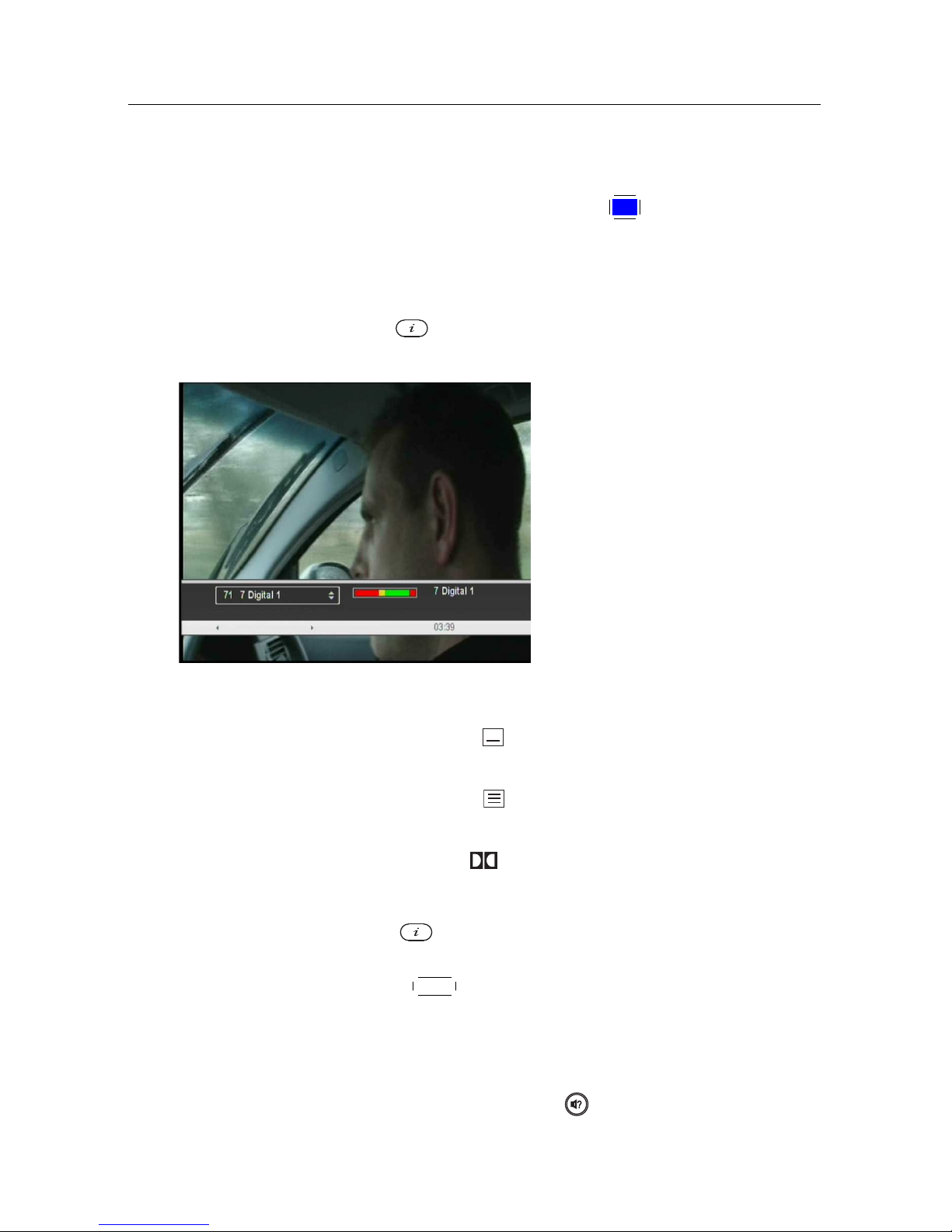

5.2.3 Viewing programme information . . . . . . . . . . . . 27
5.2.4 Selecting audio tracks . . . . . . . . . . . . . . . . . . . 27
5.2.5 Selecting subtitle tracks . . . . . . . . . . . . . . . . . . 28
5.2.6 Viewing teletext . . . . . . . . . . . . . . . . . . . . . . 28

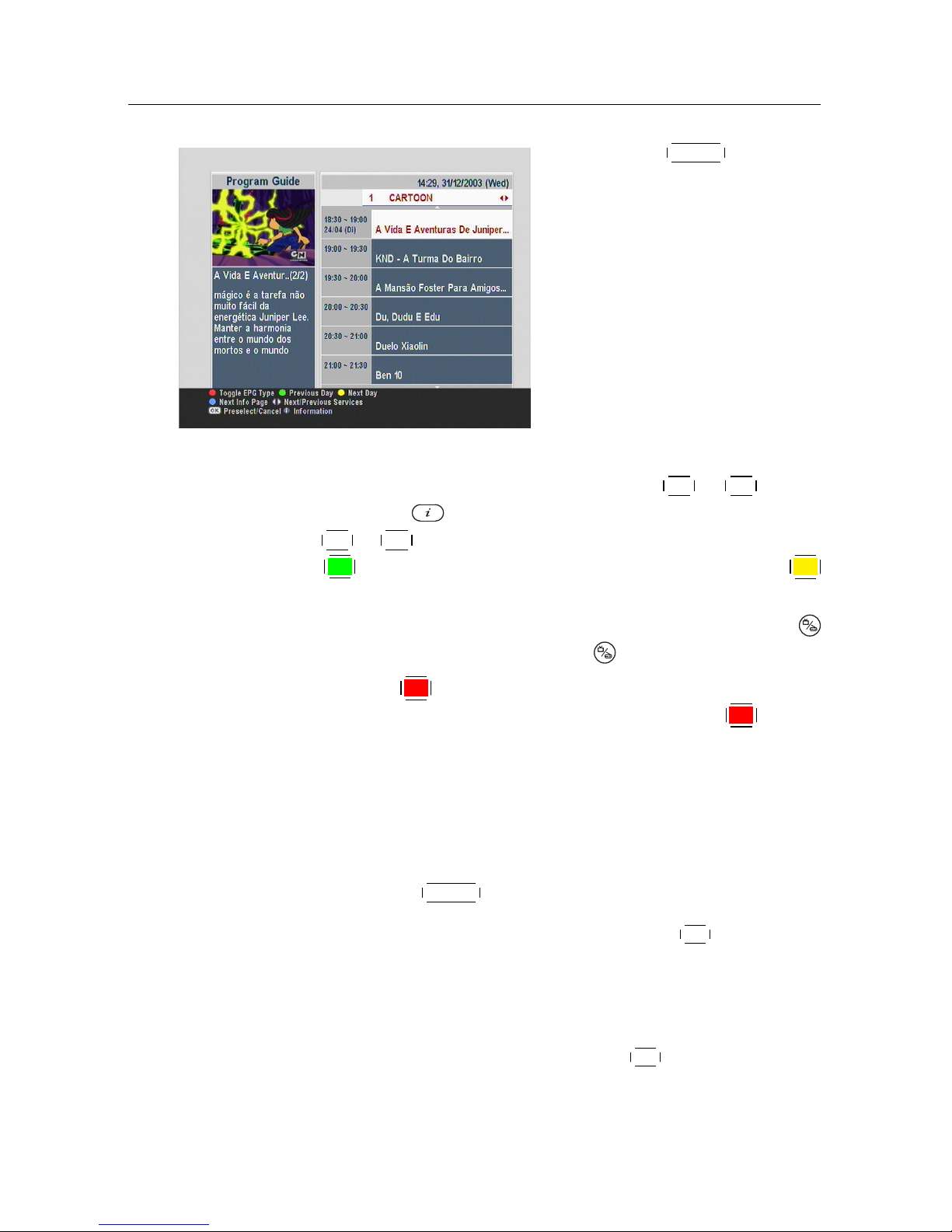

5.3 Viewing electronic programme guide . . . . . . . . . . . . . . 28

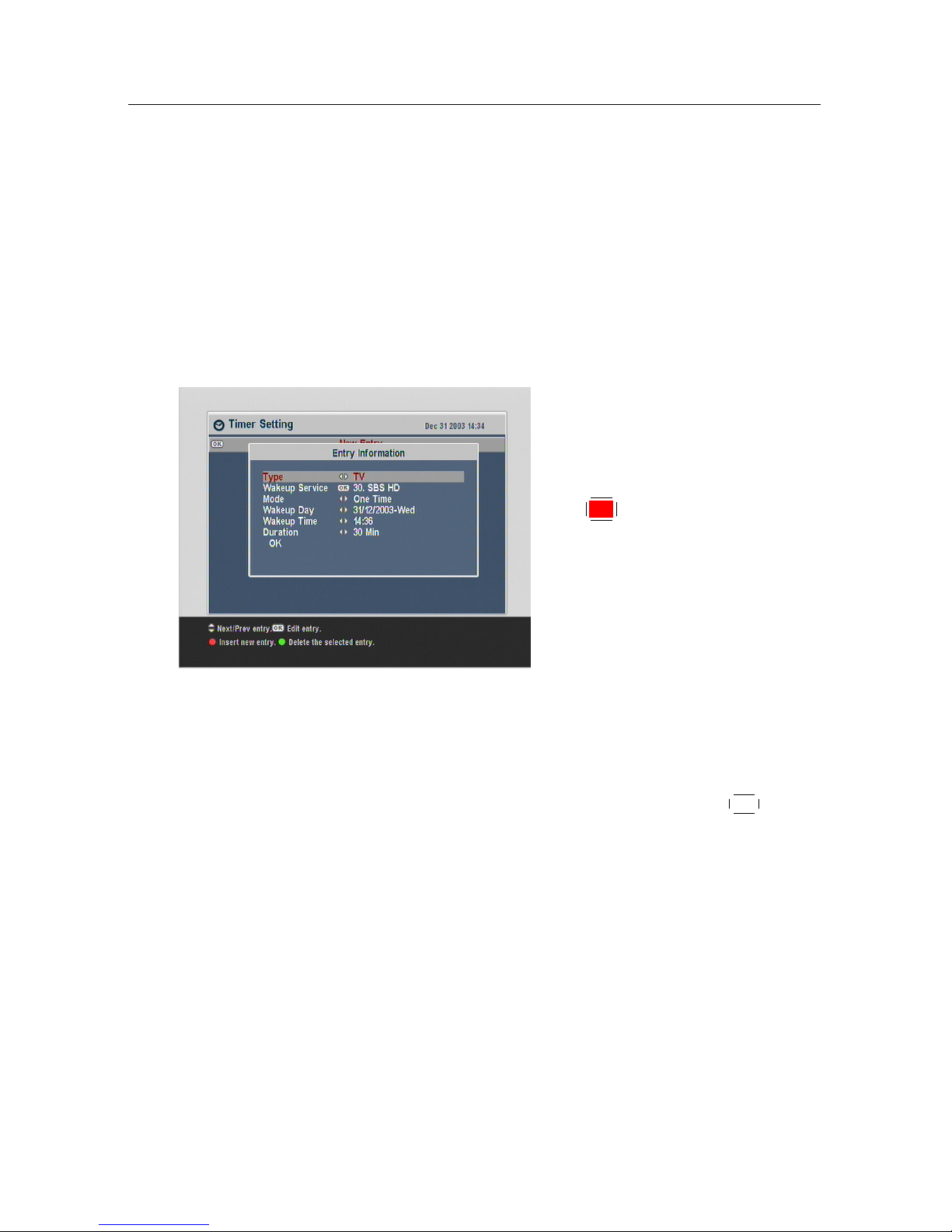

5.4 Making timer events . . . . . . . . . . . . . . . . . . . . . . . . 30
6 Listing Services 32

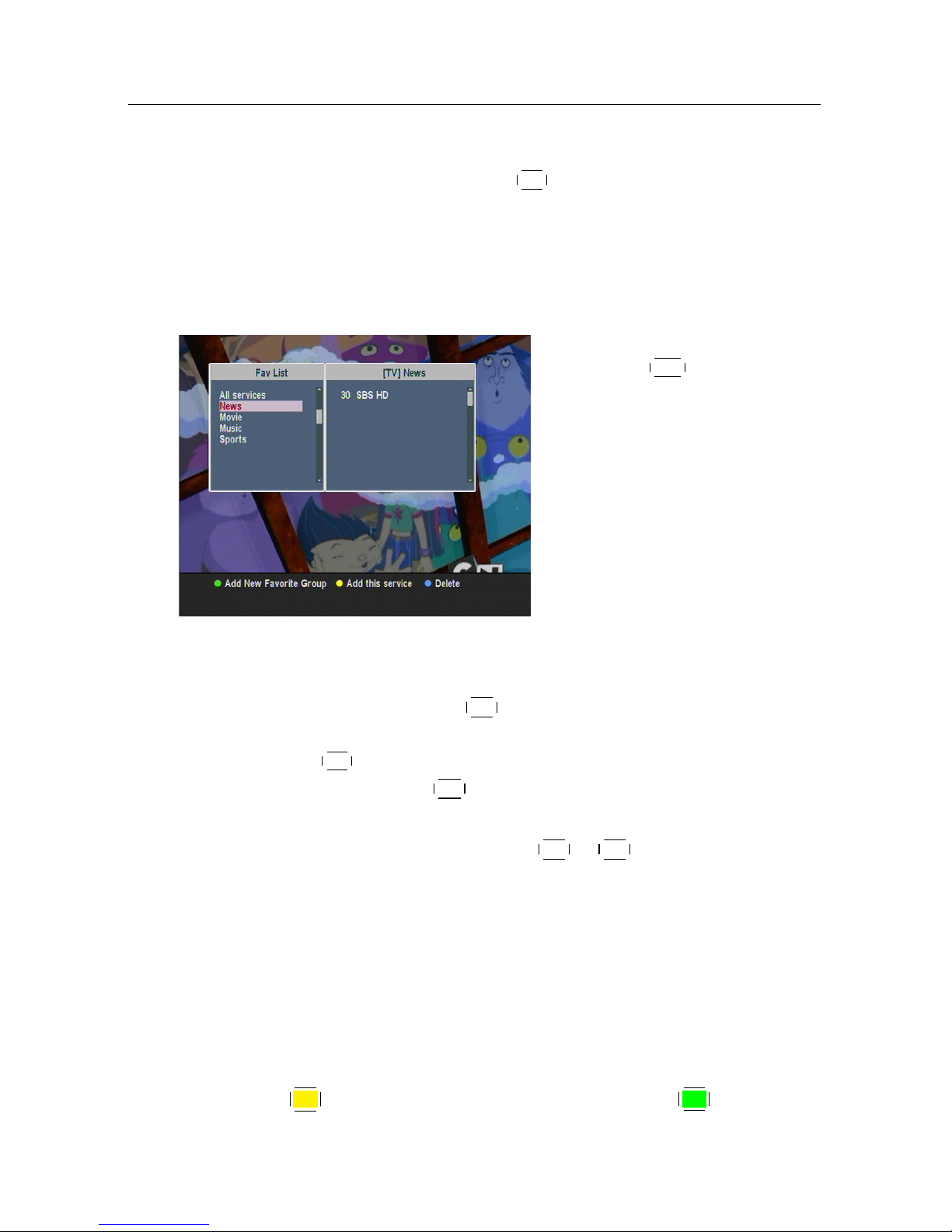

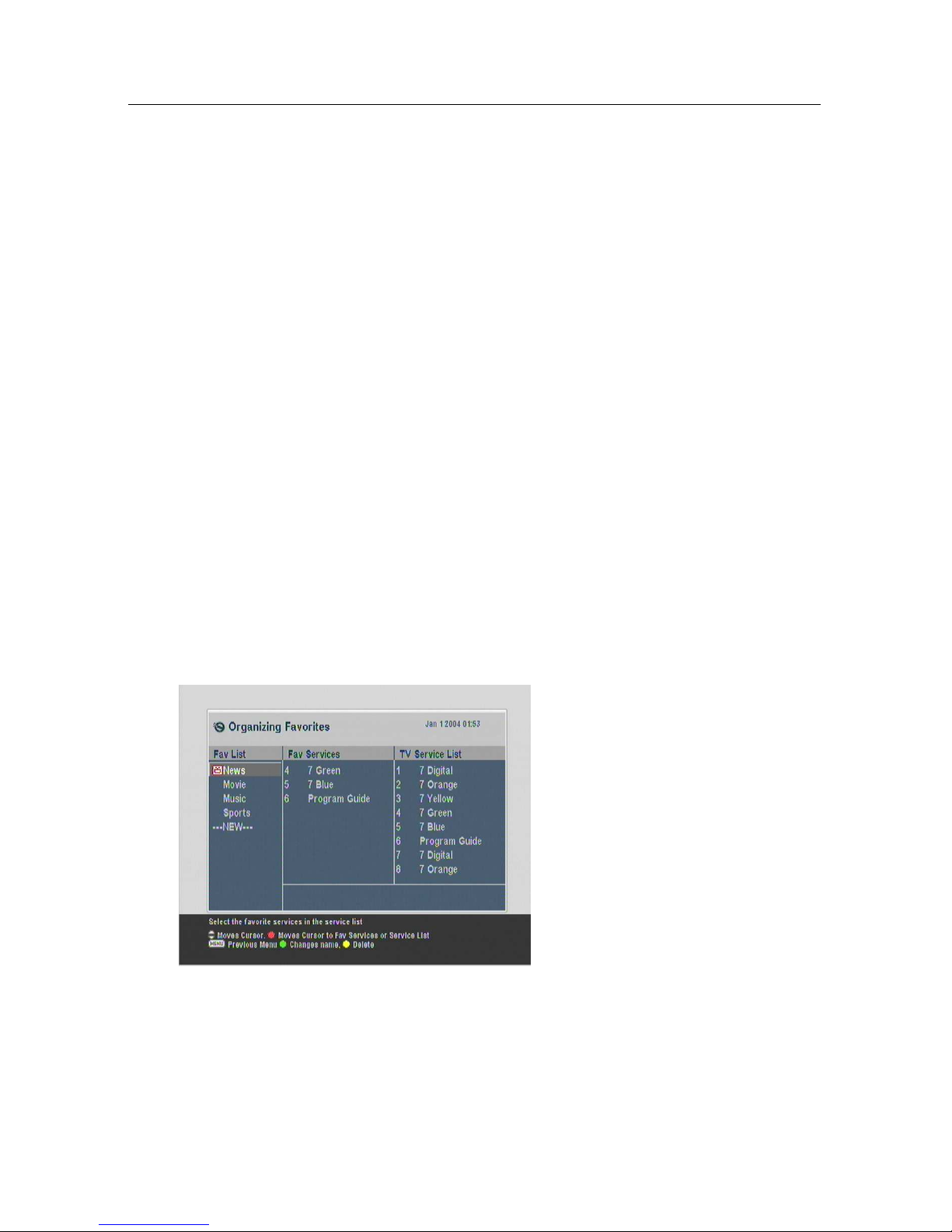

6.1 Editing the favourite list . . . . . . . . . . . . . . . . . . . . . . 32

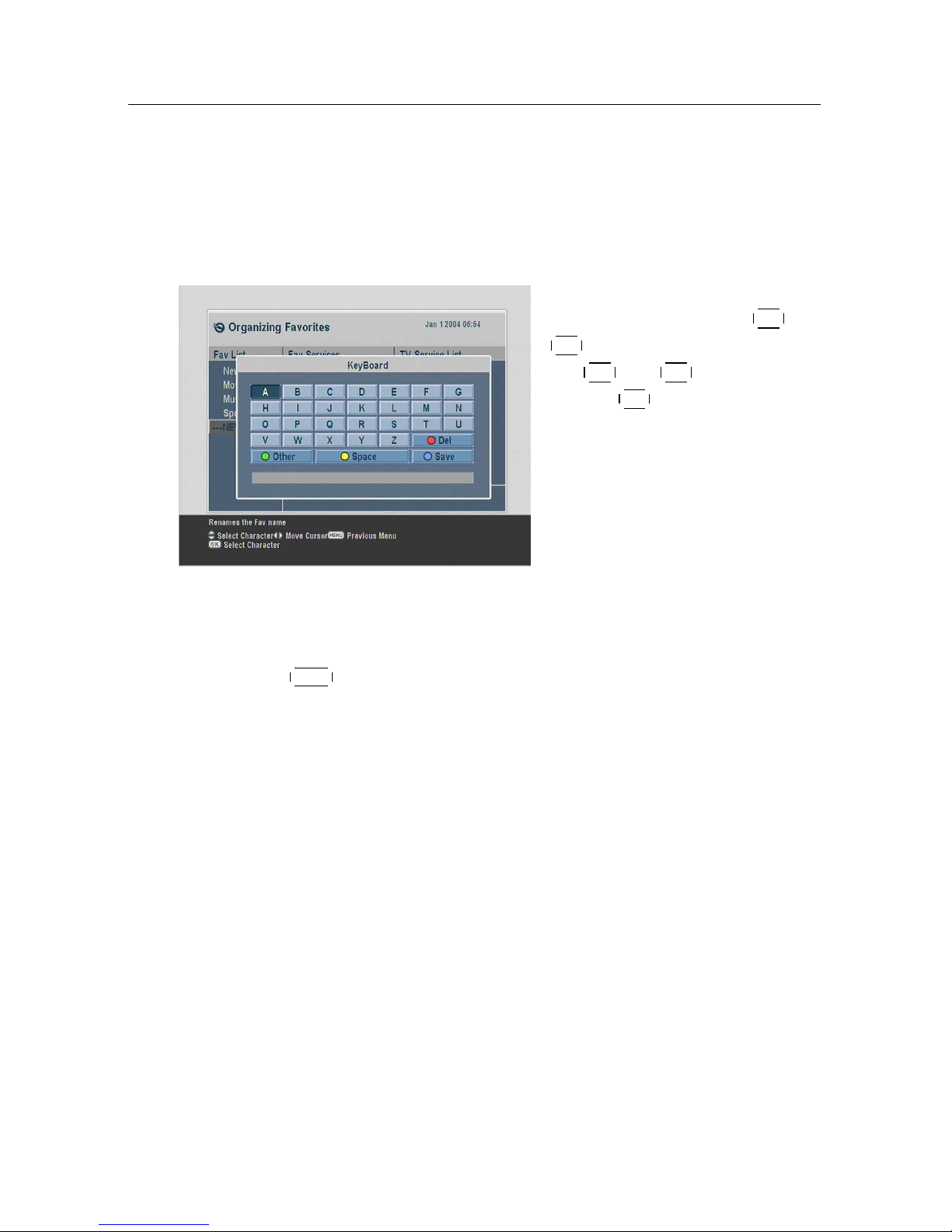

6.2 How to use on-screen keyboard . . . . . . . . . . . . . . . . . . 34
7 Firmware Update 35

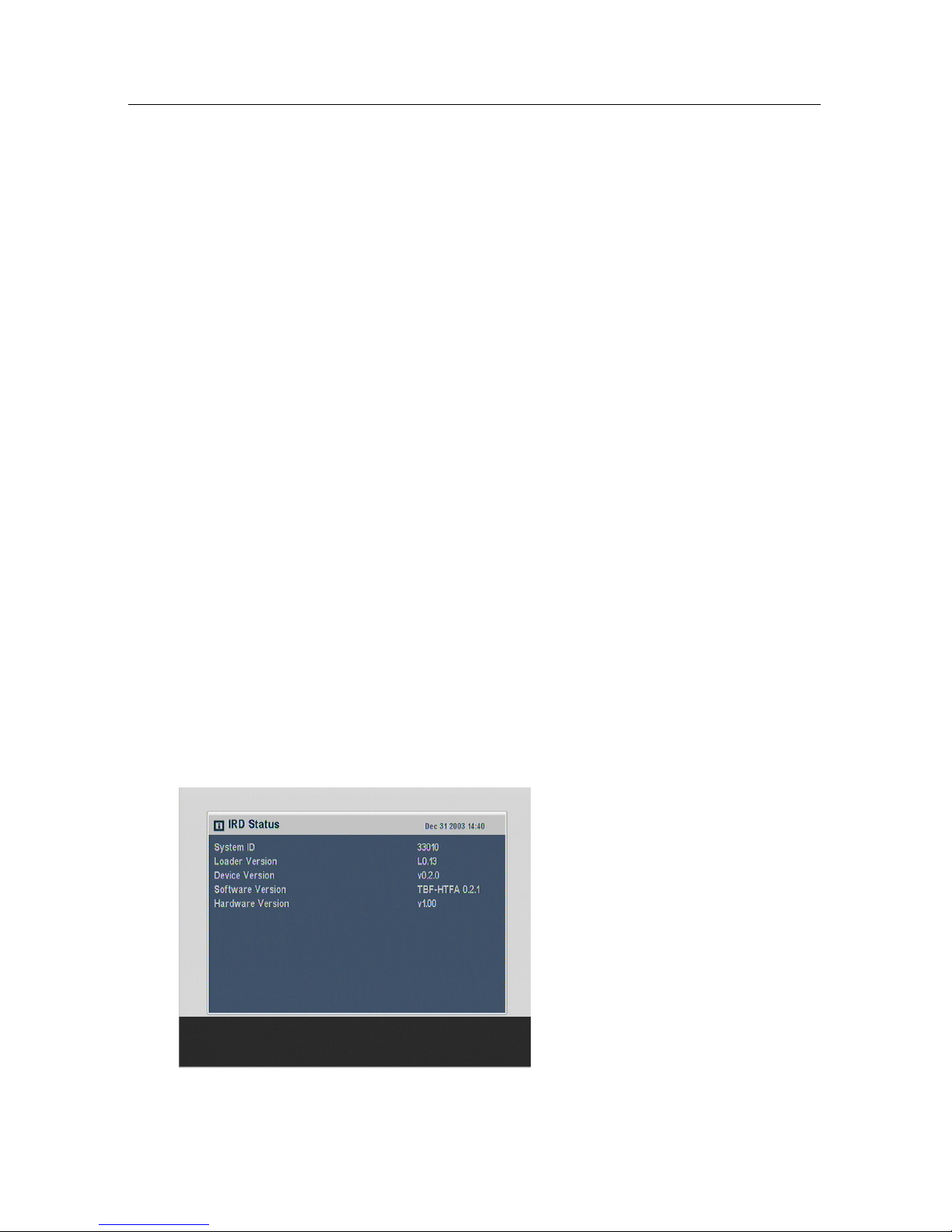

7.1 Checking the firmware information . . . . . . . . . . . . . . . 35

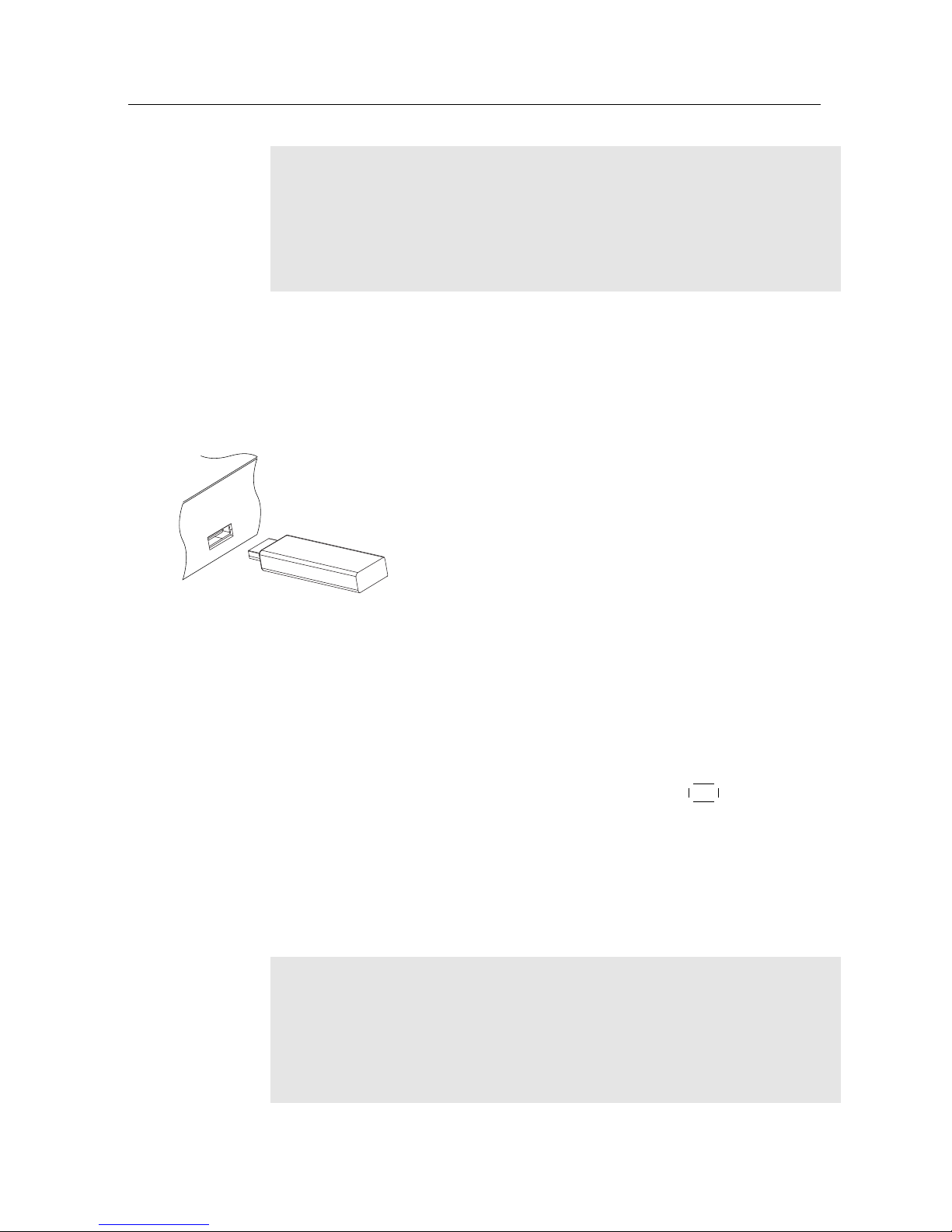

7.2 From a USB memory . . . . . . . . . . . . . . . . . . . . . . . . 36

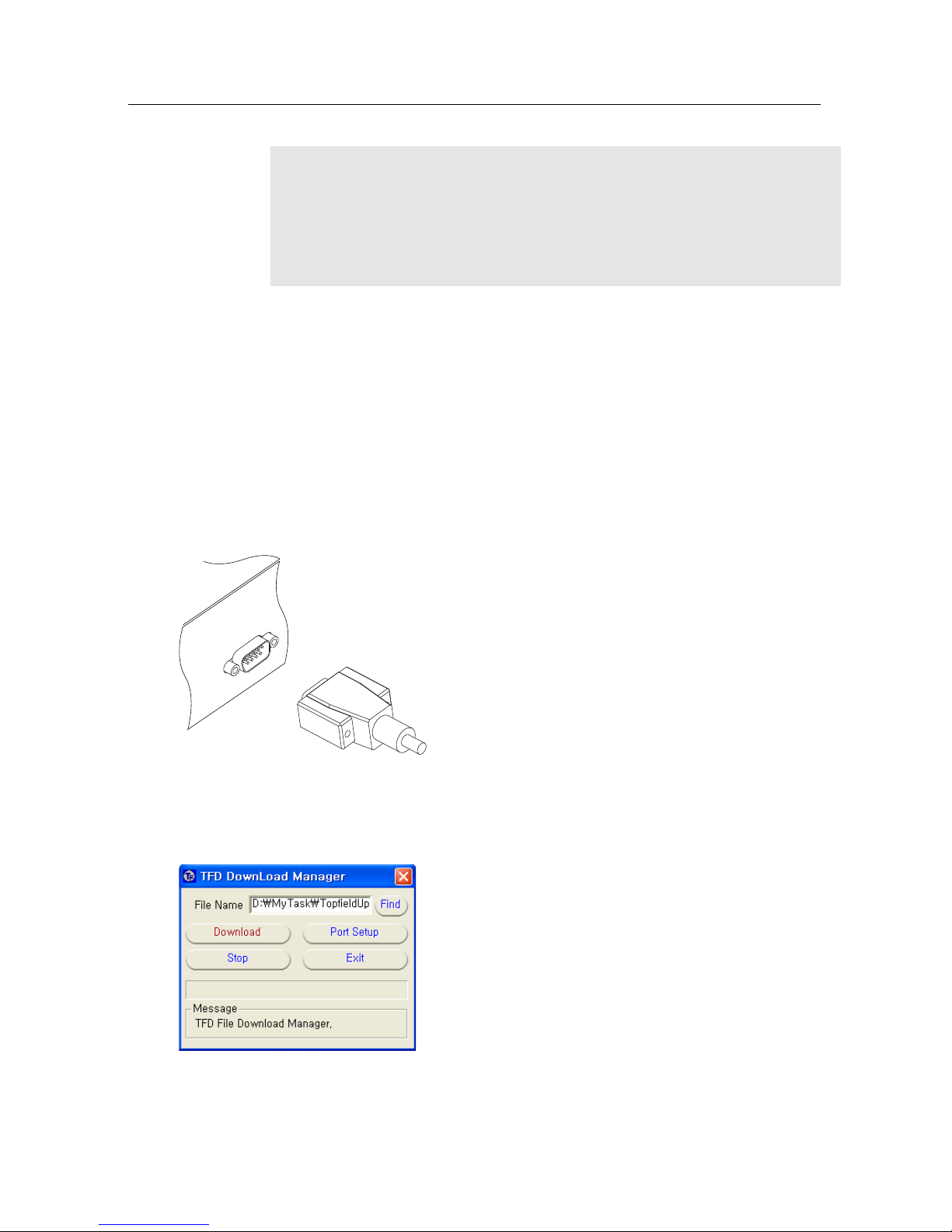

7.3 From your computer via RS-232 port . . . . . . . . . . . . . . . 37
Index 38
1
Chapter 1
Introduction
The TBF - 7110 digital receiver is fully compliant with the international Digital Video Broadcasting (DVB) standard, and thus
is able to receive digital broadcasts of that standard.
For its operation you need an antenna, which must be installed
appropriately.
NOTE
In general we equate a channel with a frequency. However,
unlike analogue broadcasts, digital broadcasts are not all assigned to their own frequencies; instead, multiple television
broadcasts are transmitted through a single frequency. The frequency in digital broadcasting is usually called transponder. To
reduce confusion in this manual, the word
service
is preferably
used than
channel
as a term to indicate one television or radio
broadcast.
1.1 Features
The TBF - 7110 digital receiver has the following features:
2 Introduction
• Supports the Australian Freeview Phase 1.
• Can store up to 2000 television and radio services.
• Can create favourite lists of your favourite services.
•
Can view information about the current television or
radio programme.
•
Has an electronic programme guide that provides an
overview of scheduled programmes.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control or
the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet,
we say that it is in standby mode; on the other hand, when it is
on, it is in operation mode. Even when you are not using the
digital receiver, you should keep it plugged into a wall outlet
to be in standby mode so that it can run timer events at any
time.
1.2 Controlling the digital receiver 3
1.2.1 The front panel
The front panel of the digital receiver has buttons to control
the digital receiver, specific lamps and a display to indicate its
status. The following indicates what they mean.
STANDBY
button switches the digital receiver between
standby mode and operation mode.
CHANNELc,
a
buttons switch to previous or next service.
They are also used to navigate in menus and interactive
screens.
lamp blinks whenever you press a button on the remote
control.
STANDBY
lamp lights up while the digital receiver is in
standby mode.
Front display
shows the current time in standby mode, and
displays the current service in operation mode.
4 Introduction
1.2.2 The remote control
14
1
4
18
16
9
12
2
17
3
5
10
15
7
6
11
13
19
3
8
20
21
5
1
button switches the digital receiver between standby mode and
operation mode.
2
is used to set a sleep timer in 10
minute increments.
3
V−
,
V+
buttons decrease or increase the volume. They are also
used to change values for menu options.
4
mutes the sound. Press again
to switch it back on.
5
P−
,
P+
buttons switch to previous or next service. They are also
used to navigate in menus and interactive screens.
6
switches between the current
service and the previously viewed
one.
7
Numeric buttons are used to enter a service number for service
change or to specify values for
menu options.
8
OK
displays the services list. See
§
5.2.1 for more details. It is also
used to select a menu item.
9
FAV displays the favourite lists.
10
displays the service information box. It is also used
to display more information about a programme.
11
is used to select an audio track and a sound mode, or
1.2 Controlling the digital receiver 5
a video track of multifeed programme.
12
is used to select a subtitle track.
13
displays teletext.
14
V.Format
changes video resolution. See§3.2.2 for more
details.
15
pauses live television.
16
switches between television services and radio ser-
vices.
17
GUIDE displays the electronic programme guide.
18
A/R changes aspect ratio. See § 3.2.1 for more details.
19
MENU
displays the main menu. It is also used to return
to the previous menu from a submenu.
20
EXIT is used to exit a menu or to hide on-screen info.
21
These buttons have different functions per menu. They
will be guided by on-screen help.
6 Setup
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the
following items with your digital receiver.
• Remote control unit
• Two batteries for the remote control (AAA 1.5 V)
• One component cable (RCA cable)
• One composite cable (RCA cable)
• A copy of this user guide
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.
2.2 Safety precautions 7
•
The mains power must be 90 to 250 volts. Check it before
connecting the digital receiver to the mains socket. For
the power consumption of the digital receiver, refer to
Table 2.1.
•
The mains outlet should be near the equipment. Do not
run an extension lead to the unit.
•
Do not expose the digital receiver to any moisture. The
digital receiver is designed for use indoors only. Use dry
cloth when cleaning the digital receiver.
• Place the digital receiver on a firm and level surface.
•
Do not place the digital receiver close to heat emitting
units or in direct sunlight, as this will impair cooling.
Do not lay any objects such as magazines on the digital receiver. When placed in a cabinet, make sure there
is a minimum space of 10 centimetres around it. For
the physical specification of the digital receiver, refer to
Table 2.2.
•
Protect the power cord from being walked on or pinched.
If the cord is damaged, do not use the digital receiver
and get the cord replaced.
•
Never open the digital receiver casing under any circumstances, the warranty will be void.
• Refer all servicing to a qualified service technician.
Table 2.1: Power specifications
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 20 W at maximum in operation
1 W in passive standby (MEPS compliant)
8 Setup
Table 2.2: Physical specifications
Size 260× 46× 190 mm
Weight 1.2 kg
Operating temperature 0 to 45 °C
Storage relative humidity 5 to 90 %
2.3 Rear panel connections
The TBF - 7110 has the following connections on the back.
Check what connections your television set has in comparison
with the digital receiver.
1
ANT IN Terrestrial broadcasting signal input socket.
2
ANT OUT
Terrestrial broadcasting signal output socket
through the ANT IN socket for another digital
receiver.
3
USB
USB port for firmware update and data transfer.
4
HDMI
Audio and video output socket for the high
definition television set.
5
Y/Pb/Pr Component video output socket for the tele-
vision set. (green/blue/red)
6
AUDIO L/R
Stereo audio output socket for the television
set or the audio system. (white/red)
2.4 Connecting up your digital receiver 9
7
VIDEO
Composite video output socket for the television set. (yellow)
8
S/PDIF
Dolby digital output socket for the audio system.
9
RS-232
Serial port for firmware update and data
transfer.
Table 2.3: Connectors specifications
HDMI High definition video output
Left & right audio output
Dolby Digital audio output
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
YPbPr Component video (YUV) output
S/PDIF Dolby digital audio output
RS-232 115.2 kbps at maximum
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other appliances.
If you have any problem with your setup or need help, contact
your dealer.
2.4.1 Connecting the antenna
Whatever sort of connection you have between the digital receiver and the television,
you need to connect the digital receiver to
your television antenna so that it can receive
digital television services.
Connect the antenna cable to the ANT IN connector.
If you have another digital receiver, you may
link the ANT OUT connector to your television.

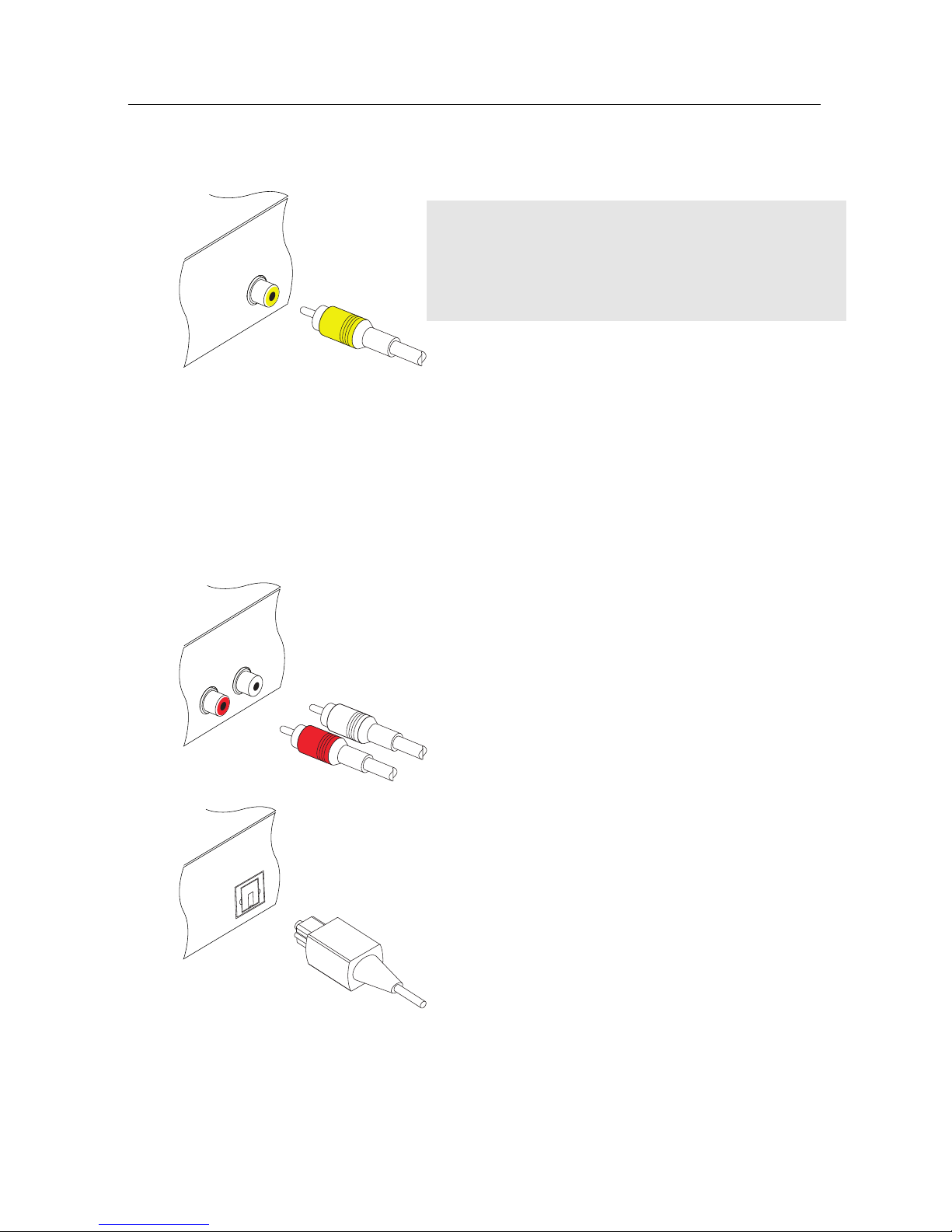

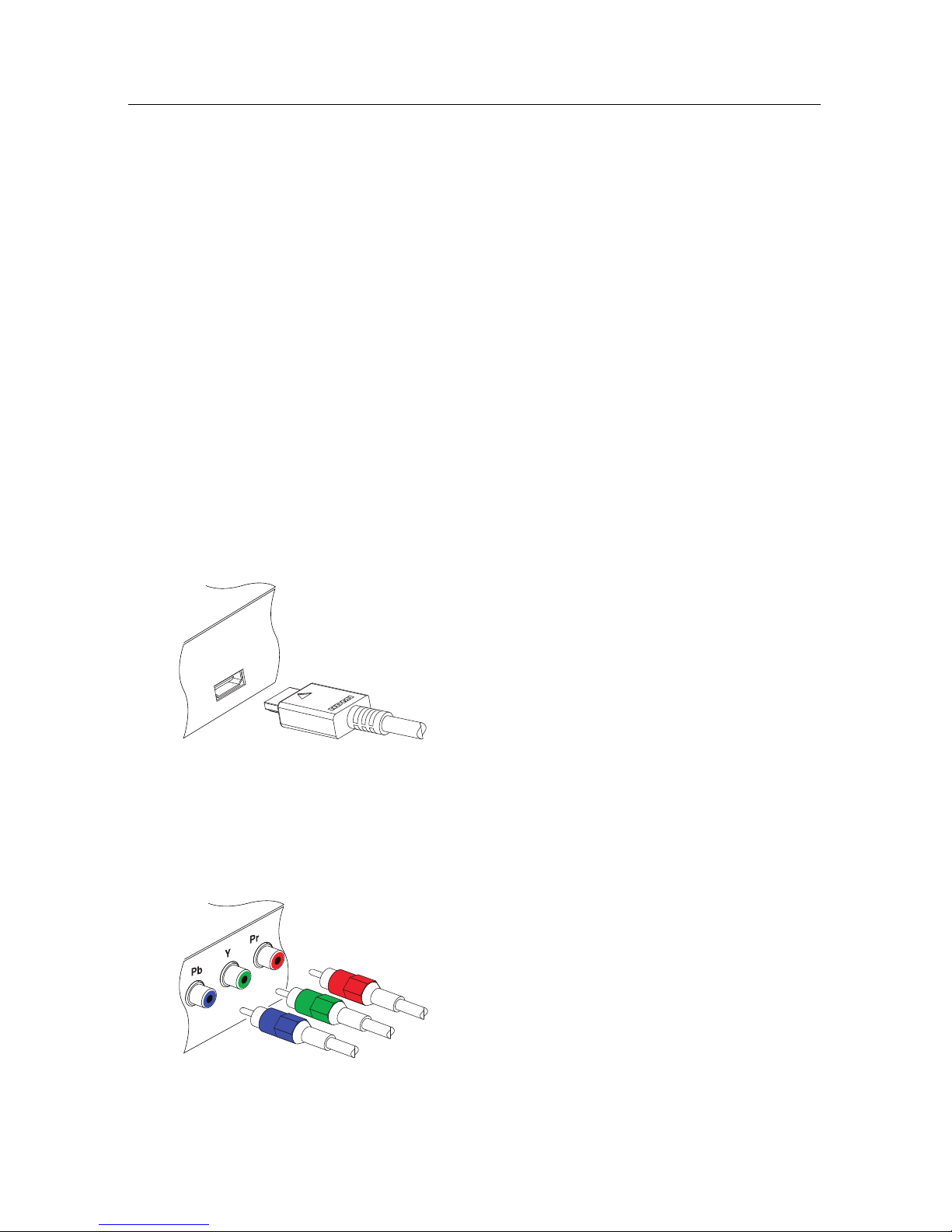

Loading...
