Page 1
TOPFIELD
CBV-7100
User Guide
High Definition
Digital Cable Receiver
VIACCESS Embedded
Page 2
ii CONTENTS
Contents
Contents ii
1 Introduction 1
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Controlling the digital receiver . . . . . . . . . . . . . . . . . . 2
1.2.1 Front panel . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2.2 Remote control . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Subscription card information . . . . . . . . . . . . . . . . . . 5
2 Setup 6
2.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Rear panel connections . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Connecting up your digital receiver . . . . . . . . . . . . . . . 9
2.4.1 Connecting to the broadcasting cable . . . . . . . . . . 9

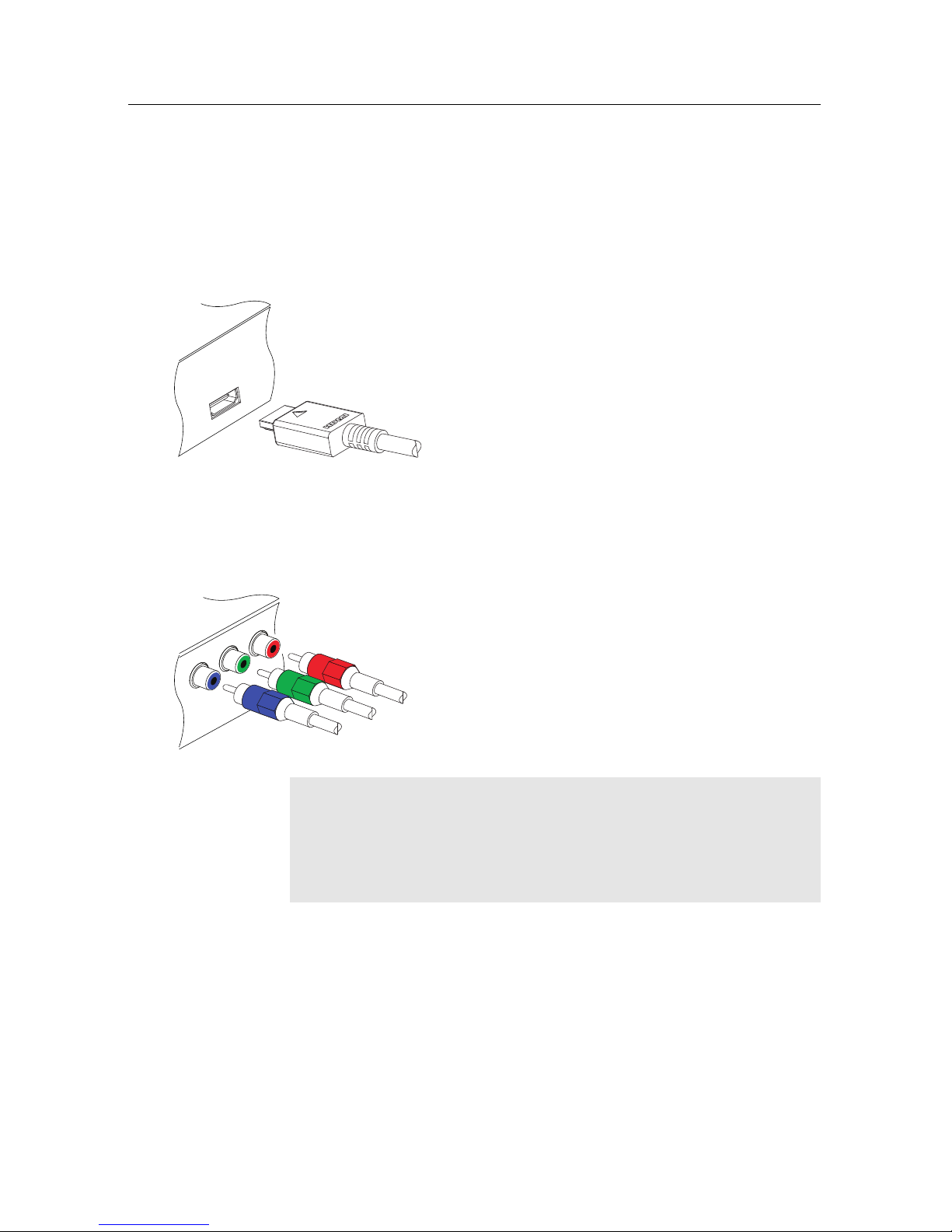

2.4.2 Connecting to your television set . . . . . . . . . . . . 9
2.5 Switching on for the first time . . . . . . . . . . . . . . . . . . 11
3 Service Search 14
3.1 Searching broadcasting services . . . . . . . . . . . . . . . . . 14
3.2 Resetting to factory settings . . . . . . . . . . . . . . . . . . . 15
4 Preference Settings 16
4.1 Language settings . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1.1 Menu language . . . . . . . . . . . . . . . . . . . . . . 16
Page 3
CONTENTS iii
4.1.2 Subtitle language . . . . . . . . . . . . . . . . . . . . . 17
4.1.3 Audio language . . . . . . . . . . . . . . . . . . . . . . 17

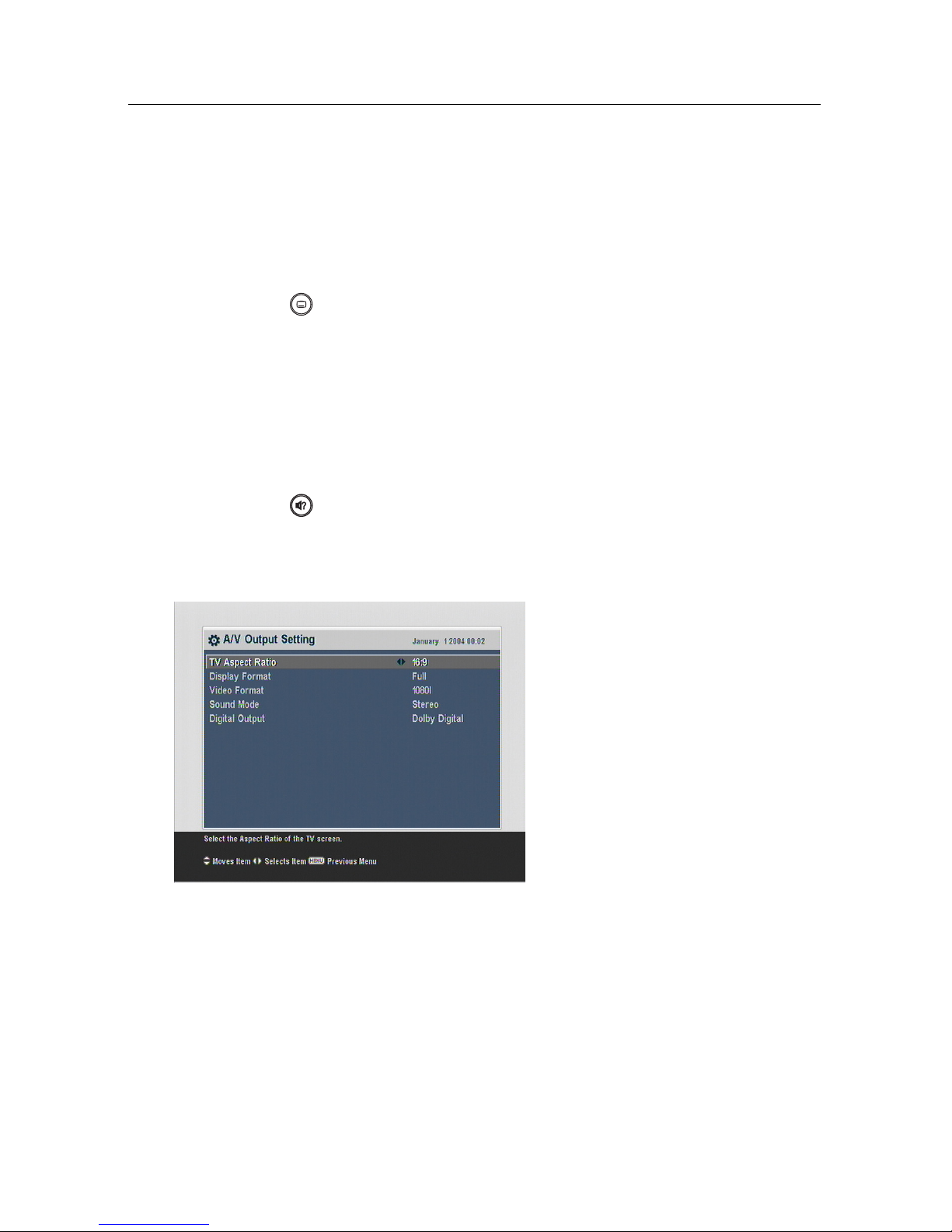

4.2 Video and audio settings . . . . . . . . . . . . . . . . . . . . . 17
4.2.1 High definition television . . . . . . . . . . . . . . . . 17
4.2.2 Television aspect ratio . . . . . . . . . . . . . . . . . . 18
4.2.3 Audio mode . . . . . . . . . . . . . . . . . . . . . . . . 19

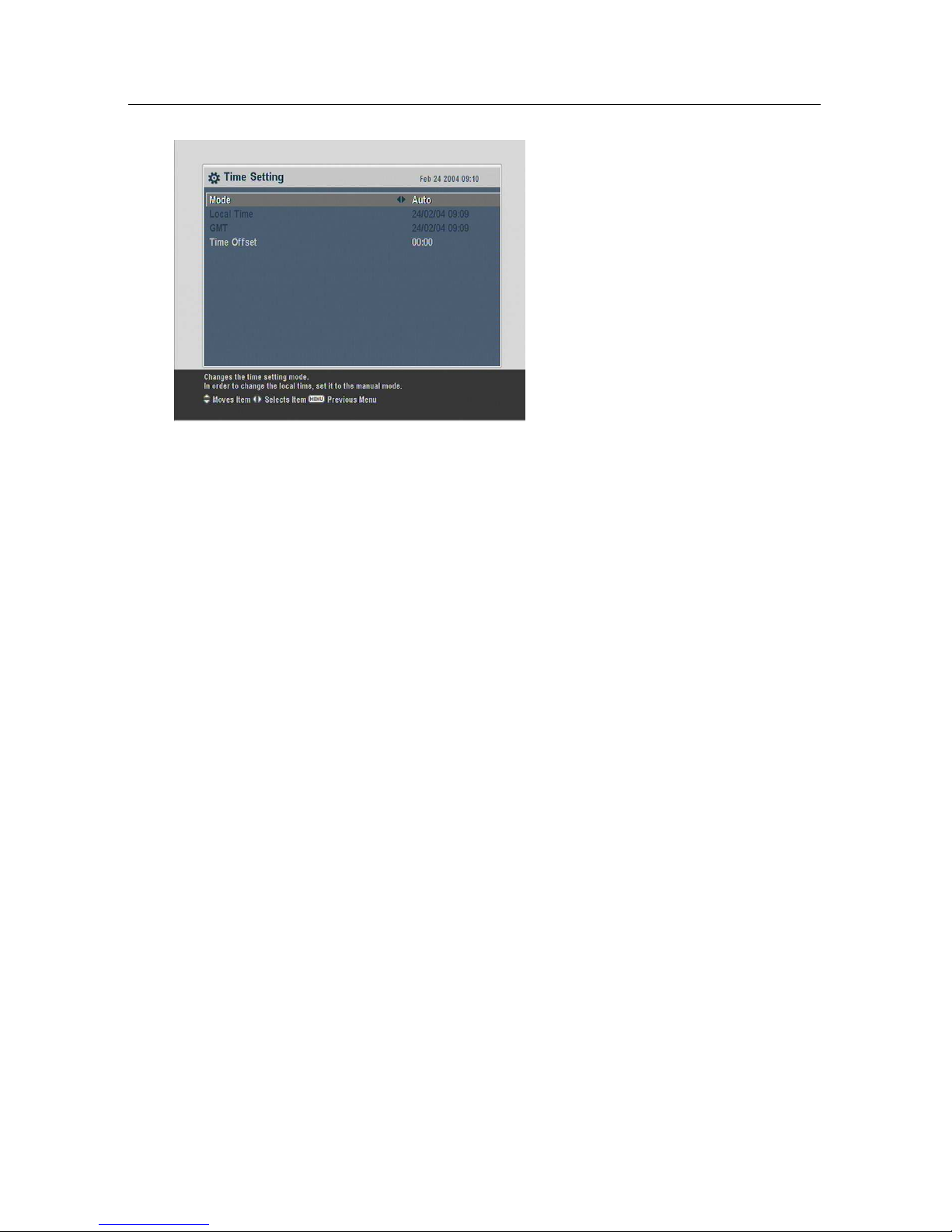

4.3 Local time setting . . . . . . . . . . . . . . . . . . . . . . . . . 19
4.4 Parental control . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.5 Adjusting the On-Screen Display . . . . . . . . . . . . . . . . 22
4.6 Standby mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5 Daily Usage 24
5.1 Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.2 Watching television . . . . . . . . . . . . . . . . . . . . . . . . 24

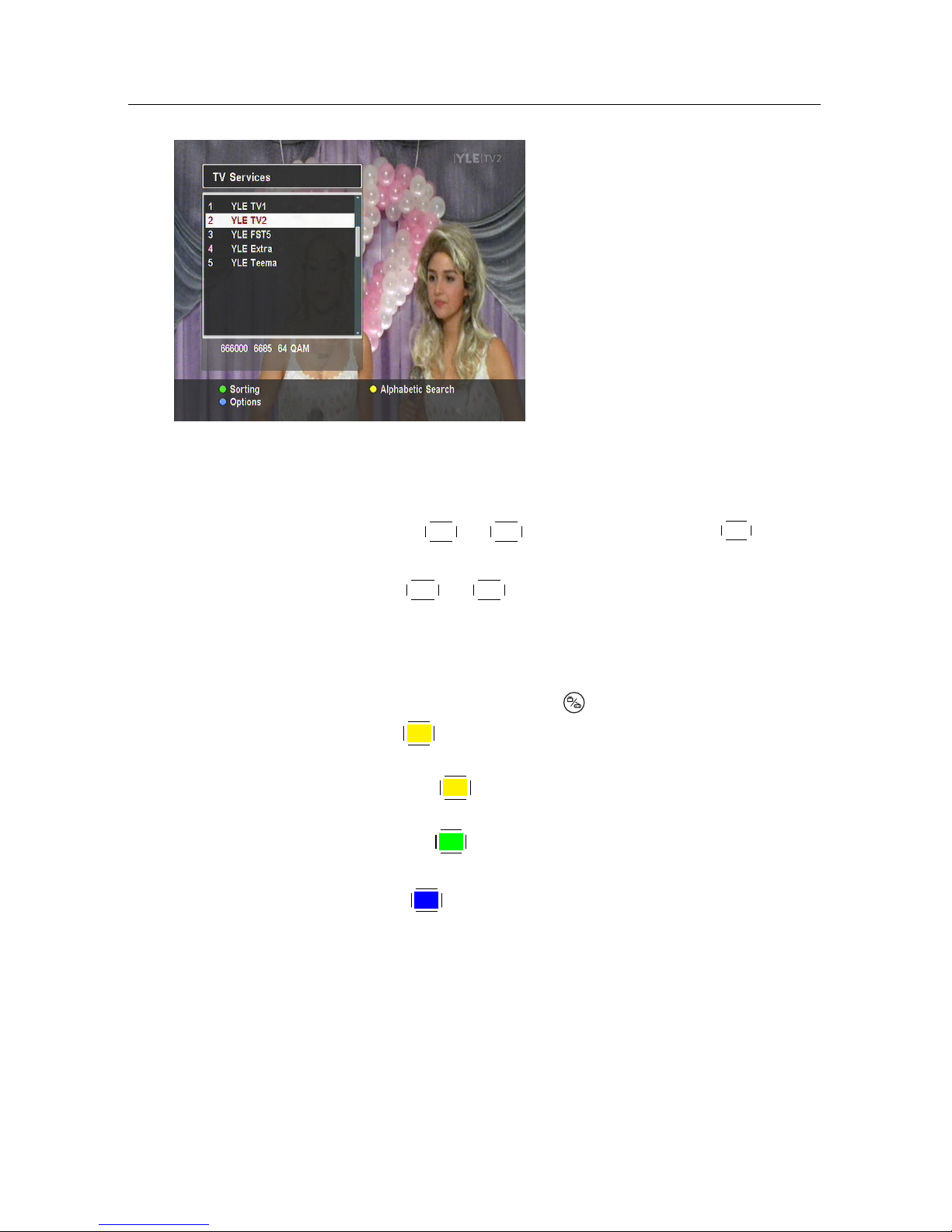

5.2.1 The services list . . . . . . . . . . . . . . . . . . . . . . 24

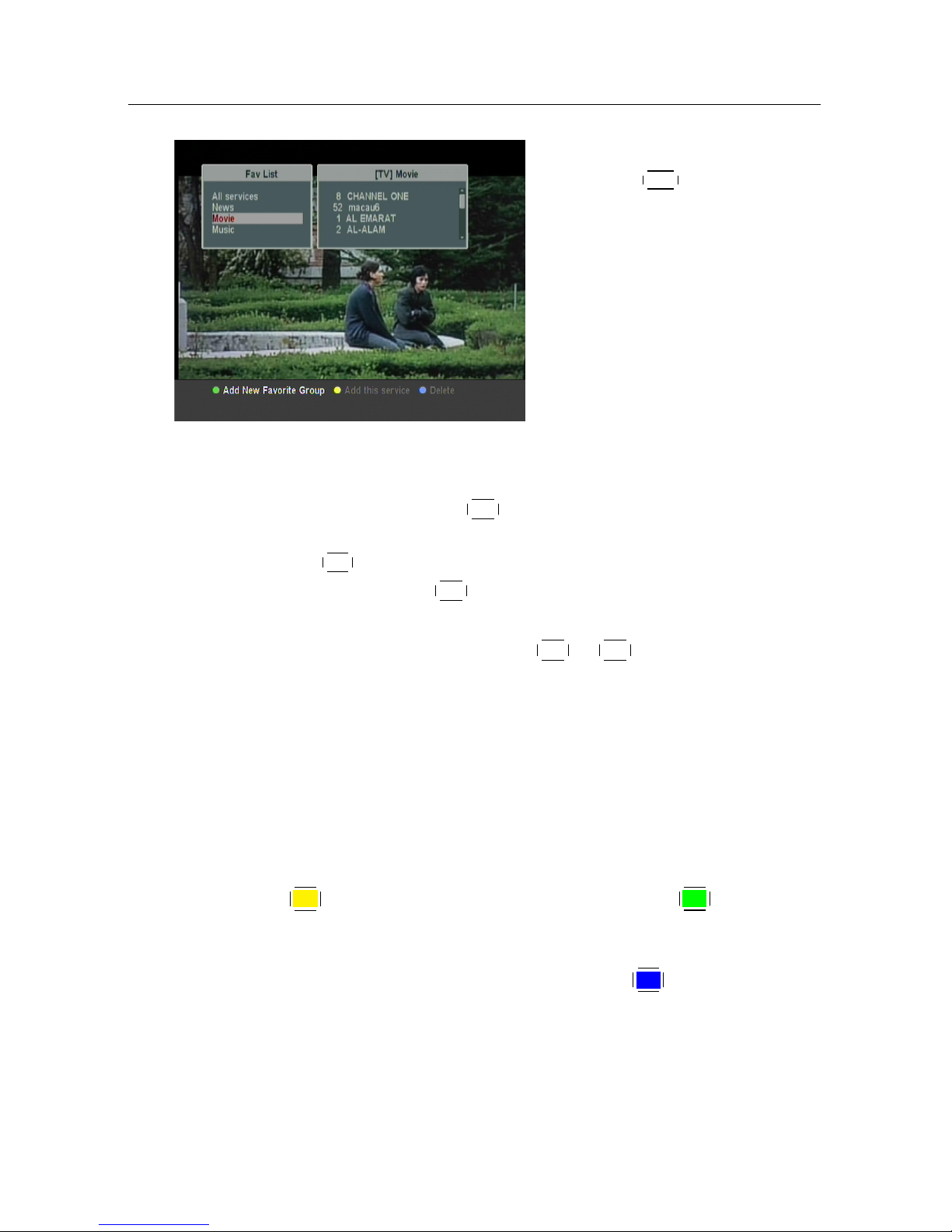

5.2.2 The favourite service lists . . . . . . . . . . . . . . . . 26

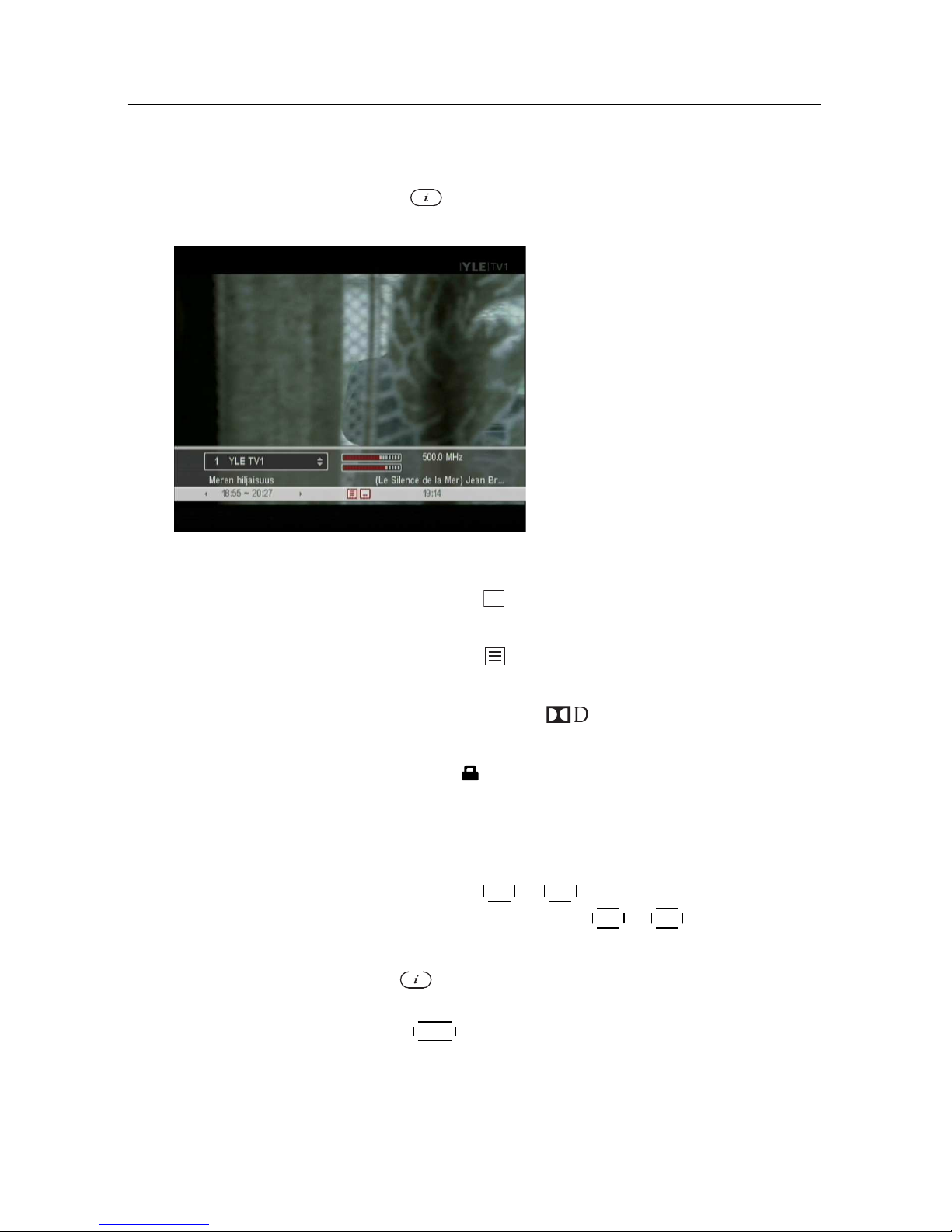

5.2.3 Viewing programme information . . . . . . . . . . . . 28
5.2.4 Selecting audio tracks . . . . . . . . . . . . . . . . . . 29
5.2.5 Selecting subtitle tracks . . . . . . . . . . . . . . . . . 29
5.2.6 Viewing teletext . . . . . . . . . . . . . . . . . . . . . . 29

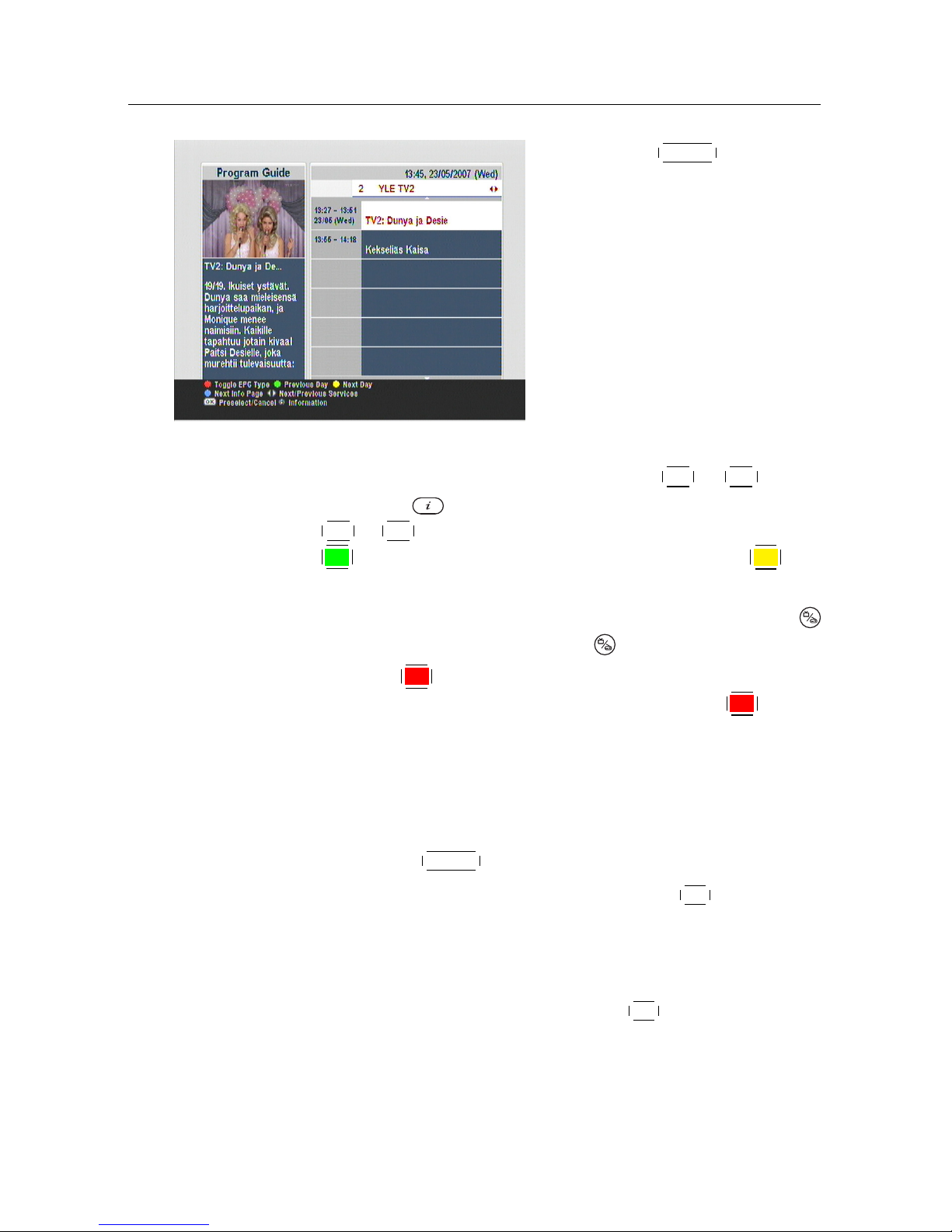

5.3 Viewing electronic programme guide . . . . . . . . . . . . . . 29

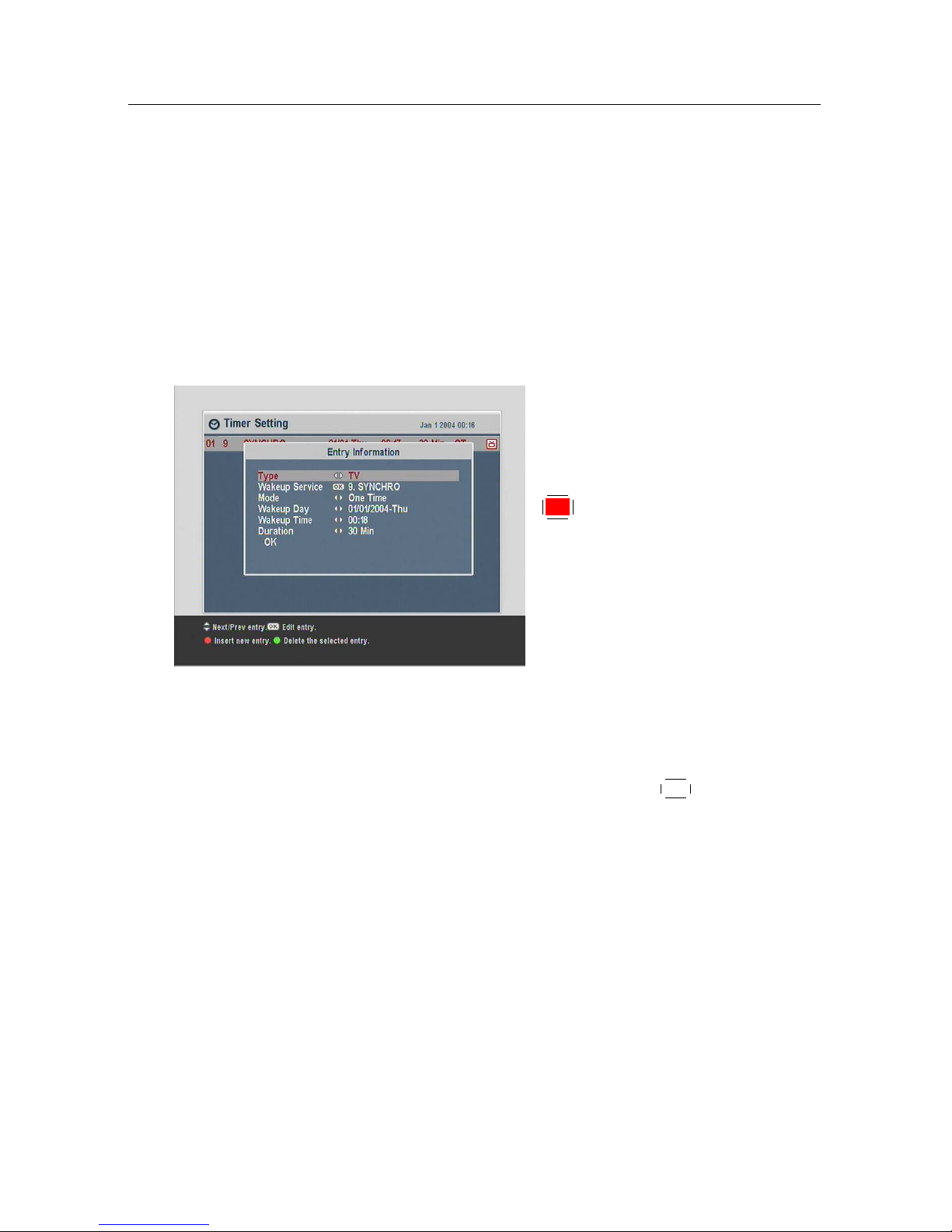

5.4 Making timer events . . . . . . . . . . . . . . . . . . . . . . . 31
6 Listing Services 33
6.1 Editing the services list . . . . . . . . . . . . . . . . . . . . . . 33

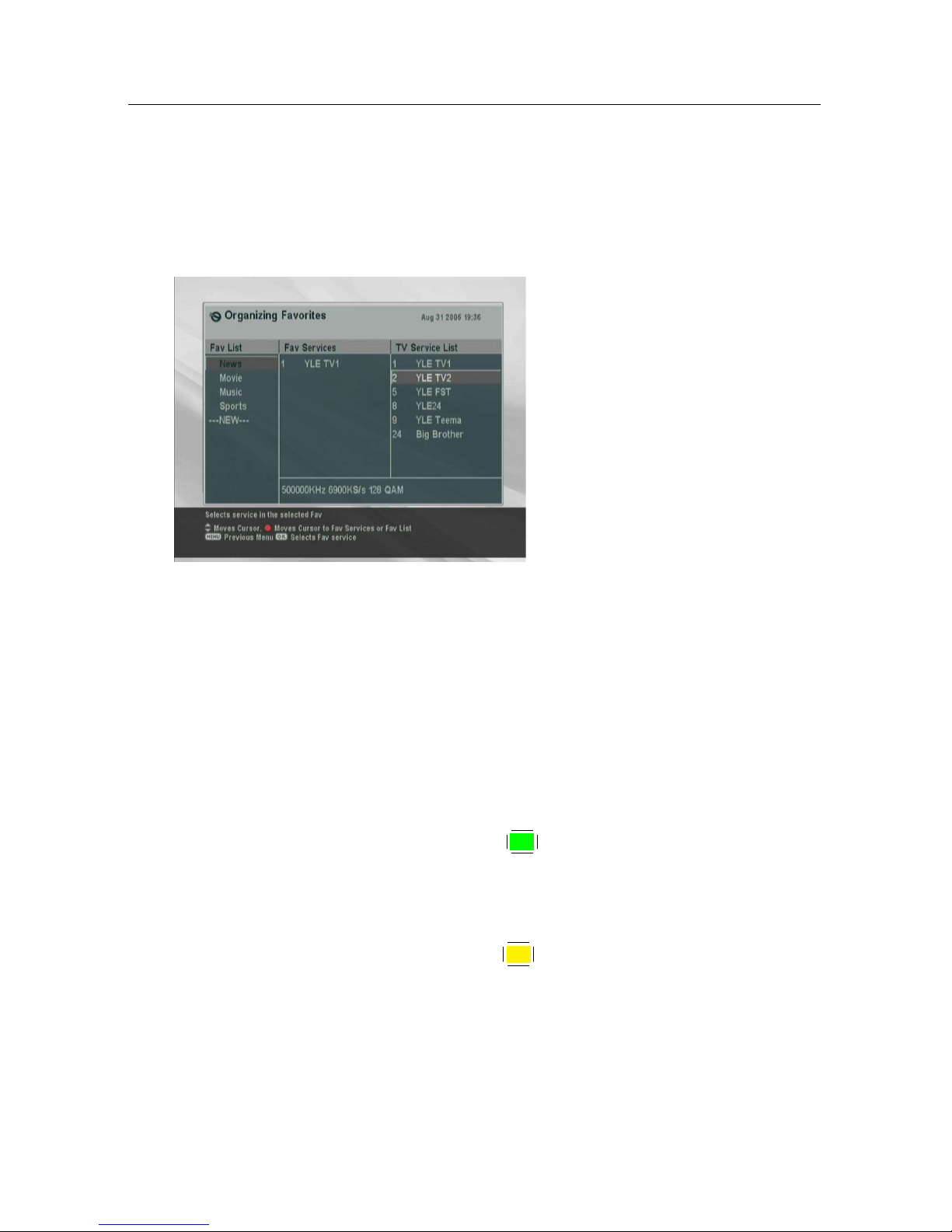

6.2 Editing the favourite lists . . . . . . . . . . . . . . . . . . . . . 35

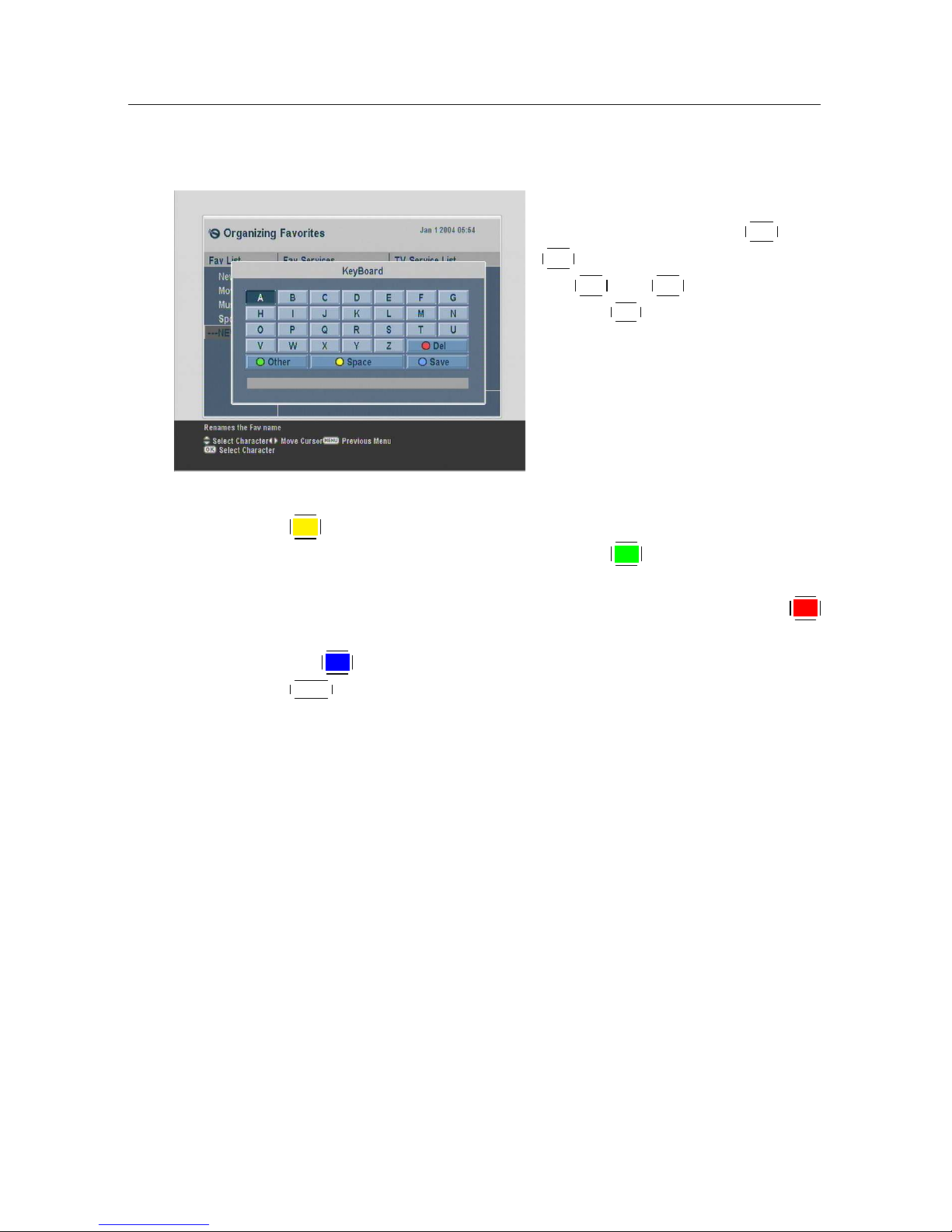

6.3 How to use on-screen keyboard . . . . . . . . . . . . . . . . . 37
7 Firmware Update 38
Index 39
Page 4
Page 5
1
Chapter 1
Introduction
The CBV-7100 digital receiver is fully compliant with the international Digital Video Broadcasting (DVB) standard, and thus
is able to receive digital broadcasts of that standard.
NOTE
In general we equate a channel with a frequency. However,
unlike analogue broadcasts, digital broadcasts are not all
assigned to their own frequencies; instead, multiple television broadcasts are transmitted through a single frequency.
The frequency in digital broadcasting is usually called transponder. To reduce confusion in this manual, the word ser-
vice is preferably used than channel as a term to indicate
one television or radio broadcast.
1.1 Features
This digital receiver has the following features:
• Can store up to 2000 television and radio services.
• You can edit the services list.
• Can create favourite lists of your favourite services.
Page 6
2 Introduction
• Can view information about the current television or radio programme.
• Has an electronic programme guide that provides an
overview of scheduled programmes.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control or
the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall
socket, we say that it is in standby mode; on the other hand,
when it is on, it is in operation mode. Even when you are not
using the digital receiver, you should keep it plugged into a
wall socket to be in standby mode so that it can run timer
events at any time.

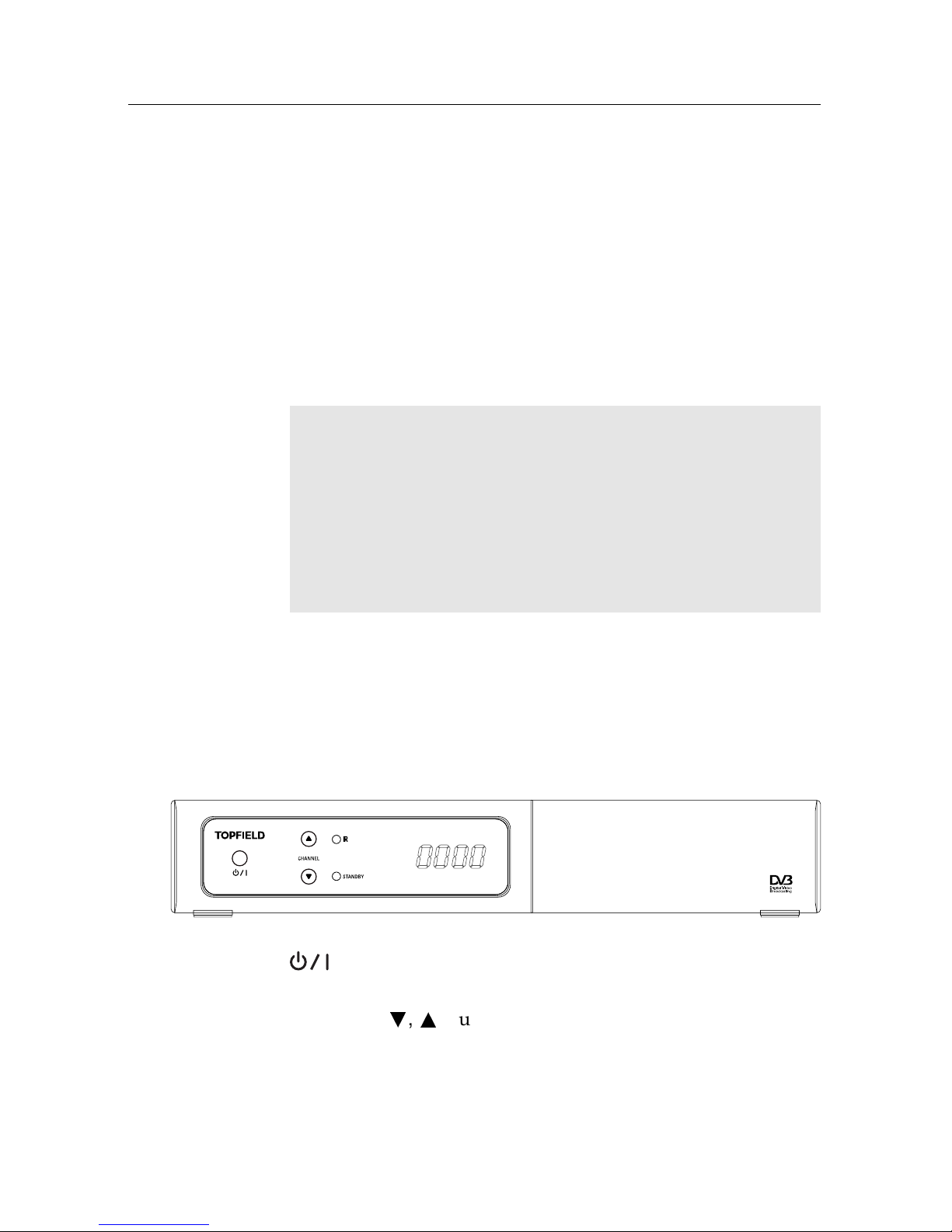

1.2.1 Front panel
The front panel of the digital receiver has buttons to control
the digital receiver, specific lamps and a display to indicate its
status. The following indicates what they mean.
button switches the digital receiver between standby mode
and operation mode.
CHANNELc,
a
buttons switch to the previous or next service. They are also used to navigate in menus and interactive screens.
Page 7
1.2 Controlling the digital receiver 3
lamp blinks every time you press a button on the remote
control.
STANDBY lamp lights up while the digital receiver is in standby
mode.
Front display shows the current time in standby mode, and
displays the current service in operation mode.

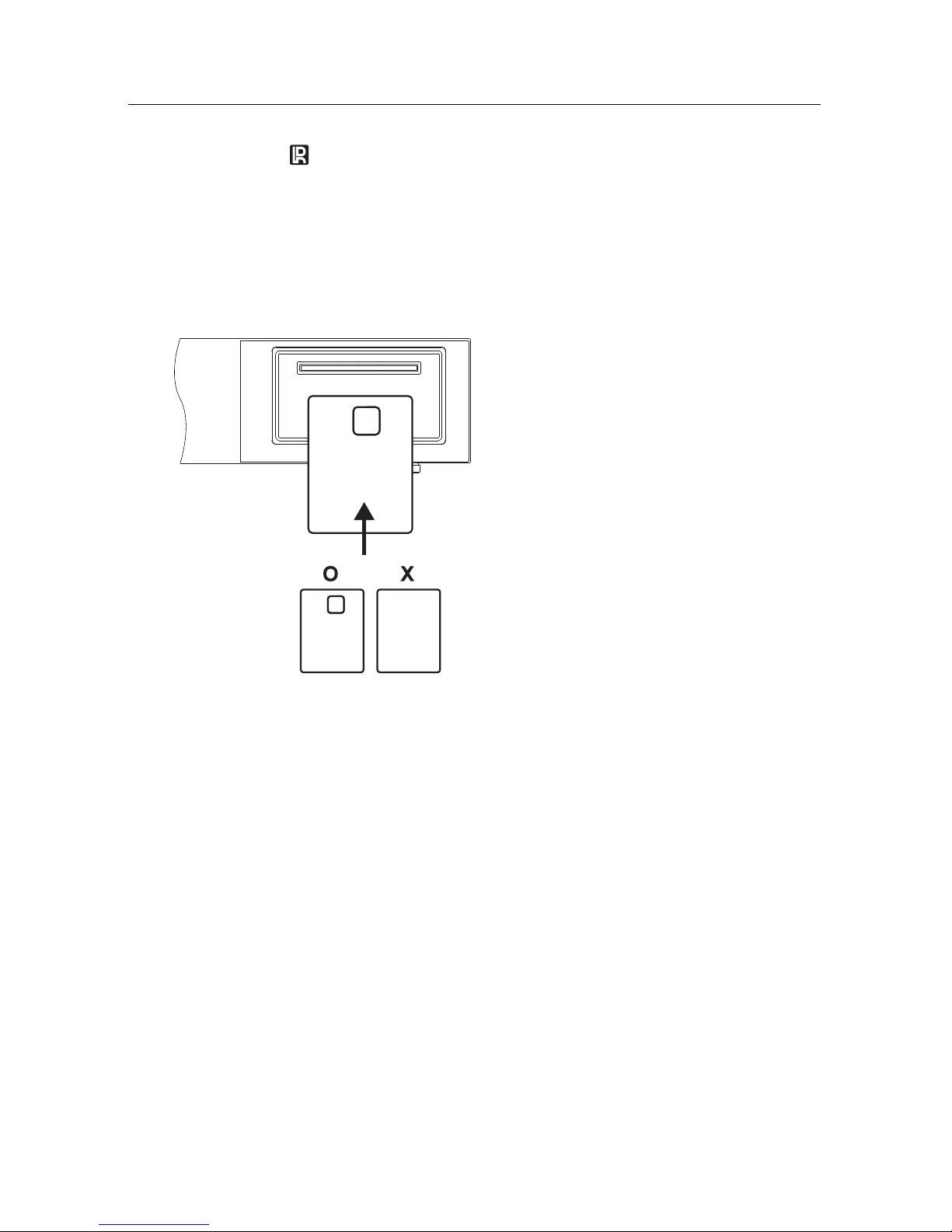

You have to insert your subscription
card into the front slot to watch pay
services. When you insert a subscription card, the side on which the chip is
mounted must face upward.
Page 8
4 Introduction

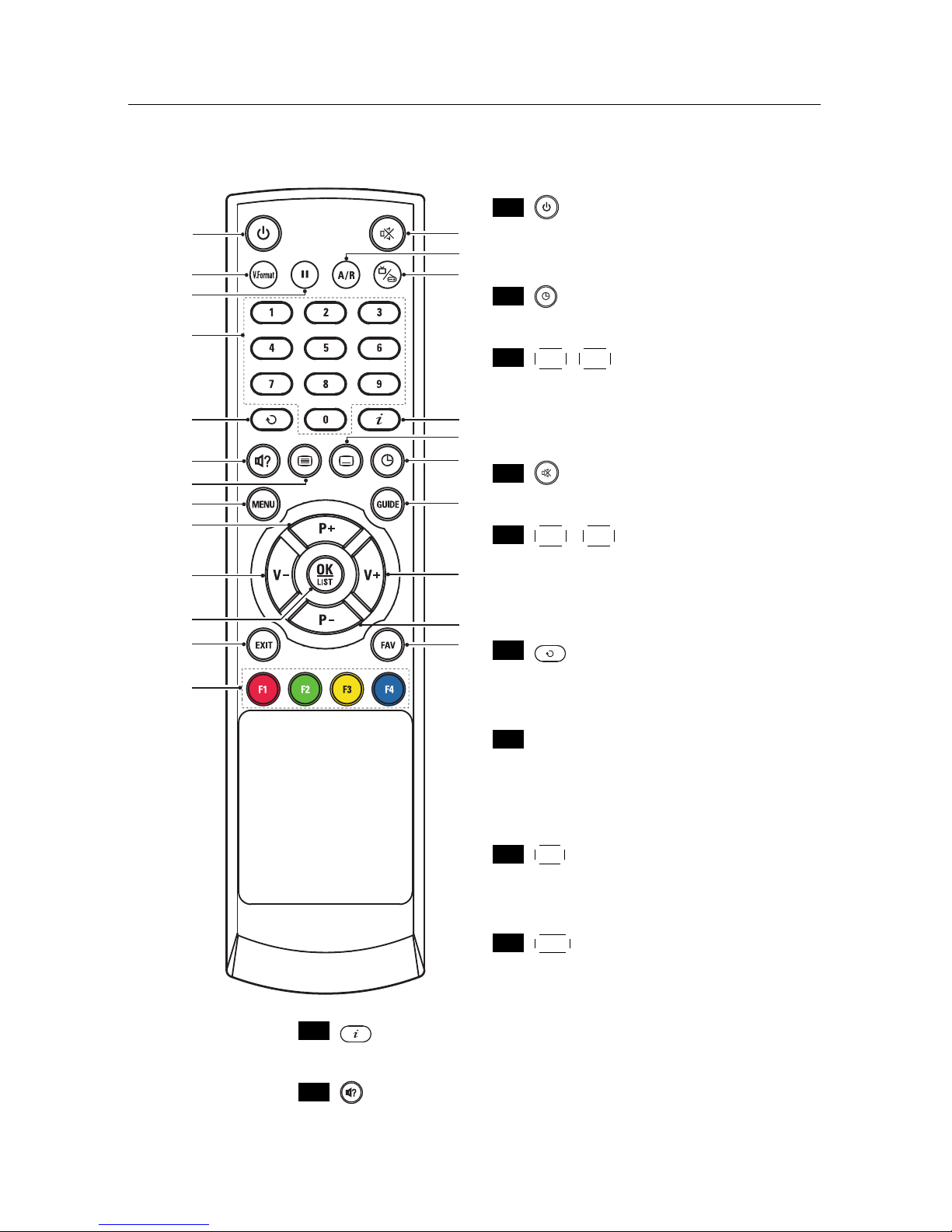

1.2.2 Remote control
14
1
4
18
16
9
12
2
17
3
5
10
15
7
6
11
13
19
3
8
20
21
5
.
.
.
1
button switches the digital
receiver between standby mode
and operation mode.
.
.
.
2
is used to set a sleep timer in
10 minute increments.
.
.
.
3
V− ,
V+ buttons decrease or in-
crease the volume. They are also
used to change values for menu
options.
.
.
.
4
mutes the sound. Press again
to switch it back on.
.
.
.
5
P− ,
P+ buttons switch to the
previous or next service. Theyare
also used to navigate in menus
and interactive screens.
.
.
.
6
switches over between the
current service and the previously viewed one.
.
.
.
7
Numeric buttons are used to enter a service number for service
change or to specify values for
menu options.
.
.
.
8
OK displays the services list. See
§5.2.1 for more details. It is also
used to select a menu item.
.
.
.
9
FAV displays the favourite lists.
.
.
.
10
displays the service information box. It is also used
to display more information about a programme.
.
.
.
11
is used to select an audio track and a sound mode.
Page 9
1.3 Subscription card information 5
.
.
.
12
is used to select a subtitle track.
.
.
.
13
displays teletext.
.
.
.
14
V.Format changes video resolution. See §4.2.1 for more
details.
.
.
.
15
pauses live television.
.
.
.
16
switches over between television services and radio
services.
.
.
.
17
GUIDE displays the electronic programme guide.
.
.
.
18
A/R changes aspect ratio. See §4.2.2 for more details.
.
.
.
19
MENU displays the main menu. It is also used to return
to the previous menu from a submenu.
.
.
.
20
EXIT is used to exit a menu or to hide on-screen informa-
tion.
.
.
.
21
These buttons have different functions per menu. They
will be guided by on-screen help.
NOTE
When using the remote control, point it at the remote sensor
on the front panel of the digital receiver.
1.3 Subscription card information
With this digital receiver, you can view pay services scrambled
with the VIACCESS conditional access system. Probably you
have a subscription card. If you would like to view information
in detail about your subscription card, select the Conditional
Access menu. There you can also check the messages from
the broadcasting operator.
Page 10
6 Setup
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the following items with the digital receiver.
• Remote control unit
• Two batteries for the remote control (AAA 1.5 V)
• A copy of this user guide
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.
• The mains voltage must range between 90 and 250 volts.
Check it before plugging the digital receiver to the wall
socket. For the power consumption of the digital receiver, refer to Table 2.1.
• The wall socket should be near the equipment. Do not
run an extension lead to the unit.
Page 11
2.2 Safety precautions 7
• Where the mains plug is used as the disconnect device,
such disconnect device shall remain readily operable.
• The digital receiver shall not be exposed to dripping or
splashing water, and no objects filled with liquids, such
as vases, shall be placed on it.
• Do not expose the digital receiver to any moisture. The
digital receiver is designed for indoor use only. Use dry
cloth to clean the digital receiver.
• Place the digital receiver on a firm and level surface.
• Do not place the digital receiver close to heat emitting
units or in direct sunlight, as this will impair cooling.
Do not lay any objects such as magazines on the digital receiver. When placed in a cabinet, make sure there
is a minimum space of 10 centimetres around it. For the
physical specification of the digital receiver, refer to Table 2.2.
• Protect the power cord from being walked on or pinched.
If the cord is damaged, do not use the digital receiver and
get the cord replaced.
• Never open the digital receiver casing under any circumstances, or the warranty will be void.
• Refer all servicing to a qualified service technician.
Table 2.1: Power specification
Input voltage 90 to 250 V AC, 50/60Hz
Power consumption 13 W at maximum in operation
1.5 W in standby
Table 2.2: Physical specifications
Size 260× 46× 190 mm
Weight 1.2 kg
Operating temperature 0 to 45 ℃
Storage relative humidity 5 to 90 %
Page 12
8 Setup

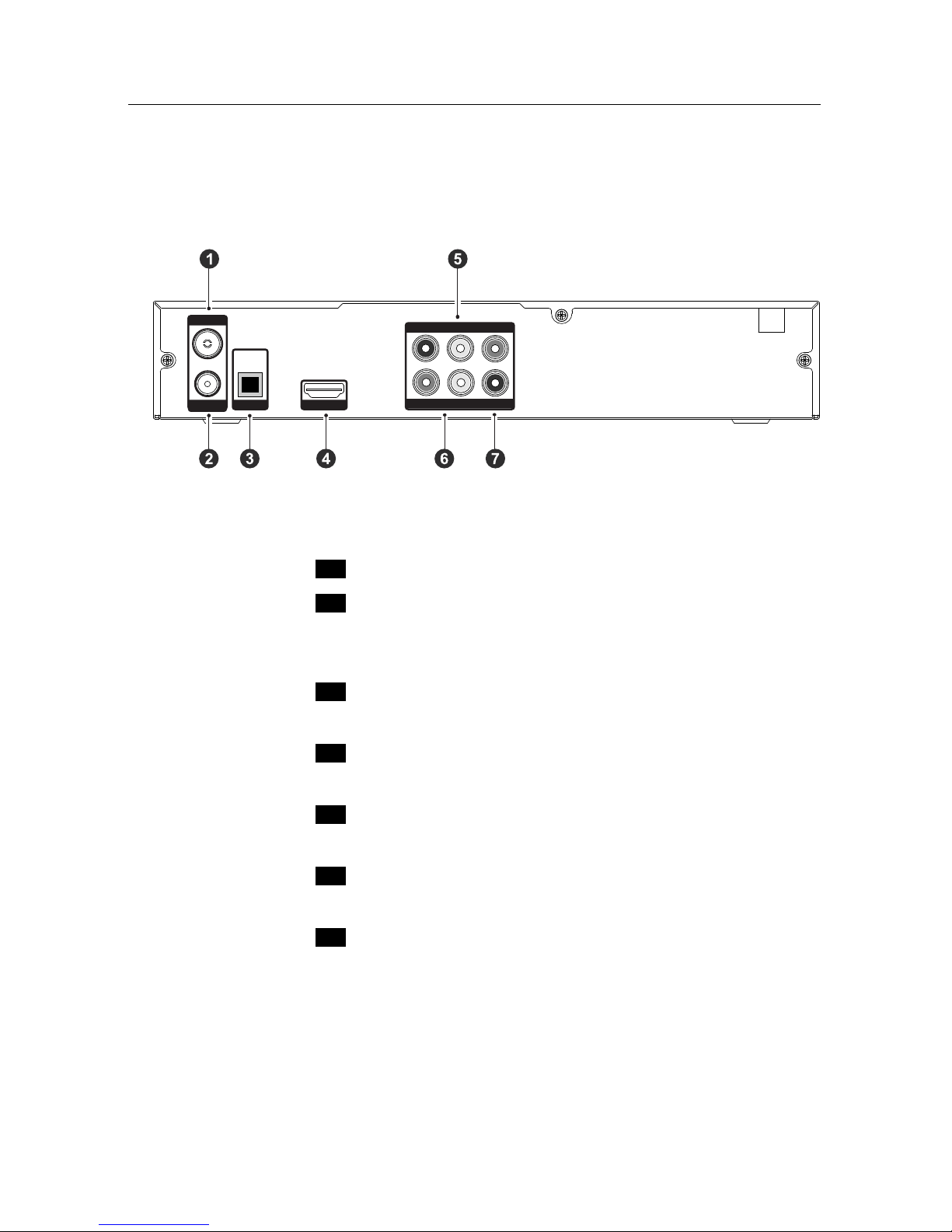

2.3 Rear panel connections
The CBV-7100 has the following connections on the back:
Pb Y Pr
R - AUDIO - L
VIDEO
Y Pr
CABLE OUT S/PDIF HDMI
Pb Y Pr
CABLE IN
R - AUDIO - L
VIDEO
R - AUDIO - L
VIDEO
Check what connections your television set has in comparison
with the digital receiver.
.
.
.
1
CABLE IN Cable broadcasting signal input socket
.
.
.
2
CABLE OUT Cable broadcasting signal output socket
through the CABLE IN socket for another
digital receiver
.
.
.
3
S/PDIF Digital audio output socket for the audio-
video receiver
.
.
.
4
HDMI Audio and video output socket for the
high definition television set
.
.
.
5
Y/Pb/Pr Component video output socket for the
television set (green/blue/red)
.
.
.
6
AUDIO L/R Stereo audio output socket for the televi-
sion set or the audio-video receiver(white/red)
.
.
.
7
VIDEO Composite video output socket for the
television set (yellow)
Page 13
2.4 Connecting up your digital receiver 9
Table 2.3: Connectors specifications
HDMI High definition video output
Left & right audio output
Digital audio output
YPbPr Component video output
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
S/PDIF Digital audio output
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other devices.
If you have any problem with your setup or need help, contact
your dealer.

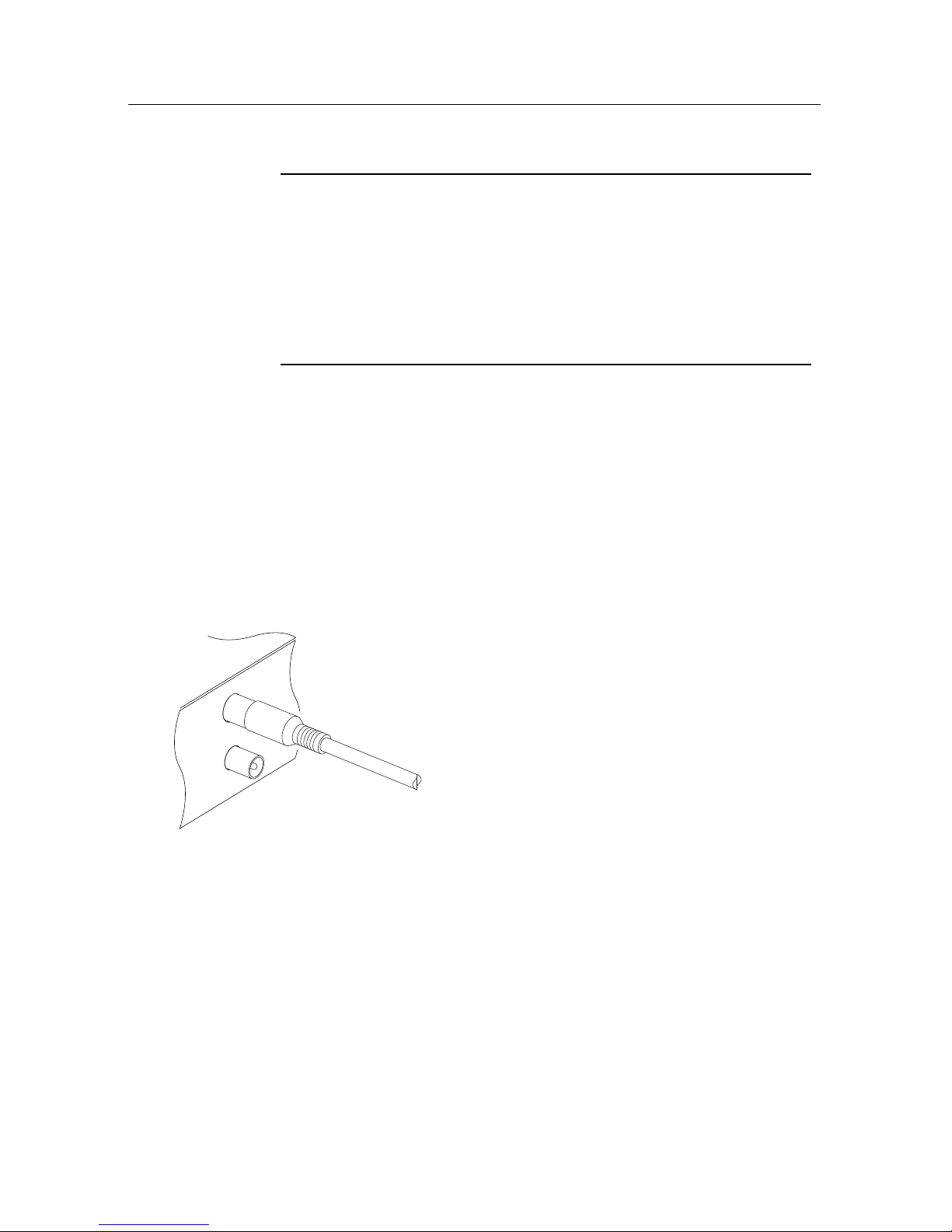

2.4.1 Connecting to the broadcasting cable
Whatever sort of connection you have between the digital receiver and the television,
you need to connect the digital receiver to the
broadcasting cable so that it can receive digital television broadcasts. Connect the broadcasting cable to the CABLE IN connector. If
you have another digital receiver, you may
link it from the CABLE OUT connector.
2.4.2 Connecting to your television set
For all the following connections of the digital receiver, we recommend you to use the first connector to get the best picture
quality. If your television does not have a matching connector,
then use the next connector in the following order for a better
picture quality.
1. HDMI connector (HDMI)
2. Component connector (YPbPr)
Page 14
10 Setup
3. Composite connector (VIDEO)
You should configure audio and video settings after connecting up the digital receiver. See §4.2 for a detailed description.
To use the HDMI output
If you have a high definition television set,
you should use an HDMI cable for best results. Plug one end of the cable into the HDMI
socket on the digital receiver, and plug the
other end into the matching socket on your
television. In this case, you do not have to
make audio connection because it can output
stereo audio or digital audio as well.
To use the Component video output
You need to obtain a Component video cable
(RCA cable) to use the Component video output. Plug one ends of the cable into the Y
(green), Pb (blue) and Pr (red) sockets on the
digital receiver, and plug the other ends into
the matching sockets on your television.
NOTE
When connecting with the Component video cable, remember to also plug in the additional white and red audio cables
from the digital receiver to the back of your television.
Page 15
2.5 Switching on for the first time 11
To use the Composite video output
You need to obtain a Composite video cable
(RCA cable) to use the Composite video output. Plug one end of the cable into the VIDEO
(yellow) socket on the digital receiver, and
plug the other end into the matching socket on
your television.
NOTE
You cannot view high definition video by means of the Composite video output.
To make the audio connection
You need to obtain an audio cable (RCA cable) to link the audio connectors. Plug one
ends of the cable into the AUDIO L (white)
and AUDIO R (red) sockets on the digital receiver, and plug the other ends into the matching sockets on your television or audio-video
receiver.
To enjoy Dolby Digital audio, your television
or audio-video receiver must be able to decode Dolby Digital audio, and you need to
obtain an S/PDIF cable. Plug one end of the
cable into the S/PDIF socket on the digital receiver, and plug the other end into the matching socket on your audio-video receiver.
2.5 Switching on for the first time
Now that you have your digital receiver connected, you should
plug it into a wall socket. Ensure that your television set is
Page 16
12 Setup
turned on and on the correct video channel so that you will be
able to see the display from the digital receiver.
Before switching on the digital receiver, you should insert batteries into the remote control. Open the battery compartment
by removing the lid, and then insert the batteries observing the
polarity, which is marked on the base of the battery compartment.
Press the button on the top left corner on the remote control. In a little time, you may see a picture displaying a menu.
If you do not see a picture, try pressing the
V.Format button on
the remote control. If after several tries you still get no picture,
check that the television is set to the correct input. If the picture
is good, you can skip to §3.1 to search for available television
and radio services. Otherwise, you may need to temporarily
connect the Composite video connector (VIDEO) to your television set so that you can see the menu in order to configure
the video settings.
CAUTION
If the digital receiver no longer reacts properly to the remote
control commands, the batteries may be flat. Be sure to replace only with 1.5 V AAA size batteries, and observe the
following precautions.
• Do not mix different types of batteries, or new and old
batteries.
• Do not use rechargeable batteries.
• Do not recharge the old batteries.
• In order to avoid any risk of explosion, observe the polarities indicated inside the battery compartment.
• Do not subject to excessive heat such as the sun and
fire.
• If you are not using the remote control for a long period of time, remove the batteries. The manufacturer
Page 17
2.5 Switching on for the first time 13
accepts no liability for the damage resulting from leaking batteries.
• Batteries, including those which contain no heavy
metals, may not be disposed with other household
wastes. Please dispose of used batteries in an environmentally sound manner. Find out the legal regulations
which apply in your area.
Page 18
14 Service Search
Chapter 3
Service Search
After connecting up the digital receiver, you will need to perform a service search.
NOTE
If there is no service stored, you will be not able to access all
menus. A is another name for a .

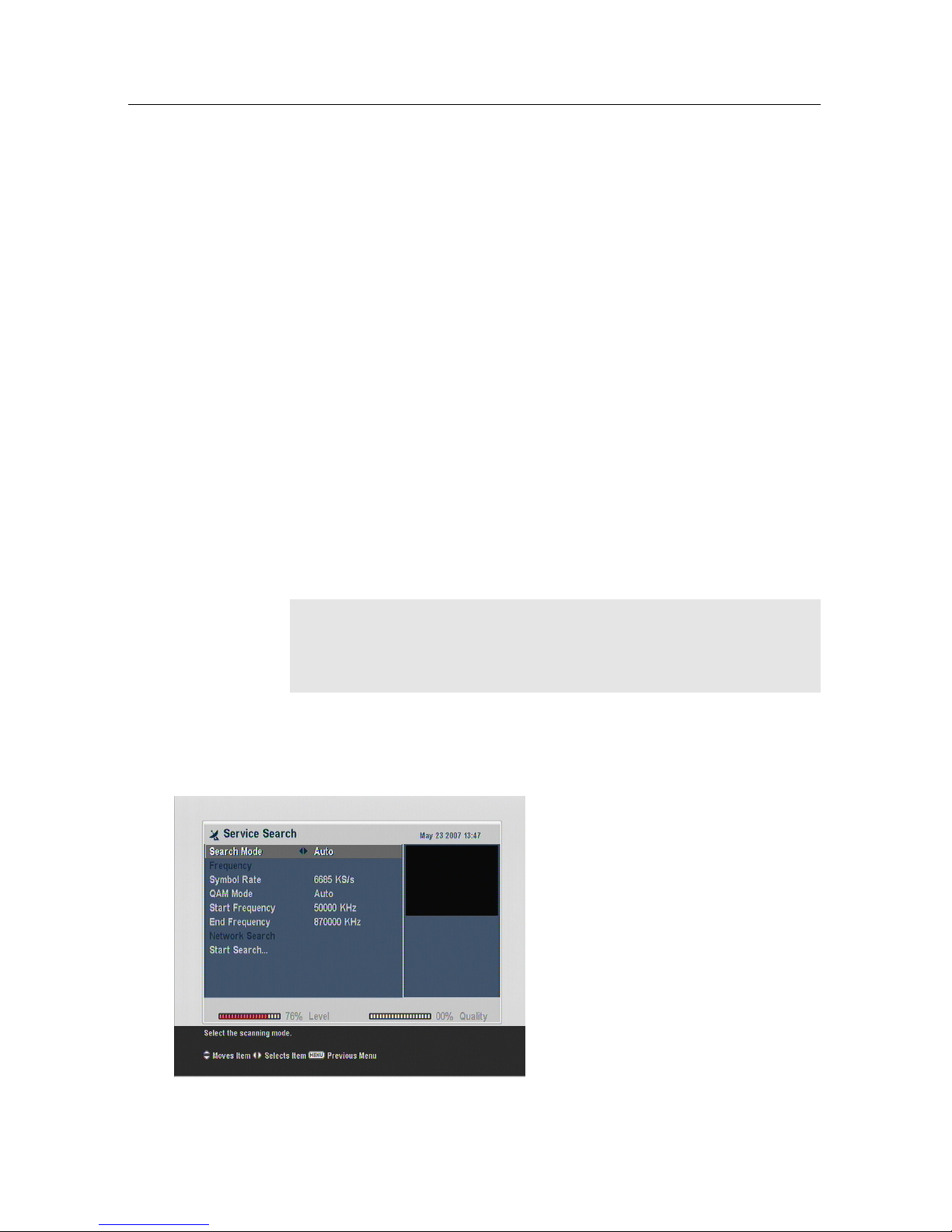

3.1 Searching broadcasting services
To perform service search, select the Installation > Service
Search menu. You should see a
screen like the left figure.
Page 19
3.2 Resetting to factory settings 15
You should set the Search Mode option to Auto at the first
service search after installing the digital receiver. The digital
receiver will search all available services with the automatic
search mode within the frequency range from the frequency
of the Start Frequency option to the frequency of the End Fre-
quency option. Symbol Rate stands for data transfer rate, and
QAM is a form of modulation used in digital broadcasting.
Broadcasting operators send their services in a symbol rate by
a modulation method. Perhaps you do not have to specify the
Symbol Rate and QAM Mode options since they are seldom
changed. However, you should set the QAM Mode option to
Auto for more certainty. You can specify the Start Frequency,
End Frequency and Symbol Rate options with the numeric
buttons if you want to change them.
To search only one frequency, set the Search Mode option to
Manual and specify your desired frequency at the Frequency
option with the numeric buttons.
To start service search, select the Start Search item, then a box
appears, displaying a list of found services. When it has completed, press the
OK button to save found services. To stop at
any time or to exit without saving, press the
EXIT button.
3.2 Resetting to factory settings
The digital receiver maintains the following data:
• Services list
• Favourite list
• Timer list
• Preference settings
You can reset all data of the digital receiver. To do that, select the Installation > Factory Setting menu, and then you
get asked for confirmation. If you select Yes, service entries,
favourite entries and timer events will all be deleted, and preference options will be reset to the manufacturer’s factory settings.
Page 20
16 Preference Settings
Chapter 4
Preference Settings
4.1 Language settings
You can select the language in
which the menu would be displayed. In addition to that, you
can select the language of audio
track and of subtitle track. Select
the System Setting > Language
Setting menu. You should see a
screen like the left figure.
4.1.1 Menu language
The digital receiver provides menus in several different languages. Set the Menu Language option to your desired language. Once you select a language, the menu will be immediately displayed in the selected language.
Page 21
4.2 Video and audio settings 17
4.1.2 Subtitle language
Set the Subtitle Language option to your desired language.
When you watch a programme, the subtitle track of the selected language will be displayed if available.
Apart from this setting, you can select a subtitle track with the
button. See §5.2.5 for a detailed description.
4.1.3 Audio language
Set the Audio Language option to your desired language.
When you watch a programme, the audio track of the selected
language will be outputted if available.
Apart from this setting, you can select an audio track with the
button. See §5.2.4 for a detailed description.
4.2 Video and audio settings
You have to configure the video
and audio settings appropriately
for your television set and other
devices. Select the System Set-
ting > A/V Output Setting menu.
You should see a screen like the
left figure.
4.2.1 High definition television
The digital receiver supports various video resolutions from
576 to 1080. In general a resolution of 720 or more is considered high definition. The higher the resolution is, the better
the quality is. However, if your television set does not support high definition, you cannot enjoy high definition quality
picture.
Page 22
18 Preference Settings
Set the Video Format option as you desire. If you set this option
to 576P, the digital receiver will present even high definition
programmes in resolution of 576. On the contrary, if you set it
to 1080I, the digital receiver will present even standard definition programmes in resolution of 1080.
It is recommended to set it to Auto if you have a high definition
television. With that setting the digital receiver will present a
programme as it is without any resolution conversion. While
watching television you can change the resolution with the
V.Format button. Whenever you press it, the video resolution
is changed in turn.
NOTE
You can enjoy only standard definition video with the fol-
lowing video outputs:
• Composite video output (VIDEO)

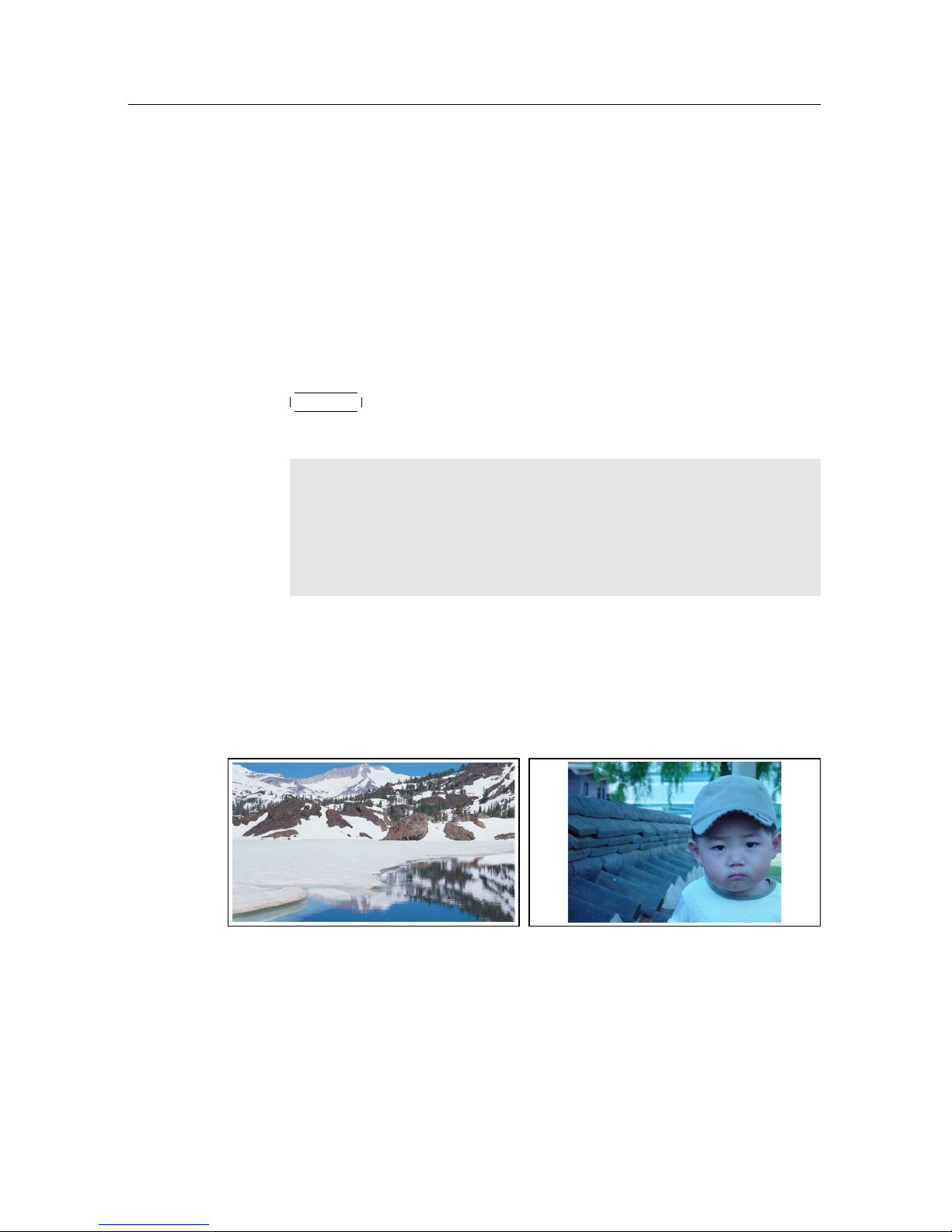

4.2.2 Television aspect ratio
If you have a wide-screen television, set the TV Aspect Ratio
option to 16:9.
You can enjoy both wide-screen programmes and normalscreen programmes with your wide-screen television as the
above figures show. If you have a normal-screen television,
set the TV Aspect Ratio option to 4:3.
Page 23
4.3 Local time setting 19
4.2.3 Audio mode
Basically, there are twoaudio sources as you can find two audio
sockets on the back panel of the digital receiver. You can enjoy
only one source or both of them in either stereo or mono. Set
the Sound Mode option as you desire.
Apart from this setting, you can change the sound mode with
the button. See §5.2.4 for a detailed description.
The digital receiver can output two types of digital audio signals via the S/PDIF output. One is an encoded signal, and the
other is a decoded signal. If you have the digital receiver linked
to your audio-video receiver via the S/PDIF output, you have
to set the Digital Output option to PCM, which means that the
digital receiver will output encoded Dolby Digital audio without decoding so that your audio-video receiver can decode it.
Otherwise, set it to Dolby Digital, then the digital receiver will
output decoded Dolby Digital audio, scaling down it to two
channels.
NOTE
Only if the service you are currently watching provides
a Dolby Digital audio track, you can enjoy Dolby Digital
sound.
4.3 Local time setting
You should set your local time for timer events.
Page 24
20 Preference Settings
Select the System Setting >
Time Setting menu. You should
see a screen like the left figure.
You can set the clock manually
or use the time signal, Greenwich Mean Time (GMT), carried
as part of the digital television
broadcast. To use Greenwich
Mean Time, take the following
steps:
1. Set the Mode option to Auto, then the Time Offset option
becomes enabled.
2. Set the Time Offset option to the time difference between
your time zone and GMT referring to Table 4.1.
3. Make sure that your local time is correctly displayed on
the Local Time item.
To set the local time manually, set the Mode option to Man-
ual and enter your local time to the Local Time option with
the numeric buttons. The time format is day/month/year 24-
hour:minute.

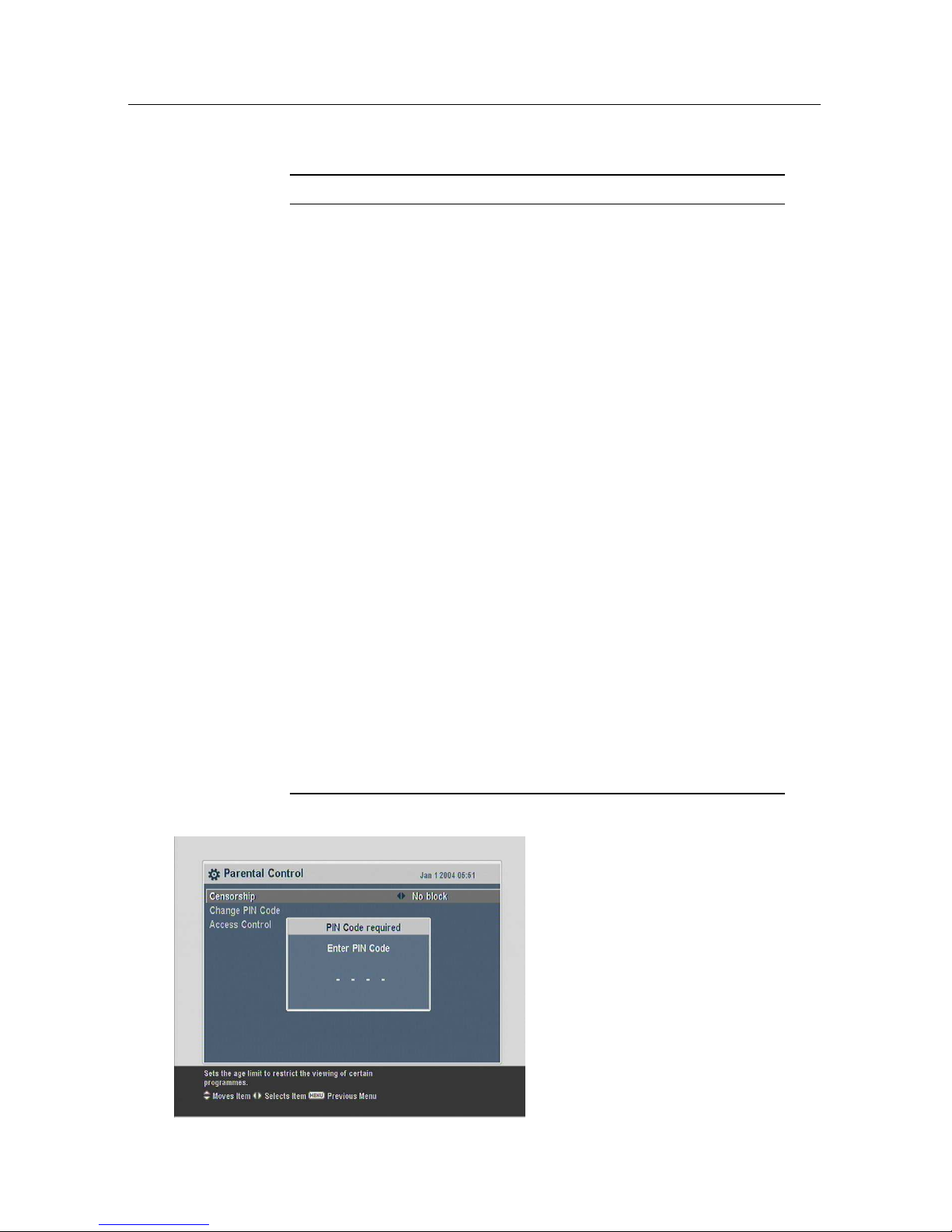

4.4 Parental control
In general, television programmes are classified according to
the level of violence, nudity and language of their content.
When you are watching a programme, you can check its programme classification on the information box. For the information box, see §5.2.3. You can prevent your children from watching specific programmes by specifying a programme classification.
Page 25
4.4 Parental control 21
Table 4.1: Time offset table
Time offset City
GMT − 12:00 Eniwetok, Kwajalein
GMT − 11:00 Midway Island, Samoa
GMT − 10:00 Hawaii
GMT − 09:00 Alaska
GMT − 08:00 Pacific Time US, Canada
GMT − 07:00 Mountain Time US, Canada
GMT − 06:00 Central Time US, Canada, Mexico City
GMT − 05:00 Eastern Time US, Canada, Bogota, Lima
GMT − 04:00 Atlantic Time Canada, La Paz
GMT − 03:30 Newfoundland
GMT − 03:00 Brazil, Georgetown, Buenos Aries
GMT − 02:00 Mid-Atlantic
GMT − 01:00 Azores, Cape Verde Islands
GMT London, Lisbon, Casablanca
GMT + 1:00 Paris, Brussels, Copenhagen, Madrid
GMT + 2:00 South Africa, Kaliningrad
GMT + 3:00 Baghdad, Riyadh, Moscow, St. Petersburg
GMT + 3:30 Tehran
GMT + 4:00 Abu Dhabi, Muscat, Baku, Tbilisi
GMT + 4:30 Kabul
GMT + 5:00 Ekaterinburg, Islamabad, Karachi, Tashkent
GMT + 5:30 Bombay, Calcutta, Madras, New Delhi
GMT + 6:00 Almaty, Dhaka, Colombo
GMT + 7:00 Bangkok, Hanoi, Jakarta
GMT + 8:00 Beijing, Perth, Singapore, Hong Kong
GMT + 9:00 Tokyo, Seoul, Osaka, Sapporo, Yakutsk
GMT + 9:30 Adelaide, Darwin
GMT + 10:00 Eastern Australia, Guam, Vladivostok
GMT + 11:00 Magadan, Solomon Islands, New Caledonia
GMT + 12:00 Fiji, Auckland, Wellington, Kamchatka
Select the System Setting >
Parental Control menu. You
should see a screen like the
left figure, and you will be
asked your Personal Identification Number (PIN). The number
is initially set to ‘0000’ as default.
Page 26
22 Preference Settings
If you wish to block 15 or above rated programmes, set the
Censorship option to 15 (age). Setting it to No block blocks no
programme; on the other hand, setting it to Total block blocks
every programme.
NOTE
If a programme does not have any programme classification
information, your censorship setting will not take effect.
If anyone is trying to watch a programme that is of or above the
censorship setting, the person has to enter the personal identification number to override. To change the number, select the
Change PIN Code menu, then an input box appears. You have
to enter a desired number twice for confirmation.
You can also restrict uses of some menus. Selecting the Access
Control menu displays a list of menus that you can lock. If the
Time Setting item is set to Locked, you have to enter the per-
sonal identification number when accessing the Time Setting
menu. If you enter a wrong number, you cannot use the menu.
To release a shut item, set it to Unlocked.
4.5 Adjusting the On-Screen Display
You can adjust the transparency level of the On-Screen Display (OSD). Select the System Setting menu and set the OSD
Transparency option as you desire. Its available range is 0 to
50 percent.
You can adjust the display time of the information box. For the
information box, see §5.2.3. To adjust its display time, select the
System Setting menu and set the Info Box Display Time option
as you desire. Its available range is 1 to 30 seconds. If you set
this option to No Info Box, the information box will not be displayed when you switch services. However, pressing the
button will display the information box. If you set this option
to Never Hide, the information box will always be displayed.
Page 27
4.6 Standby mode 23
In addition, you can raise or lower the position of the information box. Select the System Setting menu and set the Info Box
Position option as you desire. Its available range is −10 to +3
lines. The higher you set the option, the lower the information
box will be positioned.
4.6 Standby mode
You can save power consumption in standby mode by setting
the LPC Settings option in the System Setting menu. Normally the front display shows the current time in standby
mode. However, if you set the Enable front display option
to No, the front display will be turned off to save power. In
addition, when there is no other digital receiver connected to
the CABLE OUT socket, you should set the Enable the loop-
through option to No. By disabling these options, you can save
power consumption more than 1 watt in standby mode.
Page 28
24 Daily Usage
Chapter 5
Daily Usage
5.1 Volume control
Use the
V− and
V+ buttons to alter the volume to a comfort-
able level. You may need to adjust the volume on your television set too. To temporarily switch off the sound, press the
button. Press it again to restore the sound to previous level.
5.2 Watching television
To change services, press the
P− or
P+ button. Pressing the
button switches to the previously viewed service. In addition, you can switch to your desired service by entering its
service number with the numeric buttons. You can also select
a service to watch in the services list.
5.2.1 The services list
To view the services list, press the
OK button.
Page 29
5.2 Watching television 25
On the services list, you can see
the service information as follows:
• Service number and name
• Transponder information
A dollar sign ($) may be marked on some entries, indicating
pay service. To watch pay services, you need a subscription
card. To select a desired service, put the highlight bar on its
entry with the
P+ or
P− button and press the
OK button;
then the selected service will be presented.
Pressing the
V− or
V+ button skips over 10 entries up or
down. Entering a service number with the numeric buttons
puts the highlight bar on its entry.
You can switch between the television services list and the radio services list by pressing the button.
Pressing the
F3 button performs an alphabetic browse. For
instance, when the highlight bar is on an entry of which initial
is B, pressing the
F3 button puts the highlight bar on the first
entry of which initial is C. To sort the services list by service
name, press the
F2 button. Pressing this button once more
makes it sorted by service number.
Pressing the
F4 button displays additional options, with
which you can do the following:
• By setting the Show Provider option to On, you can view
service entries by groups of broadcasters.
• To change the name of the highlighted service, select the
Rename option, then the on-screen keyboard appears,
with which you can enter a new name. See §6.3 as to
how to use the on-screen keyboard.
Page 30
26 Daily Usage
• You can prevent other family members from watching
the highlighted service by setting the Lock option to
Locked. You have to enter your personal identification
number to watch or unlock it.
• To add the highlighted service into a favourite group, se-
lect the Add to Fav option, then the favourite groups will
be displayed. Put the highlight bar on a desired group
and press the
OK button.
• You can additionally sort the services list with the Sorting option as follows:
Default by service number
Alphabetic by service name
FTA–CAS from free services to pay services
CAS–FTA from pay services to free services
Provider by service provider
Fav–NoFav from favourite services to unfavourite ser-
vices.
• To delete the highlighted service, select the Delete option, then you get asked for confirmation. If you select
Yes, it will be deleted. If you want to restore it as before,
you have to perform service search again.
See §6.1 as to how to edit the services list.
5.2.2 The favourite service lists
You can select a service to watch on a favourite list as well as
on the services list.
Page 31
5.2 Watching television 27
To display the favourite lists,
press the
FAV button. You
should see a screen like the left
figure. As you move the highlight bar up or down on the
favourite group list at the left
box, favourite services belonging to the highlighted group are
listed on the right box.
As to how to edit the favourite lists, refer to §6.2.
To select a favourite service, put the hightlight bar on a desired
group and press the
V+ button; a highlight bar appears on its
favourite services list. Once you select a desired service with
the
OK button, it will be presented. Otherwise, to select other
group, press the
V− button.
After you have selected a favourite service, if you then switch
to another service using the
P+ or
P− button, it will be also
another favourite service of the selected group. The digital receiver will remind you what group you have selected by displaying its name at the top right of the screen whenever you
switch services. If you wish to get out of the current group,
select the All services group on the favourite group list.
Besides that, you can add or delete a favourite group or service.
To add a service you are currently watching into a favourite
group, put the highlight bar on a desired group and press the
F3 button. To create a new group, press the
F2 button; then
the on-screen keyboard appears. Enter your desired name and
save it. See §6.3 as to how to use the on-screen keyboard. To
delete a group or a service, press the
F4 button, then you
get asked for confirmation. With the choice of Yes, it will be
deleted.
Page 32
28 Daily Usage
5.2.3 Viewing programme information
Pressing the button displays the information box, on
which you can see all of the following:
• Service number and name
• Transponder information
• Signal level and quality
• Programme name
• Programme classification symbol
• Programme summary
• Broadcasting time
• Current time
In addition, you might see the following symbols:
• Subtitle symbol ( ) if subtitle tracks are provided on the
current programme.
• Teletext symbol ( ) if teletext pages are provided on the
current service.
• Dolby Digital symbol ( ) if a Dolby Digital audio
track is provided on the current programme.
• Lock symbol ( ) if the current service is locked.
• Dollar symbol ($) if the current service is a pay service.
If the electronic programme guide is provided on the current
service, you can see the information about the current and next
programmes with the
V− or
V+ button. To adjust the sound
volume at this time, hold down the
V− or
V+ button until the
sound bar appears and reaches your desired level.
Pressing the button once more displays detailed information about the current programme. To hide the information
box, press the
EXIT button.
Page 33
5.3 Viewing electronic programme guide 29
5.2.4 Selecting audio tracks
Some programmes are provided with audio tracks in one or
more languages. Pressing the button displays available audio tracks. Once you select an audio track, that track will be
heard. In addition, you can enjoy audio tracks in four sound
modes: Stereo, Mono, Left or Right.
5.2.5 Selecting subtitle tracks
Some programmes are provided with subtitle tracks in one or
more languages. If the current programme provides subtitle
tracks, the subtitle symbol ( ) will be marked on the information box. Pressing the button displays available subtitle
tracks. Once you select a subtitle track, it will be displayed.
5.2.6 Viewing teletext
On some services, such information as weather reports, news
or stock quotations is provided by means of teletext. If the current service provides teletext, the teletext symbol ( ) will be
displayed on the information box. Press the button to view
teletext pages.
Select a page to view by entering its page number with the numeric buttons. You can zoom into a teletext page with the
F3
button, and adjust its transparency level with the
F4 button.
To clear the teletext screen, press the
EXIT button.
5.3 Viewing electronic programme guide
The Electronic Programme Guide (EPG) shows the current and
scheduled programmes that are or will be available on each
service with a short summary for each programme.
Page 34
30 Daily Usage
Pressing the
GUIDE button dis-
plays the electronic programme
guide, on which you can see the
following:
• Scheduled programmes
• programme summary
• Broadcasting date
• Broadcasting time
To see detailed information of a desired programme, put the
highlight bar on the programme with the
P+ or
P− button
and press the button. To switch to another service, press
the
V− or
V+ button. You can travel over previous days with
the
F2 button, and can travel over next days with the
F3 but-
ton.
To see the programme guide for radio broadcasts, press the
button. To switch it back, press the button again.
Pressing the
F1 button displays the programme guide in the
form of spreadsheet. To switch it back, press the
F1 button
again.
You can make a timer event on the electronic programme guide
as follows:
1. Select a service you want.
2. Press the
GUIDE button to display its programme guide.
3. Select a programme you want with the
OK button, then
P is marked up on the entry. At the same time, a timer
event with the selected programme will be made in the
timer list. Refer the timer list to §5.4.
4. To remove the marking, press the
OK button once again.
Page 35
5.4 Making timer events 31
5.4 Making timer events
You can make your desired services to be presented at a specific time. Even if the digital receiver is in standby mode, it
will switch into operation mode at a specified time. And it will
switch back into standby mode again after the specified duration. However, if you press any button on the remote control
or on the front panel even just one time, the digital receiver
will not switch into standby mode.
To input a timer event, select
the Timer Setting menu, then the
timer list will be displayed. To
add a new timer event, press the
F1 button, and a box like the left
figure appears. Take the following steps:
1. If you want a radio programme, set the Type option to
Radio; otherwise, set it to TV.
2. Set the Service option to the service which provides the
programme you want. Pressing the
OK button on this
option displays a services list, from which you can select
your desired service.
3. There are five timer modes:
One Time means literally ‘one time.’
Every Day means literally ‘every day.’
Every Weekend means ‘Saturdayand Sundayevery week.’
Weekly means ‘one day every week.’
Every Weekday means ‘from Monday to Friday every
week.’
Page 36
32 Daily Usage
If your favourite programme is broadcast at weekends
and you wish to watch every episode of the programme,
set the Mode option to Every Weekend.
4. Set the Date option to a desired date, on which the digital
receiver will turn on. The date format is day/month/year-
day of the week.
Set the Wakeup Time option to a desired time, at which
the digital receiver will turn on. The time format is
hour:minute.
5. Set the Duration option to a desired time, in which the
digital receiver will turn off.
6. To set a timer event with the above settings, select the OK
item; otherwise, it will not be saved and will not occur.
You can also edit or delete timer events in the timer list. To edit
a timer entry, put the highlight bar on the entry you want and
press
OK button, then appears a box in which you can change
its settings in the same manner as making a new one.
To delete a timer event, put the highlight bar on the entry you
want to remove and press the
F2 button, then you get asked
for confirmation. With the choice of Yes, it will be deleted.
NOTE
Do not operate the digital receiver while it is working on a
timer event. If you press any key on the remote control or on
the front panel, it will not turn off automatically even after
the timer event is complete.
Page 37
33
Chapter 6
Listing Services
6.1 Editing the services list
You would have got the services list after service search. You
can rename, move, lock or delete service entries on the services
list.
Select the Organizing Svc/Fav >
Organizing Services menu. You
should see a screen like the left
figure. There are editing options
on the left column and service
entries on the right column.
Once you put the highlight bar on a desired option on the left
column and press the
OK button, you can select a desired ser-
vice to edit on the right column. Togo over to the other column,
press the
F1 button.
To edit the radio services list, press the button, then radio
Page 38
34 Listing Services
service entries will be listed on the right column. To switch
back to the television services list, press it again.
To change the name of a service, select the Rename and select
a desired service; then the on-screen keyboard appears. See
§6.3 as to how to use the on-screen keyboard.
Unlike analogue broadcasts, each service does not have a
proper service number in digital broadcasts. Service numbers are just assigned to services in the order that they were
found in service search. So you can reassign a service number by moving a service entry. To move a service entry, select
the Move option and select a desired service; then the selected
service becomes darker. As you move it up or down, it gets
renumbered according to the position. Press the
OK button to
fix it.
You can lock some services to prevent your children from
watching them. To lock a service, select the Lock option and
select a desired service; then the selected service gets marked
with a lock symbol ( ) on it. If anyone tries to watch a locked
service, the person has to enter the personal identification
number that is set to the Change PIN Code option. See §4.4
for this option. Pressing the
OK button on a locked service
entry turns it back to be unlocked.
To delete a service, select the Delete option and select a desired
service with the
OK button, and then press the
EXIT button;
you get asked for confirmation. If you select Yes, the selected
service will bedeleted. If you want to undo the deleted service,
there is nothing you can do but perform a service search again.
Once you select the Sort option on the left column, sorting options are displayed as follows:
Default by service number
Alphabetic by service name
FTA–CAS from free services to pay services
CAS–FTA from pay services to free services
Provider by broadcaster
Page 39
6.2 Editing the favourite lists 35
6.2 Editing the favourite lists
You can make your own favourite service lists. In fact, you can
define multiple favourite service lists, each being a ‘group’ of
chosen services.
Select the Organizing Svc/Fav >
Organizing Favorites menu. You
should see a screen like the left
figure. There are three columns:
• Group list (left)
• Favourites list (centre)
• Services list (right)
The services list contains all available services, whereas the
favourites list contains only chosen services that have been
added to the highlighted group. As you move the highlight
bar up or down on the group list, favourite services belonging
to the highlighted group get shown in the favourites list.
You can add up to 30 groups. To add a group, select the NEW
item in the group list, then the on-screen keyboard appears.
See §6.3 as to how to use the on-screen keyboard.
To rename a group, put the highlight bar on the group entry
you want and press the
F2 button, then the on-screen key-
board appears. See §6.3 as to how to use the on-screen keyboard.
To delete a group, put the highlight bar on the group entry
you want and press the
F3 button, then a message box ap-
pears asking you for confirmation. If you select Yes, it will be
deleted.
You can add a favourite service to a group by taking the following steps:
1. Put the highlight bar on a desired group entry in the
Page 40
36 Listing Services
group list and press the
OK button to select it. The high-
light bar then moves to the services list.
2. To add a service to the selected group, put the highlight
bar on a desired service entry and press the
OK button.
The selected service entry gets added to the favourite list.
Repeat this step to add more entries.
3. Press the
F1 button and the highlight bar gets moved to
the favourite list. You can delete a favourite entry with
the
OK button.
4. To select another group, press the
F1 button again. By
pressing the
F1 button, the highlight bar gets moved to
each column.
Furthermore, you can rearrange a group’s favourites by moving a favourite entry. To move a favourite entry, put the highlight bar on the favourite entry you want and press the
F2
button. Move it to a desired place and press the
OK button.
To add radio services, press the button, then radio service
entries get listed in the services list. To recall the television
services list after adding radio services, press the button
again.
As to how to use the favourite service lists you organised, refer
to §5.2.2.
Page 41
6.3 How to use on-screen keyboard 37
6.3 How to use on-screen keyboard
You can move the highlight key
horizontally with the
V− and
V+ buttons and vertically with
the
P+ and
P− buttons. Press-
ing the
OK button on a key en-
ters its letter in the input line.
To type a space, select the Space key or alternatively press the
F3 button. To type lower case letters or numerals, select the
Other key or alternatively press the
F2 button. To delete a
letter, put the cursor to the right of the desired letter on the
input line and then select the Del key or alternatively press
F1
button. You must select the Save key or alternatively press
the
F4 button to complete naming; otherwise if you press the
EXIT button, it will not be named.
Page 42
38 Firmware Update
Chapter 7
Firmware Update
It is possible to update the firmware to the latest version over
the air. If a new version is available at any time, then a message box pops up, asking you whether to start firmware update. With the choice of Yes, you will be moved to the Sys-
tem Software Upgrade menu, and the firmware update will be
started.
Page 43
INDEX 39
Index
4:3, 18
16:9, 18
A
A/V Output Setting, 17
Access Control, 22
Add to Fav, 26
Alphabetic, 26, 34
AUDIO L, 11
AUDIO L/R, 8
Audio Language, 17
AUDIO R, 11
Auto, 15
B
Button, 4
C
CABLE IN, 8, 9
CABLE OUT, 8, 9
CAS–FTA, 26, 34
Censorship, 22
Change PIN Code, 22
Conditional Access, 5
D
Date, 32
Default, 26, 34
Delete, 26, 34
Digital Output, 19
Duration, 32
DVB, 1
E
Electronic Programme Guide,
29
End Frequency, 15
Every Day, 31
Every Weekday, 31
Every Weekend, 31
F
Factory Setting, 15
Fav–NoFav, 26
Frequency, 15
FTA–CAS, 26, 34
G
GMT, 20
H
HDMI, 8, 10
high definition, 17
Page 44
40 INDEX
I
Info Box Display Time, 22
Info Box Position, 23
information box, 28
K
keyboard, 37
L
Language Setting, 16
Local Time, 20
Lock, 26, 34
LPC Settings, 23
M
Manual, 15
Menu Language, 16
Mode, 20, 32
mono, 19
Move, 34
N
NEW, 35
No block, 22
normal-screen television, 18
O
One Time, 31
Organizing Favorites, 35
Organizing Services, 33
OSD Transparency, 22
P
Parental Control, 21
PIN, 21
Provider, 26, 34
Q
QAM, 15
QAM Mode, 15
R
Radio, 31
radio services list, 33
Rename, 25, 34
S
S/PDIF, 8, 11, 19
Search Mode, 15
Service, 31
Service Search, 14
services list, 24
Show Provider, 25
Sort, 34
Sorting, 26
Sound Mode, 19
specifications, 9
Start Frequency, 15
Start Search, 15
stereo, 19
subtitle, 29
Subtitle Language, 17
Symbol Rate, 15
System Setting, 22, 23
System Software Upgrade, 38
T
teletext, 29
television services list, 34
time format, 20
Time Offset, 20
Time Setting, 20, 22
timer list, 31
Timer Setting, 31
Total block, 22
transponder, 1
TV, 31
Page 45
INDEX 41
TV Aspect Ratio, 18
Type, 31
V
VIACCESS, 5
VIDEO, 8, 11
Video Format, 18
W
Wakeup Time, 32
Weekly, 31
wide-screen television, 18
Y
Y/Pb/Pr, 8
Page 46
Manufactured under license from Dolby Laboratories. “Dolby” and
the double-D symbol are trademarks of Dolby Laboratories.
Correct disposal of this product
This marking shown on the product or its literature indicates that
it should not be disposed with other household wastes at the end
of its working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate
this from other types of wastes and recycle it responsibly to promote
the sustainable reuse of material resources. Household users should
contact either the retailer where they purchased this product or their
local government office for details of where and how they can dis-
pose this product for environmentally safe recycling. Business users
should contact their supplier and check the terms and conditions of
the purchase contract. This product should not be mixed with other
commercial wastes for disposal.
At any time during the life of a product Topfield Co., Ltd. may change or modify the hard-
ware or software on any product to introduce new features or improve the functionality of
the product.
Copyright © 2010, Topfield Co., Ltd. All rights reserved. English version
http://www.i-topfield.com
Loading...
