The CBP-2001CI+ digital receiver is fully compliant with the
international Digital Video Broadcasting (DVB) standard, and
thus is able to receive digital broadcasts of that standard.
NOTE
In general we equate a channel with a frequency. However,
unlike analogue broadcasts, digital broadcasts are not all
assigned to their own frequencies; instead, multiple television broadcasts are transmitted through a single frequency.
The frequency in digital broadcasting is usually called transponder or multiplex. To reduce confusion in this manual,
the word service is preferably used than channel as a term
to indicate one television or radio broadcast.
1
1.1Features
This digital receiver has the following features:
• Can store up to 2,000 television and radio services.

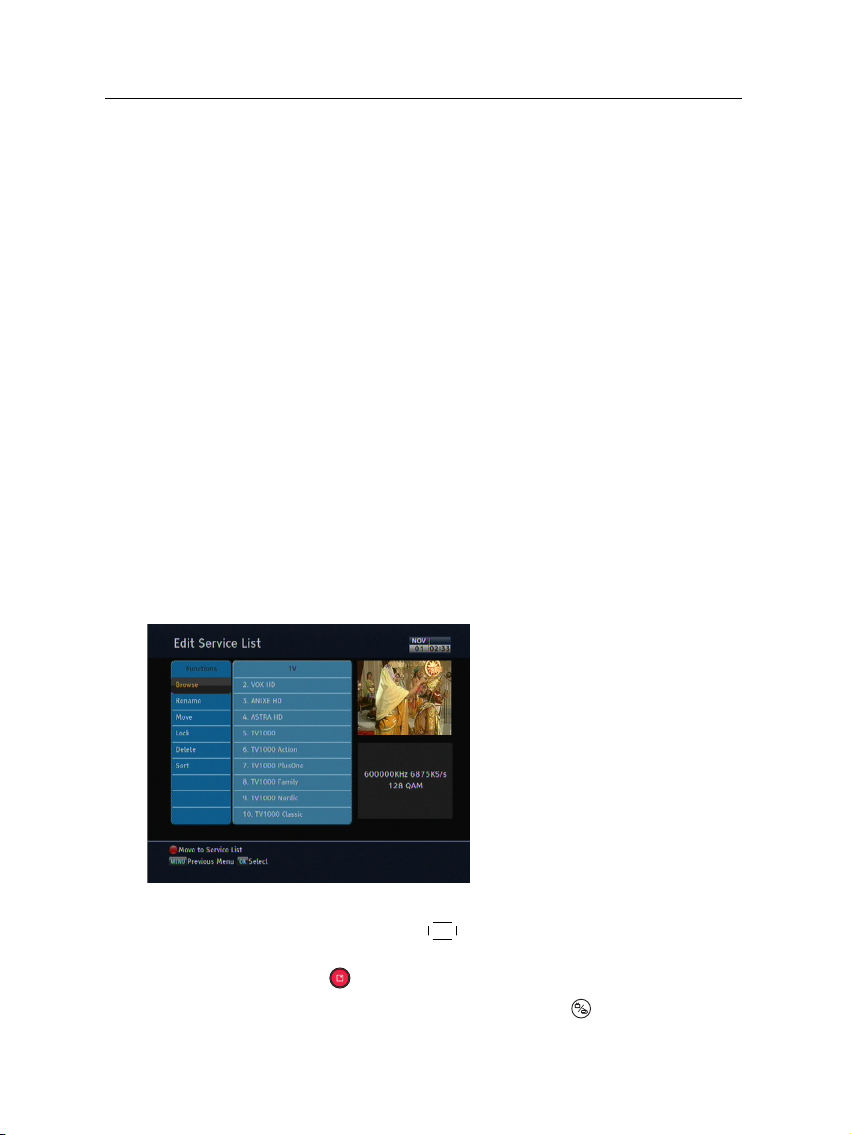

• You can edit the services list.
• Can create lists of your favourite services.
2 Introduction
• Can view information about the current television or radio programme.
• Has an electronic programme guide that provides an
overview of scheduled programmes.
• Time-shift is a special technical feature available on this
digital receiver. You can pause a programme you are
watching and resume it again at a later time. Then you
can quickly go to any part of the current programme by
fast forward or rewind search.
• If you have an external hard drive connected to the digital receiver via the USB port, you can record television
programmes into it.
• You can play back video files of various formats including DivX.
1.2Controlling the digital receiver
You can operate the digital receiver with the remote control or
the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall
socket, we say that it is in standby mode; on the other hand,
when it is on, it is in active mode. Even when you are not
using the digital receiver, you should keep it plugged into
a wall socket to be in standby mode so that it can run timer
events at any time.
1.2.1 Front panel
The front panel of the digital receiver has buttons to control
the digital receiver, specific lights and a display to indicate its
status. The following indicates what they mean.
1.2 Controlling the digital receiver 3
button switches the digital receiver between standby mode
and active mode.
CHANNELc,abuttons switch to the previous or next ser-
vice. They are also used to navigate in menus and interactive screens.
light blinks every time you press a button on the remote
control.
STANDBY light lightsup while the digital receiver is instandby
mode.
Front display shows the current time in standby mode, and
displays the current service in active mode.
There is aUSB port on the front panel for firmware update and
data transfer. If you have an external hard drive connected to
the digital receiver via the USB port, you can record television
programmes into it.
4 Introduction
14
1
4
18
16
9
12
2
17
3
5
10
35
25
28
29
24
19
31
15
7
6
11
13
20
3
8
21
27
26
22
23
36
30
32
34
33
5
.
.
.
.
.
.
.
.
.
.
1.2.2 Remote control
.
.
1
.
2
.
3
.
.
.
.
.
.
.
10
4
5
6
7
8
9
button switches the digital
receiver between standby mode
and active mode.
.
is used to set a sleep timer in
10 minute increments.
.
V− ,
V+ buttons decrease or in-
crease the volume. They are also
used to change values for menu
options.
.
mutes the sound. Press again
to switch it back on.
.
P− ,
P+ buttons switch to the
previous or next service. They are
also used to navigate in menus
and interactive screens.
.
switches over between the
current service and the previously viewed one.
.
Numeric buttons are used to enter a service number for service
change or to specify values for
menu options.
.
OK displays the services list. See
§5.2.1 for more details. It is also
used to select a menu item.
.
FAV displays the favourite lists.
.
displays the service information box. It is also used to display more information about a
programme.
1.2 Controlling the digital receiver 5
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
is used to select an audio track and a sound mode, or
11
a video track of multifeed programme.
.
.
is used to select a subtitle track.
12
.
.
displays teletext.
13
.
.

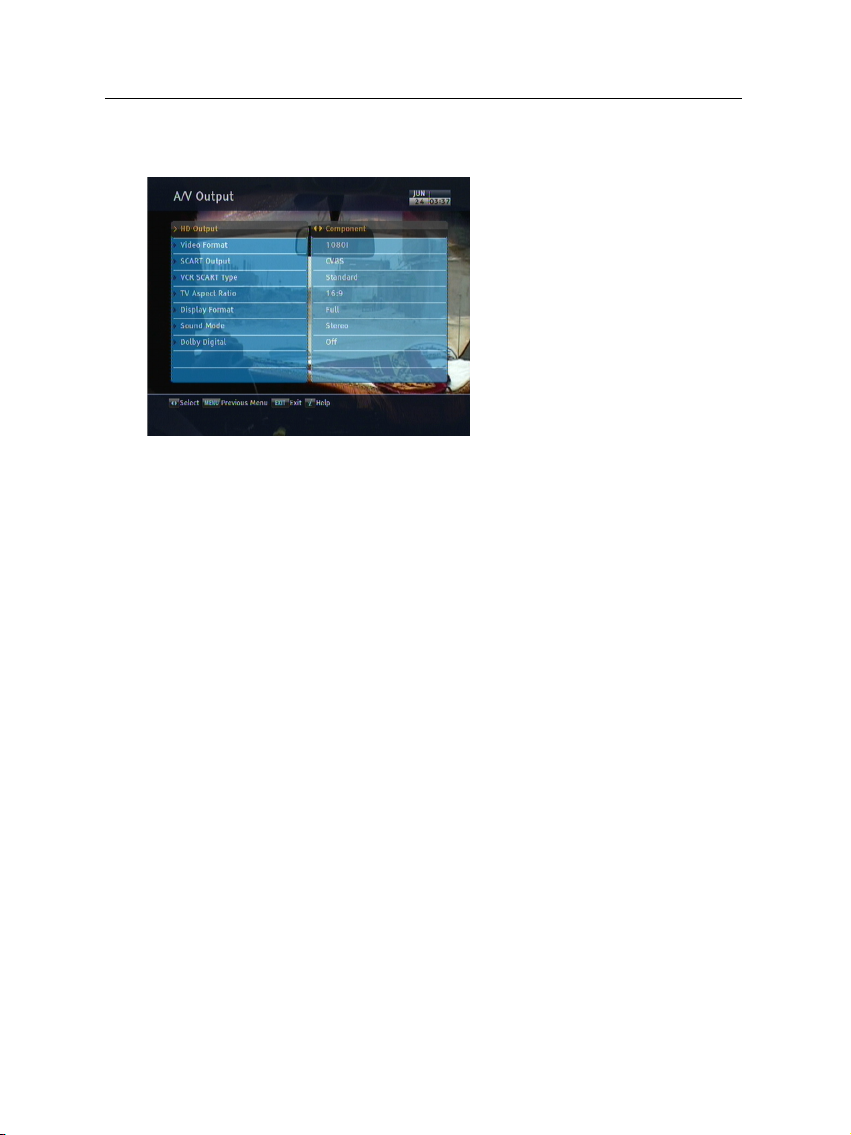

V.Format changes video resolution. See §4.2.1 for more de-
14
tails.
.
.
A/R changes aspect ratio. See §4.2.2 for more details.
15
.
16
.
switches over between television services and radio
services.
.
17
.
18
.
.
GUIDE displays the electronic programme guide.
AUX switches the output of the TV SCART socket over be-
tween the digital receiver and the device connected to the
VCR SCART socket. See §4.2.4 for more details.
.
.
SAT is not used in this model.
19
.
20
.
MENU displays the main menu. It is also used to return to
the previous menu from a submenu.
.
.
EXIT is used to exit a menu or to hide on-screen informa-
21
tion.
.
.
is used to start recording.
22
.
.
is used to stop playback, to stop recording, or to jump
23
back to live television from time-shifted television.
.
.
is used to display the list of recorded programmes that
24
are stored in the external hard drive. See §7.2 for more
details.
.
.
25
.
26
resumes normal playback speed, or displays the
progress bar for navigation on playback or time-shift. To
play a recorded programme, see button
.
pauses live television or playback of a recorded pro-
.
24
.
.
gramme.
.
.
is used to start reverse playback. Subsequent presses
27
increase the rewind speed.
6 Introduction
.
.
.
.
.
.
.
.
.
.
.
28
is used to start fast forward playback. Subsequent
presses increase the playback speed.
.
.
29
is used to start slow motion playback. Subsequent
presses change the playback speed.
.
.
is used to jump back to the beginning of the recording
30
on playback.
.
.
is used to jumpto the end of the recording on playback.
31
.
.
has different functions per menu.
32
.
.
is used to make a bookmark on playback or time-shift.
33
.
.
is used to jump to next bookmark position.
34
.
.
has different functions per menu.
35
.
.
has different functions per menu.
36
How to use the colour buttons will be guided by the on-screen
help.
NOTE
When using the remote control, point it at the remote sensor
on the front panel of the digital receiver.
1.3Common Interface
There are pay TV services available; these
are accessible with the use of a Conditional
Access Module (CAM) and a subscription
card. A Common Interface (CI) is the slot
into which you can insert a CAM. The front
of the digital receiver has two common interface slots. To watch a pay service, you should
take the following steps:
1. Purchase a CAM and a subscription card for the pay service you want to watch.
2. Insert the subscription card into the CAM.
1.3 Common Interface 7
3. Insert the CAM into a common interface on the front of
the digital receiver.
To view the information about
the module and subscription
card which is inserted into the
digital receiver, select theIn-
formation > Common Interface
menu.
8 Setup
2.1Unpacking
Chapter 2
Setup
Before going any further, check that you have received the following items with the digital receiver.
• Remote control unit
• Two batteries for the remote control (AAA 1.5V)
• A copy of this user guide
NOTE
Accessories may vary according to your local area.
2.2Safety precautions
Please read carefully the following safety precautions.
• The mains voltage must range between 90 and 250 volts.
Check it before plugging the digital receiver to the wall
socket. For the power consumption of the digital receiver, refer to Table 2.1.
• The wall socket should be near the equipment. Do not
run an extension lead to the unit.
2.2 Safety precautions 9
• The mains plug shall remain readily operable so that it
can be removed easily to disconnect the power.
• The digital receiver shall not be exposed to dripping or
splashing water, and no objects filled with liquids, such
as vases, shall be placed on it.
• Do not expose the digital receiver to any moisture. The
digital receiver is designed for indoor use only. Use dry
cloth to clean the digital receiver.
• Place the digital receiver on a firm and level surface.
• Do not place the digital receiver close to heat emitting
units or in direct sunlight, as this will impair cooling.
Do not lay any objects such as magazines on the digital receiver. When placed in a cabinet, make sure there
is a minimum space of 10 centimetres around it. For the
physical specification of the digital receiver, refer to Table 2.2.
• Protect the power cord from beingwalked on or pinched.
If the cord is damaged,do not use the digital receiver and
get the cord replaced.
• Never open the digital receiver casing under any circumstances, or the warranty will be void.
• Refer all servicing to a qualified service technician.
• To maintain proper ventilation, always leave sufficient
space around the digital receiver.
• Batteries, including those which contain no heavy metals, may not be disposed with other household wastes.
Please dispose of used batteries in an environmentally
sound manner. Find out the legal regulations which apply in your area.
Table 2.1: Power specification
Input voltage90 to 250 V AC, 50/60 Hz
Power consumption22 W at maximum in active
1 W in standby
10 Setup
Scart Cable
TV
AUDIO
VCR
.
.
Table 2.2: Physical specifications
Size260× 46× 190mm
Weight1.2 kg
Operating temperature0 to 45◦C
Storage relative humidity5 to 90 %
2.3Rear panel connections
The CBP-2001CI+ has the following connections on the back:
Check what connections your television set has in comparison
with the digital receiver.
.
.
CABLE INCable broadcasting signal input socket
1
.
.
CABLE OUT Cable broadcasting signal output socket
2
through the CABLE IN socket for another
digital receiver
.
.
.
.
.
.
.
.
.
.
S/PDIFDigital audio output socketfor the audio-
3
video receiver
.
.
VCRAudio and video input/output socket for
4
another device such as a video recorder
.
.
TVAudio and video output socket for the
5
television set
.
.
Y/Pb/PrComponent video output socket for the
6
television set
(green/blue/red)
.
.
AUDIO L/RStereo audio output socket for the televi-
7
sion set or theaudio-video receiver(white/red)
.
.
VIDEOComposite video outputsocket for the tele-
8
vision set (yellow)
.
.
HDMIAudio and video output socket for the
9
high definition television set
.
.
ON/OFFPower switch (You have to turn on this
10
switch first to use this digital receiver.)
Table 2.3: Connectors specifications
2.3 Rear panel connections 11
HDMIHigh definition video output
Left & right audio output
Digital audio output
TVCVBS/S-Video/RGB video output
Left & right audio output
VCRCVBS video output
Left & right audio output
CVBS/S-Video/RGB/YUV video input for bypass
Left & right audio input for bypass
YPbPrComponent video output
VIDEOComposite video (CVBS) output
AUDIOLeft & right audio output
S/PDIFDigital audio output
USB2.0 Host 5 V DC, 500mA (on the front)
12 Setup
2.4Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the
digital receiver suitably to your television and other devices.
If you have any problem with your setup or need help, contact
your dealer.
2.4.1 Connecting to the broadcasting cable
Whatever sort of connection you have between the digital receiver and the television,
you need to connect the digital receiver to the
broadcasting cable so that it can receive digital television broadcasts. Connect the broadcasting cable to the CABLE IN connector. If
you have another digital receiver, you may
link it from the CABLE OUT connector.
2.4.2 Connecting to your television set
For all the following connections of the digital receiver, we recommend you to use the first connector to get the best picture
quality. If your television does not have a matching connector,
then use the next connector in the following order for a better
picture quality.
1. HDMI connector (HDMI)
2. Component connector (YPbPr)
3. SCART connector (TV)
4. Composite connector (VIDEO)
You should configure audio and video settings after connecting up the digital receiver. See §4.2 for a detailed description.
To use the HDMI output
NOTE
Illustrations in this manual may differ from the actual product.
To use the SCART output
2.4 Connecting up your digital receiver 13
If you have a high definition television set,
you should use an HDMI cable for best results. Plug oneend of the cable into the HDMI
socket on the digital receiver, and plug the
other end into the matching socket on your
television. In this case, you do not have to
make audio connection because it can output
stereo audio or digital audio as well.
For best results with a standard television set,
you should use a SCART cable. Plug one end
of the cable into the TV socket on the digital
receiver, and plug the other end into a free
SCART socket on your television.
If you connect with a standard SCART cable, you do not have
to make audio connection because it can output stereo audio
as well. But if you use a conversion cable such as SCART-toComponent, then you have to make audio connection.
NOTE
You cannot view high definition video by means of the
SCART output.
14 Setup
To use the Component video output
NOTE
When connecting with the Component video cable, remember to also plug in the additional white and red audio
cables from the digital receiverto the back of your television.
To use the Composite video output
You need to obtain a Component video cable (RCA cable) to use the Component video
output. Plug one ends of the cable into the Y
(green), Pb (blue) and Pr (red) sockets on the
digital receiver, and plug the other ends into
the matching sockets on your television.
You need to obtain a Composite video cable
(RCA cable) to use the Composite video output. Plug oneend of the cable into the VIDEO
(yellow) socket on the digital receiver, and
plug the other end into the matching socket
on your television.
NOTE
You cannot view high definition video by meansof the Composite video output.
To make the audio connection
You need to obtain an audio cable (RCA cable) to link the audio connectors. Plug one
ends of the cable into the AUDIO L (white)
and AUDIO R (red) sockets on the digital receiver, and plug the other ends into
the matching sockets on your television or
audio-video receiver.
To enjoy Dolby Digital audio, your television
or audio-video receiver must be able to decode Dolby Digital audio, and you need to
obtain an S/PDIF cable.
Plug one end of the cable into the S/PDIF
socket on the digital receiver, and plug the
other end into the matching socket on your
audio-video receiver.
2.4.3 Connecting to your video recorder
The digital receiver can also output video through an auxiliary
SCART connector to another device such as a video recorder.
You need to obtain a SCART cable to link the
auxiliary SCART connector. Plug one end
of the cable into the VCR socket on the digital receiver, and plug the other end into the
matching socket on your video recorder or
suchlike.
2.5 Switching on for the first time 15
2.5Switching on for the first time
Now that youhave your digitalreceiver connected, you should
plug it into a wall socket. Ensure that your television set is
turned on and on the correct video channel so that you will be
able to see the display from the digital receiver.
16 Setup
Before switching on the digital receiver, you should insert batteries into the remote control. Open the battery compartment
by removing the lid, and then insert the batteries observing the
polarity, which is marked on the base of the battery compartment.
Press thebutton on the top left corner on the remote control. In a little time, you may see a picture displaying a menu.
If you do not see a picture, try pressing the
the remote control. If after several tries you still get no picture,
check that the television is set to the correct input. If the picture
is good, you can skip to §3.1 to search for available television
and radio services. Otherwise, you may need to temporarily
connect the Composite video connector (VIDEO) to your television set so that you can see the menu in order to configure
the video settings.
CAUTION
If the digital receiver no longer reacts properly to the remote
control commands, the batteries may be flat. Be sure to replace only with 1.5 V AAA size batteries, and observe the
following precautions.
V.Format button on
• Do not mix different types of batteries, or new and old
batteries.
• Do not use rechargeable batteries.
• Do not recharge the old batteries.
• In order to avoid any risk of explosion, observe the polarities indicated inside the battery compartment.
• Do not subject to excessive heat such as the sun and
fire.
• If you are not using the remote control for a long period of time, remove the batteries. The manufacturer
accepts no liability for the damage resulting from leaking batteries.
2.5 Switching on for the first time 17
• Batteries, including those which contain no heavy
metals, may not be disposed with other household
wastes. Please dispose of used batteries in an environmentally sound manner. Find out the legal regulations
which apply in your area.
Loading...
+ 49 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
