Topfield CBC-5200 User Manual

CBC - 5200
User Guide
Digital Cable Receiver
CONAX
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
The mains plug, which is used as a disconnect device, shall remain readily operable.
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to a person.
The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
iv CONTENTS
Contents
Contents iv
1 Introduction 1
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Controlling the digital receiver . . . . . . . . . . . . . . . . . . 2
1.2.1 The front panel . . . . . . . . . . . . . . . . . . . . . . . 3
1.2.2 The remote control . . . . . . . . . . . . . . . . . . . . . 4
2 Setup 6
2.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Rear panel connections . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Connecting up your digital receiver . . . . . . . . . . . . . . . 9
2.4.1 Connecting to the broadcasting cable . . . . . . . . . . 9
2.4.2 Connecting to your television set . . . . . . . . . . . . 9
2.4.3 Connecting to your video cassette recorder . . . . . . . 11
2.5 Inserting batteries in the remote control . . . . . . . . . . . . . 11
2.6 Switching on for the first time . . . . . . . . . . . . . . . . . . . 12
2.6.1 Powering on and checking picture . . . . . . . . . . . . 12
3 Preference Settings 13

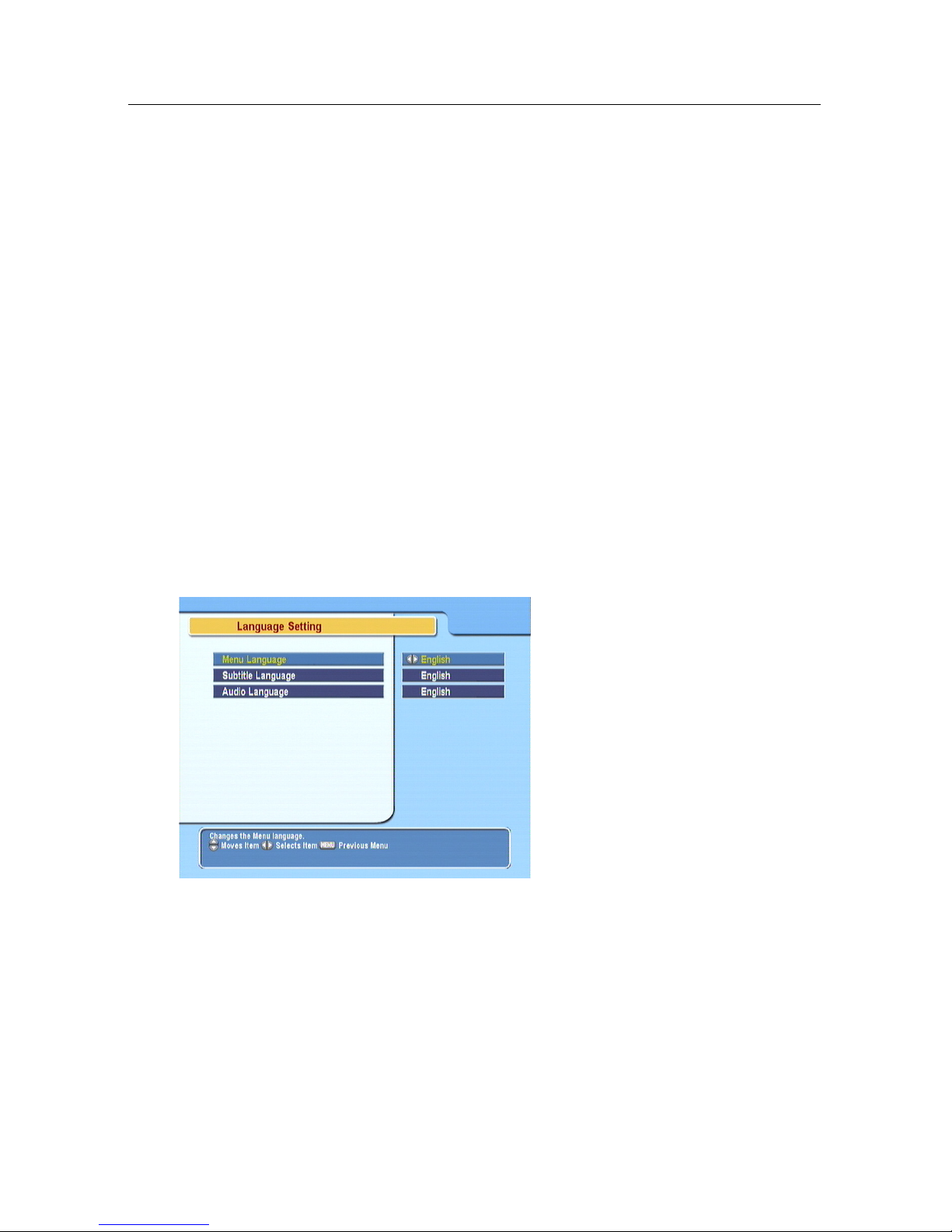

3.1 Language settings . . . . . . . . . . . . . . . . . . . . . . . . . . 13

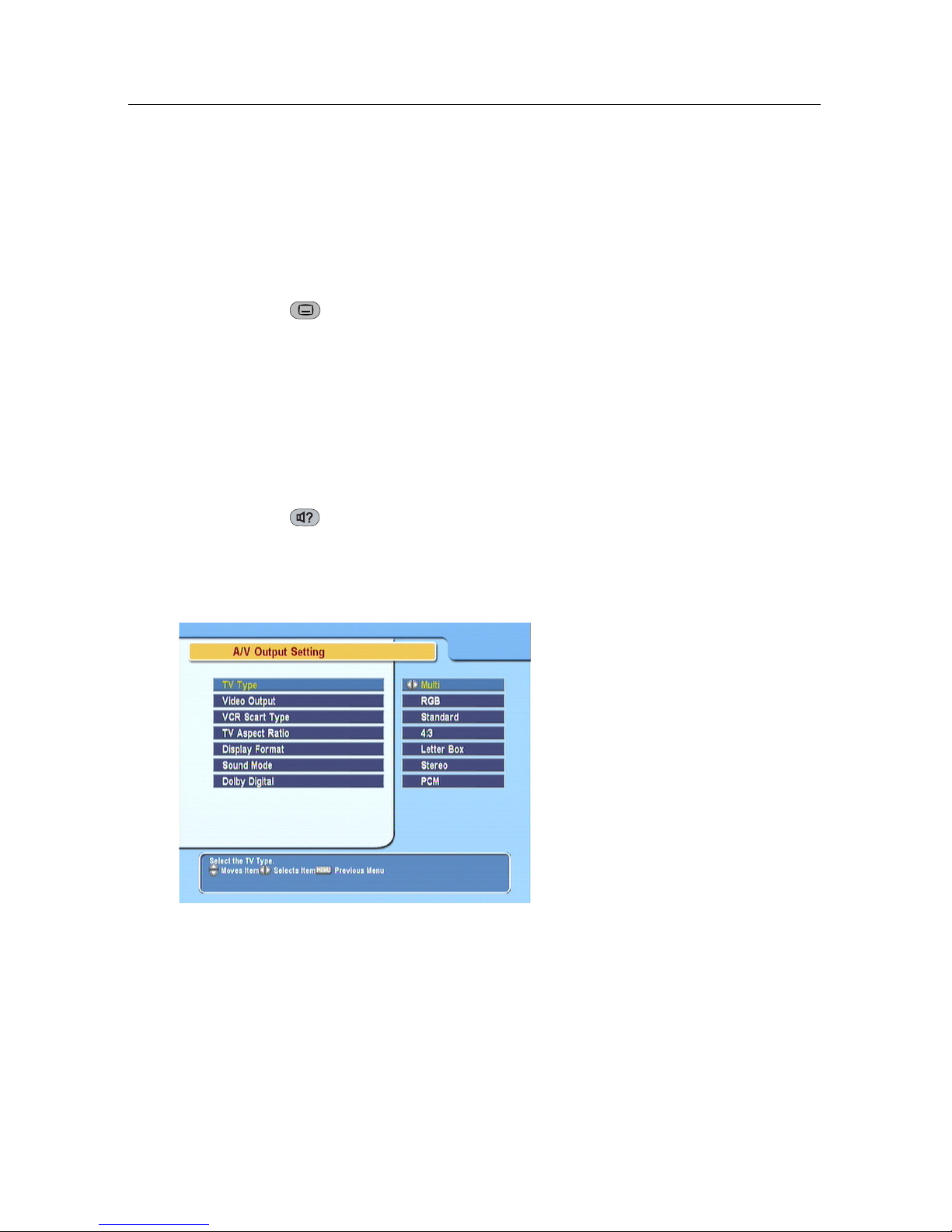

3.2 Video and audio settings . . . . . . . . . . . . . . . . . . . . . . 14
3.2.1 Television standard . . . . . . . . . . . . . . . . . . . . 14
3.2.2 Colour model . . . . . . . . . . . . . . . . . . . . . . . . 15
CONTENTS v
3.2.3 Video cassette recorder . . . . . . . . . . . . . . . . . . 15

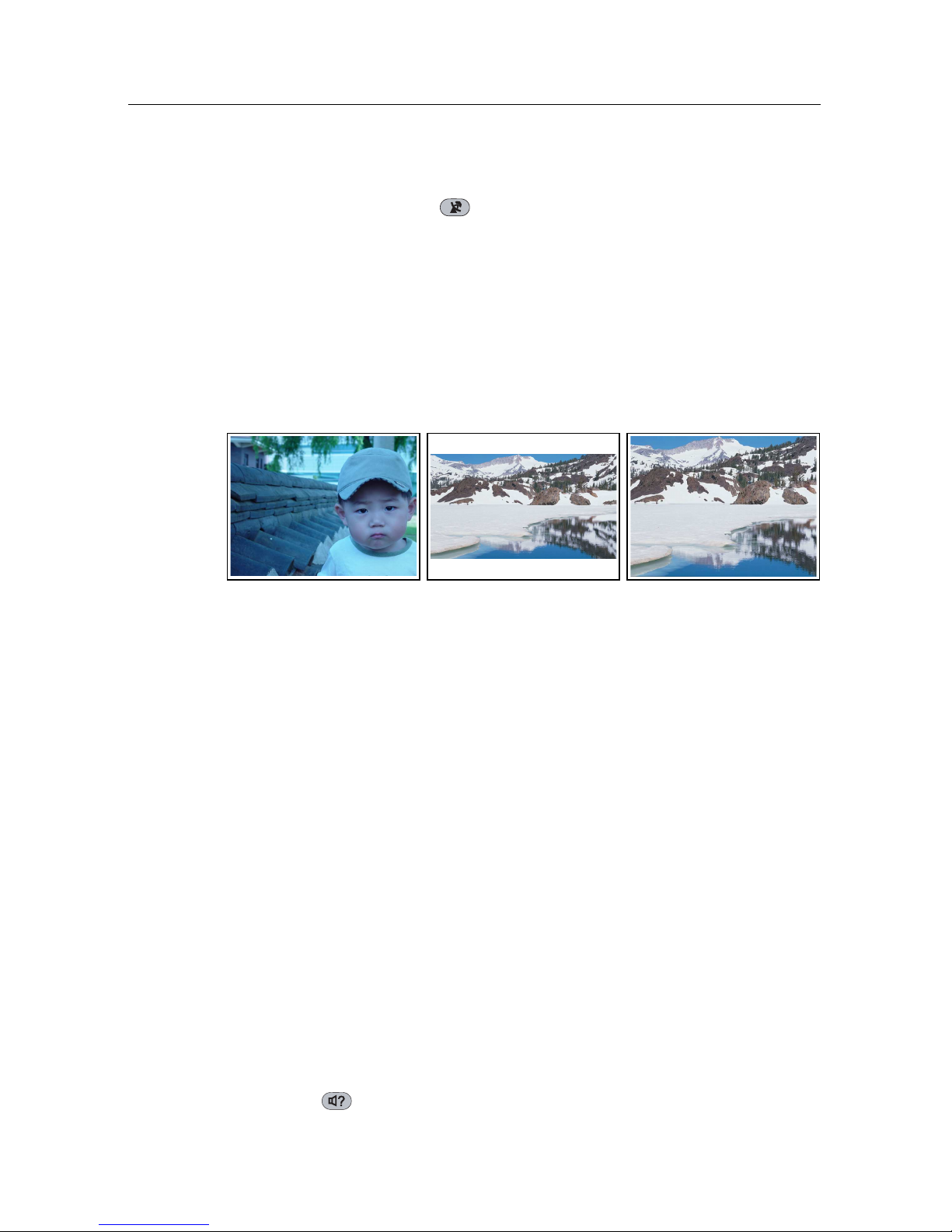

3.2.4 Television aspect ratio . . . . . . . . . . . . . . . . . . . 16
3.2.5 Audio mode . . . . . . . . . . . . . . . . . . . . . . . . 16

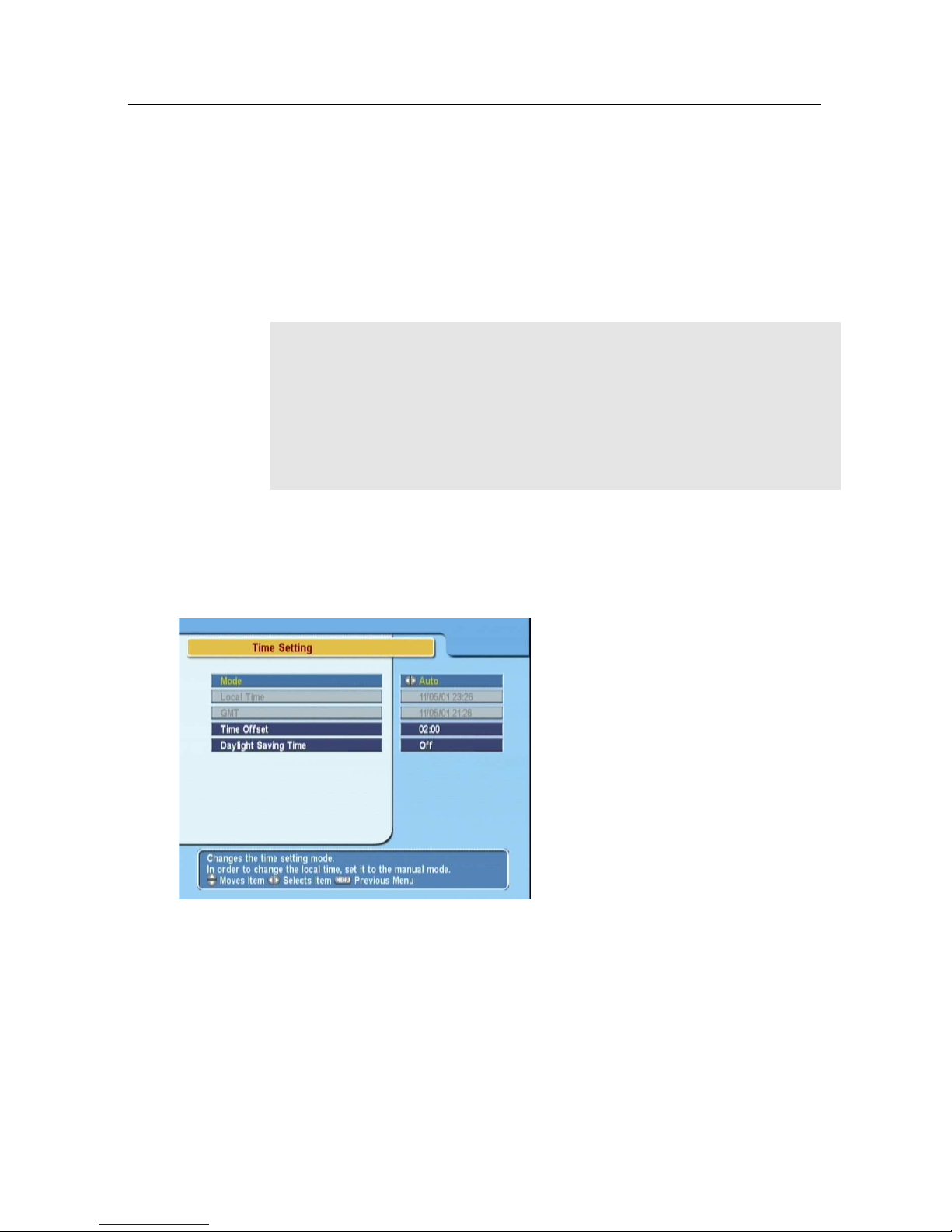

3.3 Local time setting . . . . . . . . . . . . . . . . . . . . . . . . . . 17

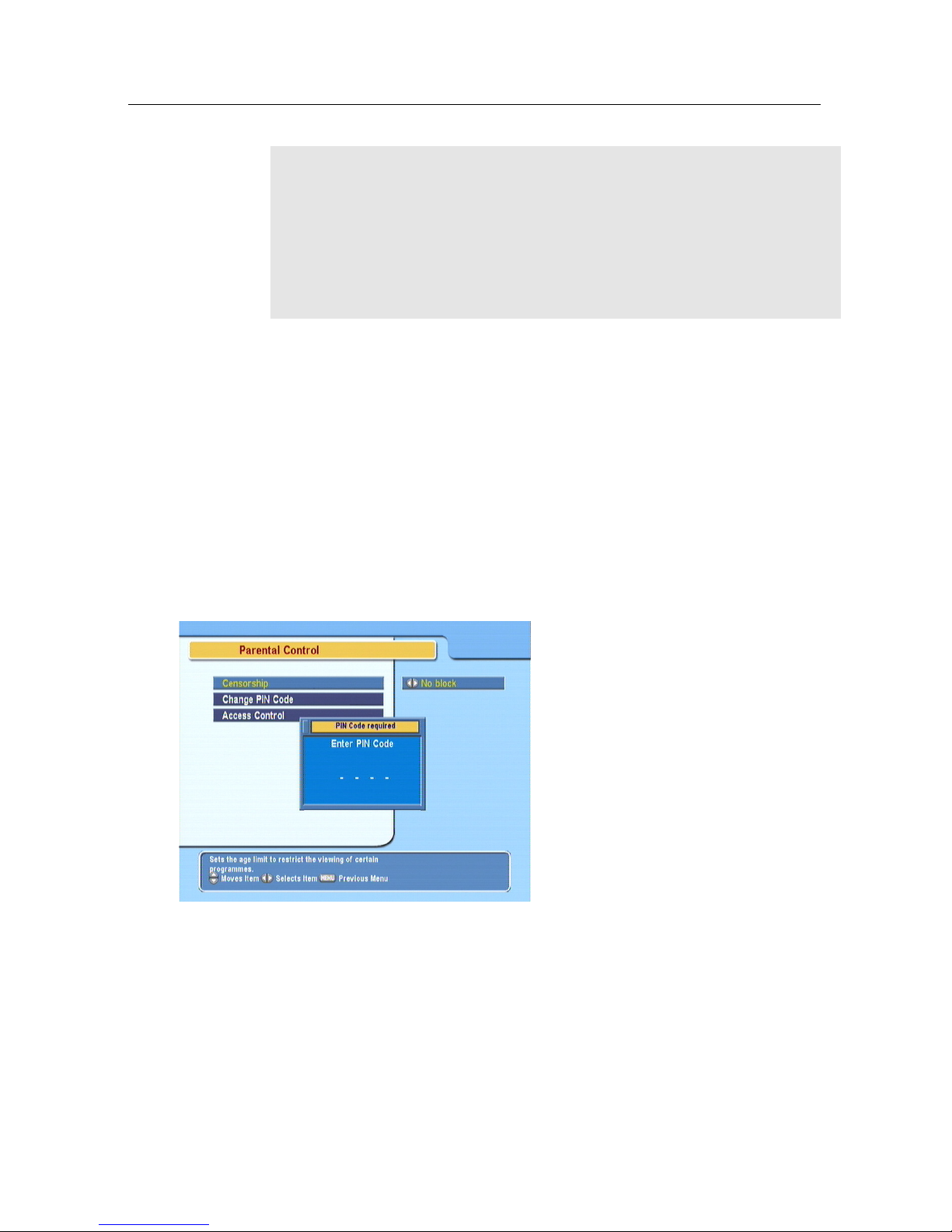

3.4 Parental control . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.5 Adjusting the On-Screen Display . . . . . . . . . . . . . . . . . 20
4 Service Search 22

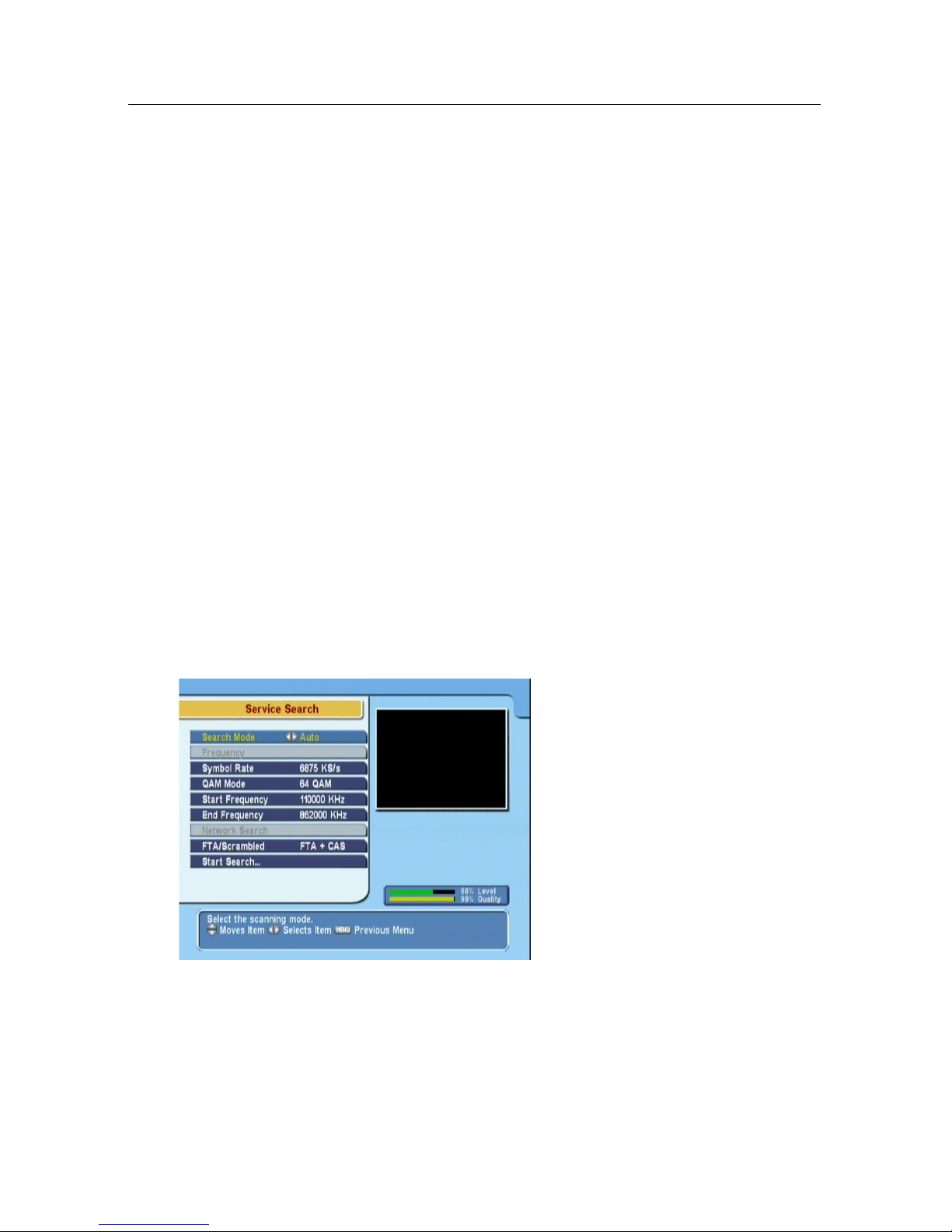

4.1 Searching broadcasting services . . . . . . . . . . . . . . . . . . 22
4.2 Resetting to factory settings . . . . . . . . . . . . . . . . . . . . 23
5 Daily Usage 25
5.1 Volume control . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.2 Watching television . . . . . . . . . . . . . . . . . . . . . . . . . 25

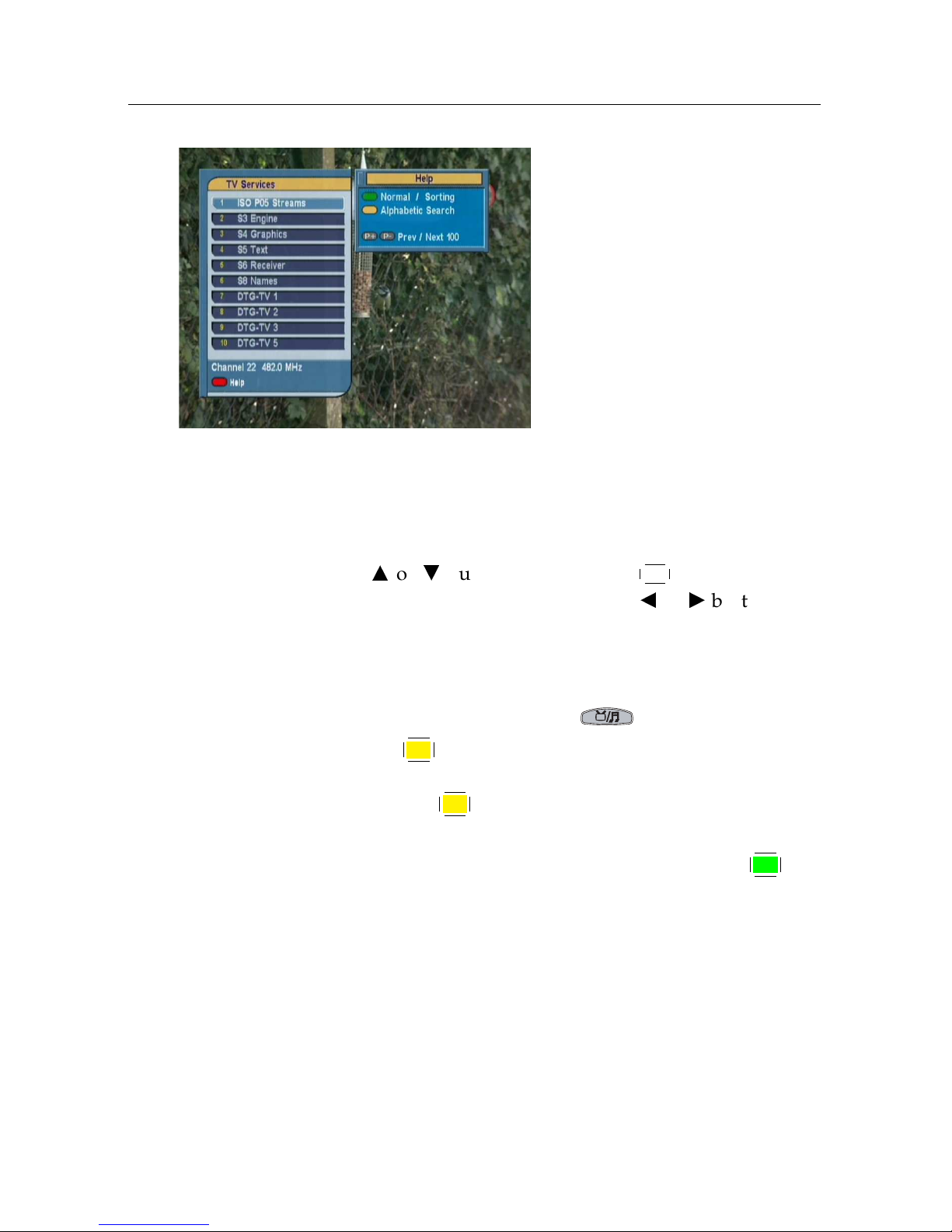

5.2.1 The services list . . . . . . . . . . . . . . . . . . . . . . . 25
5.2.2 The favourite services list . . . . . . . . . . . . . . . . . 26

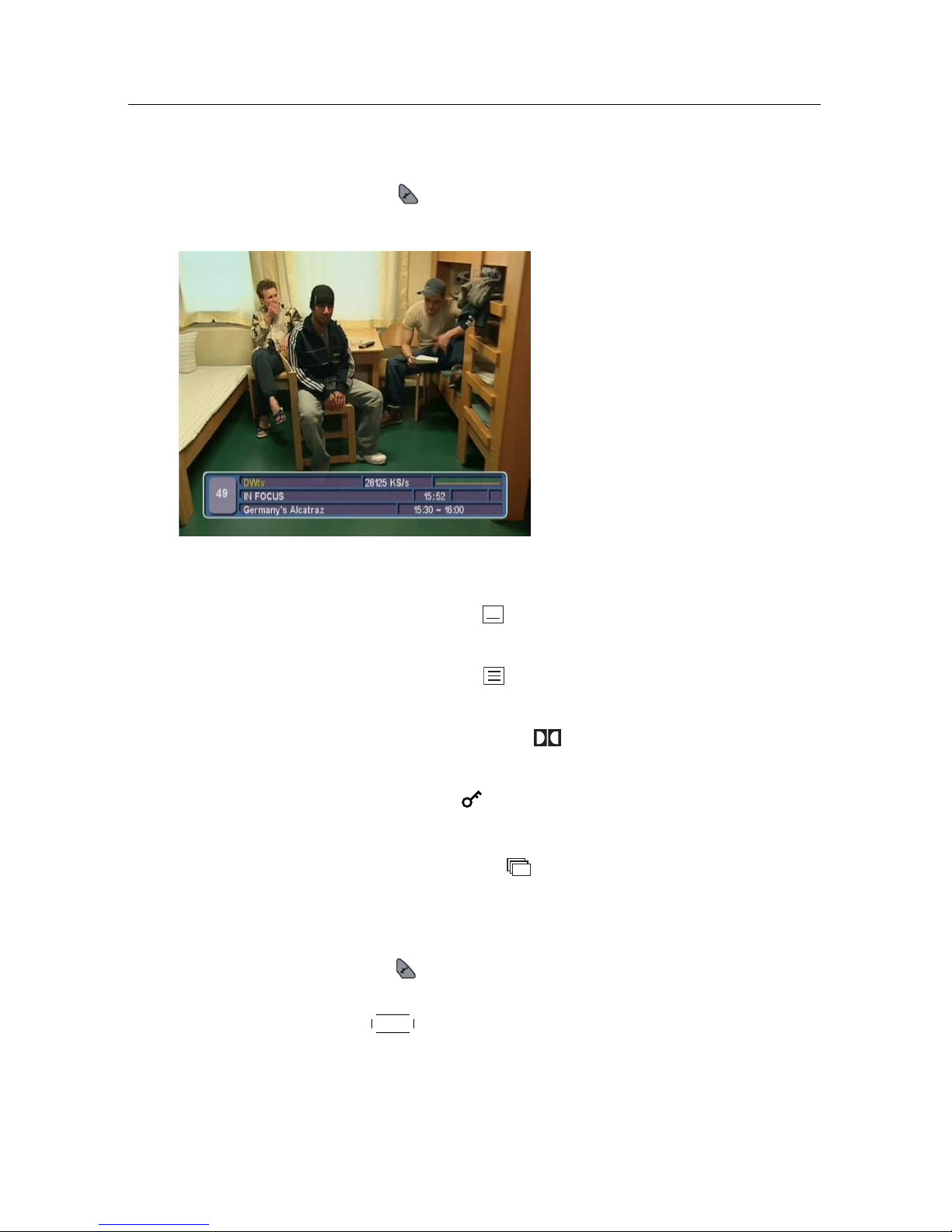

5.2.3 Viewing programme information . . . . . . . . . . . . 28
5.2.4 Selecting audio tracks . . . . . . . . . . . . . . . . . . . 29
5.2.5 Selecting subtitle tracks . . . . . . . . . . . . . . . . . . 29
5.2.6 Viewing teletext . . . . . . . . . . . . . . . . . . . . . . 29

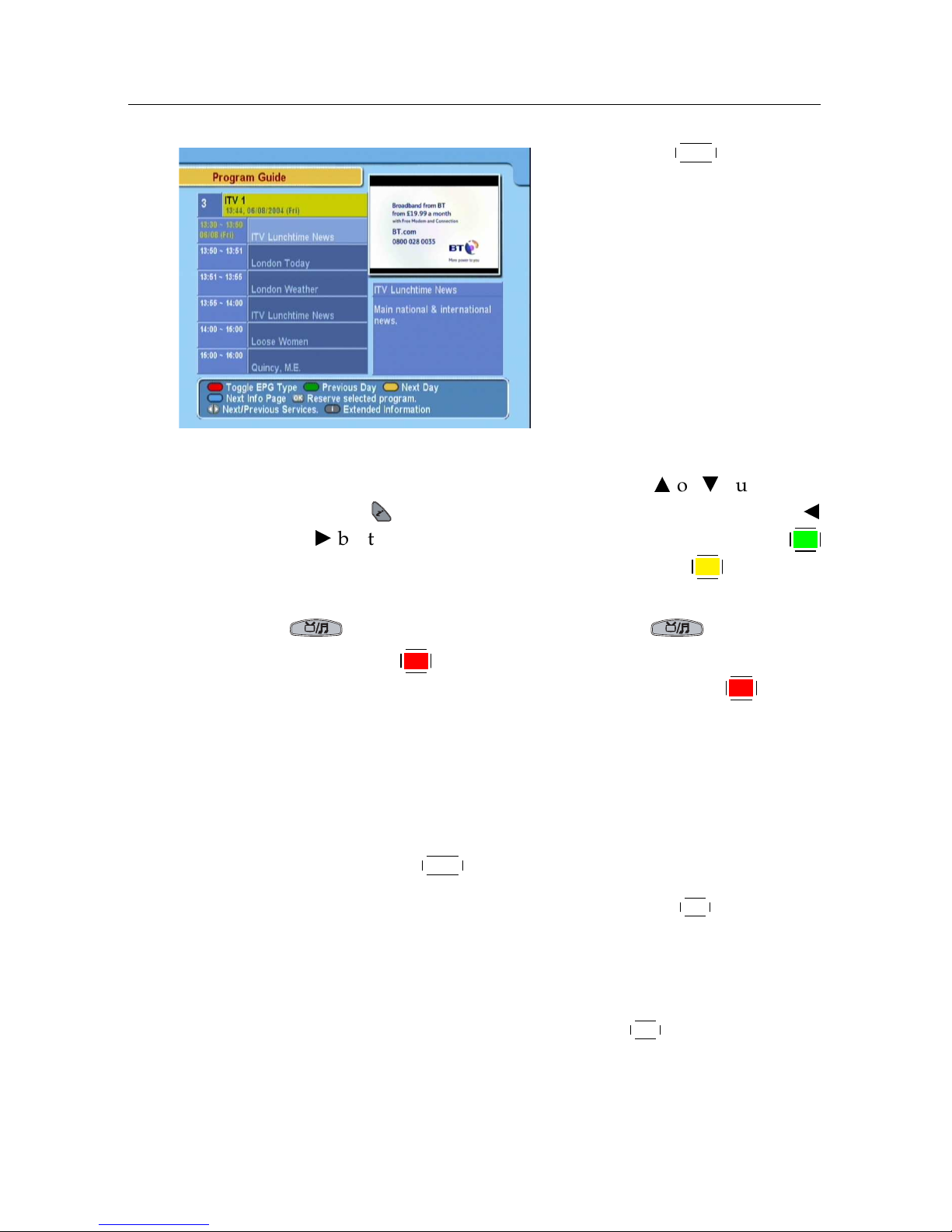

5.3 Viewing electronic programme guide . . . . . . . . . . . . . . 29
5.4 Watching multifeed programme . . . . . . . . . . . . . . . . . 31

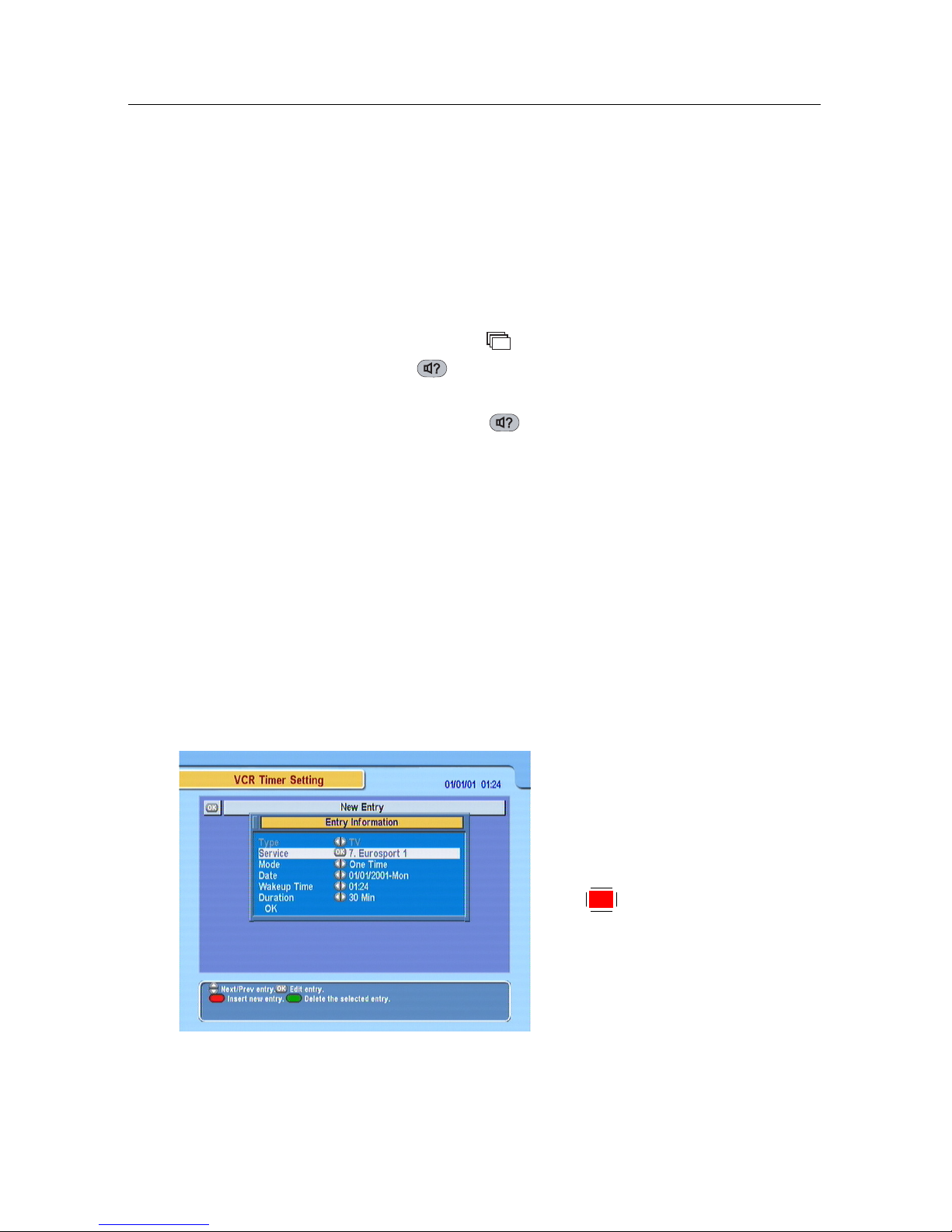

5.5 Making timer events . . . . . . . . . . . . . . . . . . . . . . . . 31
6 Listing Services 34

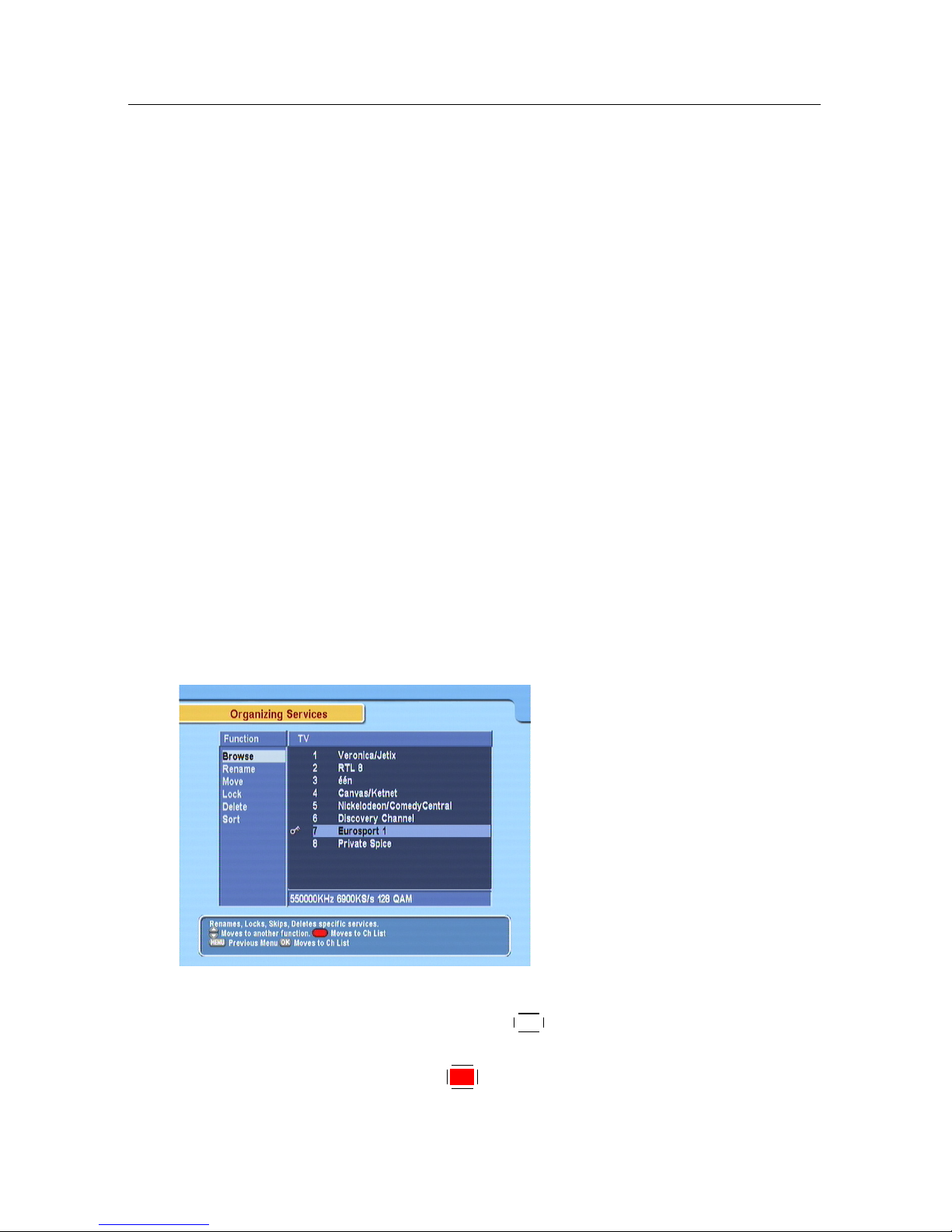

6.1 Editing the services list . . . . . . . . . . . . . . . . . . . . . . . 34

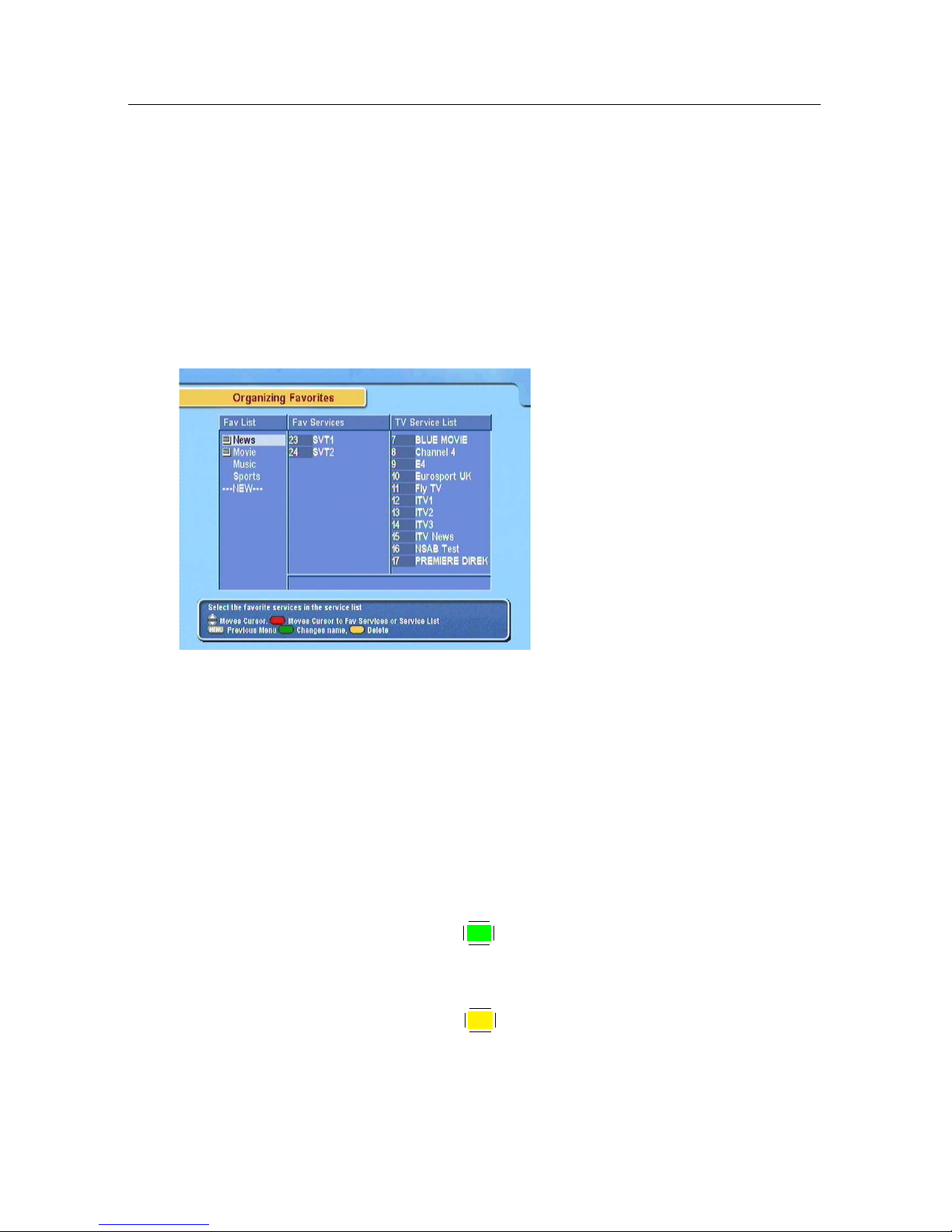

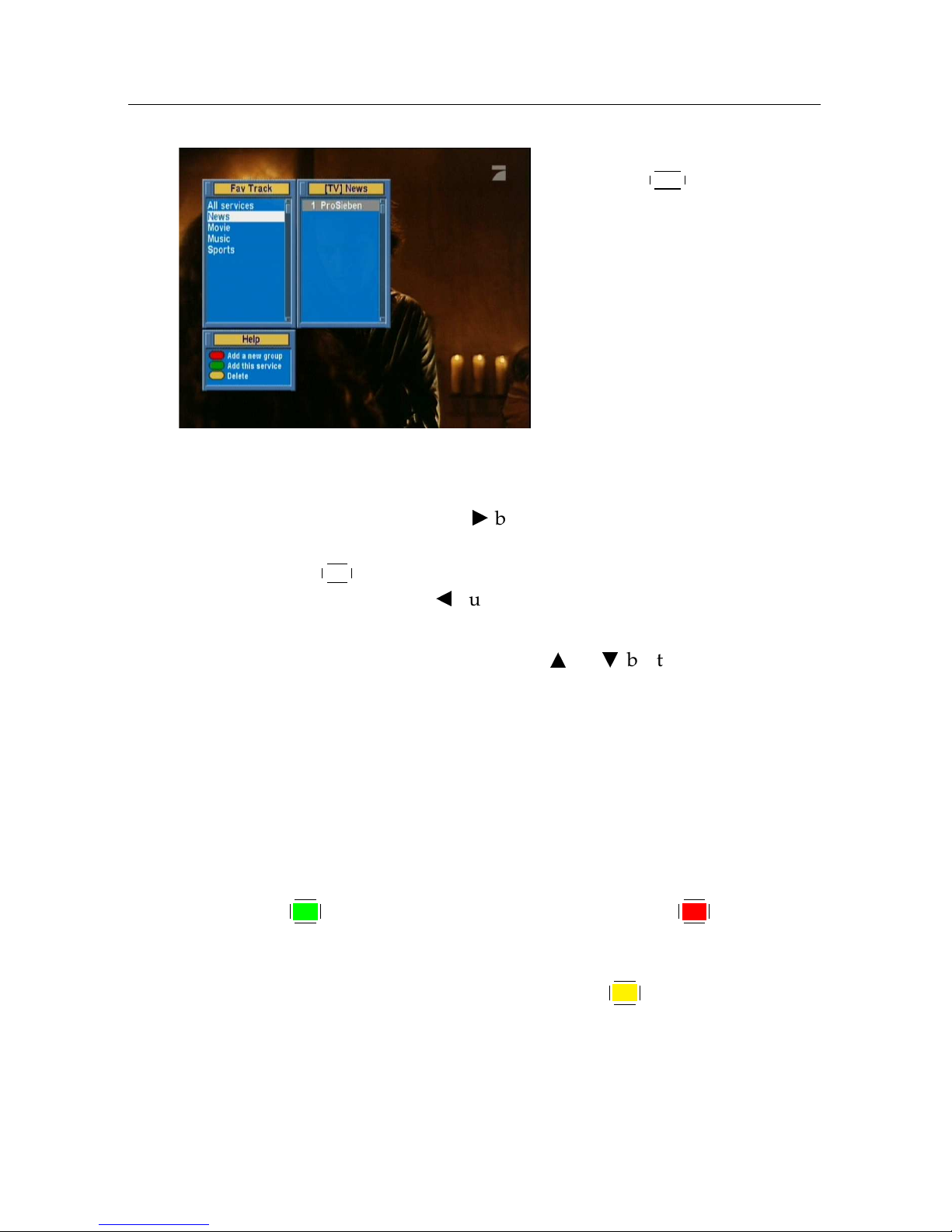

6.2 Editing the favourite list . . . . . . . . . . . . . . . . . . . . . . 36

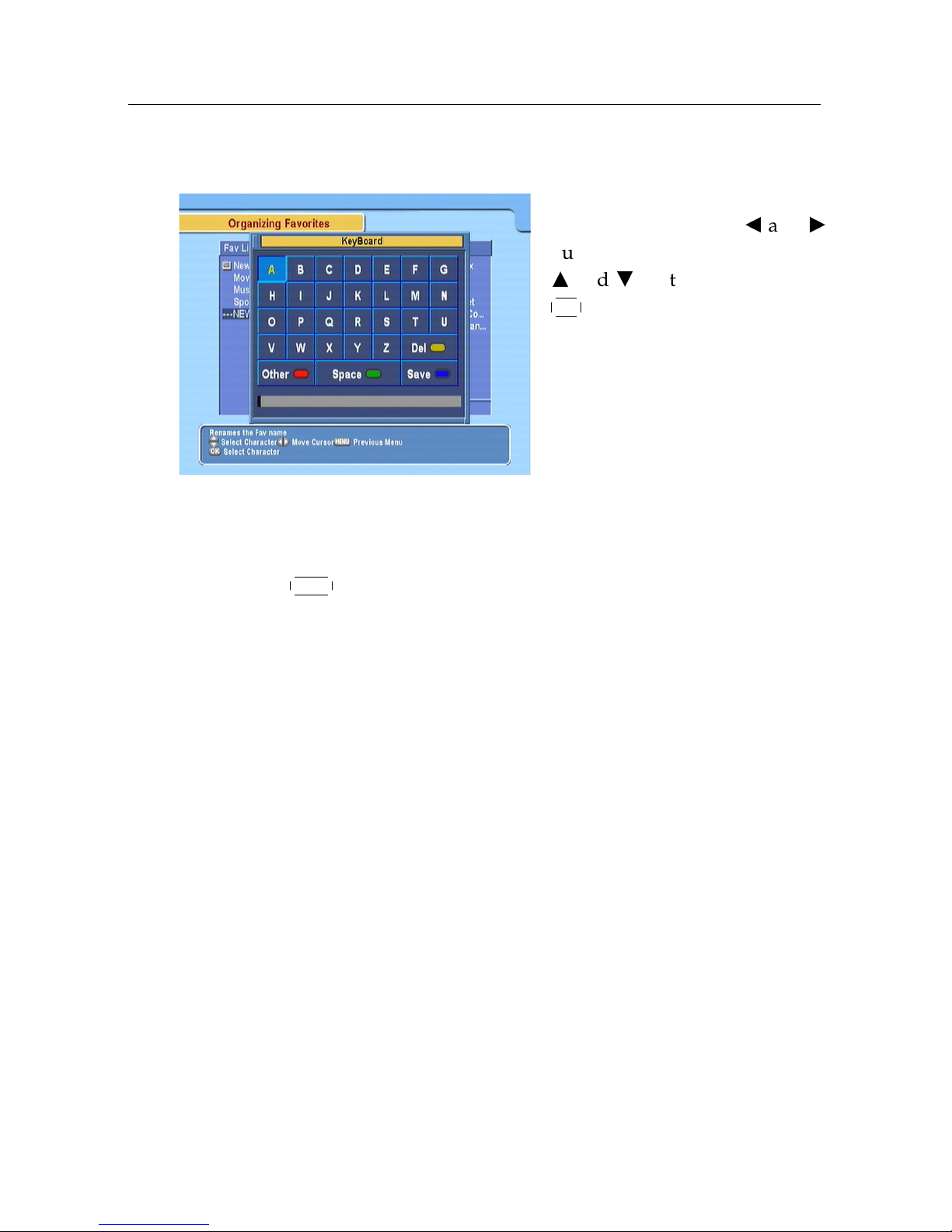

6.3 How to use on-screen keyboard . . . . . . . . . . . . . . . . . . 38
6.4 Transferring receiver data . . . . . . . . . . . . . . . . . . . . . 38
7 Firmware Update 40

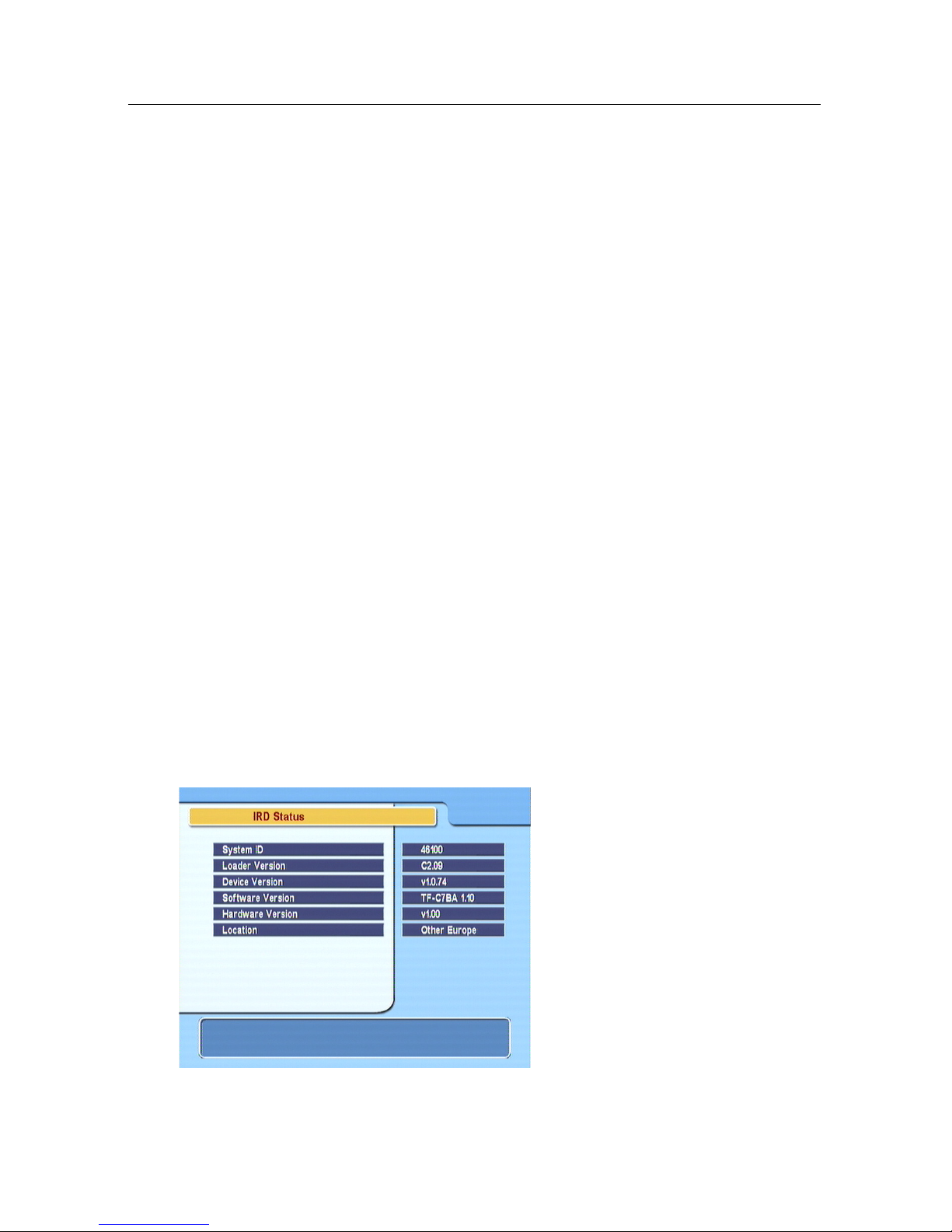

7.1 Checking the firmware information . . . . . . . . . . . . . . . 40

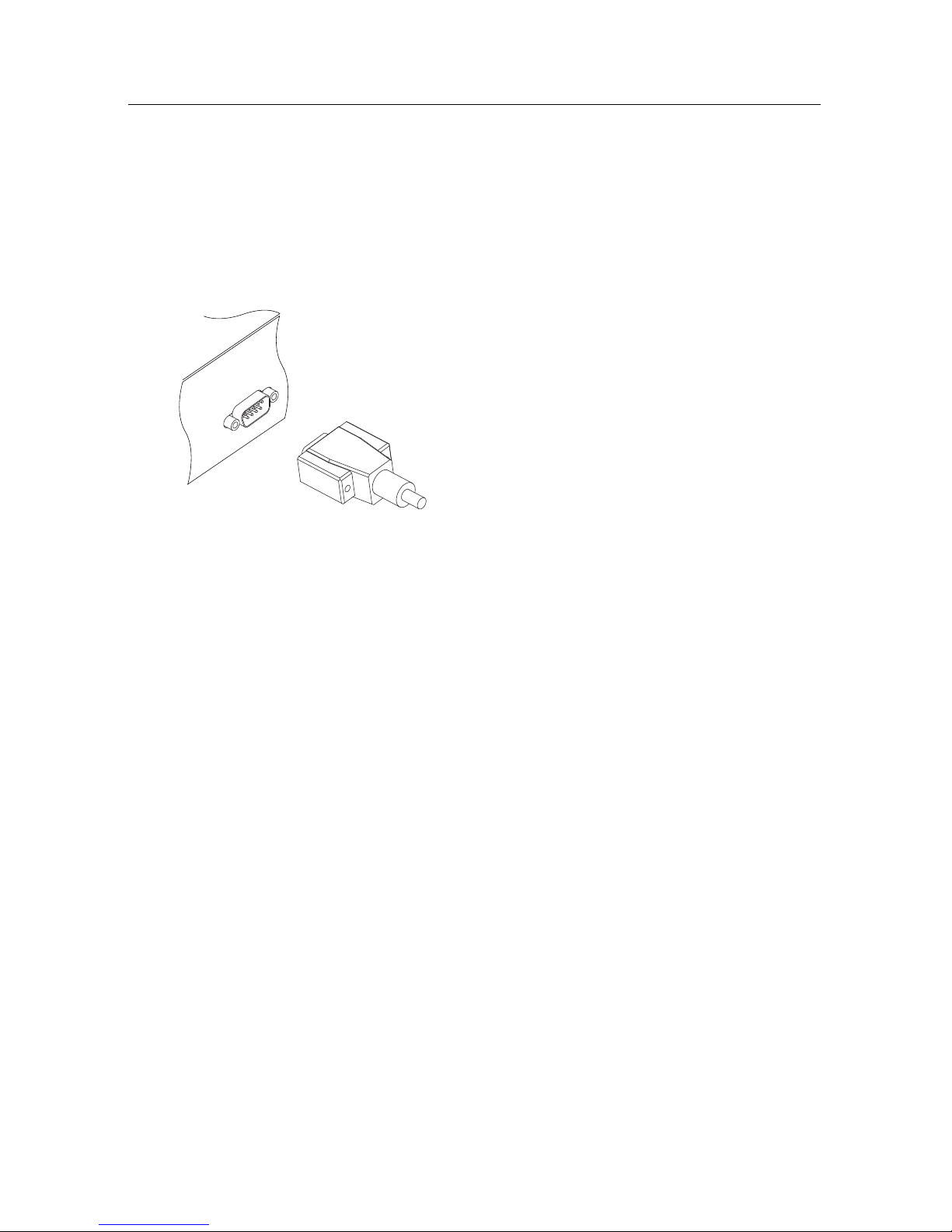

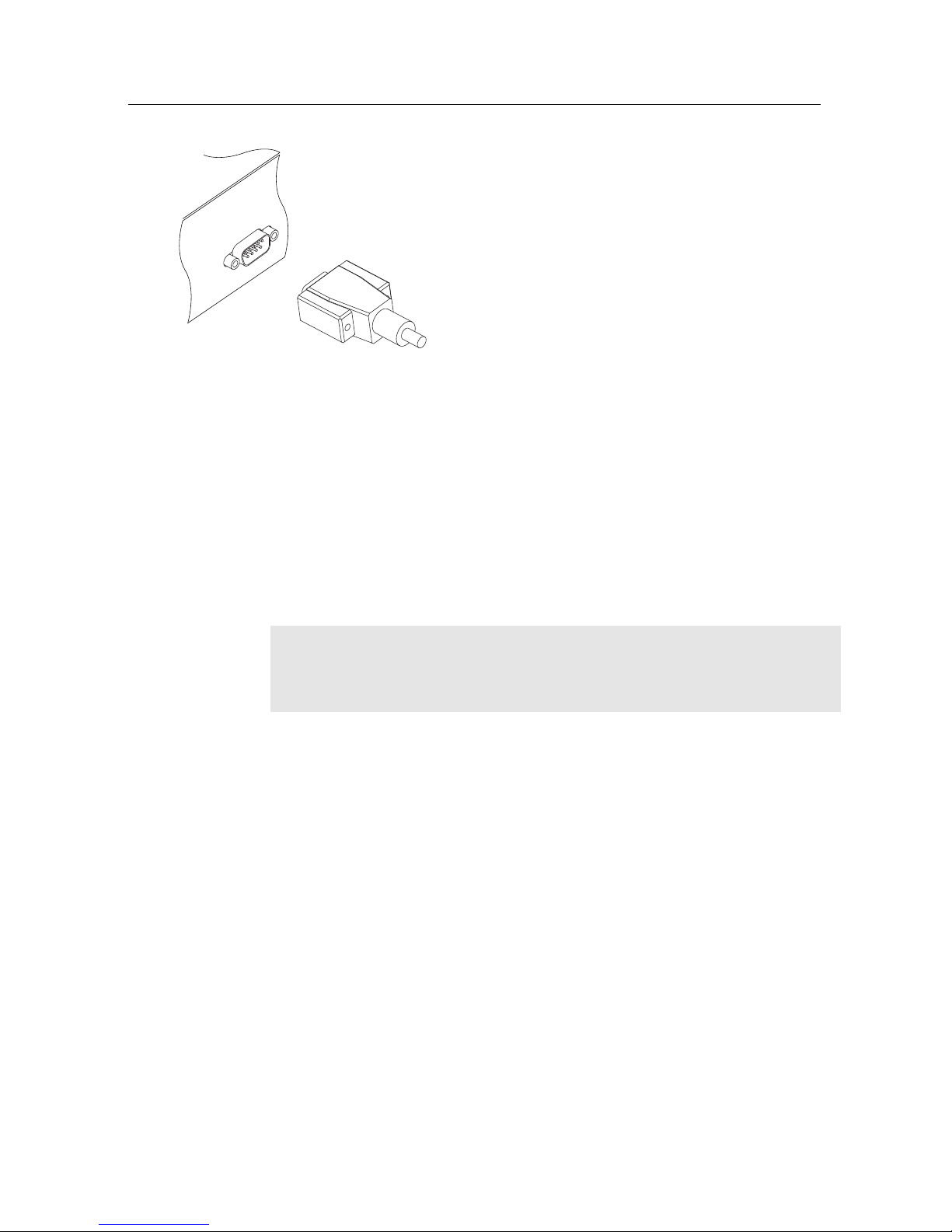

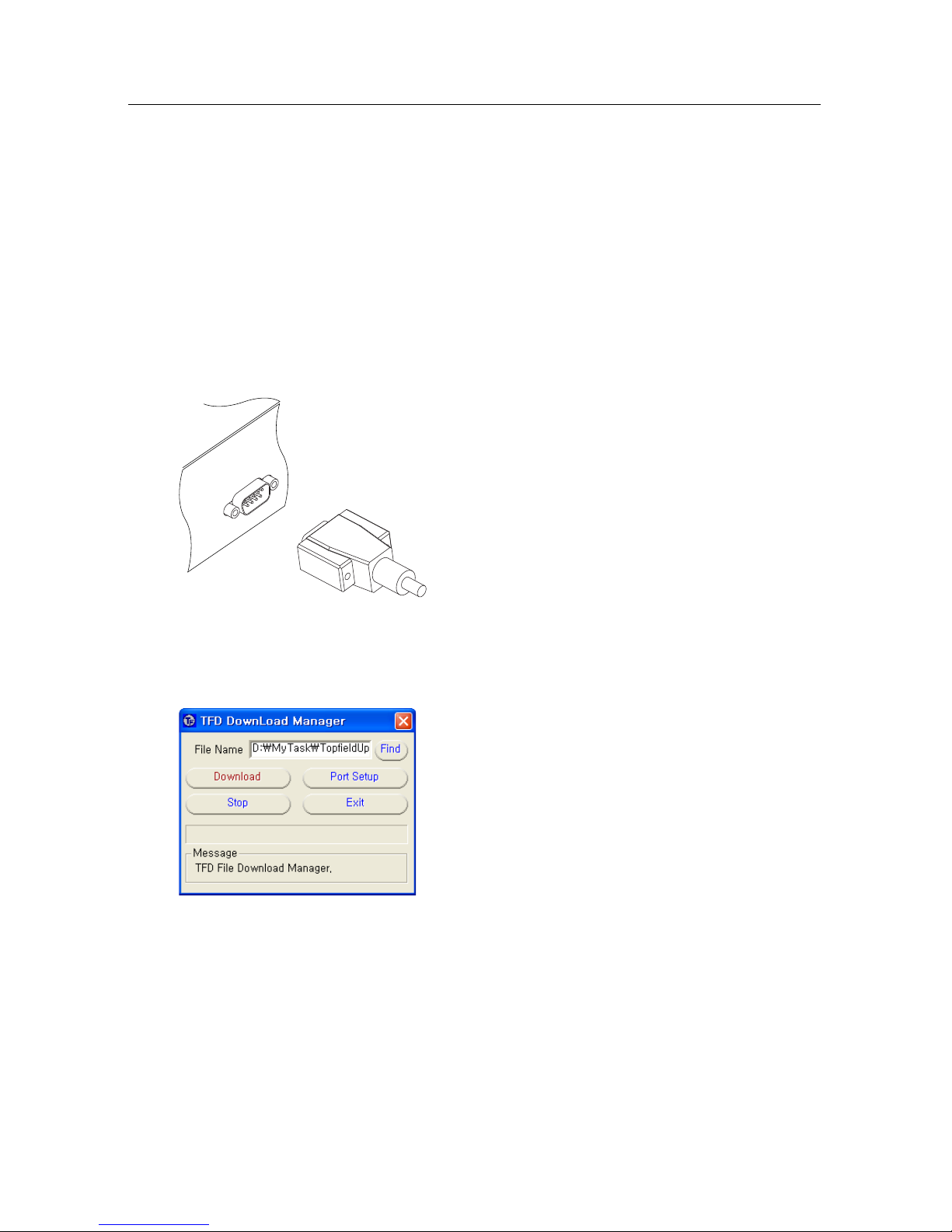

7.2 From your computer via RS-232 port . . . . . . . . . . . . . . . 42
7.3 From another digital receiver via RS-232 port . . . . . . . . . . 43
Index 44
1
Chapter 1
Introduction
The CBC - 5200 digital receiver is fully compliant with the inter­national Digital Video Broadcasting (DVB) standard, and thus is able to receive digital broadcasts of that standard.
NOTE
In general we equate a channel with a frequency. However, unlike analogue broadcasts, digital broadcasts are not all as­signed to their own frequencies; instead, multiple television broadcasts are transmitted through a single frequency. The fre­quency in digital broadcasting is usually called transponder. To reduce confusion in this manual, the word
service
is preferably
used than
channel
as a term to indicate one television or radio
broadcast.
1.1 Features
The CBC - 5200 digital receiver has the following features:
• Can store up to 2000 television and radio services.
• You can edit the services list.
2 Introduction
• Can create favourite lists of your favourite services.
Can view information about the current television or radio programme.
Has an electronic programme guide that provides an overview of scheduled programmes.
1.2 Controlling the digital receiver
You can operate the digital receiver with the remote control or the buttons on the front panel.
NOTE
When the digital receiver is off but plugged into a wall outlet, we say that it is in standby mode; on the other hand, when it is on, it is in operation mode. Even when you are not using the digital receiver, you should keep it plugged into a wall outlet to be in standby mode so that it can run timer events at any time.
1.2 Controlling the digital receiver 3
1.2.1 The front panel
The front panel of the digital receiver has buttons to control the digital receiver, specific lamps and a display to indicate its status. The following indicates what they mean.
Front display
shows the current time in standby mode, and
displays the current service in operation mode.
button switches the digital receiver between standby mode and operation mode.
CHANNELc,
a
buttons switch to previous or next service. They are also used to navigate in menus and interactive screens.
STANDBY
lamp lights up while the digital receiver is in
standby mode.
MESSAGE lamp is not used.
IR/RADIO
lamp blinks whenever you press a button on the
remote control.
You have to insert your subscription card into the front slot to watch pay services.
4 Introduction
1.2.2 The remote control
1
button switches the digital re­ceiver between standby mode and operation mode.
2
mutes the sound. Press again to
switch it back on.
3
Numeric buttons are used to enter a service number for service change or to specify values for menu options.
4
switches between the current ser-
vice and the previously viewed one.
5

FAV displays the favourite lists.
6
MENU
displays the main menu. It is also used to return to the previous menu from a submenu.
7
EXIT
is used to exit a menu or to hide
on-screen info.
8
EPG
displays the electronic pro-
gramme guide.
9
displays the service information box. It is also used to display more information about a programme.
10
c,abuttons switch to previous or
next service. They are also used to navigate in menus and interactive screens.
11
b,dbuttons decrease or increase the volume. They are
also used to change values for menu options.
12

OK
displays the services list. See§5.2.1 for more details.
1.2 Controlling the digital receiver 5
It is also used to select a menu item.
13
switches between television services and radio
services.
14

SAT is not used in this model.
15

V
,

V+
buttons decrease or increase the volume. They
are also used to change values for menu options.
16

P
,

P+
buttons switch to previous or next service. They are also used to navigate in menus and interactive screens.
17
These buttons have different functions per menu. They will be guided by on-screen help.
18
is used to select an audio track and sound mode, or a video track of multifeed programme. is used to select a subtitle track. displays teletext.
19
pauses live television.
20

UHF is not used in this model.
21
switches the output of the TV SCART socket between the digital receiver and the device connected to the VCR SCART socket. See § 3.2.3 for more details.
22

M1 is not used in this model.
23

N/P is not used in this model.
24
is used to set a sleep timer in 10 minute increments.
NOTE
When using the remote control, point it at the remote sensor on the front panel of the digital receiver.
6 Setup
Chapter 2
Setup
2.1 Unpacking
Before going any further, check that you have received the following items with your digital receiver.
• Remote control unit
• Two batteries for the remote control (AAA 1.5 V)
• A copy of this user guide
NOTE
Accessories may vary according to your local area.
2.2 Safety precautions
Please read carefully the following safety precautions.
The mains power must be 90 to 250 volts. Check it before connecting the digital receiver to the mains socket. For the power consumption of the digital receiver, refer to Table 2.1.
2.2 Safety precautions 7
The mains outlet should be near the equipment. Do not run an extension lead to the unit.
Do not expose the digital receiver to any moisture. The digital receiver is designed for use indoors only. Use dry cloth when cleaning the digital receiver.
• Place the digital receiver on a firm and level surface.
Do not place the digital receiver close to heat emitting units or in direct sunlight, as this will impair cooling. Do not lay any objects such as magazines on the digi­tal receiver. When placed in a cabinet, make sure there is a minimum space of 10 centimetres around it. For the physical specification of the digital receiver, refer to Table 2.2.
Protect the power cord from being walked on or pinched. If the cord is damaged, do not use the digital receiver and get the cord replaced.
Never open the digital receiver casing under any circum­stances, the warranty will be void.
• Refer all servicing to a qualified service technician.
Table 2.1: Power specifications
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 10 W at maximum in operation
8 W in standby
Table 2.2: Physical specifications
Size 215× 46× 155 mm
Weight 1.0 kg
Operating temperature 0 to 45 °C
Storage relative humidity 5 to 90 %
8 Setup
2.3 Rear panel connections
The CBC - 5200 has the following connections on the back:
Check what connections your television set has in comparison with the digital receiver.
1
CABLE IN
Cable broadcasting signal input socket for the first tuner.
2
CABLE OUT
Cable broadcasting signal output socket
through the first tuner.
3
AUDIO L/R
Stereo audio output socket for the television set or the audio system. (white/red)
4
VIDEO
Composite video output socket for the televi­sion set. (yellow)
5
S/PDIF
Dolby digital output socket for the audio sys­tem.
6
VCR
Audio and video input/output socket for the video cassette recorder or suchlike.
7
TV
Audio and video output socket for the televi­sion set.
8
RS-232
Serial port for firmware update and data transfer.
2.4 Connecting up your digital receiver 9
Table 2.3: Connectors specifications
VIDEO Composite video (CVBS) output
AUDIO Left & right audio output
TV CVBS/RGB/YPbPr video output
Left & right audio output
VCR CVBS video output
Left & right audio output
CVBS video input for bypass
Left & right audio input for bypass
S/PDIF Dolby digital audio output
RS-232 115.2 kbps at maximum
2.4 Connecting up your digital receiver
There are several ways to set up the digital receiver. Set up the digital receiver suitably to your television and other appliances. If you have any problem with your setup or need help, contact your dealer.
2.4.1 Connecting to the broadcasting cable
Whatever sort of connection you have be­tween the digital receiver and the television, you need to connect the digital receiver to the broadcasting cable so that it can receive digital television services.
Connect the broadcasting cable to the CABLE IN connector.
2.4.2 Connecting to your television set
For all the following connections of the digital receiver, we recommend you use the first connector to get the best picture quality. If your television does not have a matching connector, then use the next connector in the following order for a better picture quality.
10 Setup
1. SCART connector (TV)
2. Composite connector (VIDEO)
You should configure audio and video settings after connecting up the digital receiver. See § 3.2 for a detailed description.
To use the SCART connector
For best results with a standard television set, you should use a SCART cable. Plug one end of the cable into the TV socket on the digital receiver, and plug the other end into a free SCART socket on your television.
Some televisions have inputs via S-Video or Component connectors rather than SCART.
If you have such a television, use an appropriate conversion ca­ble to link the TV socket on the digital receiver to the matching socket on your television.
If you connect with a standard SCART cable, you do not have to make audio connection because the SCART connector can output stereo audio. But if you use a conversion cable, such as SCART-to-Component, you have to make audio connection.
To use the composite video connector
You need to obtain a composite video cable (RCA cable) to use the composite video con­nector. Plug one end of the cable into the VIDEO (yellow) socket on the digital receiver, and plug the other end into the matching socket on your television.
2.5 Inserting batteries in the remote control 11
To make the audio connection
You need to obtain an audio cable (RCA ca­ble) to connect the audio connectors. Plug one end of the cable into the AUDIO L (white) and AUDIO R (red) sockets on the digital re­ceiver, and plug the other end into the match­ing sockets on your television or audio sys­tem.
To enjoy Dolby digital audio, your televi­sion or audio system must be able to decode Dolby digital audio, and you need to obtain a S/PDIF cable. Plug one end of the cable into the S/PDIF socket on the digital receiver, and plug the other end into the matching socket on your audio system.
2.4.3 Connecting to your video cassette recorder
The digital receiver can also output video to another appliance such as a video cassette recorder through an auxiliary SCART connector.
You need to obtain a SCART cable to use the auxiliary SCART connector. Plug one end of the cable into the VCR socket on the digital re­ceiver, and plug the other end into the match­ing socket on your video cassette recorder or suchlike.
2.5 Inserting batteries in the remote control
Open the battery compartment by removing the lid, and then insert the batteries observing the polarity, which is marked on the base of the battery compartment.
