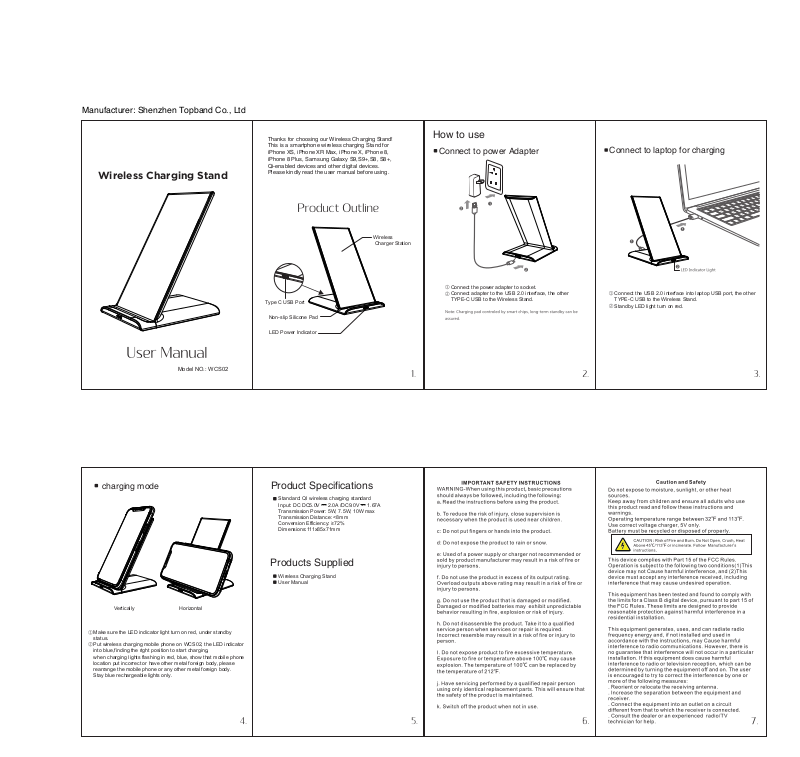

Topband WCS02 Users Manual

Manufacturer: Shenzhen Topband Co., Ltd

Wireless Charging Stand

Model NO.: WCS02

Thanks for choosing our Wireless Charging Stand!
This is a smartphone wireless charging Stand for
iPhone XS, iPhone XR Max, iPhone X, iPhone 8,
iPhone 8 Plus, Samsung Galaxy S9,S9+,S8, S8+,
Qi-enabled devices and other digital devices.
Please kindly read the user manual before using.

Wireless
Charger Station

Type C USB Port

Non-slip Silicone Pad

LED Power Indicator

How to use

Connect to power Adapter

Connect the power adapter to socket.
Connect adapter to the USB 2.0 interface, the other
TYPE-C USB to the Wireless Stand.

Connect to laptop for charging

Connect the USB 2.0 interface into laptop USB port, the other
TYPE-C USB to the Wireless Stand.
Standby LED light turn on red.

charging mode

Vertically Horizontal

Make sure the LED indicator light turn on red, under standby
status.
Put wireless charging mobile phone on WCS02, the LED indicator
into blue,finding the right position to start charging,
when charging lights flashing in red, blue, show that mobile phone
location put incorrect or have other metal foreign body, please
rearrange the mobile phone or any other metal foreign body.
Stay blue rechargeable lights only.

Product Specifications

Standard: QI wireless charging standard
Input: DC DC5.0V --- 2.0A /DC9.0V --- 1.67A
Transmission Power: 5W, 7.5W, 10W max
Transmission Distance: <8mm

Conversion Efficiency: ≥72%

Dimensions:111x85x71mm

Products Supplied

Wireless Charging Stand
User Manual

This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications to this device not explicitly
approved by manufacturer could void your authority to operate this
equipment.

This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.

The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
