Page 1
1

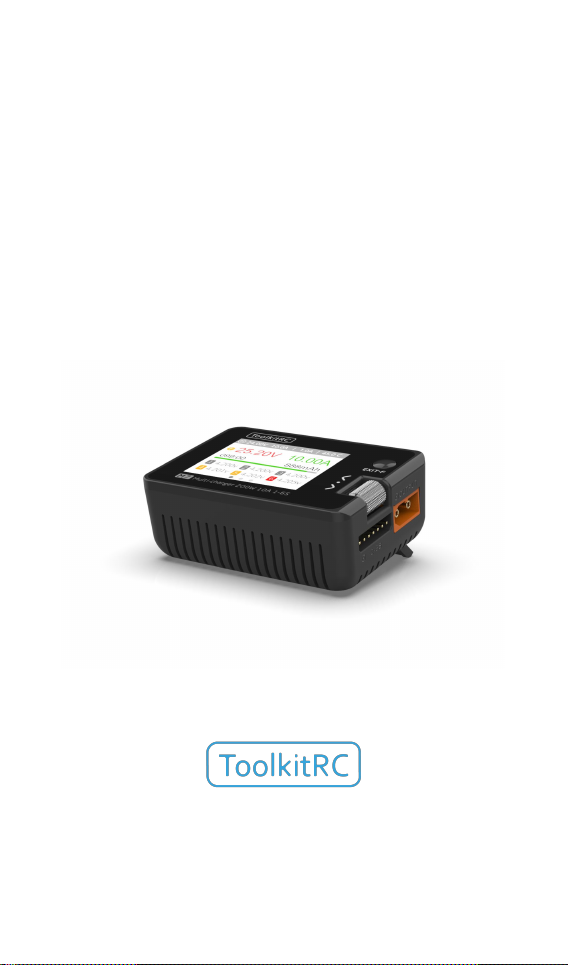

M7
Manual V1.0
2021.01
www.toolkitrc.com
ToolkitRC Technology (Shenzhen) Co., Ltd
@ToolkiRC 2021
Page 2
2
Introduction
Tips
Important
Information
Thank you for purchasing the M7 model tool chain
product, please read this manual carefully before using
it.
Key Points
Further information
To ensure you have the best experience with this
product please scan the QR code below to stay up to
date with news, information and firmware updates for
your charger. Or visit www.toolkitrc.com.
@ToolkiRC 2021
Page 3
3
Safety
1，M7 allows an input voltage of 7-28V, to ensure that the
power supply voltage is consistent, pay attention to
the positive and negative polarity of the power supply
when connecting.
2，Do not use this product in the environment of heat,
humidity, flammable and explosive gas.
3，Please use this product when someone is guarded to
prevent accidents
4，When not using this product, please unplug the input
power in time.
5 ， When using the charging function, please set a
current that matches the battery. Do not set an
excessive current for charging to avoid damage to the
battery.
@ToolkiRC 2021
Page 4
4
Contents
Introduction
Key Points
Further information
Safety
Contents
M7 Layout
Quick Start
Charge and discharge settings
1, Battery type setting
2, The Cellfs Setting
3, Work Mode
4, Discharge mode
5, Input MaxVoltage
.....................................................................
..........................................................
.............................................................
.............................................
................................................................
.............................................................
............................................................
.......................................
..........................................
.....................................................
............................................
..........................................
.......................
2
2
2
3
4
8
9
11
11
14
15
15
17
6, End voltage setting (TVC)
7, Current setting
8, NiMh setting (PeakV)
............................
...............................................
....................................
@ToolkiRC 2021
18
19
20
Page 5
5
9, Cycle setting
.................................................
221
10, External load setting
11, Smart battery setting
....................................
...................................
Charge and discharge work
Accessibility
1, Measure resistance

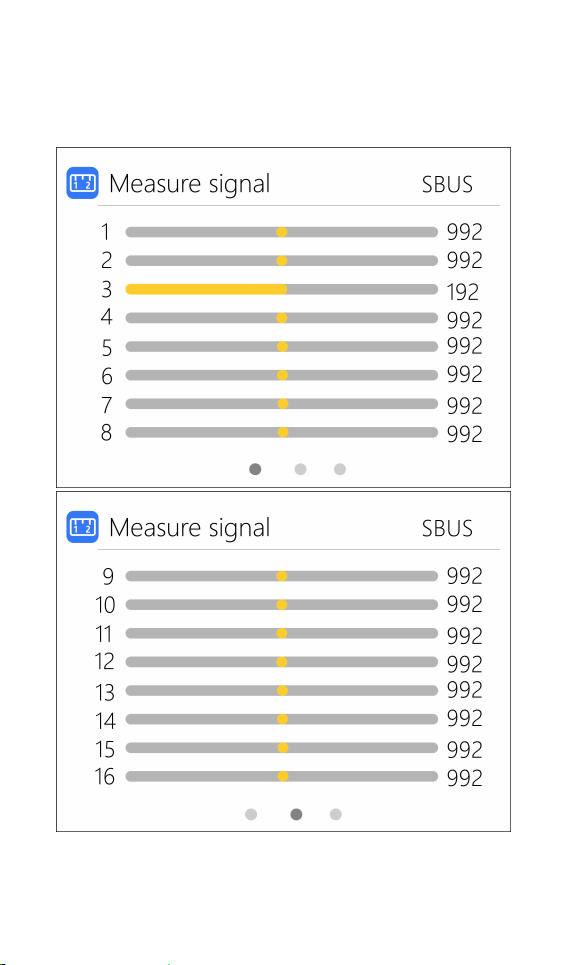

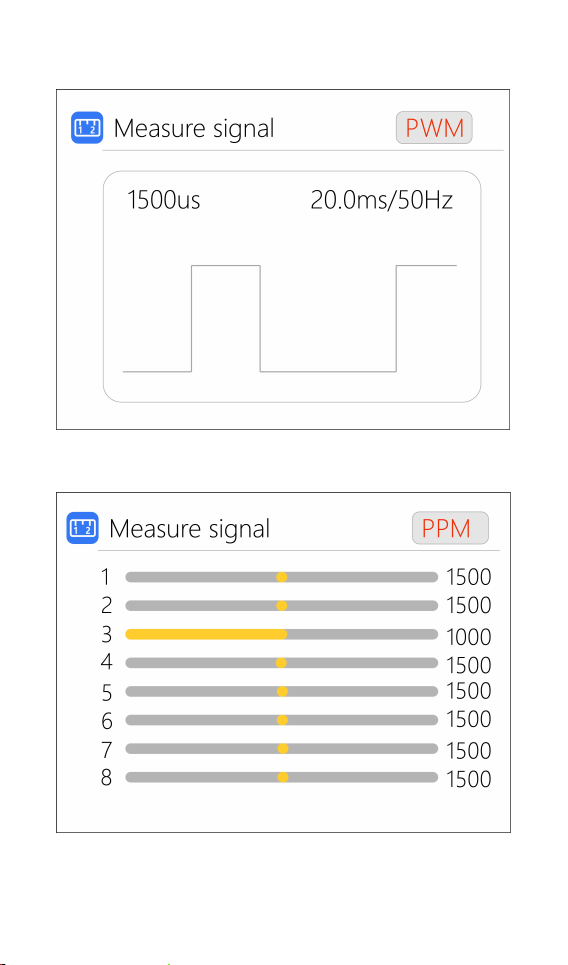

2, Measure signal

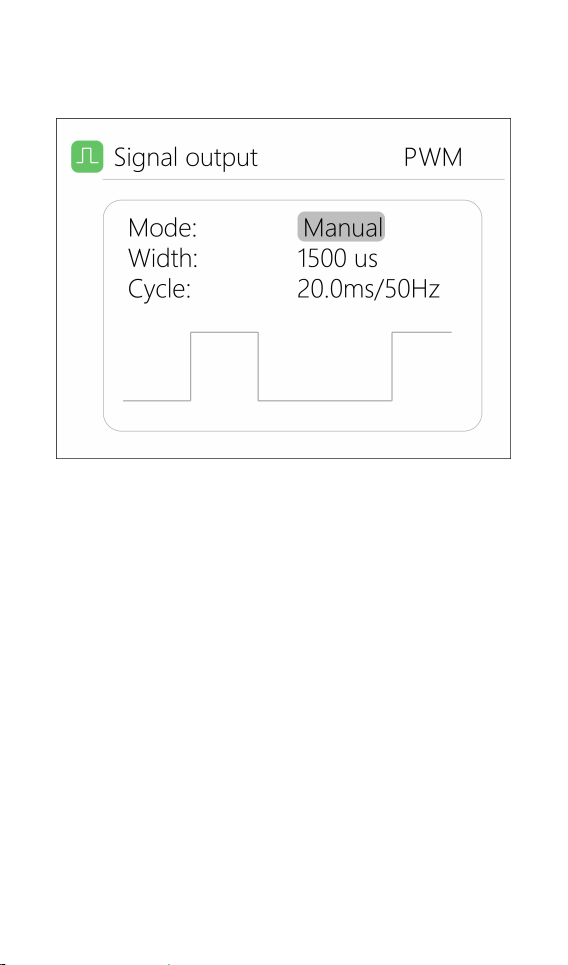

3, Signal output
4, ESC test
5, Power
System settings
Other functions
Specifications
.........................................................
........................................
...............................................
..................................................
...........................................................
..............................................................
..................................................
..................................................
......................................................
............................
23
23
25
30
30
30
33
15
17
39
43
45
@ToolkiRC 2021
Page 6
6
Product description
M7 is a multifunctional tool chain product that
integrates functions such as a balanced charger and
discharger, an electric display, a signal measuring device,
and a signal source.
Can charge and discharge and balance
management of LiPo, LiHV, LiFe Lion 1-6S, NiMh
1-16S, PB 1-10S batteries
Charge current：MAX 10A @MAX200W
Discharge current：Recycle mode Max 10A @200W
External mode Max 10A @200W
Inter mode Max 3A @10W
Lithium battery cut-off voltage can be set (TVC
function)
Can measure battery voltage, battery internal
resistance, lithium battery balance management
Can measure the signal value of PWM/PPM/SBUS,
with an accuracy of 1 microsecond
Can output PWM/PPM/SBUS standard signals with
an accuracy of 1 microsecond
@ToolkiRC 2021
Page 7
7
Constant current and constant voltage source
output, customizable 1-28V constant voltage, 1-10A
constant current

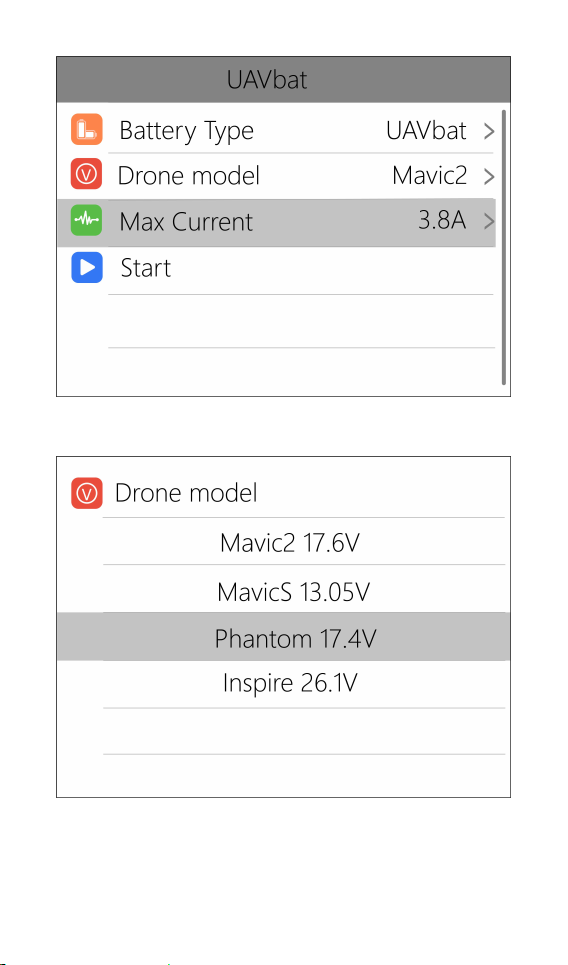

Can be adapted to mainstream drone batteries,
automatically activated and charged
Multi-language system, you can upgrade any
language you need
devices
The device is simulated as a U disk, and the
upgrade file is copied to realize the product
firmware upgrade
@ToolkiRC 2021
Page 8
8

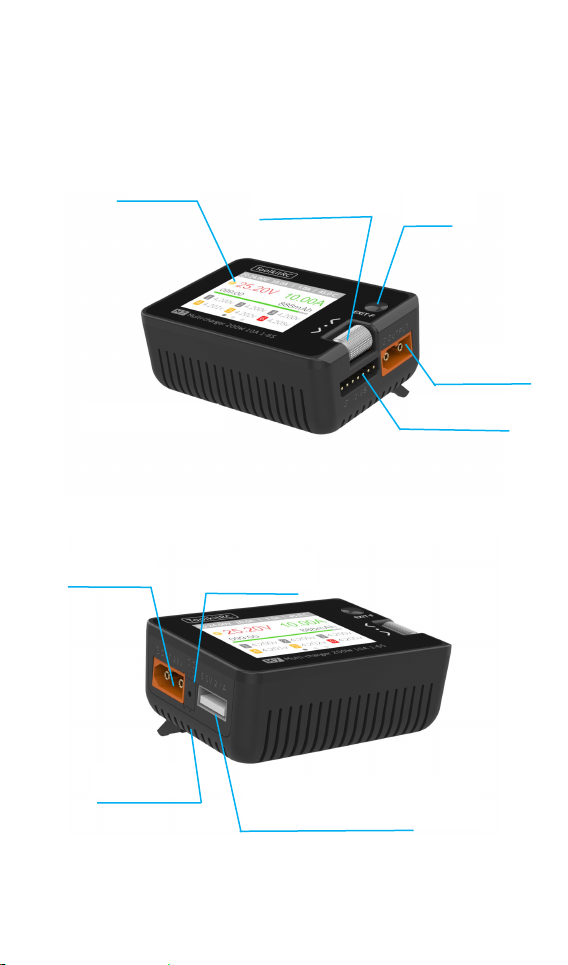

M7 Layout
Display
Scroll wheel
(Turn: left or right
Press: OK)
Output port
Balance port
Input port
USB Output &upgrade
Exit
Cooling fan
Signal port
正面
Front
Back
@ToolkiRC 2021
Page 9
9
Quick start
1，Connect the 7-28V power supply to the input port on
the back of the M7.
2，The display shows the boot logo and stays for 2
seconds.
3，Simultaneously with do-re-mi boot sound.

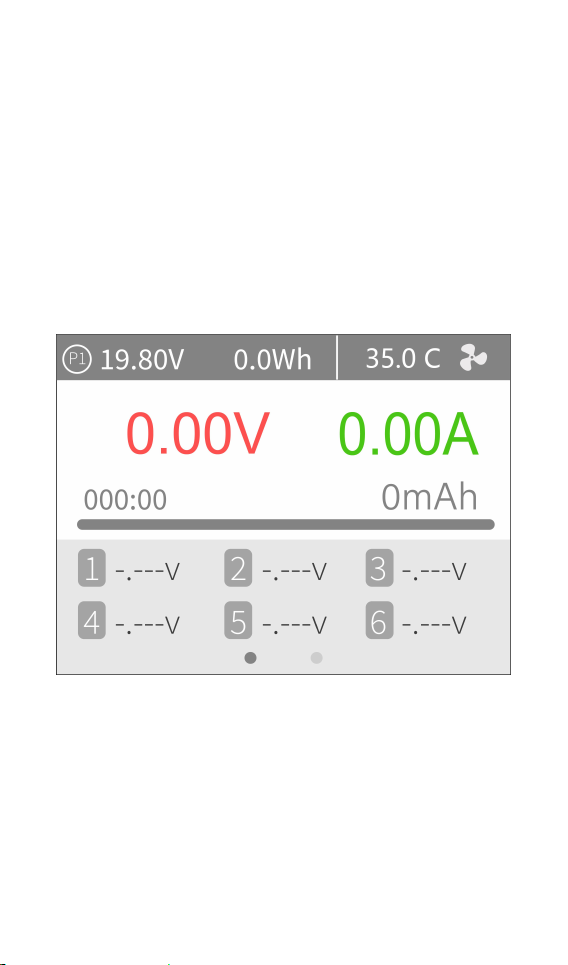

4，After the boot is completed, the screen enters the
main interface and displays as follows:

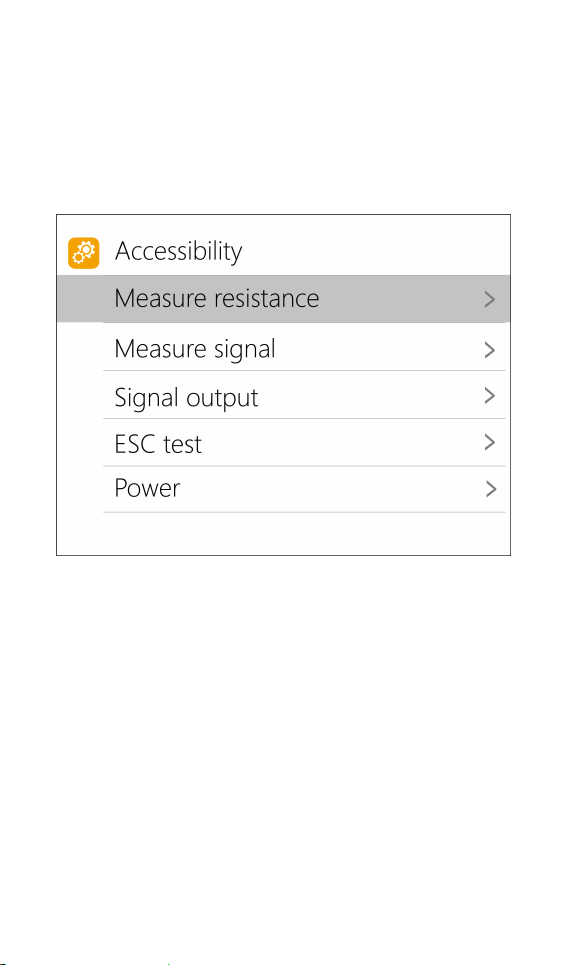

5，Long press [Exit] to enter the auxiliary function
interface.
6，Scroll [Scroll Wheel] to switch the page below.
7，Short press [OK] to select the charging task when the
charger is idle. You can adjust and finish the work when
the charger is working.
8，Long press [OK] to enter the system setting interface
@ToolkiRC 2021
Page 10
10
when the charger is idle.
1. Short press [Scroll Wheel] once to confirm the
function
2. Long press [Scroll Wheel] for 2 seconds, it is the
9，Short press [Exit] to end the modification or return to
the previous interface.
===================================
delete key function
3. If any key is successfully operated, there will be a didi
sound
===================================
@ToolkiRC 2021
Page 11
11
Charge and discharge settings
In the main interface, select and short press [OK] to
enter the charging function, open the battery selection
option in the system settings, and the following interface
will be displayed.

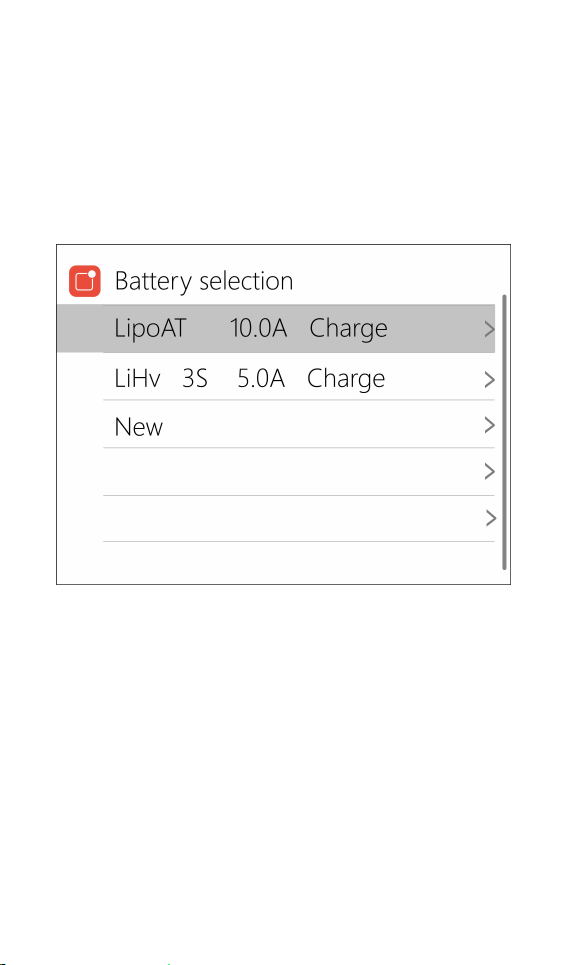

1. Battery type setting
Scroll [Scroll Wheel], move the cursor, select the
battery that has been set, or create a new battery, up to
32 batteries can be created. Press [Enter] to enter the
battery setting interface of this group, the display is as
follows:
@ToolkiRC 2021
Page 12
12

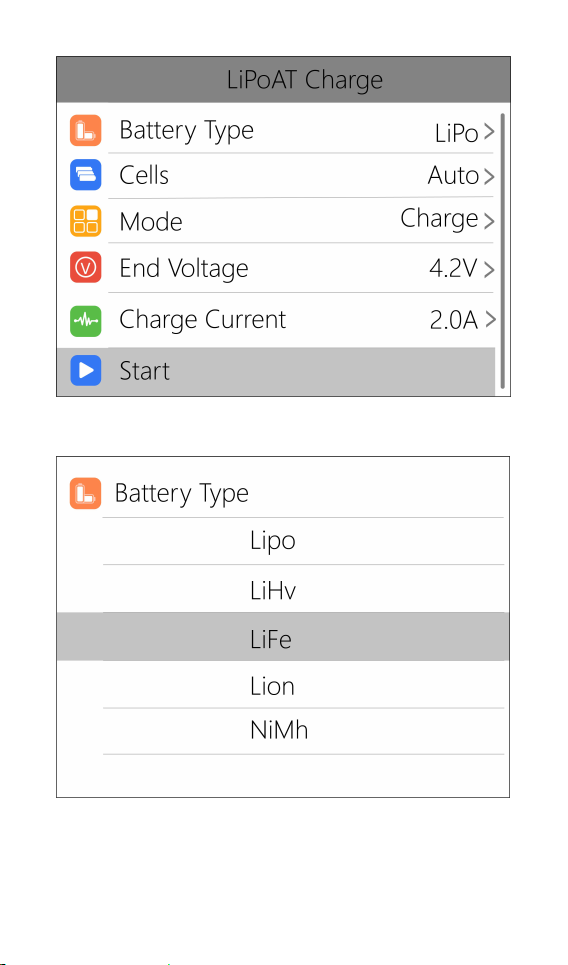

Move the cursor to [Battery Type] and press [OK] to
modify the battery type, the display is as follows:
The charger supports charging and discharging of 6
types of batteries: Lipo, LiHV, LiFe, Lion, NiMh, and PB.
There is also a smart battery mode to choose from.
@ToolkiRC 2021
Page 13
13
After selecting the battery that matches the actual
Warning:
1. Choosing the wrong battery type to charge
Glossary of battery terms explanation:
1, Lipo: often referred to as a lithium polymer
battery. Short press [OK] and [Exit] to take effect and
return to the previous interface.
=================================================
may damage the battery, the charger, and cause burns,
etc. Please choose carefully.
2. Please do not use this product to charge the
battery that is not marked with the battery type.
===================================
battery with a nominal voltage of 3.70V and a fully
charged battery of 4.20V.
2, LiHV: often referred to as a high-voltage lithium
battery with a nominal voltage of 3.85V and a fully
charged battery of 4.35V.
3, LiFe: often referred to as iron-lithium battery, with a
nominal voltage of 3.30V and a fully charged battery of
3.60V.
4, Lion: often referred to as a lithium-ion battery with a
nominal voltage of 3.60V and a fully charged battery of
4.10V.
5, NiMh: often called NiMH battery, nominal voltage
1.20V.
6, PB: often called lead-acid battery, nominal voltage
2.00V.
==================================================
@ToolkiRC 2021
Page 14
14
2. The Cells Setting
Tips:
1. The connected battery is over-discharged

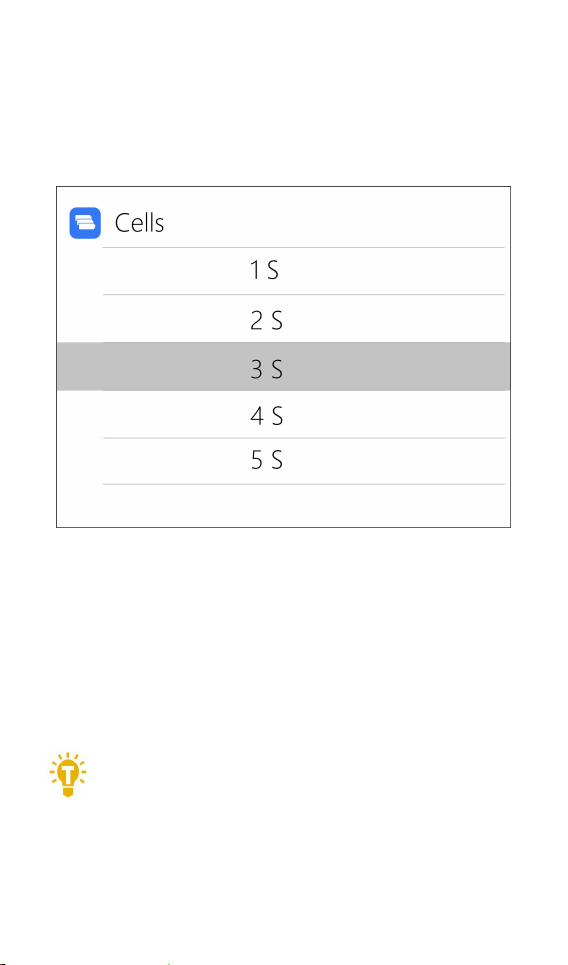

Move the cursor to the position of [Battery Section],
press [OK] to modify the cells of battery. The display is as
follows:
Rotate the [Scroll wheel] to adjust the value. When
set to [Auto], the charger will automatically identify the
number of strings connected to the battery according to
the battery voltage connected to the output port. Short
press [OK] and [Exit] to take effect and return to the
previous interface.
===================================
or over-charged, which may cause incorrect
identification of the battery cells, so you need to
manually set the correct cells.
@ToolkiRC 2021
Page 15
15
2. The Cells is set incorrectly, it may be
unsatisfactory, or overcharge may damage the battery,
please set it carefully.
3. After Lixx batteries are connected to the balance
port, the battery cells can be more accurately identified.
=================================

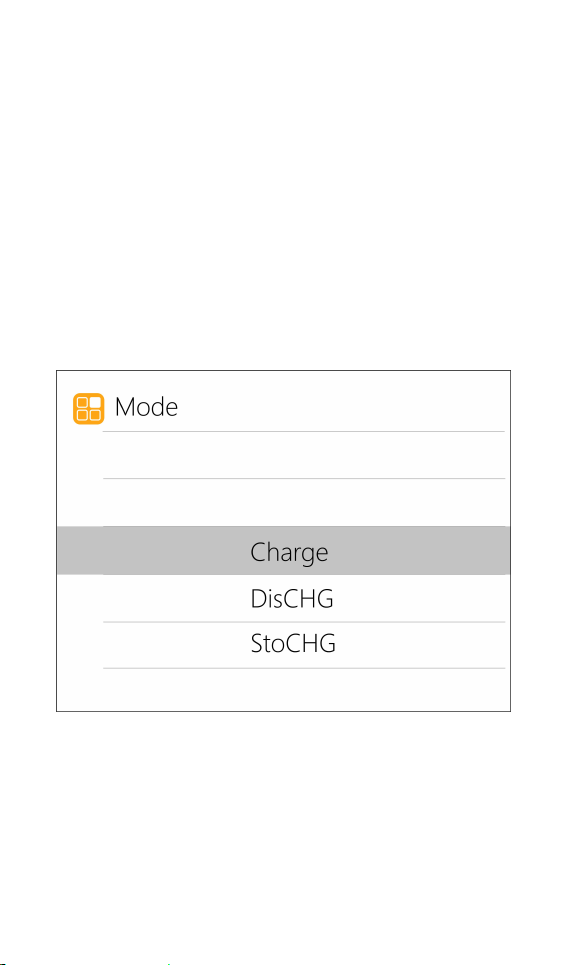

3. Work Mode
Move the cursor to [Mode] and press [OK] to
modify the work mode, as shown in the figure below:
Lipo, LiHV, LiFe, Lion batteries can be charged,
discharged, and stored. NiMh battery can choose to
charge, discharge, cycle. PB battery can choose to
charge and discharge. Short press [OK] and [Exit] to take
effect and return to the previous interface.
@ToolkiRC 2021
Page 16
16
4. Discharge mode
When the working mode selects discharge, storage,
and cycle mode, the battery setting interface will
increase the discharge mode.

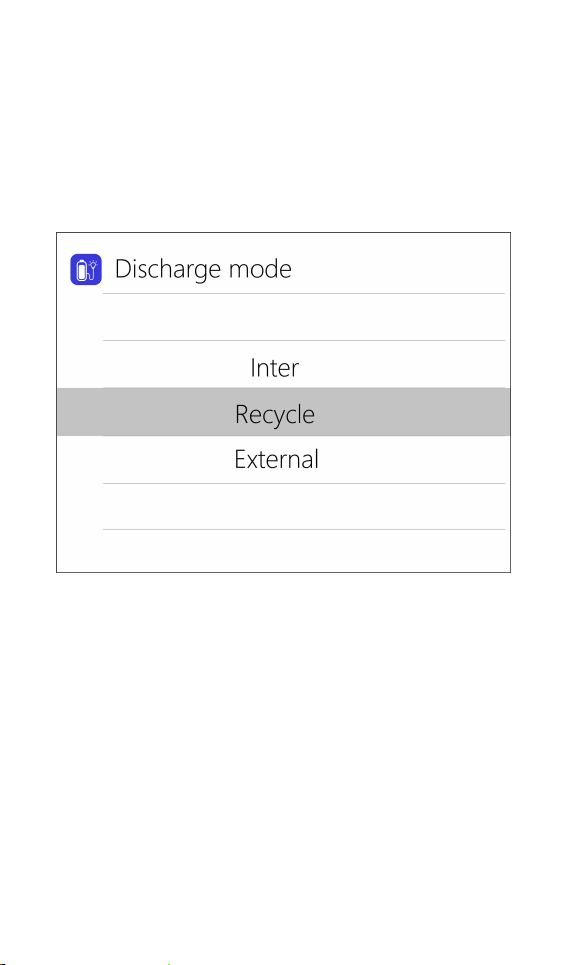

Move the cursor to [Discharge Mode] and press [OK]
to modify the discharge mode, as shown below:
The charger supports three discharge modes.
Normal mode: discharge through internal heat
1.
consumption, maximum support 3.0A@10W discharge.
2. Recycle mode: when the input is battery power,
the power is recovered to the input battery through this
function, and the maximum support is 10.0A@200W
discharge.
3. External mode: when the input port is connected
to the discharge load and the output port is connected
to the battery, it can be discharged through this function,
and the maximum support 10.0A@200W discharge.
@ToolkiRC 2021
Page 17
17

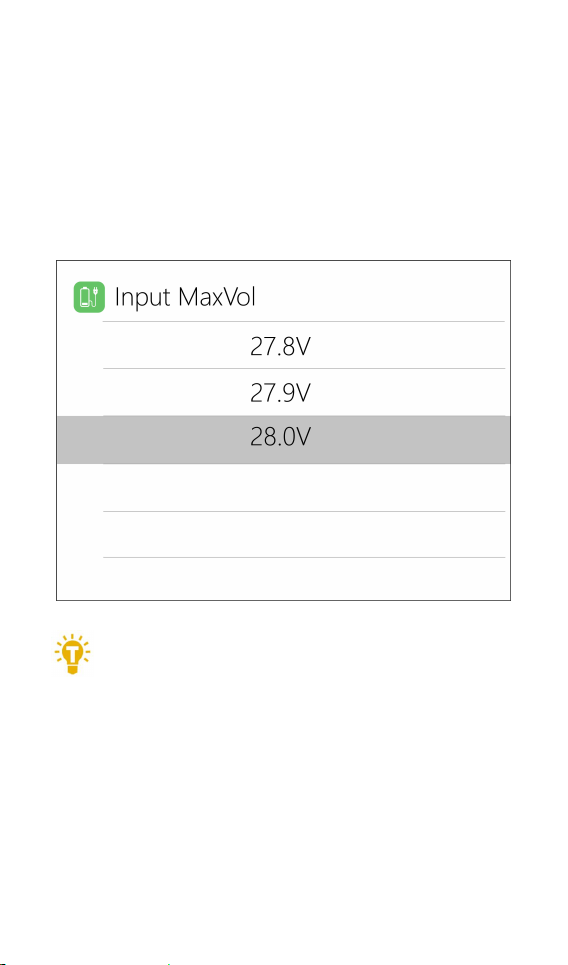

5. Input MaxVoltage
Tips:
Please set the input Max voltage to the highest
When the discharge mode is selected to recycle, the
battery setting interface will increase the input Max
Voltage setting. Move the cursor to [Input MaxVol] and
press [OK] to adjust the input Max voltage. If the input
voltage reaches this voltage value during discharge, the
discharge will stop. As shown below:
===================================
protection voltage of the power supply. After the voltage
is reached, the charger will automatically stop recycling
discharging. Setting high overvoltage may damage the
input power
===================================
@ToolkiRC 2021
Page 18
18

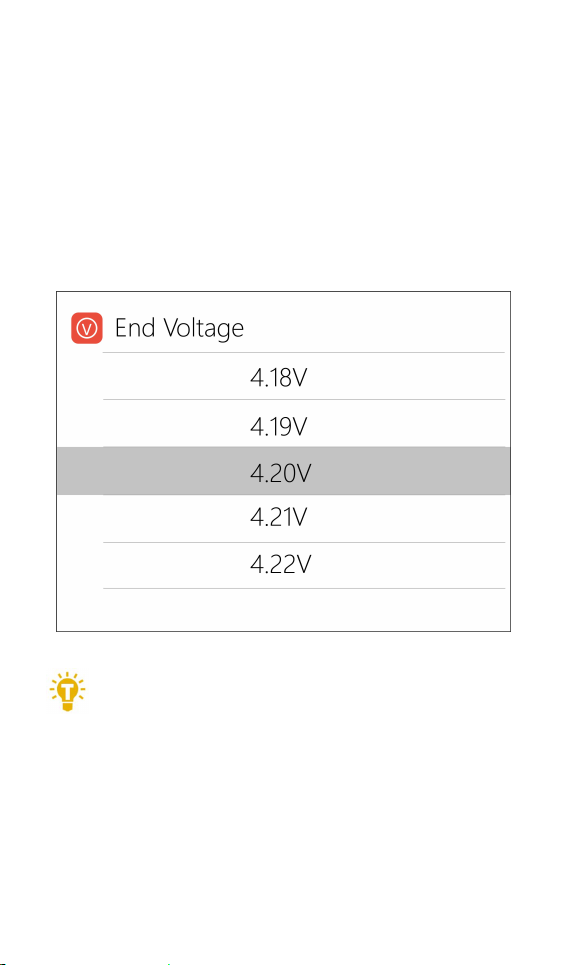

6. End voltage setting (TVC)
1. Only LiPo, LiHV, LiFe batteries can set the
cut-off voltage.
Move the cursor to [End Voltage] and press [OK] to
modify the end voltage of the single-cell battery.
When the work mode is charge, it is the charge
cut-off voltage, and the range is plus or minus 50mV of
the full voltage. When the working mode is discharge, it
is the discharge cut-off voltage. Scroll [Scroll wheel] to
adjust the value, step 0.01V.
===================================
2. Do not modify the cut-off voltage when you are not
familiar with the battery characteristics.
3. The charging cut-off voltage can be set to a range of
plus or minus 50mV of full voltage.
4. Glossary explanation:
TVC: English abbreviation for terminal voltage control
@ToolkiRC 2021
Page 19
19
=================================================
Tips:
1. Please set the charging rate of 1-2C according
7. Current setting

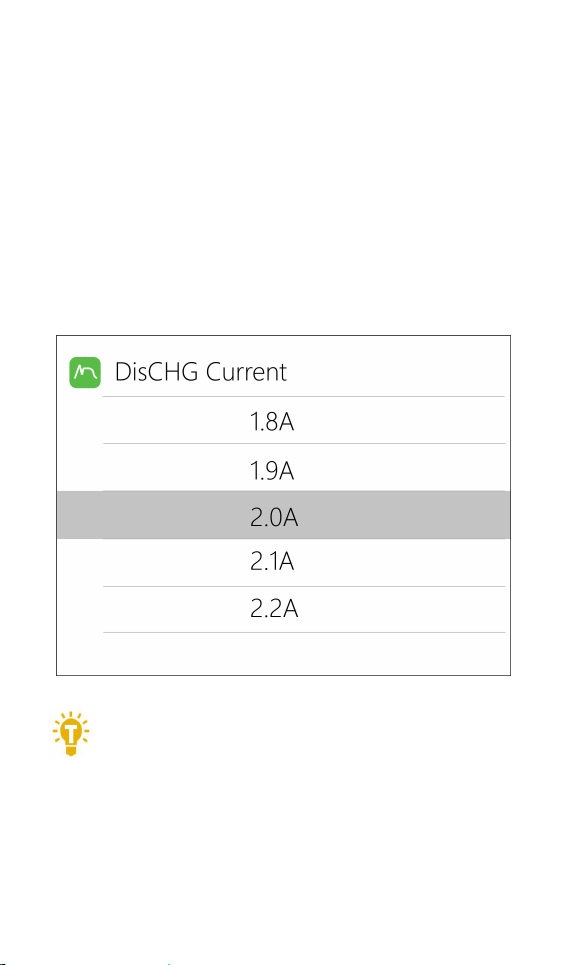

Move the cursor to the [Charge Current] or [DisCHG
Current] position, and press [OK] to modify the current.
Rotate [Scroll Wheel] to adjust the value, step by 0.1A.
Scroll [Scroll Wheel] quickly to increase or decrease. The
charger supports up to 10.0A.
=================================================
to the battery capacity. For example, if the battery
capacity is 2000mAh, please set the charge current to
2.0-4.0A.
2. The charge and discharge current is only valid
@ToolkiRC 2021
Page 20
20
in the corresponding work mode.
Tips:
1, Only NiMh battery can set negative battery
3. For the discharge mode setting, please refer to
the <System Settings> chapter of this manual.
==================================================
8. NiMh setting (PeakV)

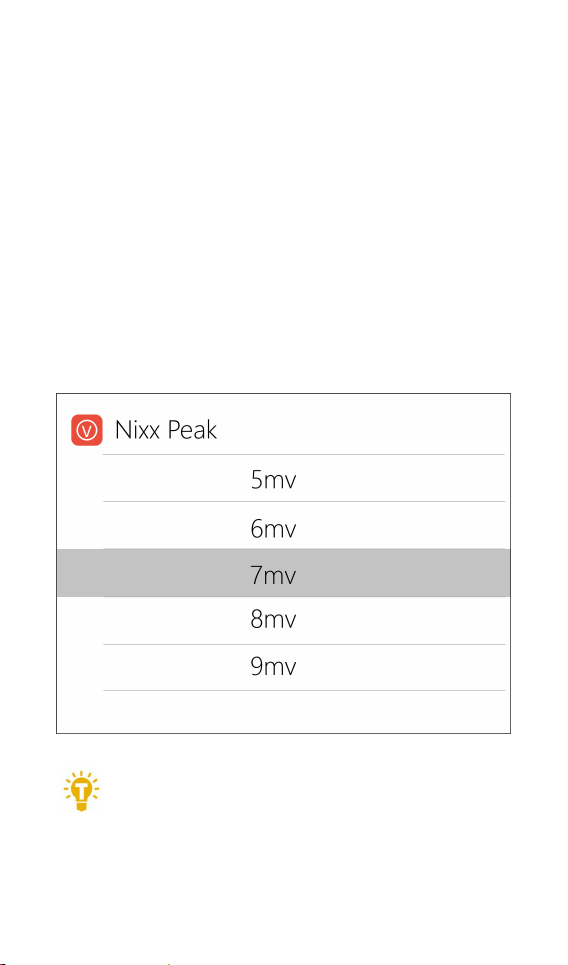

When the battery type is NiMh, the negative
pressure value when the battery is fully charged can be
set, the range of which can be set is 5mV-15mV, as
shown below:
===================================
voltage.
2，Glossary explanation:
@ToolkiRC 2021
Page 21
21
PeakV: When the nickel-metal hydride battery is fully
charged, the voltage drop of each piece peaks.
===================================

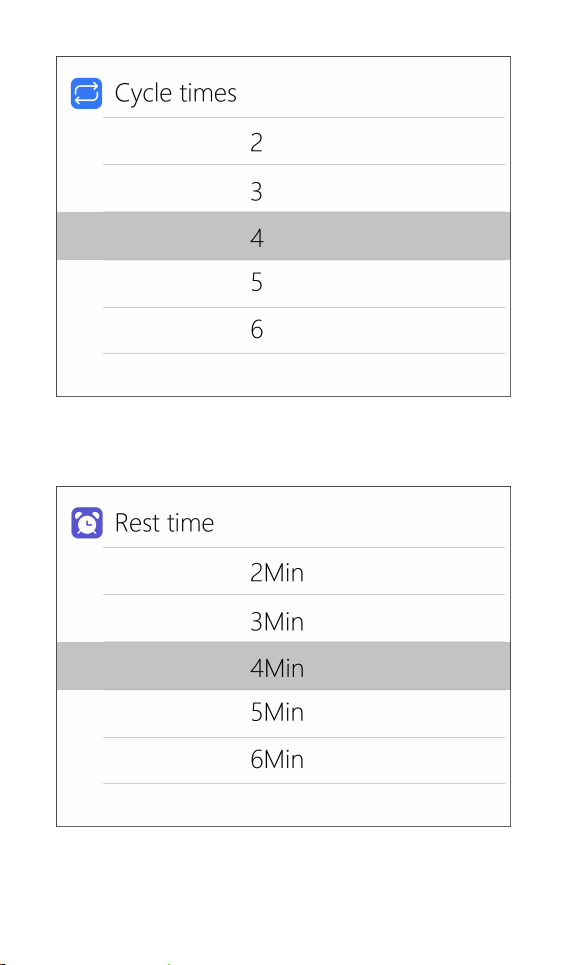

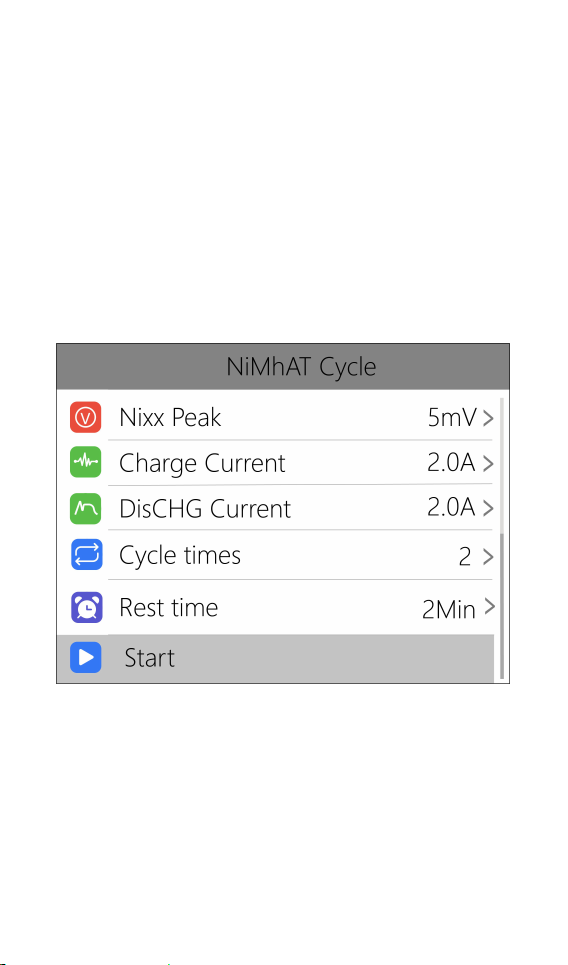

9. Cycle setting
When the battery type is NiMh, and the work
mode is cycle, the battery setting interface will increase
Cycle times and Rest time setting. As shown below:
Move the cursor to [Cycle times] and press [OK] to
set the range of cycle times to 2-12.
The charger will follow the pattern cycle of
discharge->charge->discharge->charge....
"Discharge -> charge" is 2 times.
@ToolkiRC 2021
Page 22
22
Move the cursor to [Rest time] and press [OK] to
set the rest time of cycle charge. The range is 2 minutes
to 10 minutes. As shown below:
@ToolkiRC 2021
Page 23
23

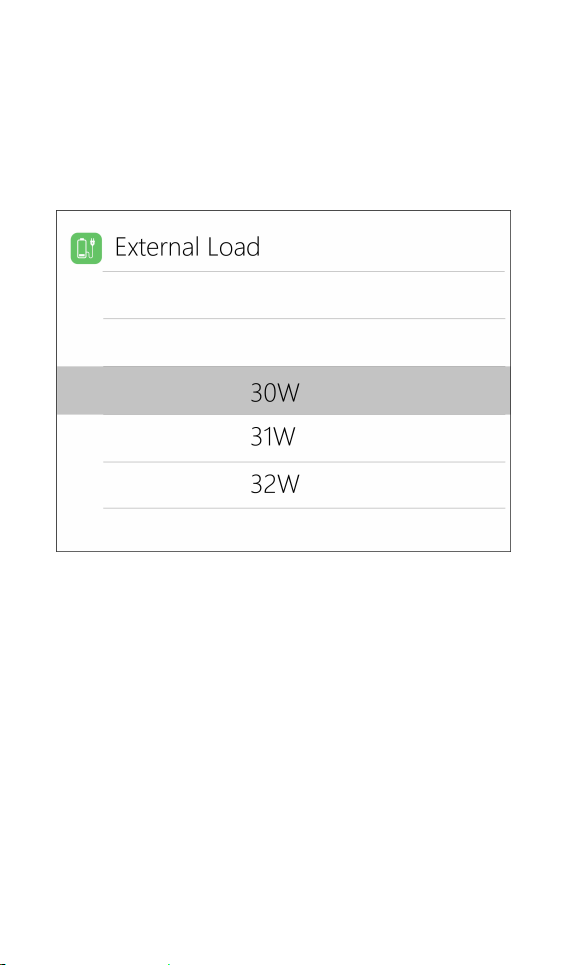

10. External load setting
When external discharge is selected as the
discharge mode, the external load setting will be
increased. Set the wattage according to the external
load actually used. As shown below:
11. Smart battery setting
When UAV battery is selected for battery type,
there are only two options for battery setting: drone
type and Max current. As shown below:
@ToolkiRC 2021
Page 24
24
Move the cursor to [Drone model] and press [OK]
to select different drone models. As shown below:
Move the cursor to [Max Current] and press [OK] to
set the charge current. The range is 0.5A to 10A.
@ToolkiRC 2021
Page 25
25

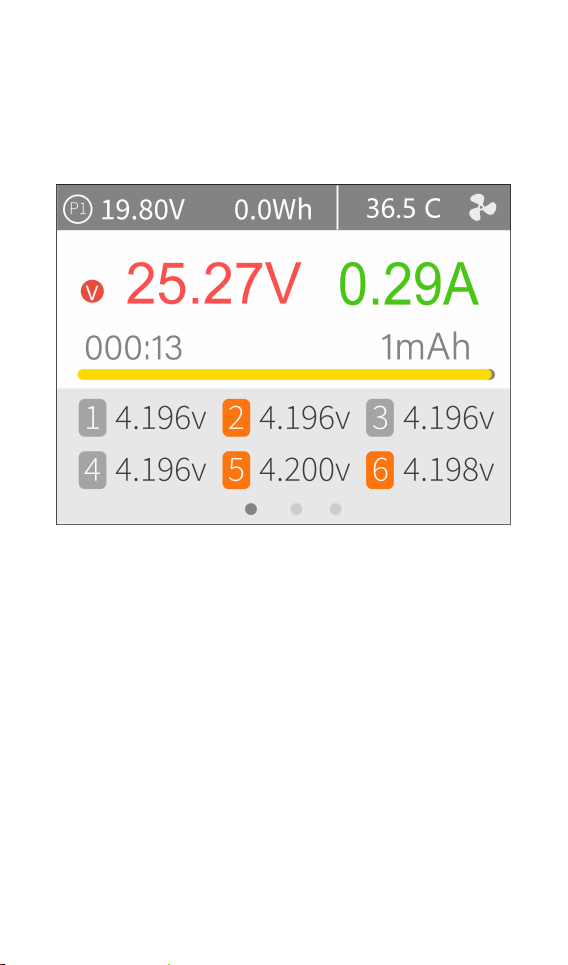

Charge and discharge work
When charging and discharging starts, the charger
enters the working interface as shown below:

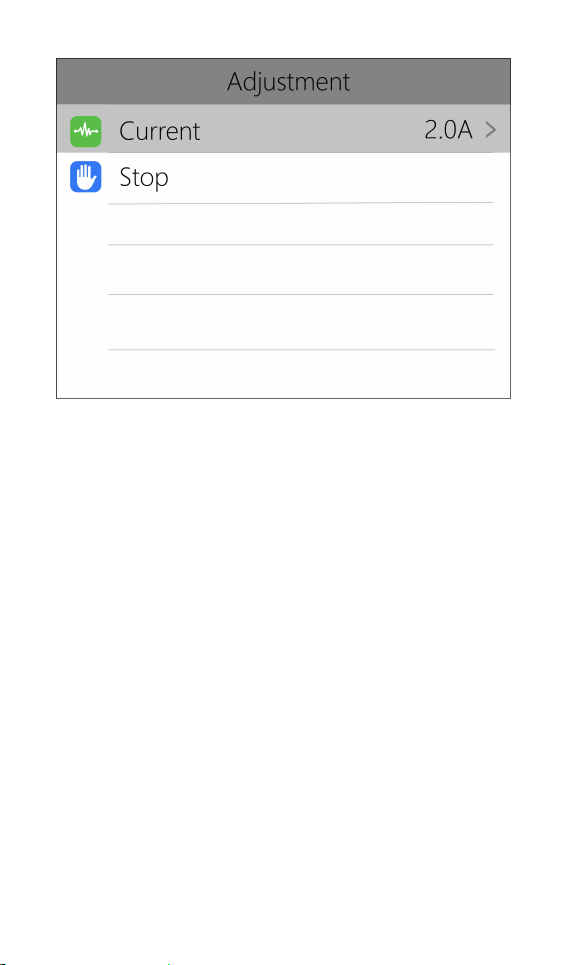

Rotate [Scroll Wheel] on this interface to switch the
bottom status information and internal resistance
voltage value. Short press [OK] to dynamically set the
working current or stop working. As shown below:
@ToolkiRC 2021
Page 26
26
To end the charge and discharge work, short press
[OK], move the cursor to [Stop], short press [OK], stop
working and return to the main interface.
When charge is complete or charge error occurs. A
prompt box will pop up with a sound.
Display content description:
P1: Power selection in system settings
19.80V: Input power supply voltage
0.0Wh: The accumulated power consumption of
the input power
36.5℃: The internal temperature of the charger
V : Constant voltage sign C: Constant current sign
25.27V: Main port voltage
0.29A: Main port current
000:13: Working hours
@ToolkiRC 2021
Page 27
27
1mAh: Cumulative capacity
1 4.196V: The first battery voltage
.......
6 4.198V: The voltage of the sixth battery (this
battery is under balance management)
-.---v : No battery connected

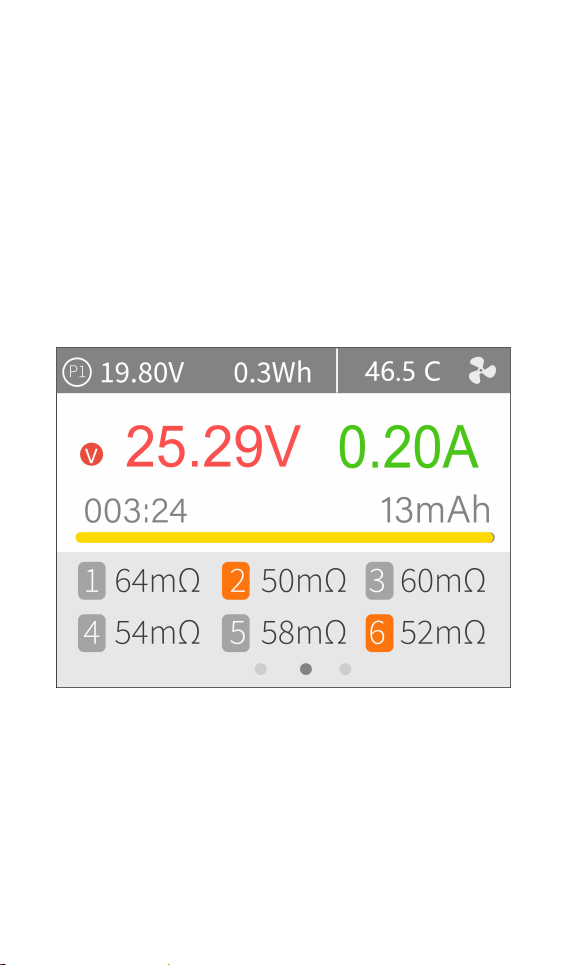

Scroll [Scroll Wheel] to switch to the second column,
which is the internal resistance information. As shown
below:
1 64mΩ: Internal resistance of the first battery
......
Scroll [Scroll Wheel] to switch to the third column,
which is the information column. As shown below:
@ToolkiRC 2021
Page 28
28

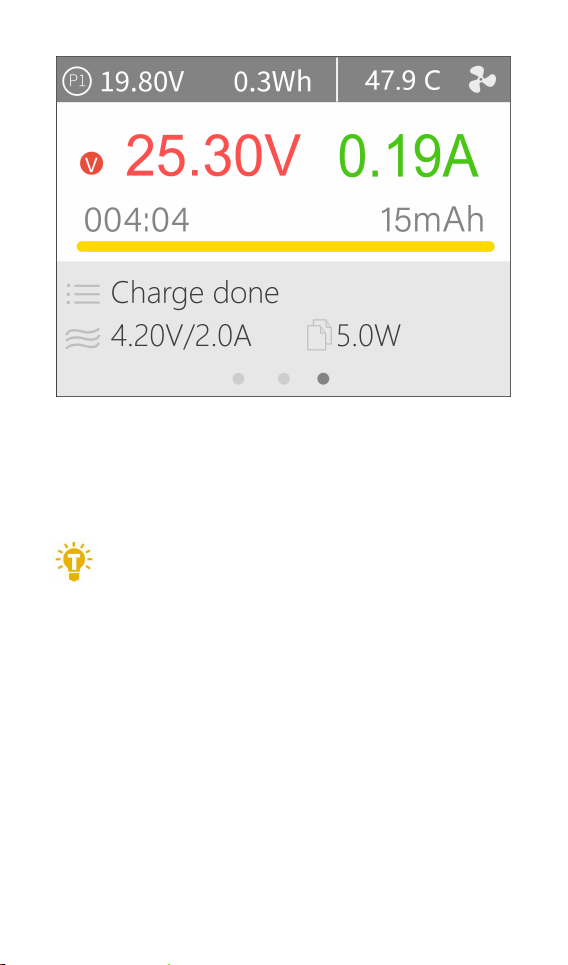

Charge done: Indicates the current charging status
Tips:
1. When charging and discharging work, please
5.0W: The current charging power
4.20V/2.00A: end voltage/charge current
===================================
have someone on duty throughout the process
to deal with abnormalities in time.
2. When charging and discharging lithium
batteries, only connecting to the main port will
not perform balance management. Please pay
attention to the balance of the battery. After
connecting to the balance port, it will
automatically balance management.
3. After charging is completed, unplug the
battery and insert a new battery, it will
@ToolkiRC 2021
Page 29
29
automatically continue to charge and discharge
according to the set mode. When set to a fixed
number of strings, batteries with the same
number of strings need to be connected. When
setting to automatically detect the battery
string number, please pay attention to whether
the detected string number matches the actual
number.
===================================
@ToolkiRC 2021
Page 30
30
Accessibility
After selecting and long pressing [Exit] in the main
interface, you can enter the auxiliary function interface
when the charger is idle, as shown below:
1. Measure resistance
Short press [OK] to test the internal resistance of
the connected battery and return to the main interface
display.
2. Measure signal
The cursor selects the measure signal, short press
[OK] to enter the signal test interface.
Scroll [Scroll wheel] to select the type of signal to
be tested. Select PWM, as shown below:
@ToolkiRC 2021
Page 31
31
Select PPM, as shown below:
@ToolkiRC 2021
Page 32
32

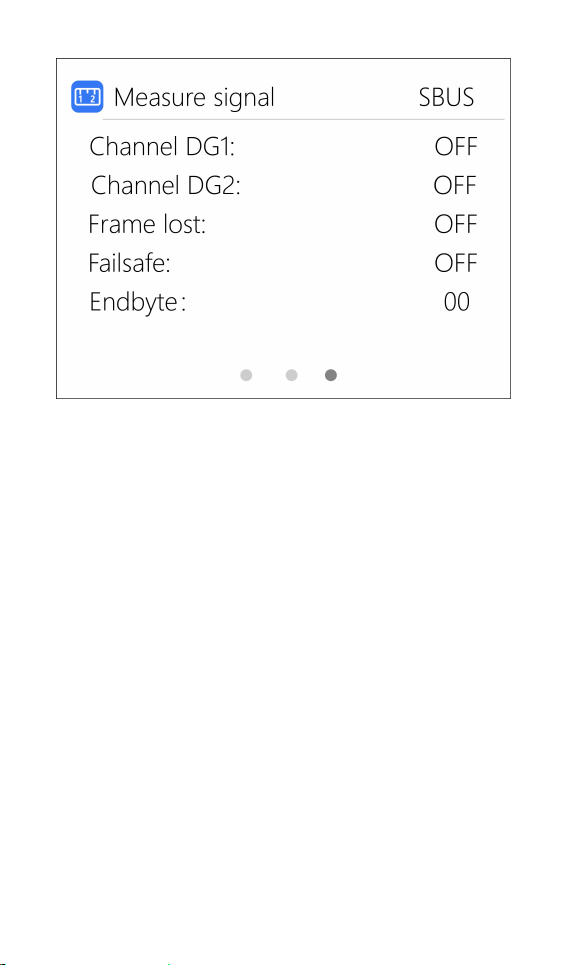

Select SBUS, scroll [Scroll wheel], can switch to
display [1-8 channels], [9-16 channels], status bits. As
shown below:
@ToolkiRC 2021
Page 33
33
3. Signal output
The cursor selects signal output, short press [OK],
you can enter the signal test interface.
Scroll [Scroll wheel] to select the type of signal to
be tested. Choose PWM.
Scroll the [Scroll Wheel], move the cursor to the
[Manual] item, press [OK] to set the output mode, which
can be set to manual, auto 1, auto 2, and auto 3.
When the mode is manual, you can move the
cursor to the pulse width and cycle items to set the
signal value to be output.
When set to auto 1, 2, 3, the pulse width value of
output PWM will automatically change at 3 different
speeds.
The width can be set from 800 to 2200us.
@ToolkiRC 2021
Page 34
34
The cycle can be set in the range: 2.5ms (400hz) to
50.0ms (20hz). As shown below:

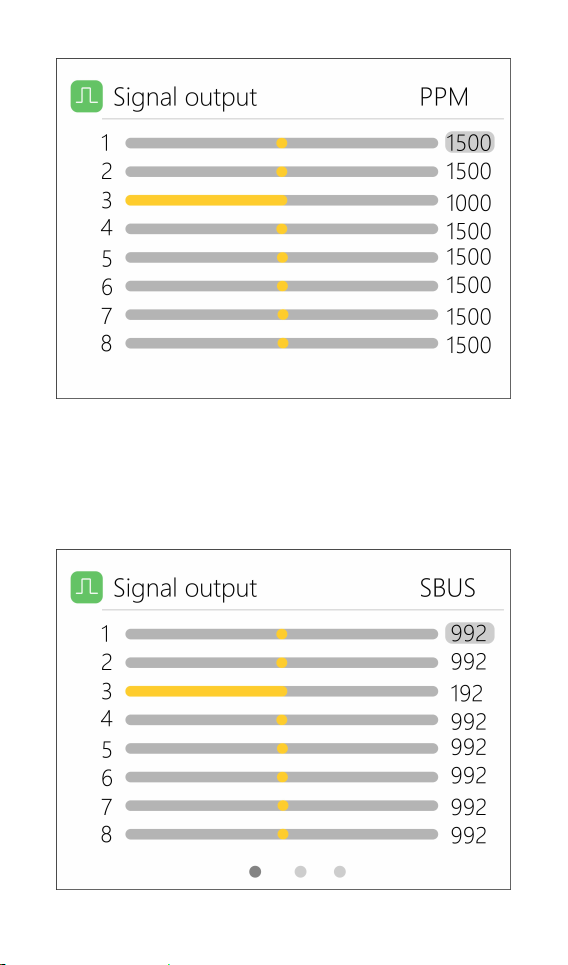

Select PPM, scroll [Scroll wheel] to move the cursor
to the value of the channel to be modified. Press [OK] to
modify the output pulse width value of this channel. As
shown below:
@ToolkiRC 2021
Page 35
35

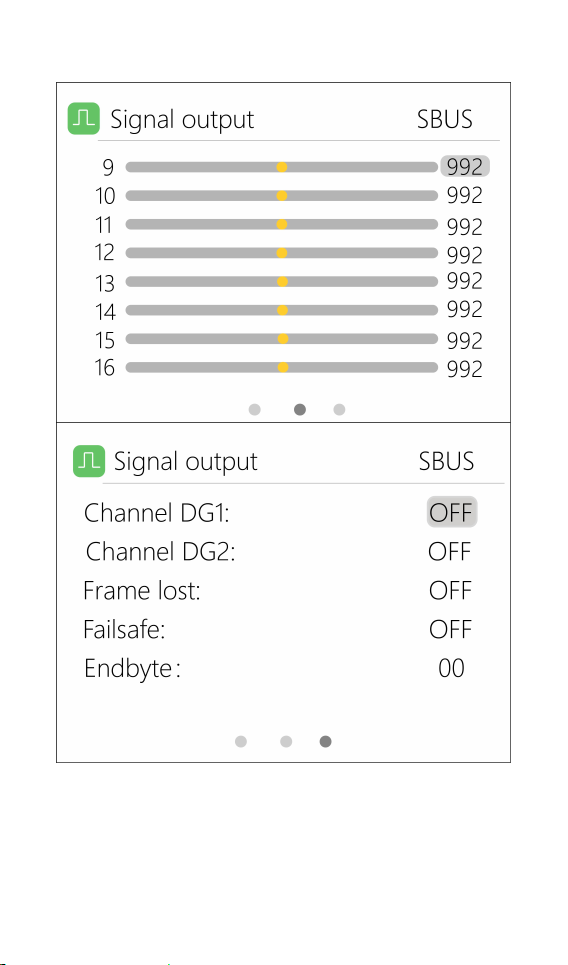

Select SBUS, scroll [Scroll wheel] to move the
cursor to the value of the channel to be modified. Press
[OK] to modify the output pulse width value of this
channel. As shown the following 3 pictures:
@ToolkiRC 2021
Page 36
36
@ToolkiRC 2021
Page 37
37

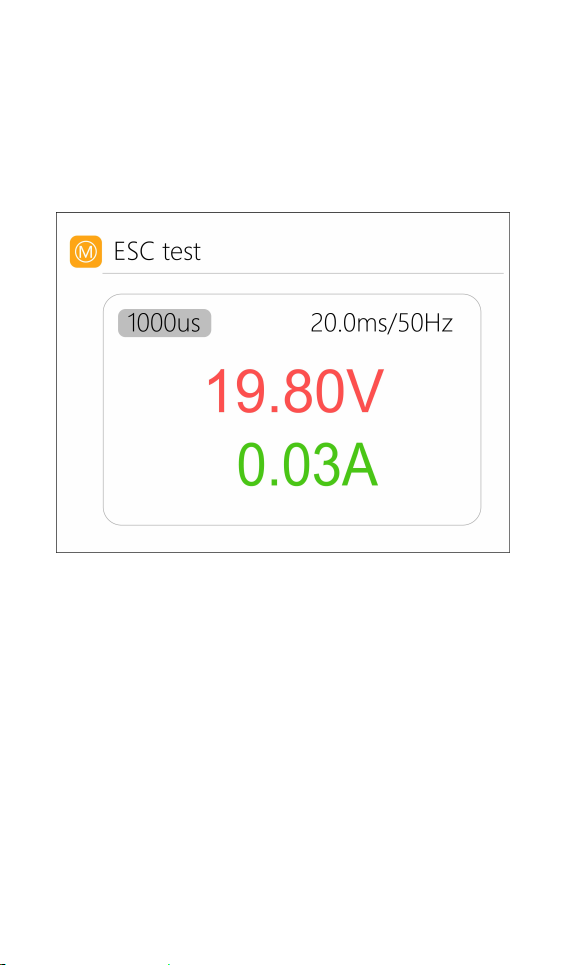

4. ESC test
Select ESC test with the cursor, short press [OK] to
enter the ESC test, scroll [Scroll wheel], move the cursor
to the pulse width and cycle, press [OK] to change the
corresponding value. As shown below:

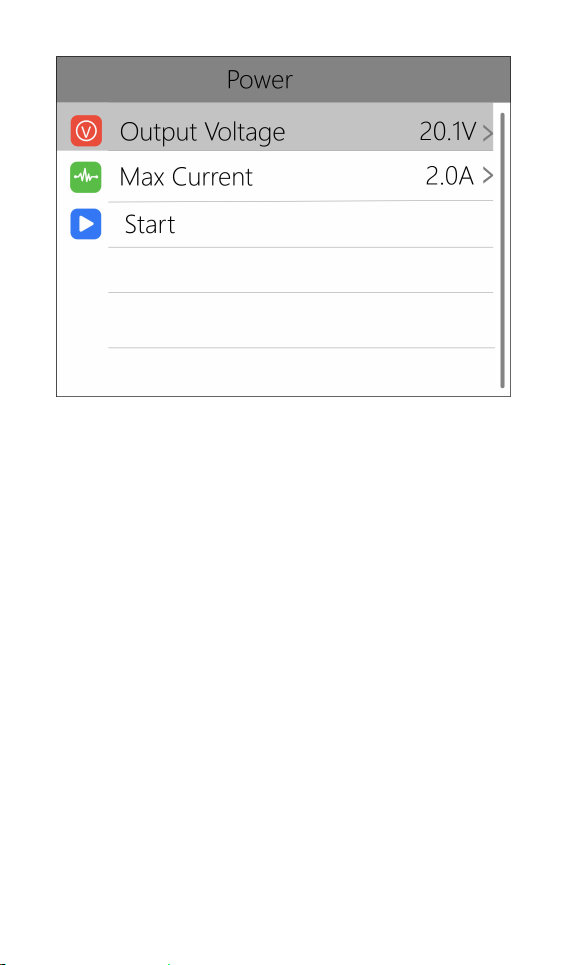

5. Power
Select the adjustable power supply with the cursor,
and short press [OK] to enter the power.
The voltage and current of the output power
supply can be set. Move the cursor to the beginning,
short press [OK] to start power output and return to the
main interface. As shown below:
@ToolkiRC 2021
Page 38
38
@ToolkiRC 2021
Page 39
39

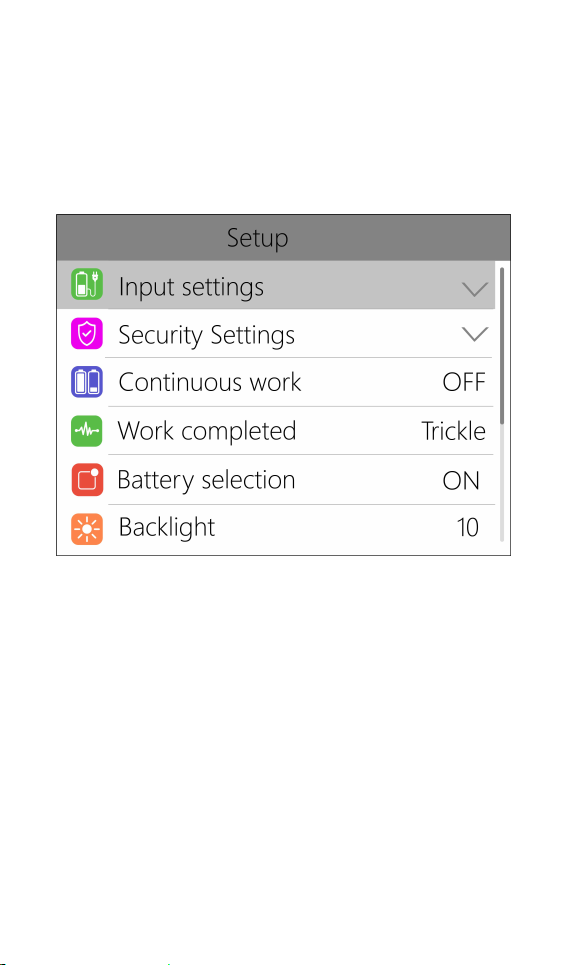

System settings
After selecting and long pressing [OK] in the main
interface, you can enter the system setting interface
when the charger is idle, as shown in the figure below

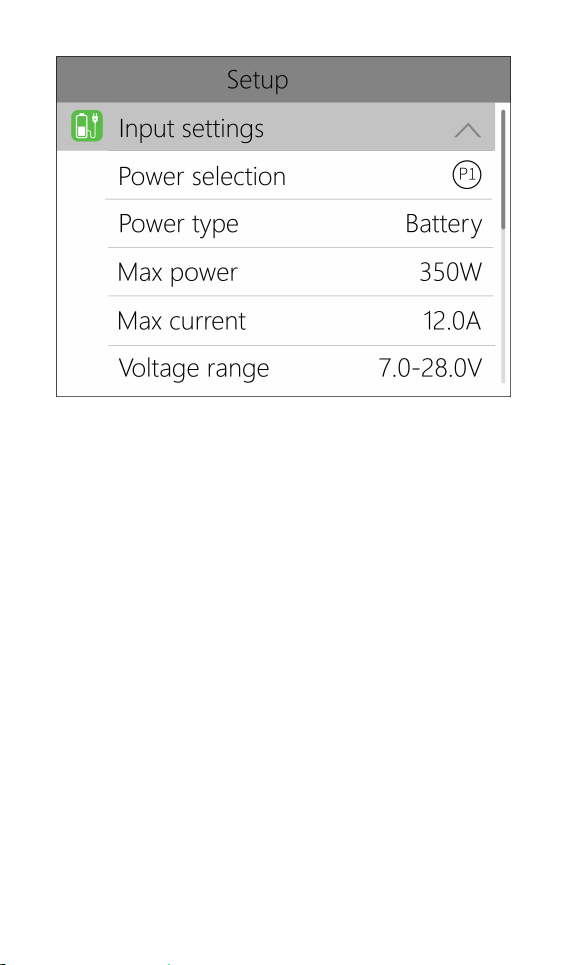

Input settings: Input power related settings, short press
to expand the settings. As shown below:
@ToolkiRC 2021
Page 40
40
Power selection: Can choose power 1, power 2, power 3
Power type: Can choose battery pack and adapter. The
battery pack can choose to recycle discharge during
discharge, but the adapter cannot
Max power: When charging, the maximum power
absorbed from the input port
Max current: When charging, the maximum current
drawn from the input port
Voltage range: Allowable input voltage range

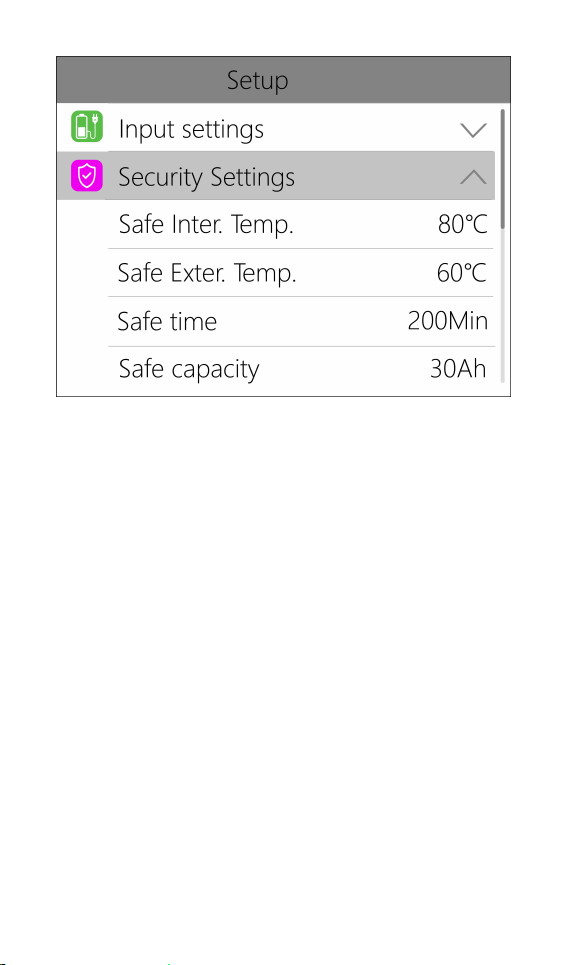

Security Settings: Short press to expand settings. As
shown below:
@ToolkiRC 2021
Page 41
41
Safe Inter. Temp.: Above this temperature value, the
device will stop the main port output
Safe Exter. Temp.: If the external sensor detects a
temperature higher than this value, the device will stop
the main port output
Safe time: The maximum time of continuous charging
and discharging will stop working if exceeded
Safe capacity: The maximum capacity of continuous
charging and discharging will stop working if exceeded
Continuous work: After charge and discharge, whether
to continue charge and discharge after battery
replacement
Work completed: Whether to stop or trickle charge after
charge done
Battery selection: Option to open and close the battery
@ToolkiRC 2021
Page 42
42
selection interface

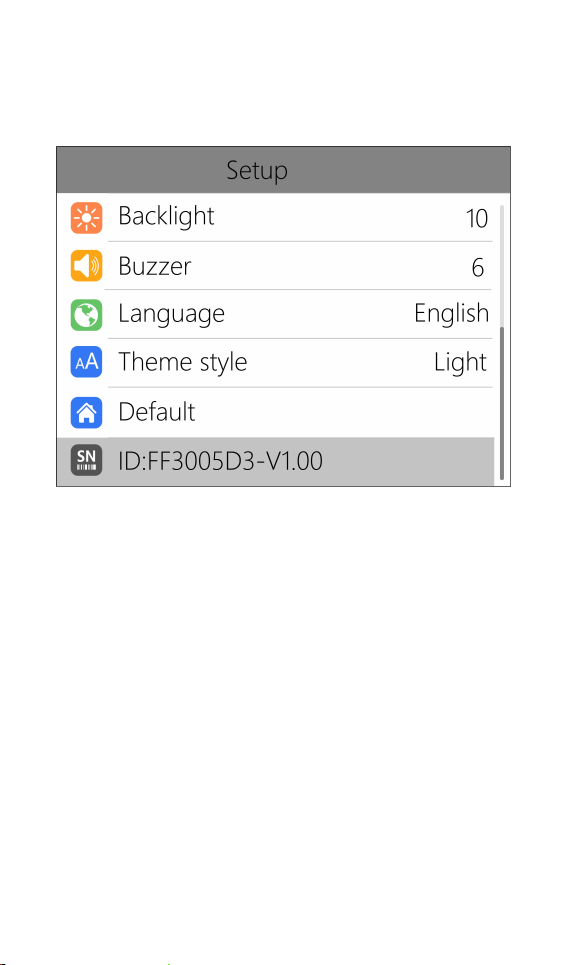

Backlight: The backlight brightness level of the display
can be set from 1-10
Buzzer: The tone of the buzzer, can be set to off.
Language: System display language. English, Chinese,
etc. can be selected
Theme style: Can be set to light and dark themes
Default：Restore all setting items to factory value
ID：Independent ID for each device
@ToolkiRC 2021
Page 43
43
Other functions
1. Firmware upgrade
After connecting the M7 to the computer with the USB
data cable in the box, the computer will recognize a U
disk named Toolkit. Download the upgrade file app.upg
on the official website and overwrite the files in the U
disk to upgrade the firmware.
2. USB 5.0V output
In addition to the above upgrade functions, the USB
interface can also output 2.0A current to charge mobile
devices.
3. Automatically continue charging and discharging
When a battery is fully charged, after unplugging the
battery for 2 seconds, connect to the next battery, the
device will automatically continue to charge and
discharge, you can start and stop this function in the
settings menu
4. Fan level
When the internal temperature of the device exceeds
45°C, the fan turns on half-speed air volume to reduce
noise. When the internal temperature exceeds 53°C, the
fan turns on full-speed air volume to enhance heat
dissipation.
6. Manually calibrate the voltage
In the shutdown state, press and hold the [roller]
without releasing, connect the power supply, and the
system will enter the manual voltage calibration function.
Use a voltmeter to measure the actual voltage of each
battery, move the cursor to the corresponding voltage
value, modify the voltage value to be consistent with the
@ToolkiRC 2021
Page 44
44
voltmeter value, and achieve calibration. After the
calibration is completed, move the cursor to save, short
press once, the buzzer will beep once, the save is
successful. Just exit or shut down
7, fully charged
When the lithium battery is fully charged, it will
prompt "Fast charge is done". If the battery is not
removed, the constant voltage trickle charge will be
performed automatically to make the battery reach a
more full state.
@ToolkiRC 2021
Page 45
45
Specifications
Charging
Input
7-28V@MAX12A
Battery
type
LiPo LiHV LiFe Lion@1-6S
NiMh @1-16S Pb @1-10S
Balance
400mA @2-6S
Accuracy
<0.005V
Power
0.1-10A@200W
Discharge
power
0.1-10A@250W Recycle Mode
0.1-3A@12W Internal Mode
USB
2.1A@5V [email protected]
Voltage
1.0V-5.0V @1-6S
Internal
resistance
1-100mR @1-6S
Measuring
PWM
880us-2200us@20-400hz
PPM
880us-2200us*8 CH@20-50hz
SBUS
880us-2200us*16 CH@20-100hz
Output
PWM
500us-2500us@20-1000hz
PPM
880us-2200us*8 CH@50hz
SBUS
880us-2200us*16 CH@74hz
Power
1-10A@1-28V Mode: CC+CV
Display
LCD
IPS 2.0 inch 320*240 resolution
Product
Size
73mm*51mm*27mm
Weight
90g
Individual
packing
Size
84mm*79mm*39mm
Weight
150g
@ToolkiRC 2021
Loading...
