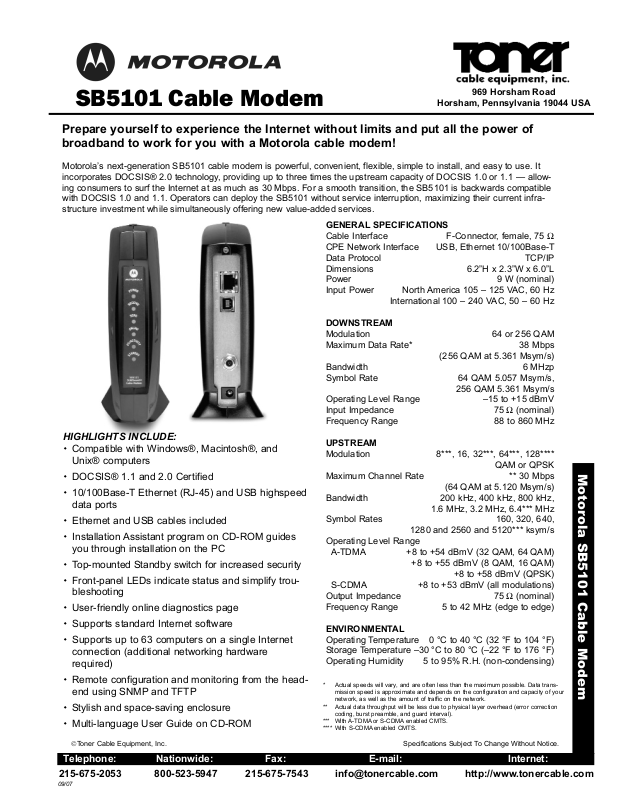

Motorola’s next-generation SB5101 cable modem is powerful, convenient, flexible, simple to install, and easy to use. It
incorporates DOCSIS® 2.0 technology, providing up to three times the upstream capacity of DOCSIS 1.0 or 1.1 — allow­ing consumers to surf the Internet at as much as 30 Mbps. For a smooth transition, the SB5101 is backwards compatible
with DOCSIS 1.0 and 1.1. Operators can deploy the SB5101 without service interruption, maximizing their current infra­structure investment while simultaneously offering new value-added services.

©Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.

Telephone: Nationwide: Fax: E-mail: Internet:

09/07

Motorola SB5101 Cable Modem

215-675-2053 800-523-5947 215-675-7543 [e-mail] http://www.tonercable.com

969 Horsham Road

Horsham, Pennsylvania 19044 USA

SB5101 Cable Modem

GENERAL SPECIFICATIONS

Cable Interface F-Connector, female, 75 Ω
CPE Network Interface USB, Ethernet 10/100Base-T
Data Protocol TCP/IP
Dimensions 6.2”H x 2.3”W x 6.0”L
Power 9 W (nominal)
Input Power North America 105 – 125 VAC, 60 Hz

International 100 – 240 VAC, 50 – 60 Hz

DOWNSTREAM

Modulation 64 or 256 QAM
Maximum Data Rate* 38 Mbps

(256 QAM at 5.361 Msym/s)
Bandwidth 6 MHzp
Symbol Rate 64 QAM 5.057 Msym/s,

256 QAM 5.361 Msym/s
Operating Level Range –15 to +15 dBmV
Input Impedance 75 Ω (nominal)
Frequency Range 88 to 860 MHz

UPSTREAM

Modulation 8***, 16, 32***, 64***, 128****

QAM or QPSK

Maximum Channel Rate ** 30 Mbps

(64 QAM at 5.120 Msym/s)

Bandwidth 200 kHz, 400 kHz, 800 kHz,

1.6 MHz, 3.2 MHz, 6.4*** MHz

Symbol Rates 160, 320, 640,

1280 and 2560 and 5120*** ksym/s

Operating Level Range

A-TDMA +8 to +54 dBmV (32 QAM, 64 QAM)

+8 to +55 dBmV (8 QAM, 16 QAM)

+8 to +58 dBmV (QPSK)

S-CDMA +8 to +53 dBmV (all modulations)
Output Impedance 75 Ω (nominal)
Frequency Range 5 to 42 MHz (edge to edge)

ENVIRONMENTAL

Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature –30 °C to 80 °C (–22 °F to 176 °F)
Operating Humidity 5 to 95% R.H. (non-condensing)

* Actual speeds will vary, and are often less than the maximum possible. Data trans-

mission speed is approximate and depends on the configuration and capacity of your
network, as well as the amount of traffic on the network.

** Actual data throughput will be less due to physical layer overhead (error correction

coding, burst preamble, and guard interval).
*** With A-TDMA or S-CDMA enabled CMTS.
**** With S-CDMA enabled CMTS.

Prepare yourself to experience the Internet without limits and put all the power of
broadband to work for you with a Motorola cable modem!

HIGHLIGHTS INCLUDE:

 Compatible with Windows®, Macintosh®, and

Unix® computers

 DOCSIS® 1.1 and 2.0 Certified

 10/100Base-T Ethernet (RJ-45) and USB highspeed

data ports

 Ethernet and USB cables included

 Installation Assistant program on CD-ROM guides

you through installation on the PC

 Top-mounted Standby switch for increased security

 Front-panel LEDs indicate status and simplify trou-

bleshooting

 User-friendly online diagnostics page

 Supports standard Internet software

 Supports up to 63 computers on a single Internet

connection (additional networking hardware
required)

 Remote configuration and monitoring from the head-

end using SNMP and TFTP

 Stylish and space-saving enclosure

 Multi-language User Guide on CD-ROM
