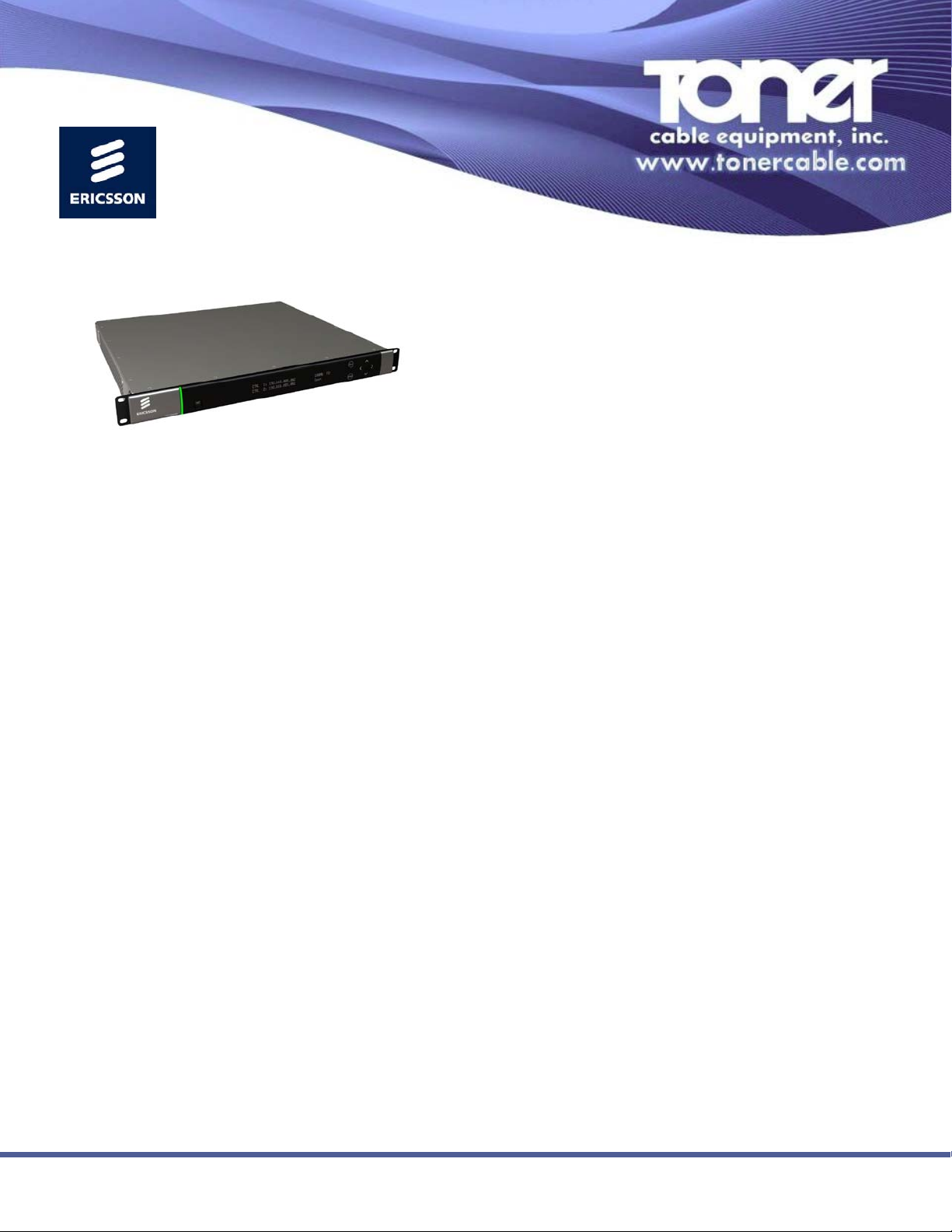

Toner Cable RX8320 User Manual

As local terrestrial broadcasters begin to phase out their analog broad­casts and transition to an all digital environment, the need to maintain
access to the viewing public becomes critical. In many cases, viewers
receive these broadcasts through cable, telco or satellite operators who
either provide an analog transmission to their subscribers or provide a
digital means for their subscribers to receive these local channels. The
Ericsson RX8320 ATSC broadcast receiver is specifically designed to
enable a simple, reliable solution to the ATSC broadcast transition for
these operators.

The RX8320 provides both ASI and 8VSB inputs for reception of the broadcast services over terrestrial or fiber links. It then
provides a pass-through capability so that operators can carry the digital signals all the way to a subscriber’s home.

To support analog TV delivery the RX8320 also provides video decode capability with high quality composite output and
audio decode capability, including 5.1 multi-channel to stereo down-mixing, to allow easy interfacing into the existing infra­structure. Any high definition (HDTV) digital TV service can be down-converted for analog SD delivery. Automatic picture
aspect ratio conversion is performed based on any active format description (AFD) and bar data present on the incoming
digital TV service. Legal and regulatory requirements are also fulfilled by the RX8320 for the transition of ATSC broadcast
services into analog TV delivery, with the extraction and insertion of closed captions, Nielsen data, TV Guide data, and V­Chip program rating information into the analog video outputs.

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

BASE UNIT FEATURES

RX8320 - ATSC Broadcast Receiver
(RX8320/BAS, FAZ 101 0108/20)

The following features are available as standard:

• 8VSB demodulator

• Transport stream input with ASI connection

• Automatic redundancy switching between ASI and 8VSB
inputs

• Transport stream output with ASI connection

• MPEG-2 SD 4:2:0 video decoding with CVBS output

• MPEG-2 HD 4:2:0 video down-conversion with SD CVBS
output

• Two service Dolby® Digital audio decoding with 5.1 to 2.0
downmixing

• Two stereo pairs balanced analog audio output

• Front panel and web browser control, with alarm relay

Optional Features Include:

• Transport stream over IP output

• MPEG-4 AVC video decoding

• Single service filtering and PID remapping

• Multi-service filtering and stream splitting

RX8320 ATSC Broadcast Receiver

PRODUCT OVERVIEW

Easy Migration to ATSC Digital Terrestrial Reception

The RX8320 is specifically designed to smooth the ATSC
broadcast transition for cable, telco and satellite operators
who re-transmit the local broadcast channels.

Complete Interoperability

The RX8320 ATSC Broadcast Receiver offers full translation
capability between digital signaling and analog services. By
offering automatic picture aspect ratio conversion and signal­ing via AFD and bar data, the RX8320 ensures that
widescreen HD video is correctly displayed when down-con­verted to 4:3 SD video. Full support is provided to ensure that
closed captions, TV Guide data and program rating (V-Chip)
services continue to be supported.

Peace of Mind

Ericsson is a leading provider of ATSC broadcast headends
and professional integrated receiver decoder (IRD) products
worldwide. This in-depth knowledge and experience ensures
that the RX8320 delivers the high quality and reliability on
which broadcasters and service operators alike depend.

Specifications Subject To Change Without Notice Rev 10-11 ©Toner Cable Equipment, Inc.

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

RX8320 ATSC Broadcast Receiver

Video and Audio Formats
MPEG-2 SD Video Decode

MPEG-2 MP@ML video decoding
15 Mbps maximum video rate
Input video format: 480i @ 29.97 fps

MPEG-2 HD with Down-conversion

MPEG-2 MP@HL video decoding
Input video format: 1080i @ 29.97 fps and
720p @ 59.94 fps
80 Mbps maximum video input rate
High definition video down-converted and pre-

sented as SD only
SD video format: 480i @ 29.97 fps

Video Processing

AFD and bar data picture aspect ratio conver­sion and signaling per SMPTE 2016
CEA-608 closed captions and XDS on line 21
Nielsen AMOL in VBI

Ancillary and Metadata Processing

SCTE 35 DPI cue message pass-through on
transport stream output
SCTE 127 (including Nielsen AMOL-48/-96, TV
Guide TVG2X) pass-through and translation to
VBI
Closed captions and XDS extracted from CEA­708 DTVCC transport channel
PSIP pass-through on transport stream output
Translation of PSIP content advisory to XDS
program rating (V-Chip)

Audio Decoding

Two stereo pairs audio decoding
Dolby Digital® 2.0 decoding
Dolby Digital 5.1 down-mix to 2.0

Video and Audio Options
MPEG-4 AVC HD with Down-conversion

MPEG-4 AVC MP@L4 and HP@L4 decoding
20 Mbps maximum video input rate
Video format: 1080i @ 29.97 fps and 720p @

59.94 fps
High definition video down-converted and pre-

sented as SD only
SD video format: 480i @ 29.97 fps
MPEG-4 AVC SD
MPEG-4 AVC MP@L3 and HP@L3 decoding
12 Mbps maximum video input rate
Video format: 480i @ 29.97 fps

Input Interfaces
Transport Stream Input

ASI connector: 1x BNC 75 Ohm
Max input rate: 160 Mbps
Packet length: 188/204 bytes

8-VSB RF Input

Connector: 1x F-Type (F), 75 Ohm
Modulation: ATSC A/53 8-VSB
Frequency range: 54 MHz to 863 MHz
Input level: -80 dBm to -5 dBm
Bit-rate: 19.39 Mbps

Outputs
Transport Stream Output

ASI connector: 2x BNC 75 ohms

Composite Video Output

Connector: 2x BNC 75 ohms
Format: NTSC

Audio Output

Analog balanced audio output
2x 9-pin D-type with breakout cable to XLR
connectors

Output Options
Transport Stream Output

Transport stream encapsulation into IP
MPTS/UDP/IP
2x Gigabit Ethernet outputs (RJ45)
100/1000BaseT auto-sensing
Hardware always fitted, enabled with feature
key

Features

Program selection for ATSC, DVB and MPEG­only streams
Input transport stream rate up to 160 Mbps
Alarm relay

Stream Processing
Single Service filtering

Filter multiple services to one outgoing service

y

Remap PIDs for the filtered service
Output: CBR on ASI and IPySPTS

Multi-service filtering

Filter N incoming services to M outgoing ser­vices

y

Number of services: 24 max.
Remap PIDs on a single service
Output: CBR on ASI and IPyMPTS
Stream splitting - up to 8 services as IP SPTS

Control Options

Front panel keypad and LCD

Ethernet

Dual RJ45 10/100BaseT control interface
SNMP traps and alarms
Web browser interface

Physical and Power
Dimensions (W x D x H)

440 x 400 x 44mm
(17.3 x 15.75 x 1.73“ approx.)

Input Voltage

110 VAC / 240 VAC

Power Consumption

45 Watt max. (depending on options fitted)

Cooling

Integrated fans

Environmental Conditions

Operating Temperature
0°C to 50°C (32° to 122°F)
Storage Temperature

-20°C to 70°C (4° to 140°F)
Relative Humidity
5% to 95% (Non-condensing)

Compliance

CE marked in accordance with EU Low
Voltage and EMC Directives

EMC Compliance

EN55022, EN61000-3-210, EN61000-3-310,
EN55024, CISPR22, FCC CFR47 Part 15B
Class A

Safety Compliance

EN60950-1, IEC60950-1, UL60950-1

SPECIFICATIONS
