Cable Tools
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com
969 Horsham Road
Horsham, Pennsylvania 19044 USA
Cable Tools

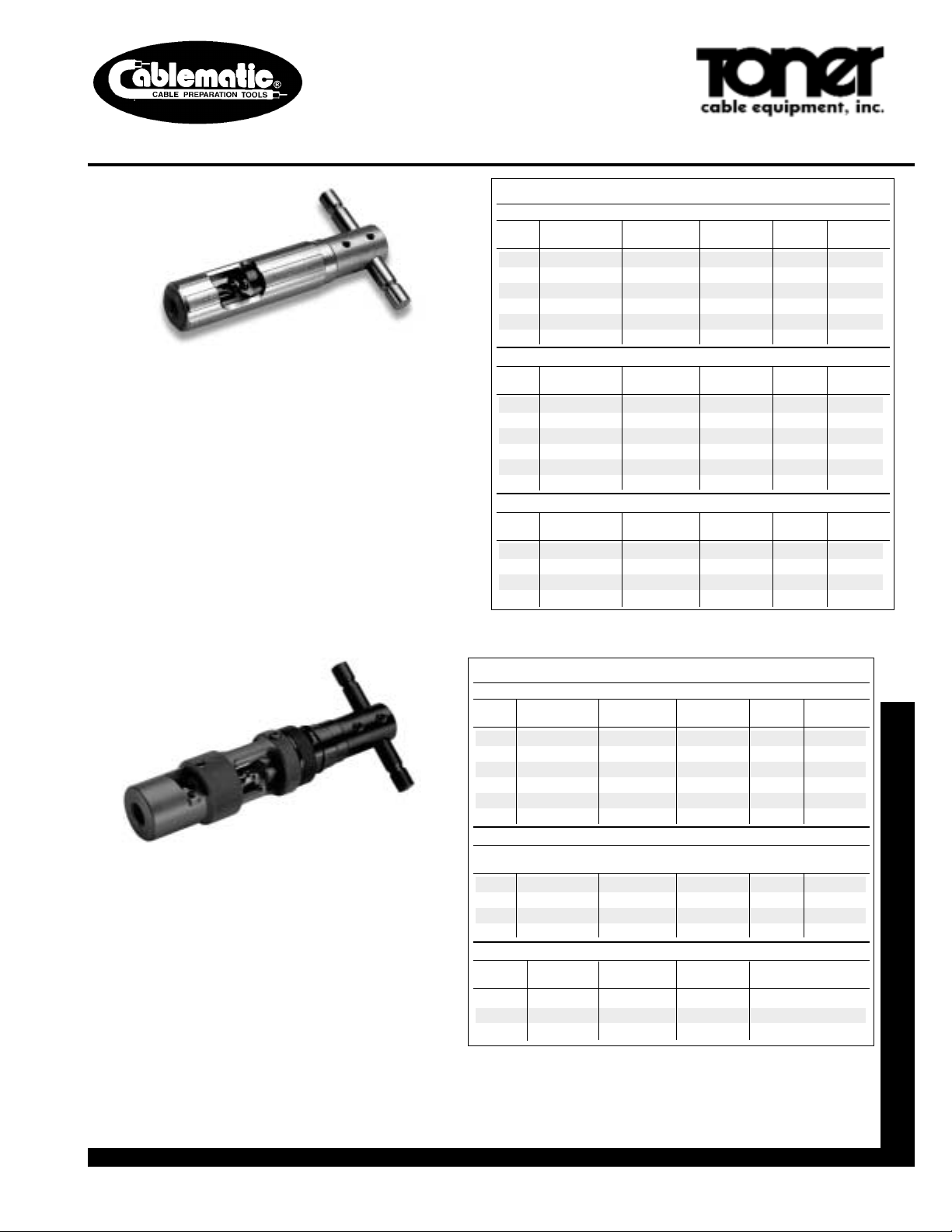

CST Coring & Stripping Tools
• Combination tool cores and strips in one fast and precise operation
• Manual or drill operation: CST tools have a standard “T” handle
with a built-in 3/8'' (9.5mm) drill adapter; CST-R tools have a
ratchet “T” handle and a separate 3/8'' (9.5mm) drill adapter
• Heat treated sheath cutting blade produces a smooth beveled
edge and can be replaced without the expense of replacing the
entire coring bit
• Spiral-fluted, heat-treated steel coring bit
• Rugged, durable, all-metal construction
• Strip stops available for exact stripping lengths of 0.50 to 2.00
inch (12.7 to 50.8mm)
• Color coded cable guide sleeves for easy cable size identification
• Use of CC-100 Center Conductor Cleaner removes residual dielectric which remains on the conductor after coring and stripping
• Length: 6.88'' (175mm), Weight: 1 lb 10 oz (738g)
CST
COMM/SCOPE P1, P3 and Cable Guard Cable; TIMES FIBER T4, T4Plus, T6, T10 Cable
Cable Standard Tool Ratchet Tool Coring Bit Guide Sleeve
Kit Sleeve Color
412 CST 412 CST412-R CB 114K 29104 Black
500 CST 500 CST 500-R CB 115K 29105 Red
625 CST 625 CST 625-R CB 116K 29106 Blue
750 CST 750 CST 750-R CB 117K 29111 Green
875 CST 875 CST 875-R CB 118K 29112 Yellow
1000 CST 21000 CST 21000-R CB 156K 29113 Orange
SCIENTIFIC ATLANTACable Flex Cable
Cable Standard Tool Ratchet Tool Coring Bit Guide Sleeve
Kit Sleeve Color
375 CST 375CX — CB 128 — —
412 CST 412CX CST 412CX-R CB 125K 33361 Black
500 CST 500CX CST 500CX-R CB 115K 31153 Red
625 CST 625CX CST 625CX-R CB 116K 33363 Blue
750 CST 750CX CST 750CX-R CB 117K 33362 Green
875 CST 875CX CST 875CX-R CB 118K 33364 Yellow
TIMES FIBER TX Cable
Cable Standard Tool Ratchet Tool Coring Bit Guide Sleeve
Kit Sleeve Color
565 CST 565TX CST 565TX-R CB 145K 29108 Red
700 CST 700TX CST 700TX-R CB 137K 33847 Blue
840 CST 840TX CST 840TX-R CB 138K 29109 Green
1160 CST 21160TX CST 21160TX-R CB 158K 33847 Neutral
Quick Change Coring & Stripping Tool
• ALL-IN-ONE, accurately strips the jacket, cores out the
dielectric, strips and bevels the aluminum sheath
• NEW DESIGN conveniently attaches the jacket stripper body
(QJST) to the main body of the coring and stripping tool by
means of a “QUICK-CHANGE” rotating body ring
• QJST color coded JACKET STRIPPING BODY is removed
and used in a 2 step operation when using flooded cables
• Manual or Drill operation; QCST tools have a standard “T”
handle with a built-in 3/8'' (9.5mm) drill adapter; QCST-R
tools have a Ratchet “T” handle and a separate 3/8''
(9.5mm) drill adapter
• Rugged, durable, all-metal construction
• Heat treated sheath cutting blade produces a smooth
beveled edge and can be replaced without the expense of
replacing the entire bit
• Spiral-fluted, heat treated steel bit
• U.S. Design Paten applied for
• Made in the U.S.A.
• Length: 8.1'' (205.7mm), Weight: 1 lb 4 oz (525g)
CST
QCST
QCST
COMM/SCOPE P3 Cable; TIMES FIBER T10 Cable
Cable Standard Tool Ratchet Tool Coring Bit Guide Sleeve
Kit Sleeve Color
412 QCST 412 T QCST 412T-R CB 114K 29104 Black
500 QCST 500 T QCST 500T-R CB 115K 29105 Red
625 QCST 625 T QCST 625T-R CB 116K 29106 Blue
750 QCST 750 T QCST 750T-R CB 117K 29111 Green
875 QCST 875 T QCST 875T-R CB 118K 29112 Yellow
1000 QCST 21000 T QCST 21000T-R CB 156K 29113 Orange
TIMES FIBER TX and COMM/SCOPE P3 Cable
Cable Standard Tool Ratchet Tool Coring Bit Guide Sleeve
Kit Sleeve Color
565 QCST 565 QCST 565-R CB146K 29108 Red
700 QCST 700 QCST 700-R CB137K 33847 Blue
840 QCST 840 QCST 840-R CB138K 29109 Green
1160 QCST21160 QCST 21160-R CB158K 33837 Neutral
Accessories for QCST Tools (Quick-Change— ALL-IN-ONE)
Cable Ratchet Drill Sheath Jacket Stripping Blade
Handle Adapter Cutting Blade
412-840 31250 31230 CB 60 CB 6667
860-1080 31275 31235 CB 60 CB 6667
1160 31275 31235 CB 26 CB 6667
CST-MC
Cable Model Number Model Number Coring Bit Guide Sleeve
Standard Tool Ratchet Tool Kit Sleeve Color
440 CST 440MC CST 440MC-R CB 131K 33771-1 White
500 CST 500MC CST 500MC-R CB 132K 33771-2 White
650 CST 650MC CST 600MC-R CB 133K 33771-3 White
750 CST 750MC CST 750MC-R CB 134K 33771-4 White
1000 CST 1000MC CST21000MC-R CB 157K 33777 White
CAT Compression Assembly Tool
Connector Tool for Compression TYPE “F” connectors
• Tool design provides a clear view of the connector assembly compression action
• Tool conversion for different connectors is easily accomplished by
changing the plunger tip
• Unique adjustment features assure connector assembly reliability
• Color coded band on plunger tip for easy connector identification
• Spring-loaded, split jaws position cable and connector for easy insertion
and removal
• Ergonomic, user friendly design
• Tools available for the following 6 & 59 Series and 7 & 11 Series
connectors:
!
EX, PPC,
!
EZF®, Raychem,
!
SPP, Stirling,
!
SPL, Stirling
!
SNS/US, SNAP-N-SEAL®, Thomas & Betts/ULTRASEAL™, Gilbert
!
TAC, Gilbert
• Made in the U.S.A., U.S. Patent #5,934,137
• Lightweight and compact
• Gage block and hex wrench supplied with tool
CST-MC Coring & Stripping Tools
• Specifically designed for Trilogy MC2cables
• Double helix coring bit designed for fast and precise coring and stripping
of polyethylene disc/air dielectric cable
• Heat treated, sheath cutting blade produces a smooth, beveled edge and
can be replaced without the expense of replacing the entire coring bit
• Use of CC-100 Center Conductor Cleaner removes residual dielectric
which remains on the conductor after coring and stripping
• Length: 8.38'' (213mm), Weight: 1 lb 9 oz (709g)
CAT Compression Assembly Tool Ordering Guide
Model Connector/Mfr Cable Series Plunger Tip
Color Code
CAT-EX EX / PPC 6 & 59 Black
CAT-EZF EZF
®
/ Raychem 6 & 59* 6/Blue & 59/Red
CAT-SNS/US SNAP-N-SEAL
®
/ Thomas & Betts 6 & 59 Green
ULTRASEAL
™
/ Gilbert
CAT-SPP SPP / Stirling 6 & 59 Orange
CAT-SPL SPL/ Stirling 6 & 59 Gray
CAT-TAC TAC / Gilbert 6 & 59 Yellow
CAT711-EX/SNS/US EX / PPC Green
SNAP-N-SEAL
®
/ Thomas & Betts Green
ULTRASEAL
™
/ Gilbert Green
CAT711-EZF EZF
®
/ Raychem 7-Red/11-Blue*
CAT711-SPL SPL / Stirling Gray
CAT711-TAC TAC / Gilbert Yellow
CAT
CST-MC
CR
Model Hex Sizes (inch, mm) Contact Hex
(inch) (mm) (inch) (mm)
CR 211CX .475 12.07 .096 2.43 — —
CR 324 .324 8.23 .068 1.73 — —
CR 360 .360 9.14 — — — —
CR384/360 .384 / .360 9.75 / 9.14 — — — —
CR 41Q .453 / .315 11.51 / 8.00 — — — —
CR 42Q .320 / .250 8.13 / 6.35 — — — —
CR 470 .470 11.94 — — — —
CR 596B .324 / .262 8.23 / 6.35 — — — —
CR 596Q .384 / .324 9.75 / 8.23 — — — —
CR 596QL .360 / .324 9.14 / 8.23 — — — —
CR 596QL2 .360 / .324 9.14 / 8.23 .068 1.73 — —
CR 596-11 .410 / .324 10.41 / 8.23 — — — —
CR 611Q .475 / .324 12.07 / 8.23 — — — —
CR 611QL .470 / .324 11.94 / 8.23 — — — —
CR 611Q2 .475 / .324 12.07 / 8.23 .100 2.54 — —
CR 611U .475 / .360 12.07 / 9.14 .096 2.43 — —
CR 756 .410 / .360 10.41 / 9.14 — — — —
CR 775 .384 / .324 9.75 / 8.23 .068 1.73 .100 2.54

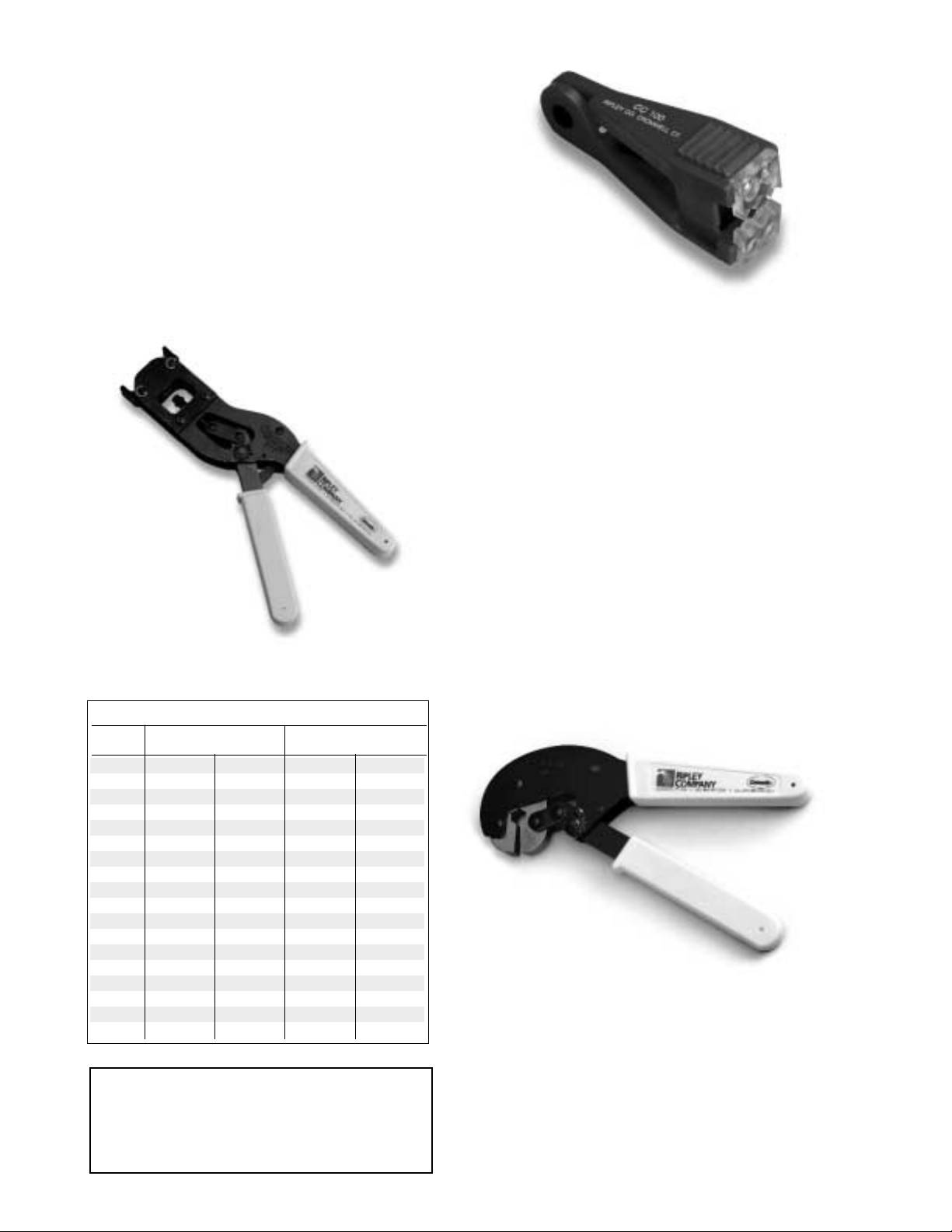

CC-100 Center Conductor Cleaner
• For removing residual dielectric from the conductor of
all sizes of trunk distribution cables (without scratching or nicking)
• Finger grippers permit application of maximum force
• Multiple V-shaped scraping notches on cleaning blades assure fast
and effective removal of residual dielectric
• Compact size and lightweight
• Replacement cleaning blade part number 16722
• Length: 4.25'' (108mm), Weight: 2 oz (57g)
CR Crimp Tools
• For CATV, MATV and
STV type cable connectors
• Precision quality alloy steel jaws are self-bottoming and
will not over-crimp
• Toggle action delivers correct crimping force
• Rugged components for long, trouble-free performance
• Star wheel permits precise, easy compression adjustment
• Easy to read hex sizes stamped on frame
• Durable, hot-dipped, full-cushion handles will not slide off
• Rugged steel frame with heat treated pins for maximum strength and
operating life
• Length: 9'' (229mm), Weight: 1 lb 9 oz (708g)
RTT Round Taper Tool
• Unique spring loaded split jaw design allows fast & easy insertion, compression and removal of cable assembly
• Tool designed to be used with the following 360Þ Radial Compression
Connectors:
!
Antec - Digicon™ Series 6 & 59
!
DBS Depot - All Weather “F” Connectors Series 6 & 59
!
F-Conn Industries - F-Conn connectors Series 6
• Toggle action allows minimal hand force and maximum strength to complete connector assembly
• Rugged, steel “O” Frame design with heat treated components, assures
long operating life
• Unique adjustment features provide cable connector assembly reliability
• Full Cycle ratchet mechanism, with easy access escape lever, assures a
complete reliability each and every time
• Improved high visibility yellow cushion grips provide more comfort and
like our original design will not rotate or slip during use
• Made in the U.S.A., U.S. Patent No. 5,392,508: 5,596,800; & 5,743,131
• Length: 11.50'' (292mm), Weight: 2.06 lbs (917g)
/
CRMK-1 MAINTENANCE KIT FOR CR CRIMP TOOLS:
Kit includes 1 star wheel, 1 star wheel screw,
2 links, a 1/16'' hex wrench, 6 retaining rings,
4 pins and 4 bow washers
CC-100
CR
RTT
F103-S
FT
Toner Cable Equipment, Inc. Specifications Subject To Change Without Notice.
Telephone: Nationwide: Fax: E-mail: Internet:
Cable Tools
215-675-2053 800-523-5947 215-675-7543 info@tonercable.com http://www.tonercable.com

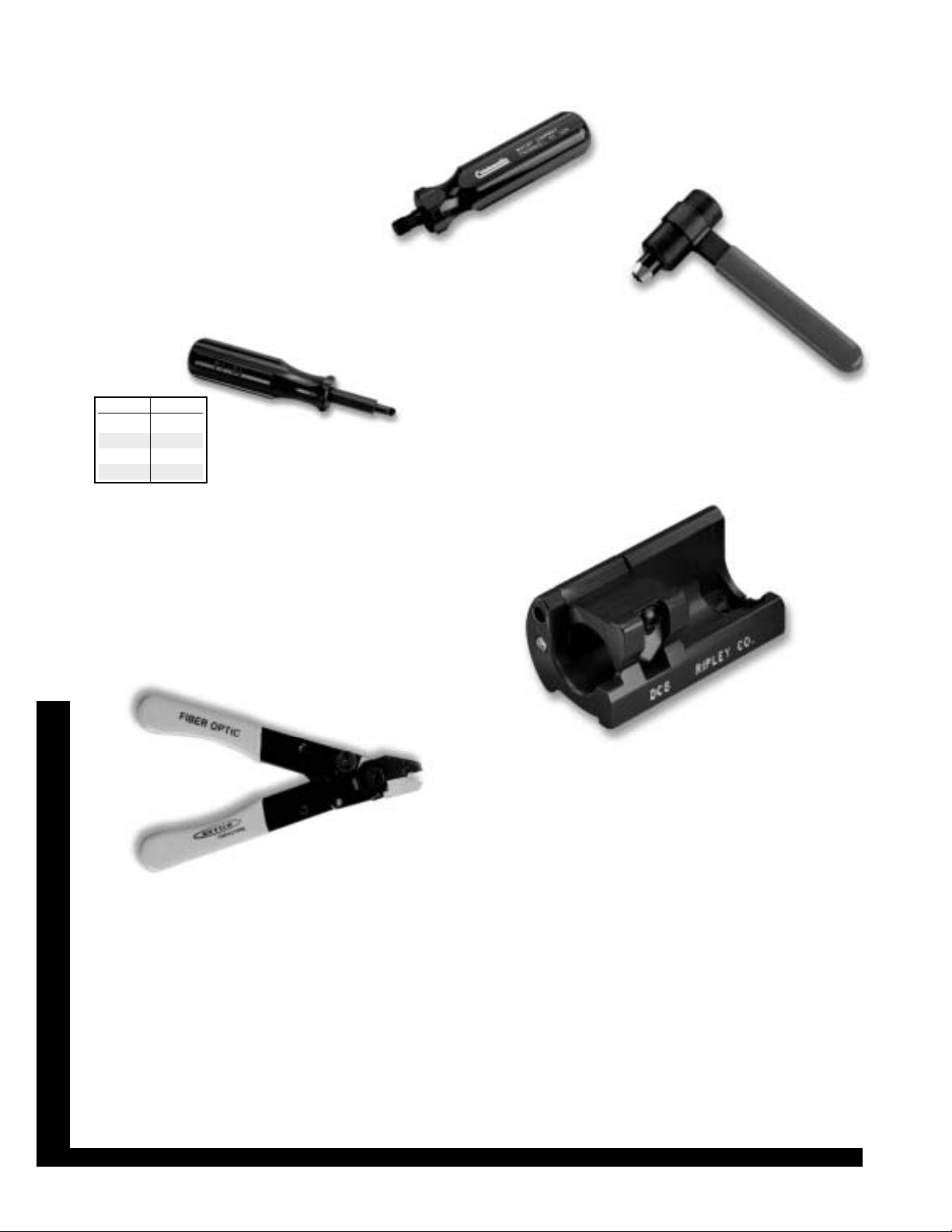

IT 59, 6, 11 “F” Connector Insertion
Tool
• Makes “F” connector insertion fast and easy
even in cold temperatures
• Especially useful when using tri-shield and quad-shield
cables
• Insures proper connector and cable interface
• Large plastic screwdriver-type handle
provides leverage when inserting “F”
connector to the drop cable
• Heat treated shank
• Length: 5'' (127mm), Weight: 3.5 oz (99g)
FT Flaring Tools for Drop Cables
• For flaring or expansion to permit easier insertion
of “F” connectors
• Recommended for polyethylene jacketed cables
• Length: 4.5'' (144mm), Weight: 2 oz (57g)
CT 375 Carpet Cutter
& Drill Guide
• For making fast and precise holes in carpeting
• CT-375 is for wood underfloors (scalloped edge cutter)
• CT-375C is for concrete and other underflooring (smooth cutter)
• Replacement blades: Scalloped, Part Number - 33479
Smooth, Part Number - 33478
• Length: 3 x 6.375'' (76 x 162mm), Weight: 15 oz (426g)
DCS Drop Cable Slitter
• Designed to slit the web on 59, 6, 7 & 11 series messengered
and dual cables in the following cable configurations:
!
Messengered coaxial drop cable
!
Dual coaxial drop cable
!
Dual coaxial and twisted pair cable
• Provides a clear view of slitting action
• Works on PVC and Polyethylene jackets
• Built-in saddle and spring loaded jaw permits easy positioning
of cable
• Built-in shaving blade removes residual ridge-material allowing
easy connectorization
• No blade adjustments required
• Ergonomic, user-friendly design
• Lightweight and compact, fits in the palm of your hand for easy
one hand operation
• High visibility red color
• Made in U.S.A., Patent Applied For
• Length: 2.75'' (70mm), Weight: 5 oz (140g)
FO 103-S Miller Fiber Optic Stripper
• For stripping 250 micron buffer coating from 125 micron
optical fiber
• .0055'' (.14mm) diameter hole & V-opening in blade allow
for accurate buffer coating removal
• Factory set, requires no adjustment
• Prevents scratching or nicking of optical fiber
• All cutting surfaces are precision formed, hardened, tempered and ground assuring precise buffer removal
• Durable, hot dipped, cushion grip handles
• Additional stripping hole diameters available upon request
• Length: 5.375'' (137mm), Weight: 2.5 oz (71g)
IT 59, 6, 11
CT 375
DCS
Model Cable
FT-59 59
FT-6 6
FT-7 7
FT-11 11
Loading...
