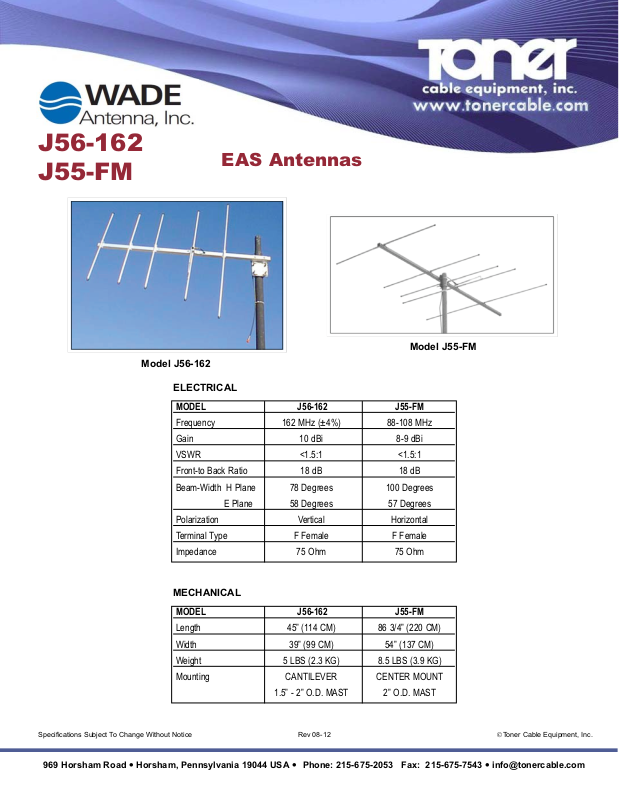

Toner Cable J56-162 User Manual

J56-162
J55-FM

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

MODEL J56-162 J55-FM

Frequency 162 MHz (±4%) 88-108 MHz

Gain 10 dBi 8-9 dBi

VSWR <1.5:1 <1.5:1

Front-to Back Ratio 18 dB 18 dB

Beam-Width H Plane 78 Degrees 100 Degrees

E Plane 58 Degrees 57 Degrees

Polarization Vertical Horizontal

Terminal Type F Female F Female

Impedance 75 Ohm 75 Ohm

Specifications Subject To Change Without Notice Rev 08-12 ©Toner Cable Equipment, Inc.

EAS Antennas

MODEL J56-162 J55-FM

Length 45” (114 CM) 86 3/4” (220 CM)

Width 39” (99 CM) 54” (137 CM)

Weight 5 LBS (2.3 KG) 8.5 LBS (3.9 KG)

Mounting CANTILEVER CENTER MOUNT

1.5” - 2” O.D. MAST 2” O.D. MAST

Model J56-162

Model J55-FM

ELECTRICAL

MECHANICAL
