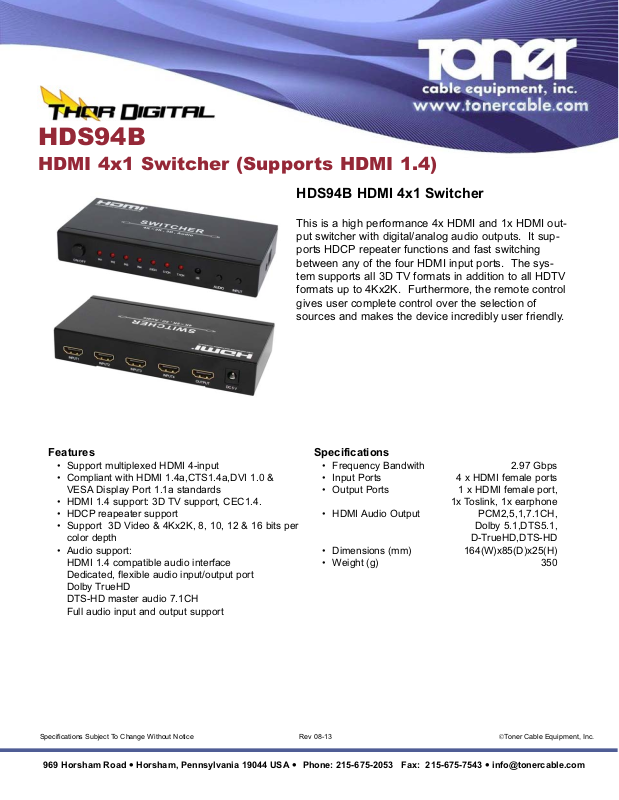

Toner Cable HDS94B User Manual

HDS94B

HDMI 4x1 Switcher (Supports HDMI 1.4)

969 Horsham Road lHorsham, Pennsylvania 19044 USA l Phone: [phone] Fax: [phone] [e-mail]

HDS94B HDMI 4x1 Switcher

This is a high performance 4x HDMI and 1x HDMI out­put switcher with digital/analog audio outputs. It sup­ports HDCP repeater functions and fast switching
between any of the four HDMI input ports. The sys­tem supports all 3D TV formats in addition to all HDTV
formats up to 4Kx2K. Furthermore, the remote control
gives user complete control over the selection of
sources and makes the device incredibly user friendly.

Specifications Subject To Change Without Notice Rev 08-13 ©Toner Cable Equipment, Inc.

Features

• Support multiplexed HDMI 4-input

• Compliant with HDMI 1.4a,CTS1.4a,DVI 1.0 &
VESA Display Port 1.1a standards

• HDMI 1.4 support: 3D TV support, CEC1.4.

• HDCP reapeater support

• Support 3D Video & 4Kx2K, 8, 10, 12 & 16 bits per
color depth

• Audio support:
HDMI 1.4 compatible audio interface
Dedicated, flexible audio input/output port
Dolby TrueHD
DTS-HD master audio 7.1CH
Full audio input and output support

Specifications

• Frequency Bandwith 2.97 Gbps

• Input Ports 4 x HDMI female ports

• Output Ports 1 x HDMI female port,
1x Toslink, 1x earphone

• HDMI Audio Output PCM2,5,1,7.1CH,

Dolby 5.1,DTS5.1,

D-TrueHD,DTS-HD

• Dimensions (mm) 164(W)x85(D)x25(H)

• Weight (g) 350
