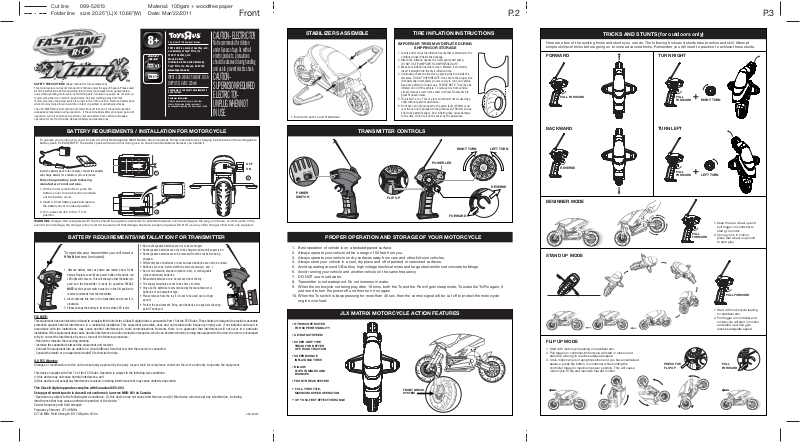

Tomy 52613TX27 Users Manual

Cut line Folder line

099-52613 size: 20.25”(L) X 10.66”(W)

Material: 100gsm + woodfree paper Date: Mar/22/2011

Front P.2 P.3

CAUTION- ELECTRIC TOY:

Part of the “R”U S Family of Brands.

FAST LANE is a mark of Geoffrey, LLC, a subsidiary of Toys“R”Us, Inc.

INCLUDED INCLUIDA

www.toysrus.com

INPUT : 100-240VAC 50/60HZ 0.15A

SAFETY PRECAUTI ONS (Keep manual for future reference)

This motorcycle is not recommended for children under the age of 8 years. Please read all of the instructions before operating this motorcycle. Always follow general safety rules while operating motorcycle: avoid hitting pets, furniture or people. Do not pick up motorcycle while it is in motion, keep hands, hair and clothing away from this motorcycle when the power switch is turned to the “ON” position. Remove battery pack when motorcycle is stored. Avoid tire contact on painted or varnished surfaces.

The JLX MATRAIX is built with an automatic shut-off function if the vehicle reache s excessive temperature during oper ation. If the vehicle stops after prolonged period of operation, turn off vehicle and control ler, remove battery from vehicle and cease operation for ten (10) minutes. Reinsert batter y and resume play.

BATTERY REQUIREMENTS / INSTALLATION FOR MOTORCYCLE

To operate your motorcycle, you will need a 9.6 Volt Rechargeabl e NiMH Battery Pack (inc luded). Follow manufa cturer’s charging ins tructions on the rech argeable battery pac k. PLEASE NOTE: The batte ry pack will become hot dur ing use, so care should be taken whe never you handle it.

Insert the battery pack to the charger, connect the adapter and charge battery for a minimum of four (4) hours.

Fully c harg e bat ter y pack fo llow ing manu fact urer ’s ins truc tio ns.

1. On the motorcycl e bottom , push the batter y cover to rear dire ction a nd take out the ba tter y cover.

2. Insert 9.6 Volt battery pack and restore the battery cover to closed position.

3. Turn power swi tch to the “I ” ON positi on.

WARNIN G: Cha rger tha t is supp lied wit h the toy sho uld be reg ularl y examine d for pote ntial h azard s, such a s damag e to the plug , enclo sure, or ot her par ts. In the event of su ch damage, the cha rger or toy must not be used until that da mage has be en prop erly re paire d. DO NOT us e any other c harge r other th an one su pplied .

BATTERY REQUIREMENTS/INSTALLATION FOR TRANSMITTER

• Non-rechargeable bat teries are not to b e recharged.

To operate your transmitter you will need a 9 Vo lt battery (included).

1. Remove battery cover as shown and install a new 9 Volt battery. Replace cover. Move power button ON and the red LED light will come on. This will show you that the battery is good and the transmitter is ready for operation PLEASE NOTE: Vehicle power switch must be in the ON position to receive commands from the transmitter.

2. Insert antenna into hole in the transmitter and screw it in clockwise.

3. Please change the battery to fresh one when LED is dim.

FCC NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

U.S. FCC Warning:

Changes o r modific ations to this unit no t expressly approved by the par ty respon-sible f or complia nce could vo id the user ’s authority to op erate th e equipment .

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

“Operat ion is subject to the following t wo conditions: (1) this device may not cause inter ference, and (2 ) this device must accept any interference, including interference that may cause undesired operation of the device.” Carrier frequency and field s trengt h Frequency Channel : 27.145 MHz

27.145 MHz Field Strength: 68.7 dBµv/m @ 3m.

• Rechargeable ba tter ies are only to be charged under adult supervision.

• Rechargeable ba tter ies are to b e removed f rom the toy before being charged .

• Different types of ba tter ies or new and used batteries are not to be mixed.

• Batt eries ar e to be inserted with the co rrect p olarity(+ and -).

• Do not mix alkaline, s tanda rd (carbon-zinc), or rechargeable (nickel-cadmium) bat teries.

• Exhau sted batteries are to be removed from the toy;

• The supply termina ls are not to be shor t-circuited;

• Only use t he batteries recommended by the manufact urer or batteries of an equivale nt type.

• Please r emove from the toy if it is not to be used over a longer period ;

• Protect the environmen t: Bring used batteries to a special colle cting point ! Thank you!

OUTPUT: 11.4VDC 220mA

CONFORMS TO THE SAFETY REQUIREMENTS OF ASTM F963.

Customer Infomation:

Color and contents may very from item shown. Where applicable, remove all package before giving this item to your child.

Not recommended for children under 8 years of age. As with all electric products, precautions should be observed during handling

and use to prevent electric shock.

CAUTIONSUPERVISION REQUIRED ELECTRIC TOYUNPLUG WHEN NOT IN USE.

OFF

099-52613

STABILIZERS ASSEMBLE

• Included 2 set of L and R stabilizer

TRANSMITTER CONTROLS

POWER

SWITCH

FLIP UP

PROPER OPERATION AND STORAGE OF YOUR MOTORCYCLE

TIRE INFLATION INSTRUCTIONS

IMPORTANT: TIRES MAY DEFLATE DURING

1. Locate and remove the inflation needle that is attached to the

2. Attach the inflation needle to a hand sports ball pump.

3. Make sure inflation needle is clean. Moisten it and slowly

4. Continually check the tire size by placing the tire inside the

5. This is NOT a toy. This is a tool and should not be used by a

6. Front tire can only pumped to the given level (150mm) and

SHIPPING OR STORAGE

cardboard insert inside the package.

DO NOT USE PUMPS WITH COMPRESSED AIR!

insert it straight into the tire’s inflation hole.

template. DO NOT OVERINFLATE. Once tire is the proper size (fits perfectly in template) you are ready to run your vehicle. Keep tire pattern for future use. PLEASE NOTE: Tires may be inflated on or off the vehicle. To remove tire from vehicle. simply remove screw from center of wheel. Rotate tires to prevent uneven wear.

child without parent supervision.

rear tire can only pumped to the given level (156mm) and as shown by pattern/calipre. Over inflating may cause damage to the tires, which will not be cover by the guarantee.

POWER LED

FORWARD

LEFT TURNRIGHT TURN

REVERSE

TRICKS AND STUNTS (for outdoors only)

Here are a few of the exciting tricks and stunts you can do. The following tricks and stunts take practice and skill. Attempt simple skill level tricks before going on to more advance d tricks. Remember you will need to practice to achieve these stunts.

FORWARD

PULL FORWARD PULL

BACKWARD

REVERSE

BEGINNER MODE

TURN RIGHT

FORWARD

TURN LEFT

PULL FORWARD

RIGHT TURN

LEFT TURN

PULL FORWARD

1. Keep the rear wheel up and pull trigger on controller to start gyro motor.

2. Once gyro is in motion, place rear wheel on ground to start play.

1. Best operation of vehicle is on a textured paved surface.

2. Always operate your vehicle within a range of 50 feet from you.

3. Always operate your vehicle on dry surfaces away from cars and other full-size vehicles.

STAND UP MODE

4. Always store your vehicle in a cool, dry place and off of painted or varnished surfaces.

5. Avoid operating around CB radios, high voltage electrical wires and large steel-reinforced concrete buildings.

6. Avoid running your vehicle and another vehicle on the same frequency.

7. DO NOT use in salt water.

8. Transmitter is not water proof. Do not immerse in water.

9. When the motorcycle not being play after 10 mins, both the Tx and the Rx will goto sleep mode. To wake the Tx/Rx again, it just need to turn the power off and then turn it on again.

10. When the Tx switch is keep pressing for more than 45 sec, then the control signal will be cut off to protect the motorcycle

PULL FORWARD

engine over heat.

1. Start with motorcycle leaning

JLX MATRIX MOTORCYCLE ACTION FEATURES

• GYROSCOPE MOTER

FOR SUPERB STABILITY

• ULTRAFAST SPEED!

• SUPER-GRIP TIRE

TREAD FOR BETTER

OFF-ROAD TRACTION

• SUPERBOUNCE

INFLATABLE TIRES

• BIG AIR!

FLIPS TUMBLES AND

BOUNCES

• FRONT BREAK SYSTEM

• FULL- THROTTLE,

MAXIMUM-SPEED OPERATION

• UP TO 50-FEET EFFECTIVE RANGE

FRONT BREAK SYSTEM

FLIP UP MODE

1. Start with motorcycle leaning on stabilizer arm.

2. Pull trigger on controller. Motorcycle will start in motion and stand up when gyro reaches adequate speed

3. Once motorcycle is in upright position and you have maintained balance, press flip button on controller while holding the controller trigger in maximum power position. This will cause motorcycle to flip and maintain forward motion.

PRESS FOR FLIP UP

on stabilizer arm.

2. Pull trigger on controller and motorcycle will start in motion and stand up when gyro reaches adequate speed.

PULL FORWARD
