Tomahawk ST 6197-F User Manual

Thunder Tiger Corporation guarantees this model kit to be free from defects in both material and workmanship. The total monetary value under warranty will in no case exceed the cost of the original kit purchased. This warranty does not cover any components damaged by use or modification. Part or parts missing from this kit must be reported within 60 days of purchase. No part or parts will be sent under warranty without proof of purchase. To receive part or parts under warranty, the service center must receive a proof of purchase and/or the defective part or parts. Should you find a defective or missing part, contact the authorized Thunder Tiger Service/Distributor nearest you. Under no circumstances can a dealer or distributor accept return of a kit if assembly has starte

WARRANTY

品質保證事項

本公司對於製造過程中產生之瑕疵，負完全品質保證責任。保證事項僅限於產品本身與隨產品所附之零配件。品質保證不包含下列事項因使用、組裝或調整本產品所發生之損壞。其他所有非產品本身品質所造成之損壞。

Instruction Manual

The contents are subject to change without prior notice due to product improvements and specificatrion changes.

操作說明書

1/10 SCALE NITRO POWERED 4WD OFF-ROAD TRUGGY

1:10

引擎動力四驅越野競速卡車

本套件所附之零件可能跟圖示有所差異。因產品後續之設計研發或功能不斷改善之原因，我們將保留產品規格變更權力，不再另行通知使用者。

This radio control model car is not a toy! Before beginning operation, please read this manual thoroughly.

本產品為高性能模型非一般玩具，操作前請詳閱本產品說明書。

No.6197-F

Thank you for your purchase of this Thunder Tiger product. You should enjoy many hours of fun and excitement from this advanced R/C model. Thunder Tiger strives to bring you the highest level of quality and service we can provide. We race and test our cars around the world to bring you state-of-the-art products.

We offer on-line help on our www.acehobby.com or www.thundertiger.com forum and our product specialists are ready to take your call if you have any technical questions. Please read all instructions and familiarize yourself with the systems and controls of this model before running. Have fun and enjoy the exciting world of R/C!

感謝您購買雷虎科技TOMAHAWK ST引擎四驅越野車。雷虎科技以提供

最高品質的

產品及服務作為持續努力的目標。並藉由參與競賽及重覆測試產品，不斷累積經驗，進而提昇設計及製造品質，期望能呈現給您最頂級之工藝產品。本使用說明書包含了操作本產品前所需注意的重要事項，建議您在開始準備及操作本產品之前，能詳閱此說明書，並熟悉本產品之操控系統。若是您在產品的操作及使用上有任何的疑問，歡迎多加利用我們所提供的24小時諮詢留言版或洽詢雷虎科技授權經銷商。雷虎科技的全球英文網址為www.thundertiger.com 中文網址為www.tiger.com.tw，我們將竭誠為您服務！

Thank you for purchasing a Thunder Tiger Product.

Please read all instructions and familiarize yourself with the products and controls before operation.

1. This product is not a toy. It is a high performance model product. It is important to familiarize yoursel f with the model, its manual,

and its construction before assembly or operation. A child operating under the supervision of the adults is necessary.

2. Always keep this instruction manual ready at your hand for your assembl ing and operating reference, even after completing the

assembly.

3. Make sure all the screws are properly tightened and all the parts are checked after running the car for a long period of time.

4. For the best performance, it is important to make sure all the moveable parts work free without binding.

5. Do not operate model products in rain, on public roads, near crowds, near airport, or near areas with restricted radio operation.

6. Always keep fuel away from heat and open flame. Only operate in open, well-ventilated ar

ea. Store fuel in cool, dry area. Keep the

fuel bottle cap tightly closed. Clean up any leak or excess fuel before starting the engine

7. This product, its parts, and its construction tools can be harmful to your health. Always exerci se extreme caution when assembling

and/or operating this product. Do not touch any part of the model that rotates.

8. Check your radio frequency with the proper operating frequency of the area or country. Always check to see if there are any modelers

operating on the same frequency as yours. Also, check your radio for proper operation before operating a model.

感謝您購買雷虎科技產品，在您開始操作本產品前，請詳閱本產品說明書。

本產品為高性能模型產品非一般玩具，組裝與操作過程皆須由成人陪同。請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。

請妥善保管此說明書，對於後續維修、操控說明將可提供您協助。

請定時巡檢車輛上之所有螺絲是否鎖緊，零件是否鬆動。

請檢視所有活動部位零件是否不受干涉，可靈活作動，以達到車輛最佳性能。

請勿於雨天、公眾空間、道路、機場附近與其他限制遙控模型活動區域，操控本項產品。

遙控模型專用燃料，具相當高的揮發性與低燃點特性，請您於使用或儲存時遵照使用燃油之相關規定；使用時必須遠離火源，儲藏時必

須避免日曬並放置於乾燥陰涼處，以及兒童無法取得處。

此項產品具有相當之危險性，於組裝、調整、操控上的不熟悉都可能造成自身或他人的傷害，當發生這些傷害事件時製造商是可以免除

責任的，建議您於初次使用本產品前，先行請教具有相當程度經驗同好或是專業雷虎經銷商與模型專賣店。

請您確認您所在地區對於頻率規定之相關法規，來選用適當的頻率。避免與其他同好使用相同頻率造成失控事件。

CAUTION

注意事項

INDEX

索引

INTRODUCTION 前言 1 IMPORTANT NOTES & WARNING 重要注意事項 2 ITEMS REQUIRED FOR OPERATION 周邊配件 3 UNWRAPPING CONTENTS FROM BOX 束帶的使用 4 CHARGING THE GLOW PLUG IGNITER 電夾充電方式 4 PREPARING THE RADIO 遙控器使用準備 4 RADIO BATTERY INSTALLATION 遙控器電池安裝 5 RADIO OPERATION 遙控器操作 5 OPERATING RADIO STEERING FUNCTION 遙控器設定－轉向 5 OPERATING RADIO THROTTLE/BRAKE FUNCTION 遙控器設定－油門、煞車 6 ADJUSTING THE THROTTLE LINKAGE 油門、煞車連桿調整 6

INTRODUCTION

前言

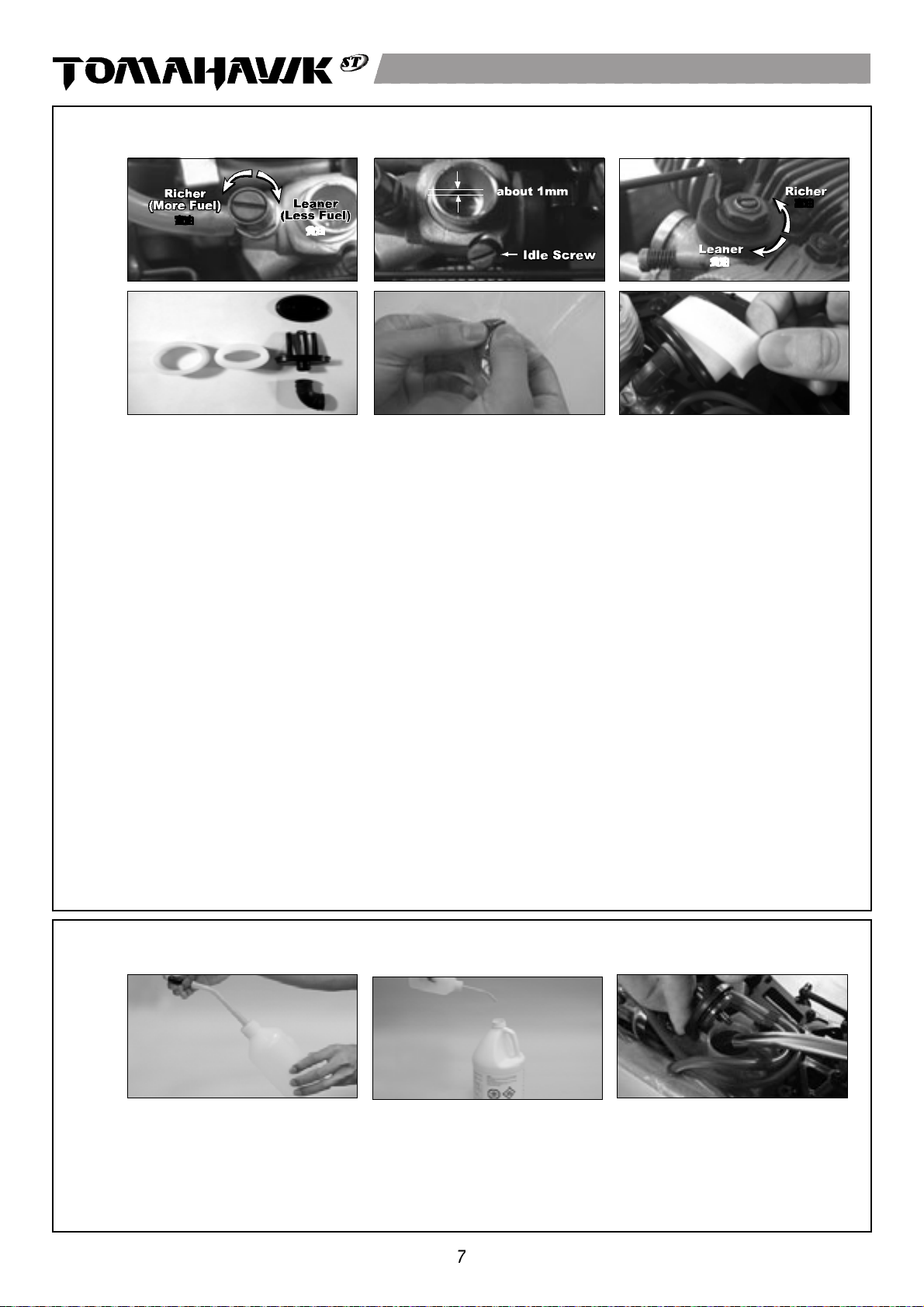

ADJUSTING CARBURETOR 化油器調整 7 FUELLING 燃油的添加 7 PREPARING THE ENGINE FOR STARTING 引擎整備工作 8 STARTING THE ENGINE 發動引擎 8 SHOCK ADJUSTMENT 避震器懸吊調整 9 BODY CUTTING 車殼剪裁 9 ENGINE BREAK-IN & ENGINE SETTING 引擎磨合＆設定 10 STOPPING ENGINE 停止引擎 11 WHEEL AND TIRE PREPARATION 輪胎及輪轂 11 STORING AND MAINTENANCE 儲存及保養 11 DRIVING TIPS 駕駛的小技巧 12 TROUBLESHOOTING 常見問題與解決辦法 13

1. Choose a fuel from a reputable, brand name company t hat is approved for car/truck use. Do not use airplane or boat fuels in your car/truck. Never use gasoline in a glow model engine

2. Fuel color is for identification purpose only and is not important to performance or durability of your engine.

3. Always store fuel in a well ventilated place, away from heating devices, open flames, direct sunlight, or batteries. Keep glow fuel away from children. Always keep your fuel bottle closed when not in use.

4. Do not dispose of fuel or empty fuel containers in a fire. It may possibly cause fire or explosion.

請選擇具品牌知名度且經過認可、標準的遙控車專用燃油。模型專用燃油以甲醇為主，內含硝基甲烷10％~30％，合成或半合成潤滑油約5％~18％，一般車用燃油建議以含20％硝基甲烷比例的燃油，較為適中。請勿使用一般汽車用燃油於模型專用引擎上。

燃油的顏色主要是辨識用，對於引擎的性能及耐久性並無影響。

儲存燃油時請置放於通風良好的地方,遠離熱源、高溫電器用品或蓄電池,並儘量避免陽光直射。燃油不用時請儲藏於幼兒無法接觸之處並請隨時關緊瓶蓋。

勿將燃油及燃油空瓶接近火源，高溫可能會引起爆炸起火的危險。

1. For proper engine break-in procedure, please refer to the

manual of your engine.

2. Never run your vehicle without the air filter .If the vehicle will be operated in an area with fine dust, use filter oil or caster oil on the air filter element. It is important that the foam is only moist to trap dirt and allow air passage. With the foam too wet, limited air can pass through; therefore, limiting engine performance.

3. The parts around engine could be dangerously hot after operation. Do not touch it without any protection!

引擎的磨合步驟，請參考引擎手冊。

引擎沒裝空氣濾清器，請勿發動引擎。在有粉塵的場地操作車輛時，空氣濾清器棉需加入空氣濾清器油或篦麻油，用以吸附粉塵。空濾油加入空濾棉中需適量。太多，會影響引擎進氣效率，引擎性能會受到限制。太少，粉塵容易進入引擎內部，造成損壞。

車輛操作過後，引擎及排氣管的溫度很高，請勿接觸這些危險部位。

1. Choose the right place to operate your R/C model. Do not run on public streets or highways. This could cause serious accidents, personal injuries, and/or property damage. Never run R/C models near people or animals. To avoid injury, do not run in confined spaces. Do not run where loud noises can disturb others, such as hospitals and residential areas. Never run indoors. There is a high risk of fire and/or damage.

2. Inspect your model before operation. Make sure all the screws are properly tightened and all the parts are checked after running the car for a long period of time. Always use fresh batteries for your transmitter and for your receiver to avoid losing control of the model. Always test the brakes and the throttle before starting your engine to avoid losing control of the model.

3. Check your radio frequency with the proper operating frequency of the area or country. Always check to see if there are any modelers operating on the same frequency as you

rs. Also, check your radio for proper operation before operating a model.

4. Do not touch any part of the model that rotates.

請勿於雨天、公眾空間、道路、機場附近與其他限制遙控模型活動區域，操控本項產品。

車輛操作前，請檢查電池電量是否充足，巡檢車輛上之所有螺絲是否鎖緊，零件是否鬆動，並測試煞車及油門裝置是否正常以免發生失控情形。

請您確認您所在地區對於頻率規定之相關法規，來選用適當的頻率。避免與其他同好使用相同頻率造成失控事件。

請勿將手指或任何物品接觸正在轉動的裝置。

1. If you drink nitro fuel by accident, immediately drink large quantities of water and try to induce vomiting. Consult with physician right after then.

2. If the nitro fuel gets into your eyes, rinse them well with water. Consult wi

th physician right after then.

3. If the fuel gets onto your skin, wash it well with soap and water.

如果您誤食燃油，請立即喝下大量的水稀釋且立即催吐，並立即送醫檢查。

如果眼睛不慎接觸到燃油，請立即以清水沖洗，並送醫檢查。

如果燃油接觸到皮膚，請以肥皂及清水洗淨。

1. Improper operations may cause personal and/or property damage. Thunder Tiger and its distributor have no control over damage resulting from shipping, improper construction, or improper usage.

2. Thunder Tiger assumes and accepts no responsibility for personal and/or property damages resulting from the use of improper building materials, equipment and operations. By the act of assembling or operating this product, the user accepts all resulting liability. If the buyer is not prepared to accept this liability, then he/she should return this kit in new, unassembled, and unused condition to the place of purchase.

本產品為高性能模型產品非一般玩具，組裝與操作過程皆須由成人陪同。請詳讀此本使用說明書，避免因組裝錯誤與操作不當造成損壞。

此項產品具有相當之危險性，於組裝、調整、操控上的不熟悉都可能造成自身或他人的傷害，當發生這些傷害事件時，製造商及其經銷商是可以免除責任的。建議您於初次使用本產品前，先行請教具有相當程度經驗同好或是專業雷虎經銷商與模型專賣店。

FUEL

燃油

ENGINE

引擎

OPERATION

遙控系統

FIRST AID

安全注意事項

WARNING

警告

IMPORTANT NOTES & WARNING

重要注意事項

Fuel Bottle

加油壺

Glow Starter w/ Charger

電夾及充電器

Hex Wrench Set, 1.5mm / 2.0mm / 2.5mm / 3.0mm 六角扳手, 1.5mm / 2.0mm / 2.5mm / 3.0mm

5-Way Wrench

六角螺帽套筒扳手

Screw Drivers, Lexan Body Reamer, Hobby Knife, Lexan Scissors.

十字起子、一字起子、挖孔器、車殼剪、美工刀

Glow Fuel, Methanol 10% to 30%

Nitro 5% to 18% Caster / Synthetic Oil

模型專用燃料

(含10%~30%硝

基甲烷、5%~18%潤滑油)

AA Alkaline dry batteries 8 pieces for transmitter

發射機用電池

ITEMS REQUIRED FOR OPERATION

周邊配件

*AA Rechargeable Ni-MH battery 4 pieces for receiver

接收機用電池

TOOLS INCLUDED

a. Plug the charger into an AC outlet, and then pull on the igniter lever to accept the charging adapter. b. At this point, the small red LED indicator on the charger should light up indicating the charging sequence is in progress. c. When the charging complete, pull on the glow plug igniter lever to unplug the glow igniter. Charge the new glow plug igniter for

16 to 24 hours on the first charge. For subsequent charges, charge it about 12 hours before next use.

NOTE:

If the igniter gets warm or hot during the charge, unplug the igniter from charger immediately. A warm / hot igniter means the igniter is overcharged. Overcharging can damage the internal battery in the igniter; thus, shortening its life.

a. 將充電器插入家用110V插座中，再接上電夾 b. 充電過程中，紅色LED燈會保持亮的狀態，如不亮表示為短路，電池無法充電 c. 充電完成，將充電器自插座拔下，再分開電夾；新電夾首次充電時間需16到20小時，之後只需充大約12小時即可

注意：充電過程中，電夾電池如出現高溫現象(40~45° C)，表示已過度充電，需立即停止充電。過度充電容易造成電池損壞，更可能產生爆炸起火，請謹慎使用。

CHARGING THE GLOW PLUG IGNITER 電夾充電方式

a b c

a. Contents of the box are secured with reusable zip-ties. To unlock zip-tie, press on the small lever. b. Pull on the zip-tie while keeping the small lever pressed. Pull the zip-tie out completely.

束帶為可活動拆卸式，操作方式如圖示

UNWRAPPING CONTENTS FROM BOX 束帶的使用

a b

Pull out

a. Check the frequency printed on the transmitter crystal. b.

Remove the radio receiver from box. Check the frequency printed on the receiver crystal, and make sure it matches with the transmitter crystal. Make sure no one will operate on the same frequency when you are. When there is a radio glitch, it will most likely be caused by improper crystal, damaged crystal, or people operating on the same frequency. Ensure all wires are securely connected to the receiver:

steering servo connector plug - into the channel 1 slot 連接孔1 (CH1)—轉向伺服機 throttle servo connector plug - into the channel 2 slot 連接孔2 (CH2)—油門伺服機 battery switch connector plug - into battery slot. 電池連接孔 (BATT)—接收機電池

Then thread the receiver antenna/wire through the antenna mount. Thread the receiver antenna/wire all the way through the antenna tube and install the antenna tube onto the mount. After checking, place the receiver back in the box and secure the receiver box top.

c. Install the antenna into transmitter.

檢查發射機頻率。

檢查接收機晶體頻率，確認發射機與接收機頻率是否相同。大部份搖控器會失靈可能都是頻率造成或附近有人使用相同的操控頻率。並確認所有的電子接線都牢固，且依序連結在接收機的連結插孔，確認完畢後，將接收機放回接收機盒並且安全的固定好。

裝上發射機天線。

PREPARING THE RADIO

遙控器使用準備

a b c
