TABLE OF CONTENTS
IMPORTANT PRECAUTIONS P.5
GETTING STARTED P.6
HOW TO ASSEMBLE THE INDOOR CYCLE P.7-11
INSTALLATION AND DISPOSING OF BATTERIES P.12-13
HOW TO ADJUST THE INDOOR CYCLE P.14-16
HOW TO OPERATE THE INDOOR CYCLE P.17-19
PREVENTIVE MAINTENANCE P.20-23
MAINTENANCE ACTIVITY AND REQUIRED SCHEDULE P.24-25
SPARE PARTS P.26-30
WARRANTY P.31
The TOMAHAWK IC7 Bike is, according to EN ISO 20957 (1 & 10), a Class S product for
use in a controlled environment such as sports or tness facilities
WEIGHT OF BIKE: 54 KG
MAX USER WEIGHT: 150 KG
USER HEIGHT: SUITABLE FOR USERS BETWEEN APPROX. 155 AND 215 CM
REQUIRED FOOT PRINT: APPROX. 132 X 52 CM
MAX SADDLE & HANDLEBAR HEIGHT: APPROX. 120 CM
The average achieved accuracy of < +/- 1% relates to a rotational speed range of 40 - 120 RPM
and a braking eciency of between 50 - 900 watts.
Electronic components adhere to the EMV Directive 204/108/EC, EMV Directive 99/519/EC,
TECHNICAL SPECIFICATIONS:
under the supervision of a trainer.
WARNING!
and DIN EN 60335-1 for electrical safety.
IMPORTANT
PRECAUTIONS
ENG
To reduce the risk of serious injury due to improper
use of the equipment, carefully read and adhere
to the following important precautions and
information before operating the indoor cycle!
1. It is the responsibility of the owner to ensure
that all users are informed of all warnings
and precautions for proper use, and are only
authorized to use the bike independently after
being successfully briefed by a quali ed trainer or
2. Do not operate the bike until it has been properly
assembled and inspected as described in this
3. Keep the indoor cycle indoors, away from moisture
and dust. Do not place the indoor cycle outdoors in
a garage or covered patio or near water or pools.
Operating temperature of the Indoor Cycle has to
be between 15°C
4. Always place the bike on a stable, level surface.
If the bike is to be placed on a hardwood oor or
carpet, it is recommended to place a oor mat
beneath the bike, to protect the oor
5. The level of safety of the Indoor Bike can only be
guaranteed if it is regularly checked for possible
damage as well as wear and tear (e.g. xing
points, E-Brake, Pedals, toe straps, etc.). Consult an
authorized service provider or the manufacturer
direct to ensure the regular inspections are properly
6. Carry out all maintenance, care and service
procedures as described in this manual on a regular
basis. Defective parts must be replaced immediately,
and the device must not be used until the repairs
Only use original parts from the manufacturer.
Repairs must only be carried out by from
manufacturer authorized service technicians.
7. Unsupervised children should be kept away from
the training device at all times.
WARNING!
instructor.
manual.
~ 40°C Celsius (59°~104°F) at max.
humidity of 65%.
from becoming damaged.
carried out.
have been carried out.
8. Children under the age of 14 shall only be allowed
to use the indoor cycle with parental approval and
supervision of a quali ed Trainer or Instructor. Use of
the bike by persons over the age of 14 only after they
are briefed by a quali ed trainer or instructor.
9. The indoor cycle must not be used by persons
exceeding weight of 330 lbs/150 kg.
10. Always wear appropriate tight- tting cycling
or athletic attire and sturdy shoes, preferably
cycling shoes, while operating the bike. Unfastened
shoelaces may become caught in the drive system
11. The bike does not have an independently-moving
ywheel. The pedals will continue to move with the
ywheel until the ywheel stops. The movement can
only be stopped by using the emergency brake or
by reducing the pedaling frequency in a controlled
manner. Always ride with resistance load to ensure
that your pedaling motion is controlled. Do not
adjust handlebar or saddle during workout.
12. If you feel pain or dizziness while exercising, stop
immediately. It is recommended that you consult
a doctor if the pain does not subside for an
13. All data shown on the display, especially
the Watt values generated by the integrated
power sensor serve merely as information
and to help guide training. Only exercise
If you have pre-existing health problems or a disability,
it is recommended that you consult your physician, in
order to find the training method which is best suited
to you. Incorrect or extensive training can result
The manufacturer expressly assumes no responsibility for health
risks, personal injury, property damage or consequential damages
sustained by or through the use of this device, unless it is a case of
consequential damage which can be traced back to faulty material
and/or manufacturing, and which come under the responsibility of
and lead to injury.
Do not pedal backwards.
extended period of time.
within your physical limitations.
WARNING!
in serious health injuries.
the manufacturer.
5
Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com
GETTING STARTED
DEAR CUSTOMER,
We would like to thank you for your con dence and purchase. With the TOMAHAWK Indoor Cycle,
you have chosen a high-quality product, which is designed according to the latest technical
developments and thus ful ls the highest standards in quality and reliability.
This high level of reliability can however only be ensured with regular care and maintenance.
Adhering to the maintenance procedures outlined in this manual will ensure a maximised
stability and prolonged lifespan in return for minimal maintenance e ort. This will guarantee
long-standing, interruption-free operation.
Instructions on operation and managing training for the Coach-by-Color® computer can be
found in the computer user manual also included with delivery.

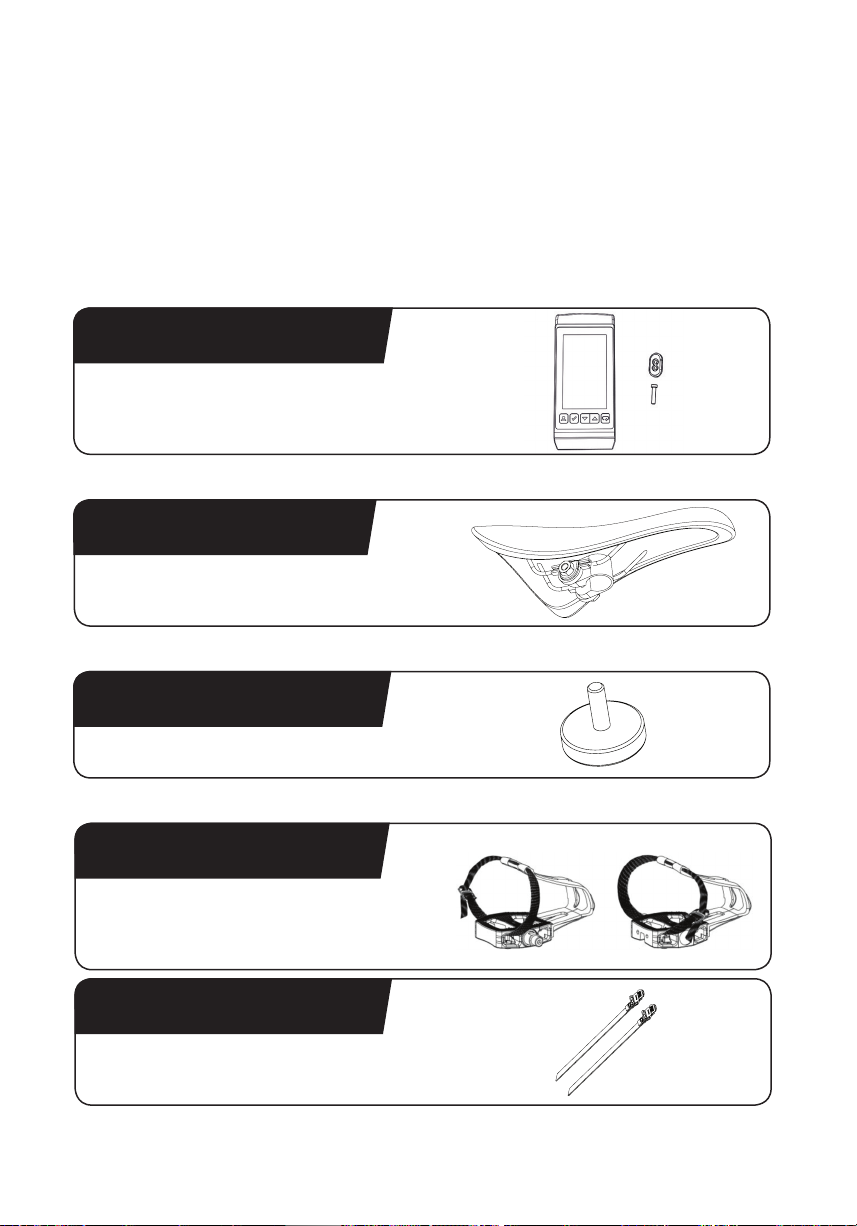

SADDLE
THUMB LEVER FOR
HORIZONTAL SADDLE ADJUSTMENT
FLIP LEVER FOR
VERTICAL SADDLE ADJUSTMENT
FLYWHEEL
SHROUD
DUAL SIDED SPD PEDAL
RESISTANCE KNOB/
EMERGENCY BRAKE
THUMB LEVER
FOR HORIZONTAL
HANDLEBAR
ADJUSTMENT
HANDLEBAR
FLIP LEVER FOR VERTICAL
HANDLEBAR ADJUSTMENT
TRANSPORT WHEELS
LEVELING FEET
WARNING!
You will nd the production code for the Tomahawk IC7 Bike on the tag plate which is located on the lower left side of the
frame tube of the Indoor Bike. Please enter this production code into care and maintenance lists.
It is a strict requirement to provide the production code in all warranty claims.
HOW TO ASSEMBLE THE
INDOOR CYCLE
ENG
TORQUE WRENCH 17MM 2
WARNING!
Avoid high uctuations in temperature whilst transporting the bike from the store to the installation site.
If there are nevertheless large uctuations in temperature, please allow the bike to acclimatise to the surrounding
temperature before proceeding with assembly.
PEOPLE
1. 2.
50 NM
50 NM
WARNING!
Please ensure that bolts are tightened with signi cant force to minimize loosening
during use. If bolts are loosened after initial assembly, we recommend using
medium-strength LOCTITE® 243 when reassembling.
7
Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com
HOW TO ASSEMBLE THE
INDOOR CYCLE
2
PEOPLE
1. 2.
SET THE VERTICAL ADJUSTMENT OF THE HANDLEBAR
STEM TO THE HIGHEST POSITION BEFORE BEGINNING
WITH ASSEMBLY.
DO NOT REMOVE WARNING TAPE FROM THE SLIDERS
PRIOR TO THE HANDLEBAR BEING ASSEMBLED.
MAKE SURE THAT THE CONNECTING BRIDGES OF
THE HANDLEBARS ARE LOCATED UNDERNEATH THE
MOUNTING BRACKET FOR THE COMPUTER.
HOW TO ASSEMBLE THE
INDOOR CYCLE
ENG
TORQUE WRENCH 6MM 2
3. 4.
30 NM
IN ORDER TO AVOID DAMAGING THE INTERIOR
CABLING, THE HANDLEBARS MUST NOT BE ADJUSTED
HORIZONTALLY BEFORE THIS STEP.
ENSURE THAT BOLTS ARE TIGHTENED WITH
SUFFICIENT FORCE (30 NM) WHEN MOUNTING
THE HANDLEBARS.
THE FASTENING COUNTER SUNK BOLTS ARE COATED
WITH TUFLOK® AT THE FACTORY TO PREVENT THEM
FROM BECOMING LOOSE DURING USE.
IF BOLTS ARE LOOSENED AFTER INITIAL ASSEMBLY,
WE RECOMMEND USING HIGH-STRENGTH LOCTITE®
2701 WHEN REASSEMBLING.
AFTER ASSEMBLY, REMOVE THE WARNING TAPE.
DO NOT MOVE HORIZONTAL SLIDER BACKWARDS.
PEOPLE
9
Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com
HOW TO ASSEMBLE THE
INDOOR CYCLE
3MM
5.
OPEN THE THUMB LEVER FOR THE HORIZONTAL
ADJUSTMENT AND SLIDE THE HANDLEBARS
TO ITS MOST FORWARD POSITION.
ASSEMBLE THE BOTTOM END CAP.
HAND TIGHT
2
PEOPLE
6.
7.
CHECK THE HORIZONTAL ADJUSTMENT OF THE
HANDLEBARS, WITH THE THUMB LEVER OPENED, FOR
EASE OF MOTION WHEN ADJUSTING.
CHECK THE CLAMPING FORCE OF THE HORIZONTAL
ADJUSTMENT WITH THE THUMB LEVER CLOSED.
MAKE SURE THE HORIZONTAL ADJUSTMENT
PERFORMS SUFFICIENTLY.
ADJUST IF REQUIRED REFERING TO SERVICE
GUIDELINES AVAILABLE ON MANUFACTURERʻS
SERVICE WEBSITE OR CONTACT YOUR
LOCAL DISTRIBUTOR.
8.
CHECK THE VERTICAL ADJUSTMENT, WITH THE FLIP LEVER OPENED, FOR EASE OF MOTION WHEN ADJUSTING.
CHECK THE CLAMPING FORCE OF THE VERTICAL ADJUSTMENT WITH THE FLIP LEVER CLOSED. MAKE SURE THE
VERTICAL ADJUSTMENT PERFORMS SUFFICIENTLY.
ADJUST IF REQUIRED REFERING TO SERVICE GUIDELINES ON AVAILABLE ON MANUFACTURERʻS SERVICE WEBSITE
OR CONTACT YOUR LOCAL DISTRIBUTOR.
9.
HOW TO ASSEMBLE THE
INDOOR CYCLE
1X
ENG
15 MM
PEDAL WRENCH
3MM
HAND TIGHT
2
PEOPLE
10. 11.
INSERT THE BIKE COMPUTER
INTO THE COMPUTER BRACKET.
WARNING!
The user manual for the IC7 Coach By Color® computer is enclosed separately and contains all the necessary information
for setting up and operating the computer.
12.
55 NM
FASTEN THE BIKE COMPUTER INTO PLACE FROM
THE UNDERSIDE OF THE HANDLEBARS WITH
THE BOLT AND PLASTIC SLEEVE PROVIDED.
PLASTIC SLEEVE MUST BE LOCATED BETWEEN
HANDLEBAR BRACKET AND COMPUTER.
WARNING!
Attach the pedal marked R on the right
L
crank and tighten by turning clockwise (standard righthand thread). Attach the pedal marked L on the left crank
and tighten by turning counter-clockwise (left-hand
thread). Please make sure that both pedals are fastened
with su cient force (55 NM), to ensure that the bolt does
not become loose during use.
The threads are provided with TufLok® at the factory
to prevent them from becoming loose during use.
If bolts are loosened after initial assembly, we
recommend using medium-strength LOCTITE® 243
when reassembling.
R
OBSERVE ASSEMBLY
INSTRUCTIONS!
11
Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com
INSTALLATION AND
DISPOSING OF BATTERIES
Instructions stated in this manual must be performed during initial installation of the
TOMAHAWK Indoor Cycle in order to ensure optimal performance and a long lifespan. Please
read and follow the following instructions carefully. If the Indoor Cycles are not installed and
congured as described, the components may be subjected to excessive wear and tear and the
bike may become damaged. If you have any questions regarding installation, please contact
service@indoorcycling.com.
Please note: Lubricants are required for some maintenance procedures. Please only use an
acid- and solvent-free spray lubricant (e.g. Brunox) and white lithium grease.
1. Make sure the bike is level. If bike rocks on the oor, turn the levelling feet underneath the
front and/or rear stabilizer until the rocking motion is eliminated. Make sure that the levelling
feet are not screwed out further than 10 mm.
2. Verify emergency brake function to make sure that it is working properly.
3. Check that both crank arm Allen bolts, with which the cranks (on the right and left side of the
bottom bracket) are fastened, are secure (tightening torque 60 NM). These bolts are provided
with TufLok® at the factory to prevent them from becoming loose during use.
If the bolts become lose, we recommend applying medium-strength LOCTITE® 243 and then
reattaching the crank xing bolts with a tightening torque of 60 NM.
4. Wipe down bike frame with a rag moistened with solvent-free spray lubricant.
5. Some parts of the bike may become loose during shipment. Check crank arms and all exposed
screws, bolts and nuts, and make sure that they are all secure and properly tightened.
INSTALLATION AND
DISPOSING OF BATTERIES
CUSTOMER SERVICE
1. Provide the customer with basic maintenance instructions, and direct them to detailed
maintenance instructions.
2. Have the sign-o sheet for the manual, explanation of maintenance procedures and
veri cation of impeccable condition of the bikes con rmed by the customer when handing over
the goods. A copy of this con rmation counter-signed by yourself is withheld by the customer.
3. Repairs must only be carried out by manufacturer authorised service technicians.
BATTERIES MAY NOT:
• come into contact with re
• come into contact with coins or other metallic objects
Products or batteries labelled with this symbol may not be disposed of along with normal
household refuse. For proper disposal, please nd out about the applicable laws or guidelines
on disposing of electrical devices and batteries in your local area and adhere to them.
ENG
13
Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com
HOW TO ADJUST THE
INDOOR CYCLE
The Tomahawk Indoor Cycle can be very easily adjusted, depending on the requirements of
various user groups. This enables maximum riding comfort to be ensured whilst achieving
optimal training results. The con gurations described in the following paragraphs demonstrate
just a few of the most often used adjustment variations of which the Indoor Cycle is capable. It
is up to the user to adjust the Indoor Cycle to a riding position best suited to their requirements.
ADJUSTING THE SEAT HEIGHT:
Sit on the saddle and ensure that your hip is not tilted to one side when the pedal has assumed
the position as shown in the picture. Place your shoes in the toe clips (cages) on the pedals,
or in the SPD cleats if you are using cycling shoes, if your Indoor Cycle is not tted with a
combi pedal system.
VERTICAL SADDLE
ADJUSTMENT
OPEN
VERTICAL HANDLEBAR
ADJUSTMENT
OPEN
CLOSED
WARNING!
Do not adjust seat and handlebar during exercise. Ensure that all levers (vertical and horizontal) are closed, before you sit
on the bike and always step o the bike when making adjustments to the handlebars and/or saddle.
Start pedalling slowly, until the pedal has reached the position as shown in the picture. The vertical saddle sliders should
be adjusted so that your knees are always slightly bent when this pedal position is reached, without dropping your hip
one side. Rule of thumb: When standing next to the bike, the upper edge of the saddle should be a hand‘s width/four
ngers below your iliac crest. Please avoid cycling with your knees fully extended or your hip tilted to one side.
CLOSED
HOW TO ADJUST THE
INDOOR CYCLE
ADJUSTING THE SADDLE HORIZONTALLY:
Properly positioning the saddle horizontally is very important in order to avoid injury to the
knees. Sit on the saddle and move the pedals until the crank arms are in the horizontal position.
The knee of your forward-facing leg should be positioned directly above the centre of the pedal.
If this does not correspond to your bike‘s setting, please align the horizontal saddle adjustment
to the front or rear in order to attain this seat position.
ENG
HORIZONTAL
SADDLE ADJUSTMENT
OPEN
CLOSED
WARNING!
Ensure that all levers (vertical and horizontal) are closed, before sitting on the bike and always step o the bike when
making adjustments to the handlebars and/or saddle.
HANDLEBAR ADJUSTMENT
HORIZONTAL
OPEN
CLOSED
15
Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com
HOW TO ADJUST THE
INDOOR CYCLE
HANDLEBAR POSITIONING:
Begin with the top of the handlebars at approximately the same height as the saddle (dotted
horizontal line A in the drawing below) for inexperienced users set to the “0“ marking (see
dotted vertical line B in the drawing below). If your knees touch the handlebars or if you
experience back discomfort when pedalling in the standing riding position for extended periods,
the handlebars should rst be adjusted slightly higher.
Horizontally
B.
A.
adjusting the handlebars
using the lever
Vertically
adjusting the handlebars
using the lever
The next step is to adjust the horizontal position of the handlebars as precisely as possible to
your height. An ideal and protective seating position for inexperienced riders is achieved if your
back assumes an inclination at an angle of 45°.
The handlebars o er a wide variety of hand positions and adjustment possibilities, which provide
the experienced rider with every possibility to nd his/her ideal seating and hand positioning.
It is recommended to change hand positions frequently during extended workouts in order to
minimise one-sided and monotonous exertions on your muscles, ligaments and joints.
HOW TO OPERATE THE
INDOOR CYCLE
RESISTANCE ADJUSTMENT:
The resistance adjustment can be set precisely and regulated in ne increments according to the requirements of
the cyclist using the resistance adjustment knob with a range of motion of 300°. The resistance in % (where 0% is no
resistance and 100% is maximum resistance) is also displayed on the Indoor Cycle computer display.
To increase the resistance, turn the resistance adjustment knob clockwise. To decrease the resistance, turn it counterclockwise. For a magnetic brake system, like the one tted to this Indoor Cycle, the magnetic resistive e ect also
increases with pedalling frequency.
Never pedal backwards under resistance, as this can loosen the screws between the pedals and the crank arm and the
two may even become detached. To stop the ywheel during use, the resistance knob/emergency brake knob must be
pressed down. During training, please make sure your shoes are placed in the toe clips (cages) provided or if you are
using cycling shoes, that they are connected with the SPD cleats.
The Indoor Bike does not have a free-moving flywheel. The flywheel is firmly connected to the pedals and does
not stop independently if the user stops pedalling. Please always check your movements and reduce speed
in a controlled manner to stop or simply press the red resistance/emergency brake knob down to quickly
slow down the movement and in so doing bring the flywheel to a stop and suspend the training session.
Emergency brake = press down red resistance/emergency knob.
If the emergency brake has been activated, it can only be disengaged again when the flywheel has come
to a complete standstill and the pressure has been removed from the pedals.
ENG
The Indoor Cycle shall only be operated in forward pedaling motion. The emergency brake functionality is limited when
pedaling backwards. Do not attempt to adjust seat and handlebar in vertical or horizontal position while riding or seated.
WARNING!
17
Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com
HOW TO OPERATE THE
INDOOR CYCLE
RESISTANCE KNOB (TURN RESISTANCE ADJUSTMENT KNOB)
EMERGENCY BRAKE (PRESS RESISTANCE ADJUSTMENT KNOB)
For safety reasons, please always make sure you pedal in a controlled manner and adjust your pedalling frequency to
your own cycling capabilities.
MOVING THE INDOOR CYCLE:
It is recommended that two people move the Indoor Cycle. In order to prevent accidents and damage to the plug-in
sockets of the handlebars it is necessary to rmly x the vertical handlebar adjustment before the wheel is tilted. Please
take extra care when moving the Indoor Cycle over uneven surfaces. A second person is advisable here, to prevent the
cycle from tilting to one side. Allow a minimum safety distance away from the nearest equipment, objects or walls
as illustrated below.
3.9“
(10cm)
23.6“
(60cm)
23.6“
(60cm)
23.6“
(60cm)
3.9“
(10cm)
23.6“
(60cm)
HOW TO OPERATE THE
INDOOR CYCLE
Check the stability of the Indoor Cycle where it is to be operated and if necessary adjust the levelling feet underneath
the front or rear stabilizers to ensure the desired stability.
IMPORTANT!
Please do not unscrew the levelling feet more than 1 cm! The free standing Indoor cycle shall only be installed and
operated on a stable and leveled oor.
ENG
LEVELLING FEET
19
Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com
PREVENTIVE
MAINTENANCE
WARNING!
Please carefully observe the following instructions. The maintenance and care procedures
must be performed in the regularity set out, to ensure maximum operating safety and lifespan.
Irregularly observed maintenance and care procedures will lead to increased wear to the
product and will void the warranty. If you have any further questions on this topic, please
contact our technical support.
Please only use the acid- and solvent-free maintenance and care agent (e.g. Brunox)
recommended by us to prevent damage to components of the Indoor Cycle.
DAILY MAINTENANCE:
1. Make sure that the Indoor Cycle is leveled and does not rock
(if necessary adjust as described on p.19).
2. Cleaning: The Indoor Cycle must be regularly cleaned after each use for reasons of hygiene.
Ensure that there are sucient soft cloths or paper towels and maintenance and disinfection
agent available. First disinfect the saddle and handlebars with a suitable agent and then wipe all
bodily residues o the entire Indoor Cycle.
WEEKLY MAINTENANCE:
1. Cleaning: Depending on how often the Indoor Cycle is used, it must be extensively cleaned
once a week. To do this, spray a maintenance spray onto a soft cloth and clean all plastic parts,
the entire ywheel, exposed framework parts including stabilizers and the plastic casing.
Never spray the maintenance spray directly onto the ywheel, as this could cause the drive belt
to slip through (belt slip) and could have negative impact on E-brake functionality.
PREVENTIVE
MAINTENANCE
BI-WEEKLY MAINTENANCE:
1. Emergency brake: To ensure operating
safety, the emergency brake must be
regularly checked to make sure it is
functioning properly. To do this, press
down the red emergency brake handle
whilst pedalling. When functioning optimally,
it should produce an immediate braking
e ect and bring the ywheel to
a complete standstill.
The ywheel is only released again by the
emergency braking function after coming
to a complete standstill and when the
pressure is removed from the pedals.
2. Saddle adjustments: To maintain the
easy adjustment, the vertical and horizontal
saddle posts must be regularly cleaned and
lubricated. To do this, position the vertical
saddle post (A) in the uppermost position,
spray with maintenance spray and rub down
the entire exterior surfaces including the
horizontal post with a soft cloth.
Clean sweat residues o the contact surfaces
(B) of the horizontal saddle post beforehand
and if necessary apply a small amount of
lithium/silicone grease.
ENG
1.
2.
A
B
21
Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com
3.
A
PREVENTIVE
MAINTENANCE
3. Handlebars: To maintain the easy
adjustment of the handlebar posts, the
vertical and horizontal handlebar posts
must be regularly cleaned and lubricated.
To do this, position the handlebars (A) in the
uppermost position, spray the handlebar
posts with maintenance spray and rub
down the entire exterior surfaces including
the horizontal post with a soft cloth.
Clean sweat residues o the contact
surfaces of the horizontal handlebar post (B)
beforehand and if necessary apply a small
amount of lithium/silicone grease.
B
MONTHLY MAINTENANCE:
1.
1. Connecting elements: During the course
of regular maintenance and care procedures,
all bolts, nuts etc. on the Indoor Cycle must
be checked for rm seating and function,
and parts showing wear or damage (saddle,
pedal teeth, pedals, SPD system) replaced.
PREVENTIVE
MAINTENANCE
USER-DEFINED MAINTENANCE:
1. Vertically adjusting the
handlebars and saddle:
To ensure the easy adjustment of the
vertical handlebar and saddle posts, it is
recommended that you check the clamping
mechanism and if necessary apply a small
amount of lithium/silicone grease to
the vertical clamping mechanism of the
handlebar posts (1) and saddle posts (2/3).
ENG
1.
2.
3.
23
Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com
MAINTENANCE ACTIVITY
AND REQUIRED SCHEDULE
ACTIVITY ROTATION DETAILS
FEET LEVELLING, DISINFECTION
& CLEANING OF THE BIKE DAILY P 19-20
DETAILED CLEANING OF THE ENTIRE BIKE WEEKLY P 20
CHECK EMERGENCY BRAKE FUNCTION BI-WEEKLY P 21
CLEAN AND LUBRICATE SADDLE
& HANDLEBAR SLIDERS / POSTS BI-WEEKLY P 21-22
CHECK ALL CONNECTIONS AND FIXINGS MONTHLY P 22
VERTICALLY ADJUSTING
THE HANDLEBARS AND SADDLE MONTHLY P 23
EXAMPLES OF MAINTENANCE PLAN CHARTS FOR IN-HOUSE SERVICE TECHNICIANS:
WEEKLY MAINTENANCE CHECKLIST
BIKE NO. PRODUCTION CODE OBSERVATIONS ACTION TAKEN RESULT NAME / DATE
MAINTENANCE ACTIVITY
AND REQUIRED SCHEDULE
BI-WEEKLY MAINTENANCE CHECKLIST
BIKE NO. PRODUCTION CODE OBSERVATIONS ACTION TAKEN RESULT NAME / DATE
ENG
MONTHLY MAINTENANCE CHECKLIST
BIKE NO. PRODUCTION CODE OBSERVATIONS ACTION TAKEN RESULT NAME / DATE
25
Version 1.0 2016 IC-TKIC7B2 Copyright by Indoor Cycling Group GmbH 2016 | www.indoorcycling.com
SPARE PARTS
Due to revisions, spare part order no. and speci cations may be subject to change.
For further information please contact your local distributor or visit www.indoorcycling.com.
320-00-00011-01
CONSOLE KIT
120-01-00015-02
SPORT SADDLE
BLACK & RED INCL. SADDLE CLAMP
900-10-00003-01
LEVELING FEET, RUBBER 75° SHORE
150-01-00005-02
COMBI PEDAL SET,
SPD COMPATIBLE
150-03-00048-01
TOE STRAP SET
WARRANTY
ICG warrants that all new equipment will be free of manufacturing defects in workmanship and materials,
e ective on the date of original assembly at its production facility. Parts repaired or replaced under the terms
of this warranty will be warranted for the remainder of the original warranty period only. ICG is obligated to
uphold its manufacturer warranty obligation so long as the product is used in the closed environment it was
designed for, Temperature range between 15ºC~40°C Celsius (59ºF~104°F) and max. 65% humidity (not near
a swimming pool or outdoors). Defects caused by obvious deliberate mechanical impact, inappropriate use
or undo handling of the product may cause the manufacturer’s warranty to become void. In order for the
manufacturer to uphold the warranty coverage, the customer ( tness facility) is obligated to maintain and
service the product as per the manufacturer’s speci cations stated in the owner manual of each product.
5 YEARS WARRANTY: FRAME CONSTRUCTION AND WELDING
3 YEARS WARRANTY: POWDER COATING (PAINT CRACKS, CORROSION)
HANDLEBAR AND SEAT POST ASSEMBLY
(ALUMINUM PARTS AND PVC COATING)
DUAL BELT DRIVE SYSTEM
POWER SENSOR
BOTTOM BRACKET ASSEMBLY
FLYWHEEL AND HUB ASSEMBLY
CRANKS
PEDALS (EXCLUDED BINDING SYSTEM AND STRAPS)
INSERT SLEEVES FOR HANDLE BAR AND SEAT POST
BOWDEN CABLES (BRAKE ADJUSTMENT, EBRAKE ACTIVATION,
GAS DAMPER ACTIVATION CABLE SP &HB VERTICAL ADJUSTMENT)
BRAKE SYSTEM
GAS DAMPERS
FLIP LEVER ASSEMBLY
FOR HORIZONTAL AND VERTICAL ADJUSTMENT (HB & SP)
LEVELLING FEET
SHROUD AND TOP COVERS
ENG
1 YEAR WARRANTY: ELECTRONIC COMPONENTS
(CONSOLE, CABLE HARNESS, PCBS AND SENSORS, GENERATOR)
LITHIUM POLYMER (LIPO) BATTERY
SADDLE CONSTRUCTION (EXCLUDED STITCHING AND SADDLE SURFACE)
THE FOLLOWING WEAR ITEMS ARE EXCLUDED FROM WARRANTY:
Pedal straps, pedal binding system, saddle surface.
27
CAUTION.
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL
BEFORE YOU BEGIN USING THIS EQUIPMENT. PLEASE KEEP
THIS MANUAL FOR FUTURE REFERENCE. IMPROPER ASSEMBLY,
SET UP, USE OR MAINTENANCE MAY VOID THE WARRANTY.
EMAIL: INFO@INDOORCYCLING.COM
WEBSITE: WWW.INDOORCYCLING.COM
© 2016 Indoor Cycling Group
Manufactured by: Indoor Cycling Group® GmbH
Happurger Str. 86 90482 Nuernberg Germany
Loading...
