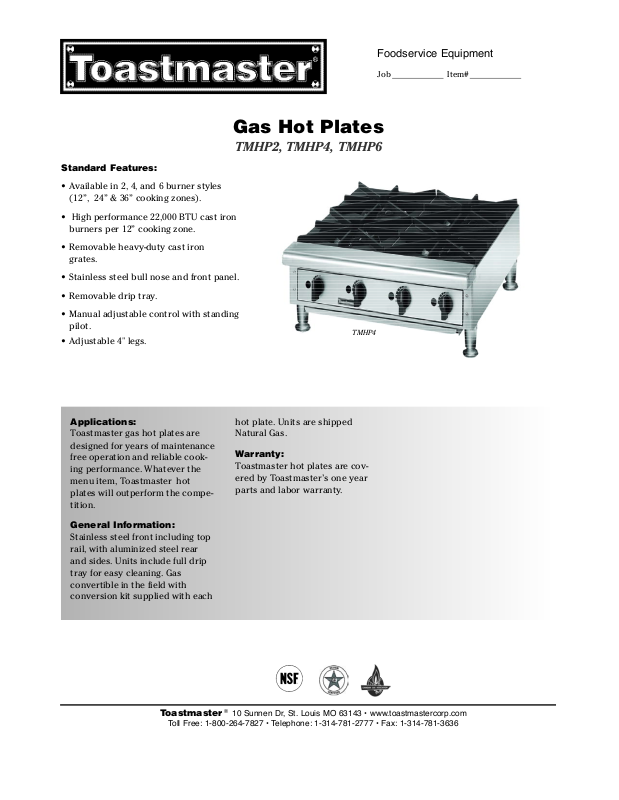

Toastmaster TMHP4 Specifications

Foodservice Equipment

Job Item#

Toastmaster

®

10 Sunnen Dr, St. Louis MO 63143 • www.toastmastercorp.com

Toll Free: 1-800-264-7827 • Telephone: [phone] • Fax: [phone]

Gas Hot Plates

TMHP2, TMHP4, TMHP6

Standard Features:

• Available in 2, 4, and 6 burner styles
(12”, 24” & 36” cooking zones).

• High performance 22,000 BTU cast iron
burners per 12” cooking zone.

• Removable heavy-duty cast iron
grates.

• Stainless steel bull nose and front panel.

• Removable drip tray.

• Manual adjustable control with standing
pilot.

• Adjustable 4" legs.

TMHP4

Applications:

Toastmaster gas hot plates are
designed for years of maintenance
free operation and reliable cook­ing performance. Whatever the
menu item, Toastmaster hot
plates will outperform the compe­tition.

General Information:

Stainless steel front including top
rail, with aluminized steel rear
and sides. Units include full drip
tray for easy cleaning. Gas
convertible in the field with
conversion kit supplied with each

hot plate. Units are shipped
Natural Gas.

Warranty:

Toastmaster hot plates are cov­ered by Toastmaster’s one year
parts and labor warranty.

INTENDED FOR COMMERCIAL USE ONLY. NOT FOR HOUSEHOLD USE.

Toastmaster, in line with its policy to continually improve its product,
reserves the right to change materials or specifications without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements,
additions, or replacements for previously purchased equipment.

Gas Hot Plates

TMHP2, TMHP4, TMHP6

Toastmaster

®

10 Sunnen Dr, St. Louis MO 63143 • www.toastmastercorp.com

Toll Free: 1-800-264-7827 • Telephone: [phone] • Fax: [phone]

Typical Specifications:

Gas hot plates are constructed of aluminized steel with stainless steel front. Unit has aluminized steel drip pan, heavy-duty cast
iron grates, cast iron 22,000 BTU burners, adjustable manual control valve, standing pilot for each burner and pressure regulator.
Hot plates are available in 12", 24", or 36" wide sizes and operate on natural or propane gas. Hot plates are AGA certified and NSF
and CGA listed. Printed in the U.S.A.

Model Number TMHP2 TMHP4 TMHP6

Dimensions 12-3/16” W x 24-3/16” W x 36-3/16” W x

11-15/16” H x 11-15/16” H x 11-15/16” H x

28-7/8” L 28-7/8” L 28-7/8” L

L1 (Inches)

10-1/2 22-1/2 34-1/2

(cm)

(27.0) (57.0) (87.0)

L2 (Inches)

20-3/8 20-3/8 20-3/8

(cm)

(52.0) (52.0) (52.0)

Cooking Surface Height (In.)

11-15/16 11-15/16 11-15/16

(cm)

(30.0) (30.0) (30.0)

Number of 2 4 6
Controls

Installed Weight (lbs.) 66 lbs. 110 lbs. 176 lbs.
(kg) (60.0) (50.0) (80.0)

Shipping Weight (lbs.) 75 lbs. 125 lbs. 200 lbs.
(kg) (34.1) (56.6) (90.9)

4” (10cm) legs with 1-3/8” (3.5cm) adjustment

L

1

L

2

Model No. Type Gas BTU Rating Type Connections

TMHP2 Natural/Propane 44,000 3/4" (1.9 cm) N.P.T. Male
TMHP4 Natural/Propane 88,000 3/4" (1.9 cm) N.P.T. Male
TMHP6 Natural/Propane 132,000 3/4" (1.9 cm) N.P.T. Male

TM105/1060
