Netcansee

NETWORK CAMERA

SYSTEM

NTSC

Network-based surveillance

with outstanding TOA-quality images

and sound

With the new TOA Network Camera Sys
you can clearly capture any situation
live and in real time.

tem,

The TOA Network Camera System simultaneously
transmits MPEG-4 format video for real-time monitoring,
enabling smooth flowing images for live monitoring from a
remote location.

The N-CC2360 Network Color Camera features a built-in
condenser microphone, making it possible to simultaneously
transmit both images and high-quality sound from the
surveillance area. This technology is exclusively available in
TOA's Network Camera System, developed by our Audio
Product Engineers.

The N-CC2564 Network Combination Dome Camera is
capable of high-speed PTZ movements, allowing users
immediate access to their desired location.

TOA's Network Camera System is ideal for any application
including hospitals, railway stations, shopping malls,
universities, factories and offices.

NETWORK-BASED SYSTEM ADVANTAGES

• Video surveillance and control from a remote location.

• Simultaneous control of system components and bi-directional audio
signal and video transmission with minimal cables.

• Offers flexible, versatile system expansion.

• Clear, crisp images and high-quality audio through the system's digital
transmission.

Simultaneous transmission of MPEG-4 and JPEG

Simultaneous MPEG-4 and JPEG transmission enables monitoring at a
low transmission rate with smooth image movement, along with
simultaneous recording of high-quality JPEG images.

Bidirectional, high-quality audio transmission

The N-CC2360, N-CC2564, N-VT2010 and N-VR2010 are all capable of
bidirectional audio transmission, and the N-CC2360 features a built-in
microphone instead of an audio input terminal. This enables it to capture
sounds in the surveillance area, as well as images, providing monitoring
personnel with a more accurate sense of the atmosphere of the site.
Connecting the audio output terminals on the N-CC2360 or N-CC2564 to
an amplifier with speaker enables audio transmission from the monitoring
party to the surveillance area.

PoE (Power over Ethernet) eliminates the need for
a dedicated power cable.

Because the N-CC2360, N-VT2010 and N-VR2010 are compatible with
PoE, power can be provided over a network. This contributes to

simplification of wiring installation work, and reduction of cost.

N-VT2010 and N-VR2010 are
equipped with 12V DC output.

These units can provide power to compact
cameras (CV Series) and remote
controllers, reducing the number of cables
needed by the system.

Transmission of MPEG-4, JPEG and Sound simultaneously

Perform remote surveillance by means of

smoothly moving video images and

high-quality sound.

LAN

MPEG-4

Sound

Remote Monitoring
of smoothly moving
Images and Sound

WAN

Sound

Recording of
High-quality
Images and
Sound

JPEG

N-DR2000

MPEG-4ASP
QVGA low-resolution images

JPEG
VGA high-resolution images

Sound

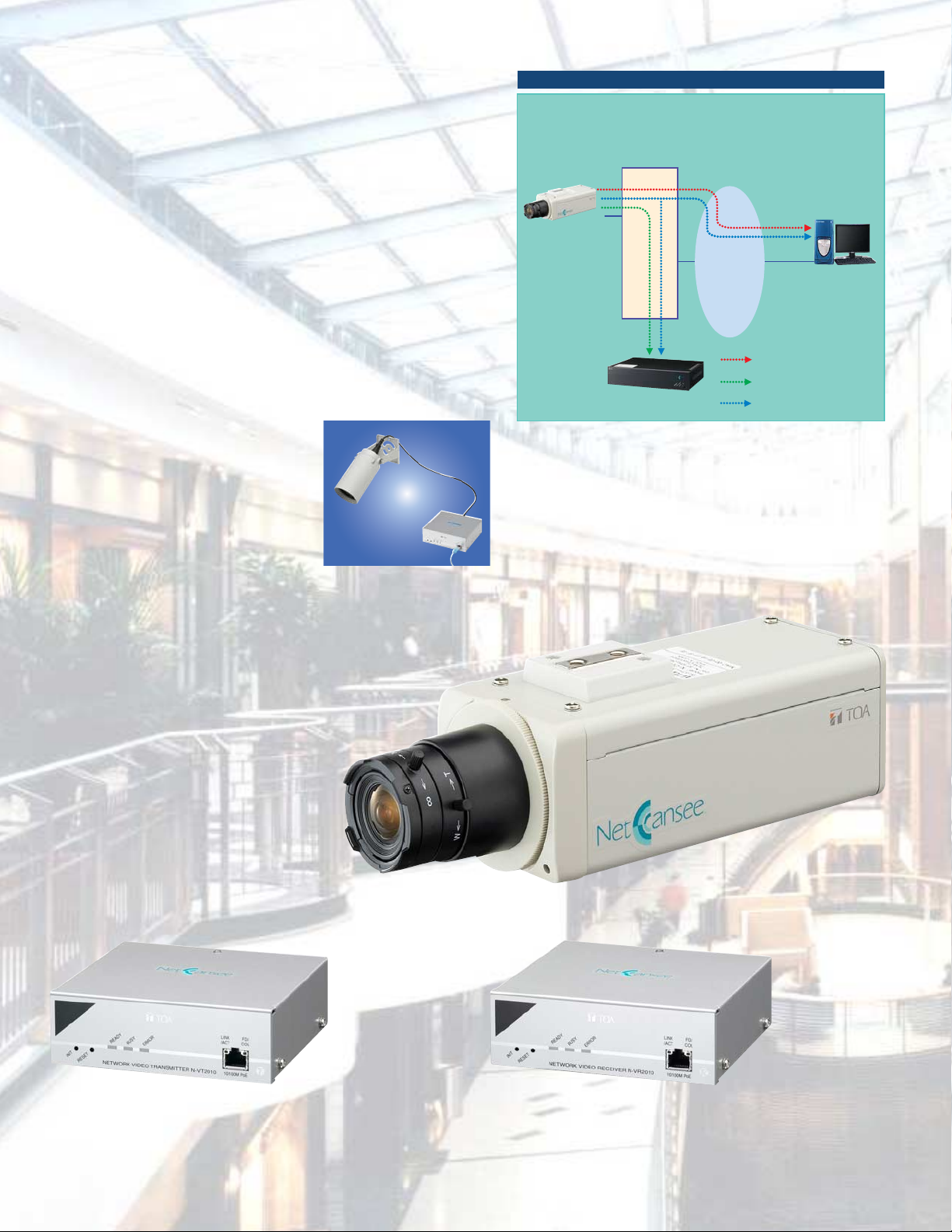

N-CC2360

Network Color Camera

N-CC2360 can be connected directly to a LAN
(10 BASE-T/100BASE-TX).

•PoE capability

•Built-in microphone and audio output terminal allows bidirectional
audio transmission

•Wide Dynamic Range and Day & Night functions

•Motion Detection

•Privacy Masking (up to 4 locations)

(Lens is optional)

N-VT2010

Network Video Transmitter

N-VT2010 can be connected directly to a LAN and transmits
analog camera's video and audio signals over the network.

•Connection for analog camera to digitally transmit images to a network

•12V DC Power Supply (ex. For CV Series Camera)

•PoE capability

•Bidirectional audio transmission (Audio input × 1, Audio output × 1)

N-VR2010

Network Video Receiver

N-VR2010 allows displaying digital image data from a network
camera or network video trasmitter on an analog monitor screen.

•12V DC Power Supply (ex. For Remote Controller)

•PoE capability

•Bidirectional audio transmission (Audio input × 1, Audio output × 1)

with Ceiling Mount

Cover C-BC511C

N-CC2564

Network Combination Dome Camera

N-CC2564 can be connected directly to a LAN
(10 BASE-T/100BASE-TX).

•Bidirectional audio transmission (Audio input × 1, Audio output × 1)

•Rotation range: horizontal 360° continuous; vertical +5° to –185°

•High-speed horizontal and vertical rotations of up to 360°/sec.

•23X optical zoom

•255 preset positions

•Wide Dynamic Range and Day & Night functions

•Motion Detection

•Privacy Masking (up to 8 locations)

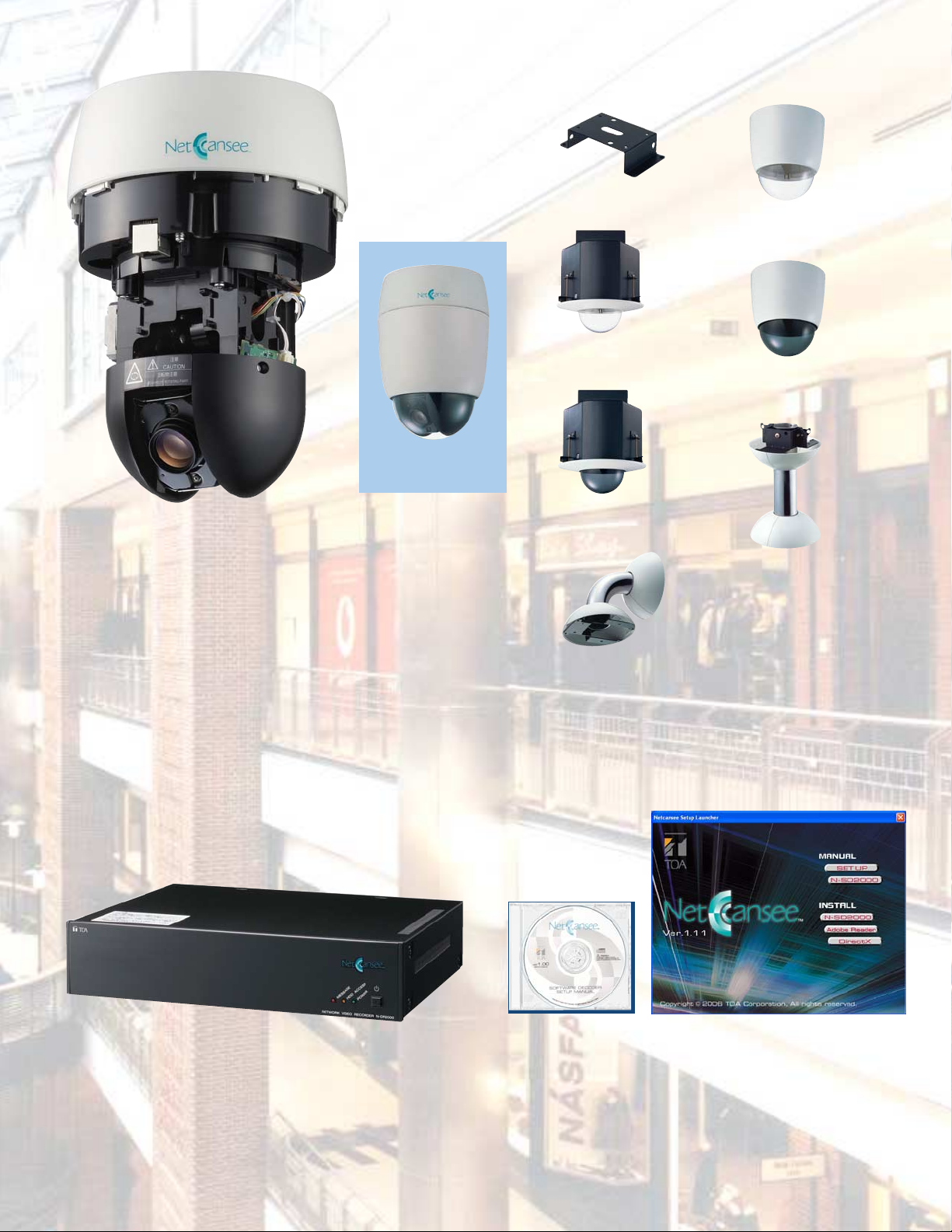

BRACKETS AND COVERS

C-BC511A

Ceiling Mount Bracket

C-BC511C

Ceiling Mount Cover

C-BC511U

Flush Ceiling Mount Bracket

C-BC511U-S

Flush Ceiling Mount Bracket
(Smoked)

C-BC511W

Wall Mount Bracket

C-BC511C-S

Ceiling Mount Cover
(Smoked)

C-BC511P

Ceiling Suspension Bracket

N-DR2000

Network Video Recorder

N-DR2000 allows images and audio from network cameras, as
well as event data, to be recorded, distributed, and stored over a
network.

•640GB Storage Capacity (320GB x 2)

•Can record images from up to 16 network cameras or network video
transmitters at once

•Up to 8 recorded images and audio tracks can be played back
simultaneously.

•Browser-based setup

Software Decoder

TOA's software decoder allows camera images to be monitored
on a PC without needing a receiver.

N-SD2000

Up to four MPEG-4 images can be displayed simultaneously.
Control of TOA Network Color Camera, Network Combination Dome
Camera, Digital Video Recorder, Multiplexer and Combination Dome
Camera.

N-SD0160

Up to sixteen JPEG images can be displayed simultaneously.
These images can also be recorded directly onto the PC's hard disk.

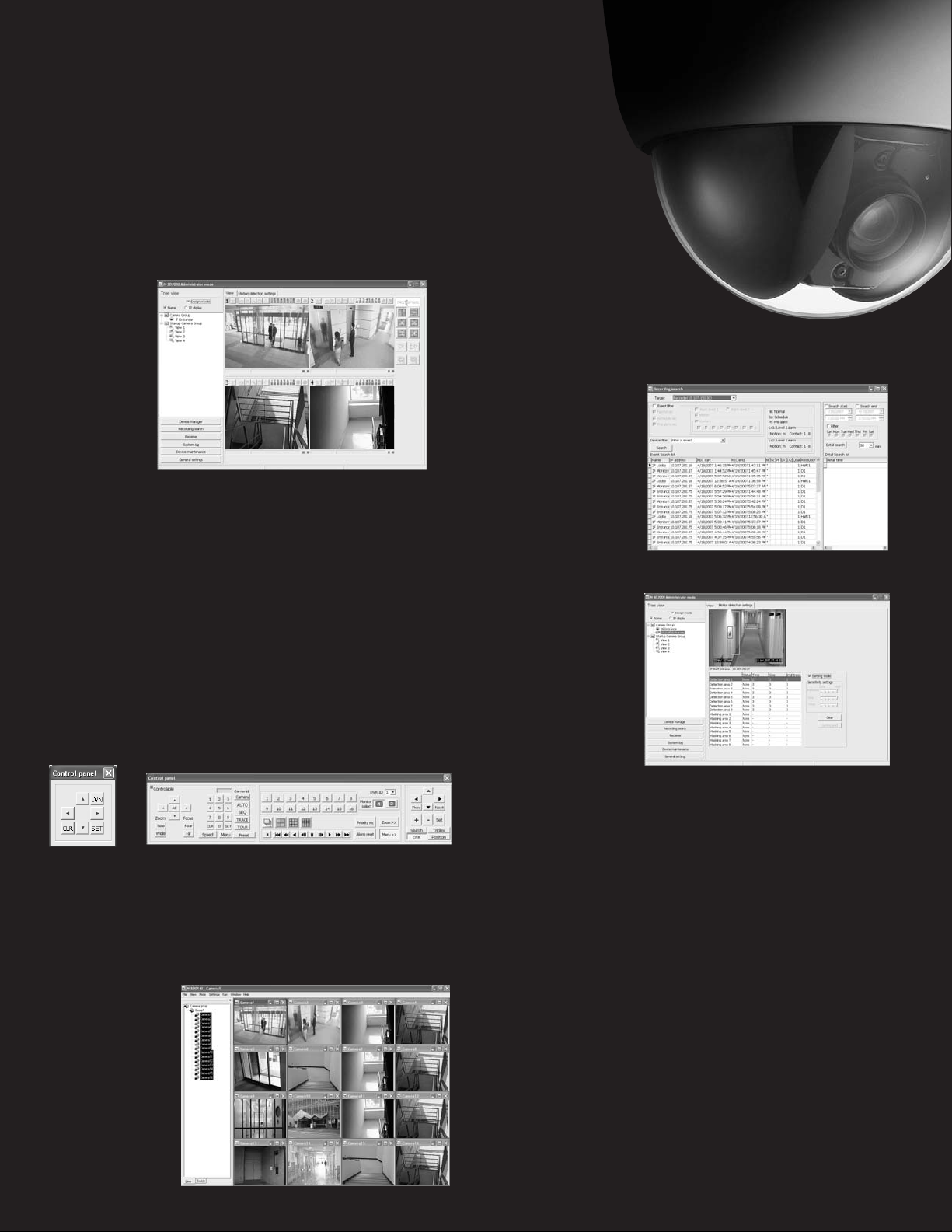

TOA's Software Decoder: Versatile and smart software
that optimizes Network Camera System operation

■ N-SD2000

Allows monitoring of MPEG-4 images from four
surveillance cameras at a time. Can handle images
from up to 2,000 surveillance cameras.

Display of images recorded on the N-DR2000 and easy
search for images users want to view

Point-view/Zoom-view Functions

While monitoring live images from the combination dome camera,
clicking on any point with the mouse moves that point to the
center of the screen. (Point-view)

An area selected by dragging the mouse is zoomed up for display.
(Zoom-view)

Motion Detection Function can be easily set and
checked.

Bidirectional Audio Transmission

Enables pick-up of sound from the surveillance area, as well as
issuing a voice warning to an intruder.

Remote Control

Network Color Cameras, Network Combination Dome Cameras,
Digital Video Recorders and Combination Dome Cameras can be
remotely controlled.

■ N-SD0160

Sixteen images from Network Color Camera, Network
Combination Dome Camera and Network Video
Transmitter can be monitored simultaneously.

Data recorded on the Network Video Recorder can be
exported onto a PC.

Can handle images from up to 100 surveillance
cameras (Display only 16 images at a time).

Recording onto the PC hard disk

Up to 5 minutes of the displaying network camera can be
manually recorded onto the hard disk of the PC, as well as up to
30 minutes of recording that starts automatically when an alarm
signal is detected.

Remote Control

Network Combination Dome Camera can be remotely controlled.

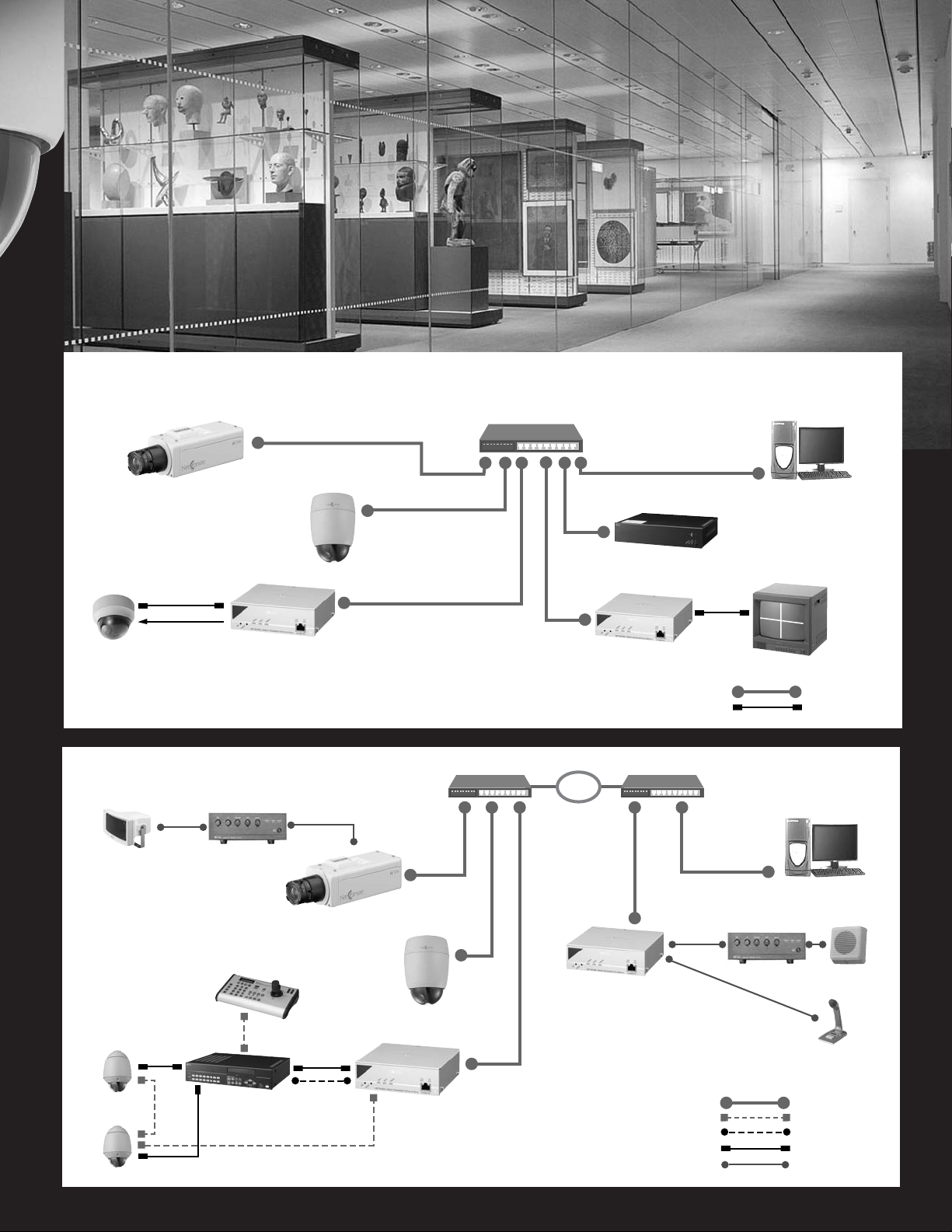

System Example 1

PoE

N-CC2360

Network Color Camera

C-CV24-2

Compact Color Camera

12V DC Power Supply

N-VT2010

Network Video Transmitter

System Example 2

Speaker

Amplifier

N-CC2360

Network Color Camera

N-CC2564

Network Combination
Dome Camera

PoE

PoE-compatible
Switching HUB

PoE

PoE-compatible
Switching HUB

PoE

N-VR2010

Network Video Receiver

LAN

N-DR2000

Network Video Recorder

PoE-compatible
Switching HUB

PoE

(Software Decoder is installed)

PC

Monitor

LAN
Video

(Software Decoder is installed)

PC

C-CC514/564/574
C-CC714/764/774

Combination Dome Cameras

C-RM1000

Remote Controller

C-DR161

Digital Video Recorder

N-CC2564

Network Combination

Dome Camera

PoE

N-VT2010

Network Video Transmitter

N-VR2010

Network Video Receiver

Amplifier

Box Speaker

Microphone

LAN
RS-485
RS-232C
Video
Audio

SPECIFICATIONS

Model No. N-CC2360 Network Color Camera

Power Req. 24 V AC, 50/60 Hz or 24 V DC or PoE (IEEE802.3af)
Power Consumption 13 W (at 24 V AC), (8 W:PoE, 350 mA; 24 V DC)
Microphone 0mnidirectional, electret condenser microphone
Camera
Image Device 1/3 type IT-CCD
Number of Effective 768 (H) × 494 (V) (380,000 pixels)

Pixels
Minimum Required 0.5 lx (50 IRE), 0.1 lx (20 IRE) (F 1.0) (sensitivity up: OFF) (color mode)

Illumination 0.01 lx (F 1.0) (sensitivity up: ON) (B&W mode, incandescent lamp)
Other Functions Privacy masking (up to 4), Electronic zoom (2x), Horizontal/Vertical reverse,

Network
Video Compression/ MPEG-4: D1 (720 × 480), Half D1 (720 × 240), QVGA (320 × 240)

Resolution JPEG: D1 (720 × 480), Half D1 (720 × 240), VGA (640 × 480),

Frame Rate MPEG-4 (D1, max. 30 fps) + JPEG (D1, max. 5 fps)
Audio Compression/ Sub-band ADPCM, PCM (non-compression)

Decompression
Audio Sampling Frequency
Finish Case: Surface-treated steel plate, sand gray , paint
Dimensions 69.3 (W) × 64.8 (H) × 157.3 (D) mm (2.73” × 2.55” × 6.19”)
Weight 670 g (1.48 lb)
Accessory CD-ROM (Software decoder: N-SD2000, Manuals (PDF)) × 1,

Model No. N-CC2564 Network Combination Dome Camera

Power Req. 24 V AC, 50/60 Hz
Power Consumption 20 W (normal operation), 25 W max. (1.6 A max.)
Video Output VBS 1.0 V(p-p), 75Ω, BNC-R jack, NTSC
Camera
Image Device 1/4 type CCD
Resolution Horizontal: 480 lines (at center)
Minimum Required High-sensitivity function OFF: 3 lx (50 IRE), 1 lx (20IRE)

Illumination High-sensitivity function ON: 0.03 lx (50 IRE), 0.01 lx (20IRE)
No. of Preset Positions 255 Positions + Home
Automatic Operation Auto-pan, Preset sequence, Auto-trace (2 preset patterns (60s)),

Timer Refresh: Starts at the preset time every day or every week by timer settings

Other Functions Auto Flip, Freeze preset, Manual limit, Privacy masking (up to 8),

Motion detection (each 8 presets at each 4 positions)

Lens
Zooming 23x
Effective Focal Length f = 3.6 - 82.8mm (23X)
Effective Angle of View Horizontal: 54° (W) – 2.5° (T)/Vertical: 41.6° (W) – 1.9° (T)
Network
Video Compression/ MPEG-4: D1 (720 × 480), Half D1 (720 × 240), QVGA (320 × 240)

Resolution JPEG: D1 (720 × 480), Half D1 (720 × 240), VGA (640 × 480),

Frame Rate MPEG-4 (D1, max. 30 fps) + JPEG (D1, max. 5 fps)
Audio Compression/ Sub-band ADPCM, PCM (non-compression)

Decompression
Audio Sampling Frequency
Operating Temperature -10°C to 50°C (+14°F to +122°F)

Finish Base: PC/ABS resin, cool gray, Camera: PC/ABS resin, black
Dimensions ø168 × 234 (H) mm (ø6.61” × 9.21”)
Weight 2 kg (4.41 lb)
Accessory Camera mounting screw × 4, Safety wire × 1, Category5 shielded coupler (female

Flickering reduction (DIP switch), Focus adjustment switch (DIP switch),
Chroma level: Normal/Manual (MIN – MAX),
Enhancer: Normal/Manual (soft – sharp)

QVGA (320 × 240), QQVGA (160 × 120)

8 kHz, 32 kHz

Power conversion cable × 1

Tour (16 preset patterns)

Program: Settable 16 actions

QVGA (320 × 240), QQVGA (160 × 120)

8 kHz, 32 kHz

(Continuously active for operation at temperature below 0°C (+32°F))

to female) × 1, Extension connector (Alarm input, AUX contact output) × 1 each,
CD-ROM (Software decoder: N-SD2000, Manuals (PDF)) × 1

Model No. N-VT2010 Network Video Transmitter

Power Req. 24 V AC, 50/60 Hz or 24 V DC or PoE (IEEE802.3af)
Power Consumption 10 W: at 24 V AC (9 W: PoE, 400 mA: 24 V DC)
Power Output 12 V DC, max. 0.2 A, screwless connector
Serial Port RS-232C: D-sub connector (9 pins, male), RS-485: screwless connector
Network
Video Compression/ MPEG-4: D1 (720 × 480), Half D1 (720 × 240), QVGA (320 × 240)

Resolution JPEG: D1 (720 × 480), Half D1 (720 × 240), VGA (640 × 480),

Frame Rate MPEG-4 (D1, max. 30 fps) + JPEG (D1, max. 5 fps)
Audio Compression/ Sub-band ADPCM, PCM (non-compression)

Decompression
Audio Sampling Frequency
Simultaneous 5 (MPEG-4: 4, JPEG: 1), In streaming mode: No limit (MPEG-4 only)

Connected Number
Other Function Password authentication, Motion detection function
Finish Case: Surface-treated steel plate, silver, paint
Dimensions 136 (W) × 44 (H) × 127.9 (D) mm (5.35” × 1.73” × 5.04”)
Weight 700 g (1.54 lb)
Accessory CD-ROM (Software decoder: N-SD2000, Manuals (PDF)) × 1,

Model No. N-VR2010 Network Video Receiver

Power Req. 24 V AC, 50/60 Hz or 24 V DC or PoE (IEEE802.3af)
Power Consumption 10 W: at 24 V AC (9 W: PoE, 400 mA: 24 V DC)
Power Output 12 V DC, max. 0.2 A, screwless connector
Network
Video Compression/ MPEG-4, D1 (720 × 480), Half D1 (720 × 240), QVGA (320 × 240)
Resolution
Frame Rate MPEG-4: D1, max. 30 fps
Audio Compression/ Sub-band ADPCM, PCM (non-compression)

Decompression
Audio Sampling Frequency
Image Transfer Rate MPEG-4: 4 Mbps max
Other Function Password authentication
Finish Case: Surface-treated steel plate, silver, paint
Dimensions 136 (W) × 44 (H) × 127.9 (D) mm (5.35” × 1.73” × 5.04”)
Weight 700 g (1.54 lb)
Accessory Power conversion cable × 1

Model No. N-DR2000 Network Video Recorder

Power Req. 110-120 V AC, 50/60 Hz
Power Consumption 57 W (0,8 A)
Recording Storage HDD S-ATA 640 GB (320 GB X 2)
Network
Recording Method Video: JPEG Audio: sub-band ADPCM, PCM

Number of Simultaneous Up to 16 stations (Network camera or Network video transmitter)
Recording

Other Functions Alert notification via e-mail, time synchronization, operating log
Finish Case: Pre-coated steel plate. black
Dimensions 420 (W) × 88.7 (H) × 320.5 (D) mm (16.54" × 3.49" × 12.62")
Weight 6.1 kg (13.45 lb)
Accessory Power cord (2 m (6.56 ft)) × 1, CD-ROM (Update Disk) × 1

QVGA (320 × 240), QQVGA (160 × 120)

8 kHz, 32 kHz

Power conversion cable × 1

8 kHz, 32 kHz

(non-compression)

Human Society with
Security & Safety

TOA Corporation

www.toa.jp

Specifications are subject to change without notice.

Printed in Japan (0708) 833-52-371-60 u
