Toa AS-100A Specifications

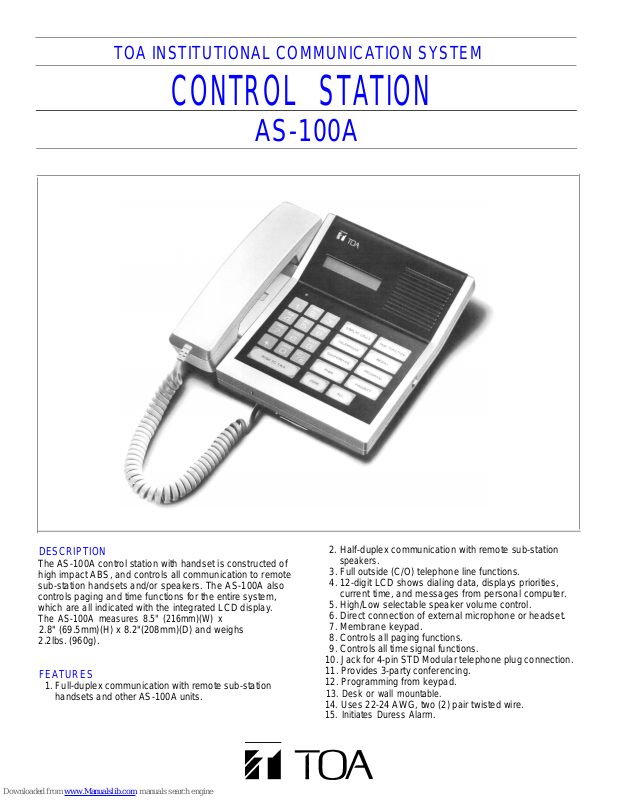

TOA INSTITUTIONAL COMMUNICATION SYSTEM

CONTROL STATION

AS-100A

DESCRIPTION

The AS-100A control station with handset is constructed of
high impact ABS, and controls all communication to remote
sub-station handsets and/or speakers. The AS-100A also
controls paging and time functions for the entire system,
which are all indicated with the integrated LCD display.
The AS-100A measures 8.5" (216mm)(W) x

2.8" (69.5mm)(H) x 8.2"(208mm)(D) and weighs

2.2lbs. (960g).

FEATURES

1. Full-duplex communication with remote sub-station
handsets and other AS-100A units.

2. Half-duplex communication with remote sub-station
speakers.

3. Full outside (C/O) telephone line functions.

4. 12-digit LCD shows dialing data, displays priorities,
current time, and messages from personal computer.

5. High/Low selectable speaker volume control.

6. Direct connection of external microphone or headset.

7. Membrane keypad.

8. Controls all paging functions.

9. Controls all time signal functions.

10. Jack for 4-pin STD Modular telephone plug connection.

11. Provides 3-party conferencing.

12. Programming from keypad.

13. Desk or wall mountable.

14. Uses 22-24 AWG, two (2) pair twisted wire.

15. Initiates Duress Alarm.

SPECIFICATIONS

Handset Transmitter &

Receiver

Internal Speaker
Internal Microphone

Keypad
Speaker Volume Control H/L selectable
External Input
Display
Wiring

Power Requirements
Operating Temperature
Case Material & Color
Dimensions (W x H x D)
Weight
Accessory included

*Specifications are subject to change without notice.

Dynamic type, 130 ohms each

Dynamic type, 8 ohms, 2.25”(57mm) dia.

0.6W
Electret condenser type
Membrane key switch

External mic. or headset connectable
LCD, 12-digit
Twisted 2 pairs, nonpolar (Desk mounting to

4-pin STD Modular telephone connector)
24 VDC, 30mA
32° to 104°F (0° to 40°C)
ABS resins, pale white

8.5” x 2.8” x 8.2” (216 x 69.5 x 208mm)

2.2lbs. (960g)
Wall mounting bracket

--

APPEARANCE AND DIMENSIONAL DIAGRAM

ARCHITECT’S AND ENGINEER’S SPEClFlCATlONS

The Master Control Station shall be a TOA AS-100A and
shall be capable of full-duplex communication with other
AS-100A and RS-110 (handset room station) units, via the
AS-100A dynamic handset. The AS-100A shall be
capable of “hands-free” communication with other
AS-100A via an on-board dynamic electret condenser mic
and have the ability to attach an external mic or headset
via a 1/4” jack. The AS-100A shall be configured with a

12-digit LCD display, a modular (TELCO type) jack for
standard four (4) conductors, 22-24 AWG wire, and an
8-ohm, dynamic speaker with volume switch.
The AS-100A shall be capable of DTMF dialing for C/O line
telephone calls. All programming, paging, calling and
program distribution functions shall be user operated from
the AS-100A membrane keypad. The AS-100A shall be
made of high impact ABS resins and shall be desk or wall
mountable.

TOA Corporation

Printed by QQ Printing 2/97
