Tmi SD_VPP-18 User Manual

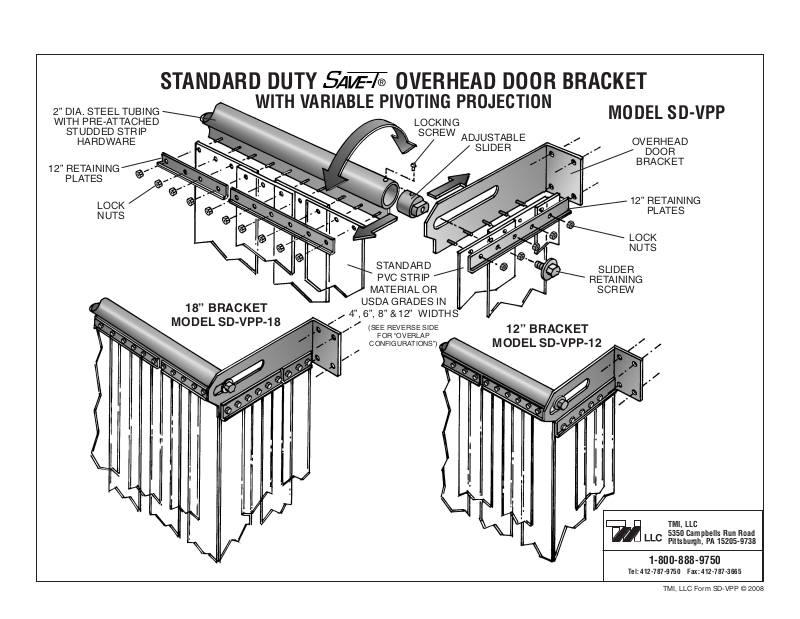

STANDARD DUTY OVERHEAD DOOR BRACKET
WITH VARIABLE PIVOTING PROJECTION
TMI, LLC Form SD-VPP © 2008
12” RETAINING
PLATES
18” BRACKET
MODEL SD-VPP-18
12” BRACKET
MODEL SD-VPP-12
12” RETAINING
PLATES
LOCK
NUTS
LOCK
NUTS
ADJUSTABLE
SLIDER
OVERHEAD
DOOR
BRACKET
SLIDER
RETAINING
SCREW
LOCKING
SCREW
2” DIA. STEEL TUBING
WITH PRE-ATTACHED
STUDDED STRIP
HARDWARE
STANDARD
PVC STRIP
MATERIAL OR
USDA GRADES IN
4”, 6”, 8” & 12” WIDTHS
(SEE REVERSE SIDE
FOR “OVERLAP
CONFIGURATIONS”)
®
MODEL SD-VPP
TMI, LLC
5350 Campbells Run Road
Pittsburgh, PA 15205-9738
1-800-888-9750
Tel: 412-787-9750 Fax: 412-787-3665
100%
STANDARD DUTY OVERHEAD DOOR BRACKET
MODEL SD-VPP
®
STANDARD STRIP OVERLAP CONFIGURATION
®
TMI, LLC Form SD-VPP © 2008
PVC GRADES
PLEASE CHOOSE ONE
DIMENSIONAL DRAWINGS AND CHARTS
PLEASE INDICATE
BOTH THE HEIGHT
AND WIDTH OF THE
DOORWAY OPENING
PLUS THE ROLLER
DRUM PROJECTION.
PLEASE INDICATE
MODEL
4”
2”
1”
Up to 12’
2” DIA.
3
/8” DIA.
HOLES
3
/4”
7
/8”
2
1
/2”
1
1
/2”
3
/4”
3
/4”
31/
8”
•
•
••
•
RAILS
A
Note: Measure to the outside
of the rails
W= ’ ”
H= ’ ”
B
CD
WIDTHS
BRACKET
SIDE VIEW
FRONT VIEW
TOP VIEW
SD-VPP-12
SD-VPP-18
PLEASE INDICATE THE WIDTH AND OVERLAP DESIRED BY CHECKING THE APPROPRIATE BOX
100%
❏
100%
❏
100%
❏
100%
❏
67%
❏
50%
❏
33%
❏
50%
❏
67%
❏
50%
❏
❏
❏
❏
❏
❏
PLEASE INDICATE WIDTH IN INCHES “
PRE-STUDDED STEEL TUBING
❏
STANDARD
LOW TEMP. USDA
STANDARD RIBBED
LOW TEMP. RIBBED
4” STRIP 6” STRIP 8” STRIP 12” STRIP
Measure the inside of
the doorway opening
Measure the projection
of the roller drum
P= ”
ABC D
13” 12
1
/
4”6
1
/
4”5
1
/
2”
ABC D
19” 18” 11
3
/
4”6
3
/
4”
FOR BRACKET MODEL SD-VPP-12
FOR BRACKET MODEL SD-VPP-18
PRE-STUDDED
STEEL TUBING
TMI, LLC
5350 Campbells Run Road
Pittsburgh, PA 15205-9738
1-800-888-9750
Tel: 412-787-9750 Fax: 412-787-3665
