TMC TI5VGF User Manual

TI5VGF
Pentium MVP3
ATX Motherboard
User’s Manual
Version 1.0
Contents
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual i
Contents
Chapter 1 Introduction....................................................1
Chapter 2 Specifications.................................................. 3
Chapter 3 Hardware Description ................................... 5
3.1 Processor and CPU Voltage ..............................................7
3.2 L2 Cache Memory.............................................................7
3.3 Main Memory....................................................................7
3.4 BIOS..................................................................................9
3.5 Onboard PCI EIDE............................................................9
3.6 Onboard Multi-I/O.............................................................9
3.7 Onboard Hardware Monitoring IC..................................10
3.8 I/O Port Address Map......................................................10
3.9 DMA Channels................................................................11
3.10 Interrupt Request Lines (IRQ).......................................11
3.11 Accelerated Graphics Port (AGP) Slot..........................11
Chapter 4 Hardware Settings........................................13
4.1 SW1(1-8): CPU Frequency Selector...............................15
4.2 JP 1 : D R A M O p e r a t i n g F r e q u e n c y......................................19
4.3 SW2(1-4): CPU Vcore Voltage Selector
SW3(1-4): CPU Vio Voltage Selector (optional)............18
4.4 JP5: Clear CMOS Selection ............................................15
Chapter 5 Installation.................................................... 22
5.1 I/O Connectors.................................................................24
5.2 J1: PS/2 Keyboard and PS/2 Mouse Connectors.............24
5.3 J2: USB Connector..........................................................25
5.4 J3, J5 Serial Ports ............................................................25
5.5 J4: Parallel Port Connector..............................................26
5.6 J6: ATX Power Supply Connector..................................26
5.7 J7: Floppy Drive Connector ............................................27
5.8 IDE1, IDE2: EIDE Connectors........................................28
5.9 J8: CPU Fan Power Connector........................................29
5.10 J9: IrDA Connector .......................................................29
5.11 J10 Wake on LAN Connector .......................................29
Contents
ii TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
5.12 J12: Chassis Fan Power Connector ...............................29
5.13 J13 Front Bezel Connector............................................30
Chapter 6 BIOS Configuration.....................................33
6.1 BIOS Introduction ...........................................................36
6.2 BIOS Setup......................................................................36
6.3 Standard CMOS Setup.....................................................38
6.4 BIOS Features Setup .......................................................41
6.5 Chipset Features Setup....................................................44
6.6 Power Management Setup...............................................47
6.7 PNP/PCI Configuration...................................................50
6.8 Load BIOS Defaults ........................................................52
6.9 Load Setup Defaults ........................................................52
6.10 Integrated Peripherals....................................................53
6.11 Supervisor / User Password...........................................55
6.12 IDE HDD Auto Detection .............................................56
6.13 HDD Low Level Format................................................56
6.14 Save & Exit Setup..........................................................57
6.15 Exit Without Saving......................................................57
Chapter 7 LANDesk User’s Guide ...............................59
7.1 Introduction .....................................................................60
7.2 Installation.......................................................................61
Chapter 8 System Monitor Utility User’s Guide......... 63
Appendix..........................................................................72
A. Additions and Errata.........................................................72
Chapter 1 Introduction
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 1
Chapter 1 Introduction
This manual is designed to give you information on the TI5VGF Motherboard. It is divided into the following six sections:
••••
Introduction
••••
Specifications
••••
Hardware Description
••••
Hardware Settings
••••
Installation
••••
BIOS Configuration
••••
LANDesk User’s Guide
••••
System Monitor Utility User’s Guide
Checklist
Please check that your package is com plete and contains the item s below. If you discover damaged or missing items, please contact your dealer.

The TI5VGF Motherboard

This user’s manual

1 IDE ribbon cable

1 floppy ribbon cable

1 CD containing Bus Master IDE drivers, flash utility, other drivers and System Monitor utility. The LANDesk Client Manager software is optional.
Chapter 1 Introduction
2 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
This page is intentionally left blank.
Chapter 2 Specificati ons
TI5VGF Pentium VP3/MVP3 ATX Motherboard User’s Manua 3
Chapter 2 Specifications
Based on the VIA MVP3 chipset, the TI5VGF is an ATX Pentium motherboard that supports all the features to make a Microsoft PC’97 compliant PCI system.
The TI5VGF comes with an Accelerated Graphics Port (AGP) slot, power management functionality that is compliant with ACPI (Advanced Configuration and Power Interface) and legacy APM requirements. In addition to standard PIO and DMA mode operation, it features Ultra DMA/ 33 for improved disk I/O throughput. The main features of this motherboard are listed as follows:
Intel Pentium 100/133/150/166/200 Intel Pentium MMX (P55C) 100/133/166/200/233 Cyrix 6x86/6x86L P166+/P200+ Cyrix 6x86MX PR166/PR200/PR233/PR266 Cyrix 6x86MII 266/300/333/366/380/400/433/450/466 AMD K5 PR100/PR133/PR166 AMD K6 166/200/233/266/300 AMD K6-2/300/333/350/366/380/400/450/475/500 AMD K6-3/400/450/475/500 IDT WinChip C6 200/225MHz IDT WinChip2 200/225/266/300MHz
L2 Cache
1MB Pipelined Burst Synchronous SRAM onboard, 2MB optional
Main Memory
Three 168-pin DIMM sockets
DIMMs:
EDO DRAM or SDRAM (Synchronous DRAM)
DIMM Size
: 8MB, 16MB, 32MB, 64MB, 128MB
Chipset
VIA MVP3 chipset with built-in PCI EIDE
[
Chapter 2 Specificati ons
4 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
Onboard I/O
Winbond W83877 for two serial, one parallel, one floppy drive interface and IrDA support
Onboard Bus Mastering EIDE
Two EIDE interfaces for up to four devices, support PIO Mode 3/4 or Ultra DMA/33 IDE Hard Disk and ATAPI CD-ROM.
BIOS
Licensed BIOS with additional features:
FLASH EEPROM (128KB) for BIOS update
ISA Plug and Play (P nP) extension
Power management
Hardware Monitoring IC
The Winbond W83781D hardware monitoring IC on the motherboard monitors the system temperature, voltages and fan speed. With the use of a system management utility, the hardware status can be checked and warning message can be displayed when there is a problem.
Windows 95 Shut-Down
This allows the PC to power off via Windows 95 operating system.
PC97 Compliance
The TI5VGF implements BIOS and hardware designs that meet PC97 standards and is fully compatible with all Windows operating systems.
Year 2000 Compliant BIOS
The onboard Award BIOS is Year 2000 Compliant and will pass software applications that have the tendency to invoke INT1AH function 04H such as year2000.exe utility released by NSTL.
Expansion Slots
Six 32-bit PCI master slots One AGP slot (Accelerated Graphics Port)
Form Factor
ATX, 12”x 7.1” (30.5cm x 18cm)
Chapter 3 Hardware Description
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 5
Chapter 3 Hardware Description
This chapter briefly describes each of the major features of the TI5VGF motherboard. The layout of the board is shown in Figure 1 which shows the locations of the key components. The topics covered in this chapter are as follows:
3.1 Processor and CPU Voltage........................................................7
3.2 L2 Cache Memory.......................................................................7
3.3 Main Memory..............................................................................7
3.4 BIOS ...........................................................................................9
3.5 Onboard PCI EIDE..................................................................... 9
3.6 Onboard Multi-I/O......................................................................9
3.7 Onboard Hardware Monitoring IC............................................10
3.8 I/O Port Address Map...............................................................10
3.9 DMA Channels..........................................................................11
3.10 Interrupt Request Lines (IRQ).................................................11
3.11 Accelerated Graphics Port (AGP) Slot....................................11
Chapter 3 Hardware Description
6 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
Figure 1: Layout of the TI5VGF Motherboard
Chapter 3 Hardware Description
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 7
3.1 Processor and CPU Voltage
The TI5VGF is designed to take a Pentium Processor with a bus speed of 66, 75, 83 and 100 MHz. The internal clock of the CPU can be multiples of 1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5 and 5.5 of the bus cl ock, the CPU frequency can be 100 to 550MHz.
The onboard CPU voltage regulator provides support for CPUs Vcore which require voltage other than 3.3V such as 2.8V, and/or power consumption higher than 10 watts.
3.2 L2 Cache Memory
The TI5VGF supports 1MB P.B. (Pipelined Burst) Synchronous Cache. 2MB is optional. The P.B. Synchronous Cache boosts the system’s performance, 10% higher than regular Asynchronous Cache.
3.3 Main Memory
The TI5VGF motherboard supports three 168-pin DIMMs (Dual In-line Memory Module) sockets. DIMM modules can be 8MB, 16MB, 32MB, 64MB and 128MB in EDO DRAM or SDRAM type. DIMM1, DIMM2 or DIMM3 bank can be populated first. Examples are shown in the following table on how to configure the memory size.
168-pin DIMM (3.3V) – SDRAM or EDO DRAM
Bank0
(DIMM3)
Bank1
(DIMM2)
Bank2
(DIMM1)
Total Memory
8MB ----- ----- 8MB 16MB ----- ----- 16MB 32MB ----- ----- 32MB 64MB ----- ----- 64MB
128MB ----- ----- 128MB
8MB 8MB ----- 16MB 16MB 8MB ----- 24MB 32MB 8MB ----- 40MB 64MB 8MB ----- 72MB
128MB 8MB ----- 136MB
8MB 8MB 8MB 24MB 16MB 8MB 8MB 32MB 32MB 8MB 8MB 48MB
Chapter 3 Hardware Description
8 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
168-pin DIMM (3.3V) – SDRAM or EDO DRAM
Bank0
(DIMM3)
Bank1
(DIMM2)
Bank2
(DIMM1)
Total Memory
64MB 8MB 8MB 80MB
128MB 8MB 8MB 144MB
16MB 16MB ----- 32MB 32MB 16MB ----- 48MB 64MB 16MB ----- 80MB
128MB 16MB ----- 144MB
16MB 16MB 8MB 40MB 32MB 16MB 8MB 56MB 64MB 16MB 8MB 88MB
128MB 16MB 8MB 152MB
16MB 16MB 16MB 48MB 32MB 16MB 16MB 64MB 64MB 16MB 16MB 96MB
128MB 16MB 16MB 160MB
32MB 32MB ----- 64MB 64MB 32MB ----- 96MB
128MB 32MB ----- 160MB
32MB 32MB 8MB 72MB 64MB 32MB 8MB 104MB
128MB 32MB 8MB 168MB
32MB 32MB 16MB 80MB 64MB 32MB 16MB 112MB
128MB 32MB 16MB 176MB
32MB 32MB 32MB 96MB 64MB 32MB 32MB 128MB
128MB 32MB 32MB 192MB
64MB 64MB ----- 128MB
128MB 64MB ----- 192MB
64MB 64MB 8MB 136MB
128MB 64MB 8MB 200MB
64MB 64MB 16MB 144MB
128MB 64MB 16MB 208MB
64MB 64MB 32MB 160MB
128MB 64MB 32MB 224MB
64MB 64MB 64MB 192MB 128MB 64MB 64MB 256MB 128MB 128MB 128MB 384MB
Chapter 3 Hardware Description
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 9
3.4 BIOS
The BIOS on the TI5VGF motherboard provides the standard BIOS functions plus the following additional features:
1. DMI (Desktop Management Interface)
The motherboard supports DMI t o en able computer syst em management in an enterprise.
2. ISA Plug and Play (PnP) Extension
Unlike PCI cards which are plug and play, ISA cards require setting jumpers to resolve hardware conflicts. To make a computer system PnP, an ISA PnP standard is established and supported by new OSes, such as Windows 95. Under Wi ndow s 95, th e moth erboard BIOS mus t have ISA PnP extension to support the new ISA PnP cards.
3. Power Management
The power management feature provides power savings by slowing down the CPU clock, turning off the monitor screen and stopping the HDD spindle motor.
3.5 Onboard PCI EIDE
The PCI EIDE controller is part of the MVP3 chipset. It supports PIO mode 3/4 and bus m ast ering . The peak tran sf er rate of PIO mode 3/4 can be as high as 17MB/sec. Using HDDs that support bus mastering, the peak transfer rate can reach 22MB/sec. There are two IDE connectors, primary IDE and secondary IDE. With two devices per connector, up to four IDE drives are supported. The MVP3 also supports Ultra DMA/33, a new “synchronous DMA” protocol for faster data transfers.
3.6 Onboard Multi-I/O
The onboard multi-I/O chip, Winbond W83877, supports two 16550 UART-compatible serial ports, one high speed EPP/ECP parallel port and one floppy controller. The floppy controller supports 2.88MB format. The I/O port addresses of the serial and parallel ports are programmable via BIOS set-up.
Chapter 3 Hardware Description
10 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
3.7 Onboard Hardware Monitoring IC
The Winbond W83781D hardware monitoring IC on the motherboard monitors the syst em tem perature, voltages an d fan speed. With the use of a system management utility, the hardware status can be checked and warning message can be displayed when there is a problem.
3.8 I/O Port Address Map
Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. There are a total of 1K port address space available. The following table lists the I/O port addresses used on the motherboard.
Address Device Description
000h - 01Fh DMA Controller #1 020h - 03Fh Interrupt Controller #1 040h - 05Fh Timer 060h - 06Fh Keyboard Controller 070h - 07Fh Real Time Clock, NMI 080h - 09Fh DMA Page Register 0A0h - 0BFh Interrupt Controller #2 0C0h - 0DFh DMA Controller #2 0F0h Clear Math Coprocessor Busy Signal 0F1h Reset Math Coprocessor 1F0h - 1F7h IDE Interface 278 - 27F Parallel Port #2 (LPT2) 2F8h - 2FFh Serial Port #2 (COM2) 2B0 - 2DF Graphics adapter Controller 378h - 3FFh Parallel Port #1(LPT1) 360 - 36F Network Ports 3B0 - 3BF Monochrome & Printer adapter 3C0 - 3CF EGA adapter 3D0 - 3DF CGA adapter 3F0h - 3F7h Floppy Disk Controller 3F8h - 3FFh Serial Port #1 (COM1)
Chapter 3 Hardware Description
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 11
3.9 DMA Channels
There are seven DMA Channels available on the motherboard. Only DMA2 is used by t he floppy cont roller. In th e case that ECP mode on the parallel port is used, DMA1 or DMA3 will be used.
3.10 Interrupt Request Lines (IRQ)
There are a total of 15 IRQ lines available on the m otherboard. Peripheral devices use interrupt request lines to notify the CPU for the service required. The following table shows the IRQ used by the devices on the motherboard.
Level Function
IRQ0 System Timer Output IRQ1 Keyboard IRQ2 Interrupt Cascade IRQ3 Serial Port #2 IRQ4 Serial Port #1 IRQ5 Parallel Port #2 IRQ6 Floppy Disk Controller IRQ7 Parallel Port #1 IRQ8 Real Time Clock IRQ9 Software Redirected to Int 0Ah IRQ10 Reserved IRQ11 Reserved IRQ12 Reserved IRQ13 80287 IRQ14 Primary IDE IRQ15 Secondary IDE
3.11 Accelerated Graphics Port (AGP) Slot
The TI5VGF motherboard comes with an AGP slot for an AGP VGA card that supports 133MHz 2X mode for AD and SBA signaling to provide high-performance 3D graphic display.
Chapter 3 Hardware Description
12 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
This page was intentionally left blank.
Chapter 4 Hardware Settings
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 13
Chapter 4 Hardware Settings
The following sections describe the necessary procedures and proper jumper settings to configure the TI5VGF motherboard.
4.1 SW1(1-8): CPU Frequency Selector.........................................15
4.2 JP1: DRAM Operating Frequency............................................19
4.3 SW2(1-4): CPU Vcore Voltage Selector
SW3(1-4): CPU Vio Voltage Selector (optional)......................19
4.4 JP5: Clear CMOS Selection......................................................15
In the case your motherboard TI5VGF-100MHz has a processor supporting 100MHz CPU clock (such as AMD K6-2/300) and your DIMM module is PC100 compliant, the SDRAM clock can be set to 100MHz. Otherwise, set the SDRAM clock at 66MHz.
For the locations of the jumpers, refer to Figure 2 on the following page.
The following examples show the conventions used in this chapter
Jumper Open
Jumper Closed
Switch 1 and switch 2 are set to OFF. Switch 3 and switch 4 are set to ON.
Chapter 4 Hardware Settings
14 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
Figure 2: Jumper Locations of the TI5VGF
Chapter 4 Hardware Settings
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 15
4.1 SW1(1-8): CPU Frequency Selector
For Intel Pentium, IDT WinChip 2-3D / C6
SW1
CPU
Clock
AGP
Clock
Multiplier CPU FREQ.
off on on off off off off on
66MHz 66MHz 1.5x P54C-100
off on on off on off off on
66MHz 66MHz 2x P54C-133
off on on off on on off on
66MHz 66MHz 2.5x
P54C/P55C-16
6
off on on off off on off on
66MHz 66MHz 3x
P54C/P55C-200
WinChip 2/C6-200
off on on off off off off on
66MHz 66MHz 3.5x
P55C-233
WinChip 2-
233
off off on off off on off on
75MHz 75MHz 3x
WinChip C6
225
off off off on off on on o ff
100MHz 66MHz 2.33x
WinChip 2
266
off off off on on on off off
100MHz 66MHz 2.5x
WinChip 2
300
Chapter 4 Hardware Settings
16 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
For Cyrix 6x86, 6x86L, 6x86MX, MII CPU
SW1
CPU
Clock
AGP
Clock
Multiplier
CPU FREQ.
off on on off on off off on
66MHz 66MHz 2x
P166+
(133MHz)
off off on off on off off on
75MHz 75MHz 2x
P200+
(150MHz)
off on on off on on off on
66MHz 66MHz 2.5x
PR200
(166MHz)
off on on off off on off on
66MHz 66MHz 3x
PR233
(200MHz)
off on on off off off off on
66MHz 66MHz 3.5x
PR266
(233MHz)
off off on off on on off on
75MHz 75MHz 2.5x
PR233
(187.5MHz)
off on off off on on off off
83MHz 66MHz 2.5x
MII-266
(208MHz)
off on off off off on off off
83MHz 66MHz 3x
MII-333
(250MHz)
off off off on on on off off
100MHz 66MHz 2.5x
MII-366
(250MHz)
off off off on off on off off
100MHz 66MHz 3x
MII-380
(300MHz)
on o ff off on off off off off
95MHz 63MHz 3.5x
MII-400
(333MHz)
Chapter 4 Hardware Settings
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 17
off off off on off off off off
100MHz 66MHz 3.5x
MII-433
(350MHz)
on off off on on off on off
95MHz 64MHz 4x
MII-450
(380MHz)
off off off on on off on off
100MHz 66MHz 4x
MII-466
(400MHz)
For AMD K5, K6, K6-2, K6-3 CPU
SW1
CPU
Clock
AGP
Clock
Multiplier CPU FREQ.
off on on off off off off on
66MHz 66MHz 1.5x PR100
off on on off on off off on
66MHz 66MHz 2x PR133
off on on off on on off on
66MHz 66MHz 2.5x
PR166 /
K6-166
off on on off off on off on
66MHz 66MHz 3x K6-200
off on on off off off off on
66MHz 66MHz 3.5x K6-233
off on on off on off on on
66MHz 66MHz 4x K6-266
off on on off on on on on
66MHz 66MHz 4.5x K6-300
Chapter 4 Hardware Settings
18 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
off off off on off on off off
100MHz 66MHz 3x K6-2/300
on o ff off on off off off off
95MHz 64MHz 3.5x K6-2/333
off off off on off off off off
100MHz 66MHz 3.5x K6-2/350
off on on off off off on on
66MHz 66MHz 5.5x K6-2/366
on off off on on off on off
95MHz 64MHz 4x
K6-2/380
off on on off on off off on
66MHz 66MHz
6x K6-2/400
off off off on on off on off
100MHz 66MHz 4x
K6-2/400 K6-3/400
off off off on on on on off
100MHz 66MHz 4.5x
K6-2/450 K6-3/450
on off off on off on on off
95MHz 66MHz 5x
K6-2/475 K6-3/475
off off off on off on on o ff
100MHz 66MHz 5x
K6-2/500 K6-3/500
Chapter 4 Hardware Settings
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 19
4.2 JP1: DRAM Operating Frequency
JP1 SDRAM Frequency
pin 1-2 short Run CPU Clock pin 2-3 short Run AGP Clock
NOTE
: Set the SDRAM Frequency to
Run CPU Clock
only when the
CPU clock is 100MHz and the DIMM modules are PC-100.
4.3 SW2(1-4): CPU V
CORE
Voltage Selector
SW3(1-4): CPU V
IO
Voltage Selector (optional)
For Single Voltage CPU:
SW2 SW3 V
CORE /VIO
CPU
on on on on
off on on on
3.5V
Intel P54C, Cyrix 6x86,
AMD K5, IDT WinChip C6
For Dual Voltage CPU:
Intel P55C, Cyri x 6x86L/MX/ MII, AMD K6/K6-2, K 6-3, WinChi p 2-3D
SW2 SW3 V
CORE
VIO CPU
on on on on
off off on on
3.5V 3.3V
WinChip 2-3D
(0.35µ)*
off on on on
off off on on
3.4V 3.3V
on off on on
off off on on
3.3V 3.3V
off off on on
off off on on
3.2V 3.3V
K6-233
(0.35µ)*
on on off on
off off on on
3.1V 3.3V
off on off on
off off on on
3.0V 3.3V
Chapter 4 Hardware Settings
20 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
SW2 SW3 V
CORE
VIO CPU
on o ff off on
off off on on
2.9V 3.3V
K6-166/200
6x86MX
off off off on
off off on on
2.8V 3.3V
WinChip 2-3D
(0.35µ)*
P55C
6x86L
on on on off
off off on on
2.7V 3.3V
off on on off
off off on on
2.6V 3.3V
on off on off
off off on on
2.5V 3.3V
off off on off
off off on on
2.4V 3.3V
K6-2/450 /475
K6-2/500
K6-3
on on off off
off off on on
2.3V 3.3V
off on off off
off off on on
2.2V 3.3V
K6, K6-2
(0.25µ)*
on o ff off off
off off on on
2.1V 3.3V
off off off off
off off on on
2.0V 3.3V
* 0.25µ and 0.35µ refer to manufacturing processes.
Chapter 4 Hardware Settings
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 21
CPU V
IO
Voltage Setting Guide
SW3 VIO SW3 VIO SW3 VIO
on on on on
3.6V
on o ff off on
3.0V
on on off off
2.4V
off on on on
3.5V
off off off on
2.9V
off on off off
2.3V
on off on on
3.4V
on on on off
2.8V
on o ff off off
2.2V
off off on on
3.3V
off on on off
2.7V
off off off off
2.1V
on on off on
3.2V
on off on off
2.6V
off on off on
3.1V
off off on off
2.5V
4.4 JP5: Clear CMOS Selection
Use JP5, a 3-pin header, to clear the contents of the CMOS RAM.
Note that the ATX-power connector should be disconnected from the motherboard before clearing CMOS.
Do not clear the CMOS RAM unless it is absolutely necessary. You will lose your password, etc.
JP5 Function JP5 Function
1 2 3
Normal
1 2 3
Clear CMOS
Chapter 5 Installation
22 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
Chapter 5 Installation
This chapter describes the connectors and interfaces that the TI5VGF provides for creating a workin g sy stem . Refer to Figu re 3 for the location of the connectors.
The following items are covered in this chapter:
5.1 I/O Connectors ..........................................................................24
5.2 J1: PS/2 Keyboard and PS/2 Mouse Connectors.......................24
5.3 J2: USB Connector....................................................................25
5.4 J3, J5 Serial Ports......................................................................25
5.5 J4: Parallel Port Connector........................................................26
5.6 J6: ATX Power Supply Connector............................................26
5.7 J7: Floppy Drive Connector ......................................................27
5.8 IDE1, IDE2: EIDE Connectors.................................................28
5.9 J8: CPU Fan Power Connector..................................................29
5.10 J9: IrDA Connector.................................................................29
5.11 J10 Wake on LAN Connector.................................................29
5.12 J12: Chassis Fan Power Connector..........................................29
5.13 J13 Front Bezel Connector......................................................30
Speaker: Pins 1 - 4 Power LED and Keylock: Pins 11 - 15 CPU Overheat LED: Pins 6 and 16 ATX Power ON Switch: Pins 7 and 17 Turbo LED Connector: Pins 8 and 18 Reset Switch: Pins 9 and 19 Hard Disk Drive LED Connector: Pins 10 and 20
Chapter 5 Installation
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 23
Figure 3: Connector Location on the TI5VGF
Chapter 5 Installation
24 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
5.1 I/O Connectors
The I/O connectors connect the TI5VGF to the most common peripherals. To attach cables to these connectors, carefully align Pin 1 of the cables to that of the connectors. Ref er to Figure 4 for the location and orientation of the connectors.
Figure 4: Orientation of the I/O Connector
5.2 J1: PS/2 Keyboard and PS/2 Mouse Connectors
Below are the pin-out assignments of the connectors.
Signal Name Keyboard Mouse Signal Name
Keyboard data 1 1 Mouse data
N.C. 2 2 N.C.
GND 3 3 Ground
5V 4 4 5V
Keyboard clock 5 5 Mouse Clock
N.C. 6 6 N.C.
PS/2 Mouse
PS/2 Keyboard
Chapter 5 Installation
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 25

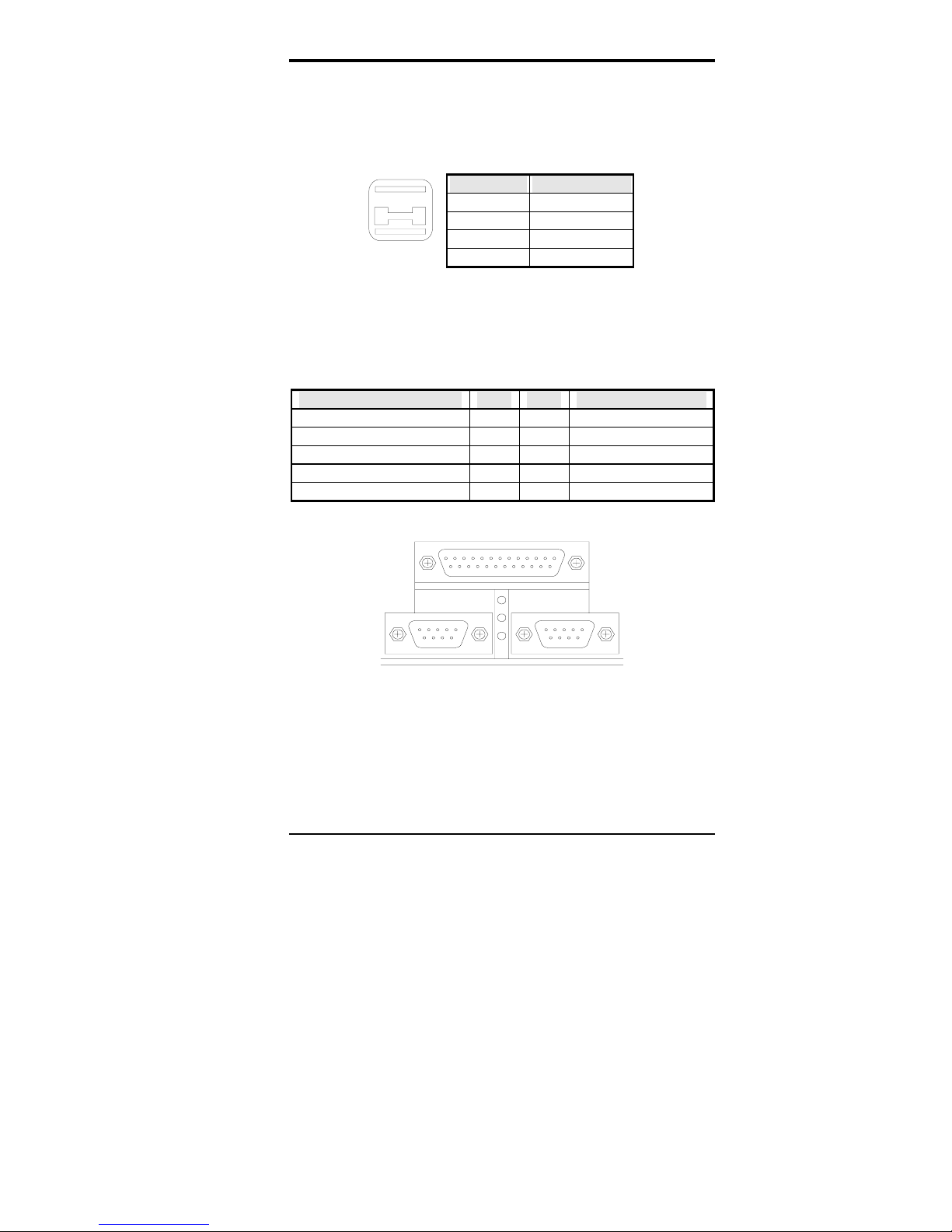

5.3 J2: USB Connector
J2 is the standard USB external connector consisting of two ports. USB support allows con nections of up to 64 plug and play ext ernal peripherals per channel. The following table shows the pin outs of these ports.
J2 Pin # Signal Name
1/5 Vcc 2/6 USB­3/7 USB+
USB0
USB1
4/8 Ground
5.4 J3, J5 Serial Ports
The onboard serial ports of the TI5VG, J3 and J5, are two DB-9 external connectors. The following table shows the pin-out assignments of the these connectors.
Signal Name Pin # Pin # Signal Name
DCD, Data carrier detect 1 6 DSR, Data set ready
RXD, Receive data 2 7 RTS, Request to send
TXD, Transmit data 3 8 CTS, Clear to send
DTR, Data terminal ready 4 9 RI, Ring indicator
GND, ground 5 10 Not Used
J4 (Parallel Port)
J3 (COM1 ) J5 (COM2)
Chapter 5 Installation
26 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
5.5 J4: Parallel Port Connector
J4 is a DB-25 external connector. The following table describes the pin­out assignments of this connector. See the figure on the previous page.
Signal Name Pin # Pin # Signal Name
Line printer strobe 1 14 AutoFeed PD0, parallel data 0 2 15 Error PD1, parallel data 1 3 16 Initialize PD2, parallel data 2 4 17 Select PD3, parallel data 3 5 18 Ground PD4, parallel data 4 6 19 Ground PD5, parallel data 5 7 20 Ground PD6, parallel data 6 8 21 Ground PD7, parallel data 7 9 22 Ground ACK, acknowledge 10 23 Ground
Busy 11 24 Ground
Paper empty 12 25 Ground
Select 13 N/A N/A

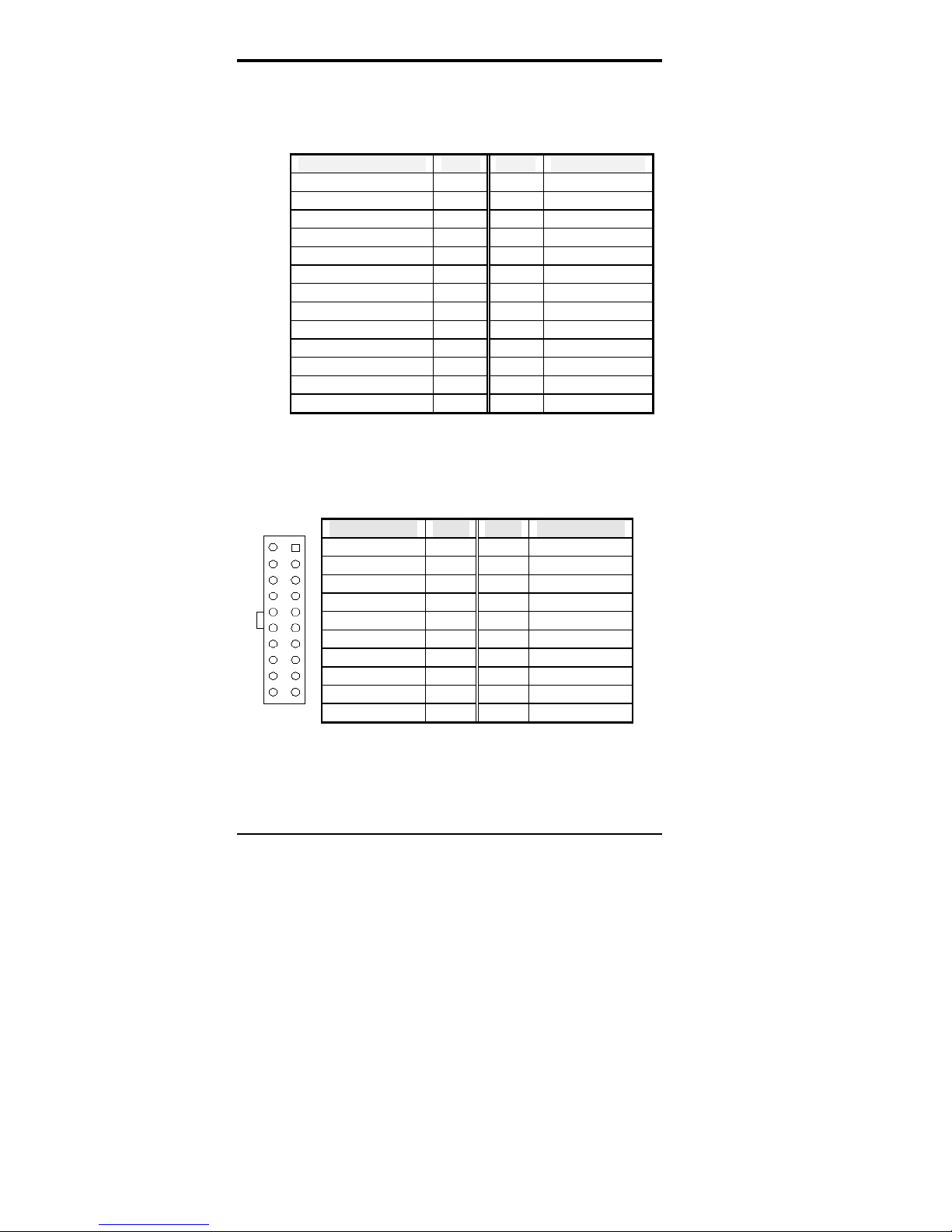

5.6 J6: ATX Power Supply Connector
J6 is a 20-pin ATX power supply con n ect or. R ef e r to t h e f ol lowing table for the pin out assignments.
Signal Name Pin # Pin # Signal Name
3.3V 11 1 3.3V
-12V 12 2 3.3V
Ground 13 3 Ground
PS-ON 14 4 +5V Ground 15 5 Ground Ground 16 6 +5V Ground 17 7 Ground
-5V 18 8 Power good +5V 19 9 5VSB +5V 20 10 +12V
11 1
20 10
Chapter 5 Installation
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 27

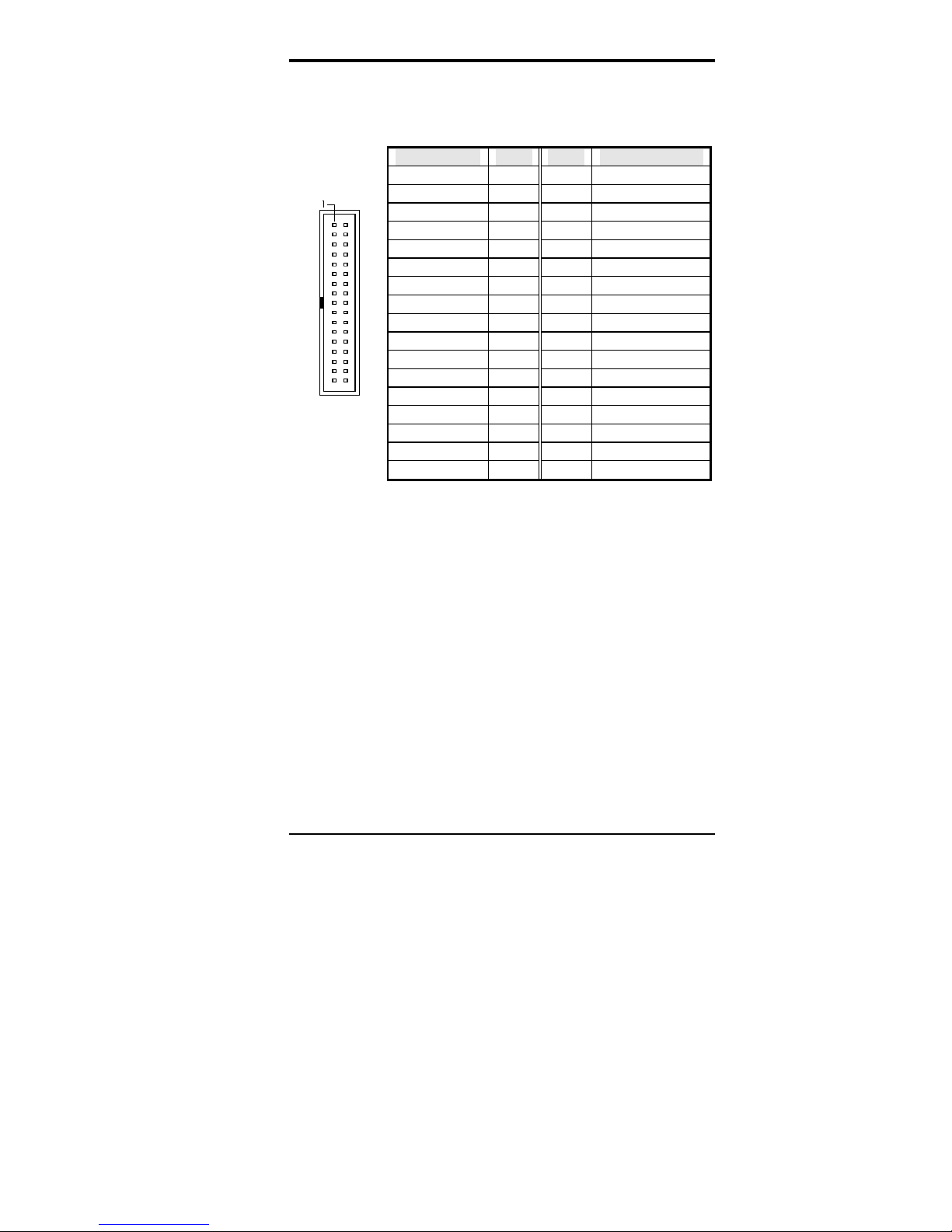

5.7 J7: Floppy Drive Connector
J7 of the TI5VGF is a 34-pin header and will support up to 2.88MB floppy drives.
Signal Name Pin # Pin # Signal Name
Ground 1 2 RM/LC Ground 3 4 No connect Ground 5 6 No connect Ground 7 8 Index Ground 9 10 Motor enable 0 Ground 11 12 Drive select 1 Ground 13 14 Drive select 0 Ground 15 16 Motor enable 1 Ground 17 18 Direction Ground 19 20 Step Ground 21 22 Write data Ground 23 24 Write gate Ground 25 26 Track 00 Ground 27 28 Write protect Ground 29 30 Read data Ground 31 32 Side 1 select Ground 33 34 Diskette change
Chapter 5 Installation
28 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
5.8 IDE1, IDE2: EIDE Connectors
IDE1: Primary IDE Connector
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground Host data 7 3 4 Host data 8 Host data 6 5 6 Host data 9 Host data 5 7 8 Host data 10 Host data 4 9 10 Host data 11 Host data 3 11 12 Host data 12 Host data 2 13 14 Host data 13 Host data 1 15 16 Host data 14 Host data 0 17 18 Host data 15
Ground 19 20 Key
DRQ0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK0 29 30 Ground
IRQ14 31 32 No connect Address 1 33 34 No connect Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activity 39 40 Ground
IDE2: Secondary IDE Connector
Signal Name Pin # Pin # Signal Name
Reset IDE 1 2 Ground
Host data 7 3 4 Host data 8 Host data 6 5 6 Host data 9 Host data 5 7 8 Host data 10 Host data 4 9 10 Host data 11 Host data 3 11 12 Host data 12 Host data 2 13 14 Host data 13 Host data 1 15 16 Host data 14 Host data 0 17 18 Host data 15
Ground 19 20 Key
DRQ0 21 22 Ground
Host IOW 23 24 Ground
Host IOR 25 26 Ground
IOCHRDY 27 28 Host ALE
DACK1 29 30 Ground
MIRQ0 31 32 No connect Address 1 33 34 No connect Address 0 35 36 Address 2
Chip select 0 37 38 Chip select 1
Activity 39 40 Ground
Chapter 5 Installation
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 29
5.9 J8: CPU Fan Power Connector
J8 is a 3-pin header for the CPU fan power connector. The fan mus t be a 12V fan.
Pin # Signal Name
1 Fan sensor 2 +12V
3 2 1
3 Ground
5.10 J9: IrDA Connector
This connector is used for an IrDA connector that supports infrared wireless communication with IrDA devices.
Pin # Signal Name
1 +5V 2 No connect 3 Ir RX 4 Ground
+5V IRRX IRTX
N.C. GND
5 Ir TX
5.11 J10 Wake on LAN Connector
J10 is a 3-pin header for Wake on LAN function on the motherboard.
Pin # Signal Name
1 5VSB 2 Ground
3 2 1
3 Wake on LAN
5.12 J12: Chassis Fan Power Connector
J12 is a 3-pin header for the chassi s fan power con nector. The fan must be a 12V fan.
Pin # Signal Name
1 Fan sensor 2 +12V
3 2 1
3 Ground
Chapter 5 Installation
30 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual

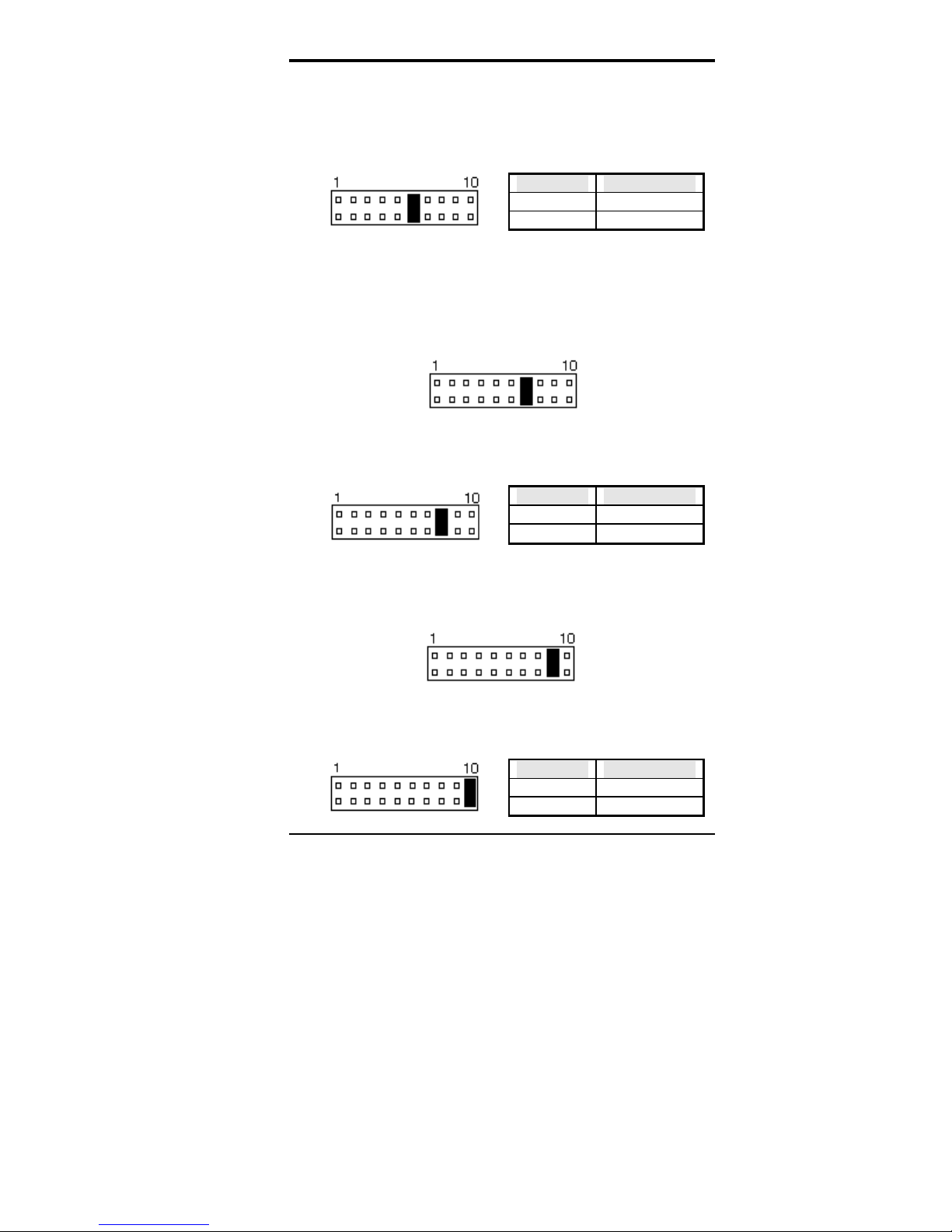

5.13 J13 Front Bezel Connector
The front bezel of the case has a control panel which provides light indication of the computer activities and switches to chang e the computer status. J13 is a 20-pin header that provides interfaces for the following functions.
Hard Disk Drive LED
Reset Switch
Turbo LED Connector
ATX Power On Switch
CPU Overheat LED
Power LED and Keylock
Speaker
Speaker: Pins 1 - 4
This connector provides an interface to a speaker for audio tone generation. An 8-ohm speaker is reco mmended.
J13 Pin # Signal Name
1 Speaker out 2 No connect 3 Ground 4 +5V
Power LED and Keylock: Pins 11 - 15
The power LED indicates the status of the main power switch. The keylock switch, when closed, will disable the keyboard function.
J13 Pin # Signal Name
11 Power LED 12 No connect 13 Ground 14 Keylock 15 Ground
Chapter 5 Installation
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 31
CPU Overheat LED: Pins 6 and 16
This connector connects to the CPU Overheat LED that lights up when CPU temperature exceeds the CPU warnin g temperature set in the BIOS. When this occurs, the system slows down until the temperature falls to a safe level.
J13 Pin # Signal Name
6 5V
16 Ground
ATX Power ON Switch: Pins 7 and 17
This is an “ATX Power Supply On/Off Switch” that is connected to the power sw itch on th e case. When pressed f or more than 4 seconds, the system powers off. When pressed for less than 4 seconds, the sy st em enters the Suspend Mode (depending on BIOS pre-settings).
Turbo LED Connector: Pins 8 and 18
There is no turbo/deturbo function on the motherboard. The Turbo LED will always be On w hen lin ked to this connector.
J13 Pin # Signal Name
8 5V
18 Ground
Reset Switch: Pins 9 and 19
The reset switch allows the user to reset the system without turning Off the main power and then On. Orientation is not required when making a connection to this header.
Hard Disk Drive LED Connector: Pins 10 and 20
This connector connects to the hard drive activity LED on the control panel. The LED flashes when HDD is in use.
J13 Pin # Signal Name
10 Ground 20 5V
Chapter 5 Installation
32 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
This page was intentionally left blank.
Chapter 6 BIOS Configuration
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 33
Chapter 6 BIOS Configuration
This chapter describes the different settings available in the Aw ard BIOS that comes with the TI5VGF motherboard. The topics covered in this chapter are as follows:
6.1 BIOS Introduction.....................................................................36
6.2 BIOS Setup ...............................................................................36
6.3 Standard CMOS Setup..............................................................38
Date Time Primary HDDs / Secondary HDDs Drive A / Drive B Floppy 3 Mode Support Video Halt On
6.4 BIOS Features Setup.................................................................41
Virus Warning CPU Internal Cache / External Cache Quick Power On Self Test Boot Sequence Swap Floppy Drive Boot Up Floppy Seek Boot Up NumLock Status Boot Up System Speed Gate A20 Option Memory Parity/ECC Check Typematic Rate Setting Typematic Rate (Chars/Sec) Typematic Delay (Msec) Security Option PCI/VGA Palette Snoop OS Select for DRAM > 64MB HDD S.M.A.R.T. capability Video BIOS Shadow C8000 - CBFFF Shadow/DC000 - DFFFF Shadow
6.5 Chipset Features Setup.............................................................. 44
Bank DRAM Timing SDRAM Cycle Length SDRAM Bank Interleave
Chapter 6 BIOS Configuration
34 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
DRAM Read Pipeline Sustained 3T Write Cache Rd+CPU Wt Pipeline Read Around Write Cache Timing Video BIOS Cacheable System BIOS Cacheable Memory Hole at 15MB Addr. AGP Aperture Size Cyrix M2 ADS# delay CPU/PCI Clock Select Auto Detect DIMM/PCI Clk Spread Spectrum OnChip USB USB Keyboard Support CPU Warning Temperature Temperature/Fan Speed/Voltage
6.6 Power Management Setup......................................................... 47
Power Management PM Control by APM Video Off Method Modem Use IRQ Soft-Off by PWRBTN HDD Power Down Doze Mode Suspend Mode PM Events
6.7 PNP/PCI Configuration.............................................................50
PNP OS Installed Resources Controlled by Reset Configuration Data ACPI I/O Device Node IRQ3/4/5/7/9/10/11/12/14/15, DMA0/1/3/5/6/7 assigned to CPU to PCI Write Buffer PCI Dynamic Bursting PCI Master 0 WS Write PCI Delay Transaction PCI Master Read Prefetch PCI#2 Access #1 Retry AGP Master 1 WS Write AGP Master 1 WS Read
Chapter 6 BIOS Configuration
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 35
PCI IRQ Activated by Assign IRQ for USB/VGA
6.8 Load BIOS Defaults..................................................................52
6.9 Load Setup Defaults..................................................................52
6.10 Integrated Peripherals .............................................................53
OnChip Primary/Secondary PCI IDE IDE Prefetch Mode IDE HDD Block Mode IDE Primary/Secondary Master/Slave PIO IDE Primary/Secondary Master/Slave UDMA Onboard FDD Controller Onboard Serial/Parallel Port UART 2 Mode Onboard Parallel Mode
6.11 Supervisor / User Password.....................................................55
6.12 IDE HDD Auto Detection.......................................................56
6.13 HDD Low Level Format .........................................................56
6.14 Save & Exit Setup...................................................................57
6.15 Exit Without Saving................................................................57
Chapter 6 BIOS Configuration
36 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
6.1 BIOS Introduction
The Award BIOS (Basic Input/Output System) installed in your computer system’s ROM supports Intel/Cyrix/AMD processors in a standard IBM-AT compatible I/O system. The BIOS provides critical low-level support for standard devices such as disk drives, serial and parallel ports. It also adds virus and password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.
6.2 BIOS Setup
The Award BIOS provides a Setup utility program for specifying the system conf ig u rations an d s etting s . The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the Award BIOS is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> k ey, POST(Power On Self Test) will continue with its test routines, thus preventing you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the ”Reset” button or simultaneously pressing the <Ctrl>, <Alt> and <Delete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> a nd <PgDn> keys to change entries, <F1> for help and <Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.
Chapter 6 BIOS Configuration
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 37
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOF T WARE, INC.
STANDARD CMOS SETUP
INTEGRATED PERIPHERALS BIOS FEATURES SETUP SUPERVISOR PASSWORD CHIPSET FEATURES SETUP USER PASSWORD POWER MANAGE ME NT SETUP IDE HDD AUTO DETECTION PNP/PCI CONFIGURATION HDD LOW LEVEL FO RMAT LOAD BIOS DEFAULTS SAVE & EXIT SETUP LOAD SETUP DEFAULTS EXIT WITHOUT SAVING ESC : Quit
Ç È Æ Å
: Select Item
F10 : Save & Exit Setup (Shift) F2 : Change Color
Time, Date, Hard Disk Type
The section below the setup items of the Main Menu displays the control keys for this menu. Another section at the bottom of the Main Menu just below the control keys section displays information on the currently highlighted item in the list.
NOTE: After making and saving system changes with Setup, you find
that your computer cannot boot, the Award BIOS supports an override to the CMOS settings that resets your system to its default.
We strongly recommend that you avoid making any changes to
the chipset defaults. These defaults have been carefully chosen by both Award and your system manufacturer to provide the absolute maximum performance and reliability.
Chapter 6 BIOS Configuration
38 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
6.3 Standard CMOS Setup
Standard CMOS Setup choice allows you to record some basic hardware configurations in your computer system and set the system clock and error handling. If the motherboard is already installed in a working system , you will not need to select this option. You will need to run the Standard CMOS option, however, if you cha nge your system hardware configurations, the onboard battery fails, or the configuration stored in the CMOS memory was lost or damaged.
ROM PCI/ISA BIOS STANDARD CMOS SETUP AWARD SOFTWARE, INC.
Date (mm:dd:yy) :
Mon
, Aug 19 1996
Time (hh:mm:ss) : 00 : 00 : 00
HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master Auto 0 0 0 0 0 0 Auto Primary Slave
None
0 0 0 0 0 0
-----
Secondary Master None
0 0 0 0 0 0
-----
Secondary Slave None
0 0 0 0 0 0
-----
Drive A : 1.44M, 3.5in
Base Memory : 640K
Drive B : None
Extended Memory : 15360K
Floppy 3 Mode Support : Disabled
Other Memory : 384K Video : EGA / VGA Halt On : All Errors
Total Memory : 16384K
ESC : Quit
Ç È Æ Å
: Select Item PU / PD / + / - : Modify
F1 : Help
(Shift) F2 : Change Color
At the bottom of the menu are the control keys for use on this menu. If you need any help in each item field, you can press the <F1> key. It will display the relevant information to help you. The memory display at the lower right-hand side of the menu is read-only. It will adjust automatically according to the memory changed. The following describes each item of this menu.
Date
The date format is:
Day : Sun to Sat Month : 1 to 12 Date : 1 to 31 Year : 1994 to 2079
To set the date, highlight the “Date” field and use the PageUp/ PageDown or +/- keys to set the current time.
Chapter 6 BIOS Configuration
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 39
Time
The time format is:
Hour : 00 to 23 Minute : 00 to 59 Second : 00 to 59
To set the time, highlight the “Time f ield and u se the <PgUp>/ <PgD n> or +/- keys to set the current time.
Primary HDDs / Secondary HDDs
The onboard PCI IDE connectors provide Primary and Secondary channels for co nnecting up to four IDE hard disks or other IDE devices. Each channel can support up to two hard disks; the first is the “Master” and the second is the “Slave”.
To enter the specifications for a hard disk drive, you must select first a Type. There are 45 predefin ed types and 4 user definable types are for Enhanced IDE BIOS. Type 1 to 45 are predefined. Type “User” is user-definable. For the Primary Master/Slave as well as Secondary Master/Slave, you can select “Auto” under the TYPE and MODE fields. This will enable auto detection of your IDE drives and CD-ROM drive during POST.
Press <PgUp>/<PgDn> to select a numbered hard disk type or type the number and press the <Enter> key. The hard disk will not work properly if you enter incorrect informatio n for this field. If your hard disk drive type is not matched or listed, you can use Type User to define your own drive type manually . If y ou select Type User, related information is asked to be entered to the following items.
CYLS :
Number of cylinders
HEAD :
Number of read/write heads
PRECOMP :
Write precompensation
LANDZ :
Landing zone
SECTOR :
Number of sectors
SIZE :
Automatically adjust according to the configuration
MODE (for IDE HDD only) :
Auto Normal (HD < 528MB) Large (for MS-DOS only) LBA (HD > 528MB and supports
Logical Block Addressing)
Chapter 6 BIOS Configuration
40 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
NOTE: The specifications of your drive must match with the drive table.
The hard disk will not work properly if you enter incorrect information in these fields. If your hard disk drive type is not matched or listed, you can use Type User to define your own drive type manually.
Drive A / Drive B
These fields identify the types of floppy disk drive A or drive B that has been installed in the computer. The available specifications are: 360KB
5.25 in.
1.2MB
5.25 in.
720KB
3.5 in.
1.44MB
3.5 in.
2.88MB
3.5 in.
Floppy 3 Mode Support
This is the Japanes e s tandard f loppy driv e. The stan dard stores 1.2MB in a 3.5-inch diskette. You have four options to choose: Disabled No 3 mode floppy drive installed. (default) Drive A Installed 3 mode drive at drive A. Drive B Installed 3 mode drive at drive B. Both Installed 3 mode drive at drive A and B.
Video
This field selects the type of video display card installed in your system. You can choose the following video display cards: EGA/VGA For EGA, VGA, SEGA, SVGA or PGA monitor adapters. (default) CGA 40 Power up in 40 column mode. CGA 80 Power up in 80 column mode. MONO For Hercules or MDA adapters.
Halt On
This field determines whether the system will halt if an error is detected during power up.
No errors Whenever the BIOS detects a non-fatal error,
the system will stop and you will be prompted.
All errors The system boot will n ot be halted for any error
that may be detected. (default)
All, But Keyboard The system boot will not be halted for a
keyboard error; it will stop for all other errors.
All, But Diskette The system boot will not be halted for a disk
error; it will stop for all other errors.
All, But Disk/Key The system boot will not be halted for a key-
board or disk error; it will stop for all others.
Chapter 6 BIOS Configuration
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 41
6.4 BIOS Features Setup
This section allows you to configure and im prove y our system and allows you to set up some system features according to your preference.
ROM / PCI ISA BIOS
BIOS FEATURES SETUP
AWARD SOFTWARE, INC.
Virus Warning
: Disabled
Video BIOS Shadow
: Enabled
CPU Internal Cache : Enabled C8000-CBFFF Shadow
: Disabled
External Cache : Enabled CC000-CFFFF Shadow
: Disabled
Quick Power On Self Test : Enabled D0000-D3FFF Shadow
: Disabled
Boot Sequence : A, C, SCSI D4000-D7FFF Shadow
: Disabled
Swap Floppy Drive : Disabled D8000-DBFFF Shadow
: Disabled
Boot Up Floppy Drive : Enabled DC000-DFFF Shadow
: Disabled Boot Up Numlock Status : On Boot Up System Speed : High Gate A20 Option : Fast Memory Parity/ECC Check : Disabled Typematic Rate Setting : Disabled Typematic Rate (chars/Sec) : 6 Typematic Delay (Msec) : 250 Security Option : Setup PCI /VGA Palette Snoop : Disabled OS Select For DRAM>64MB : Non-OS2 ESC : Quit
Ç È Æ Å
: Select Item
F1 : Help
PU/PD/+/- : Modify
HDD S.M.A.R.T. Capability : Disabled
F5 : Old Values (Shift) F 2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
Virus Warning
This item protects the boot sector and partition table of your hard disk against accidental modifications. If an attempt is made, the BIOS will halt the system and display a warning message. If this occurs, you can either allow the operation to continue or run an anti-virus program to locate and remove the problem.
NOTE: Many disk diagnostic programs which attempt to access the
boot sector table can cause the virus warning. If you will run such a program, disable the Virus Warning feature.
CPU Internal Cache / External Cache
These items allow you to en able (speed up m emory access) or disable th e cache function. By default, these items are
Enabled
.
Chapter 6 BIOS Configuration
42 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
Quick Power On Self Test
This choice speeds up the Power On Self Test (POST) after you power up the system. If it is set to
Enabled
, BIOS will skip some items. By default,
this choice is
Enabled
.
Boot Sequence
This field determines the drive that the system searches first for an operating system. The options are:
A, C, SCSI D, A, SCSI SCSI, C, A C, A, SCSI E, A, SCSI C only C, CDROM, A F, A, SCSI LS/ZIP, C CDROM, C, A SCSI, A, C
The default value is
A, C, SCSI
.
Swap Floppy Drive
This item all ows you to determine whether t o en able S wap Floppy Drive or not. When enabled, the BIOS swaps floppy drive assignments so that Drive A becomes Drive B, and Drive B becomes Drive A. By default, this field is set to
Disabled.
Boot Up Floppy Seek
When enabled, the BIOS will seek whether or not the floppy drive installed has 40 or 80 tracks. 360K type has 40 track s w hile 760K, 1.2M and 1.44M all have 80 tracks. By default, this field is set to
Enabled.
Boot Up NumLock Status
This allows you to activate the Num Lock fu nction after y ou power up the system. By default, the system boots up with
NumLock
On.
Boot Up System Speed
This has no function and sele cts the default system speed
(High).
Gate A20 Option
This field allows you to select how Gate A20 is worked. The Gate A20 is a device used to address mem ory abov e 1 MB. By defau lt, this field is set to
Fast.
Memory Parity/ECC Check
Set this option to Enabled, when the memory installed in your system supports ECC (error correction code) or pari ty. By def ault, this field is set to
Disabled.
Chapter 6 BIOS Configuration
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 43
Typematic Rate Setting
When disabled, continually holding down a key o n your keyboard will generate only one in stance. When en abled, you can set th e tw o ty pematic controls listed next. By default, this field is set to
Disabled.
Typematic Rate (Chars/Sec)
When the typematic rate is enabled, the system registers repeated keystrokes speeds. You can select speed range from 6 to 30 characters per second. By default, this item is set to
6.
Typematic Delay (Msec)
When the typematic rate is enabled, this item allows you to set the time interval for displaying the first and second characters. By default, this item is set to
250msec.
Security Option
This field allows you to limit access to th e Syst em and Setu p. The default value is
Setup
. When you select
System,
the system prompts for the User
Password every time you boot up. When you select
Setup,
the system
always boot s u p and prompts for the Supervisor Passw ord on l y when the Setup utility is called up.
PCI/VGA Palette Snoop
Some non-standard VGA display cards may not show colors properly. This field allows you to set whether MPEG ISA/VESA VGA Cards can work with PCI/VGA or not. When this field is enabled, a PCI/VGA can work with a MPEG ISA/VESA VGA card. When this field is disabled, a PCI/VGA cannot work with a MPEG ISA/VESA Card.
OS Select for DRAM > 64MB
This option allows the system to access greater than 64MB of DRAM memory when used with OS/2 that depends on certain BIOS calls to access memory. The default setting is
NON-OS/2
.
HDD S.M.A.R.T. Capability
This option enables and disables the S.M.A.R.T. (Self-Monitoring, Analysis, and Reporting Technology) capability of the hard disks.
Video BIOS Shadow
This item allows you to change the Video BIOS location from ROM to RAM. Video Shadow will increase the video speed.
C8000 - CBFFF Shadow/DC000 - DFFFF Shadow
Shadowing a ROM reduces the memory available between 640KB to 1024KB. These fields determine wh ether optional ROM w ill be copied to RAM or not.
Chapter 6 BIOS Configuration
44 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
6.5 Chipset Features Setup
This Setup menu controls the configuration of the mo therbo a rd chipset.
ROM PCI/ISA BIOS
CHIPSET FEATURES SETUP
AWARD SOFTW ARE INC.
Bank 0/1 DRAM Timing
:
SDRAM 8ns OnChip USB : Enable d
Bank 2/3 DRAM Timing
:
SDRAM 8ns USB Keyboard Support : Di sabled
Bank 4/5 DRAM Timing
:
SDRAM 8ns CPU Warning Temperature
: 75°C/167°F
SDRAM Cycle Length
:
3 Current System Temp :
Sustained 3T Write
:
Enabled Current CPU Temperature :
DRAM Read Pipeline
:
Enabled CPU FAN Speed :
Cache Rd+CPU Wt Pipeline
:
Enabled CHASSIS FAN Speed :
Cache Timing
:
Fast VCORE : VIO
Video BIOS Cacheable
:
Enabled VCC3 :
System BIOS Cacheable
:
Disabled +12 V : +5 V :
Memory Hole At 15MB
:
Disabled - 5V : -12 V :
AGP Aperture Size
:
64M Shutdown Temperature
: 70°C/158°F
CPU/PCI Clock Select
:
Default
Auto Detect DIMM/PCI Clk
:
Disabled
Spread Spectrum
:
Disabled ESC : Quit
Ç È Æ Å
: Select Item
Cyrix M2 ADS# delay
:
Disabled F1 : Help PU/PD/+/- : Modify F5 : Old Values (Shift) F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
Bank DRAM Timing
These fields define the s peed of the DRAM m emory onboard. By def ault, these fields are set to
SDRAM 8ns
.
SDRAM Cycle Length
This field sets the SDRAM cycle length to either 2 or 3. The default setting is 3.
Sustained 3T Write
This field allows support for PBSRAM sustained 3T write. By default, this field is set
Enabled
.
DRAM Read Pipeline
When enabled, this f ield su pports pipelin ing of DRA M reads The defau lt setting is
Enabled
.
Cache Rd+CPU Wt Pipeline
When enabled, this item allows pipelining of cache reads and CPU writes. The default setting is
Enabled.
Chapter 6 BIOS Configuration
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 45
Cache Timing
This field sets the tim ing of the cache in the sy s tem . The options are
Fast
and
Fastest
. By default, this field is set to
Fast
.
Video BIOS Cacheable
When enabled, access to video BIOS addressed at C0000H to C7FFFH are cached, provided that the cache controller is enabled.
System BIOS Cacheable
When enabled, access to the system BIOS ROM addressed at F0000H-FFFFFH are cached, provided that the cache controller is enabled.
Memory Hole at 15MB Addr.
In order to improve performance, certain space in memory can be reserved for ISA cards. This field allows you to reserve 15MB to 16MB memory address space to ISA expans ion cards. This ma kes mem ory f rom 15MB and up unavailable to the sy stem. Expan sion cards can only access memory up to 16MB. By default, this field is set to
Disabled.
AGP Aperture Size
The field sets aperture size of the graphics. The aperture is a portion of the PCI memory address range dedicated for graphics memory address space. Host cycles that hit the aperture range are forwarded to the AGP without any translation. The default setting is
64M.
CPU/PCI Clock Select
The default settings for the CPU/PCI clock are
66/33MHz
(default) and
100/33MHz
, depending on the bus speed of the CPU you have installed. If overclocking causes the system to be unstable, use the defaults. Note that
112/37MHz, 124/41MHz
and
133/44MHz
settings are only
supported if your motherboard has an ICS 9148AF-58 clock generator.
IMPORTANT NOTE:
When your system does not boot because the CPU has been changed, turn off the computer by pressing the power button and turn it on ag ain by pr essing t he
Insert
key and the
power button simultaneously. (
Note to press the
Insert
key until an
image appears on the screen.
) When the system is turned on, press
the
Delete
key to enter BIOS Setup and configure the CPU speed.
Auto Detect DIMM/PCI Clk
When enabled, the system automatically shuts off clocks of unused DIMM/PCI slots. This field is for CE testing use only.
Chapter 6 BIOS Configuration
46 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
Spread Spectrum
This field sets the value of the spread spectrum. Options are
Disabled
,
1.8% (CNTR), 0.6% (CNTR), 1.8% (DOWN), and 0.6% (DOWN). The default setting is
Disabled
. This field is for CE testing use only
.
Cyrix M2 ADS# delay
This field is only visible when your system supports a Cyrix M2 processor. It enables or disables the ADS# delay signal for Cyrix M2.
OnChip USB
This field allows you either to enable or disable the USB function.
USB Keyboard Support
This field has a default setting of
Disabled.
CPU Warning Temperature
When the CPU reaches the CPU Warning Temperature, the system alarms the user through the speaker.
Temperature/Fan Speed/Voltage
The values for the system/CP U temperature, CPU/chassis fan speed and system voltages are displayed as monitored by the H/W monitoring IC.
Shutdown Temperature
The system automatically shuts down when the system temperature reaches the value set in this field.
Chapter 6 BIOS Configuration
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 47
6.6 Power Management Setup
ROM PCI/ISA BIOS (2A59IM29)
POWER MANAGEMENT SETUP
AWARD SOFTWARE, INC.
ACPI Function : Enabled Primary INTR : ON Power Management : User Define IRQ3 (COM2) : Primary PM Control by APM : Yes IRQ4 (COM1) : Primary Video Off Option : Suspend -> Off IRQ5 (LPT 2) : Primary Video Off Method : V/H SYNC +Blank IRQ6 (Floppy Disk) : Primary MODEM Use IRQ : 3 IRQ7 (LPT 1) : Primary Soft-Off by PWRBTN : Instant-Off IRQ8 (RTC Al arm) : Disabled
** PM Timers ** IRQ9 (IRQ2 Redir) : Secondary HDD Power Down : Disabled IRQ10 (Reserved) : Secondary Doze Mode : Disabled IRQ11 (Reserved) : Secondary Suspend Mode : Disabled IRQ12 (PS/2 Mouse) : Primary
** PM Events ** IRQ13 (Coprocessor) : Primary VGA : OFF IRQ14 (Hard Disk) : Primary LPT & COM : LPT / COM IRQ15 (Reserved) : Primary HDD & FDD : ON DMA / master : OFF ESC : Quit
Ç È Æ Å
: Select Item
Modem Ring Resume : Disabled F1 : Help
PU/PD/+/- : Modify RTC Alarm Resume : Disabl ed F5 : Old Values (Shift) F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
ACPI Function
This field allows you to enable or disable the ACPI (Advanced Configuration Power Interface) function of the motherboard.
Power Management
This field all ows you to select the t ype of power sa ving management modes. There are four selections for Power Management.
Disabled No power management. Min. Power Saving Minimum power management. Max. Power Saving Maximum power management. Only
available for SL CPU.
User Define Each of the ranges i s f rom 1 min. to 1hr.
Except for HDD Power Down which ranges from 1 min. to 15 min.
(Default)
NOTE
:
In order to enable the CPU overheat protection feature, the Power Management field should not be set to Disabled.
PM Control by APM
This field allows you to use the Advanced Power Management device to enhance the Max. Power Savin g m ode and stop the C PU’s internal clock. If the Max. Power Saving is not enabled, this will be preset to NO.
Chapter 6 BIOS Configuration
48 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
Video Off Option
This field allows the user to enable or disable the Video Off feature. Video Off can take effect in either Suspend mode or Doze mode. By default, this field is set to
Suspend-->Off
.
Video Off Method
This field defines the Video Off features. There are three options.
V/H SYNC + Blank Default setting, blank the screen and turn off
vertical and horizontal scanning.
DPMS Allows the BIOS to control the video
display card if it su pports the DPMS feature.
Blank Screen This option only writes blanks to the video
buffer.
Modem Use IRQ
This field defines t he IRQ bein g used by th e modem . By default , the IRQ is set to 3.
Soft-Off by PWRBTN
This field defi nes the pow er- off m ode w hen u sing an ATX pow er su pply. The
Instant Off
mode allows pow ering off im mediatel y upon pressing th e
power button. In the
Delay 4 Sec
mode, the system powers off when the power button is pressed f or m ore than f our secon ds or enters the suspend mode when pressed for less than 4 seconds. The default value is
Instant
Off
.
HDD Power Down
When enabled, and after the set time o f system inactivity, the hard disk drive will be powered down while all other devices remain active.
Doze Mode
When enabled, and after the set time of s ystem inactivity, the CPU clock will run at a slower speed while all other devices still operate at full speed.
Suspend Mode
When enabled, and after the set time of system inactivity, all devices except the CPU will be shut off.
Chapter 6 BIOS Configuration
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 49
PM Events
The VGA, LPT & COM, HDD & FDD, DMA /master, Modem Ring Resume, RTC Alarm Resume and Primary INTR section are I/O events which can prevent the system from entering a power saving mode or can awaken the sy s tem from such a mode. When an I/O device wants to gain the attention of the operating system, it signals this by causing an IRQ to occur. When the operating system is ready to respond to the request, it interrupts itself and performs the service. The default value is
Off
. When set On, activity will neither prevent the system from going into a power management mode nor awaken it. The IRQ section sets the wake-up call of the system. If activity is detected from any enabled IRQ channels in the left-hand group, the system wakes up from suspended mode.
Chapter 6 BIOS Configuration
50 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
6.7 PNP/PCI Configuration
This option configure s the PCI bus system. All PCI bus systems on the system use INT#, thus all installed PCI cards must be set to this value.
ROM PCI/ISA BIOS
PNP/PCI Configuration
AWARD SOFTW ARE INC.
PNP OS Installed : No CPU to PCI Write Buffer : Enabled Resources Controlled by : Manual PCI Dynamic Bursting : Enabled Reset Configuration Data : Disabled PCI Master 0 WS Write : Disabled PCI Delay Transaction : Enabled IRQ-3 assigned to : Legacy ISA PCI Master Read Prefetch : Disabled IRQ-4 assigned to : Legacy ISA PCI#2 Access #1 Retry : Disabled IRQ-5 assigned to : PCI/ISA PnP AGP Master 1 WS Write : Enabled IRQ-7 assigned to : Legacy ISA AGP Master 1 WS Read : Enabled IRQ-9 assigned to : PCI/ISA PnP IRQ-10 assigned to : PCI/ISA PnP PCI IRQ Activated By : Level IRQ-11 assigned to : PCI/ISA PnP Assign IRQ For USB : Enabled IRQ-12 assigned to : PCI/ISA PnP Assign IRQ For VGA : Enabled IRQ-14 assigned to : PCI/ISA PnP IRQ-15 assigned to : PCI/ISA PnP DMA-0 assigned to : PCI/ISA PnP DMA-1 assigned to : PCI/ISA PnP ESC : Quit
Ç È Å
: Select Item
DMA-3 assigned to : PCI/ISA PnP F1 : Help
PU/PD/+/- : Modify DMA-5 assigned to : PCI/ISA PnP F5 : Old Values (Shift) F2 : Color DMA-6 assigned to : PCI/ISA PnP F6 : Load BIOS Defaults DMA-7 assigned to : PCI/ISA PnP F7 : Load Setup Defaults
PNP OS Installed
This field allows you to specify if the operating system installed in your system is plug and play aware.
Note: Operating systems such as DOS, OS/2, and Windows 3.x do not
use PnP.
Resources Controlled by
This PnP BIOS can configure all of the boot and compatible devices automatically. Howev er, this capability n eeds you to us e a PnP operating system such as Windows 95. The default value is
Manual.
Reset Configuration Data
This field allows y ou to determ ine wh ether to reset the configu ration data or not. The default value is
Disabled.
IRQ3/4/5/7/9/10/11/12/14/15, DMA0/1/3/5/6/7 assigned to
These fields allow you to determine the IRQ/DMA assigned to the ISA bus and is not available to any PCI slot.
Chapter 6 BIOS Configuration
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 51
CPU to PCI Write Buffer
When enabled, this option increases the efficiency of the PCI bus to and speed up the execution in the processor. By default, this field is set to
Enabled
.
PCI Dynamic Bursting
When enabled, this option combines several PCI cycles into one. By default, this field is set to
Enabled
.
PCI Master 0 WS Write
When enabled, this option increases the write cycle speed. By default, this field is set to
Disabled
.
PCI Delay Transaction
When enabled, this option delays PCI data transaction. By default, this field is set to
Enabled
.
PCI Master Read Prefetch
When this item is enabled, the system is allowed to prefetch the nex t read and initiate the next process. By default, this field is set to
Enabled
.
PCI#2 Access #1 Retry
This item enables PC#2 Access #1 attempts. By default, this field is set to
Disabled
.
AGP Master 1 WS Write
When enabled, writes to the AGP bus are executed with 1 wait states. By default, this field is set to
Enabled
.
AGP Master 1 WS Read
When enabled, reads to the AGP bus are executed with 1 wait states. By default, this field is set to
Enabled
.
PCI IRQ Activated by
This field allows you to select the method by which the PCI bus recognizes that an IRQ service is being requested by a device. The default value is
Level.
Assign IRQ for USB/VGA
These fields allow you to enable or disable the IRQ for USB and VGA. By default, these fields are enabled.
Chapter 6 BIOS Configuration
52 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
6.8 Load BIOS Defaults
This option allows you to load the troubleshooting default values permanently stored in the BIOS ROM. These default settings are non-optimal and disable all high-performance features.
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP SUPERVISOR PASSWORD CHIPSET FEATURES SETUP USER PASSWORD POWER MANAGE ME NT SETUP IDE HDD AUTO DETECTION PNP/PCI CONFIGURATI O N HDD LOW LEVE LF ORMAT
LOAD BIOS DEFAULTS
SAVE & EXIT SETUP LOAD SETUP DEFAULTS EXIT WITHOUT SAVING ESC : Quit
Ç È Æ Å
: Select Item
F10 : Save & Exit Setup (Shift) F2 : Change Color
Load BIOS Defaults except Standard CMOS S etup
To load BIOS defaults value to CMOS SRAM, enter “Y”. If not, enter “N”.
6.9 Load Setup Defaults
This option allows you to load the default values to your system configuration. These default settings are optimal and enable all high performance features.
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP SUPERVISOR PASSWORD CHIPSET FEATURES SETUP USER PASSWORD POWER MANAGE ME NT SETUP IDE HDD AUTO DETECTION PNP/PCI CONFIGURATION HDD LOW LEVEL FO RMAT LOAD BIOS DEFAULTS SAVE & EXIT SETUP
LOAD SETUP DEFAULTS
EXIT WITHOUT SAVING ESC : Quit
Ç È Æ Å
: Select Item
F10 : Save & Exit Setup (Shift) F2 : Change Color
Load BIOS Defaults except Standard CMOS S etup
To load SETUP defaults value to CMOS SRAM, enter “Y”. If not, enter “N”.
Load BIOS Defaults (Y/N)? N
Load Setup Defaults (Y/N)? N
Chapter 6 BIOS Configuration
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 53
6.10 Integrated Peripherals
This optio n sets your hard disk configur ation, mode and port.
ROM PCI/ISA BIOS
INTEGRATED PERIPHERALS
AWARD SOFTW ARE INC.
OnChip IDE First Channel : Enabled Onboard Parallel Port : 378H/IRQ7 OnChip IDE Second Channel : Enabled Onboard Parallel Mode : SPP IDE Prefetch Mode : Disabled IDE HDD Block Mode : Enabled IDE Primary Master PIO : Auto IDE Primary Slave PIO : Auto IDE Secondary Master PIO : Auto IDE Secondary Slave PIO : Auto IDE Primary Master UDMA : Auto IDE Primary Slave UDMA : Auto IDE Secondary Master UDMA : Auto IDE Secondary Slave UDMA : Auto
Init Display First : AGP
Onboard FDD Controller : Enabled Onboard Serial Port 1 : 3F8/IRQ4 ESC : Quit
Ç È Å
: Select Item
Onboard Serial Port 2 : 2F8/IRQ3 F1 : Help
PU/PD/+/- : Modify Uart 2 Mode : Standard F5 : Old Values (Shift) F2 : Color F6 : Load BIOS Defaults F7 : Load Setup Defaults
OnChip Primary/Secondary PCI IDE
These fields allow you eith er to enable or disable the Primary/Secondary controller. You might choose to disable the controller if you were to add a higher performance or specialized controller.
IDE Prefetch Mode
This field allows your hard disk controller to use prefetch mode to transfer data to increase the performance.
IDE HDD Block Mode
This field allows your hard disk controller to use the fast block mode to transfer data to and from your hard disk drive.
IDE Primary/Secondary Master/Slave PIO
These fields allow y our sys tem hard disk controller to work faster. Rather than have the BIOS issue a series of commands that transfer to or from the disk drive, PIO (Programmed Input/Output) allows the BIOS to communicate with the controller and CPU directly.
Chapter 6 BIOS Configuration
54 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
The system supports five modes, numbered from 0 (default) to 4, which primarily differ in timing . When Auto is selected, the BIOS will select the best available mode.
IDE Primary/Secondary Master/Slave UDMA
This field allows your system to improve disk I/O throughput to 33Mb/sec with the Ultra DMA/33 feature. The options are
Auto
and
Disabled
.
Init AGP Display First
This field allows the system to initialize first the VGA card in the AGP slot on the motherboard when system is turned on.
Onboard FDD Controller
This option allows you to select the onboard FDD port.
Onboard Serial/Parallel Port
These fields allow you to select th e on board serial and parallel ports and their addresses. The default values for these ports are: Serial Port 1 3F8/IRQ4 Serial Port 2 2F8/IRQ3 Parallel Port 378H/IRQ7
UART 2 Mode
This field determines the UART 2 mode in your computer. The options are
Standard, HPSIR
, and
ASKIR
.
Onboard Parallel Mode
This field allows you to determine parallel port mode function. SPP Normal Printer Port EPP Enhanced Parallel Port ECP Extended Capabilities Port
Chapter 6 BIOS Configuration
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 55
6.11 Supervisor / User Password
These two options set the system password.
Supervisor Password
sets a
password that will be used to protect the system and Setup utility.
User
Password
sets a password that will be used exclusively on the system . To
specify a password, highlight the type you want and press <Enter>. The
Enter Password:
message prom pts on the screen. Ty pe the passw ord, up to eight characters in length, and press <Enter>. The system confirms your password by asking you to type it again. After setting a password, the screen automatically returns to the main screen.
To disable a password, just press the <Enter> key when y ou are prompted to enter the password. A message will confirm the password to be disabled. Once the password is dis abled, the system will boot and you can enter Setup freely.
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOF T WARE, INC.
STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP
SUPERVISOR PASSWORD
CHIPSET FEATURES SETUP USER PASSWORD POWER MANAGE ME NT SETUP IDE HDD AUTO DETECTION PNP/PCI CONFIGURATION HDD LOW LEVEL FO RMAT LOAD BIOS DEFAULTS SAVE & EXIT SETUP LOAD SETUP DEFAULTS EXIT WITHOUT SAVING ESC : Quit
Ç È Æ Å
: Select Item
F10 : Save & Exit Setup (Shift) F2 : Change Color
Change / Set / Disable Password
Enter Password:
Chapter 6 BIOS Configuration
56 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
6.12 IDE HDD Auto Detection
This option detects the parameters of an IDE hard disk drive, and automatically enters them into the Standard CMOS Setup screen.
ROM PCI/ISA BIOS STANDARD CMOS SETUP AWARD SOFTWARE, INC.
HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master:
Select Primary Master Option (N=SKIP) : N
OPTIONS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
1 (Y) 0 0 0 0 0 0 0 NORMAL
NOTE: Some OSes (like SCO-UNIX) must use
NNNN
ORMAL” for installation
Up to four IDE drives can be detected, with parameters for each appearing in sequen ce inside a box. To accept the display ed entries, press the “Y” key ; to skip to the nex t drive, press th e “N” key . If y ou accept the values, the parameters will appear listed beside the drive letter on the screen.
6.13 HDD Low Level Format
This option should only be used by a professional. Low-level formatting can cause irreparable damage to your hard disk. The procedures include selecting the drive you want to low-level format, determining the bad tracks, and proceeding with pre-formatting.
ESC: SKIP
Chapter 6 BIOS Configuration
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 57
6.14 Save & Exit Setup
This option allows you to determine whether to accept the modifications or not. If you type “Y”, you w ill quit the setup utility and save all changes into the CMOS memory. If y ou ty pe “N”, y ou w ill retu rn to Setup utility .
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOF T WARE, INC.
STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP SUPERVISOR PASSWORD CHIPSET FEATURES SETUP USER PASSWORD POWER MANAGE ME NT SETUP IDE HDD AUTO DETECTION PNP/PCI CONFIGURATION HDD LOW LEVEL FO RMAT LOAD BIOS DEFAULTS
SAVE & EXIT SETUP
LOAD SETUP DEFAULTS EXIT WITHOUT SAVING ESC : Quit
Ç È Æ Å
: Select Item
F10 : Save & Exit Setup (Shift) F2 : Change Color
Save Data to CMOS & Exit Setup
6.15 Exit Without Saving
Select this option to exit the Setup utility without saving the changes you have made in this session. Typing “Y” will quit the Setup utility without saving the modifications. Typing “N” will return you to Setup utility.
ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOF T WARE, INC.
STANDARD CMOS SETUP INTEGRATED PERIPHERALS BIOS FEATURES SETUP SUPERVISOR PASSWORD CHIPSET FEATURES SETUP USER PASSWORD POWER MANAGE ME NT SETUP IDE HDD AUTO DETECTION PNP/PCI CONFIGURATION HDD LOW LEVEL FO RMAT LOAD BIOS DEFAULTS SAVE & EXIT SETUP LOAD SETUP DEFAULTS EXIT WITHOUT SAVING ESC : Quit
Ç È Æ Å
: Select Item
F10 : Save & Exit Setup (Shift) F2 : Change Color
Abandon all Data & Exit Setup
Save to CMOS and Exit (Y/N)? N
Quit Without Saving (Y/N)? N
Chapter 6 BIOS Configuration
58 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
This page was intentionally left blank.
Chapter 7 LANDesk User’s Guide
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 59
Chapter 7 LANDesk User’s Guide
This chapter gives a brief introduction to the optional LANDesk
Client
Manager (LDCM) utility, as well as the installation procedures.
The following items are covered in this chapter:
7.1 Introduction...............................................................................60
7.2 Installation.................................................................................61
7.2.1 Installing the Lo cal Version of LDCM
7.2.2 Installing the Administrator Version of LDCM
LANDesk is a registered trademark of Intel Corporation.
Chapter 7 LANDesk User’s Guide
60 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
7.1 Introduction
LANDesk Client Manager (LDCM 3.1) provides the capability for managing components (network interface cards, memory, printers, software applications, etc.) within a PC system. It uses the Desktop Management Interface (DMI) standard established by the Desktop Management Task Force (DMTF). Manageable components can be viewed, monitored, and administrated across multiple platforms, either locally or remotely on a network.
The LDCM package has been im plemented in two different ways: a user (client/local) version and an administrator version (Remote Companion). The user version provides the ability to only manage the local PC. The administrator version allows a netw ork administrator to manage the local PC and other PC n odes on th e netw ork. This m eans that the adm ini strator version has the ability to gather in form ation about remote PCs, as w ell as remotely controlling the PCs. The remote access is based upon granted rights by the managed client.
LDCM provides the user with self-help diagnostics, including a PC health meter, local alerting of potential problems, and hardware and software inventory. Automatic polling and alerting of memo ry and hardware conditions and predictive failure mechanisms minimize downtime and increase effective troubleshooting. LDCM can take periodic “snapshots” of critical configuration files for easy change management and restoration when needed.
To use LDCM, your computer must meet the following requirements:
z
Operating System: Windows 95, Windows NT 3.51, or Windows NT4.0
z
Memory: about 200KB
z
Disk Storage Space: 3-5MB
z
Hardware System: a DMI BIOS is required for full LDCM functionality
For network computers, the following requirements also apply:
z
Protocols: IPX or IP (WinSock-enabled) communication protocol loaded on the client
z
Hardware Interfaces: a network card for communication on the network
Chapter 7 LANDesk User’s Guide
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 61
7.2 Installation
The optional LANDesk utility that comes with the CPU card runs in Windows NT or Windows 95 operating system.
Upon entering the Windows NT 4.0 or Windows 95 environment, insert the CD. Windows will autorun the installation program and show the following screen.
NOTE: During Setup, you will be asked to install Internet Explo rer
3.02 in order to continue, or else Setup will be aborted. LDCM supports various languages and will default to English if it is unable to load ‘language.dl’.
Chapter 7 LANDesk User’s Guide
62 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
7.2.1 Installing the Local Version of LDCM
Double Click on ‘LANDesk Client Manager’ in th e initial screen and the following screen will appear. Double click on the local version of LANDesk Client Manage r.
When the Welcome screen appears, click on
“Next”
to continue with
Setup.
Chapter 7 LANDesk User’s Guide
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 63
Choose the directory location where Setup will install LANDesk Client Manager. Click
“Browse”
if you want to change the directory suggested.
Otherwise, click
“Next”
to start installing LDCM.
When Setup is finished, changes will have been made to the file AUTOEXEC.BAT. Restart your com puter f or the chan ges to tak e eff ect.
Chapter 7 LANDesk User’s Guide
64 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
7.2.2 Installing the Administrator Version of LDCM
After double clicking on ‘LA NDesk Client Manager’ in the initial screen, select the administrator version of the LDCM and the Welcome screen below will appear. Click on
“Next”
to continue.
The screen below allows you to install the documentation in Adobe Acrobat format and the Adobe Acrobat Reader software. Select the options you need and click on
“Next”
to start the installation.
Chapter 7 LANDesk User’s Guide
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 65
After LANDesk Client Manager Setup is complete, restart your compu ter to be able to use the LANDesk Client Manager.
Chapter 7 LANDesk User’s Guide
66 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
This page was intentionally left blank.
Chapter 8 System Monitor Utility User’s Guide
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 67
Chapter 8 System Monitor Utility User’s Guide
This chapter introduces System Monitor Utility that comes with the motherboard in conjunction with the onboard hardware monitoring IC. The sections below give the functions of the utility.
System Monitor is a utility sof tware that oversees the g eneral performance of systems, covering areas like system temperature, system voltage, CPU and system fan rotational speeds. If conditions become adverse, that is, when voltages are erratic or CPU temperature exceeds the safe limits, an alarm will be sounded; thereby preventing system crashing and ensuring overall stability.
NOTE
: System Monitor currently supports English and Chinese under
Windows 95 and Windows NT. English will be used for other language environments.
When System Monitor is initiated, the icon below appears in the task bar in the Windows enviro nment.
Chapter 8 System Monitor Utility User’s Guide
68 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
The following screen appears upon clicking on the System Monitor icon.
Clicking on the upper left corner button would show you the latest company information. "Summary" provides the current system status.
The section below describes the different functions of System Monitor.
1. Computer - displays the curr ent working system version and processor type.
Chapter 8 System Monitor Utility User’s Guide
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 69
2. Power - displays the current voltage status.
Chapter 8 System Monitor Utility User’s Guide
70 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual

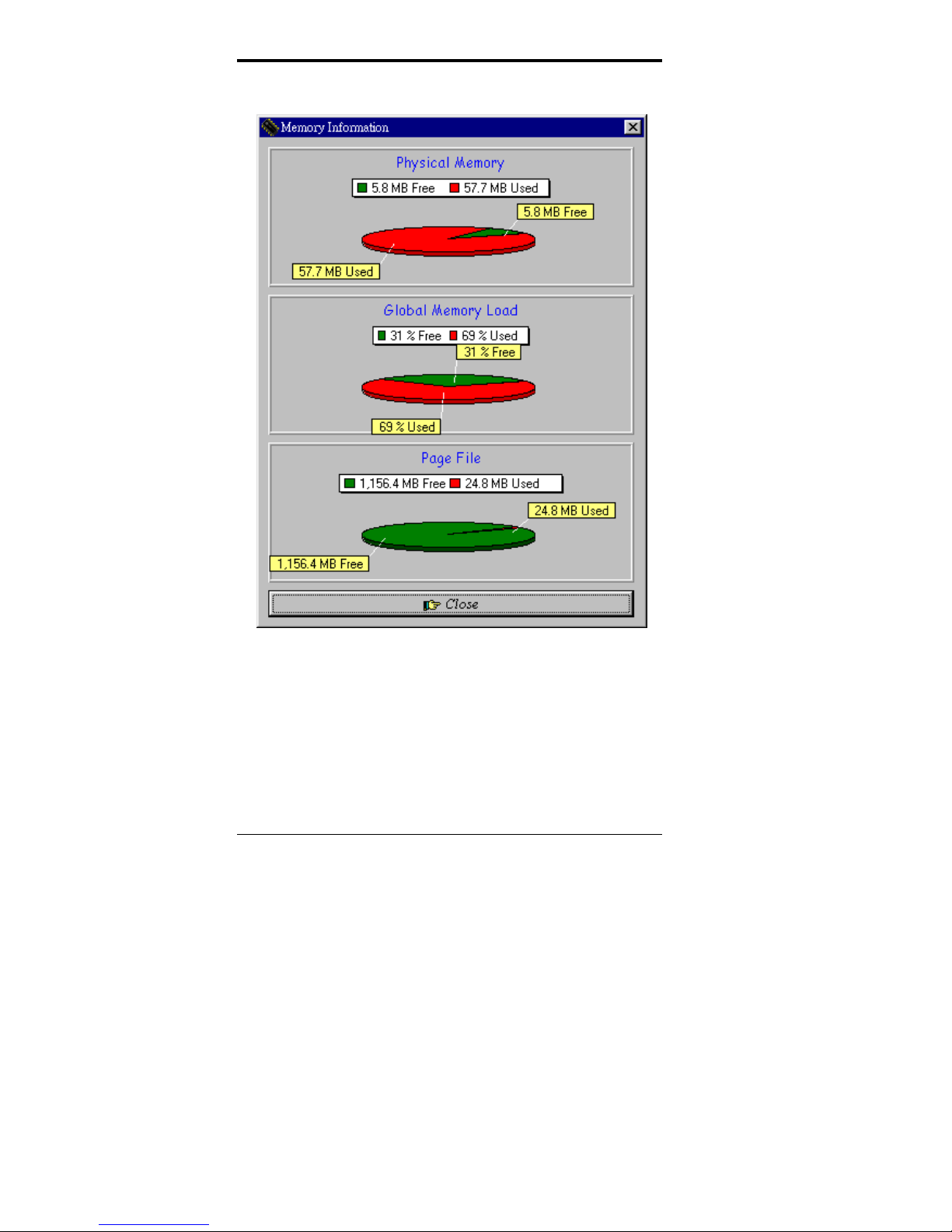

3. Memory - displays the current memory usage status.
Chapter 8 System Monitor Utility User’s Guide
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 71
4. Fan Speed - displays the current rotational speeds of CPU and Chassis fans.
5. Disk - displays the supported disk formats and disk space.
Chapter 8 System Monitor Utility User’s Guide
72 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
6. Heat - displays the CPU and system temperatures.
7. Error Log - displays errors occurring after Sys tem Monitor is s tarted.
Chapter 8 System Monitor Utility User’s Guide
TI5VGF Pentium MVP3 ATX Motherboard User’s Manual 73

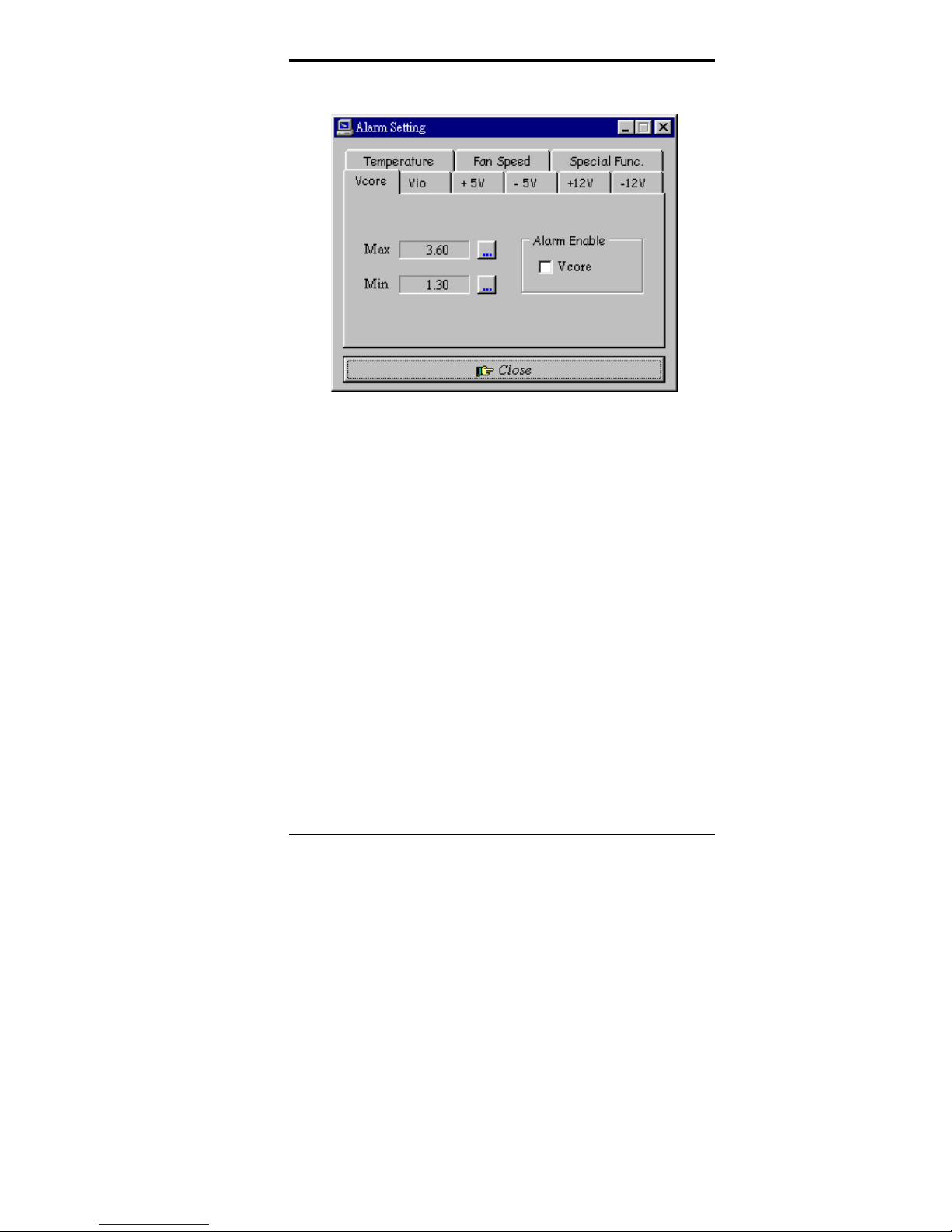

8. Setting - sets the values at which an alarm is sounded.
Voltage : the acceptable voltage range between the "MAX"
Temperature : temperature threshold. Fan Rotation Speed : the minimum rotation speed.
NOTE
: Intel has defined a margin of difference fo r the voltages as
below: 12 Volts - 10% (10.8V ~ 13.2V) 5 Volts - 5% (4.75 ~ 5.25%) Vio - 5% (Vio for P54C CPU is 3.5V. Vio for P55C is 3.3V.) Vcore- 5%
Appendix
74 TI5VGF Pentium MVP3 ATX Motherboard User’s Manual
Appendix
A. Additions & Errata
This section is allotted for future page inserts containing any additional information or correction that the users should know.
Loading...
