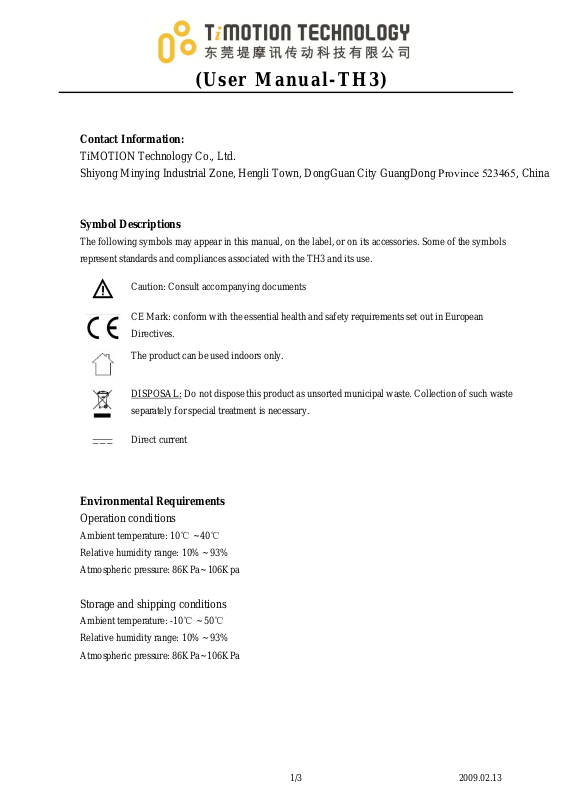

TiMOTION Technology TH3 4 User Manual

(User Manual-TH3)

Contact Information:

TiMOTION Technology Co., Ltd.
Shiyong Minying Industrial Zone, Hengli

Town, DongGuan City GuangDong Province 523465, China

Symbol Descriptions

The following symbols may appear in this manual, on the label, or on its accessories. Some of the symbols
represent standards and compliances associated with the TH3 and its use.

Cautio

n: Consult accompanying documents

CE Mark
Directives.

The product can be used indoors only.

DI
separately for special treatment is necessary.

Direct current

: conform with the essential health and safety requirements set out in European

SPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste

Environmental Requirements

Operation conditions

Ambient temperature: 10 ~ ℃ 40℃
Relative humidity range: 10% ~ 93%
Atmospheric pressure: 86KPa~ 106Kpa

Storage and shipping conditions

Ambient temperature: -10 ~ ℃ 50℃
Relative humidity range: 10% ~ 93%
Atmospheric pressure: 86KPa~ 106KPa

1/3 2009.02.13

(User Manual-TH3)

Specifications:

Model No. :
Battery :
Dimensions :
Transmit frequency
Data Transmit mode ASK Transmit

Applications :

 Chairs and beds Remote controls.
 Other electric furniture controls.

FCC ID:W6JTH3-4

This device complies with part 15 of the FCC Rules.Operation is subject to the following two

TH3

12V SizeA 23*1

115.7*56.7*20mm

433.92MHz

conditions:(1)This device may not cause harmful interference ,and (2) this device must accept
any interference received ,including interference that may cause undesired operation.

NOTE: THE GRANTEE IS NOT RESPONSIBLE FOR ANY CHANGES OR

MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR

OMPLIANCE. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

C

OPERATE THE EQUIPMENT.

NOTE:This equipment has been tested and found to comply with the limits for a Class B digital
device ,pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable
protection against harmful interference in a residential installation .This equipment
generates,uses and can radiate radio frequency energy and,if not installed and used in
accordance with the instructions ,may cause harmful interference to radio
communications .However,there is not guarantee that interference will not occur in a particular
installation.If this equipment does cause harmful interference to radio or television
reception,which can be determined by turning the equipment off and on,the user is encouraged
to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna .

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

--Consult the dealer or an experienced radio/TV technician for help.

RF warning statement:

The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure

condition without restriction.

2/3 2009.02.13
