TiMOTION Technology TH30 User Manual

Customer/Project:

Sotec

User Guide of TH30 and TRF2

Reference:

Rev: B

Release Date: 04/01/2017

Pages 1 / 6

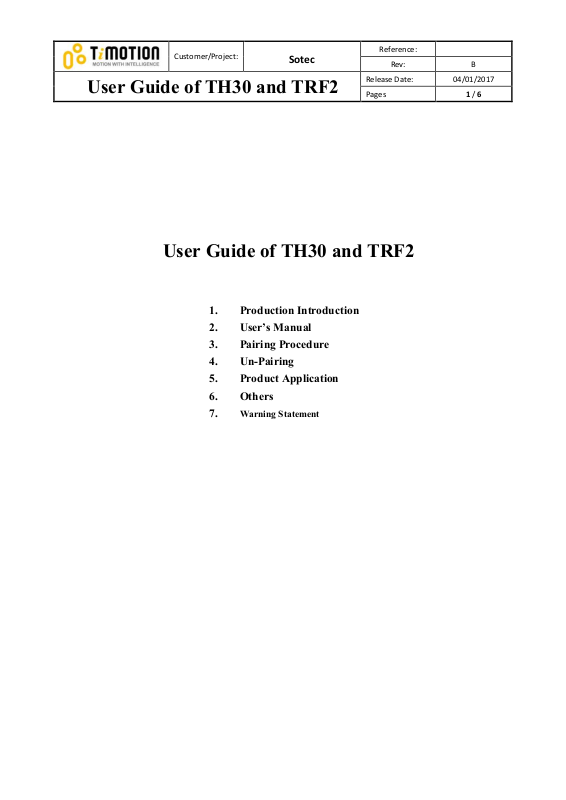

User Guide of TH30 and TRF2

1. Production Introduction

2. User’s Manual

3. Pairing Procedure

4. Un-Pairing

5. Product Application

6. Others

7.

Warning Statement

User Guide of TH30 and TRF2

1. Product Introduction

TH30 + TRF2 is the latest TiMOTION remote control system with 2.4GHz wireless standard.

The main characteristics are:

Operating distance is 3~7M , waterproof level is IP66 , and fully support TiMOTION T-BUS system

Powered by 2x AA batteries , Customizable membrane

The basic introduction as below:

LED Indicator

Customer/Project:

Sotec

Reference:

Rev: B

Release Date: 04/01/2017

Pages 2 / 6

Battery cover

LED indicator and reset button

RJ jack for handset and anti-pull lock
