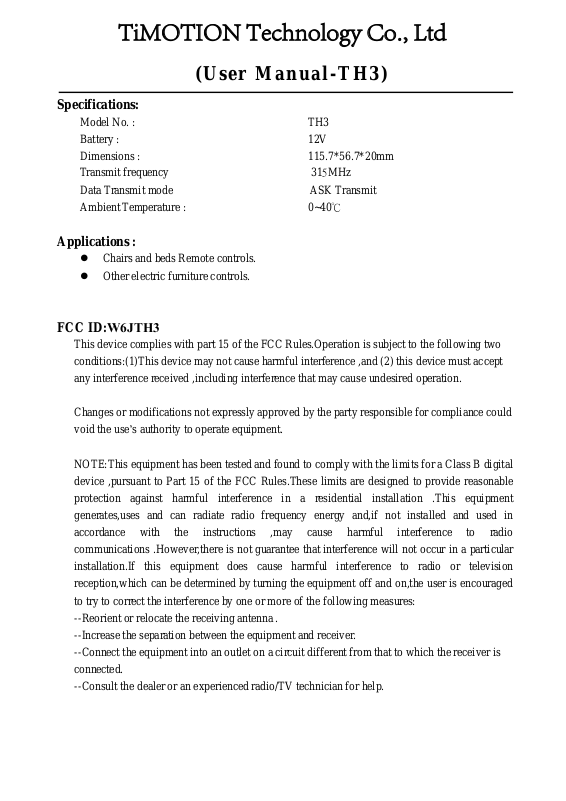

TiMOTION Technology TH3 User Manual

TiMOTION Technology Co., Ltd

Specifications:

(User Manual-TH3)

Model No. :
Battery :
Dimensions :
Transmit frequency
Data Transmit mode ASK Transmit
Ambient Temperature : 0~40℃

TH3
12V

115.7*56.7*20mm
315MHz

Applications :

 Chairs and beds Remote controls.
 Other electric furniture controls.

FCC ID:W6JTH3

This device complies with part 15 of the FCC Rules.Operation is subject to the following two
conditions:(1)This device may not cause harmful interference ,and (2) this device must accept
any interference received ,including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could
void the use’s authority to operate equipment.

NOTE:This equipment has been tested and found to comply with the limits for a Class B digital
device ,pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable
protection against harmful interference in a residential installation .This equipment
generates,uses and can radiate radio frequency energy and,if not installed and used in
accordance with the instructions ,may cause harmful interference to radio
communications .However,there is not guarantee that interference will not occur in a particular
installation.If this equipment does cause harmful interference to radio or television
reception,which can be determined by turning the equipment off and on,the user is encouraged
to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna .

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

--Consult the dealer or an experienced radio/TV technician for help.

M1UP

M1DOWN

M2UP

M2DOWN

M3UP

M3DOWN

FRONT FUNTIONSIDEBACK

TiMOTION Technology Co., Ltd

(User Manual-TH3)

Use:

Button function, see the attached diagram

Electrical performance:

1. 12V use alkaline battery-powered, Operating Current≦18mA

2.Wireless remote control distance of ≧6 meters

3.Standby operating current ≦ 10uA

Size and Funtion Diagram :
