Timex Move X20 User Manual

Move x20

Instruction Manual

WW299 Move x20 8.12.14

TIMEX® IRONMAN® Move x20 Activity Tracker
Instruction Manual

TABLE OF CONTENTS

1. Overview

2. Getting Started

3. Charging your TIMEX IRONMAN Move x20

4. Battery Life

5. Water-resistance

6. Wearing the TIMEX IRONMAN Move x20

7. Tracking your Daily Activity

8. Downloading the TIMEX IRONMAN Move x20 App

9. First Time Pairing

10. Text Message and Phone Call Notifications

11. Recording a Workout

12. Tracking your Sleep

13. Syncing with your Smartphone

14. Finding your Phone

15. Resetting your TIMEX IRONMAN Move x20
a. Home Page
b. Activity Page
c. Sleep Page
d. Workout Page

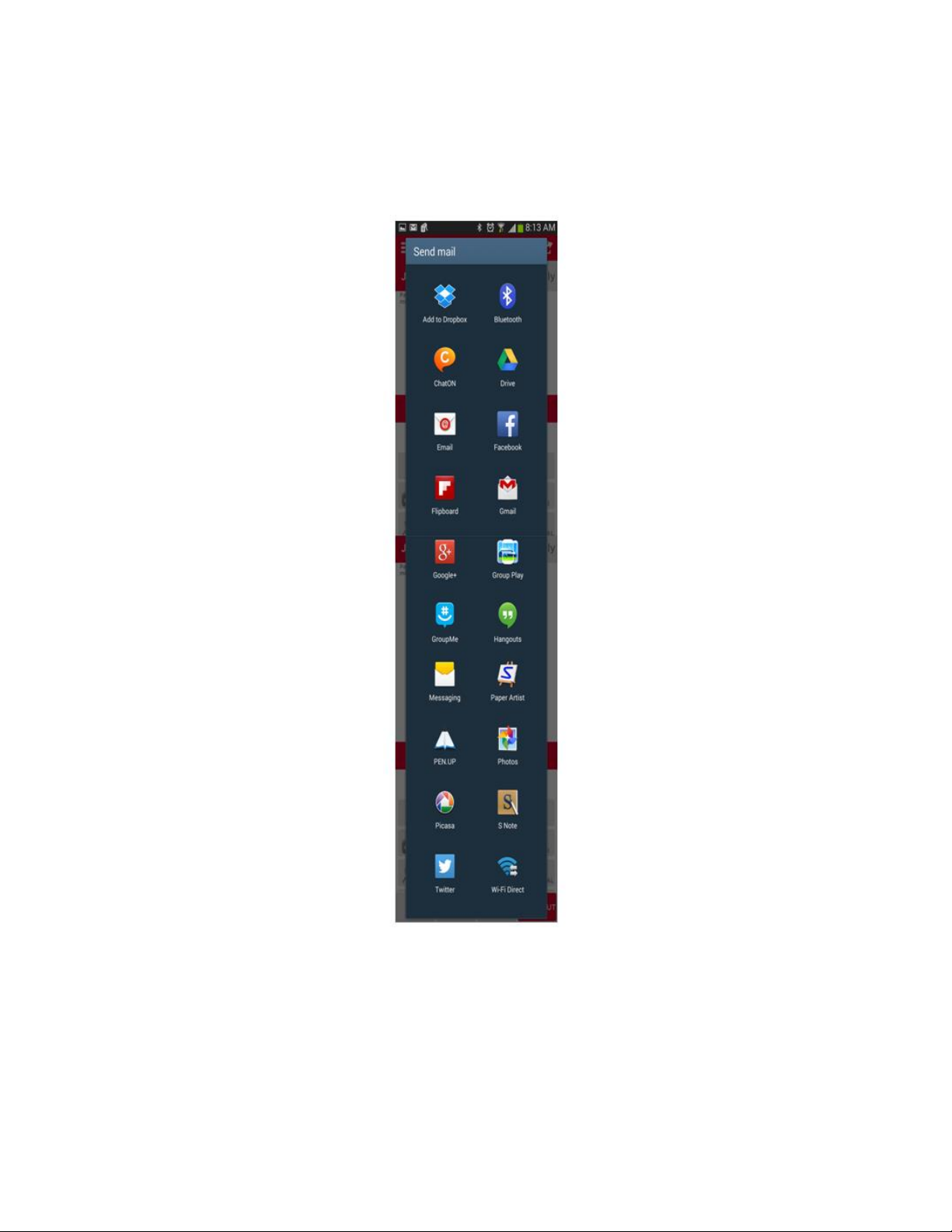

e. Share Data
f. Menu

i. User

ii. Settings

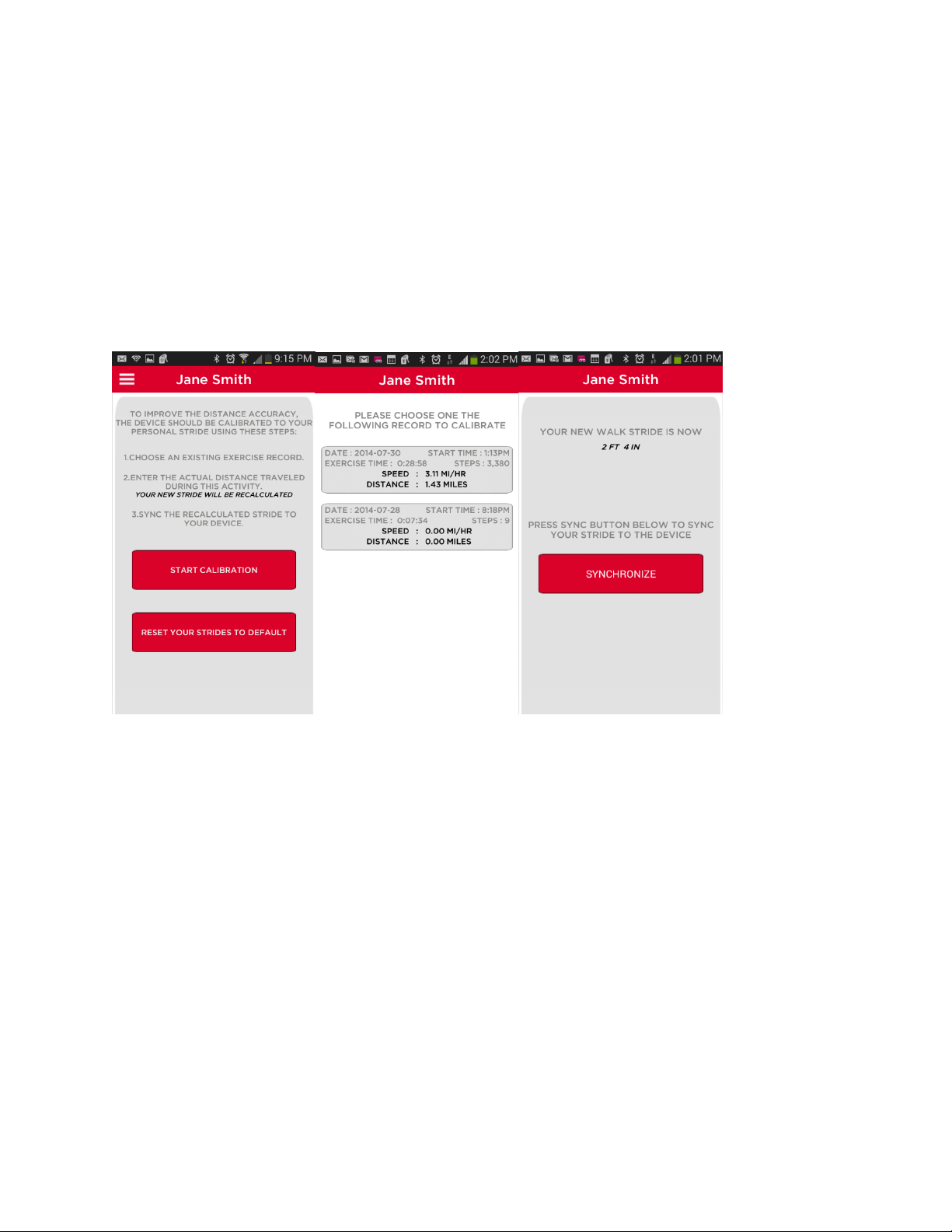

iii. Calibrate
iv. About

v. Device
vi. Sign out

16. Warranty

17. Declaration of Conformity

WHAT’S INCLUDED

Home

Button

Select/Scroll

Button

1. TIMEX® IRONMAN® Move x20 activity tracker

2. Charging Cable

OVERVIEW

TIMEX IRONMAN Move x20 Buttons

GETTING STARTED

The TIMEX IRONMAN Move x20 activity tracker should be setup and synced with an iOS or Android
Smartphone that supports Bluetooth® 4.0 technology.

For a list of compatible devices, visit: http://www.TIMEX.com/movex20

CHARGING YOUR TIMEX IRONMAN MOVE X20

Your TIMEX IRONMAN Move x20 must be charged before setup.

1. Line up the silver contacts on the charger with the silver contacts on the back of the TIMEX

IRONMAN Move x20.

2. Clip the charging cable onto the back of the TIMEX IRONMAN Move x20 and secure the keeper

strap over the TIMEX IRONMAN Move x20.

3. Plug your charging cable into a USB port or universal A/C charging box.

The TIMEX IRONMAN Move x20 will display the battery charge level on the screen.

Initial charging can take up to three hours.

BATTERY LIFE

Your TIMEX IRONMAN Move x20 has a rechargeable lithium-ion battery. With normal use, your device
will have a battery life of seven days. You can check the current battery level on the Time of Day screen

on your device and/or the Home screen of the app.

The TIMEX IRONMAN Move x20 will give you a vibration alert and will display an on-screen warning
when the battery reaches 10%. Your TIMEX IRONMAN Move x20 will shut down when the battery
reaches 5%.

WATER-RESISTANCE

Your TIMEX IRONMAN Move x20 is resistant to water splashes (you can wash your hands or get caught
in the rain, but you don’t want to submerge the device).

WEARING THE TIMEX IRONMAN MOVE X20

The TIMEX IRONMAN Move x20 is designed to be worn on your wrist.

1. Put the TIMEX IRONMAN Move x20 on your wrist.

2. Position the ends of the wristband over each other with the clasp over the two holes that will

provide the best fit on your wrist.

3. Squeeze the clasp and wristband between your thumb and forefinger until the clasp is fully

engaged with the strap.

TRACKING YOUR DAILY ACTIVITY

Your TIMEX IRONMAN Move x20 uses a built-in accelerometer to record your daily movement: steps
taken, distance travelled and calories burned.

To view your current day details, press the button on your TIMEX IRONMAN Move x20. With each

press of the button you will see: Time of Day , Steps , Distance

, Calories Burned , Day & Date and Weather

(If connected to a Smartphone).

The TIMEX IRONMAN automatically resets the daily activity at 12:00 am; the data will be saved on the
TIMEX IRONMAN Move x20 and can be synced to the app at any time. If the TIMEX IRONMAN Move x20
reaches memory capacity, the oldest data stored on the device will be overwritten.

DOWNLOADING THE TIMEX IRONMAN MOVE X20 APP

1. Download and install the TIMEX IRONMAN Move x20 app for iPhone from the Apple

App Store, or, for Android from the Google Play app store.

2. Enable Bluetooth on your Smartphone.

FIRST TIME PAIRING

Your TIMEX IRONMAN Move x20 is setup through the app. Remember, the device needs to be charged
before attempting the setup process.

1. Turn on the Bluetooth function on your Smartphone or other compatible mobile device.

2. Open the TIMEX IRONMAN Move x20 app.

3. Press and hold the button on your TIMEX IRONMAN Move x20 for 2.5 seconds.

4. The TIMEX IRONMAN Move x20 will display PAIR.

5. In the app, tap the I HAVE TIMEX IRONMAN Move x20 button and choose the device.
a. After the connection is made, your TIMEX IRONMAN Move x20 will vibrate and display

.

6. After successful connection, the app will display the setup screens:
a. Registration screen:

i. Name, email address, zip code

ii. If you would like to receive information about your device or marketing

information from Timex, check the box next to Email from Timex and then tap
the Next button.

b. Device customization screens (this information customizes your TIMEX IRONMAN

Move x20 and provides more accurate calorie burn):

i. Unit

1. Imperial or Metric

ii. User

1. Gender

2. Age

3. Weight

4. Height

5. BMI (this field is not customizable, it is auto calculated based on your

personal information)

iii. Sleep

1. Manual (you must manually turn on the sleep function and manually

wake up the device in the morning)

2. Auto (the TIMEX IRONMAN Move x20 will automatically activate the

sleep function and automatically wake up based on the times you input)

a. To Bed (only available in Auto mode): The time you go to bed
b. Wake Up (only available in Auto mode): The time you wake up.

This will also activate a vibrating alert.

c. Window: Range offered from 0-20 minutes. This field represents

a grace period on your sleep time. For example, choose 15
minutes if you normally go to bed between 10 pm and 10:15
pm.

iv. Vibration Alert: On or Off

1. When your TIMEX IRONMAN Move x20 is paired to a Smartphone,

vibration alerts are used to notify you of new text messages, incoming
phone calls, goals reached, and wake up alerts (when Auto sleep is
selected).

v. Goals (device will alert you when you have met these goals and a

progress bar icon will be displayed on the device for each item):

1. Steps

2. Calories

3. Distance

4. Sleep Hours (this field is not customizable, it is auto calculated based on

your age)

5. Workout Time

vi. Format:

1. Date: MM-DD or DD-MM

2. Time: 12 Hr (1 pm) or 24 Hr (13:00)

vii. Phone Alert

1. Start (Time of day the app will start allowing alerts on the TIMEX

IRONMAN Move x20

2. End (Time of day the app will stop allowing alerts on the TIMEX

IRONMAN Move x20)

viii. Phone Notification:

1. Incoming Call: On or Off

2. Incoming Message: On or Off

7. After all setup screens are complete, tap the SYN button in the upper left-hand

corner of the Settings page. Your band will then be updated with all of your selected data.

TEXT MESSAGE AND PHONE CALL NOTIFICATIONS

When paired with a compatible Apple or Android Smartphone, your TIMEX IRONMAN Move x20 will
alert you of incoming texts and phone calls. Caller ID information is limited to 32 characters and text

message content is limited to 32 characters; message/notification will be followed by “…” when

truncated.

NOTE: MMS messages will not trigger an alert in your TIMEX IRONMAN Move x20, only SMS messages
are compatible. Also note, text messages and phone call notifications are only available when your
TIMEX IRONMAN Move x20 is paired to a compatible Smartphone. Also, the Smartphone must be within
range of the TIMEX IRONMAN Move x20 (approximately 100m). If your Smartphone is not in range, your
TIMEX IRONMAN Move x20 will display a flashing Bluetooth icon on the Time, Date, and Weather pages.
