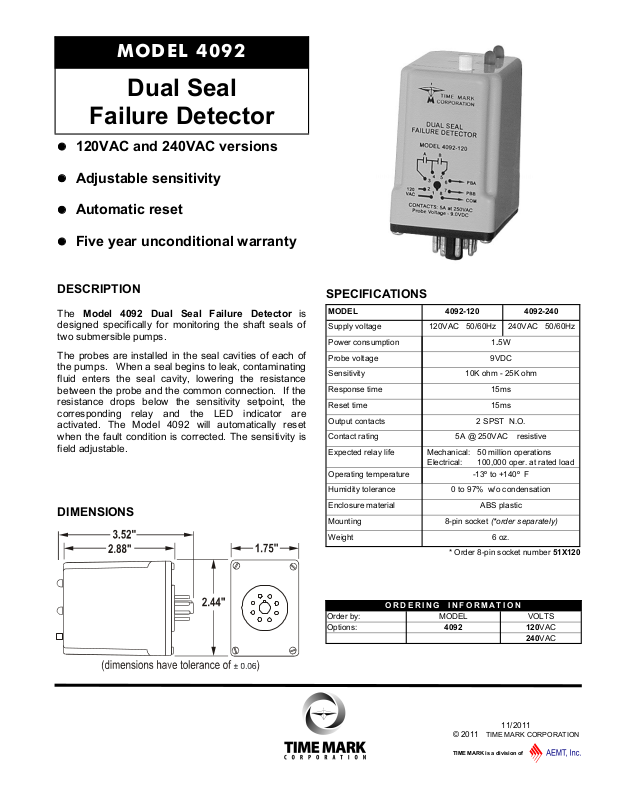

Time Mark 4092 Data Sheet
TIME MARK is a division of
MODEL 4092
Dual Seal
Failure Detector
120VAC and 240VAC versions
Adjustable sensitivity
Automatic reset
Five year unconditional warranty
DESCRIPTION
The Model 4092 Dual Seal Failure Detector is
designed specifically for monitoring the shaft seals of
two submersible pumps.
The probes are installed in the seal cavities of each of
the pumps. When a seal begins to leak, contaminating
fluid enters the seal cavity, lowering the resistance
between the probe and the common connection. If the
resistance drops below the sensitivity setpoint, the
corresponding relay and the LED indicator are
activated. The Model 4092 will automatically reset
when the fault condition is corrected. The sensitivity is
field adjustable.
DIMENSIONS
SPECIFICATIONS
MODEL 4092-120 4092-240
Supply voltage 120VAC 50/60Hz 240VAC 50/60Hz
Power consumption
Probe voltage 9VDC
Sensitivity 10K ohm - 25K ohm
Response time 15ms
Reset time 15ms
Output contacts 2 SPST N.O.
Contact rating 5A @ 250VAC resistive
Expected relay life Mechanical: 50 million operations
Electrical: 100,000 oper. at rated load
Operating temperature -13º to +140º F
Humidity tolerance 0 to 97% w/o condensation
Enclosure material ABS plastic
Mounting 8-pin socket (*order separately)
Weight 6 oz.
* Order 8-pin socket number 51X120
1.5W
O R D E R I NG I NF O R M AT I O N
Order by: MODEL VOLTS
Options:
240VAC
4092 120VAC
11/2011
© 2011 TIME MARK CORPORATION
120 VAC
120 VAC
MODEL 4092-120
A B
1
2
3 54
PBA
PBB
COM
6
8
7
SEAL CAVITY
PUMP A
SEAL CAVITY
PUMP B
SEAL B ALARM
SEAL A ALARM
1
2
3
4
5
6
7
8
Supply
Voltage
PBA
PBB
COM
BA
TIME MARK is a division of
MODEL 4092
Dual Seal Failure Detector
READ ALL INSTRUCTIONS BEFORE INSTALLING, OPERATING OR SERVICING THIS DEVICE.
KEEP THIS DATA SHEET FOR FUTURE REFERENCE.
GENERAL SAFETY
POTENTIALLY HAZARDOUS VOLTAGES ARE PRESENT AT THE TERMINALS OF THE MODEL 4092.
ALL ELECTRICAL POWER SHOULD BE REMOVED WHEN CONNECTING OR DISCONNECTING WIRING.
THIS DEVICE SHOULD BE INSTALLED AND SERVICED BY QUALIFIED PERSONNEL.
Installation Instructions
INSTALLATION
Mount the 8-pin socket in a suitable enclosure. A NEMA
-1 approved enclosure, designed for socket-mounted
relays, is available from Time Mark Corporation.(Model
98A498)
Connect the supply voltage to Terminals 1 and 2 on the
socket.
Connect the load control wiring to the appropriate
terminals on the socket, refer to the Pin Diagram and
Typical Application drawing.
Insert the Model 4092 into the socket and apply power.
Set the SENSITIVITY control as described below.
NOTE: When installing the Model 4092 Failure Detector in
areas of high humidity or contamination, it is recommended
that the base area and all exposed metal parts of the socket
be coated liberally with a good quality silicone grease, such as
Dow Corning DC-4 or DC-4X. Insert the unit into the socket
and wipe off excess grease around the base. This will prevent
the entrance of moisture and other contaminates into the base
and socket areas.
PIN DIAGRAM
ADJUSTMENT SETTINGS
Set the SENSITIVITY control knob to the maximum
clockwise position. Do not use excessive force.
If either LED indicator is illuminated, adjust the control
knob counter-clockwise, until both lights are off.
TYPICAL APPLICATION
TROUBLESHOOTING
Should the Model 4092 Monitor fail to operate properly,
check wiring to insure proper connections. Measure
the supply voltage. Repeat the SENSITIVITY Control
adjustment procedure. If problems persist, contact your
local Time Mark Distributor, or the factory, for
assistance (Monday-Friday, 8 a.m. to 5 p.m. CST).
WARRANTY
This product is warranted to be free from defects in
materials and workmanship, and is covered by our
exclusive 5-year Unconditional Warranty. Should this
device fail to operate for any reason, we will repair it for
five years from the date of manufacture. For complete
warranty details, see the Terms and Conditions of
Sales page in the front section of the Time Mark catalog
or contact Time Mark at 1-800-862-2875.
Shows No Power Applied
11/2011
© 2011 TIME MARK CORPORATION
