SHORT FORM

Product catalog

Page 2

3-PhASE MONITOR RELAyS

Time Mark has a variety of 3-phase relays that can offer protection against phase loss, phase reversal, phase unbalance and under/over voltage. Phase-angle and voltage sensing circuits are used to detect phase loss even when regenerative loads cause little measurable voltage reduction between phases. All models feature automatic reset.

NEW!

PHASE VOLTAGE DELAY

MODEL

158B(R) X X X (Fixed) X X X X SPDT Surface/DIN

2002Y X X X X X X X DPDT Surface

2500/01 X X X X X X X X X X SPDT Surface X

2500/01 D X X X X X X X X X X DPDT Surface X

2522 X X X X X X DPDT 11-Pin X

2532 X X X X SPDT Surface X

257/258 X X X X X X X X SPDT 8-Pin X

2594 X X X X X X X X DPDT Surface

2642 X X X X X X X X X X DPDT Surface X

2644(R) X X X X (Fixed) X X X X X X DPDT Surface X

2652 X X X X X X X X X X X DPDT Surface X

269(R) X X X X X (Fixed) X X X X SPDT Surface X

LOSS SEQ. LOW HIGH BAL. TRIP RESTART 120 208/240 380 480 575

15 X X X Special (2) Surface

18 X X X X X X X X X SPDT Surface/DIN

19 X X X X X X X X X SPDT 8-Pin

20 X X X X X X X X X X X X X SPDT Surface/DIN X

200 X X X X X X X DPDT Surface

21 X X X X X X X X X X X X X SPDT 8-Pin X

246 X X X X X X X SPDT 8-Pin X

25 X X X X X X X X

252 X X X X X X X SPDT,SPST 8-Pin X

253 X X X X SPDT 8-Pin X

259 X X X X X X X X X X DPDT Surface

263 X X X X X X X X X SPDT Surface X

264 X X X X X X X X X SPST(2) Surface

265 X X X X X X X X X SPDT Surface X

MAN.

RESET

NOM. AC VOLTAGES

24V DC Powered;

AC Range: 80V-550V

CONTACTS MOUNT

DPDT DIN X

UL or CSA*

TRANSFORMERS & TRANSDUCERS

Our current transformers are available in a variety of amp ranges for single phase and 3-phase.

Our AC transducers are designed to accept 0-5 amp AC current input and provide proportional DC current or voltage output.

MODEL DESCRIPTION

276A Open frame type CT with ratios of 10:5 amps to 40:5 amps x

276B Ring type CT with ratios of 50:5 amps to 1200:5 amps x

276B-3 3-phase CT with ratios 50:5 to 1200:5 amps; isolated outputs x

278 AC current transducer; 115VAC or 230VAC; 4-20mA output; 8-Pin x

2780 AC current transducer; 0-5 amp input; 0-10 VDC output; 8-Pin x

* See individual data sheets for any special conditions or requirements on the UL or CSA Certified models.

UL or CSA*

Page 3

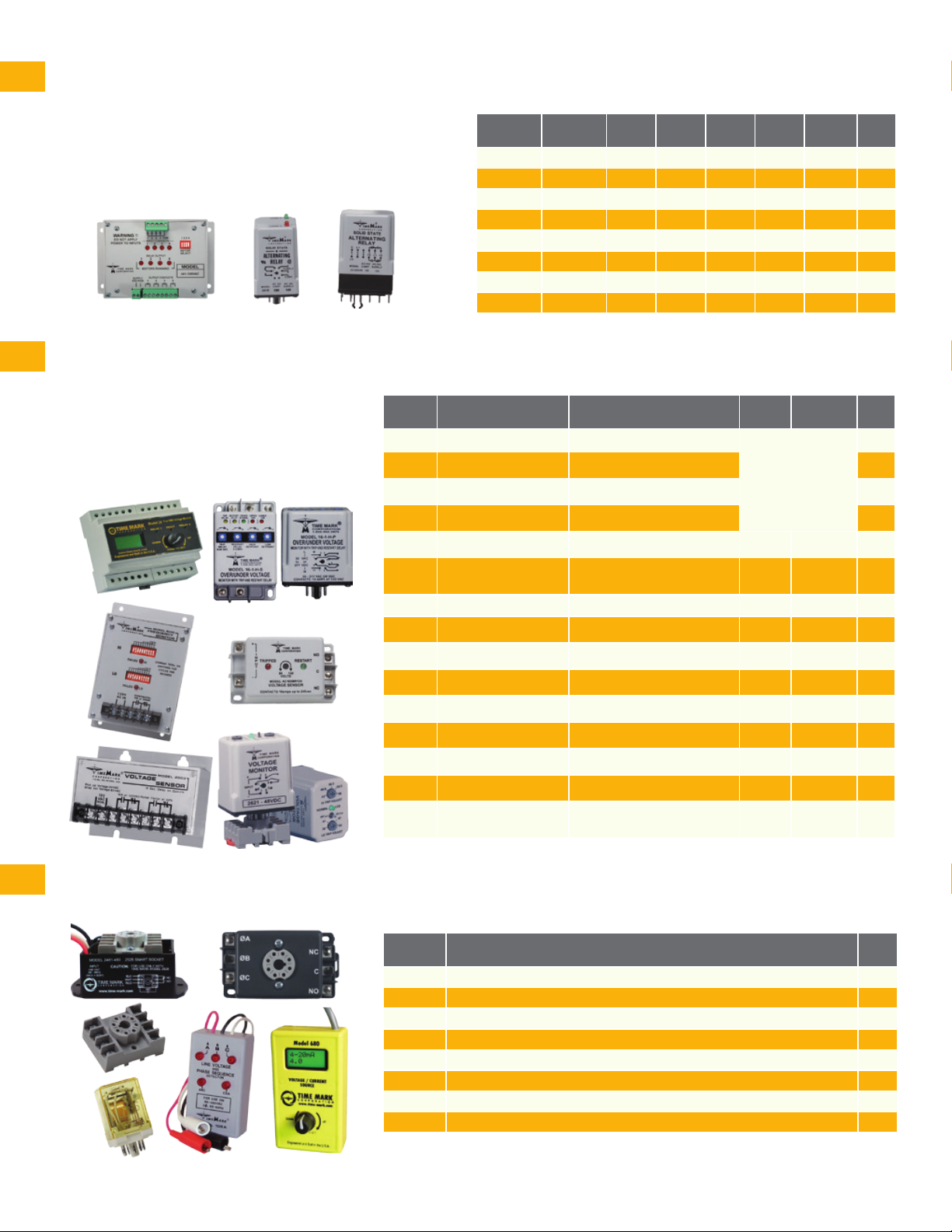

ALTERNATING RELAyS

Alternating Relays are used to equalize or optimize the run time of multiple pumps or compressors. Options are available for 1, 2, 3 or 4 motor/pump configurations.

VOLTAGE & FREqUENCy MONITORS

Time Mark Voltage Monitors detect voltage levels above or below the selected set point. Voltage Band Monitors energize relays between set points.

MODEL FUNCTION VOLTAGE RANGE MOUNT CONTACTS

16-1-L Over & Under 12-30V AC/DC

16-1-H Over & Under 30-277V AC/DC

16-3-L Pick Up/Drop Out 12-30V AC/DC

16-3-H Pick Up/Drop Out 30-277V AC/DC

160B (R) Under or Over 120/240/480 VAC Surface SPDT

26 Over & Under

260 Under or Over Multiple VAC & VDC Options 8-Pin SPDT x

2601 Under or Over Multiple VAC & VDC Options 8-Pin SPDT

2602 Under/Quick Drop Out 120VAC Surface DPDT

2621 Pick Up/Drop Out Multiple VAC & VDC Options 8-Pin SPDT

2628 Under or Over 15-260V AC/DC 8-Pin SPDT

2629 Under or Over 15-260V AC/DC 8-Pin DPDT

268 Over & Under 90-140 VAC 8-Pin SPDT

2681 Over & Under Multiple VAC & VDC Options 8-Pin SPDT

29 Frequency Monitor

MODEL CONTACTS 12V 24V 120V 240V MOUNT

261D (T) DPDT AC/DC AC/DC AC/DC AC/DC 11-Pin x

261DX (T) DPDX AC/DC AC/DC AC/DC AC/DC 8-Pin x

261S (T) SPDT AC/DC AC/DC AC/DC AC/DC 8-Pin x

2611 DPST AC/DC AC/DC 8-Pin x

271 SPST AC Surface

441 SPST AC AC Surface

442 SPST AC AC Surface

471 SPST AC/DC AC/DC AC/DC AC/DC Surface

8-Pin = SPDT(2) Surface = SPDT

24V DC Powered;

AC Range: 80V-550V

24V DC Powered;

AC Range: 80V-550V

DIN SPDT(2) x

UL or CSA*

ACCESSORIES & INSTRUMENTATION

MODEL DESCRIPTION

Sockets 8-Pin: 10A@600VAC 11-Pin: 10A@300VAC 12-Pin: 10A@600VAC x

108A Line voltage & phase sequence detector

108C Motor rotation indicator

2480 Extend the trip range of our 480V 3-phase monitors to 528VAC

2481 Extends voltage range of Model 252B 3-Phase Monitor to 635VAC

280 & 281 AC/DC General Purpose Relays: 280=DPDT; 8-Pin 281=3PDT; 11-Pin x

680 Voltage/Current Simulator: Outputs 4-20 mA, 0-20mA, 0-5V or 0-10V

HDC-1 Hold Down Clamp: Secures socket mounted relays from vibration

UL or

CSA*

Page 4

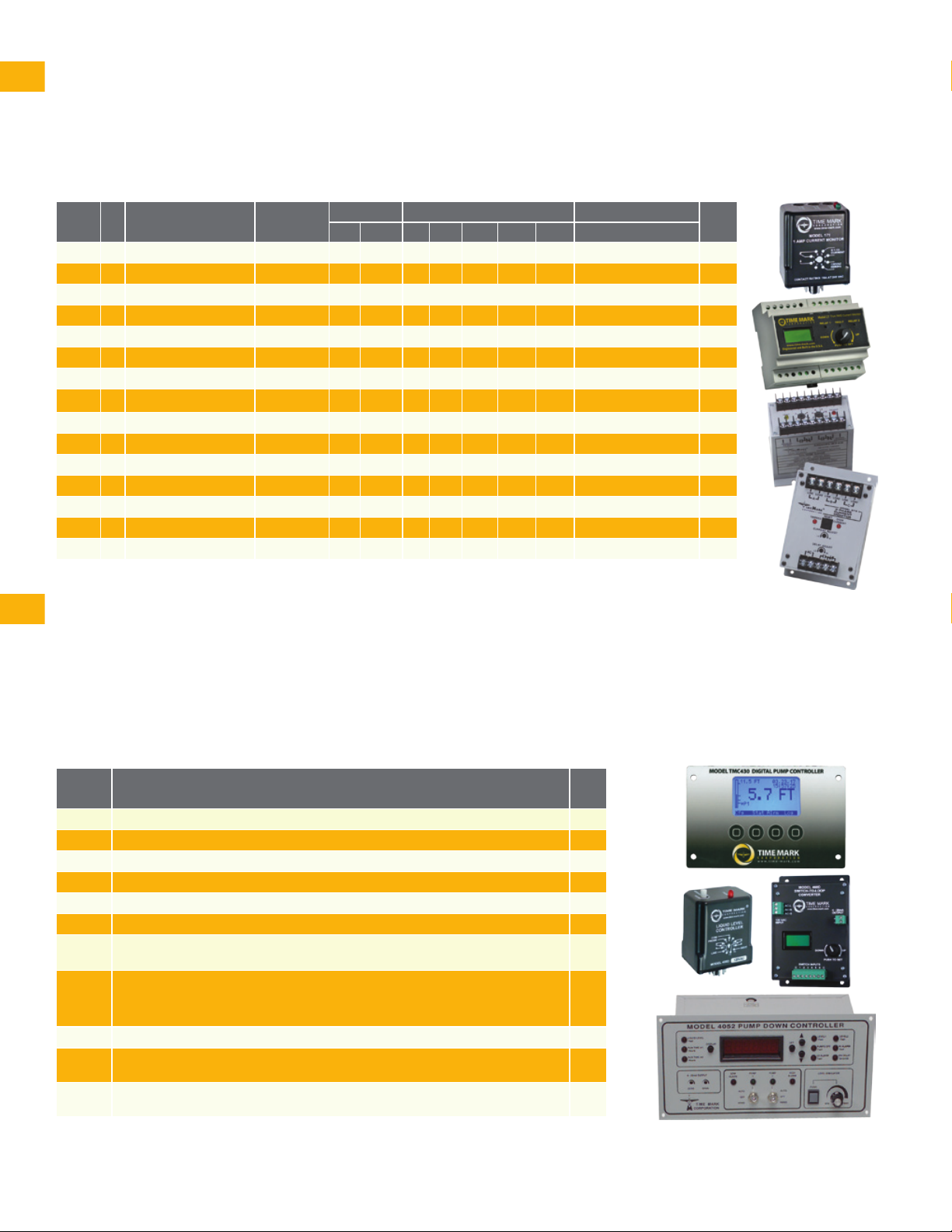

CURRENT MONITORS

Current Monitors detect over-current, under-current or current unbalance on single-phase or 3-phase lines. Current transformers are used when current exceeds 5 amps. Models available for socket, surface or DIN rail mounting.

DELAy VOLTAGE

MODEL Ph. FUNCTION MOUNT

171 1 Under Current Only 8-Pin X X AC 0.1 - 1A

173 1 Under or Over Current Surface/DIN AC AC 1 - 5A/5-25A

1732 1 Under or Over Current Surface/DIN No Power Required 25 -150A

27 1 Under & Over Current DIN X X DC 0 - 5A x

272 3 Current Unbal. 2-25% Surface X AC AC 1 - 5A

2722 3 Current Unbal. 2-25% Surface X AC AC AC AC AC 1 - 5A x

273 1 Under or Over Current 8-Pin AC AC 0.5 - 5A x

2732 1 Under or Over Current Surface X AC AC AC AC AC 1 - 5A

2734 1 Over Current Only Surface X AC AC 2 - 20A,1-10A,0.5-5A

274 3 Over Current Only Surface X AC AC AC AC AC 1 - 5A

2742 3 Under or Over Current Surface X AC AC AC AC AC 1 - 5A

2744 3 Over Current Only Surface X AC AC AC AC AC 1 - 5A

275 1 Over Current Only Surface X AC AC 1 - 5A

279 1 DC Current Monitor 8 or 11 Pin X AC AC 1 - 10A DC

2730 1 Under & Over Current Surface X X AC AC AC AC AC 1 - 5A

TRIP START 24V 120V 208V 220V 240V RANGE(S)

UL or CSA*

PUMP & LIqUID LEVEL CONTROLS

Pump and Liquid Level Controls protect pumps and provide liquid level control for pumping systems. Controllers monitor levels using transducers, float switches and bubbler-type sensors. Different versions and combinations can provide alternation, HOA controls, run time meters and alarm outputs. Select versions have communications capability.

MODEL DESCRIPTION

403 Duplex level controller; Provides alternation of pumps

4042 Liquid level controller with 4 set points x

4052 Pump-Down controller for duplex alternation; Built-in communications x

4062 Pump-Up controller for duplex alternation; Built-in communications x

4082 Liquid level controller with 8 set points x

409D Liquid level controller; 11-Pin socket mounted

422 Detects motor over/under load; Trip & restart delays; Use with 1 or 3-phase pumps x

TMC-430

450 Pressure transducer; 0-15 psi input; 4-20 mA output x

460D

4000 Surface Mount Kit: Enclosures for Models 403, 404, 4042, 4052, 4062 and 408

* See individual data sheets for any special conditions or requirements on the UL or CSA Certified models.

Controls 2 or 3 pumps with a 4-20mA input or 2 pumps with a 4-20mA input and

backup floats; Graphic display shows current depth, set-points, date/time and

alarm status; Built-in Communications

Switch-to-Loop Converter; Less expensive than a transducer & works with float

switches; LED Loop Output Indicator (4-20mA)

UL or CSA*

Page 5

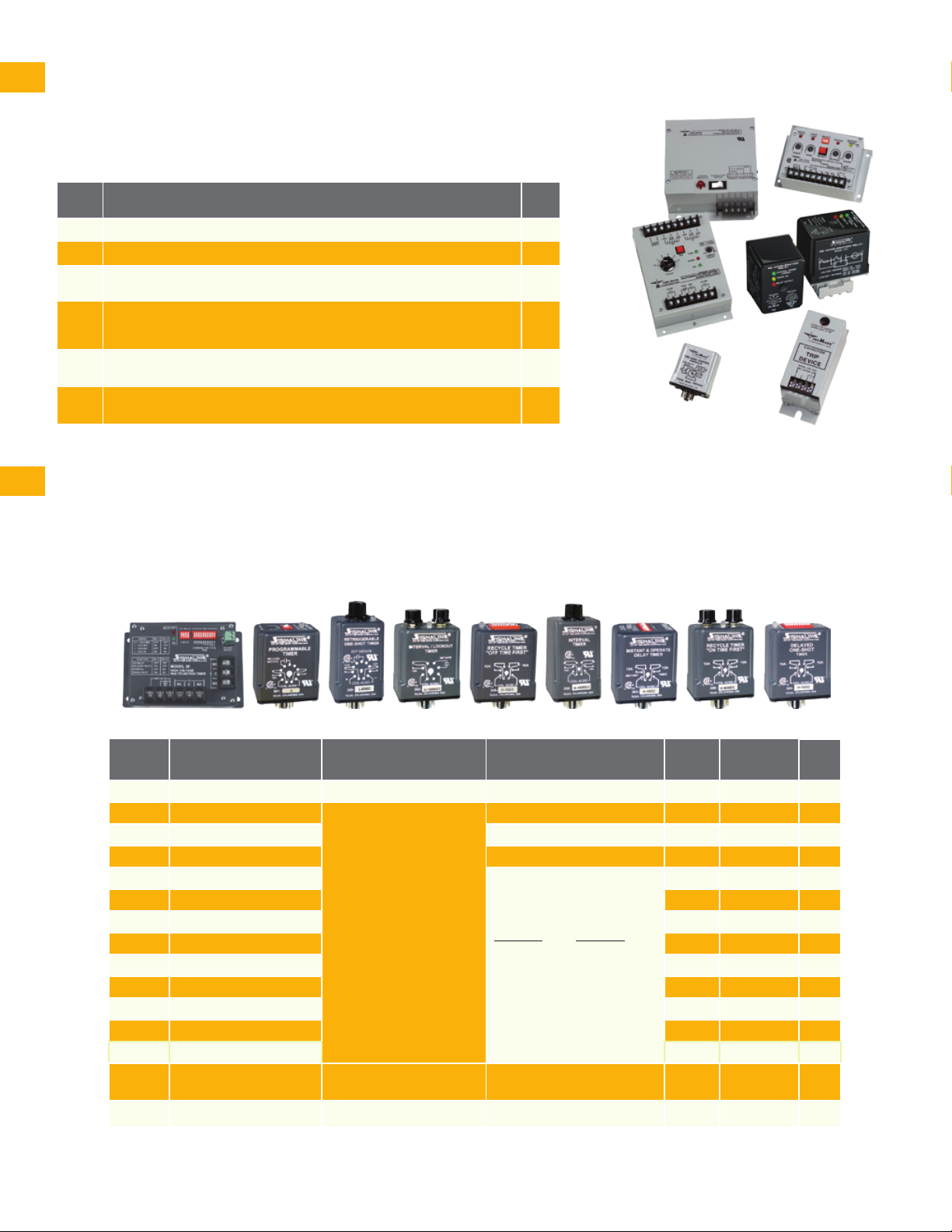

SPECIAL CONTROLS

Time Mark manufactures many types of specialized devices. These include Capacitor Trip Devices, Motor Load Monitors and Two-Hand Control Modules.

MODEL DESCRIPTION

295 Capacitor Trip Device; Operates shunt trip breakers; 120VAC or 240VAC

410 Auto-Charged Capacitor Trip Device with Battery; 120VAC or 240VAC

412

421

553

850

Automatic Reverse Controller; Up to 5 forward-reverse cycles;

Push-button simulator/tester

Over/Under Motor Load Monitor; Monitors true power

(Voltage x Current x Power Factor);

Adjustable trip and restart delays

Re-Acceleration Relay for Undervoltage Control;

Allows momentary power outage without causing reset condition

Two-Hand Control Module; AC or DC versions; 11-Pin;

Installs into existing control panel

UL or

CSA*

TIME DELAy RELAyS

Time Mark Corporation offers a wide variety of single and multi-function industrial timers under our “Signaline” brand to help you manage and protect your valuable equipment.

UL or

MODEL FUNCTION VOLTAGE TIMING RANGE MOUNT CONTACTS CS A*

30 High Voltage Timer 240/480VAC 4 ranges ( 0.1 Sec. - 1023 Hr.) Surface DPDT (600V)

300 Programmable Timer

301 Programmable Timer 4 ranges (0.15 Sec. - 64 Min.) 11-Pin DPDT x

303 On Delay/Interval Timer 8 ranges (1-900 Sec.) 8-Pin DPDT x

330/360 Operate Delay Timer

331/361 Release Delay Timer 11-Pin DPDT x

332/362 Interval Timer 8-Pin DPDT x

333/363 Instant & Operate Delay 8-Pin SPDT(2) x

334/364 Delayed One-Shot Timer 8-Pin DPDT x

335/365 Retriggerable One-Shot 11-Pin DPDT x

338/368 Recycle Timer - Off First 8-Pin DPDT x

358/388 Recycle Timer - On First 8-Pin DPDT x

392 Interval/Lockout Timer 8-Pin SPDT x

310 Programmable Timer

339 On/Off Delay Relay 3 options (20-255 VAC/VDC) 4 options (10-300 Sec.) 8-Pin DPDT

* See individual data sheets for any special conditions or requirements on the UL or CSA Certified models.

L = 10-28V AC/DC

H = 40-260V AC/DC

20-28VAC & 20-32 VDC or 105-130VAC & 95-125VDC

4 ranges (0.15 Sec. - 64 Min.) 8-Pin SPDT x

8-Pin DPDT x

33X, 39X: 36X; 38X 1 - 10 Sec. 0.1-102.3 Sec. 1 - 60 Sec. 1-1023 Sec. 1 - 180 Sec. 1-1023 Min. 1 - 300 Sec.

4 ranges (0.15 Sec. - 64 Min.) 11-Pin SPDT

Page 6

CUSTOM AND OEM DESIGN

hy ChOOSE TIME MARk?

Since 1972, Time Mark has been engineering and manufacturing industrial control and monitoring products from our headquarters in Tulsa, Oklahoma.

Time Mark offers:

Exceptional customer service Expert technical support 5-year warranty on 3-phase and socket mounted products & 1-year warranty on other products. Quality products that are made in the

U.S.A.

Our products are engineered

and manufactured in the U.S.A.

DISTRIbUTED by:

used without written permission from Time Mark Corporation. Both Time Mark™ and Signaline™ are registered trademarks of Time Mark Corporation.

SFC-18-09_E1
