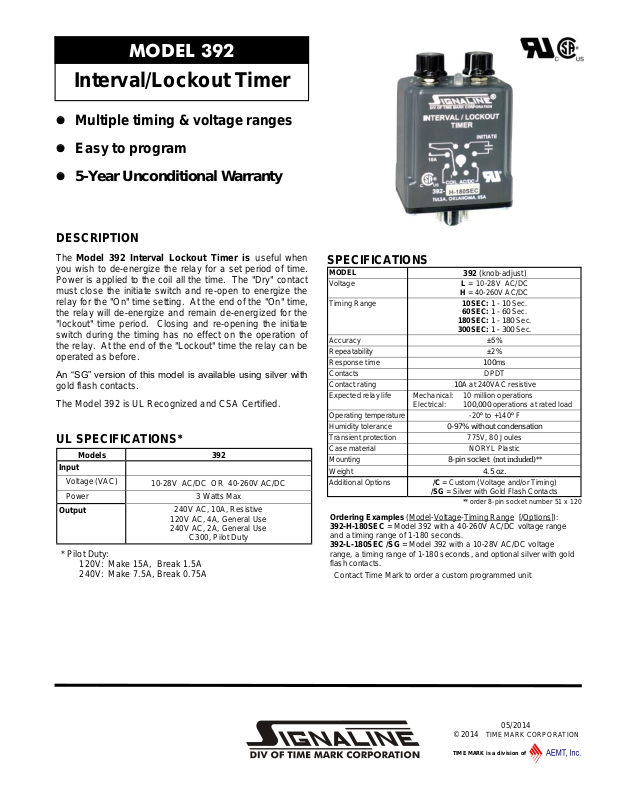

Time Mark 392 Data Sheet

TIME MARK is a division of

MODEL 392

Interval/Lockout Timer

 Multiple timing & voltage ranges
 Easy to program
 5-Year Unconditional Warranty

DESCRIPTION

The Model 392 Interval Lockout Timer is useful when
you wish to de-energize the relay for a set period of time.
Power is applied to the coil all the time. The "Dry" contact
must close the initiate switch and re-open to energize the
relay for the "On" time setting. At the end of the "On" time,
the relay will de-energize and remain de-energized for the
"lockout" time period. Closing and re-opening the initiate
switch during the timing has no effect on the operation of
the relay. At the end of the "Lockout" time the relay can be
operated as before.

An “SG” version of this model is available using silver with

gold flash contacts.
The Model 392 is UL Recognized and CSA Certified.

UL SPECIFICATIONS*

Models 392

Input

Voltage (VAC)
Power 3 Watts Max

Output

10-28V AC/DC OR 40-260V AC/DC

240V AC, 10A, Resistive
120V AC, 4A, General Use
240V AC, 2A, General Use

* Pilot Duty:
120V: Make 15A, Break 1.5A
240V: Make 7.5A, Break 0.75A

C300, Pilot Duty

SPECIFICATIONS

MODEL

Voltage

Timing Range

Accuracy ±5%
Repeatability ±2%
Response time 100ms
Contacts DPDT
Contact rating 10A at 240VAC resistive
Expected relay life Mechanical: 10 million operations

Operating temperature -20º to +140º F
Humidity tolerance 0-97% without condensation
Transient protection 775V, 80 Joules
Case material NORYL Plastic
Mounting 8-pin socket (not included)**
Weight 4.5 oz.
Additional Options

Ordering Examples (Model-Voltage-Timing Range [/Options]):
392-H-180SEC = Model 392 with a 40-260V AC/DC voltage range

and a timing range of 1-180 seconds.
392-L-180SEC /SG = Model 392 with a 10-28V AC/DC voltage
range, a timing range of 1-180 seconds, and optional silver with gold
flash contacts.

Contact Time Mark to order a custom programmed unit

Electrical: 100,000 operations at rated load

/C = Custom (Voltage and/or Timing)

/SG = Silver with Gold Flash Contacts

** order 8-pin socket number 51 x 120

392 (knob-adjust)

L = 10-28V AC/DC
H = 40-260V AC/DC

10SEC: 1 - 10 Sec.

60SEC: 1 - 60 Sec.
180SEC: 1 - 180 Sec.
300SEC: 1 - 300 Sec.

05/2014

© 2014 TIME MARK CORPORATION

MODEL 392

TIME MARK is a division of

Interval Timer (On Delay)

READ ALL INSTRUCTIONS BEFORE INSTALLING, OPERATING OR SERVICING THIS DEVICE.

KEEP THIS DATA SHEET FOR FUTURE REFERENCE.

GENERAL SAFETY

POTENTIALLY HAZARDOUS VOLTAGES ARE PRESENT AT THE TERMINALS OF THE MODEL 392.

ALL ELECTRICAL POWER SHOULD BE REMOVED WHEN CONNECTING OR DISCONNECTING WIRING.

THIS DEVICE SHOULD BE INSTALLED AND SERVICED BY QUALIFIED PERSONNEL.

Installation Instructions

OPERATION

Power is applied to the coil all the time (Pins 2 & 7). When
the initiate switch is closed, nothing happens. When the
initiate switch is opened, immediately the relay will energize

for the Interval time period. At the end of the Interval “ON”

time, the relay will de-energize and remain de-energized until
the total time period (Lockout) has elapsed.
The initiate switch opening and closing has no effect while the
relay is timing. The relay can start again only after it has
completed the total time set for the relay. If power is lost to
the coil of the timer the relay will immediately de-energize.

An LED on top of the unit provides a quick visual indicator of
the relay’s status.

LED Indicator Unit Status

PIN CONNECTIONS

DIMENSIONS

Green Energized
Red De-energized
Flashing (Green or Red) Relay is Timing

Shows No Power Applied

WARRANTY

This product is warranted to be free from defects in materials
and workmanship, and is covered by our exclusive 5-year
Unconditional Warranty. Should this device fail to operate
for any reason, we will repair it for five years from the date of
manufacture. For complete warranty details, see the Terms
and Conditions of Sales page in the front section of the Time
Mark catalog or contact Time Mark at 1-800-862-2875.

05/2014

© 2014 TIME MARK CORPORATION
