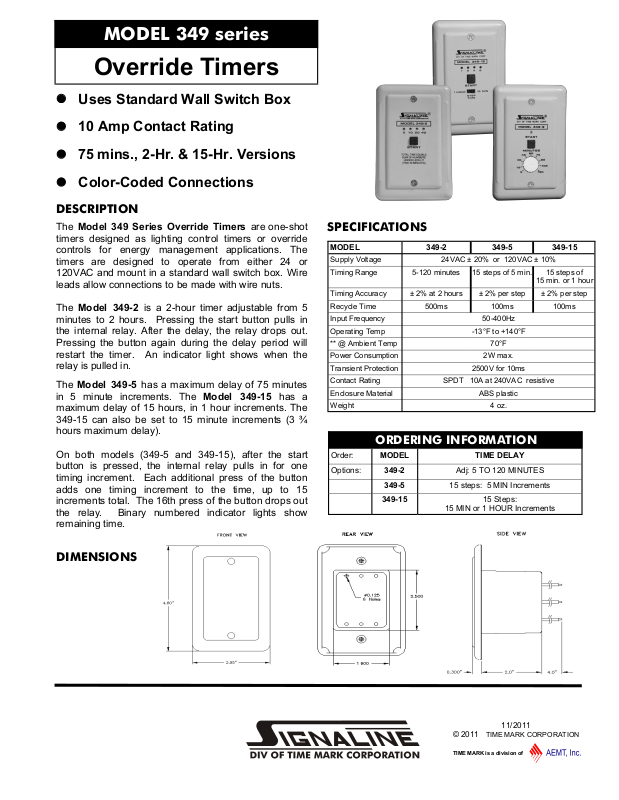

MODEL 349 series
TIME MARK is a division of
Override Timers
Uses Standard Wall Switch Box
10 Amp Contact Rating
75 mins., 2-Hr. & 15-Hr. Versions
Color-Coded Connections
DESCRIPTION
The Model 349 Series Override Timers are one-shot
timers designed as lighting control timers or override
controls for energy management applications. The
timers are designed to operate from either 24 or
120VAC and mount in a standard wall switch box. Wire
leads allow connections to be made with wire nuts.
The Model 349-2 is a 2-hour timer adjustable from 5
minutes to 2 hours. Pressing the start button pulls in
the internal relay. After the delay, the relay drops out.
Pressing the button again during the delay period will
restart the timer. An indicator light shows when the
relay is pulled in.
The Model 349-5 has a maximum delay of 75 minutes
in 5 minute increments. The Model 349-15 has a
maximum delay of 15 hours, in 1 hour increments. The
349-15 can also be set to 15 minute increments (3 ¾
hours maximum delay).
On both models (349-5 and 349-15), after the start
button is pressed, the internal relay pulls in for one
timing increment. Each additional press of the button
adds one timing increment to the time, up to 15
increments total. The 16th press of the button drops out
the relay. Binary numbered indicator lights show
remaining time.
SPECIFICATIONS
MODEL 349-2 349-15 349-5
Supply Voltage 24VAC ± 20% or 120VAC ± 10%
Timing Range 5-120 minutes
Timing Accuracy ± 2% at 2 hours ± 2% per step ± 2% per step
Recycle Time 500ms 100ms 100ms
Input Frequency 50-400Hz
Operating Temp -13°F to +140°F
** @ Ambient Temp 70°F
Power Consumption 2W max.
Transient Protection 2500V for 10ms
Contact Rating SPDT 10A at 240VAC resistive
Enclosure Material ABS plastic
Weight 4 oz.
15 steps of 5 min.
15 steps of
15 min. or 1 hour
ORDERING INFORMATION
Order:
Options:
MODEL TIME DELAY
349-2
349-5
349-15
Adj: 5 TO 120 MINUTES
15 steps: 5 MIN Increments
15 Steps:
15 MIN or 1 HOUR Increments
DIMENSIONS
11/2011
© 2011 TIME MARK CORPORATION
120 24 COM
WHT WHT
RED
WIRE
NUTS
MODEL 349
BLK
BLK
ORN
BLU
YEL
NO
C NC
NC
115 VAC
NC
LAMP
600 WATTS MAX
MODEL 349 series
TIME MARK is a division of
Override Timers
READ ALL INSTRUCTIONS BEFORE INSTALLING, OPERATING OR SERVICING THIS DEVICE.
KEEP THIS DATA SHEET FOR FUTURE REFERENCE.
GENERAL SAFETY
POTENTIALLY HAZARDOUS VOLTAGES ARE PRESENT AT THE TERMINALS OF THE MODEL 349.
ALL ELECTRICAL POWER SHOULD BE REMOVED WHEN CONNECTING OR DISCONNECTING WIRING.
THIS DEVICE SHOULD BE INSTALLED AND SERVICED BY QUALIFIED PERSONNEL.
Installation Instructions
INSTALLATION
The Model 349 Override Timer has 4” wire leads for AC
power connections.
For 24VAC operation, connect power to the WHITE
and RED leads. Cut back the unused BLACK lead and
cover with a wire nut.
For 120VAC operation, connect power to the WHITE
and BLACK leads. Cut back the unused RED lead and
cover with a wire nut.
The Model 349 has 4” wire leads for load circuit
connections. These are color-coded as follows:
YELLOW.....Relay Common
ORANGE....Normally Open
BLUE.....Normally Closed
Connect the appropriate wires into your circuit wiring
and secure with wire nut. When used to turn a load on
for a timed period, the yellow and orange leads will
be used.
To turn a load off for a timed period the yellow and
blue leads will be used.
Unless both the open and closed contacts are being
used in the same circuit, the unused lead should be cut
back and covered with a wire nut to prevent its shorting
to the mounting box. Secure the Model 349 in a
standard switch box (at least 3” deep) and apply power.
TYPICAL APPLICATION - light control
WARRANTY
This product is warranted to be free from defects in
materials and workmanship for one year. Should this
device fail to operate, we will repair it for one year from
the date of manufacture. For complete warranty details,
see the Terms and Conditions of Sales page in the front
section of the Time Mark catalog or contact Time Mark
at 1-800-862-2875.
11/2011
© 2011 TIME MARK CORPORATION
