Timberk THU UL 15M User Manual
THU UL 15M (M1)
THU UL 15M (M2)
THU UL 15M (M3)
THU UL 15M (M4)
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
INSTRUCTION MANUAL
ЭЛЕКТРИЧЕСКИЙ УВЛАЖНИТЕЛЬ
ВОЗДУХА
ELECTRIC HUMIDIFIER
Модели/Models:
THU UL 15M (M1)
THU UL 15M (M2)
Цвета/Colors:
(M1) – розовый / pink
(M2) – белый с элементами дерева /
white body color with wooden elements
(M3) – зеленый / green
(M4) – голубой / blue
Руководство по эксплуатации включает в себя гарантийный талон Производитель вправе менять внешний вид прибора и цветовую гамму прибора без специального уведомления.
Outlook of devices, aslo colour scores can be revised without any special advance notices.
THU UL 15M (M3)
THU UL 15M (M4)
CONTENTS
1. Important information
2. Safeguards
3. Specification
4. Appliance description
5. List of parts
6. Filling of tank with water
7. Appliance operation
8. Cleaning and maintenance
9. Troubleshooting
10. Transportation and storage
11. Disposal
Dear customer!
2
2
3
4
4
4
5
5
6
6
6
Thank you for your good choice and purchase of a TIMBERK
humidifier. It will serve you for a long time! The humidifier
increases relative air humidity in a room and stabilizes its
microclimate, allowing to avoid harmful conditions of decreased
humidity. Please, read this instruction manual carefully prior to
using the product!
1. IMPORTANT INFORMATION
The manufacturer reserves the right to make changes in the design,
scope of delivery or product manufacturing process in order to improve
its properties without any prior notice of the customer. The text and digital
designations in this instruction manual may contain misprints. If after
reading the instruction manual you still have question as to the operation
and use of the unit, contact the seller or the specialized service center
for clarification. The product has a tag specifying all necessary technical
data and other useful information about the unit. Use this unit only for
the purpose, listed in this manual. The humidifier is intended to humidify
room air. Comfortable conditions are provided at relative air humidity of
40 to 60%. Insufficient air humidity results in dehumidification of mucous
membranes which in its turn is the cause of decrease in immunity, head
ache, cracking of lips, «sandpaper» in the eyes, also enables development
of infection and causes respiratory illnesses, fatigue, increased eye fatigue
and worsening of attention concentration, and has negative effect on pets
and indoor plants, and causes increased dust generation and electrostatic
charging of synthetic fabrics.
2. SAFEGUARDS
Before startup of the humidifier, please, study this manual carefully and
keep it for further use.
While using the appliance, it is necessary to observe some precautions.
Improper operation due to disregard to precautions may result in personal
injury of user or other people, as well as to damaging of their property.
The humidifier is designed for work in habitable rooms with observation of
2
www.timberk.com • electric humidifier
the stated operation conditions. Using of the humidifier not for its intended
purpose may create situations dangerous to life and health. The electric
appliance, while in operation, should be under supervision, especially if it is
used in a room with children. The appliance is not intended for use by persons
(including children) with physical, sensory or mental disabilities, or having
insufficient experience and knowledge, if they are not under supervision and
did not receive instructions for use of the appliance from a person responsible
for their safety. Please, make sure that children do not play with the appliance.
Use the appliance only in accordance with the user’s manual.
Never use the humidifier with a damaged power cord or plug and if the
humidifier is broken or damaged by falling or in other circumstances. The
humidifier should be operated only in the fully assembled condition. To avoid
a burn, do not touch a membrane of the operating humidifier (for ultrasonic
models). High frequency of oscillations results in heating of the membrane.
NOTE:
High-frequency oscillations of the ultrasonic
humidifier membrane are noiseless and safe for
people and pets.
To avoid the electric shock, the damaged power cord should be replaced
only in authorized service centers by qualified specialists.
To avoid the electric shock, do not place the power cord near heating
appliances and inflammable or combustible materials.
To avoid traumas and property damage, do not try to repair the humidifier
by yourself.
Unplug the humidifier in the following cases: before discharge or filling of
a tank with water; before cleaning and maintenance; before assembling/
disassembling of elements; before displacement of the humidifier.
Install the humidifier on flat dry surface.
Outgoing steam may damage exposed surfaces. Do not install the
humidifier on the floor, as well as in close proximity to heating appliances,
walls, furniture and other objects.
The manufacturer and vendor are not responsible for damages caused by
incorrect position of the humidifier.
The humidifier should be installed on a rise – e.g. on a table, pedestal, etc.
Never fill the water in the humidifier through a diffuser.
Do not immerse the humidifier in water or other liquids.
Do not install the humidifier in a passage or in other places, where it can be
touched, overturned, etc.
If the humidifier is not in use, unplug it. Do not lay a power cable under a carpet
or other objects. While placing the humidifier, be careful that you do not touch
the power cable by accident. Do not use the humidifier in damp rooms.
Prevent the ingress of foreign objects into the humidifier.
Do not block an air intake and the diffuser with foreign objects.
Do not sit or stand on the humidifier and do not put heavy objects on it.
To avoid the damage of the humidifier, do not mix the water used for
humidification with essential oils, preservation agents, flavouring materials and
other foreign substances. The manufacturer and vendor are not responsible
for damages of the humidifier caused by nonfulfillment of this requirement.
While unplugging the humidifier, do not pull the power cable and do not
touch it with wet hands.
3. SPECIFICATION
Table 1
Specifications Unit of measurement Value
Capacity of humidity ml/hr 320
Power supply V/Hz 220~/50
Water tank L 2,6
Rated power consumption W 23
Rated current А 0,1
Protection class - IPX0
Electrical protection class - II
Device dimensions mm 180x190x280
Net weight kg 0,71
The manufacturer reserves the right to change the set-list of the device
(including liquid and powder components) for different supplies without prior
notice. The changes either in no way influence the basic technical parameters
of the device or may improve them, and also not violate the legislation or
quality standards of the countries of manufacture, transit and selling.
www.timberk.com • electric humidifier
3
The changes in the set-list may result in changing of the weight and
dimensions of the device, but not more than by +\- 5-20% (depending on
the product category)
Control panel
4. APPLIANCE DESCRIPTION

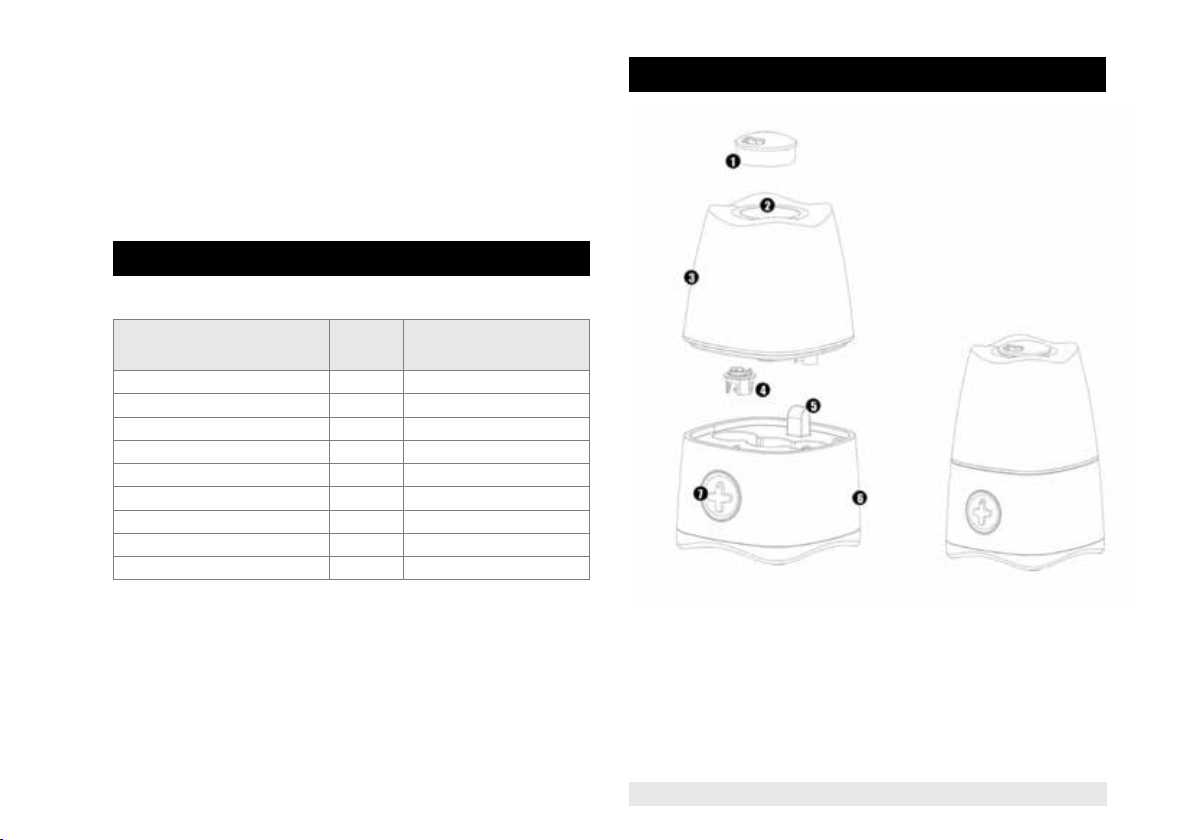

Fig. 1
1. Mist outlet
2. Mist outlet base
3. Water tank
4. Water tank cover
Control panel: ON/ OFF and MIST OUTPUT DIAL. You can switch the unit
on or off by button A, this also can control the mist output.
5. Wind outlet
6. Base
7. Control panel
2
1
1. Appliance operation and no water indicator
It is blue when the appliance is operating. It is red when there is no water
in the tank.
2. On/Off and steam outflow intensity control knob
It is used to switch the appliance on/off and to adjust the steam outflow
intensity.
5. LIST OF PARTS
1. Air humidifier – 1
2. Instruction manual and warranty card - 1
3. Package - 1
6. FILLING OF TANK WITH WATER
Always unplug the unit before removing the water tank. Do not touch the
water in the base during operation.
• Remove the water tank from the base and unscrew the water tank cap.
• Make sure that no foreign objects are in the water tank.
• Fill the tank with clean, cold water from the tap. Close the cap of the
water tank securely, place the water tank onto the base.
• Do not pour water into the mist outlet of the appliance.
• Insert the plug into the socket and switch on the appliance using the on/
off dial.
4
www.timberk.com • electric humidifier
7. APPLIANCE OPERATION
8. CLEANING AND MAINTENANCE
OPERATION
Switching on
Install the appliance to a true vertical on an even and dry surface, then
connect it to the power line, having filled the tank with water first. Turn
the on/off and steam outflow intensity knob all the way to the right. The
appliance will switch on, the blue operation indicator will light up on the
control panel and steam will start coming from the atomizer. At the very
beginning of operation, the atomizing level may appear unstable, which is
caused by the temperature difference and water quality. It will take short
time for this process to stabilize.
Adjusting steam outflow intensity
You can adjust steam intensity by turning the on/off and steam outflow
intensity knob to the left or right.
Comfortable conditions are reached at 40 to 60% relative air humidity. You
can determine the humidity level favorable for you either according to your
feelings or by using a special device called a hygrometer (not included in
the scope of supply), measuring the relative humidity level.
ATTENTION!
If a large amount of condensate is generated on the upper
part of the appliance when it is operating, then you need to
decrease the steam outflow intensity by turning the on/off
and steam outflow intensity knob counterclockwise.
Automatic switching off when there is no water
When water level in the tank drops below the minimum allowed one, the
appliance’s ultrasonic membrane will automatically switch off and a red
indicator will light up on the control panel. To continue operation of the
appliance it is necessary to fill the tank with water according to item 6 «Filling
of tank with water», and then connect the appliance to the electric mains.
Switching off
To switch the appliance off, turn the on/off and steam outflow intensity knob
all the way to the left and disconnect the appliance from the electric mains.
• Always unplug the unit before removing the water tank.
• Do not touch the water in the base during operation!
• Caution-risk of electric shock and damage of the product!
• Switch off the appliance and unplug it from the socket before cleaning it.
Clean the water tank and the base regularly. Use water only, no detergents.
IMPORTANT!
To avoid deformation or wear of working surfaces,
resulting in decreased atomizing or other malfunctions,
do not use metallic brushes, blades or talc powder to
wipe the atomizer’s surface. The water tank may leak
upon heavy impacts.
In case of water leakage, immediately stop using the
unit and contact a service center. To keep the unit dry,
remove water after cleaning and make sure to dry the
unit’s case. Make sure that there is no water left inside
the unit’s case. Prior to a long break in using the unit,
dry its surface and pack it into a plastic bag, then put
it into a box. Store the unit in a low-humidity room.
Storing the unit undried results in generation of mold.
www.timberk.com • electric humidifier
5
9. TROUBLESHOOTING
10. TRANSPORTATION AND STORAGE
In case of emergency, please, use the troubleshooting methods shown in
tables. If it is impossible to solve problems with these methods, apply to
the service center.
Table 2
Problem Possible cause Remedy
There is no problem. If you need to switch
to the intensive mode of operation, turn the
regulator handle all the way to the right
Set maximum capacity. The humidifier’s
capacity will go up after a while.
Connect the power cord into the outlet
carefully
1. Clean the humidifier’s membrane with
a special brush
2. Use filtered water
Clean the unit according to the cleaning
and servicing instructions and fill the tank
with fresh water
Lower the humidification intensity by turning the on/off and steam outflow intensity
regulator counterclockwise.
1. Lower the humidification intensity by
turning the on/off and steam outflow
intensity regulator counterclockwise
2. Clean the unit according to the cleaning
and servicing instructions
You need to contact an authorized service
center
Poor atomizing (insufficient
capacity)
No atomizing
There is white deposit on objects
around the humidifier (salts,
separating out from water)
Steam has an unpleasant odor
Condensate is formed on the
upper part of the humidifier and
on surrounding objects, when it
is operating
Water appears next to the humidifier, when it is operating
Water appears next to the humidifier, when it is not operating
The unit is operating in the minimized
mode (low atomizing frequency)
The atomizer is clogged Clean the atomizer
Temperature of water in the tank
is too low
The power cord is poorly connected
to the outlet
1. Lime deposits have formed on the
membrane
2. There is a lot of salts in the water
used (calcium and magnesium)
Stale water is used
Remains of stale water or waste have
accumulated in the unit’s case or
the atomizer
1. High humidification intensity is set
2. High room humidity and
temperature
1. High humidification intensity is set.
2. Lime deposits have formed on the
membrane and in grooves for water
(in the unit’s base)
Water tank is leaking
1. When transporting, any possible impacts and movements of the
package inside a vehicle must be avoided.
2. Handling symbols on the unit’s package must be strictly observed when
transporting and storing it.
3.
Temperature
requirements*
Humidity
requirements*
Transportation and
storage
-30°C to +50°C
15% to 85%
(no condensate)
We are researching new technologies and constantly improving the quality
of our products. Specifications, design and scope of delivery may be
changed without any prior notice.
* Products must be stored in dry, ventilated storages at the temperature not lower than -30°C.
11. DISPOSAL
Service life of the humidifier is 2 years.
At the end of its service life the humidifier should be utilized in accordance
with regulations and procedures, which are in force at the place of utilization.
6
www.timberk.com • electric humidifier
Loading...
