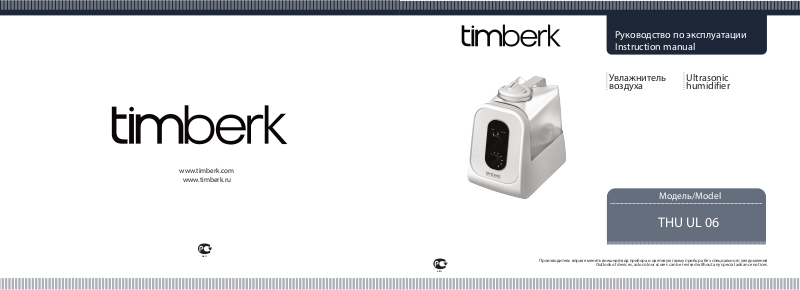

Instruction manual
|
|
Ultrasonic |
|
|
humidifier |
www.timberk.com
www.timberk.ru
) /Model
THU UL 06
71
! " $ " % & Outlook of devices, aslo colour scores can be revised without any special advance notices.
71
Dear customer!
Thank you for purchasing the Ultrasonic Humidifier. Each unit has been manufactured to ensure safety and reliability. Before first use, please read the instructions carefully and keep for future reference.
TABLE OF CONTENTS |
|
|
1. Important information..................................................................................................... |
2 |
|
2. Safety regulations.............................................................................................................. |
2 |
|
3. Technical characteristics.................................................................................................. |
3 |
|
4. |
Parts description.............................................................................................................. |
4 |
5. |
Operation ........................................................................................................................... |
5 |
6. The filter cartridge with an ion exchange resin..................................................... |
5 |
|
7. Cleaning your ultrasonic humidifier......................................................................... |
5 |
|
8. |
Troubleshooting.............................................................................................................. |
6 |
9. |
Certification information.............................................................................................. |
6 |
1. IMPORTANT INFORMATION
To improve product quality, its design, scope of delivery or manufacturing process can be revised without advance notice.
The text and digital notations in this manual may have misprints.
Should you have any questions on the functioning and operation of the device, please refer to the seller or a specialized service center to receive clarification.
There is a label on the product, indicating all necessary technical data and other useful information regarding the device.
Use the device only for purposes, stated in this manual.
The humidifier is intended to automatically maintain the preset level of relative humidity indoors. Comfortable conditions are achieved at relative humidity ranging from 40 to 60%. If the actual humidity goes below the level you set then the humidifier will switch on automatically and operate until the set relative humidity level is achieved, after that the humidifier switches off automatically (for models with the automatic operation mode).
Insufficient air humidity results in drying of mucous membranes, which in its turn is the reason for decrease in immunity, headache, lip cracking, sandpaper in the eyes, it also enables infection spreading and respiratory
tract diseases, causes fatigue, results in increased eye fatigue and worsening of attention focusing, it has a negative effect on the condition of pets and house plants, causes increase of dust generation and, increase of electrostatic charge of synthetic fabrics, as well as carpets and synthetic floor coatings, it causes damage of wooden furniture and especially parquet floors, it negatively affects tuning of musical instruments.
2. SAFETYREGULATIONS
Prior to operation of the humidifier carefully read this operation manual and save it for further use.
A number of safety measures should be followed upon operation of the device. Improper operation due to ignoring precautions may result in damaging of user s and other people s health, as well as damaging their property.
The humidifier is intended for operation in living rooms subject to the indicated operation conditions. The use of the humidifier for purposes other than that intended may cause situations, hazardous for the life and health of people.
The electric appliance must be kept watched during its operation, especially if there are children in the vicinity. The unit is not intended to be used by people (including children) with limited physical, sensory or intellectual capabilities, having insufficient experience and knowledge, unless they are supervised or received instructions on how to use the unit from a person, responsible for their safety. It is necessary to be careful that children do not play with the unit.
Do not use the unit for purposes, not specified by this operation manual.
It is forbidden to use the humidifier if the power cord or a plug are damaged, as well as if the humidifier is broken, damaged as a result of falling or under other circumstances. The humidifier must be operated fully assembled only.
To prevent burns upon operation of the humidifier do not touch the humidifier s membrane (for ultrasonic models). Due to high oscillations frequency the membrane heats up very much.
High-frequency oscillations of the ultrasonic humidifier membrane are not audible and completely safe for people and pets.
To prevent an electric shock, the damaged power cord must be replaced only in authorized service centers by qualified specialists.
To prevent an electric shock, do not place the power cord next to heating appliances and flammable or combustible substances.
To prevent injuries and damage to property, do not try to repair the humidifier on your own.
Take out the plug from an outlet in the following cases: prior to draining or filling the tank with water; prior to cleaning and maintenance; prior to mantling/dismantling of humidifier s elements; prior to transportation of the humidifier to another place.
Install the humidifier on to a smooth dry surface. The outgoing steam may damage surfaces it contacts. Do not install the humidifier on the floor, as well as in the vicinity of heating appliances, furniture and other objects.
The manufacturer and the seller do not bear any responsibility for damages, inflicted due to improper position of the humidifier.
The humidifier should be installed on some kind of an elevation, for example, on table, stand, etc.
It is not allowed to fill water into the humidifier through the atomizer.
Do not submerge the humidifier into water or other liquids.
Do not install the humidifier in places where it can be touched, tipped over, etc.
If the humidifier is not used, unplug it from electric mains.
Do not lay the power cord under a carpet or other objects. Position the humidifier so that the power cord cannot be stumbled upon.
Do not use the humidifier in damp rooms.
Do not allow foreign object to get into the humidifier.
Do not block the air intake and humidifier s atomizer.
Do not sit, standandputheavyobjectsonthehumidifier.
To prevent damage of the humidifier, do not add essential oils, preservatives, flavors and other foreign substances to humidification water. The manufacturer and the seller do not bear any responsibility for damages of the humidifier, inflicted due to failure to follow this requirement.
Do not pull the power cord and do not touch it by wet hands when you unplug the humidifier from electric mains.
|
ENGLISH |

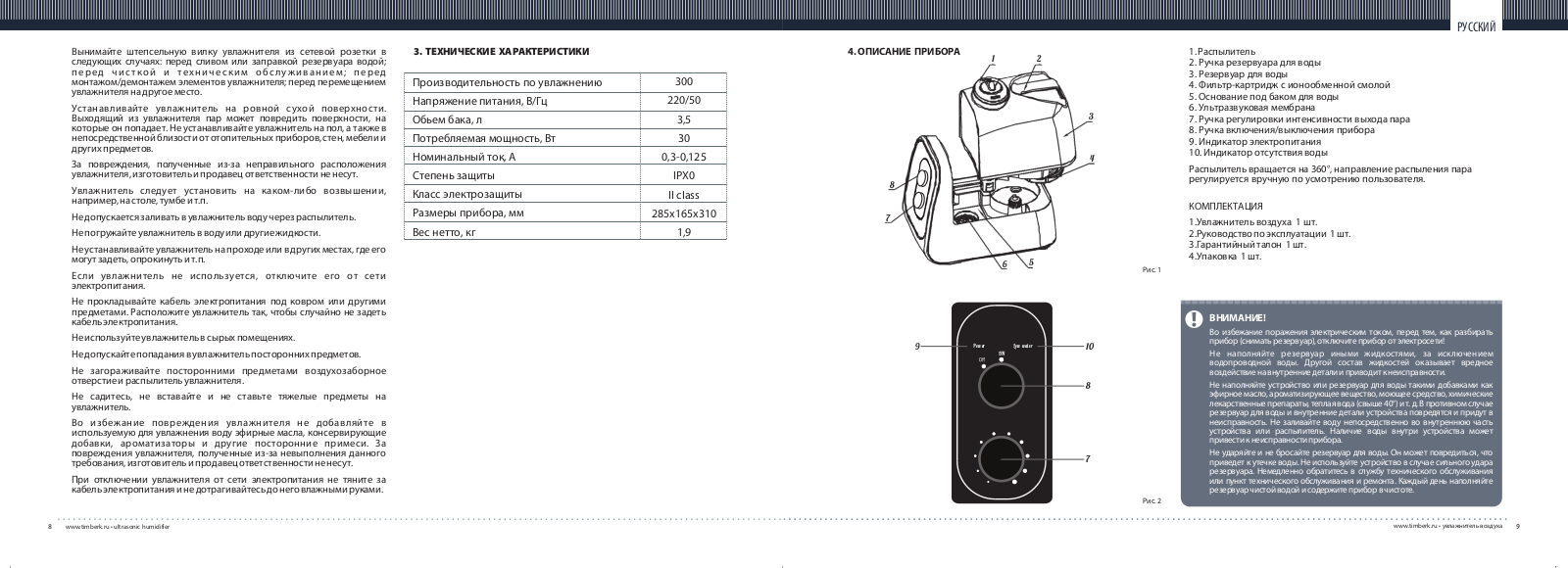

3. TECHNICALCHARACTERISTICS |
|
|
|
Capacity of humidity, ml/h |
300 |
|
|
Power supply, V/Hz |
220/50 |
|
|
Water tank, L |
3,5 |
|
|
Power consumption, W |
30 |
|
|
Rated current, A |
0,3-0,125 |
|
|
Water protection |
IPX0 |
|
|
Electrical protection class |
II cIass |
|
|
Device dimension, mm |
285x165x310 |
|
|
Net weight, kg |
1,9 |
|
|
2 |
www.timberk.ru ultrasonic humidifier |
www.timberk.ru ultrasonic humidifier |
3 |
4.PARTSDESCRIPTION |
1 |
2 |
|
3
4
8
7
6 5
Fig. 1
9 |
|
Power |
Low water |
|
10 |
|
|
||||
|
|
|
ON |
|
|
8
7
Fig. 2
1.Sprayer
2.The handle of the water tank
3.Water tank
4.Filter cartridge with ion exchange resins
5.The base under the tank for water
6.Ultrasonic membrane
7.Handle adjust the intensity of the steam
8.The handle on / off
9.Power indicator
10.Indicator of lack of water
Sprayer rotates 360 °, the direction of spray vapor is adjusted manually by the user.
COMPLECT
1.Humidifier 1 pcs.
2.User manual 1 pcs.
3.Warranty card 1 pcs.
4.Carton box 1 pcs.
ATTENTION!
To avoid electric shock, before you disassemble the unit (take off the tank), unplug the appliance!
Do not fill the tank other liquids, except for tap water.
Another of the liquid is harmful to internal components and leads to failure.
Do not fill the device or reservoir for water additives such as essential oils, fragrances, detergent, chemical medicines, warm water (above 40 °), etc.
Otherwise, the water tank and the internal parts damaged and the device will come to a fault.
Do not pour water directly into the interior of the device or nebulizer.
The presence of water inside the unit may cause damage to the device.
Do not hit or throw a water reservoir. It may be damaged, leading to water leakage. Do not use the device in the event of a severe blow tank.

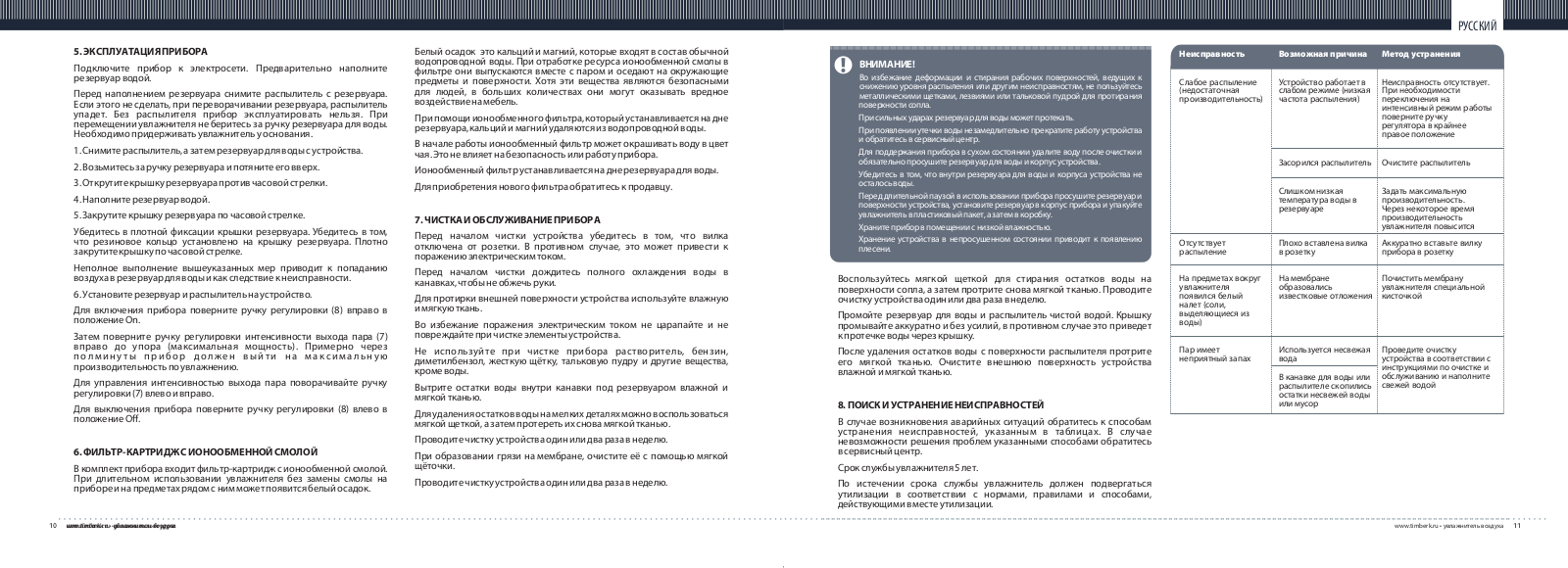

5. OPERATION
Connect the device to the mains. Pre-fill the tank with water. Before filling the tank with clear dispenser tank. If you do not, by turning the tank, spray drops. Without the spray device can not operate. When you move the humidifier does not grasp the handle of the tank. Necessary to hold the damper at the base.
1.Remove the sprayer, and then the water tank from the device.
2.Grasp the handle on the tank and pull it up.
3.Unscrew the tank counterclockwise.
4.Fill the tank with water.
5.Screw the lid on the tank clockwise.
Make a tight lid lock tank. Make sure that the rubber ring is installed on top of the tank.Tighten the lid clockwise.
Incomplete implementation of the above measures lead to ingress of air into the water tank and as a result of a malfunction.
6. Set the tank and spray on the device.
To turn the unit on, turn knob (8) the right to On.
Then turn the knob of the intensity output pair (7) clockwise until it stops (maximum capacity). After about half a minute the device should go for maximum performance in moisture.
To control the intensity of the steam turn the knob (7) to the left and right. To turn the unit off, turn knob (8) in the left to Off.
6. THE FILTER CARTRIGE
The complete set includes a filter cartridge with an ion exchange resin. With prolonged use, without changing the pitch damper on the appliance and on subjects close to him may appear white precipitate.
The white precipitate - is calcium and magnesium, which are part of normal tap water. In developing the resource, the resin in the filter they are released with the steam and settle on the surrounding objects and surfaces.
Although these substances are safe for people in large numbers they may have an adverse impact on the furniture.
With the help of ion exchange filter that is installed on the bottom of the tank, calcium and magnesium are removed from tap water.
At the beginning of the ion exchanger can be painted in water color of tea. This does not affect safety or operation of the device.
Ion exchanger is installed at the bottom of the tank.
To acquire the ion exchange filter, contact your dealer.
ENGLISH
7. CLEANINGYOUR ULTRASONIC HUMIDIFIER
The method of keeping clean:
Using purified water
Cleaning the base of unit, water tank and ultrasonic transducer every week
Always change to use clean water.
Always drain the water tank when not in use.
Clean all parts of the humidifier before storing by wiping with a damp cloth, and buffing with a dry cloth.(Except for the electrical control when the unit is off, any part of the humidifier may be wiped with a soft damp cloth, and buffed with a dry cloth ,ensuring the unit is unplugged.)
The methods of cleaning the connector:
To clean the dirty surface with a soft brush.
Rinse the transducer with clean water.
The methods of cleaning the base of unit:
Clean the dirty flume with soft cloth.
If there is dirty on the surface of the protective switch of water line, using soft brush to clean.
Wash the flume with clean water.
ATTENTION!
In order to avoid deformation and erase the working surfaces, leading to reduced sputtering or other problems, do not use wire brushes, talcum powder or blades to wipe the nozzle surface.
When strong shocks the water tank can leak.
When the water leaks immediately discontinue operation of the unit and contact your dealer.
To maintain the unit in a dry state to remove the water after cleaning and be sure to dry the water tank and the enclosure.
Make sure that inside the water tank and the enclosure is left of water.
Before long a pause in the use of the device dry reservoir and surface of the device, install the tank in the housing and pack the humidifier
in a plastic bag and then into the box.
Keep the instrument in a room with low humidity.

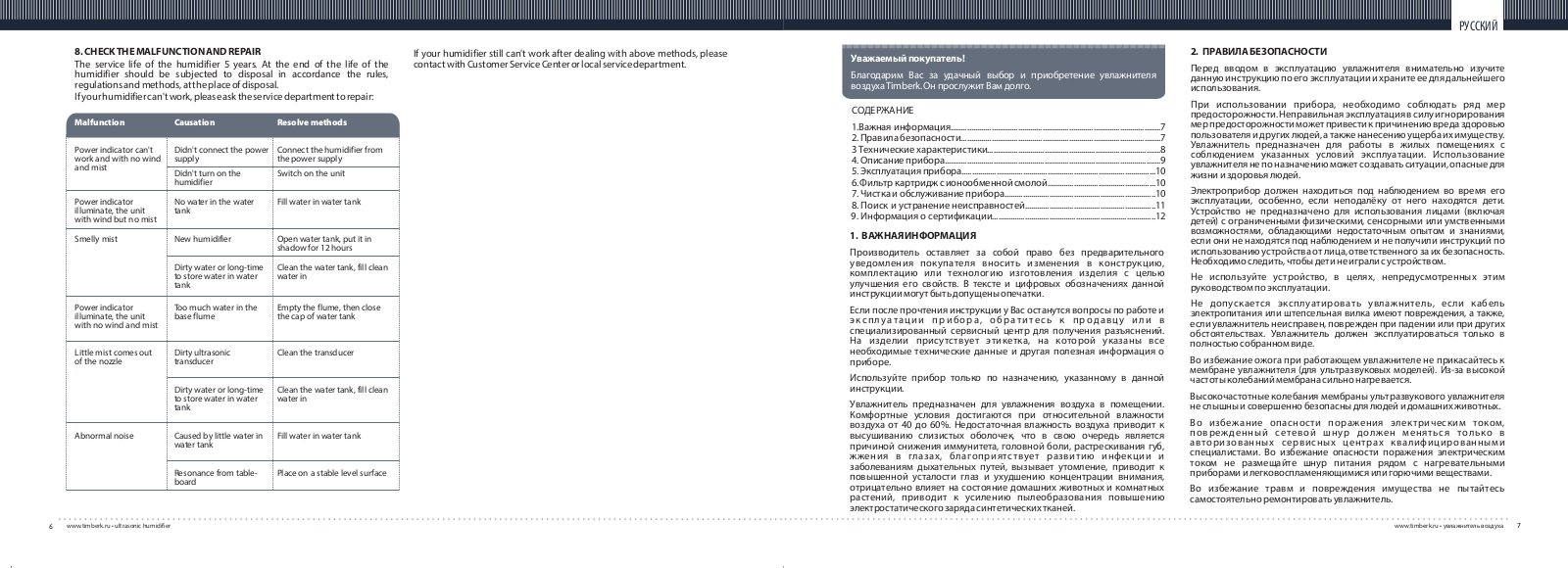

Storage device in unseasoned state leads to mold.
