Timberk THU UL 12 User Manual [ru]

Instruction manual

Руководство по эксплуатации

5.0 L

4.0 L

3.0 L

2.0 L

1.0 L

Outlook of devices, aslo colour scores can be revised without any special advance notices.

Производитель вправе менять внешний вид прибора и цветовую гамму прибора без специального уведомления.

Электрический увлажнитель воздуха

Модели/Models:

Цвета \ Colors *

* - Указано в дополнительной маркировке модели \ Specified

in the additional marks of modes name

- Цвета для всего изделия и/или ряда его частей \ The colors for the whole unit and/or its parts

Electric humidifier

THU UL 12

(W) – белый цвет корпуса с элементами серого цвета / white case with gray elements

(BL) – черный цвет корпуса с элементами серого цвета / black case with gray elements

(VT) – белый цвет корпуса с элементами фиолетового цвета / white case with violet elements

(GN) – белый цвет корпуса с элементами зеленого цвета / white case with green elements

www.timberk.com • electric humidifier

CONTENTS

1. Important information

2. Safeguards

3. Specification

4. Appliance description

5. List of parts

6. Filling the tank with water

7. Operation of the unit

8. Water softening filter cartridge

9. Cleaning and maintenance

10. Transportation and storage

11. Troubleshooting

12. Disposal

Dear customer!

Thank you for your good choice and purchase of a Timberk

humidifier. It will serve you for a long time!

The humidifier increases relative air humidity in a room and

stabilizes its microclimate, allowing to avoid harmful conditions

of decreased humidity.

Please, read this instruction manual carefully prior to using the

product!

6 6 6 7 7

The manufacturer reserves the right to make changes in the design, scope of delivery or product manufacturing process in order to improve

its properties without any prior notice of the customer. The text and digital designations in this instruction manual may contain misprints.

If after reading the instruction manual you still have question as to the operation and use of the unit, contact the seller or the specialized service center for clarification. The product has a tag specifying all necessary technical data and other useful information about the unit.

Use this unit only for the purpose, listed in this manual. The humidifier is intended to humidify room air. Comfortable conditions are

provided at relative air humidity of 40 to 60%. Insufficient air humidity results in dehumidification of mucous membranes which in its turn is the cause of decrease in immunity, head ache, cracking of lips, “sandpaper” in the eyes, also enables development of infection and causes respiratory illnesses, fatigue, increased eye fatigue and worsening of attention concentration, and has negative effect on pets and indoor plants, and causes increased dust generation and electrostatic charging of synthetic fabrics.

1. IMPORTANT INFORMATION

2. SAFEGUARDS

Prior to using the humidifier please read this instruction manual carefully and keep it for future reference.

When using the unit, you need to follow a number of precautions. Improper operation as a result of ignoring precautions may harm health of the user and other people, as well as damage their property. The humidifier is intended to operate in living quarters provided specified operation conditions are observed. Inappropriate operation of the humidifier may cause situation, dangerous for people’s lives and health.

The electrical unit must be supervised when in operation, especially if there are children nearby. The unit is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, unless they have been given supervision or instruction as to the use of the unit by an individual responsible for their safety. Children should be supervised to ensure they do not play with the unit.

Do not use the unit for purposes not specified by this instruction manual. The humidifier must not be used if its power cord or plug is damaged, as

well as if the humidifier is inoperable, damaged upon falling down or due to other circumstances. The humidifier must be used only fully assembled.

To avoid being burned do not touch the humidifier’s membrane when it is operating. The membrane gets very heated due to high membrane’s oscillation frequency.

NOTE:

High-frequency oscillations of the ultrasonic humidifier membrane are not audible and are completely safe for people and pets.

To avoid electric shock, a damaged power supply unit must be replaced only in authorized service centers by qualified specialists. To avoid electric shock, do not place the power cord next to heating appliances and flammable or combustible substances.

To avoid injuries and property damage do not try to repair the humidifier by yourself. To repair the humidifier contact the manufacturer’s authorized

service center. Take the power cord out from an electric outlet in the following cases: prior

to water discharge and filling of the tank; prior to cleaning and technical maintenance; prior to assembly/disassembly of humidifier’s elements; prior to relocating the humidifier.

Install the humidifier on an even dry surface. Steam, coming out from the humidifier, can damage surfaces it comes into contact with. Do not install the humidifier on the floor, as well as in close vicinity to heating appliances, walls, furniture and other things.

The manufacturer and the seller are not responsible for damages, incurred due to improper location of the humidifier.

The humidifier should be installed on some sort of an elevation, for example, on a table, stand, etc.

It is forbidden to pour water into the humidifier through the atomizer. Do not immerse the humidifier into water or other fluids. Do not install the humidifier in the aisle or other places, where it can be

pushed, tipped over, etc. If you do not use the humidifier, disconnect it from the power line. Do not lay the power cord under a carpet or other things. Place the

humidifier so that you couldn’t touch the power cord. Do not use the humidifier in damp rooms. Excessive room humidity may

cause water condensation on windows and furniture. If this is the case, turn off the humidifier.

Do not let foreign objects get into the humidifier. Do not obstruct the humidifier’s air intake and atomizer by foreign objects. Do not sit, stand and put heavy objects on the humidifier. To avoid damaging the humidifier, do not add essential oils, preservation

agents, fragrances and other foreign admixtures into the water used for humidification. The manufacturer and the seller are not responsible for damage of the humidifier incurred as a result of failure to comply with this requirement.

When disconnecting the humidifier from the power line, do not pull the power cord and do not touch it with wet hands.

Make sure to take this information into consideration.

www.timberk.com • electric humidifier

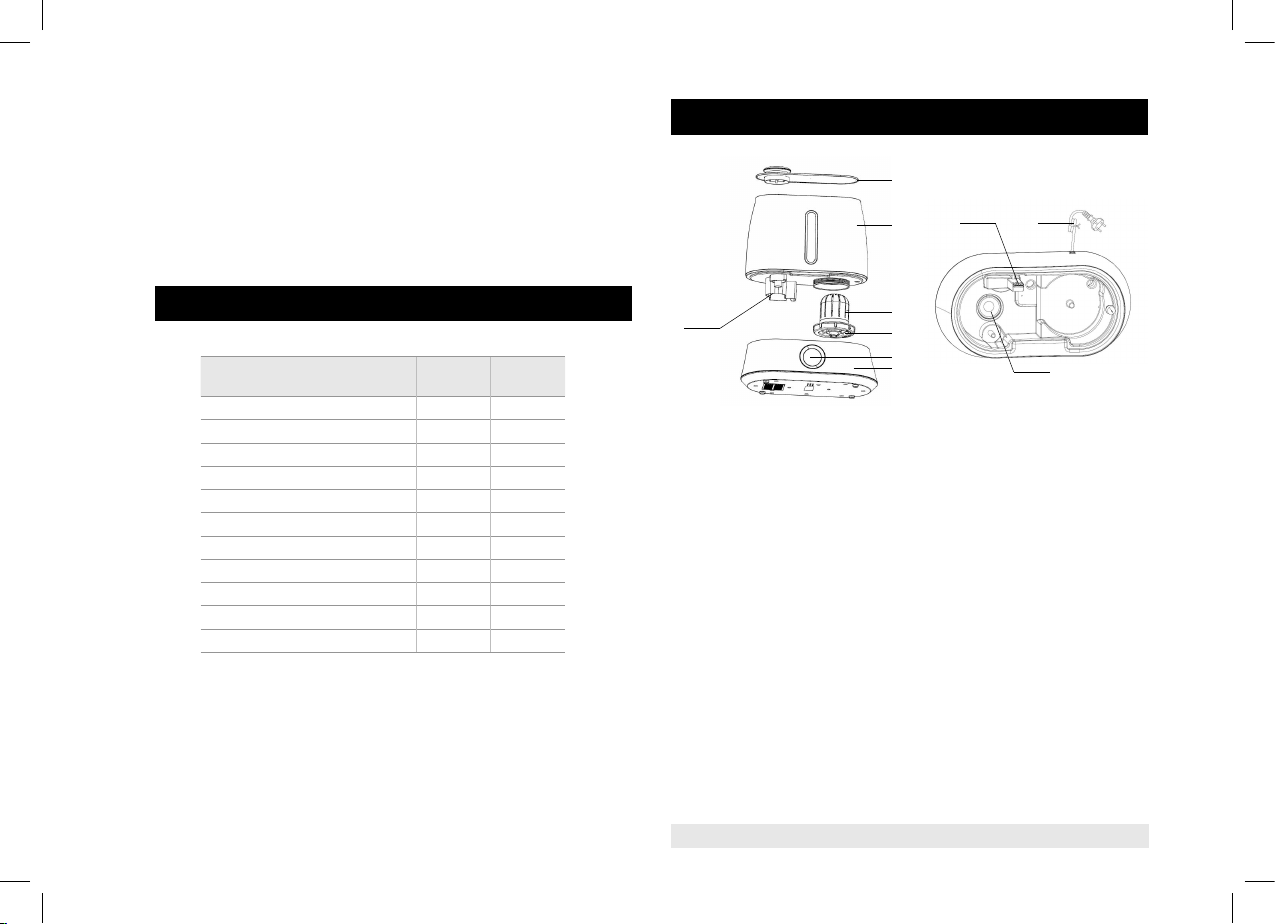

3. SPECIFICATION

4. APPLIANCE DESCRIPTION

Table 1

Technical specifications

Humidification capacity ml/h 360

Supply voltage V/Hz ~220/50

Tank volume l 5,3

Rated power consumption W 30

Nominal current А 0,15

Moisture protection class rating - IPX0

Electrical protection class rating - ll

Appliance dimensions, mm mm 326x173x310

Package dimensions, mm mm 357x214x328

Net weight kg 1,5

Gross weight kg 2

Unit of

measurement

Value

The manufacturer reserves the right to change component parts of the product for various delivery batches without any prior notice (including components to be poured/filled in), not affecting the main technical parameters of the product or improving them, as well as not violating quality standards and statutory regulations, adopted within the country of manufacture/transit/sales, by such changes.

This can cause changes in the weight and overall dimensions of the product, but not more than by +\- 5-20% (subject to variation for different types of the product).

Fig. 1

1. Water tank cap with atomizer

2. Water tank

3. Water softening filter cartridge

4. Water tank cap with valve

5. Display

6. Base of the unit

7. Air vent

8. Power cord

9. Ultrasonic membrane

10. Water level sensor float

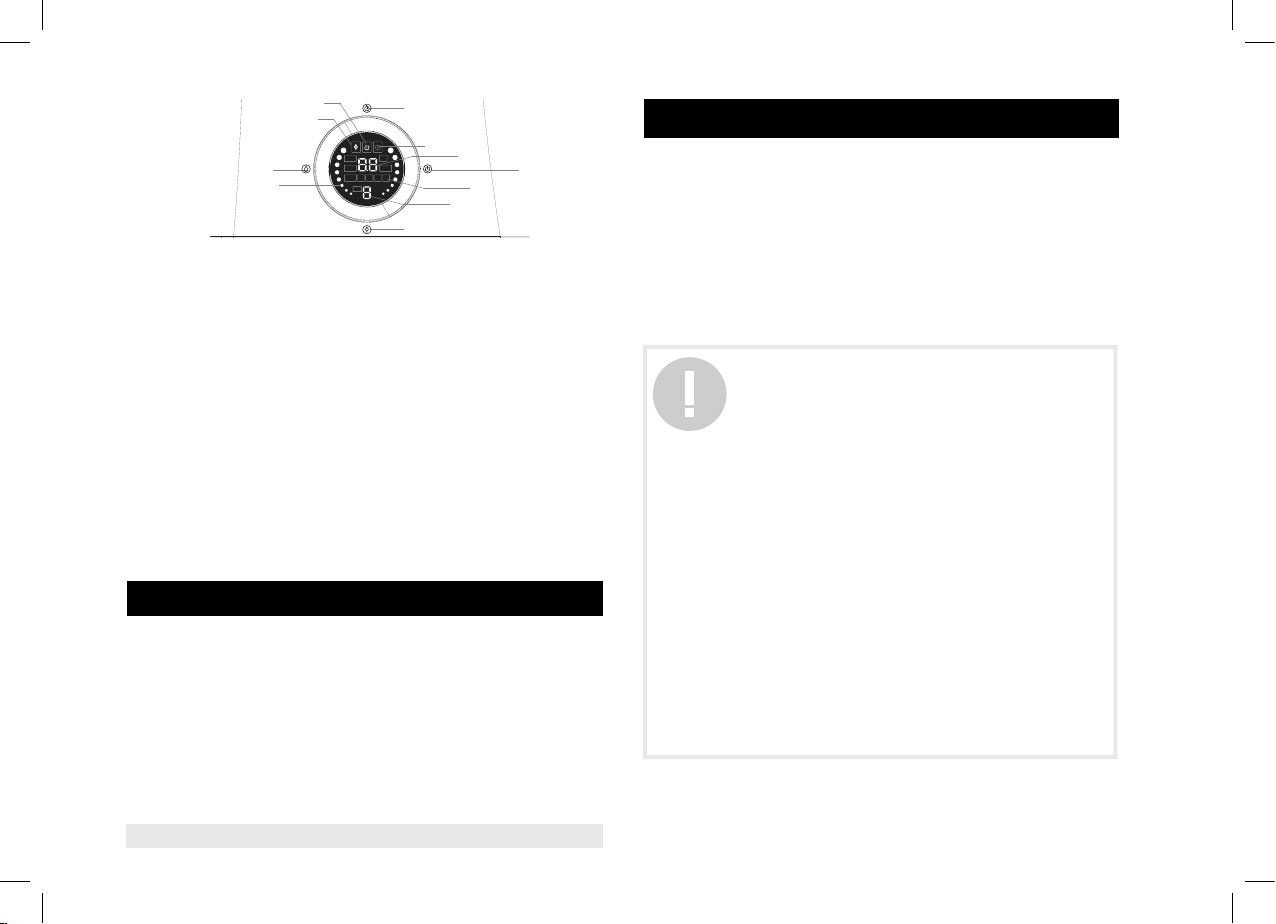

Fig. 2

7 8

5 6

temp

%RHhumid

8421

time

mist

1. Steam outflow intensity selector

2. Off timer setting button

3. On/Off button

4. Air ionizing on/off button

5. Steam outflow intensity indicator

6. Air ionizing activation indicator

7. Power indicator

8. No water indicator

9. Current level of humidity (HUMID)/temperature (TEMP)

10. Timer indicators: the unit will be switched off in 1h, 2h, 4h, 8h

11. Operation mode indicators The display may show other indicators, depending on the unit’s series. All

indicators correspond to one or another operation mode (depending on user settings).

Other indicators may show up on the display, it depends on the unit’s serial number. All indicators correspond to some or other operation mode (depending on user presets).

5. LIST OF PARTS

1. Air humidifier – 1 pc.

2. Instruction manual – 1 pc.

3. Warranty card – 1 pc.

4. Package – 1 pc.

6. FILLING THE TANK WITH WATER

1. Remove the water tank cap with the atomizer and then the water tank itself from the unit.

2. Take the tank handle and pull upwards.

3. Turn over the tank, unscrew the tank cap with the valve counterclockwise and fill it with water.

4. Screw the tank cap with the valve clockwise. Make sure that the tank cap is tightly secured.

5. Install the tank and the water tank cap with the atomizer back to the unit.

IMPORTANT!

To avoid electric shock, prior to disassembling the unit (removing the tank), disconnect the unit from the power line! Do not fill the tank with other liquids but tap water.

Different composition of liquids has harmful effect on internal parts and causes failures.

Do not fill the unit or the water tank with such additives as essential oils, fragrances, cleaning agents, chemical medical drugs, warm water (above 40°), etc.

Otherwise, the water tank and internal parts of the unit will be damaged and inoperable.

Do not fill water directly into the internal part of the unit or the atomizer.

Water inside the unit may cause failure of the unit. Do not hit or throw the water tank. It may get damaged

resulting in water leaks. Do not use the unit in case if the water tank is heavily hit.

Immediately contact the technical support service or the maintenance and repair station.

Every day fill the tank with fresh water and keep the unit clean.

www.timberk.com • electric humidifier

7. OPERATION OF THE UNIT

8. WATER SOFTENING FILTER CARTRIDGE

Install the unit to a true vertical on an even and dry surface, then connect it to the power line, having filled the tank with water first.

Press the button « the display will show operation indicator, steam outflow intensity indicator, operation mode indicator and humidity/temperature value.

At the very beginning of operation, the atomizing level may appear unstable, which is caused by the temperature difference and water quality.

It takes some time for water to start turning into steam on the ultrasonic membrane. After 10-25 minutes the atomizing level will gradually stabilize.

To select the operation mode and change the steam outflow intensity press the button « each time and shown on the display by indicators.

The display also shows the current humidity level and temperature. The unit will be turned off if water is completely used up, at the same time

the no water indicator « To continue operation of the unit, add water in accordance with the

instructions (section 6 Filling the tank with water). To set time for the off timer, press the button «

same time the set off timer time will be shown on the display. To activate/deactivate air ionizing function press the button « The ionizer generates negative ions (anions) and refreshes the room air.

Anions reinforce the nervous and the blood-vascular systems, improve lungs performance and provide effective protection against respiratory illnesses (such as asthma and pneumonia). Anions clean air from dust and smoke.

To turn off the unit press the button «

» and the unit will automatically start operating, and

» several times, the steam outflow intensity will be changed

» will light up.

» several times, at the

».

NOTE:

When using the humidifier, you may come across condensate generation on its upper part and objects next to it, including water accumulation, which is not a defect, but a feature of its operation. This feature may have several causes, listed in table 2 on page 7.

The unit’s scope of delivery includes 1 filter cartridge with balls out of mineral stone, installed on the water tank cap with the valve, which features strong absorbing properties. The filter absorbs elements of heavy metals such as lead, chrome, mercury, zinc, etc. It decontaminates water and restores normal pH level.

Filter’s life is 4-6 months, depending on the quality of water used and how often the unit is used.

If the white deposit appears on things around the humidifier when it is used, it may have the following causes:

1. Water used contains high amount of magnesium or calcium. You should use water that was preliminarily treated by a domestic water filter.

2. Residues of calcium and magnesium salts have accumulated inside the unit. You should clean inner parts of the unit.

3. Steam deposits suspended dust on a surface, contained in the air.

4. The water softening filter properties have deteriorated. You should replace the water softening filter.

9. CLEANING AND MAINTENANCE

Prior to cleaning the unit make sure the power supply’s plug is disconnected from the outlet. Otherwise, it may cause electric shock.

Prior to cleaning wait until water, remaining in the unit’s case, completely cools down, to avoid getting burned.

Use a damp and soft fabric to wipe the unit’s external surface.

To avoid electric shock do not scratch or damage elements of the unit when cleaning.

When cleaning, do not use solvents, benzene, xylene, scrub brush, talc powder and other substances except for water.

Wipe off remains of water inside the unit’s case under the tank using a damp and soft fabric.

To wipe of remains of water on small parts you can use a soft brush and then wipe them with a soft fabric again.

www.timberk.com • electric humidifier
