Timberk THU MINI 02 BL User Manual [ru]
Instruction manual
Руководство по эксплуатации
Outlook of devices, aslo colour scores can be revised without any special advance
notices.
Производитель вправе менять внешний вид прибора и цветовую гамму прибора без специального уведомления.
Электрический
увлажнитель
воздуха
Модели/Models:
Цвета \ Colors *
* - Указано в дополнительной маркировке модели \ Specified
in the additional marks of modes name
- Цвета для всего изделия и/или ряда его частей \ The colors
for the whole unit and/or its parts
Electric
humidifier
THU MINI 02
(W) - белый \ white
(BL) - черный \ black
(O) - оранжевый \ orange
(P) - розовый \ pink
(GN) - зеленый \ green
www.timberk.com • electric humidifier
TABLE OF CONTENTS
1. Important information
2. Safety rules
3. Specifications
4. Description of the unit
5. Scope of delivery
6. Filling the tank with water
7. Operation of the unit
8. Cleaning and servicing the unit
9. Troubleshooting
10. Transportation and storage
11. Disposal
Dear customer!
2
3
4
4
5
5
5
6
7
7
7
Thank you for your good choice and purchase of a Timberk
humidifier. It will serve you for a long time!
The humidifier increases relative air humidity in a room and
stabilizes its microclimate, allowing to avoid harmful conditions
of decreased humidity.
Please, read this instruction manual carefully prior to using the
product!
1. IMPORTANT INFORMATION
The manufacturer reserves the right to make changes in the design,
scope of delivery or product manufacturing process in order to improve
its properties without any prior notice of the customer. The text and digital
designations in this instruction manual may contain misprints.
If after reading the instruction manual you still have question as to the
operation and use of the unit, contact the seller or the specialized service
center for clarification. The product has a tag specifying all necessary
technical data and other useful information about the unit.
Use this unit only for the purpose, listed in this manual.
The humidifier is intended to humidify room air. Comfortable conditions are
provided at relative air humidity of 40 to 60%. Insufficient air humidity results
in dehumidification of mucous membranes which in its turn is the cause of
decrease in immunity, head ache, cracking of lips, “sandpaper” in the eyes,
also enables development of infection and causes respiratory illnesses,
fatigue, increased eye fatigue and worsening of attention concentration,
and has negative effect on pets and indoor plants, and causes increased
dust generation and electrostatic charging of synthetic fabrics.
2
www.timberk.com • electric humidifier
2. SAFETY RULES
Prior to using the humidifier please read this instruction manual carefully
and keep it for future reference.
When using the unit, you need to follow a number of precautions. Improper
operation as a result of ignoring precautions may harm health of the
user and other people, as well as damage their property. The humidifier
is intended to operate in living quarters provided specified operation
conditions are observed. Inappropriate operation of the humidifier may
cause situation, dangerous for people’s lives and health.
The electrical unit must be supervised when in operation, especially if there
are children nearby. The unit is not intended for use by people (including
children) with reduced physical, sensory or mental capabilities, or lacking
experience and knowledge, unless they have been given supervision or
instruction as to the use of the unit by an individual responsible for their
safety. Children should be supervised to ensure they do not play with the
unit.
Do not use the unit for purposes not specified by this instruction manual.
The humidifier must be used only with the original power supply unit
included in the scope of delivery.
The humidifier must not be used if its power supply unit is damaged, as
well as if the humidifier is inoperable, damaged upon falling down or due
to other circumstances. The humidifier must be used only fully assembled.
To avoid being burned do not touch the humidifier’s membrane when it
is operating. The membrane gets very heated due to high membrane’s
oscillation frequency.
NOTE:
High-frequency oscillations of the membrane of
the ultrasonic humidifier are not audible and are
completely safe for people and pets.
To avoid electric shock, a damaged power supply unit must be replaced
only in authorized service centers by qualified specialists. To avoid electric
shock, do not place the power cord next to heating appliances and
flammable or combustible substances.
To avoid injuries and property damage do not try to repair the humidifier
by yourself. To repair the humidifier contact the manufacturer’s authorized
service center.
Take the power cord out from an electric outlet in the following cases: prior
to water discharge and filling of the tank; prior to cleaning and technical
maintenance; prior to assembly/disassembly of humidifier’s elements; prior
to relocating the humidifier.
Install the humidifier on an even dry surface. Steam, coming out from the
humidifier, can damage surfaces it comes into contact with. Do not install
the humidifier on the floor, as well as in close vicinity to heating appliances,
walls, furniture and other things.
The manufacturer and the seller are not responsible for damages, incurred
due to improper location of the humidifier.
The humidifier should be installed on some sort of an elevation, for example,
on a table, stand, etc. at the distance of not less than 60 cm from the floor
and not less than 10 cm from the wall.
It is forbidden to pour water into the humidifier through the atomizer.
Do not immerse the humidifier into water or other fluids.
Do not install the humidifier in the aisle or other places, where it can be
pushed, tipped over, etc.
If you do not use the humidifier, disconnect it from the power line.
Do not lay the power cord under a carpet or other things. Place the
humidifier so that you couldn’t touch the power cord.
Do not use the humidifier in damp rooms. Excessive room humidity may
cause water condensation on windows and furniture. If this is the case,
turn off the humidifier.
Do not let foreign objects get into the humidifier.
Do not obstruct the humidifier’s air intake and atomizer by foreign objects.
3
www.timberk.com • electric humidifier
Do not sit, stand and put heavy objects on the humidifier.
To avoid damaging the humidifier, do not add essential oils, preservation
agents, fragrances and other foreign admixtures into the water used for
humidification. The manufacturer and the seller are not responsible for
damage of the humidifier incurred as a result of failure to comply with this
requirement.
When disconnecting the humidifier from the power line, do not pull the
power cord and do not touch it with wet hands.
The manufacturer reserves the right to change component parts of the product
for various delivery batches without any prior notice (including components
to be poured/filled in), not affecting the main technical parameters of the
product or improving them, as well as not violating quality standards and
statutory regulations, adopted within the country of manufacture/transit/
sales, by such changes.
This can cause changes in the weight and overall dimensions of the product,
but not more than by +\- 5-20% (subject to variation for different types of
the product).
3. SPECIFICATIONS
Table 1
Specifications UoM Value
Humidification capacity ml/h 80
Rated voltage of the power supply unit V/Hz ~220/50
Working voltage of the unit (direct current) V 24
Recommended water tank up to (plastic bottle)* l 0.5
Rated power W 12
Rated current A 0.4
Protection rating - IPX0
Electric protection category - III
Dimensions of the unit mm 147x78x83.5
Dimensions of the package mm 184x155x100
Net weight kg 0.38
Gross weight kg 0.5
Recommended floor area m
* Not included in the scope of delivery
4

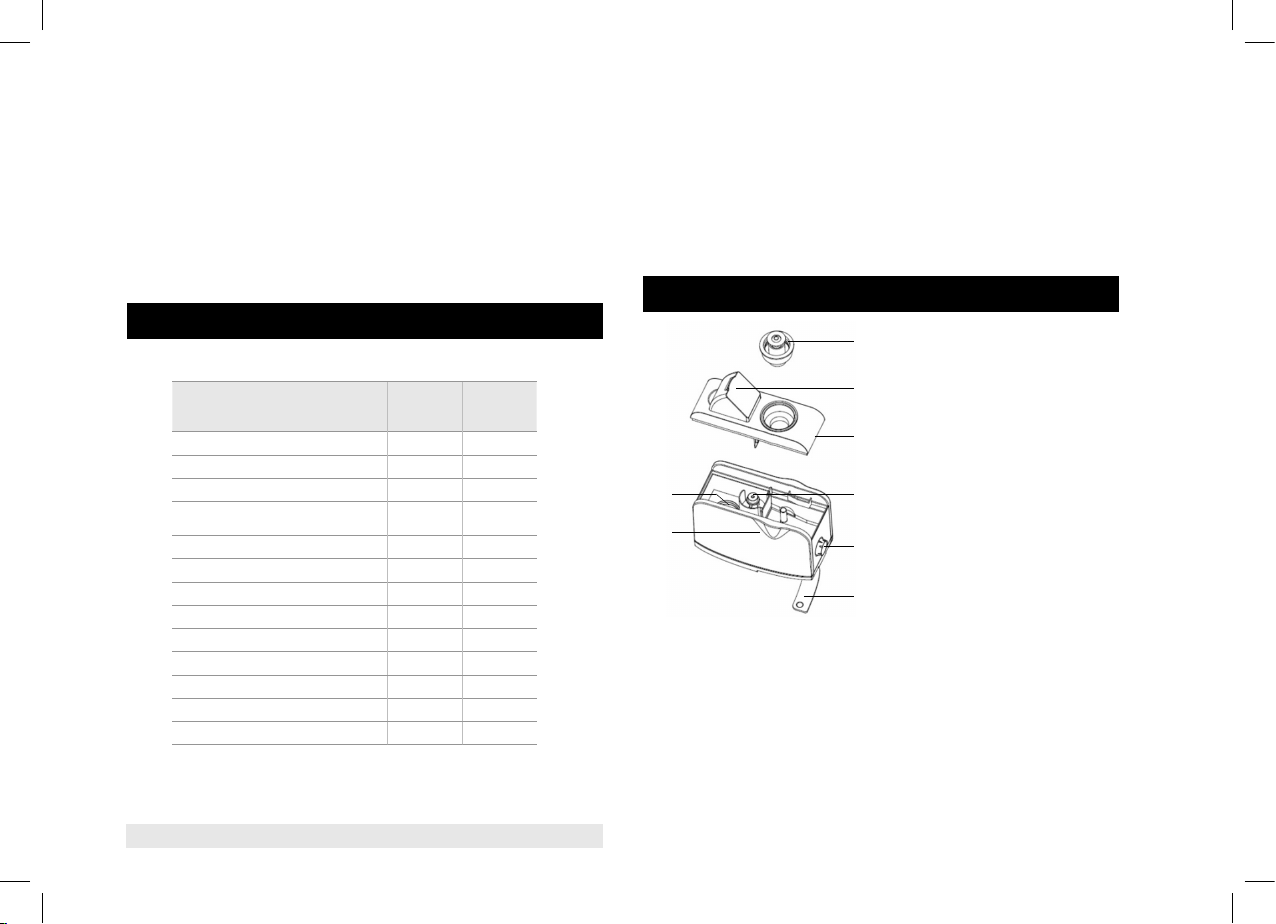

4. DESCRIPTION OF THE UNIT
1
2
3
8
7
Fig. 1
1. Water intake (cover with a valve of the water tank)
2
10-15
2. Atomizer
3. Case cover
4. Water level sensor float
5. On/Off and steam outflow intensity regulator
6. Support
7. Case of the unit
8. Ultrasonic membrane
4
5
6
www.timberk.com • electric humidifier
5. SCOPE OF DELIVERY
1. Humidifier 1 pc.
2. Power supply unit to connect the unit to the power line 1 pc.
3. Cleaning brush 1 pc.
4. Instruction manual 1 pc.
5. Warranty card 1 pc.
6. Package 1 pc.
7. Case for the unit 1 pc.
8. Water intake for bottles of various type 2 pcs.
6. FILLING THE TANK WITH WATER

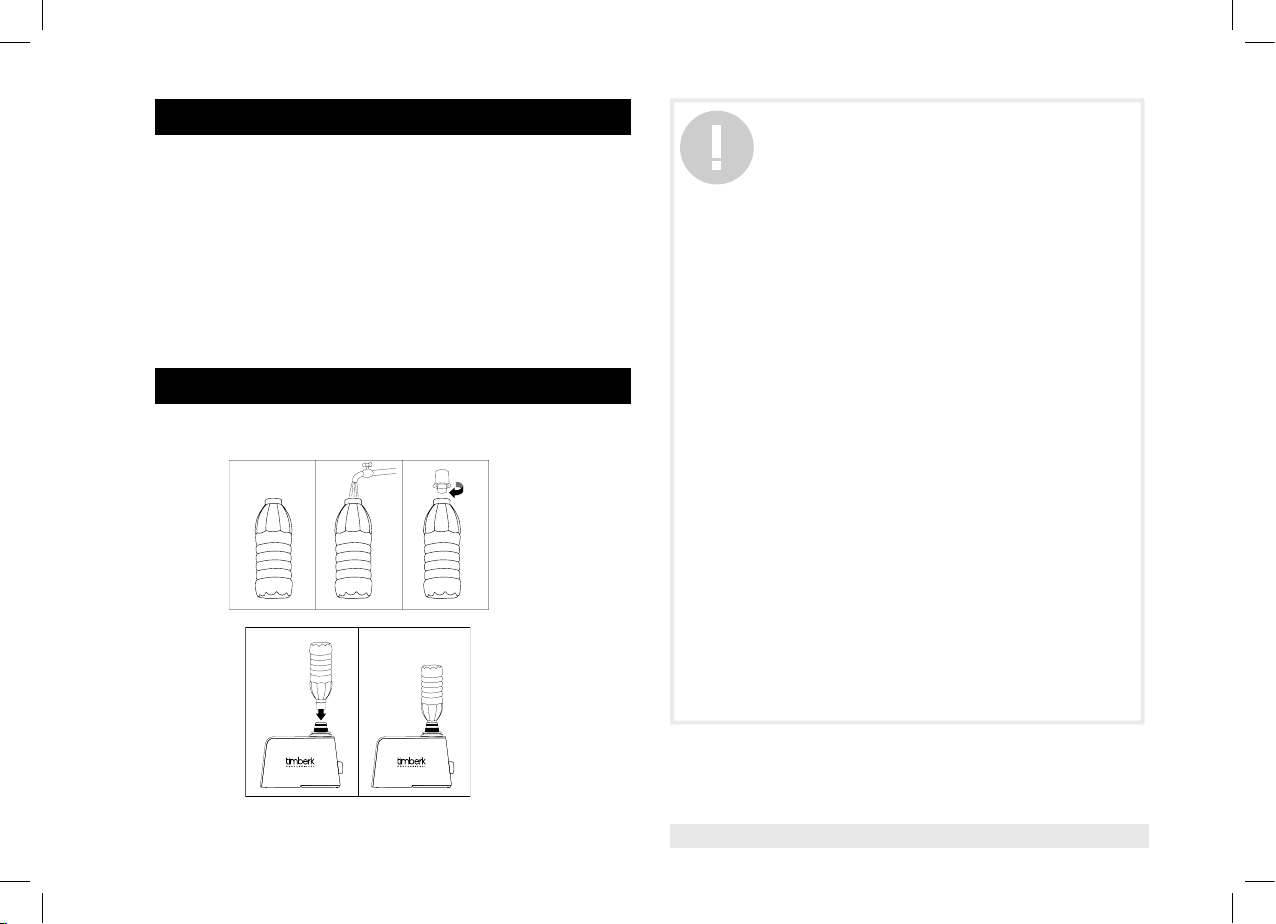

Follow Fig. 2 to fill in the tank.
Fig. 2
IMPORTANT!
Treated tap water is best suited for the unit, use an
ordinary domestic water filter. It is necessary to increase
the unit’s life cycle, as well as to eliminated generation
of white sediment around the unit. When using untreated
water they are released together with steam and settle
on the surrounding objects and surfaces. Though these
substances are considered safe for people, in large
quantities they may have harmful effect on furniture.
To avoid electric shock, prior to disassembling the unit
(removing the tank), disconnect the unit from the power
line! Do not fill the tank with other liquids but tap water.
Different composition of liquids has harmful effect on
internal parts and causes failures.
Do not fill the unit or the water tank with such additives
as essential oils, fragrances, cleaning agents, chemical
medical drugs, warm water (above 40°), etc.
Otherwise, the water tank and internal parts of the unit
will be damaged and inoperable.
Do not fill water directly into the internal part of the unit
or the atomizer.
Water inside the unit may cause failure of the unit.
7. OPERATION OF THE UNIT
Switching the unit on/off, regulating the steam outflow intensity
Connect the unit to the power line, having filled the tank with water and
installed it to the humidifier before that.
Pull the unit’s legs apart and lift up the atomizer.
Turn the on/off and steam outflow intensity regulator to the right. The unit will
switch on, the atomizer’s backlight will light up and steam will start outflowing
from it. At the very beginning of this operation, the atomizing level may appear
unstable, which is caused by the temperature difference and water quality.
This process will stabilize in a short amount of time. The more steam outflow,
the stronger and faster air humidification. Comfortable conditions are provided
at the relative air humidity of 40 to 60%. You can determine your favorable
humidity level according to your own feelings or use a special tool for this –
5
www.timberk.com • electric humidifier
hygrometer*, which measures the level of relative humidity.
When water level goes lower than the minimum permissible level, the unit’s
ultrasonic membrane will be switched off automatically, at the same time
the atomizer’s backlight will light down. Fill the tank with water to continue
operation of the unit.
To switch off the unit turn the on/off and steam outflow intensity regulator into
«OFF» position or lift down the atomizer, at the same time the atomizer’s stand
will light down.
* not included in the delivery set
IMPORTANT!
When the unit is operating, you must not remove the
water tank or the upper cover until there is water in them.
Otherwise, the water level inside the unit will rise, which may
cause its failure or malfunction (steam will stop outflowing).
To resume the operation in case of malfunction, disconnect
the unit from the power line and drain water. Important!
Drain water from the unit only towards the atomizer’s spout
(i.e. to the right, when looking at the on/off regulator).
NOTE:
When using the humidifier, you may come across
condensate generation of objects next to it, including
water accumulation, which is not a defect, but a feature
of its operation. This feature may have several causes,
listed in table 2 on page 7.
8. CLEANING AND SERVICING THE UNIT
Prior to cleaning the unit make sure the power supply’s plug is disconnected
from the outlet. Otherwise, it may cause electric shock.
Prior to cleaning remove the case cover and wait until water, remaining in
the unit’s case, completely cools down.
Clean the unit once or twice a week.
8.1. Use a damp and soft fabric to wipe internal surface of the unit.
To avoid electric shock do not scratch or damage elements of the unit
when cleaning.
When cleaning, do not use solvents, benzene, xylene, scrub brush, talc
powder and other substances except for water.
8.2. Wipe off remains of water inside the unit’s case using a damp and
soft fabric.
To wipe of remains of water on small parts you can use a soft brush and
then wipe them with a soft fabric again.
8.3. In case of dirt (scale) on the membrane, clean it with a soft brush.
8.4. Use a soft brush to wipe off remains of water on the surface of the
atomizer’s nozzle, and then wipe it with a soft fabric again.
8.5. Clean the water intake and the atomizer with clean water, as well as
the case cover. Do it carefully and lightly.
After removing water from the atomizer’s surface clean it with a soft fabric.
Clean the unit’s external surface with a damp and soft fabric.
IMPORTANT!
To avoid deformation or wear of working surfaces,
resulting in decreased atomizing or other malfunctions,
do not use metallic brushes, blades or talc powder to
wipe the atomizer’s surface.
In case of water leakage, immediately stop using the unit
and contact a service center.
To keep the unit dry, remove water after cleaning and
make sure to dry the unit’s case.
Make sure that there is no water left inside the unit’s
case.
Prior to a long break in using the unit, dry its surface and
pack it into a plastic bag, then put it into a box.
Store the unit in a low-humidity room.
Storing the unit undried results in generation of mold.
6
Loading...
