Timberk TFH T15NTX.B User Manual [ru]

Instruction manual

Руководство по эксплуатации

Электрический тепловентилятор

Модель/Model:

Outlook of devices, aslo colour scores can be revised without any special advance notices.

Производитель вправе менять внешний вид прибора и цветовую гамму прибора без специального уведомления.

Electric fan heater

TFH T15NTX TFH T15NTX.B

Dear customer!

Thank you for good choice and purchase of Timberk electric fan heater. It will serve you for a long time.

Timberk electric fan heater is designed to heat and create a comfortable environment indoors during cold season. The fan heater can be installed only in a vertically on a rigid foundation, where there is possible to connect to ~220-240V, 50Hz singlephase power supply wiring.

The heater based on a standard metal ceramic heating element is convenient and easy-to-install, economical in use in connection with minimum energy losses, increased heat exchange and effective distribution of the air flow.

Please, read this operation manual carefully prior to assembly and use of the product.

1. IMPORTANT INFORMATION

Please, read this operation manual carefully prior to use of the fan heater. This operation manual contains important information regarding your

safety, as well as recommendations on the proper operation of the unit and its maintenance.

Save this operation manual together with the guarantee card, cash register receipt, if possible, cardboard box and packing material.

The purchased fan heater can slightly differ from the one, described in the manual, but that doesn’t affect the methods of its use and operation.

IMPORTANT!

Important precautions and instructions, contained in this manual, do not account for all possible modes and situations to be encountered. It is vital to understand that common sense, caution and thoroughness are the factors that are impossible to be built-in in any product.

These factors must be taken into consideration by man who is interested in the proper operation of the unit. The manufacturer does not bear any responsibility in case when the unit or its parts are damaged during transportation, as a result of improper instatllation, voltage fluctuations, as well as if some part of the unit was altered or modified.

2. PRECAUTIONS

A number of precautions is to be observed upon operation of the fan heater. Improper operation as a result of ignoring precautions may harm health of the user and other people, as well as damage their property.

1. To prevent the risk of an electric shock:

•Always disconnect the unit from the mains when it is not used! There is a slight chance of an electric shock due to static voltage Even if the unit is switched off.

•Never use the unit in a situation when it can contact water.

•Never connect the unit to electric mains if its surface is damp (wet).

•If you discover any damage of the power cord, never switch on the unit,

but return the unit to an authorized service center of the manufacturer for an adequate repair.

2. Any electric appliance must always be kept watched, especially if there are children nearby it. Always watch out for children not to touch the unit by hand.

3. Unplug the power cord from electric mains prior to preventive cleaning of the unit, including upon a wet dust removal from its surface.

4. To switch off the unit, set the main switch to “O” position (Off). Disconnect the power cord plug from the outlet.

NEVER PULL THE POWER CORD AND NEVER DISCONNECT THE PLUG ABRUPTLY.

www.timberk.com • Electric metal ceramic fan heater

5. Store the unit in a cool or warm place. Do not store the unit in a damp room.

6. The plug must match the standard outlet and enter it without any effort. If the plug doesn’t enter the outlet or enters it too tightly, turn the plug vertically 180° and try again.

If you still cannot plug it then you need to call for an electrician to replace the electric outlet. Never use the unit if the plug is not fully connected to the outlet.

7. If the power cord is damaged, it must be repaired by a skilled specialist. Never try to repair it on your own. This may harm your health and affect the unit’s guarantee maintenance.

8. To prevent injuries or damage of the property due to overheating, fire or explosion:

•do not place the heater nearby furniture and flammable objects.

•do not dry clothes, towels or any other materials by means of the heater.

9. It is not recommended to use extension cords. If it is still necessary, try to use the shortest possible extension cord with the wire strand section of the extension cord not less than the wire strand section of the cord of the fan heater.

Do not use an extension cord for more than one electric appliance at a time. Circuit overload can result in lighting malfunction, wiring melting and fire.

10. Do not leave the operating unit for a long time without any supervision.

11. Place the unit only vertically on even and dry surfaces.

12. Bad contact between the power cord plug of the heater and an electric outlet may result in overheating of the plug. If necessary, make sure to replace old outlets.

13. Poor contact beween the pover cord plug of the heater and an electric outler may result in overhaeting of the plug.

IMPORTANT!

If nessary, make sure to perlance old outlets.

Use ~220-240V, 50Hz electric mains to connect the heater.

Make sure that electric applianses are not connected to the same electric circuit (for example, an extension cord) used for the heater. Circuit overload may result in failures of lightng, melting of wiring and fire.

14. The heater’s power cord must not be pressed down by furniture or be laid in places where it can be easily stepped on.

15. Do not use the fan heater in rooms with increased humidity, nearby bathrooms, shower bath, pools, ponds, i.e. in places where it may be tipped over into water, or water or water drops may contact it.

16. Do not place the heater on uneven or unstable surfaces. It is also forbidden to mount the above an electric coutler, provided that the hot air flow vill contact it.

17. The heater is not designed for industrial application. It is used only as an additional means of heating.

Make sure to take this information into consideration.

3. WORKING PARAMETERS

Main features

1. Thanks to its small size and weight, the fan heater is convenient to be placed in any room where additional air heating is required.

2. Durable and flameproof ceramic heating element provides quick and effective air heating, doesn’t pollute the environment and doesn’t burn oxygen.

3. Direct current electric motor with low noise.

4. A fuse and thermal limiter protect the fan heater from overheating.

NOTE:

Apperance of smell/smoke is possible at first use. Do not care, this means that an oll drop got oto the glowing spiral during manufacturing. The drop will quickly evanorate and no smoke/ smell will appear anymore.

www.timberk.com • Electric metal ceramic fan heater

Technical parameters

Table 1

Description

Nominal power consumption W

Nominal current A

Rated voltage V/Hz

Noise level

Electric protection class

Weight kg

Dimensions mm

TFH T15NTX TFH T15NTX.B

~220-240/50 ~220-240/50

dB 55 55

Class II Class II

210x95x180 210x95x180

Models

1500 1500

6,8 6,8

1,0 1,0

IMPORTANT!

The manufacturer reserves the right to change the set-list of the device (including liquid and powder components) for different supplies without prior notice. The changes either in no way influence the basic technical parameters of the device or may improve them, and also not violate the legislation or quality standards of the countries of manufacture, transit and selling.

The changes in the set-list may result in changing of the weight and dimensions of the device, but not more than by +\- 5-20% (depending on the product category)

4. OPERATION CONDITIONS

1. Do not install the unit on unstable or uneven surfaces.

2. To prevent an electric shock, do not connect and disconnect the power cord plug out of an outlet by wet hands.

3. For normal operation of the unit the mains voltage must be sufficient in strict compliance with technical parameters indicated on the unit.

4. The unit must be mounted vertically only.

5. Do not use the unit in a room with high dust content. Otherwise, high amount of dust in the unit may cause its failure and voiding of guarantee maintenance.

Never use the unit in a horizontal or inclined position.

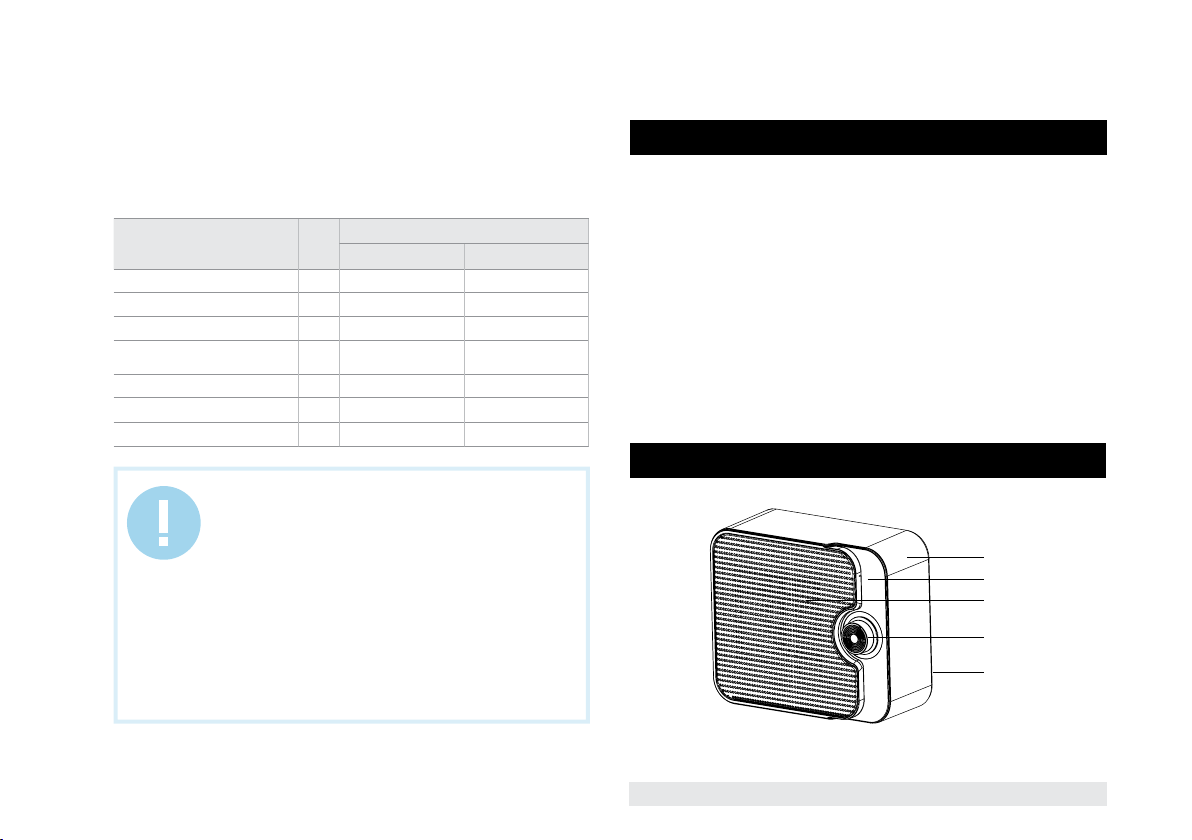

5. APPEARANCE AND COMPONENTS

Fig. 1

1. Outlet grille

2. Front cover

3. Front housing

4. Power switch knob

5. Rear housing

NOTE:

Timberk MMA company disclaims any liability for possible damage, directly or indirectly caused by Timberk products to people, pets, property in case if it occured as a result of failure to observe rules and conditions of operation, unit’s instalation, deliberate or careless actions of the consumerof third parties.

6. DELIVERY SET

1. Fan heater - 1 pc.

2. Operation manual - 1 pc.

3. Guarantee card - 1 pc.

4. Package - 1 pc.

3 2 1

www.timberk.com • Electric metal ceramic fan heater

7. CONTROL OF THE FAN HEATER

Models

TFH T15NTX/TFH T15NTX.B

Switched off

Cold air

~ 1000 W

~ 1500 W

Recomendations on regular cleaning:

• disconnect the unit from electric mains;

• let the unit cool down, then wipe its case wiht a sof, slighly damp cloth.

It is not rrecomended to use detergents for washing, including materials with abrasive elements.

Prevent damaging the unit by sharp objects (for example, by polishing paper, etc.).

9. DISPOSAL

Unit operation

1. Plug the power cord.

2. Select the heating mode, comfortable for you, by setting the heating power regulator to one of the indicated positions.

3. Set the control switch to maximum (II) for fast warm up of a room. Once the room is comfortable, select a lower setting to reduce electrical consumption and to prevent the room from becoming too warm. When the room temperature will reach the desired level, turn the regulator in position «off». To activate ventilation without heat, turn the switch to position «0». The heater will start to work in the mode of ventilation.

NOTE:

8. MAINTENANCE

Prior to cleaning and maintenance make sure that:

• the pover mode selector is set to «0» position (OFF) and the unit is deenergized;

• disconnect the unit from electric mains by unpplugging the power cord from an electric outlet;

Upon completion of service life, the fan heater must be disposed in compliance with regulations, rules and by means, currently in force at a disposal station. Such information on disposal of the fan heater you can obtain from a representative of local authorities.

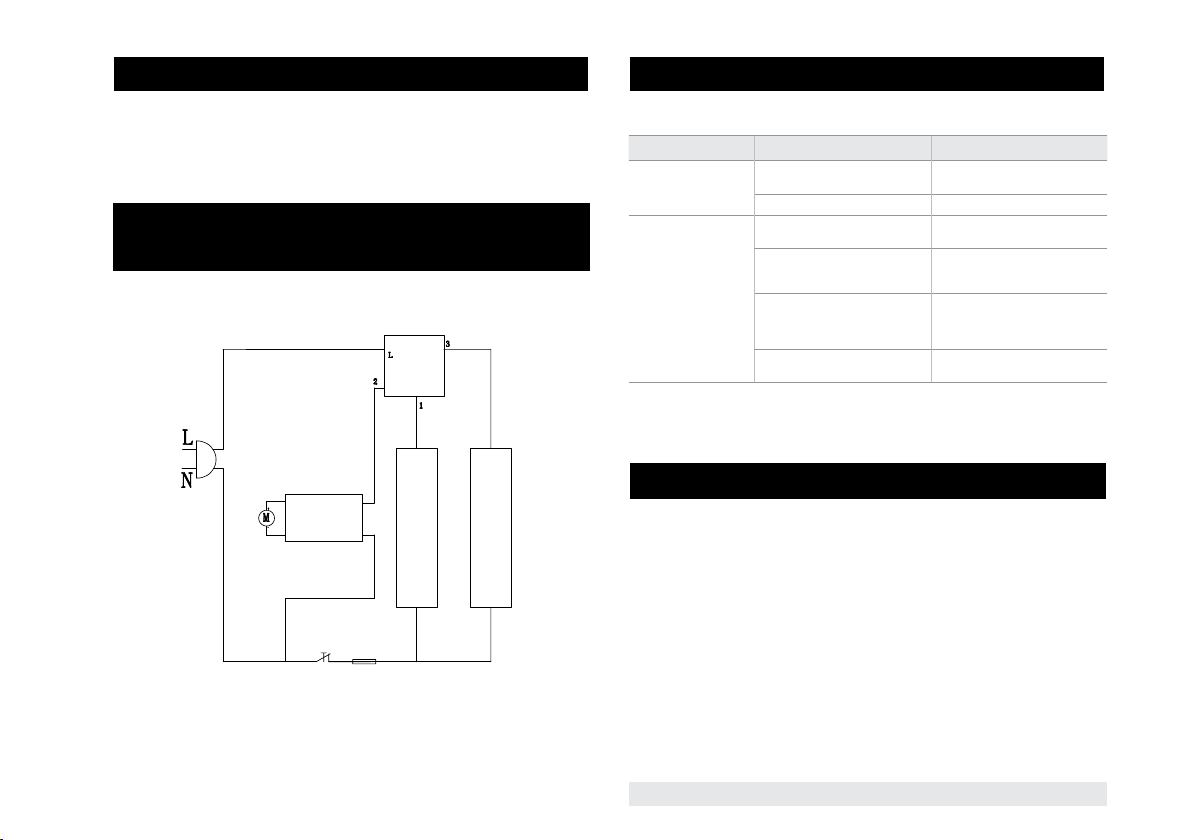

10. CIRCUIT DIAGRAMS

Models TFH T15NTX, TFH T15NTX.B

Power Switch

Motor

PCB

LOW HIGH

fuse

Fig. 2

www.timberk.com • Electric metal ceramic fan heater

thermal

cutoff
