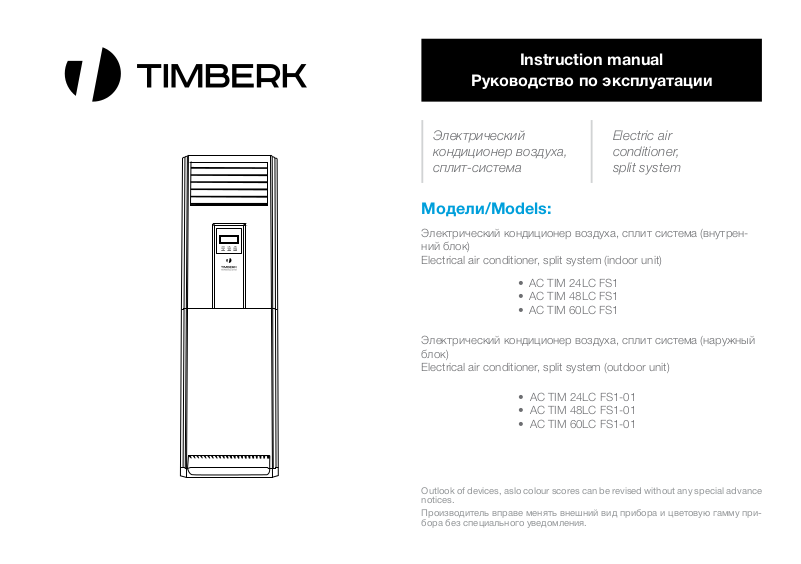

Instruction manual Руководство по эксплуатации
Электрический |
Electric air |
кондиционер воздуха, |
conditioner, |
сплит-система |
split system |
|
|
Модели/Models:
Электрический кондиционер воздуха, сплит система (внутренний блок)
Electrical air conditioner, split system (indoor unit)
•AC TIM 24LC FS1
•AC TIM 48LC FS1
•AC TIM 60LC FS1
Электрический кондиционер воздуха, сплит система (наружный блок)
Electrical air conditioner, split system (outdoor unit)
•AC TIM 24LC FS1-01
•AC TIM 48LC FS1-01
•AC TIM 60LC FS1-01
Outlook of devices, aslo colour scores can be revised without any special advance notices.
Производитель вправе менять внешний вид прибора и цветовую гамму прибора без специального уведомления.
|
CONTENTS |
|
1. |
Important information........................................................................ |
2 |
2. |
Safegty precautio.............................................................................. |
3 |
3. |
Technical characteristics.................................................................... |
4 |
4. |
Device description............................................................................. |
5 |
5. |
Delivery set....................................................................................... |
5 |
6. |
Device control................................................................................... |
6 |
|
Wire control panel............................................................................. |
6 |
|
Remote control................................................................................. |
7 |
7. |
Operating modes.............................................................................. |
8 |
8. |
Troubleshooting................................................................................. |
9 |
9. |
Transportatiom and storage.............................................................. |
9 |
10. Service life....................................................................................... |
9 |
|
11. Utilization rules................................................................................ |
9 |
|
Dear customer!
We thank you for your happy choice and buying of a domestic air conditioner Timberk. It will serve you for a long time.
Is intended for cooling, heating, dehydration of air in domestic premises.
1. IMPORTANT INFORMATION
The device is designed for cooling of air in domestic premises. The manufacturer reserves the right to make modifications in design, delivery set and manufacturing technology of the product with a view to improve its properties. There may be some misprints in the text and digital symbols of this manual.
If after reading of this manual you have any questions concerning operation of the device, please, address a vendor or a specialized service center for explanations.
The device has a label with all the necessary specifications and other useful information about the device. Use the device only for its intended purpose set forth in this manual
2 www.timberk.com • Electric air conditioner
2.SAFEGTY PRECAUTIO
1.Do not try to install the conditioner by yourself. Ask a qualified installation specialist.
2.When using the conditioner, it is necessary to observe some safety precautions. Improper operation due to disregard of safety precautions may result in causing of harm to health of the user and other people, as well as in damaging of their property.
3.The electric appliance should be observed while operated, especially, if there are children near it.
4.Do not pass your fingers or foreign objects through an air-outlet grating of internal and external units, since it may result in a trauma caused by a rotating fan.
5.Do not let the children turn the conditioner on by themselves. Children may turn the conditioner on only under care of adults.
6.Do not try to repair the conditioner by yourself. Internal units of the conditioner carry a voltage and it is life threatening! In order to repair the appliance, please, address an authorized service center.
7.Do not use the device, if it is out-of-order, or if you have dropped or damaged it.
8.Do not open a front panel of the device, when it is in service.
9.Do not dismantle and do not modify the device.
10.Unplug the conditioner immediately, if it emits strange odors or smoke.
11.Do not splash or pour water and other liquids on the conditioner.
12.Always unplug the conditioner during a lightning storm.
13.Always unplug the conditioner, when it is not used.
14.Before cleaning and maintenance of the conditioner, unplug it. Cleaning and maintenance should be performed in accordance with instructions set forth in this operation manual.
15.In order to ensure efficient work of the conditioner, operate it in temperature and moisture conditions set forth in this operation manual.
16.Do not use hazardous chemicals to clean the device and do not let
them ingress the appliance.
17.When removing an air filter, do not touch metallic parts of the device.
18.In order to avoid overheating and risk of fire, as well as damage of internal electric network, do not change the length of power cord and do not plug the appliance via extension cords.
19.In order to avoid the danger of electric shock, damaged power cord should be replaced only in authorized service centers by qualified specialists.
20.In order to avoid the danger of electric shock, do not place the power cord near heating appliances and flammable or combustible substances.
21.Do not start and do not stop the device by energizing or de-energizing.
22.Do not press buttons on the remote control with anything but your fingers.
23.Do not use the device for purposes not intended in this operation manual.
www.timberk.com • Electric air conditioner 3
3. TECHNICAL CHARACTERISTICS
Model |
AC TIM 24LC FS1 |
AC TIM 48LC FS1 |
AC TIM 60LC FS1 |
|
|
|
|
|
|
Indoor unit |
AC TIM 24LC FS1 |
AC TIM 48LC FS1 |
AC TIM 60LC FS1 |
|
|
|
|
|
|
Outdoor unit |
AC TIM 24LC |
AC TIM 48LC |
AC TIM 60LC |
|
FS1-01 |
FS1-01 |
FS1-01 |
||
|
||||
|
|
|
|
|
Capacity (cooling) BTU (kW) |
24000 (7,1) |
48000 (14,8) |
57900(16,97) |
|
|
|
|
|
|
Capacity (heating) BTU (kW) |
26000 (7,6) |
51500 (15,1) |
62000 (18,2) |
|
|
|
|
|
|
Rated power consumption |
2680 |
4800 |
6500 |
|
(cooling) (W) |
||||
|
|
|
||
|
|
|
|
|
Rated power consumption |
2650 |
4750 |
5300 |
|
(heating) (W) |
||||
|
|
|
||
|
|
|
|
|
Power supply, V/Hz |
220~/50 |
220~/50 |
380-420~/50 |
|
|
|
|
|
|
Rated power current |
12,6/12,4 |
8,2/8,1 |
11,0/10,0 |
|
(cooling/heating) (W) |
||||
|
|
|
||
|
|
|
|
|
Air circulation |
1000 |
1700 |
2250/1950 |
|
(indoor unit) m3/h |
||||
|
|
|
||
Air circulation |
3150 |
5900 |
- |
|
(outdoor unit) m3/h |
||||
|
|
|
||
Noise level (indoor unit) dB(A) |
42-48 |
49-54 |
51-54 |
|
|
|
|
|
|
Noise level |
60 |
63 |
64 |
|
(outdoor unit) dB(A) |
||||
|
|
|
||
|
|
|
|
|
Refrigerant |
R410A |
R410A |
R410A |
|
|
|
|
|
|
Energy efficiency |
D/D |
C/B |
D/B |
|
(cooling/heating) |
||||
|
|
|
||
|
|
|
|
|
Electrical protection class |
I class |
I class |
I class |
|
|
|
|
|
|
Degree of protection against |
IPX0 |
IPX0 |
IPXO |
|
moisture (indoor unit) |
||||
|
|
|
||
|
|
|
|
|
Degree of protection against |
IPX4 |
IPX4 |
IPX4 |
|
moisture (outdoor unit) |
||||
|
|
|
||
|
|
|
|
|
Refrigerant piping, Liquid side / |
3/8 / 5/8 |
1/2 / 3/4 |
1/2 / 3/4 |
|
Gas side, (inch) |
||||
|
|
|
||
|
|
|
|
Model |
AC TIM 24LC FS1 |
AC TIM 48LC FS1 |
AC TIM 60LC FS1 |
|
|
|
|
|
|
Indoor unit |
AC TIM 24LC FS1 |
AC TIM 48LC FS1 |
AC TIM 60LC FS1 |
|
|
|
|
|
|
Outdoor unit |
AC TIM 24LC |
AC TIM 48LC |
AC TIM 60LC |
|
FS1-01 |
FS1-01 |
FS1-01 |
||
|
||||
|
|
|
|
|
Max. refrigerant pipe length, m |
15 |
15 |
20 |
|
|
|
|
|
|
Maximum difference in |
5 |
5 |
10 |
|
level, m |
||||
|
|
|
||
|
|
|
|
|
Filling of Freon, g |
1900 |
3000 |
3200 |
|
|
|
|
|
|
Operating temperature range: |
+18~+43 |
+18~+43 |
17~30 |
|
cooling, ° C |
||||
|
|
|
||
|
|
|
|
|
Operating temperature range: |
-7~+24 |
-7~+24 |
17~30 |
|
heating, ° C |
||||
|
|
|
||
|
|
|
|
|
Net weight, indoor unit (kg) |
36,0 |
52,0 |
67 |
|
|
|
|
|
|
Net weight, outdoor unit (kg) |
59,0 |
100,0 |
96 |
|
|
|
|
|
|
Gross weight, indoor unit (kg) |
45 |
62 |
86 |
|
|
|
|
|
|
Gross weight, outdoor unit (kg) |
65 |
110 |
107 |
|
|
|
|
|
|
Net dimensions, indoor unit |
1730x480x300 |
1776x415x540 |
600x455x1934 |
|
(mm) |
||||
|
|
|
||
|
|
|
|
|
Net dimensions, outdoor unit |
902x307x650 |
950x1255x410 |
900x350x1170 |
|
(mm) |
||||
|
|
|
||
|
|
|
|
|
Packing dimensions, indoor |
1870x616x452 |
1893x535x632 |
2040x745x595 |
|
unit (mm) |
||||
|
|
|
||
|
|
|
|
|
Packing dimensions, outdoor |
1037x433x705 |
1030x1380x440 |
1032x443x1307 |
|
unit (mm) |
||||
|
|
|
||
|
|
|
|
4 www.timberk.com • Electric air conditioner
4. DEVICE DESCRIPTION
The conditioner consists of internal and external units connected by pipes. The conditioner is controlled from the remote control or from a control panel of the internal unit.
1
2
3
4
5
6
7
8
9
Fig. 1
1.Plate for mounting
2.Louvers
3.Deflectors
4.Receiver signal from the remote control
5.Led display
6.Control panel
7.Front panel
8.Air filter
9.Front panel
5. DELIVERY SET
The delivery set of the air conditioner (split system) includes: Conditioner unit for indoor installation -1
Conditioner unit for outdoor installation -1 Remote control - 1
Wire panel -1
Batteries for remote control - 2 Operation manual -1 Guarantee slip -1
Indoor unit package -1 Outdoor unit package -1
www.timberk.com • Electric air conditioner 5
6. APPLIANCE CONTROL
The conditioner is controlled from the control panel or from the wire control panel.
Description of control panel for AC TIM 24LC FS1
|
|
|
|
|
|
1 |
2 |
3 |
4 |
5 |
6 |
Fig. 2
Description of control panel forAC TIM 48LC FS1
|
|
|
|
1 |
5 |
||
2 |
6 |
||
|
3,4 |
|
|
|
Fig. 3 |
||
1.SWING button. With the use of this button you may regulate position of air-outlet gills and direct processed air up and down.
2.FAN SPEED button. With the use of this button you may select the rotation speed of the internal unit fan: Auto, High, Middle, Low,
In the Auto mode the fan speed changes automatically. In the drying mode the fan speed remains Low.
3,4. TEMP (increase/decrease) buttons. With the use of these buttons you may set the needed air temperature in the room.
5.MODE button. With the use of this button you may select the needed operating mode: Cooling, Drying, Fan, Heating.
6.ON/OFF (Power) button. With the use of this button you may turn the conditioner on and off.
-cooling mode
-drying mode
-fan mode
-heating mode
Control and indication panel of your conditioner may be visually different from the shown layout view. However, its functions will remain the same.
6 www.timberk.com • Electric air conditioner
|
|
|
|
|
|
7 |
||
8 |
|
|
|
|
|
|
|
15 |
|
|
|
|
|
|
|
11 |
|
|
|
|
|
|
|
|
||
9 |
|
|
|
|
|
|
14 |
|
|
|
|
|
|
|
|||
12 |
|
|
|
|
|
|
13 |
|
10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Fig. 4
7.Button «ON/OFF» (Power). Using this button, you may turn the conditioner on or off.
8.Buttons «TEMP» (increase/decrease). Using this button, you may set needed air temperature indoors.
9.Button «FAN». Using this button, you may select rotation speed of the indoor unit fan: «Auto», «High», «Middle», «Low».
In “Auto” mode the fan speed will change automatically. In dry mode the fan speed will remain unchanged – “Low”.
10.Button «SWING». Using this button, you may regulate position of airoutlet blinds and forward treated air up and down.
11.Button «TIMER». Pressing this button, you may set the time for turning the conditioner on and off (set the time by pressing “TEMP» buttons up and down). If the conditioner is off, you may set the time for automatic turning on in a set time interval. And vice versa, if the conditioner is on, you may set the time for automatic turning off. Before activation of the Timer function you may specify the needed settings.
12.Button «SUPPER». Using this button, you may turn the turbo mode on and off. In this mode the conditioner shows the maximum cooling (in cool
mode) or heating (in heat mode) capacity.
13.Button «ECO» (Economic). Using this button, you may turn the economic mode on and off. In this mode temperature will increase (in cool mode) or decrease (in heat mode) slightly – by 2°С from the specified one.
14.Button «SLEEP» (Night Care). Using this button, you may turn the sleep mode on and off. In this mode, if working for cooling, the conditioner will increase temperature by 1 °С from the specified one within two hours. If working for heating, the conditioner will decrease temperature by 1 °С from the specified one within two hours. After 10 hours of operation the conditioner will turn off automatically.
15.Button for selection of operating mode – «MODE». Using this button, you may select a needed operating mode: AUTO, COOL, DRY, HEAT, FAN.
Indication of the control board display shall correspond to selected modes.
Work with remote control board.
Mounting and replacement of batteries: mount two LR03 alkaline batteries, according to polarity indicated on the remote control board.
In order to avoid malfunction of the remote control board do not insert used batteries or batteries of various types.
If the conditioner is not used for a long time, remove batteries from the board or else electrolyte may leak and damage the board.
In normal operation of the conditioner average service life of batteries will be about a half-year.
Replace batteries, if command receiving is not confirmed with an audio signal, or if the display does not show a sign of command transfer. When generating commands from the remote control board, point an IR-radiator at a remote-control signal receiver situated on the indoor unit. Hold the remote control board at the distance of no more than 8 m from the indoor unit. The remote control board will not work, if there are any curtains, doors or other things between it and the indoor unit. Protect the board from water and exposure to direct sunlight and heat sources.
www.timberk.com • Electric air conditioner 7
Remote control.
Work with remote control.
Installation and replacement of batteries: install two LR03 alkaline batteries, according to the polarity shown on the remote control.
In order to avoid malfunction of the remote control, do not insert used or various-type batteries in it.
If the conditioner is not used for a long time, remove batteries from the remote control. Otherwise, battery solution may leak and damage the panel.
In case of normal operation of the conditioner, the average service life of batteries is 6 months.
Replace the batteries, if command receiving is not confirmed by an audio signal or if the display does not indicate a command transfer sign.
When generating commands from the remote control, point an infrared radiator to the signal receiver on the internal unit. Hold the remote control at the distance of no more than 8 m from the internal unit.
The remote control will not work, if there are curtains, doors or other objects between it and the internal unit. Prevent contact of the remote control with water and do not expose it to direct sunlight and heat sources.
7. OPERATING MODES
AUTO mode – SMART (FEEL)
In auto mode, depending on the air temperature in the room, the conditioner selects needed temperature parameters by itself in the following order:
Temperature indoors |
Automatic mode sele ction |
Automatically maintained temperature |
|
|
|
if <20° С |
then HEAT mode shall be turned on |
23° С |
|
|
|
if <20° С - 26° С |
then DRY mode shall be turned on |
18° С |
|
|
|
if <26° С |
then COOL mode shall be turned on |
23° С |
|
|
|
In the Smart mode it is possible to change the threshold of mode transition. When the Smart mode is on, the display indicates «-». Press the Temp +/- buttons, and «-» will change to +1. ..+2 or -1 ...-2. Shift range of this threshold is within -2...+2 ° from temperatures by default.
COOL, HEAT and FAN
1.Turn the conditioner on by pressing the ON/OFF button.
2.Press the MODE button to select COOL, HEAT or FAN mode manually.
3.Press the TEMP (up-down) buttons to set the desired air temperature in the room (except for the FAN mode).
4.Press the FAN SPEED button on the remote control to select the fan rotation speed: AUTO, LOW, MIDDLE, HIGH, and the conditioner will start working in accordance with the selected setting.
5.To turn the conditioner off, press the ON/OFF button again. In FAN mode air temperature in the room shall not be set.
DRY
Turn the conditioner on by pressing the ON/OFF button. Press the MODE button to select the DRY mode. The conditioner will start working in the set mode. To turn the conditioner off, press the ON/OFF button again.
SUPER (TURBO) operating mode
When you press the SUPER button on the remote control, the conditioner starts working in heavy-duty mode for maximum cooling (in cooling mode) or for maximum heating (in heating mode).
TIMER mode
The procedure for timer setup:
If the conditioner is off, then press the TIMER button to activate the automatic turning on. Press this button again to set the turn-on time in the set time interval. To cancel the timer mode, press the TIMER button once more
SLEEP (Night Care) button.
Button «SLEEP» (Night Care). Using this button, you may turn the sleep mode on and off. In this mode, if working for cooling, the conditioner will increase temperature by 1 °С from the specified one within two hours. If working for heating, the conditioner will decrease temperature by 1 °С from the specified one within two hours. After 10 hours of operation the conditioner will turn off automatically.
8 www.timberk.com • Electric air conditioner
8. TROUBLESHOOTING
In case of emergency, please, use the troubleshooting methods shown in tables. If it is impossible to solve problems with these methods, apply to the service center.
Failures and their possible reasons:
Failure |
Possible reason |
Actions |
|
|
|
|
|
|
Interruptions in power supply |
Wait for restoration of power |
|
|
supply |
||
|
|
||
|
|
|
|
The conditioner does |
Batteries in the remote control |
Replace the batteries |
|
board are low |
|||
not work |
|
||
|
|
||
|
Time of tuming on is set by |
Wait till the conditooner turns |
|
|
on by the timer or cancel the |
||
|
the timer |
||
|
timer setting |
||
|
|
||
|
|
|
|
|
The set air temperature is too |
Set the air temperature |
|
|
high or too low |
correctly |
|
|
|
|
|
Insufficient cooling or |
The air filter is clogged with dust |
Clean the air filter |
|
heating capacity |
|
|
|
Foreign objects block the air intel |
|
||
|
|
||
|
and retum air grillages of the |
Remove foreign objects |
|
|
outdoor unit |
|
|
|
|
|
|
The conditioner works, |
A three-minute delay of |
Wait a little |
|
compressor tuming on |
|||
|
|||
but does not cool or |
|
|
|
The air temperature is set |
|
||
heat the room |
Set the temperature correctly |
||
|
incorrectly |
||
|
|
||
|
|
|
9. TRANSPORTATIOM AND STORAGE
Temperature |
|
|
|
From -30° to +50° |
|
requirements* |
|
Transportation and |
|
|
|
|
|
storage |
|
|
|
Humidity |
From 15% to 85% |
||||
|
|
|
|||
requirements* |
|
|
|
(without a condensate) |
|
|
|
|
|
|
We are exploring new technologies and we constantly improving the quality of our products. That’s why specifications, design and accessories are subject to change without any specific notice.
* This product must have storage in dry, well-ventilated space of warehouse at the temperature not lower than -30°
10. SERVICE LIFE
Service life of the appliance is 10 years provided that the respective installation and operation rules are observed.
Date of the conditioner manufacture is shown in a serial number of the device. For more details, please, ask a shop assistant.
11. UTILIZATION RULES
Upon expiration of the service life, the appliance should be utilized in accordance with norms, regulations and procedures effective in the place of utilization.
www.timberk.com • Electric air conditioner 9
|
Содержание* |
|
1. |
Важная информация....................................................................... |
10 |
2. |
Меры предосторожности................................................................ |
11 |
3. |
Технические характеристики.......................................................... |
12 |
4. |
Описание прибора.......................................................................... |
13 |
5. |
Комплект поставки......................................................................... |
13 |
6. |
Управление прибором..................................................................... |
14 |
|
Проводной пульт управления. ........................................................ |
14 |
|
Пульт дистанционного упавления (ПДУ)......................................... |
15 |
7. |
Режимы работы............................................................................... |
16 |
8. |
Обслуживание................................................................................. |
17 |
9. |
Гарантийный талон ......................................................................... |
18 |
Уважаемый покупатель!
Благодарим Вас за удачный выбор и приобретение бытового кондиционера воздуха TIMBERK.
Он прослужит Вам долго.
Электрический кондиционер воздуха предназначен для охлаждения, обогрева и осушения воздуха в бытовом помещении.
Просим вас внимательно ознакомиться с руководством по эксплуатации перед тем, как вы начнете эксплуатацию изделия
|
|
|
1. ВАЖНАЯ ИНФОРМАЦИЯ |
|
Прибор предназначен для охлаждения воздуха в бытовых помеще- |
||
|
ниях. |
||
|
Производитель оставляет за собой право без предварительного уве- |
||
|
домления покупателя вносить изменения в конструкцию, комплек- |
||
|
тацию или технологию изготовления изделия с целью улучшения его |
||
|
свойств. В тексте и цифровых обозначениях данного руководства |
||
|
могут быть допущены опечатки. |
||
|
Если после прочтения руководства у Вас останутся вопросы по рабо- |
||
|
те и эксплуатации прибора, обратитесь к продавцу или в специализи- |
||
|
рованный сервисный центр для получения разъяснений. |
||
|
|
|
|
|
|
|
ПРИМЕЧАНИЕ |
|
|
|
На изделии присутствует этикетка, на которой ука- |
|
|
|
|
|
|
|
заны все необходимые технические данные и дру- |
|
|
|
гая полезная информация о приборе. Используйте |
|
|
|
|
|
|
|
|
|
|
|
прибор только по назначению, указанному в дан- |
* Руководство по эксплуатации дополнено приложением №1, которое является |
|
|
ном руководстве. |
неотъемлемой частью Руководства по эксплуатации. |
|
|
|
10 www.timberk.сom • Электрический кондиционер воздуха
Loading...
