Timberk TEC.E3 M2000 User Manual [ru]
Instruction manual
Руководство по эксплуатации
Электрический
конвектор
Модели/Models:
Outlook of devices, aslo colour scores can be revised without any special advance
notices.
Производитель вправе менять внешний вид прибора и цветовую гамму прибора без специального уведомления.
Electric
convector
heater
TEC.E3 M 1000
TEC.E3 M 1500
TEC.E3 M 2000
TEC.E5 M 1000
TEC.E5 M 1500
TEC.E5 M 2000
Dear customer!
We thank you for your happy choice and purchasing of home
electric convector heater Timberk. It will serve you for a long
time.
Home electric convector heater Timberk is intended for heating
and creating of comfortable climate conditions in your room
during cold seasons. The convector heater may be installed only
upright in places, where it is possible to connect to wiring with
single-phase electric supply of ~220-240 V, 50 Hz This heating
appliance is convenient and easy to install, efficient and economic
in use in connection with minimum power losses, increased heat
emission and comfortable distribution of heat flow.
1. IMPORTANT INFORMATION
Please, read this manual carefully before use of the convector heater.
This manual contains important information regarding your safety, as well
as recommendations concerning the correct use and maintenance of this
appliance.
Keep this manual with a guarantee slip, cash register receipt and, if
possible, carton and packaging material.
The convector heater you have bought may slightly differ from that
described in the manual, but it does not affect its use and operation
procedures.
IMPORTANT!
Important safeguards and instructions contained in
this manual do not include all possible modes and
situations. It is necessary to understand that common
sense, caution and accuracy are factors, which cannot
be ‘built-in’ any product.
IMPORTANT!
These factors should be considered by a person, who
is interested in the proper operation of the appliance.
The manufacturer is nor responsible for damage of the
appliance or its parts during transportation, as a result
of incorrect installation or voltage fluctuations, as well
as when any part of the appliance has been changed
or modified.
2. SAFEGUARDS
When using the convector heater several safety precautions should be
followed. Incorrect operation due to disregard to precautions may cause
harm to health of the user and other persons, as well as damage to their
property.
1. Read all the instructions before using the convector heater.
2. The convector is very hot when in use. To avoid burns, do not let bare
skin touch hot surfaces.
3. The appliance should not be located near highly flammable and
deformable objects.
4. Make sure that the appliance case and heating element are cool before
it will be dismantled and laid into the package for extended storage.
5. When the appliance is not used for a long time, keep it in cool dry
place in the original carton.
6. DO NOT COVER THE APPLIANCE, when it is operating. Do not dry
your clothes and any other fabrics and materials on it. It may result
in its overheating, breakdown or cause considerable damage to you
and/or your property.
IMPORTANT!
The manufacturer considers this type of failure a nonguaranteed event.
2
www.timberk.com • electric convector heater
7. The appliance should always be closely supervised, especially when
it is used near children. Take care that children do not touch the
appliance.
8. Always unplug the convector heater when not in use.
9. The appliance is equipped with a Euro-plug with earthing contact. The
plug should fit the standard Euro-outlet. If it cannot be plugged into
the outlet or plugged with difficulty, turn it through 180° vertically and
try again. If it is impossible to plug it easily after that, call an electrician
to replace the outlet. Never use the appliance when incompletely
plugged.
10. Never plug the appliance with wet surface.
11. Never use the appliance, when it may have a contact with water.
12. When the appliance is turned on and operating, do not touch its
surface and the surface of control unit with wet hands and other parts
of your body.
13. Do not operate convector heater with a damaged power cord or
plug. To avoid the damage of electric shock, damaged cord should
be replaced only in authorized service centers of the manufacturer by
qualified specialists.
14. Never try to repair the convector heater by yourself. It may cause harm
to your health and affect the warranty service of the appliance.
15. Do not use the convector heater in open spaces outdoors.
16. It is forbidden to install or use the appliance in bathrooms, shower
rooms or swimming pools in places where water sheets or drops may
fall on its surface when the appliance is switched on.
17. Do not run cord of the radiator under carpeting and do not press it with
furniture. Arrange cord where it will not be tripped over.
18. To shut-off the appliance set the side switch on control panel to ‘off’
position (0) and unplug it. Never pull the power cord or unplug it
suddenly.
19. Do not insert your fingers and do not allow foreign objects to enter any
ventilation or exhaust opening as it may cause an electric shock or
damage the convector heater.
20. To prevent a possible fire, do not block air intakes or exhaust in any
manner. Do not dry your clothes on the convector heater!
Use the convector only on flat dry surface.
21. The convector heater has hot sparking parts inside. Do not use it in
areas where gasoline, paint or other flammable liquids are used or
stored.
22. Use this convector heater only as described in this manual. Any other
use not recommended by the manufacturer may cause fire, electric
shock or injury to persons.
23. Always unplug the convector before cleaning. Do not submerge the
convector. Never pull the cord.
24. Avoid the change of a cord and the use of an extension cord because
it may cause overheat and a risk of fire, as well as damage of internal
electrical network. However, if you have to use an extension cordits
parameters should correspond to the appliance power and not be
used by other power consumers.
25. For normal work of the appliance the voltage level of power network
should be sufficient and its technical parameters should be in strict
correspondence to technical parameters indicated on the appliance
case. If needed, find out specifications of your network from power
supplier.
26. Install and operate the appliance only when upright. Do not operate
the appliance in the horizontal or on the slant.
The appliance should be installed in the way that the control panel
could not be accessed by a person being in a bathtub (in contact with
water) or showering.
27. It is forbidden to install the appliance under a convenience outlet or an
electric cable, when output heat flows affect them. It may result in their
overheating and develop an emergency situation.
28. The appliance is not intended for use by handicapped persons
(including children) with insufficient experience and knowledge, if they
are not under observation or have not been instructed in the use of
appliance from a person responsible for their safety. Make sure that
children do not play with the radiator.
www.timberk.com • electric convector heater
3
3. OPERATIONAL CHARACTERISTICS
Operating principle
Cool air in under part of the room pass through the heating element of the
convector. Then the heat flow expands, uprushes through the outlet grill
and extends over the room. At that, direction of the flow set by the grill
inclination creates a favourable, accelerated circulation of warm air inside
the room without dispersing it on walls and windows.
Key features
1.Combination of convection effect (hence the name of ‘convector’) with
soft heat emission makes the heater an efficient source of heat energy with
increasing number of users.
2. Simple and efficient opportunities for control over temperature conditions.
3. High-precision controllable thermostat.
4.Quick self-repayment due to high efficiency and rate of set temperature
development.
5. Simplicity of installation, operating reliability and servicing ease.
6. Three-mode heating for energy saving.
7. Built-in drop sensor will disconnect the convector if it is deflected from
vertical position e.g. if it is accidentally overturned when used on legs.

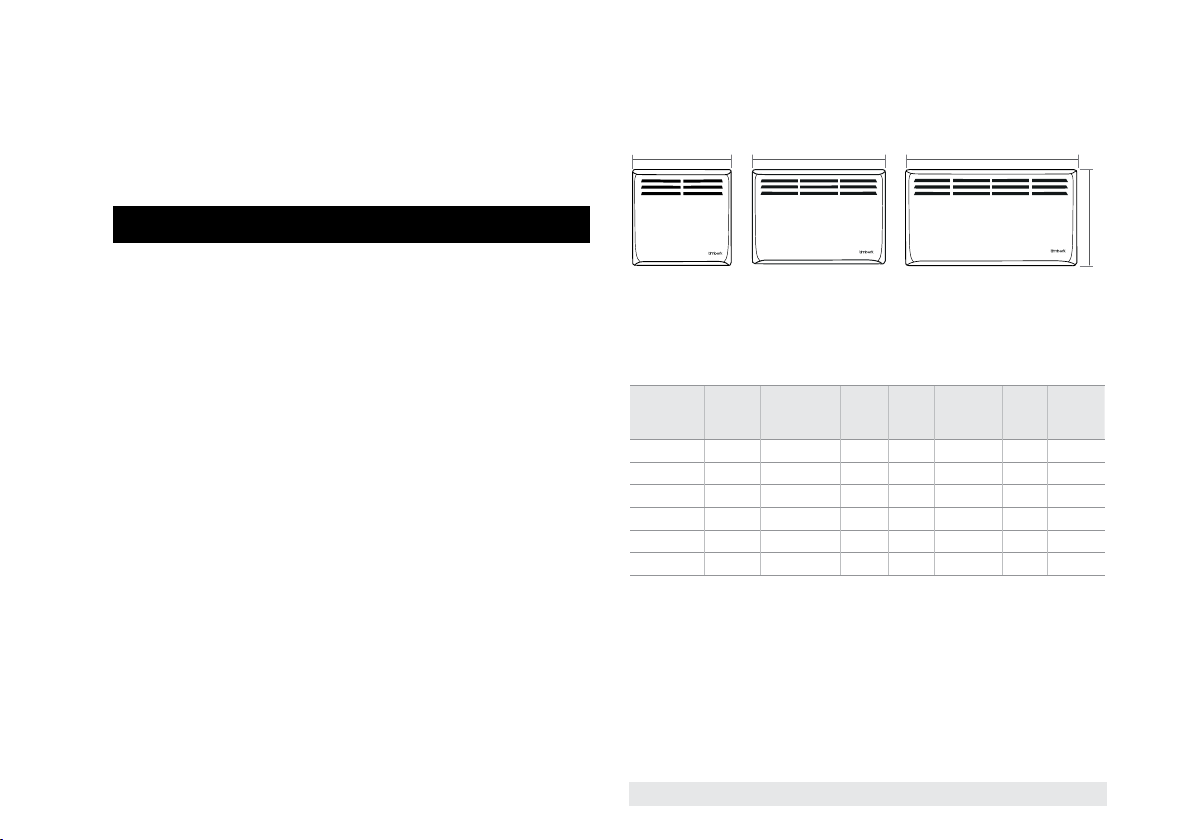

Convector dimensions depending on power (Fig.1)
Convector heaters of the Timberk series are divided by maximum power
consumption of heating element and differ from each other by the length,
while having equal height and depth. (Standard overall height of all the
appliances is 440 mm). This scheme for arrangement of overall dimensions
allows to use Timberk convectors with various power in the same room
without breaking of familiar symmetry.
455 mm
615 mm 775 mm
Technical characteristics
Technical characteristics of the convector are given in Table 1.
Table 1
Model
TEC. E3 M 1000
TEC. E3 M 1500
TEC. E3 M 2000
TEC. E5 M 1000
TEC. E5 M 1500
TEC. E5 M 2000
Operating power
voltage,
consumption (on
V/Hz
modes), W
~220-
450/550/1000 4.5 3.6
240/50
~220-
650/850/1500 6.8 4.3
240/50
~220-
850/1150/2000 9.1 5.2
240/50
~220-
450/550/1000 4.5 3.6
240/50
~220-
650/850/1500 6.8 4.3
240/50
~220-
850/1150/2000 9.1 5.2
240/50
Rated
curren, A
Net
Overall
weight,
dimensions,
kg
mm
440х455х130 IP24 Class I
440х615х130 IP24 Class I
440х775х130 IP24 Class I
440х455х130 IP24 Class I
440х615х130 IP24 Class I
440х775х130 IP24 Class I
Waterproof
class
Electric
protection
class
Rated
For a detailed description of technical parameters and characteristics go to
www.timberk.com or contact TIMBERK official dealers.
IMPORTANT!
The manufacturer reserves the right to change the set-list
of the device (including liquid and powder components)
for different supplies without prior notice. The changes
either in no way influence the basic technical parameters
of the device or may improve them, and also not violate
the legislation or quality standards of the countries of
manufacture, transit and selling.
The changes in the set-list may result in changing of the
weight and dimensions of the device, but not more than
by +\- 5-20% (depending on the product category)
1000 W 1500 W 2000 W
Fig. 1
4
www.timberk.com • electric convector heater
455 mm

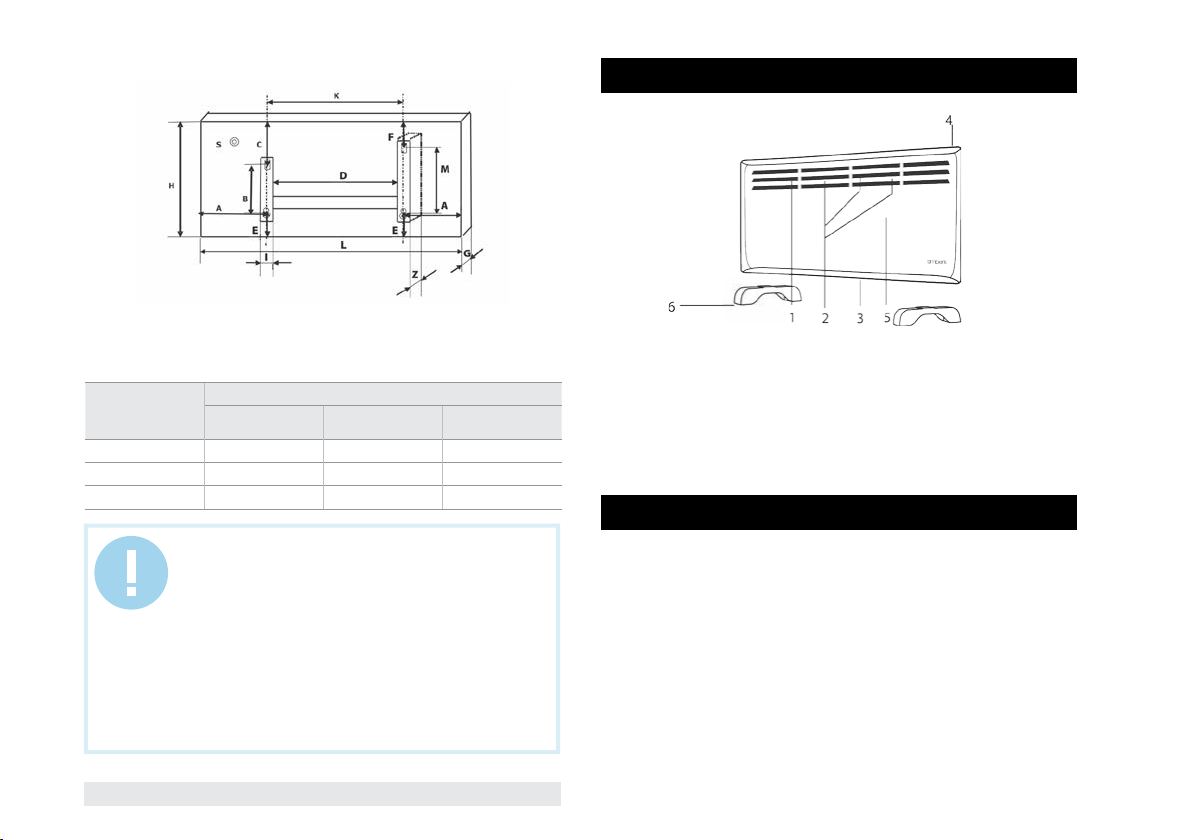

4. CONVECTOR DESCRIPTION (Fig. 2)
6. INSTALLATION
1. Outlet grills
2. Heated air outlet
3. Cool air inlet
4. Control panel
5. Case (front).
6. Feet
Fig. 2
1. Convector -1 pc.
2. Floor stand - 2 pcs.
3. Mounting kit – 1 pcs.
4. Screws kit- 1 pcs.
5. User manual -1 pc.
6. Guarantee slip -1 pc.
NOTE:
Design and technical characteristics of the convector
heater, as well as its complete set may be changed by
the manufacturer without prior notification, when it is
needed to improve its quality.
5. DELIVERY SET
Convector installation on the wall
Fig. 3
1. Open the original packing and take the appliance from there carefully.
2. Remove foam compactors from the appliance edges and clear it of
polyethylene.

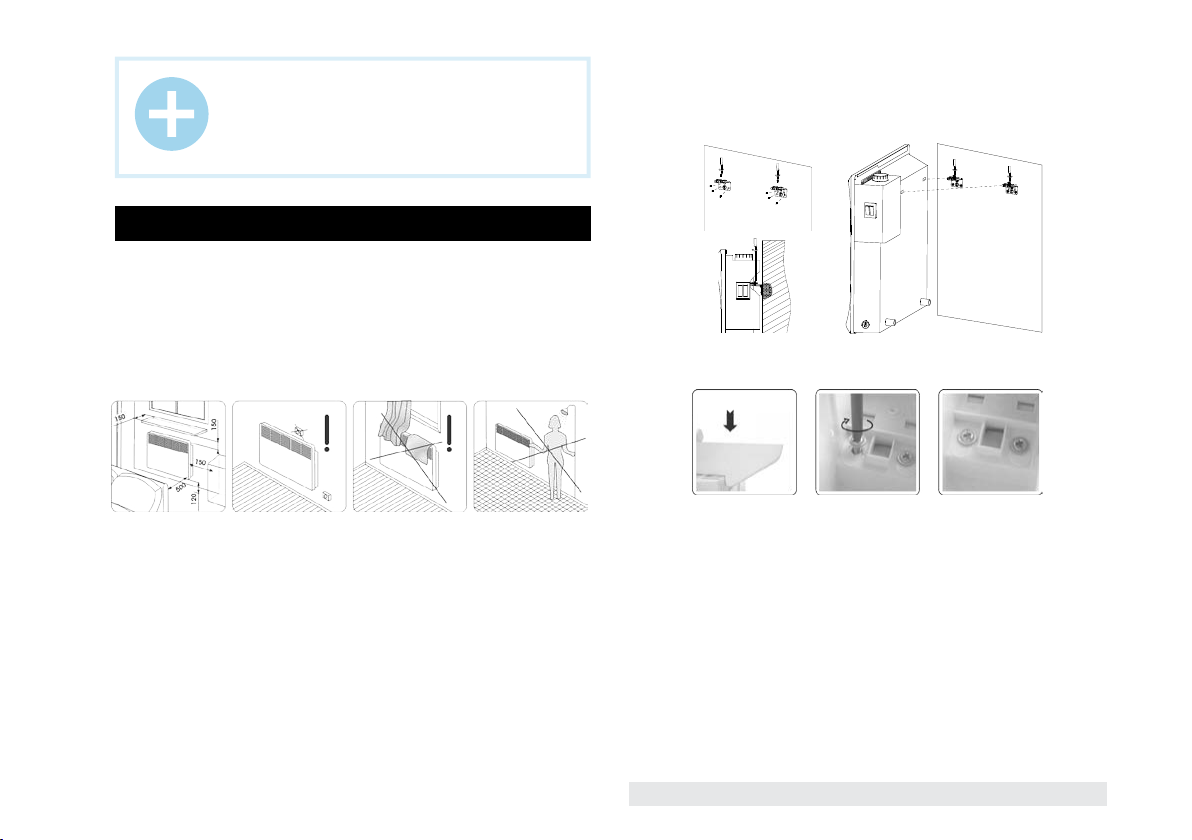

3. In accordance with Fig. 3 and Fig. 4 specify a place for convector
installation with observance of minimum distances from objects and
minimum distance from the floor.
4. Mark an elevation for convector installation and then attach the bracket
to the wall.
5. Make visible marks in mounting holes.
6. Drill the holes with required diameter in accordance with your marks,
Insert dowels*, attach. The bracket and screw set screws*, fixing the
bracket on the wall.
7. Place the convector heater on the bracket matching 4 slots on rear
surface with 4 shoulders on the bracket (Fig. 5) and pull down.
8. To fix the convector turn the clamp on the top of the bracket clockwise
and make sure that it enters the aperture in rear panel of the convector
heater.
* not included in delivery set
www.timberk.com • electric convector heater
5
Fig. 4
Mounting of convector heater on legs
Fig. 5
1. Take the legs from the convector heater box.
2. Standard set of legs (number in one pack) includes:
•two special supports,
•four screws to fix leg supports to the convector heater.
3. Turn the appliance upside down. Remember that the convector heater
should be mounted on the legs only when you unplug it!
4. Attach the legs to the bottom part of the appliance and make sure that
mounting holes match with holes on the appliance case. Try to dispose
legs in alignment with each other and to the convector surface.
5. Use screws included in the set (see Clause 2) to fix the legs to the
convector heater. Perhaps, you will have to apply some physical effort to
provide the reliable fixing.
6. Check the reliability of fixing once again. Turn the appliance to original
position and place it upright on plane horizontal surface.
The appliance is ready for operation!
Power network connection
1. The convector heater is intended for connection to power network with
single-phase voltage of ~220-240 V, 50 Hz.
2. Before connection make sure that power network parameters in the
point of connection correspond to parameters indicated on neck label with
technical data for the appliance.
3. While connecting the convector heater to the power network it is
necessary to observe the working regulations for electrical safety.
4. Convenience outlet should be earthed in the correct way. The outlet
should be designed for nominal current of not less than 10А.Convenience
outlet and a plug should always be dry in order to avoid current leakage.
Always check that the plug is tightly connected to the outlet. The check
should be performed in the following order: insert the plug into the outlet.
After half-hour of work shut off the convector heater and remove the plug
from the outlet and check if the plug is hot. If its temperature is more than
50 С, replace it to avoid damages, accidents or fires as a result of poor
electric contact. The plug should be replaced by a professional.
IMPORTANT!
The convenience outlet should be designed for
nominal current of not less than 10А, electrical cable
with a core with section of not less than 3x1.5 mm2
(for copper)
6
www.timberk.com • electric convector heater
Loading...
