Timberk TAP FL600 MF BL User Manual [ru]

Instruction manual

Руководство по эксплуатации

Outlook of devices, aslo colour scores can be revised without any special advance
notices.

Производитель вправе менять внешний вид прибора и цветовую гамму при­бора без специального уведомления.

Электрический
воздухоочиститель

Модели/Models:

Electric
air purifier

TAP FL600 MF (BL)

TAP FL600 MF (W)

Цвета/Colors:

(BL) - черный/blaсk

(W) - белый/white

Руководство по эксплуатации включает в себя гарантийный талон

CONTENTS

1. Important information

2. Safeguards

3. Specification

4. Product description

5. Complete set

6. Operation of the instrument

7. Cleaning and maintenance instrument

8. Troubleshooting

9. Utilization

10. Transportation and storage

Dear customer!

2
2
3
4
4
4
5
7
7
7

We thank you for your happy choice! You’ve bought an air
purifier TIMBERK. It will serve you for a long time. Please, read
this manual carefully before operating the device!

The air purifier is designed for purification of air in living
spaces to remove dust/dirt particles, bacteria, fungus spores,
unpleasant odor, and tobacco smoke (depending on the model
and availability of certain filter types in the appliance).

1. IMPORTANT INFORMATION

The manufacturer reserves the right, without prior notification the buyer
to make changes in design, equipment or technology to manufacture
products with the aim of improving its properties.

The text and figures are given instruction may be a misprint.
If after reading the instructions you still have questions regarding the

operation of the unit and contact your dealer or authorized service facility
for clarification.

The product label is present, which are all necessary technical data and
other useful information about the instrument.

Use only for intended use as described in this manual. Air is designed to
clean air in residential areas.

2. SAFEGUARDS

Before the commissioning of the air purifier carefully read these instructions
for its use, and store it for later use.

When using the device, you must follow some precautions. Misuse of
power of ignoring safety precautions could cause harm the user and
others, as well as damage to their property.

The device is designed to work in a residential area in compliance with
these conditions. Use an air cleaner for other purposes may create a
situation dangerous to life and health.

2

www.timberk.com • electric air purifier

The appliance should be monitored during its operation, especially when
close to him are the children. The device is not intended for use by persons
(Including children) with reduced physical, sensory or mental capabilities,
having insufficient experience and knowledge, unless they are supervised
and do not receive instructions on how to use the device from the person
responsible for their safety. Make sure that the children do not play with
the device.

Do not use the device in order not provided for this manual.
Not allowed to operate the appliance if the power cord or plug are

damaged, and if air cleaner is defective, damaged in the fall or in other
circumstances.

The device should be used only in fully assembled form.
To avoid electrical hazards, damaged power cord must be changed only at

authorized service centers by qualified personel.
To avoid electric shock, do not place the power cord near a heat source

and flammable or combustible substances.
To avoid personal injury and property damage, not try to repair the air

cleaner.
For repair of the air purifier, please contact the authorized service center of

the manufacturer. Its address can be obtained at www.timberk.com.
Remove the plug from the outlet device in the following cases: before

cleaning and maintenance, before moving to another place.
Install the air cleaner on a flat dry surface.
For damages received due to improper location of the humidifier, a

manufacturer and seller are not liable.
When not in use, unplug the power supply.
Do not route power cord under a carpet or other items.
Avoid contact with air filter foreign objects.
Do not block air intake with foreign objects and the air outlet.
The minimum distance from any of the instrument to objects and surfaces,

30 cm.
Do not sit, or stand or place heavy objects on the air purifier.
For damage to the instrument, derived from the non-fulfillment of this

requirement, a manufacturer and seller are not liable.
When you disconnect the unit from the mains, do not pull the power cable

and do not touch it with wet hands.

3. SPECIFICATION

Table 1

Specifications UoM Value

Air flow m3/h

Power supply V/Hz

Nominal power consumption W

Nominal rated current A

Noice level dB

Water protection -

Electrical protection class -

Device dimension mm

Net weight kg

Area m

2

IMPORTANT!

The manufacturer reserves the right to change the
set-list of the device (including liquid and powder
components) for different supplies without prior
notice. The changes either in no way influence the
basic technical parameters of the device or may
improve them, and also not violate the legislation or
quality standards of the countries of manufacture,
transit and selling.

The changes in the set-list may result in changing
of the weight and dimensions of the device, but not
more than by +\- 5-20% (depending on the product
category)

120

220-240~/50

19

0.09

30/40/48

IPХ0

Класс ll

375X278X165

3.5

25

www.timberk.com • electric air purifier

3

4. PRODUCT DESCRIPTION

5. COMPLETE SET

4

11

10

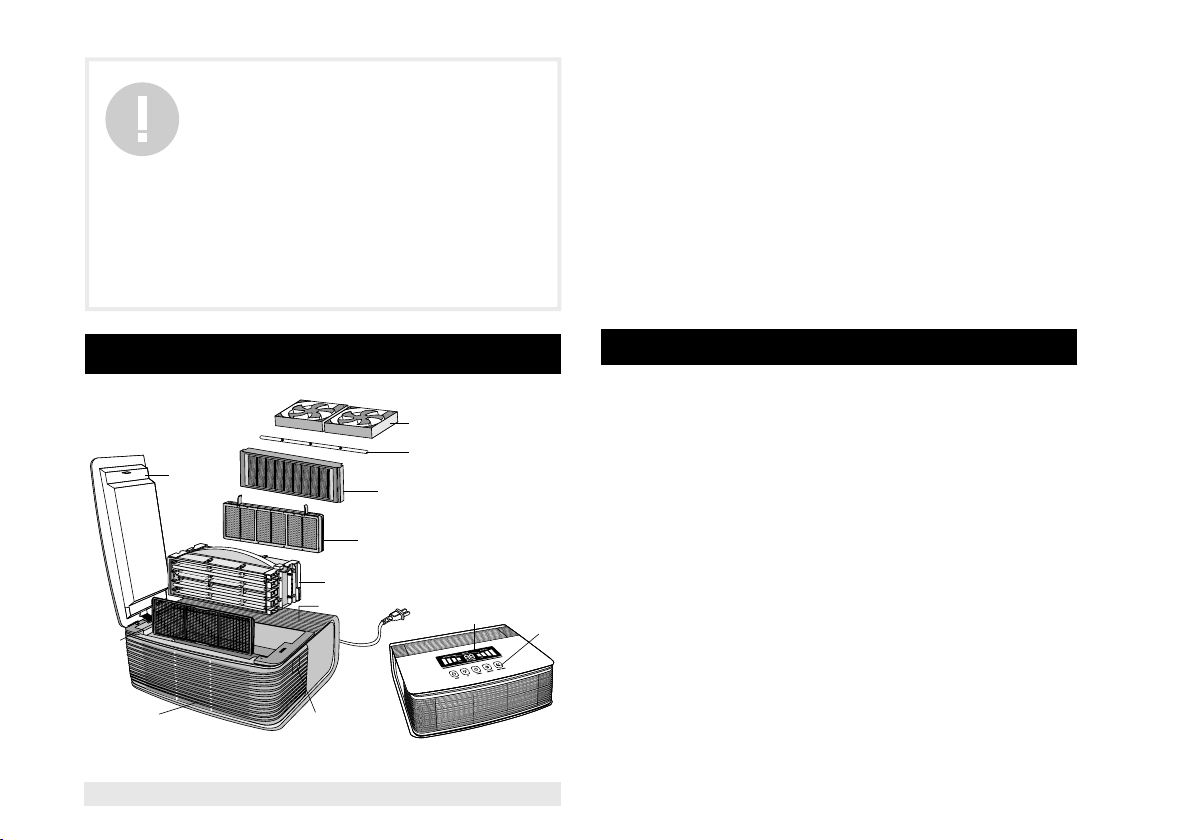

Fig. 1

1. Motor fan

2. UV LED

3. Ozone, catalyst filter

4. Cover

5. VOC/Formaldehyde filter (Optional)

6. Collector cell

7. Exhaust grille

8. Display

9. Cover Switch

10. Front grille

11. Pre-filter

12. Control panel

1

2

3

5

6

7

9

8

1. Air Purifier - 1 pc.

2. Manual and warranty card - 1 pc.

3. Packing - 1 pc.

4. Brush - 1 pc.

6. OPERATION OF THE INSTRUMENT

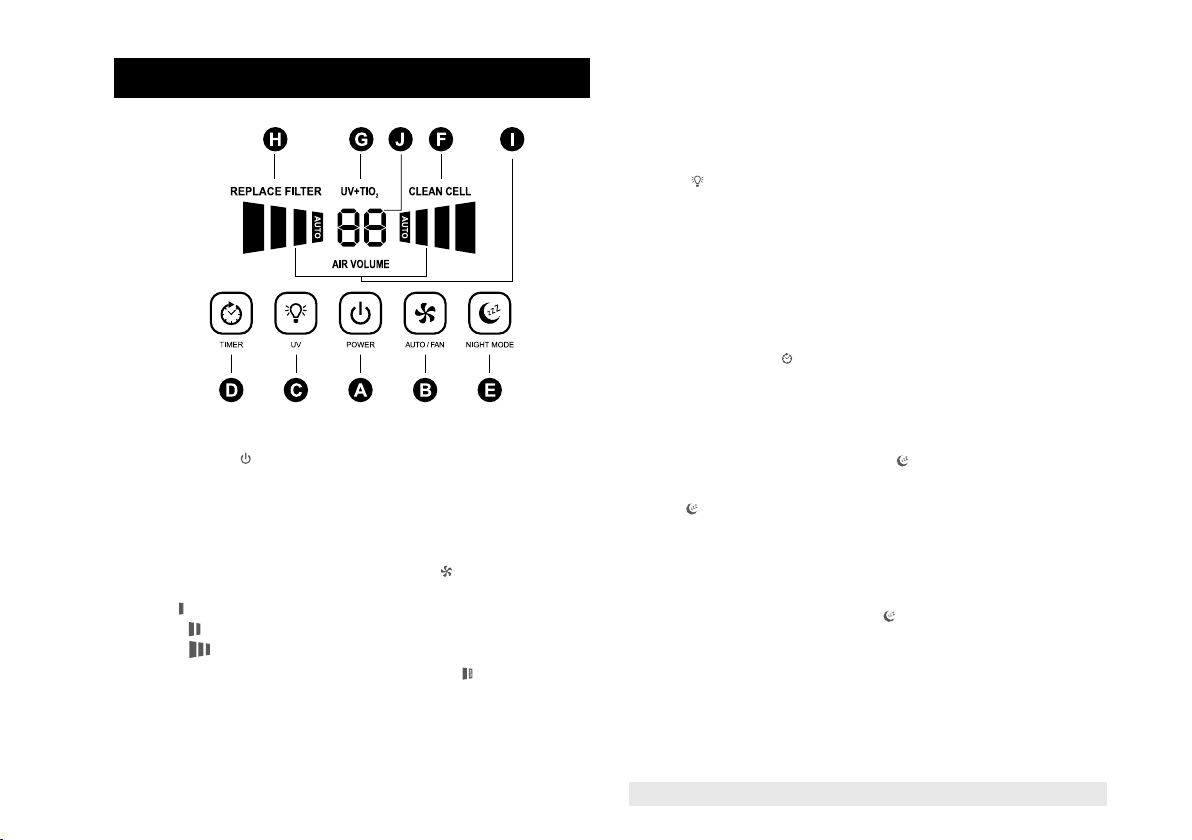

Fig. 2

А) ON/OFF Button

By pressing button « » once, you can the unit on, display screen will
illuminate. The appliance will start to operate under AUTO mode. By
pressing it twice, the unit is switched off.

B) AUTO model/Fan Speed

By repeated pressing button « » you can adjust the air clean speed or
operate under AUTO mode. Symbol I show which of the four levels you
have selected:

4

www.timberk.com • electric air purifier

• Low for silence technology

• Medium for normal use

• High for maximum cleaning

• Once the AUTO is activated, appliance will automatically sense and
adjust the air clean speed once it detects pollutants in the air. Additionally
4 stages of clean sing, clearly shows your current air condition accordingly:

- Green: Clean

- Light Orange: Low pollution

- Orange: Medium pollution

- Red: High pollution

C) Operation with catalyst

Button « » is used for switching the catalyst on and off (Symbol «UV+TIO2»
lights up).

This appliance combines advanced catalytic technologies to reduce
odors and chemical fumes from glues, solvents, and synthetic materials
when air passes through the filter and is activated by the internal UV LED.
(The catalyst system cannot be removed). If turned off, the appliance will
continue to filter particles from the air that passes through the filter but its
odor and VOC capability will be greatly reduced.

D) Timer

Using button « » the operation time can be set-adjustable between 1~9
hours or continuous operation (circulated ), Sumbol J shows the operating
period that has been set (1h/2h/3h/4h/5h/6h/7h/8h/9h/ circulated ). The
display will automatically show the current value after a few seconds.

E) Night mode

By pressing the button « » once, the night mode is switched on which
automatically dims the display brightness, appliance continue to operate
under with silence technology. If button « » pressed again, the appliance
will no longer be in night mode.

F) Cleaning indicator

If red «CLEAN CELL» indicator appears on the display, the appliance should
be cleaned as recommended by the manufacturer. When the collector cell
is re-installed after cleaning, switch on the appliance and keep pressing
the button « » at least 3 seconds until buzzer beeps, red «CLEAN CELL»
indicator goes out and «CLEAN CELL» timer is reset.

G) Catalyst indicator

H) Replace indicator

If red «REPLACE FILTER» indicator appears on the display, the VOC/
Formaldehyde filter should be replaced as recommended be the
manufacturer. When the VOC/Formaldehyde filter is reins – talled after
replacement, switch on the appliance and keep pressing the button « » at
least 3 seconds until buzzer beeps, red «REPLACE FILTER» indicator goes
out and «REPLACE FILTER» timer is reset.

I) Fan speed indicator

J) Timer indicator

7. CLEANING AND MAINTENANCE INSTRUMENT

Cleaning the Collector Cell

1. Unplug the appliance.

2. Open the cover from the right side by pressing the switch.

3. Pull the collector cell straight out of the cabinet.

4. Place collector cell in sink, bathtub or other location where cleaner can
cover every surface.

5. Spray specialized cleaner between each cell plate and covers each
surface. Allow the cleaner to soak for a few minutes but do not let it dry.
Thoroughly rinse the collector cell with clean water.

An alternative method to clean collector cell is to rinse or it in warm for
loose debris. Mild liquid dish detergent in water may also be used to help
break down tough dirt and residue. Thoroughly rinse the collector cell with
clean water.

6. Snake excess water from the collector cell to speed up drying time. Do
not use heated or compressed air to dry.

7. Place the collector cell back into the unit. The collector cell is specially
designed so that it can be only inserted in one direction.

8. Close the cover securely.

www.timberk.com • electric air purifier

5

ATTENTIONS!

• The collector cell may not require if «arcing» occurs.
Arcing is a snapping sound that occurs when large
particles are collected in the collector cell or the
appliance used in over-damp rooms.

• If prolonged or continuous arcing occurs, the
collector cell should be cleaned.

• To prevent damage to the components of the
collector cell, do not put in dishwasher or use a cotton
swab.

• Tough residue such as tar from tobacco smoke may
need additional cleaning or longer soaking.

• The collector cell must be completely dry after
cleaning in order to operate properly. If the power
supply detects the collector cell is wet, it shuts down
power to the cell and cause the red «CLEAN CELL»
indicator to blink rapidly. Please re-dry the collector
cell until the power supply successfully restarts, the
appliance will return to its original speed and run as
normal.

Cleaning the Pre-Filter

1. Unplug the appliance.

2. Open the cover from the right side by pressing the switch.

3. Pul the pre-filter straight and let it air dry before placing it back in the
cabinet. Do not use heated or compressed air as part of the drying process.

4. Insert the pre-filter back into the unit.

5. Close the cover securely.

Fig. 3

Cleaning the Exhaust Grille

1. Remove the cleaning brush from the storage slot located under the cover.

2. Brush away debris that has collected between the grille slots.

3. Return the cleaning brush to the storage slot.

Fig. 4

6

www.timberk.com • electric air purifier

8. TROUBLESHOOTING

9. UTILIZATION

In case of emergency contact information listed in the table 2 below. If you
can not solve problems independently, to a service center.

Table 2

Problem Check Solution

Appliance does not turn ON

Red «CLEAN CELL» indicator
has illuminated

Red «CLEAN CELL» indicator
is blinking

Collector cell does not remove
particles

Appliance sparks, crackles
and pops

«AUTO» light is blinking

• Power

• Power

• Cover

Collector cell

Collector cell

Collector cell

Collector cell

Surroundings

Odor sensor

• Plug in power cord
*Press the power button
*Make sure the cover is securely closed

Red «CLEAN CELL» indicator is a 60 day cleaning
reminder. Wash collector cell. Make sure it is
thoroughly clean before reinstalling

• When a large particle is captured in the collector cell,
please restart your appliance

• A fast blinking light indicates the power supply
has shut down due to arcing or short circuit. The
cell should be inspected and cleaned, repaired, or
replaced

• Clean the collector cell

• Collector cell may be damaged. Contact authorized
service center

• Sparking or poping noise (arcing)can occur
when a large particle is captured in the collector
cell or appliance is used in over damp rooms. If the
appliance is arcing excessively, the cell may be dirty.
Try cleaning the collector cell.

• If excessive arcing continues after proper cleaning,
the collector cell may be damage. If damager, contact
authorized service center.

Air qulity is very bad, please open the window to
improve the ventilation

Odor sensor get malfunction, should be repaired
or replaced

Term reliability is 5 years.
At the end of the life of the puripier should be subjected to disposal in

accordance the rules, regulations and methods, at the place of disposal.

10. TRANSPORTATION AND STORAGE

1. When transporting, any possible impacts and movements of the
package inside a vehicle must be avoided.

2. Handling symbols on the unit’s package must be strictly observed when
transporting and storing it.

3.

Temperature
requirements*

Humidity
requirements*

Transportation and
storage

We are researching new technologies and constantly improving the quality
of our products. Specifications, design and scope of delivery may be
changed without any prior notice.

* Products must be stored in dry, ventilated storages at the temperature
not lower than -30°C.

-30°C to +50°C

15% to 85%
(no condensate)

www.timberk.com • electric air purifier

7

СОДЕРЖАНИЕ

1. Важная информация

2. Правила безопасности

3. Технические характеристики

4. Описание прибора

5. Комплектация

6. Экплуатация прибора

7. Чистка и обслуживание прибора

8. Гарантийный талон

Уважаемый покупатель!

8
9

9
10
10
11
12
13

Благодарим Вас за удачный выбор и приобретение возду­хоочистителя воздуха ТIMBERK. Он прослужит Вам долго.

Воздухоочиститель предназначен для очистки воздуха в
бытовых помещениях от частиц пыли, грязи и бактерий,
спор грибков, неприятного запаха и табачного дыма (в зави­симости от модели и наличия в приборе тех или иных видов
фильтров).

Просим вас внимательно ознакомиться с руководством по
эксплуатации перед тем, как вы начнете эксплуатацию из­делия!

1. ВАЖНАЯ ИНФОРМАЦИЯ

Производитель оставляет за собой право без предварительного уве­домления покупателя вносить изменения в конструкцию, комплек­тацию или технологию изготовления изделия с целью улучшения его
свойств.

В тексте и цифровых обозначениях данного руководства могут быть
допущены опечатки.

Если после прочтения руководства у Вас останутся вопросы по рабо­те и эксплуатации прибора, обратитесь к продавцу или в специализи­рованный сервисный центр для получения разъяснений.

На изделии присутствует этикетка, на которой указаны все необходи­мые технические данные и другая полезная информация о приборе.

Используйте прибор только по назначению, указанному в данном ру­ководстве.

8

www.timberk.com • электрический воздухоочиститель
