JK6028
This kit is guaranteed to be free from defects in material and workmanship at the date of purchase.
It does not cover any damage caused by use or modification. The warranty does not extend
beyond the product itself and is limited only to the original cost of the kit. By the act of building this
user-assembled kit, the user accepts all resulting in liability for damage caused by the final
product. If the buyer is not prepared to accept this liability, it can be returned new and unused to
the place of purchase for a refund.
Warranty
Notice: Adult Supervision Required
This is not a toy. Assembly and flying of this product requires adult supervision.
Read through this book completely and become familiar with the assembly and flight of this
Ecureuil. Inspect all parts for completeness and damage. Browse www.thundertiger.com for
customer service if you encounter any problems.
No.3841
MEMO
16

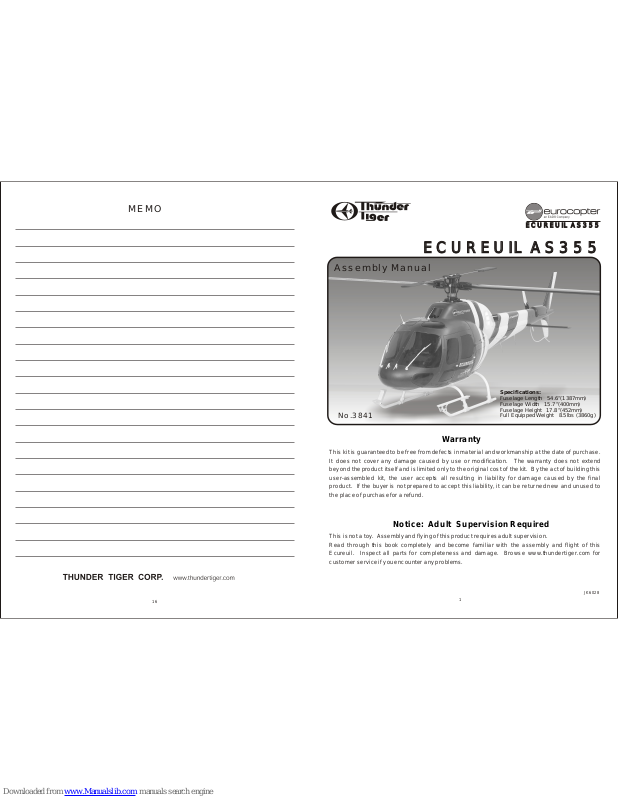

Assembly Manual
1
Specifications:
Fuselage Length 54.6”(1387mm)
Fuselage Width 15.7”(400mm)
Fuselage Height 17.8”(452mm)
Full Equipped Weight 8.5lbs (3860g)
ECUREUIL AS355ECUREUIL AS355
ECUREUIL AS355ECUREUIL AS355
R/C System:
6 Channel Heli radio req'd
GYRO system req'd
Helicopter:
Raptor 50 Titan Suggested
TTR4853 - Raptor 50 Titan
3
Before beginning the assembly read the instructions thoroughly to give an understanding of the sequence of steps and a
general awareness of the recommended assembly procedures.
By following these instructions carefully and referring to the corresponding pictures, the assembly of your model will be
both enjoyable and rewarding. The result will be a well built, easy to assemble scale model, which you will be proud to
display.
This Ecureuil is designed for intermediate to advanced pilots, and this manual assumes a basic knowledge of R/C model
construction.
PRE-ASSEMBLY NOTES
1. Before you start to assemble this fuselage on your helicopter, we suggest you to first fine tune your helicopter in the air.
2. Double-check all screws, then secure and Loctite all the loose screws.
3. The instruction manual is written for Raptor 50, if user should choose to install it on other branded helicopters, we would
suggest you to study the manual thoroughly and see how it installed on a Raptor 50.
Before you begin, check the entire contents of your kit against the parts list and photos to make sure that no parts are
missing or damaged. This will also help you to become familiar with each component of your model. If you find that any of
the parts are either missing or damaged, please contact your local Thunder Tiger authorized distributors for replacements.
Neither your dealer nor Thunder Tiger authorized distributor can accept kits for return if construction has begun.
Trial fit each part before gluing it in place. Make sure you are using the correct part and that it fits well before assembling.
BEFORE YOUR ASSEMBLY
Adhesives:
Instant setting Cyanoacrylate adhesive (thin CA)
Slow setting Cyanoacrylate adhesive (thick CA)
10 Minute Epoxy (fast)20~30 Minute Epoxy(slow)
RECOMMENDED TOOLS & MATERIALS
Tools:
Model Knife, 1/2" MASK Tape, Small & Medium Screwdrivers, Scissors, Long nose Pliers, Drill and Drill Bits
(1/32",1/16",1/8", 5/64"), 150 Grid Sand Paper, Rat
Tail and half- round file, Fine Felt Tip Pen & Soft Lead
Pencil, Reamer, Hex Wrenches.
You will need two types of adhesives for the Ecureuil
Epoxy and Instant (cyanoacrylate) adhesives. We
recommend that you purchase both 5-minute and 30minute epoxy to cut down on assembly time, but you can
get by with only 30-minute epoxy if time is not important.
You will also need a small bottle of both "Thick" and
"Thin" instant CA adhesive.
Model assembly can be much easier if the proper tools
are used. Therefore, we have included in our checklist
to the left, a complete listing of all the tools we used to
assemble our prototype models.
ITEMS YOU MAY NEED
TABLE OF CONTENTS
Introduction....................................................................................................................................................2
Recommended Tools & Materials......................................................................................................................3
Item You May Need..........................................................................................................................................3
Parts Drawings.............................................................................................................................................4-5
Parts Check List..............................................................................................................................................6
Assembly...................................................................................................................................................7-12
MEMO..........................................................................................................................................................16
32
Congratulations on the purchase of our finest scale heli fuselage to date. This famous Ecureuil fits Thunder Tiger Raptor
50, the light fuselage comes factory pre-painted with all necessary hardware. It is very easy to assemble and only takes you
few hours of enjoyable installation to put this scale body on your helicopter. This replica Ecureuil is just like a real thing,
hovering this Ecureuil that will definitely make you stand out on the flying field.
No.1114 ,No.1114-Y
Exhaust Diverter,10MM
No.AT6078
Remote Glow Plug Extension Wire
INTRODUCTION
No.2980
4-cell 3600mAh Battery
ITEM YOU MAY NEED
No.1115 - Precision Fueler Valve
ECUREUIL AS355ECUREUIL AS355
Front Fuselage (1)
Rear Fuselage (1)
2x8mm
Wood Screw (16)
Horizontal Tail (1)
Exhaust Pipe (2)
Tail Transmission
Case Cover (1)
PV6039 Fuselage
PV6040 Windshield
Front Windshield (1)
Front Window L/1,R/1
Rear Window L/1,R/1
Sunroof L/1,R/1
Front Lower Window L/1,R/1
Bottom Window L/1,R/1
Air Inlet L/1,R/1
2x5mm Wood Screw (52)
3x23mm
Socket Screw (2)
Battery Tray (1)
Rubber Band (2)
Doubler (16)
PV6041 Decoration Set
Wiper (2)
L/F Antenna (2)
H/F Antenna (4)
Tail Skid (1)
PV6042 Foam Retainer
Tail Boom
Foam Retainer (1)
PV6043 Retaining Set
Post (2)
Silicon Grommet (2)
3x10mm
Washer Screw (2)
M2 Nut (2)
PV6044 Landing Skid
Brace A (1)
Brace B (1)
Skid Pipe (2)
Wiper Strut (2)
Pitot Tube (2)
Skid Adaptor (F,2)
Skid Joiner (4)
Skid Pipe
End Cap (2) M3 Locknut (5)
3x4mm
Setscrew (10)
Front Mounting
Strip (2)
Step Bar (1)
Step Ladder (1)
Skid Adaptor (R,2)
Step Bar
Retainer (1) Foam Tape (8)
Wiper Mount (2)
Handlebar (4) LED (1)
Retaining
Collar (18)
2x6mm Screw (2)
2.3x12mm Washer
Wood Screw (1)
3x15mm
Self-tapping
Screw (4)
2x5mm
Wood Screw (1)
3x15mm
Screw (1)
3x30mm
Socket Screw (2)
3x14mm
Socket Screw (2)
3x20mm
Self-tapping
Screw (4)
Plastic Tube(1)
Rear Mounting
Strip (L/1,R/1)
54
PARTS DRAWINGS PARTS DRAWINGS
ECUREUIL AS355ECUREUIL AS355
