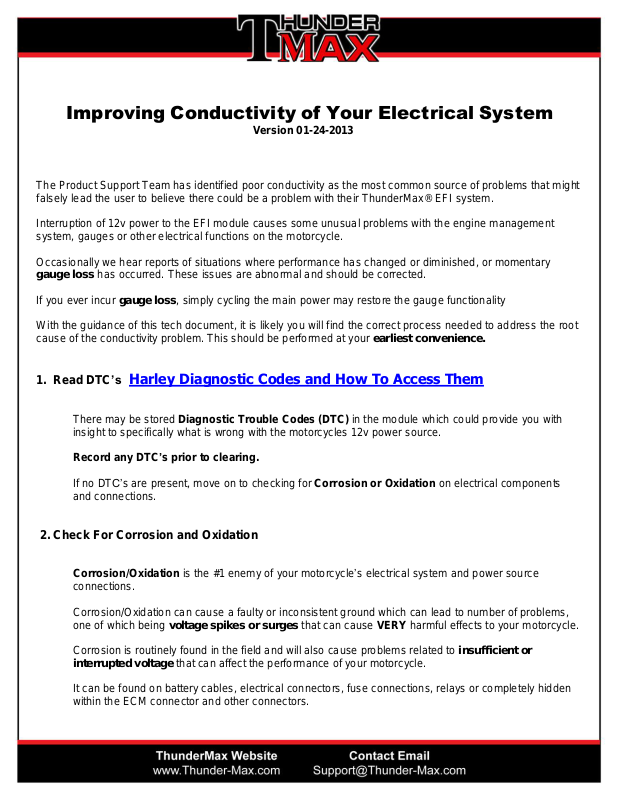

Improving Conductivity of Your Electrical
Version 01-24-2013
The Product Support Team has identified poor conductivity as the most common source of problems that might
falsely lead the user to believe there could be a problem with their ThunderMax® EFI system.
Syste
m
Interruption of 12v power to the EFI module causes some unusual problems with the engine management
system, gauges or other electrical functions on the motorcycle.
Occasionally we hear reports of situations where performance has changed or diminished, or momentary
gauge loss has occurred. These issues are abnormal and should be corrected.
If you ever incur gauge loss, simply cycling the main power may restore the gauge functionality
With the guidance of this tech document, it is likely you will find the correct process needed to address the root
cause of the conductivity problem. This should be performed at your earliest convenience.
1. Read DTC’s Harley Diagnostic Codes and How To Access Them
There may be stored Diagnostic Trouble Codes (DTC) in the module which could provide you with
insight to specifically what is wrong with the motorcycles 12v power source.
Record any DTC’s prior to clearing.
If no DTC’s are present, move on to checking for Corrosion or Oxidation on electrical components
and connections.
2. Check For Corrosion and Oxidation
Corrosion/Oxidation is the #1 enemy of your motorcycle’s electrical system and power source
connections.
Corrosion/Oxidation can cause a faulty or inconsistent ground which can lead to number of problems,
one of which being voltage spikes or surges that can cause VERY harmful effects to your motorcycle.
Corrosion is routinely found in the field and will also cause problems related to insufficient or
interrupted voltage that can affect the performance of your motorcycle.
It can be found on battery cables, electrical connectors, fuse connections, relays or completely hidden
within the ECM connector and other connectors.
1) Fuse Box
All 12v power for the entire motorcycle goes through here and it’s a common source of problems. The
fuse box is not sealed unit therefore even garages kept motorcycles are highly venerable to problems
due to the elements of exposure like moisture, humidity, washing and rain water etc..
Note- corrosion / scale on spades
Inspect the fuse panel sockets and fuse spades for scale and corrosion. Clean with alcohol and apply
dielectric grease.
2) TMax-ECM Connector
With the ECM Fuse removed it’s safe to unplug the ECM 36-pin connector. Swab the connector with
alcohol then apply dielectric grease to the inside lip of the ThunderMax ECM (Photo A) to allow the
connector rubber weather seal to slide into the housing without rolling or binding.
Also apply a light film to the female pin receptacles housed within the clear terminal guide on the 36 pin
ECM connector (Photo B) making sure to lightly cover the entire the surface of the terminal pins.
Initialize the system after reinstallation of the 36-pin connector and ECM fuse (with the handlebar
switch in the “Run” position, turn the ignition switch ON 30 seconds, OFF 30 seconds, 3 times before
moving the throttle or starting the engine).
(Photo A) (Photo B)
3) Cylinder Head Temperature Sensor
If you are experiencing any irregular performance as the engine temperature changes, inspect the
connections on the cylinder head temperature sensor. We routinely see monitor logs with a poor
connection or a faulty sensor which will send erroneous data to the AutoTune system. This condition
can easily be identified by recording a monitor log during the operation of the engine. Normal operation
would show a steady gradual engine temperature changes as the engine warms up.
We recommend that all ECM related wiring connectors, system relays and ECM fuses are inspected
and cleaned by swabbing with alcohol and Q-Tip to remove scale and oxidation build-up. Then, apply a
light coat of dielectric grease on the connector before reconnecting.
This will improve conductivity by preventing future corrosion or scale from forming.
It is highly recommended to do the same for the fuse box and all fuse spades.
3. Service the Battery
Often overlooked or assumed in good order, yet roughly 50% of the vehicle we see at Rallies have
loose battery cables or improper mounting of ancillary connectors on the battery which will give you
problems.
A) REMOVE ECM FUSE then the battery cables; clean and prepare them before re-installation.
Replace severely corroded parts
B) Always make sure the battery cables are secured directly against the terminal, clean, tight and
C) All non-original electrical accessories wired on the vehicle are connected to a second, separate
4. Road Test
After you have performed all of these tasks you can road test to confirm you have remedied the
problem, in addition read the Diagnostic Trouble Codes again within the ThunderMax® software to
verify that there are no other problems pending on the motorcycle. If you have a question from this
point send in a module data collection which will read everything stored within your module, sending it
directly to the TMax product support desk
routed correctly.
mount on the battery, (see image below). Temporarily removing or bypassing any non O.E
accessory device may be a valid test when troubleshooting for odd problems.
