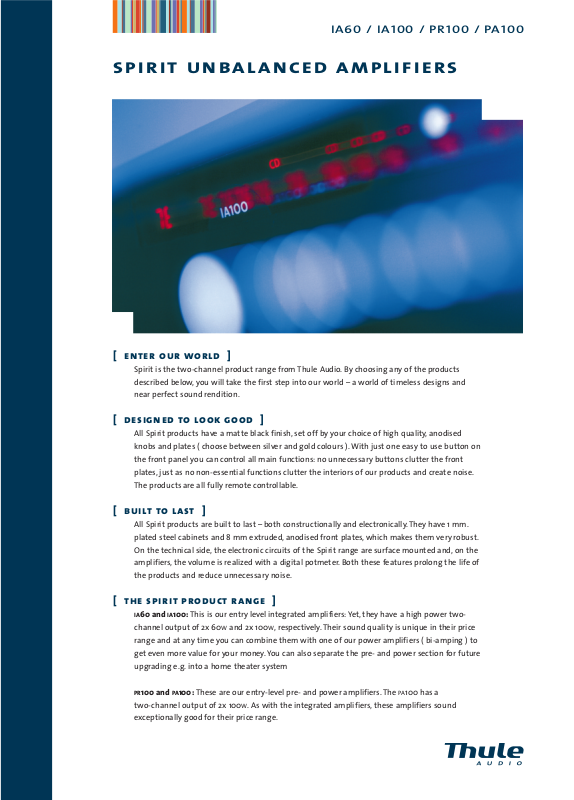

Thule Audio PR-100 Brochure

[ enter our world ]

Spirit is the two-channel product range from Thule Audio. By choosing any of the products

described below, you will take the first step into our world – a world of timeless designs and

near perfect sound rendition.

[ designed to look good ]

All Spirit products have a matte black finish, set off by your choice of high quality, anodised

knobs and plates ( choose between silver and gold colours ).With just one easy to use button on

the front panel you can control all main functions: no unnecessary buttons clutter the front

plates, just as no non-essential functions clutter the interiors of our products and create noise.

The products are all fully remote controllable.

[ built to last ]

All Spirit products are built to last – both constructionally and electronically.They have 1 mm.

plated steel cabinets and 8 mm extruded, anodised front plates, which makes them very robust.

On the technical side, the electronic circuits of the Spirit range are surface mounted and, on the

amplifiers, the volume is realized with a digital potmeter. Both these features prolong the life of

the products and reduce unnecessary noise.

[ the spirit product range ]

IA60 and IA100: This is our entry level integrated amplifiers: Yet, they have a high power two-

channel output of 2x 60

W and 2x 100W, respectively. Their sound quality is unique in their price

range and at any time you can combine them with one of our power amplifiers ( bi-amping ) to

get even more value for your money. You can also separate the pre- and power section for future

upgrading e.g. into a home theater system

PR100 and PA100: These are our entry-level pre- and power amplifiers.The PA100 has a

two-channel output of 2x 100

W. As with the integrated amplifiers, these amplifiers sound

exceptionally good for their price range.

SPIRIT UNBALANCED AMPLIFIERS

IA60 / IA100 / PR100 / PA100

Thule Audio ApS

Hørkær 14

2730 Herlev

Denmark

Tel

[phone]

Fax

[phone]

[e-mail]

www.thule-audio.com

PA100/3: With its three-channel output, the PA100/3 forms the bridge between the Spirit and the

Space product ranges. Other than that, the

PA100/3 is identical to the PA100 and will yield same

exceptional performance.

[ solid power supply and high current output stage ]

The power supply of IA60, IA100 and PA100 is build with a high efficiency toroid transformer and

high grade capacitors to ensure a stable power delivery.

In the real world loadspeakers are not a simple 4 or 8 ohms resistor, but a complex load, with

changing impedance and phase through all the audio frequencies. Therefore the

IA60, IA100 and

PA100 has a high current output stage, which allways ensures sufficient current during a music

peak.

Further the outputstage is designed without any global feedback, causing a vividly sound with-

out any hardness.

[ be surprised about the difference ]

All these amplifiers can be mixed and matched to suit your personal needs and tastes. If you

want more you should check out our other product ranges. Compared to other products in their

price range, though, the products of the Spirit range have a very unique build quality and design.

And as you can see above, we have taken every step to reduce noise in the amplification process

to an absolute minimum. We believe we have succeeded, but invite you to judge for yourself. You

will be surprised what a good amplifier can do.

[ technical specifications ]

ia60 ia100 pr100 pa100

Line inputs: 0.5V/phono, 5pcs 0.5V/phono, 5pcs 0.5V/phono, 5pcs -

Tape outs: 0.5V/phono, 2pcs 0.5V/phono, 2pcs 0.5V/phono, 2pcs -

Main in: 1V/phono 1V/phono - 1V/phono, 2V/XLR

Pre out: 0-1V/phono 0-1V/phono 0-1V/phono,0-2V XLR -

Power out, 8ohm: 2x 60W 2x 100W - 2x 100W

Power out, 4ohm: 2x 90W 2x 160W - 2x 160W

Peak current 1ohm,1ms: +/-20A +/-30A - +/-30A

THD 20-20kHz, -10dB 0.04% 0.04% 0.008% 0.04%

Size in mm (W x H x D): 420 x 95 x 290 420 x 95 x 290 420 x 95 x 290 420 x 95 x 290

Weight: 9kg 13kg 7kg 13kg

THULE AUDIO reserve the right to alter design and specifications without notice.

IA60 and IA100 PR100 / PA100
