Display Indications, Common Problems, Possible Solutions / Indicacion, Causa Posible, Solucion Posible
LOW DC INPUT VOLTAGE (Below 10Vdc)
• Battery Voltage too low, Check or Recharge (battery) Power Source
• Inadequate power being delivered to the inverter or excessive voltage drop. Use heavier gauge wire
• See “Installation Specications” in users manual
APAGADO DE BAJA ENTRADA DE VOLTAJE
• Voltaje de la fuente (batería ) demasiado baja Recargue o substituya la ( batería) Fuente de alimentación
• Potencia inadecuada entregado al inversor o excesiva caída de Voltage .
• Consulte “Especicaciones de instalación” en el manual del usuario
HIGH DC INPUT VOLTAGE ( Above 16Vdc)
• Battery Voltage is too high, Check for fault with battery charging system
APAGADO DE ALTA ENTRADA DE VOLTAJE
• Voltaje de la batería es demasiado alto, Compruebe si hay fallas en el sistema de carga de la batería
OVERLOAD SHUTDOWN
• Excessive start-up load. Power tool (or appliance ) draws too much voltage; and cannot be used with your inverter
• Inadequate power being delivered to the inverter or excessive voltage drop . Use heavier Gauge wire.
• See “Installation Specications” in users manual.
APAGADO DE SOBRECARGA
• Excesivo Carga de arranque.
• Potencia inadecuada entregado al inversor o excesiva caída de Voltage .
• Consulte “Especicaciones de instalación” en el manual del usuario.
OVER TEMPERATURE
• Inverter is too hot (thermal shutdown mode) Allow Inverter to cool. Check for adequate ventilation.
• Reduce the load on the inverter to rated continuous output.
APAGADO DE ALTA TEMPERATURA
• Inversor está demasiado caliente.
• Permita inversor que se enfríe . Compruebe si hay una ventilación adecuada para el inversor .
• Reduzca la carga en el inversor .
GROUND FAULT PROTECTION / SHORT CIRCUIT PROTECTION
• Inverter senses a leakage current on the ground terminal or short circuit current on the AC sockets. Unplug the AC appliance or
power tool. Turn o the inverter, disconnect unit from any 12 VDC power source. Check the appliance or power tool and cord.
PROTECCION DE FUGA
• Inversor detecta una corriente de fuga.
• Inversor detecta corriente de cortocircuito.
• Desenchufe el aparato de CA o herramienta eléctrica
E 01
E 02
E 03
E 04
E 05
No FUNCTION - (If inverter digital display does not illuminate.)
• Check and make sure the inverter is properly connected to (battery) Power Source .
• See “Installation Specications” in users manual.
Modified Sine Wave Inverter Chart
Application Operating Wattage Surge Wattage
Air Compressor 3 1/4 HP
Water Heater
Clothes Dryer
Well Pump
Air Compressor 1 HP
Air Compressor 3/4 HP
Impact Drill 1/2 “
Bench Grinder 8”
Space Heater
Hammer Drill
High Pressure Washer 1HP
Key Cutter
Refrigerator / Freezer
Air Compressor 1/2 HP
Sump Pump
Pump Motor
Grinder Disk 4 1/2 “
Shop Vac
Hand Drill / Jigsaw
Fax Machine
Laser Printer
Microwave Oven
Computer (Desktop)
Printer
Sewer Camera & Lights
TV’s up to 27”
Video Monitors
Recharger - Battery Power Tools
DVD
Camcorder
Cellular Phone
2700
4500
1800
2238
2000
1500
1500
1500
1500
1350
1000
1000
1200
1000
800
800
800
750
750
700
750
600
500
400
300
250
225
200
160
140
50
8100
5500
5000
5595
6000
4500
4500
4200
1500
4050
3600
2400
3600
3000
1600
1300
1200
900
800
1500
1500
600
500
400
300
250
225
200
160
140
50
225W
400W
750W
1000W
1500W
2000W
3000W
5000W

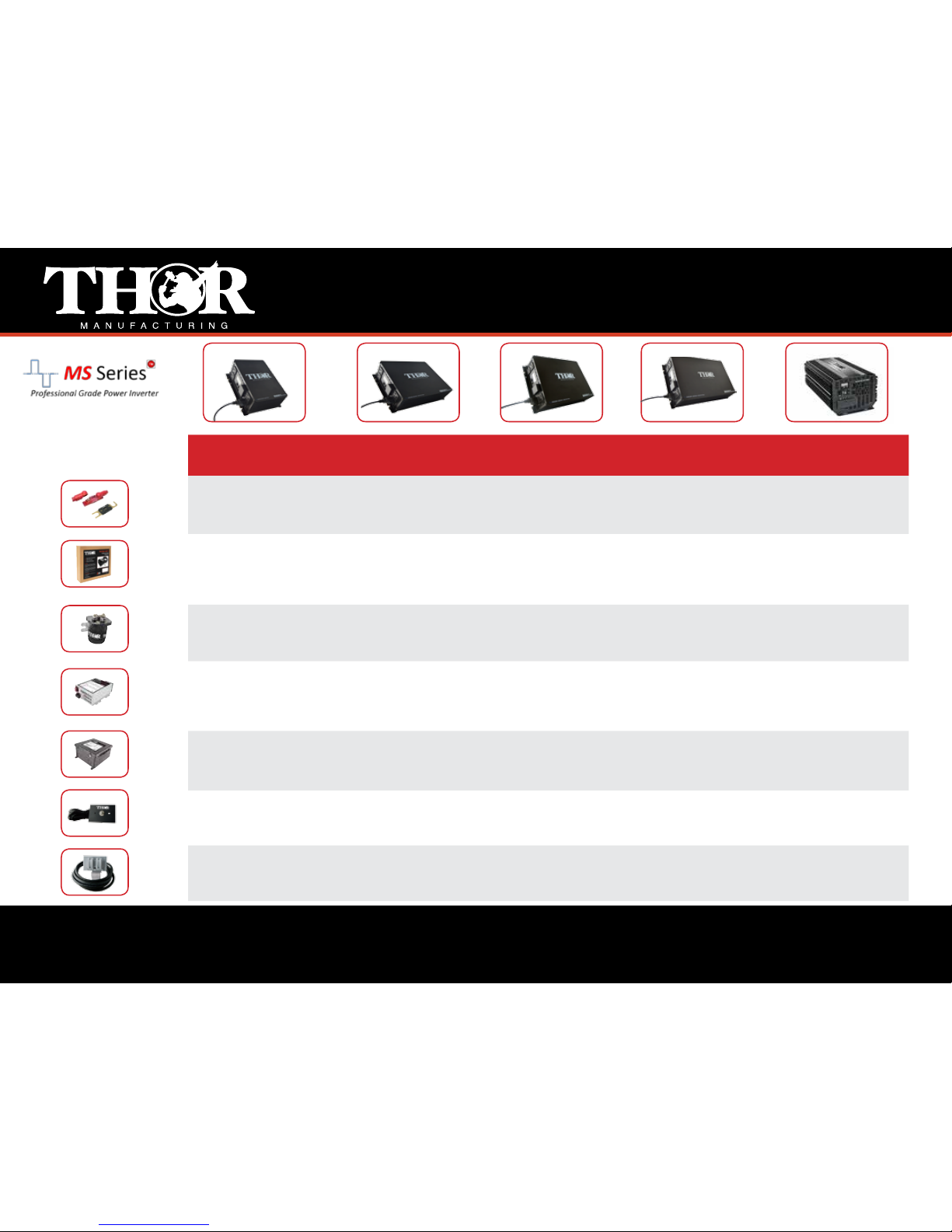

THE POWER OF THOR
AC
Extentions
Remotes Transfer
Switch
Chargers Isolators Cable Kits Fuses
THMS-1000 THMS-1500 THMS-2000 THMS-3000 THMS-5000
THANLFB-100 THANLFB-150 THANLFB-200 THANLFB-300 THANLFB-400
5 feet 4Awg
10 Feet 1/0
15 feet 2/0
20 Feet 2/0
5 feet 4Awg
10 Feet 1/0
15 feet 2/0
20 Feet 2/0
5 feet 1/0
10 Feet 1/0
15 feet 2/0
20 Feet 3/0
5 feet 1/0
10 Feet2/0
15 feet 3/0
20 Feet 3/0
5 feet 3/0
10 Feet 3/0
15 feet 3/0
20 Feet 4/0
THI-200 THI-200 THI-200 THI-500 THI-500
THC-35
THC-45
THC-55
THC-75
THC-100
THC-35
THC-45
THC-55
THC-75
THC-100
THC-35
THC-45
THC-55
THC-75
THC-100
THC-35
THC-45
THC-55
THC-75
THC-100
THC-35
THC-45
THC-55
THC-75
THC-10
THTS-30 THTS-30 THTS-30 THTS-50 THTS-50
TH001, TH002, or TH-IBS TH001, TH002, or TH-IBS TH001, TH002, or TH-IBS TH001, TH002, or TH-IBS TH001, TH002, or TH-IBS
TH-EXT TH-EXT TH-EXT TH-EXT TH-EXT
1
PROFESSIONAL GRADE POWER INVERTER
SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.
Copyright © 2015 THOR Manufacturing

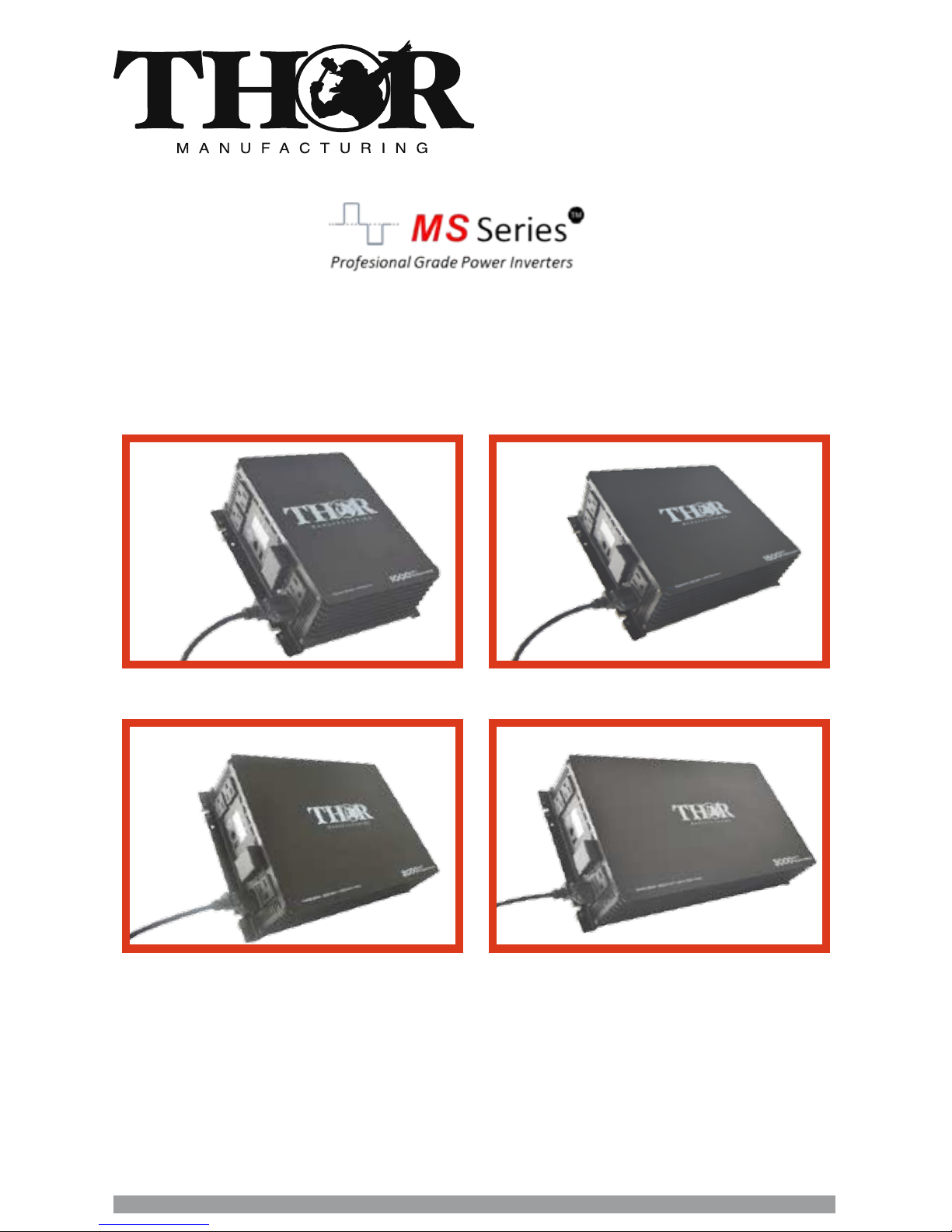

Instruction Manual
and Warranty Information
THMS
-1000
THMS
-1500
THMS
-2000
THMS
-3000
2
GENERAL SAFETY WARNINGS AND INSTRUCTIONS
READ ALL INSTRUCTIONS
WARNING: Read all instructions before operating your inverter. Failure to follow all instructions may result in
electric shock, fire and/or serious injury.
• AVOID DANGEROUS ENVIRONMENTS. Don’t use inverters in damp or wet locations.
• KEEP CHILDREN AWAY. Keep away from children. This is not a toy!
• STORE INDOORS. When not in use, inverters should be stored indoors in dry, and high or locked-up places – out
of reach of children.
• DON’T ABUSE CORD. Never carry inverter by cord or yank the cord to disconnect from receptacle. Keep cord
from heat, oil, and sharp edges.
• DISCONNECT INVERTER. Disconnect the inverter from the power supply when not in use.
• PROPER COOLING is essential when operating the inverter. Do not place it near a vehicle’s heat vent or in direct
sunlight.
• USE OF ACCESSORIES AND ATTACHMENTS. The use of any accessory or attachment not recommended by
manufacturer for use with this inverter could be hazardous.
• STAY ALERT. Use common sense. Do not operate inverter when you are tired.
• CHECK FOR DAMAGED PARTS. Any part that is damaged should be properly repaired or replaced by an
authorized service center unless otherwise indicated elsewhere in this instruction manual before further use. Do
not use inverter if switch does not turn it on and off.
• DO NOT OPERATE inverter near flammable liquids or in gaseous or explosive atmospheres. Motors in tools or
appliances used with the inverter may spark, and the sparks might ignite fumes.
SAFETY GUIDELINES AND DEFINITIONS
DANGER: Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION: Used without the safety alert symbol indicates potentially hazardous situation which, if not avoided, may
result in property damage.
RISK OF UNSAFE OPERATION. When using tools or equipment, basic safety precautions should always be
followed to reduce the risk of personal injury. Improper operation, maintenance or modification of tools or equipment
could result in serious injury and property damage. There are certain applications for which tools and equipment
are designed. Manufacturer strongly recommends that this product NOT be modified and/or used for any
application other than for which it was designed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: This product or its power cord may contain lead, a chemical known to the State of California to cause
cancer and birth defect or other reproductive harm. Wash hands after handling.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK:
• DO NOT connect to AC distribution wiring.
• DO NOT make any electrical connections or disconnections in areas designated as IGNITION PROTECTED. This
inverter is NOT approved for ignition protected areas.
• NEVER immerse the inverter in water or any other liquid, or use when wet.
• DO NOT insert foreign objects into the inverter’s outlets.
WARNING: TO REDUCE THE RISK OF FIRE:
• Do not operate near flammable materials, fumes or gases.
• DO NOT expose to extreme heat or flames.
CAUTION: TO REDUCE THE RISK OF INJURY OR PROPERTY DAMAGE:
• Remove appliance plug from outlet before working on the appliance.
• DO NOT attempt to connect or set up the inverter or its components while operating your vehicle. Not paying
attention to the road may result in a serious accident.
• ALWAYS use the inverter where there is adequate ventilation. Do not block ventilation slots.
• ALWAYS turn the inverter off and disconnect it from the power source when not in use.
• The inverter MUST be connected only to batteries with a nominal output voltage of 12 volts. The unit will not
operate from a 6 volt battery and will sustain permanent damage if connected to a 24 volt battery.
• When using this unit in a vehicle, check the vehicle owner’s manual for maximum power rating and recommended
output. DO NOT install in engine compartment — install in a well ventilated area.
