THOR Miramar 2014, 2014 Daybreak Owner's Manual

Congratulations on your recent purchase of a Thor Motor Coach Recreational V ehicle. We sincerely thank you for choosing and putting your faith in Thor Motor Coach. We want you to know that your satisfaction is of great importance to us. Our major goal is to provide you with a quality recreational vehicle at a reasonable price.

This manual will help you better understand the features and operating performances of your recreational vehicle. Please read it and keep it in your vehicle for future reference.

Our customers are extremely important to us, and we want to assure you that we will always strive to do everything possible to continue to earn your trust and goodwill.

Welcome to the wonderful world of RVing and the Thor Motor Coach family. Happy Travels!

This page intentionally left blank

FOLD HERE

TAPE - PLEASE DO NOT STAPLE

PLACE STAMP

HERE

THOR MOTOR COACH P.O. Box 1486 ELKHART, INDIANA 46516

FOLD HERE

TAPE - PLEASE DO NOT STAPLE

Table of Contents

Introduction

How to Use this Manual Reporting Safety Defects

Warranty

Production Changes Owner Responsibility Major Equipment Suppliers

Planning and Preparation

Read the Book Licenses Insurance Inspect and Maintain Loading and Weight Distribution Control of the Motorhome Pre-Travel Check Opening Checklist Weights Weighing Your Motorhome

Identication and Safety

Laws of the Road Fire Safety Fire Extinguisher Smoke Detector Carbon Monoxide Safety Precautions LP Safety LP Gas/Carbon Monoxide Detector Chemical Sensitivity Seat Belts Egress Window Trailer Towing

Chassis

Emergency Stopping Engine and Drive Train Fueling the Motorhome Travel Preparation

On the Road Safety

Fuel System Driving Parking Changing Tires Tire Care Check Air Pressure

Controls and Operations

Automotive Dash Gear Selector Dash Controls Steering Wheel Adjustment Turn Signal/Lane Change Hazard Flasher Control Rear Vision System Dash Radio Automatic Hydraulic Power Levelers Slide Outs Windows Storage Above Cockpit Living Room Television

13 13 15

17 17 17 17 17 17 17 18 20 21

25 26 26 27 29 29 30 32 33 34 34

37 37 38 38

41 41 41 42 42 42

45 45 45 47 47 47 48 49 50 54 55 56

Doors & Drawers

Under Bed Storage

Air Hide-A-Bed

Sofa Bed

Bedroom Door & Latch Blinds & Shades Water Heater Switch Kitchen Cabinets Kitchen Drawers Kitchen Pantry Range Refrigerator Microwave/Convection Oven Kitchen Sink Kitchen Faucet Dinnette Conversion Shower Head & Hose Garage Non-Slip Tread Storage Cabinet TV Hook-up Tie Down Tracks Side Air Vents Washer/Dryer Hook-Up Elevated Beds Use of Bed Rails Tips for Safe Usage Entry Door Assist Handle Electric Step Compartment Doors Rear Ladder Awnings Cabel Hook-Up/Phone Jack Generator Compartment Furnace Door Water Heater Door Refrigerator Door TV Hook-Up

Entertainment

Television Home Theater System Exterior Entertainment Center Video Switch Box TV Hook-up

Sample A/V Hook-Up Diagrams

Heating and Air Conditioning

Dash Panel Heater and Air Conditioner Roof Mounted Air Conditioner Furnace Thermostats Ceiling Vents

Electrical Systems

Shore Cord Batteries Power Converter

56 56 56 56 56 57 57 57 57 57 57 57 57 58 58 58 58 59 59 59 59 59 59 60 60 60 61 61 61 61 61 61 62 62 62 62 62 62 63

64 64 64 64 64 64

67 68 68 69 69

71 72

Table of Contents

Ground Fault Circuit Interrupter 12V System Fuses Circuit Breakers Chassis Alternator Generator

Water Systems

Fresh Water System Water Pump Low Point Drains Sanitizing the System Monitor Panel Waste Water System Heated Holding Tanks Dumping the Holding Tanks How to Prevent Blockage of Drain Lines Termination Compartment Components Toilet

LP System

Propane Gas Tank Propane Regulator Propane Gas Hoses Propane Gas Safety

Care and Maintenance

General Information Batteries Water System Waste Water System Fresh Water System Electrical System Generator Power System Propane System ABS Plastic Parts Awning Chassis Alignment Tires & Rims Exterior Lights Fiberglass Exterior Graphics/Paint Extrusions and Aluminum Surfaces Roof Roof Vents Seals & Adhesives Slide Out TV Antenna Underbody Windows & Doors Hydraulic Fluid Appliances Bath Fixtures Bathtub Seal Bedspread & Draperies Carpet High Pressure Laminate Countertop Hardware Kitchen Fixtures

75 76 76 77 78

81 82 83 83 84 84 85 85 85 86 86

89 90 92 92

93 93 94 94 94 94 94 95 95 95 96 96 96 96 98

99 100 100 100 100 101 101 102 102 102 102 102 103 103 103 103 103

Blinds & Shades Sinks Solid Surface Countertop Upholstery & Fabrics Wall Coverings Pre-Finished Panels Mold

Winter Use and Storage

Tips for Winter Use Water System Food Storage Propane System Heating Condensation Winterization Procedure Water Heater Bypass Winterization Checklist

Travel Preparation Checklist

Maintenance Schedule

Fuel/Oil Record Notes Index

103 103 103 103 104 104 104 104

109

109 109 109 109 109 109 109

111 111

114 115 118 120 122

Introduction

CAUTION

How to Use This Manual

Your motorhome has been thoroughly inspected before shipment to the dealer. Your selling dealer is responsible for performing a complete pre-delivery inspection of all motorhome components as

specied in the pre-delivery checklists supplied by the manufacturer. You should receive a copy of

these completed checklists from your dealer when the motorhome is delivered to you.

Should a problem arise, your rst step is to contact your selling Thor Motor Coach dealer who will be

glad to handle your situation. This Owner’s Manual is not intended for use as a service manual, but rather as a guide to help you become familiar with your motorhome.

This manual is not model specic, which means that it is used for a variety of different models that Thor

Motor Coach manufactures. It is of a general nature, so the illustrations and descriptions may not be exactly as they are in your particular motorhome.

If you are unclear or unfamiliar with any procedure that is described in this manual, see your Thor Motor

Coach dealer for further clarication before proceeding.

Thor Motor Coach uses the following notations to warn the user of possible safety concerns and to provide information that will prevent personal injury to the user and/or damage to the motorhome.

A WARNING INDICATES A POTENTIALLY HAZARDOUS SITUATION THAT, IF NOT AVOIDED, MAY RESULT IN DEATH OR SERIOUS INJURY.

A CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUATION THAT, IF NOT AVOIDED, MAY RESULT IN MINOR OR MODERATE INJURY.

NOTE: A NOTE INDICATES AN INSTRUCTION OR PROCEDURE THAT IS IMPORTANT FOR PROPER SERVICE. A NOTICE CAN ALSO SUPPLY INFORMATION THAT WILL HELP TO MAKE YOUR CAMPING EXPERIENCE MORE PLEASANT.

A DANGER INDICATES AN IMMINENTLY HAZARDOUS SITUATION THAT, IF NOT AVOIDED, WILL RESULT IN DEATH OR SERIOUS INJURY.

REPORTING SAFETY DEFECTS

If you believe that your vehicle has a defect, which could cause an accident, injury , or death, you should

immediately inform the National Highway Trafc Safety Administration (NHTSA) in addition to notifying

Thor Motor Coach.

If NHTSA receives similar complaints, it may open an investigation, and if it nds that a safety defect

exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you and your dealer or Thor Motor Coach.

To contact NHTSA, you may either call the Vehicle Safety Hotline toll free at 888-327-4236, TTY: 800424-9153, or write to: Administrator, NHTSA, 1200 New Jersey Avenue S.E., Washington DC, USA

20590. You can go to the NHTSA website, www.safercar.gov. You can also obtain other information about motor vehicle safety from the Hotline.

Introduction

This manual describes many features of your motorhome and provides a guide to operating procedures so that you can obtain the best performance from those features. Your motorhome has been designed to conform with, or exceed, the

American National Standards Institute A 119.2, NFPA 1192, CANADIAN CAN/CSA-Z240 RV SERIES-99 (Canadian-built or units built for Canada), and applicable motor vehicle safety standards. These standards establish the plumbing, heating,

electrical and other requirements for quality and safety. The seal attached just outside the entry door indicates compliance with these standards. This seal is the outward sign of internal quality.

Like all automotive equipment, your motorhome will require care and regular maintenance in order to retain its maximum

performance characteristics. This manual, along with the specic instructions provided by the leading appliance manufacturers,

are in your Owner’s Information Kit. The Chassis Operator’s Manual outlines important areas of service and provides a maintenance schedule. Please follow them carefully to ensure a safe trouble-free service. Study these instructions carefully . A good working knowledge of your unit and how to care for it will help you enjoy many miles and years of recreational living.

If you have any questions regarding operation, maintenance, or service, please contact your dealer immediately so they can assist you. Customer service is of the utmost importance to Thor Motor Coach. This manual contains a section outlining the warranty and explaining your rights and obligations, as well as the rights and obligations of Thor Motor coach, under the terms of the limited warranty. Please read this section carefully. You will be better informed in case you have a warranty related problem and your dealer will be better able to get you back on the road again in a timely manner.

We sincerely believe that your dealer and the factory representative will be able to solve any problem which may arise. If their combined efforts are not satisfactory, please send a letter describing the circumstances to:

Thor Motor Coach PO Box 1486 Elkhart IN 46515-1486

Thor Motor Coach Customer Service is the support arm for Thor Motor Coach, and was developed to streamline technical assistance, warranty claims, authorization requests, and parts for our dealer network and owners. This will greatly improve our business relationship with you and, in the event of a problem, will get you back on the road again.

Please include the serviceing dealer’s name as well as the model and serial number of your motorhome with any correspondence to TMC. The Thor Motor Coach serial number is located on the bottom of the federal sticker, which is located in the driver’s compartment area.

Some equipment and features described or shown in this manual may be optional on your model. This instructional manual is of a general nature only . Because of the continuous process of product improvement conducted

by Thor Motor Coach, it is possible that recent product changes may not be included in this manual. Specications may

change without notice. This manual is accurate as of the date of publication. The instructions included in this manual are intended as a guide, and in no respect extend the responsibilities of Thor Motor Coach beyond the standard written limited warranty as presented in this manual.

Note: Photographs or illustrations in this manual are representative of function and may or may not be

specic in their depiction of actual equipment, fabrics, interior or exterior decor, or design options

as installed on or in your motorhome.

This product is designed to provide temporary living quarters for recreational, camping, or travel. Use of this product for long term or permanent occupancy may lead to premature deterioration of

interior nishes, fabrics, carpeting, drapes, or components. Damage or deterioration due to long term occupancy may not

be considered normal, and may under the terms of the warranty, constitute misuse, abuse, or neglect, and may therefore reduce or void certain warranty protection.

Warranty

THOR MOTOR COACH’S LIMITED WARRANTY

WHAT THE PERIOD OF COVERA GE I S:

This Limited Wa rranty provi ded by Th or Motor Co ach, Inc.

(“Warrantor”) c overs thos e components , assembli es and syste ms of

your new motorhome not excl uded unde r the secti on “What is Not Cove red”, when sol d by an aut horized dealer. The duration of

the limited wa rranty e nds twel ve (12) mon ths af ter you first tak e deli very of t he motorhome f rom an authoriz ed deale rship o r after

the odometer re aches 1 5,00 0 mi les , w hic hever occ urs fi rst. Ho wever, thi s Li mite d W ar ra nty pr ov ided by Warrantor covers the s teel

or aluminum fr ame struc t ure, o nly , of the s idewall s (excluding slide outs) , roof, an d rea r and f ron t w all s for tw en ty-f ou r (24) months

from the original ret ail purchase date or the first 24,000 miles of us e, whicheve r occurs first . Warrantor’s Limi ted Warranty i s not

transferable and only applies to the first retail owner of the motorhome.

If the motorhome is not of the current or prior model y ear when you take deliv ery of the motorhome OR you r egister your new

motorhome in a business name or use your motorhome for any commercial or business purposes other than for rental purposes, the

duration of the limit ed warra nty ends nin ety (90) day s after yo u first tak e deli very of the mot orhom e or after the o dometer reaches

5,000 miles, whic hever occ urs first. The du ration of the Limited W arranty c overing t he s teel or alu minum fra me struc ture, only , of

the sidewalls (excluding slide outs), roof, and rear and front walls ends twelve (12 ) months after you fi rst take delivery of t he

motorhome or afte r the odom ete r re aches 15,000 miles, whichever occurs first. A conclusi ve presump ti on tha t y our moto rhome h as

been used for comm ercial and/or business pu rposes arises i f you have fil ed a federal or s tate tax form claiming any business tax

benefit related to your ownership of the motorhome.

LIMITATION AND DISCLAIMER OF IMPLIED WARRANTIES:

IMPLIED WARRANTIES, IF ANY, A RISI NG BY W AY OF ST ATE LAW , INCL UDI NG ANY IMP LIE D WARRA NTY OF ME R CHANTABILITY

AND ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE TERM OF

THIS LIMITED WARRANTY AND ARE LIMITED IN SCOPE OF COVERAGE TO THOSE PORTIONS OF THE MOTORHOME

COVERED BY THIS LIMITED WARRANTY. WARRANTOR DISCLAIMS ALL IMPLIED AND EXPRESS WARRANTIES, INCLUDING

THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE,

ON COMPONENTS AND APPLIANCES EXC LUDED FROM COVERAGE AS SET FOR TH BELOW. The re is n o warranty of any

nature made by Warrant or beyon d that contai ned in t his Limited Warranty . N o person has aut hority to enl arge, amend or modify

this Limited Wa rranty. The deale r is not the War rantor’s ag ent but i s an i ndependen t entit y. Warra ntor is not respons ible f or any

undertaking, repres entation or warranty made by any dealer o r other person beyond those expressly s et forth in this Limited

Warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

WHAT THE WARRANTY COVE RS :

Warrantor’s Limi ted Wa rrant y cov e rs onl y def ec ts i n t he wo rkmans hip pe rfo rmed an d/o r material s us ed to ass emble thos e po rti ons

of your moto rhome covered by th e limited wa rranty. See als o the section “Wha t the Warranty Does Not Cov er” set out belo w.

“Defect” means the failure of the workmanship performed and/or materials used to conform to Warrantor’s design and manufacturing

specification and tolerances.

WHAT WE WILL DO TO CORRECT PROBLEMS :

Warrantor’s sole and exclusive obligation is to repair and/or replace, at its option, any covered defect if: (1) you notify Warrantor and

one of its authorized servic ing deal ers of the def ec t, whic h is dis cov ered within the war ran ty c overage perio d, withi n ten (10 ) days of

discovering the defect; an d (2 ) you del iv er your Moto rhome to Warrantor or Warrantor’s authoriz ed se rvi ci ng dealer at y our cost and

expense. It is reasonable to ex pect some servi ce items to occur during th e warranty p eriod. Unless prohi bited by state law, the

performance of wa rranty repairs s hall not exten d the o riginal wa rranty cov erage pe riod. Further, a ny perfo rmance of repai rs after

the warranty cove rage perio d has expi red o r any p erfo rm ance of repai rs to c om pone nt p arts and appl ia nces th at a re excl uded fro m

coverage shall be c onsidered “good will ” repairs, which shall not alter th e express term s of this li mited warranty. If th e repair or

replacement remedy fai ls to suc ces sful ly cure a defect af ter W arrant or r ecei ved a re ason abl e oppo rtuni ty to c u re the d efect (s), y ou r

sole and exclusi ve rem edy s hall be li mit ed to W ar rant or pay ing y ou th e cos t of havi ng an i ndepend ent third party perform repai rs to

the defect(s) or dimin ution i n val ue damag es i f defect (s) are i ncura ble. W arranto r may use new and/or remanufactured pa rts and/ or

components of s ubstantiall y equal qual ity to compl ete any r epair. Def ects and/or damage t o interior an d exterior surfaces, t rim,

upholstery and other appearance items may occur at the factory during manufacture, during delivery of the motorhome to the selling

dealer or on the s ell i ng de aler’s lot. No rmal ly , any s uch d efec t o r d amag e is det ect ed a n d cor rected at t he f act ory o r by the selling

dealer during th e ins pecti on p roces s pe rfo rme d by t he Warrantor and the s ell ing deal e r. If, ho weve r , you di sc over any s uch defect

or damage whe n you take deli very of the motorhome, you must notify you r dealer or W arrantor within t en days of the date of

purchase to have repairs performed to the defect at no cost t o you as p rovided by this Limited Warranty. If two unsuc ces sful re pair

attempts have been made to cor rect any covered defect that you believe substanti ally impairs the v alue, use or safety of your

motorhome, or repairs to any cov ered defec t (s), w hic h you bel iev e subs tantial l y i mpairs the v alue, u se or safety of your mo tor home ,

have taken 20 or more days to complete, you must, to the extent permitted by law, notify Warrantor directly in writing of the failure to

successfull y repair the defect(s ) so that Warran tor can become di rectly inv olved in ex ercising a fi nal repair attem pt for the purp ose

of performing a successful repair to the identified defect(s).

Minor adjustments, s uch as adjustme nts to the i nterior o r exterior do ors, dra wers, latc hes by way of exam ple and not by limi tation

will be performed by your sel li ng dealer du ring the fi rst ni nety (90) days of warranty coverage. T hereaft er, suc h adjus tm ents ar e the

owner’s exclusive responsibility as normal maintenance.

HOW TO GET SERVICE:

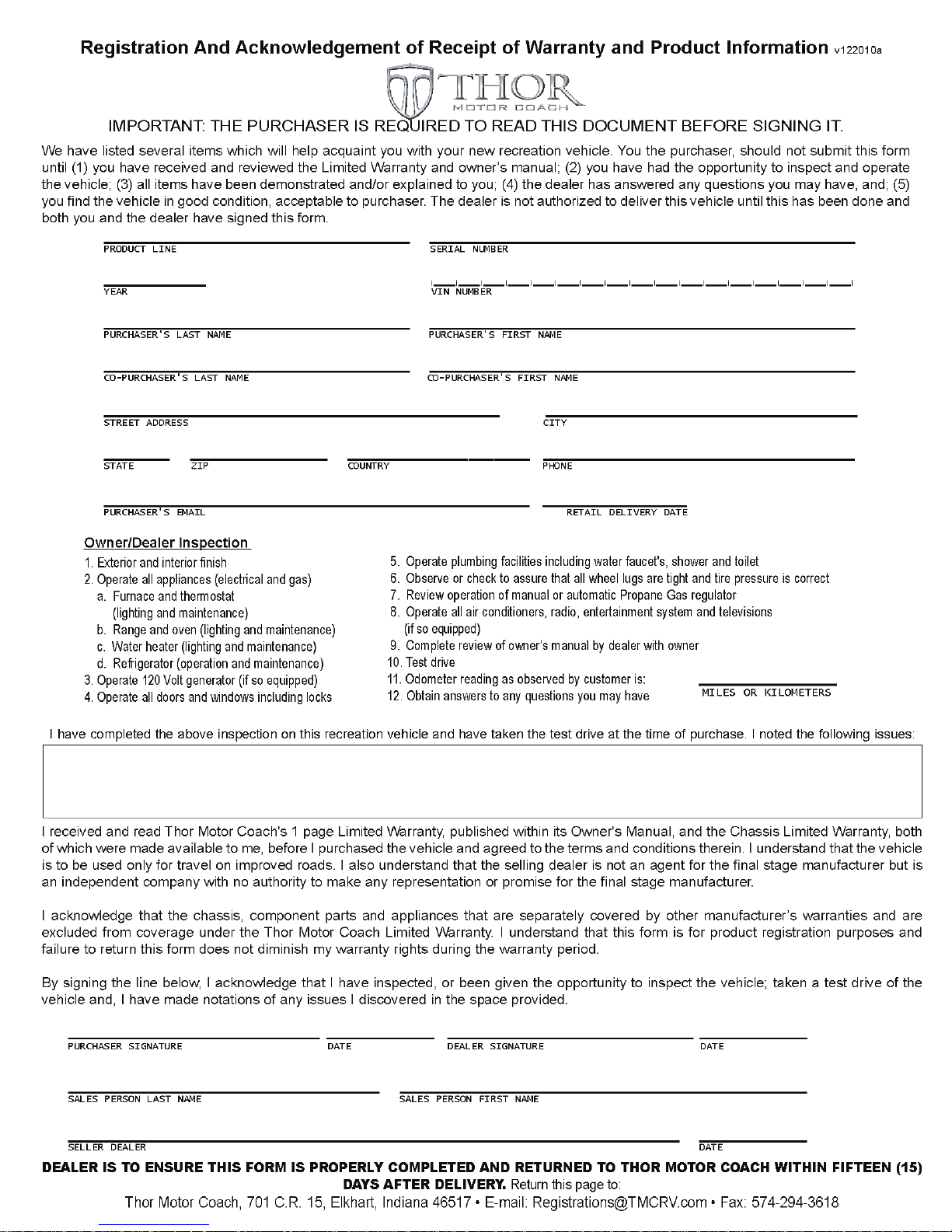

The “Acknowledgeme nt of Recei p t of War ran ty/P roduc t Info rma ti on ” form must be return e d to War ranto r p romp tly upon pu rchase to

assure proper part replacement and repair of your motorhome. Failure to return the “Acknowledgement of Receipt of

Warranty/Product Information” form will not affect you r rights under the Limited Warranty s o long as you c an furnish proof of

purchase. Fo r war ran ty s ervic e si mply co ntac t one of W ar rant or’s a utho rized s e rvi ce c e nters f or an app oint men t, t h en deli ver yo ur

motorhome (at your expense) to the service center. If you need assistance in locating an authorized warranty service facility, contact Warrantor’s Warranty Department (877-855-2867).

The mailing address is:

P.O. Box 1486, Elkhart, Indiana 46515-1486

WHAT THE WARRANTY DOES NOT COVER:

This Limited Warra nty does not cove r: any m otorhome us ed for rental purposes and any motor home s old or regi stered outs ide of

the United States or Canada; items which are added or changed after the motorhome leaves Warrantor’s possession; items that are

working as designed but with which you are unhappy with b ecause of the design; normal we ar and usage, such as fading or

discoloration of f abrics, or the ef fects of moistu re inside the mot orhome; defac ing, scrat ching, dents an d chips on any su rface or

fabric of the motorhome, not c aused by Warrantor; ow ner mainten ance, incl uding by wa y of example replacement of wiper blades,

bulbs, filters, wheel al ignments and reseali ng exterior sealant a reas (see Care and Maintenanc e Section of Ow ner’s Manual); the

automotive chassis and power train, including, by way of example the engine, drive-train, steering, ride and handling, braking, wheel

balance, muffler, tire wear or failure, tubes, batteries and gauges; appliances a nd com ponents covered by their ow n man ufactu rer’s

warranty including, by way of example the microwave, refrigerator, ice maker, stove, oven, generator, roof air conditioners, hydraulic

jacks, VCR, television(s), water heater, furnace, stereo, radio, compact disc player, washer, dryer, inverter and cellular phone; or flaking,

peeling and chips or other defects or damage in or to the exterior or finis h caused by rock s or other road haza rds, the environment

including chemic al off-gass ing, airbo rne p oll utants, s alt, tree sap and h ail caus ing any damage inc ludi ng but not l imi ted to cor rosi on.

Component part and appl ianc e manuf actur ers i ssue l i mited warranti es c overi ng those po r ti ons of the motorh ome not c ove red by the

Limited Warranty issued by Warra ntor. To learn mor e on what specifi c component pa rts and appliances are excluded f rom the

Limited Warranty issued by Wa rrantor ple ase contact your selli ng dealership or Warran tor directly or review the warranty packet

inside the Motorhome.

EVENTS DISCHARGING WARRANTOR FROM OBLIGATION UNDER WARRANTY:

Misuse or neglect, acci dents, unauthorized alteration, fai lure to provide reasonable and nec essary maintenance (see Owner’s

Manual), damage ca us ed by o ff r oad use, collision, fire, thef t, vand al is m, expl osi ons, ov e rloadi ng i n exces s of rated capacities, and

odometer tampering shall discharge Warrantor from any express or implied warranty obligation to repair any resulting defect.

DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES:

THE ORIGINAL PURCHASER OF T HE MOTORHOME AND ANY PERSON TO W HOM THE MOTORHOME IS TRANSFERRED,

AND ANY PERSON WHO IS AN INTENDED OR UNINTENDED USER OR BENEFICIARY OF THE MOTORHOME, SHALL NOT BE

ENTITLED TO RECOVER FRO M WARRANTOR ANY CONSEQUENTIAL O R INCIDENTAL DAMAGES RESULTI NG FROM ANY

DEFECT IN THE MOTORHOME, INCLUDING BY WAY OF EXAMPLE FUEL AND TRANSPORTATION EXPENSES TO DELIVER

THE PROD UCT TO THE SERVI CING DEALER, HOTEL ROOMS, LOST WAGES AND MOISTURE DAMAGE SU CH AS MOLD

AND MILDEW. THE EXCLUSION OF CONSEQUENTIAL AND INCIDENTAL DAMAGES SHALL BE DEEMED INDEPENDENT OF,

AND SHALL SURVIVE, ANY FAILURE OF THE ESSENTIAL PURPOSE OF ANY LIMITED REMEDY. Some states do not allow the

exclusion or limitation of consequential or incidental damages, so the above exclusions may not apply to you.

LEGAL REMEDIES:

THIS LIMIT ED WA RRA NTY DOE S NOT “EXTEN D TO FUT URE PERF ORMA NCE”. ANY ACTION TO ENFORCE THIS L IMITED

WARRANTY OR ANY IMPLIED WARRANTIES SHALL NOT BE COMMENCED MORE THAN

DAYS AFTER THE EXPIRATION OF

THE APPLICABLE WARRANTY COVERAGE PERIOD DESIGNATED ABOVE. IF YOUR M OT O RHO ME I S NO T O F T HE CU RRENT

OR PRIOR MODEL YEAR WHEN YOU TAKE DELIVERY OF THE MOTORHOME OR YOU U SE YOUR MOTO RHOME FOR

COMMERCIAL OR BUSINESS PURPOSES OTHER THA N FOR RENT AL P URPO SES , ANY A CTI ON TO ENFO RCE T HIS LIMI TED

WARRANTY OR ANY IMPLIED WARRANT IES SH AL L NO T BE COMMEN CED MORE TH AN ONE YEAR AFTER THE EXPIRAT ION

OF THE APPLICABLE W ARRANT Y COVERA GE PERI OD DESIGNATED ABOVE. UNLESS PROHIBITED BY STATE LAW, THE

PERFORMANCE OF REPAIRS SHALL NOT SUSPEND THIS LIMITATIONS PERIOD FROM EXPIRING AND ANY LEGAL ACTION

TO ENFO RCE WA RRA NTY RIGHT S AG AINS T WA RRA NTOR MUST BE BRO UGHT W ITHIN THE S TAT E OF IND IANA. S ome

states do not allow the reduction in the statute of limitations, so the above reduction in the statute of limitations may not apply to you.

Warranto r parti ci pates i n the Consu me r Arbitr ati on Pr ogram fo r Recr eati onal Vehi cl es (C AP-RV) operated by DeMars & Ass oci ates.

The CAP-RV program ope rates as a certified mech anism unde r the revi ew of the Cali forni a Arbitrati on Certifi cation Pro gram. You

must utilize the arbitrati on program befor e claiming rights c onferred by 15 USC secti on 2310 (Uniform Com mercial Code) or Civ il

Code section 179 3.22(b) (Tann er Act ). You a re not requi red to use the prog ram if y ou choos e to seek redress by pu rsuing rights

and remedies not c reated by th ose l aws. To fi n d o ut m ore abo ut t he p rog ra m o r to request an application/b rochu re pleas e cal l th e

Arbitration Admi nis trato r Offi ce t ol l free (80 0) 279 -5343. Members of the Armed F o rces who p urch as ed th e vehi cl e i n Cal if ornia, or

who were station ed in or a resi dent of C alifornia at the ti me of pu rchase (regardles s of state of purch ase) or wh o are stat ioned i n

California at the time of application to this program, may utilize the CAP-RV program.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE

TO STATE. Julian Date: 04/29/13

Warranty

WHAT THE PERIOD OF COVERAGE IS:

This Limited Warranty provided by Thor Motor Coach, Inc.® (“Warrantor”) covers those components, assemblies and systems of your new motorhome not excluded under the section “What is Not Covered”, when sold by an authorized dealer. The duration of the limited warranty ends twelve (12) months after you rst take delivery of the motorhome from an authorized dealership or after the odometer reaches 15,000 miles, whichever occurs rst. However, this Limited Warranty provided by Warrantor covers the steel or aluminum frame structure, only, of the sidewalls (excluding slide outs), roof, and rear and front walls for twenty-four (24) months from the original retail purchase date or the rst 24,000 miles of use, whichever occurs rst. Warrantor s Limited Warranty is not transferable and only applies to the rst retail owner of the motorhome.

If the motorhome is not of the current or prior model year when you take delivery of the motorhome OR you register your new motorhome in a business name or use your motorhome for any commercial or business purposes other than for rental purposes, the duration of the limited warranty ends ninety (90) days after you rst take delivery of the motorhome or after the odometer reaches 5,000 miles, whichever occurs rst. The duration of the Limited Warranty covering the steel or aluminum frame structure, only, of the sidewalls (excluding slide outs), roof, and rear and front walls ends twelve (12) months after you rst take delivery of the motorhome or after the odometer reaches 15,000 miles, whichever occurs rst. A conclusive presumption that your motorhome has been used for commercial and/or business purposes arises if you have led a federal or state tax form claiming any business tax benet related to your ownership

of the motorhome.

LIMITATION AND DISCLAIMER OF IMPLIED WARRANTIES:

IMPLIED WARRANTIES, IF ANY, ARISING BY WAY OF STATE LAW, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY AND ANY IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE TERM OF THIS LIMITED WARRANTY AND ARE LIMITED IN SCOPE OF COVERAGE TO THOSE PORTIONS OF THE MOTORHOME COVERED BY THIS LIMITED WARRANTY. WARRANTOR DISCLAIMS ALL IMPLIED AND EXPRESS WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ON COMPONENTS AND APPLIANCES EXCLUDED FROM COVERAGE AS SET FORTH BELOW. There is no warranty of any nature made by Warrantor beyond that contained in this Limited Warranty. No person has authority to enlarge, amend or modify this Limited Warranty. The dealer is not the Warrantor’s agent but is an independent entity. Warrantor is not responsible for any undertaking, representation or warranty made by any dealer or other person beyond those expressly set forth in this Limited Warranty. Some states do not allow limitations on how long an implied warranty lasts,

so the above limitation may not apply to you.

WHAT THE WARRANTY COVERS:

Warrantor’s Limited Warranty covers only defects in the workmanship performed and/or materials used to assemble those portions of your motorhome covered by the limited warranty. See also the section “What the Warranty Does Not Cover” set out below. “Defect” means the failure of the workmanship performed and/or materials used to conform to

Warrantor’s design and manufacturing specication and tolerances.

WHAT WE WILL DO TO CORRECT PROBLEMS:

Warrantor’s sole and exclusive obligation is to repair and/or replace, at its option, any covered defect if: (1) you notify Warrantor and one of its authorized servicing dealers of the defect, which is discovered within the warranty coverage period, within ten (10) days of discovering the defect; and (2) you deliver your Motorhome to Warrantor or Warrantor’s authorized servicing dealer at your cost and expense. It is reasonable to expect some service items to occur during the warranty period. Unless prohibited by state law, the performance of warranty repairs shall not extend the original warranty coverage period. Further, any performance of repairs after the warranty coverage period has expired or any performance of repairs to component parts and appliances that are excluded from coverage shall be considered “good will” repairs, which shall not alter the express terms of this limited warranty. If the repair or replacement remedy fails to successfully cure a defect after

Warranty

Warrantor received a reasonable opportunity to cure the defect(s), your sole and exclusive remedy shall be limited to Warrantor paying you the cost of having an independent third party perform repairs to the defect(s) or diminution in value damages if defect(s) are incurable. Warrantor may use new and/or remanufactured parts and/or components of substantially equal quality to complete any repair. Defects and/or damage to interior and exterior surfaces, trim, upholstery and other appearance items may occur at the factory during manufacture, during delivery of the motorhome to the selling dealer or on the selling dealer’s lot. Normally, any such defect or damage is detected and corrected at the factory or by the selling dealer during the inspection process performed by the Warrantor and the selling dealer. If, however, you discover any such defect or damage when you take delivery of the motorhome, you must notify your dealer or Warrantor within ten days of the date of purchase to have repairs performed to the defect at no cost to you as provided by this Limited Warranty. If two unsuccessful repair attempts have been made to correct any covered defect that you believe substantially impairs the value, use or safety of your motorhome, or repairs to any covered defect(s), which you believe substantially impairs the value, use or safety of your motorhome, have taken 20 or more days to complete, you must, to the extent permitted by law, notify Warrantor directly in writing of the failure to successfully repair the defect(s) so that Warrantor can become directly involved in exercising a nal repair attempt for the purpose of performing a successful repair to the identied defect(s).

Minor adjustments, such as adjustments to the interior or exterior doors, drawers, latches by way of example and not by limitation will be performed by your selling dealer during the rst ninety (90) days of warranty coverage. Thereafter,

such adjustments are the owner’s exclusive responsibility as normal maintenance.

HOW TO GET SERVICE:

The “Acknowledgement of Receipt of Warranty/Product Information” form must be returned to Warrantor promptly upon purchase to assure proper part replacement and repair of your motorhome. Failure to return the “Acknowledgement of Receipt of Warranty/Product Information” form will not aect your rights under the Limited Warranty so long as you can furnish proof of purchase. For warranty service simply contact one of Warrantor’s authorized service centers for an appointment, then deliver your motorhome (at your expense) to the service center.

If you need assistance in locating an authorized warranty service facility, contact Warrantor’s Warranty Department

(877-855-2867). The mailing address is:

P.O. Box 1486

Elkhart, Indiana 46515-1486

WHAT THE WARRANTY DOES NOT COVER:

This Limited Warranty does not cover: any motorhome used for rental purposes and any motorhome sold or registered outside of the United States or Canada; items which are added or changed after the motorhome leaves Warrantor’s possession; items that are working as designed but with which you are unhappy with because of the design; normal wear and usage, such as fading or discoloration of fabrics, or the eects of moisture inside the motorhome; defacing,

scratching, dents and chips on any surface or fabric of the motorhome, not caused including by way of example replacement of wiper blades, bulbs, lters, wheel alignments and resealing exterior sealant areas (see Care and Maintenance Section of Owner’s Manual); the automotive chassis and power train, including, by way of example the engine, drive-train, steering, ride and handling, braking, wheel balance, muer, tire wear or failure, tubes, batteries and gauges; appliances and components covered by their own manufacturer’s warranty including, by way of example the microwave, refrigerator, ice maker, stove, oven, generator, roof air conditioners, hydraulic jacks, VCR, television(s), water heater, furnace, stereo, radio, compact disc player, washer, dryer, inverter and cellular phone; or aking, peeling and chips or other defects or damage in or to the exterior or nish caused by rocks or other road hazards, the environment including chemical o-gassing, airborne pollutants, salt, tree sap and hail causing any damage including but not limited to corrosion. Component part and appliance manufacturers issue limited warranties covering those portions of the motorhome not covered by the Limited Warranty issued by Warrantor. To learn more on what specic component parts and appliances are excluded from the Limited Warranty issued by Warrantor please contact

by Warrantor; owner maintenance,

Warranty

your selling dealership or Warrantor directly or review the warranty packet inside the Motorhome.

EVENTS DISCHARGING WARRANTOR FROM OBLIGATION UNDER WARRANTY:

Misuse or neglect, accidents, unauthorized alteration, failure to provide reasonable and necessary maintenance (see Owner’s Manual), damage caused by o road use, collision, re, theft, vandalism, explosions, overloading in excess of rated capacities, and odometer tampering shall discharge Warrantor from any express or implied warranty obligation

to repair any resulting defect.

DISCLAIMER OF CONSEQUENTIAL AND INCIDENTAL DAMAGES:

THE ORIGINAL PURCHASER OF THE MOTORHOME AND ANY PERSON TO WHOM THE MOTORHOME IS TRANSFERRED, AND ANY PERSON WHO IS AN INTENDED OR UNINTENDED USER OR BENEFICIARY OF THE MOTORHOME, SHALL NOT BE ENTITLED TO RECOVER FROM WARRANTOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES RESULTING FROM ANY DEFECT IN THE MOTORHOME, INCLUDING BY WAY OF EXAMPLE FUEL AND TRANSPORTATION EXPENSES TO DELIVER THE PRODUCT TO THE SERVICING DEALER, HOTEL ROOMS, LOST WAGES AND MOISTURE DAMAGE SUCH AS MOLD AND MILDEW. THE EXCLUSION OF CONSEQUENTIAL AND INCIDENTAL DAMAGES SHALL BE DEEMED INDEPENDENT OF, AND SHALL SURVIVE, ANY FAILURE OF THE ESSENTIAL PURPOSE OF ANY LIMITED REMEDY. Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above exclusions may not apply to you.

LEGAL REMEDIES:

THIS LIMITED WARRANTY DOES NOT “EXTEND TO FUTURE PERFORMANCE”. ANY ACTION TO ENFORCE THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTIES SHALL NOT BE COMMENCED MORE THAN 90 DAYS AFTER THE EXPIRATION OF THE WARRANTY COVERAGE PERIOD DESIGNATED ABOVE. IF YOUR MOTORHOME IS NOT OF THE CURRENT OR PRIOR MODEL YEAR WHEN YOU TAKE DELIVERY OF THE MOTORHOME OR YOU USE YOUR MOTORHOME FOR COMMERCIAL OR BUSINESS PURPOSES OTHER THAN FOR RENTAL PURPOSES, ANY ACTION TO ENFORCE THIS LIMITED WARRANTY OR ANY IMPLIED WARRANTIES SHALL NOT BE COMMENCED MORE THAN ONE YEAR AFTER THE EXPIRATION OF THE WARRANTY COVERAGE PERIOD DESIGNATED ABOVE. UNLESS PROHIBITED BY STATE LAW, THE PERFORMANCE OF REPAIRS SHALL NOT SUSPEND THIS LIMITATIONS PERIOD FROM EXPIRING AND ANY LEGAL ACTION TO ENFORCE WARRANTY RIGHTS AGAINST WARRANTOR MUST BE BROUGHT WITHIN THE STATE OF INDIANA. Some states do not allow the reduction in the statute of limitations, so the above reduction in the statute of limitations may not apply to you.

Warrantor participates in the Consumer Arbitration Program for Recreational Vehicles (CAP-RV) operated by DeMars & Associates. The CAP-RV program operates as a certied mechanism under the review of the California Arbitration Certication Program. You must utilize the arbitration program before claiming rights conferred by 15 USC section 2310 (Uniform Commercial Code) or Civil Code section 1793.22(b) (Tanner Act). You are not required to use the program if you choose to seek redress by pursuing rights and remedies not created by those laws. To nd out more about the program or to request an application/brochure please call the Arbitration Administrator Oce toll free (800) 279-5343. Members of the Armed Forces who purchased the vehicle in California, or who were stationed in or a resident of California at the time of purchase (regardless of state of purchase) or who are stationed in California at the time of application to this

program, may utilize the CAP-RV program.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO

STATE.

Julian Date: 04/29/13

Warranty

CAUTION

Thor Motor Coach reserves the right to make changes in Vehicles built and/or sold by it at any time without incurring any obligations to make the same or similar changes on Vehicles previously built and/or sold by Thor Motor Coach.

As the proud owner of a Thor Motor Coach, you want to trust that your unit will continue to perform at its peak. To ensure this Thor Motor Coach has provided you this checklist of the responsibilities of the Thor Motor Coach owner . Please refer to the Maintenance Schedule to determine when your inspections should take place.

Check both house batteries and chassis battery and tighten connections if necessary . Clean the terminals if necessary . Check to make sure that the batteries have the proper

water levels in them, and ll if necessary. Check the charge and recharge if necessary.

Keep connections clean and covered with a light coat of grease.

There is a certain danger involved when working with batteries. If you are unfamiliar with these dangers, contact a Thor Motor Coach dealer.

Just like in your home, it is the owner’s responsibility to periodically check the batteries in the smoke detector, propane detector and carbon monoxide detector when applicable. We recommend that you change the batteries every six months to ensure proper working order.

The owner is responsible for checking to ensure that the vehicle has as little condensation in it as possible. The condensation in a motorhome is much greater than in most houses because the insulated walls of the vehicle are much thinner than house walls, and the small size and tight construction of the vehicle allow a quick buildup of high moisture levels in the inside air.

PRODUCTION CHANGES

OWNER RESPONSIBILITY

BATTERIES

BATTERY REPLACEMENT

CONDENSATION

This can be reduced by always keeping the bathroom door closed and the window or

vents open when bathing, and for a period of time when you have nished bathing or

cooking, to allow for dissipation of all the moisture. Use your vent hood and fan when cooking. Don’t hang wet clothes in your unit to dry . When left for prolonged periods of time, condensation can cause considerable damage to your vehicle.

Most exterior parts of your motorhome are made of berglass, which is a very durable

material, but not indestructible. Exposure to the elements can cause premature deterioration without routine maintenance, especially in hotter climates. The effects may be; fading, yellowing, or chalking, however these are surface cosmetic changes, which do not affect the strength of your unit. Simple maintenance through cleaning by washing and waxing will ensure lasting beauty.

The same fading may occur to carpeting and upholstering. Be sure to keep your shades down in extremely sunny locations and maintain proper cleaning techniques for both carpet and upholstery.

The front suspension and steering system of this vehicle was factory aligned using highly accurate equipment prior to delivery to the dealership. We recommend that the alignment is checked after you have fully loaded the motorhome according to your personal needs. If necessary, adjust alignment for the loaded motorhome. Thereafter, the alignment should be inspected yearly to help prevent uneven tire wear.

Sanitize the fresh water system at least once per year or whenever the motorhome is unused for prolonged periods of time. This will help keep your water system fresh and discourage the growth of bacteria that can contaminate the water supply. Make sure that the tanks are properly treated with the right chemicals for disinfection.

EXTERIOR/INTERIOR

ALIGNMENT

POTABLE TANK

Warranty

PROPER LOAD

BALANCE

SEALANTS

SERVICE CALLS

SLIDEOUT

LUBRICATION

STEP LUBRICATION

Y our motorhome is built to withstand a certain maximum load. Check the amount listed

on the Federal Certication Label in the driver’s area of your motorhome to determine

safe load limits. NEVER OVERLOAD THE MOTORHOME. Reference pages 21, 23 and 24 for proper loading and weight distribution.

Weatherproong sealants are used around the doors, windows, vents, and joints

during construction of your motorhome. These sealants are subject to deterioration from exposure, and must be checked periodically to assure the weatherproof integrity of your unit. If evidence of cracking or voids in the sealants is apparent, have your dealer reseal these areas. Proper sealant coverage should be checked and resealed at least once every six months. Please see Chapter 10 - “Care and Maintenance” for instructions on properly sealing the roof area. Failure or neglect of proper sealant maintenance could result in leakage, and may reduce or void your warranty protection.

It is important that the owner realize that Thor Motor Coach’s Limited Warranty covers warrantable repairs that are performed by an authorized Thor Motor Coach dealer at their service center or facility only. If you are unable to bring your unit in for repairs, Thor Motor Coach is not responsible for the cost of the actual service call charged to come out to your unit.

If your slide-out system becomes squeaky or makes any noises while operating, it is permissible to apply a coat of lightweight oil to the drive shaft and roller areas located

below the main oor. Remove any excess oil so dirt and debris cannot build up.

To maintain the integrity of the retractable step in your motorhome, you must periodically inspect it for rust or damage, also see that it is lubricated to function safely and to ensure proper working order.

TIRE PRESSURE

TRAVEL BARS

WINDSHIELDS

WINTERIZATION

The owner is responsible for maintaining proper tire pressure in the vehicle’s tires.

Check the tire specications on the Federal Certication Label located in the driver’s

area for the proper pressure. You will ensure optimum driving standards by keeping your vehicle maintained.

Never forget to remove your travel bars from your slide-out prior to opening. Failure to do so could result in severe damage to yourself and/or your motorhome, which will not be covered under the Limited Warranty.

Your motorhome’s windshield is not covered under the Limited Warranty. Items such as cracks, stone chips and holes are regarded as normal wear and tear, and will not be considered as a manufacturing defect.

Please make sure that your vehicle is properly winterized before long periods of storage.

To nd a complete listing of the winterization procedures, refer to this manual’s section

called “Winterization Procedures”. Failure to properly winterize your vehicle may result in damage to your motorhome which would not be covered under the Limited Warranty .

Warranty

SUPPLIERS PROVIDING SEPARATE WARRANTIES

The following list of components has been compiled to help you know which products on your motor home may have their own warranties. If you have any of these components on your motor home, be sure to check the literature supplied by the manufacturer to see if they require that you register your purchase with them to validate their warranty. We recommend that you send the various warranty registration cards immediately before any time constraints on registration expire. Manufacturer’s literature is contained in a separate packet furnished with the owner’s manual on newly delivered units. Only those products and options which are on your motor home will be included in this packet. You should go over this literature with your dealer during the pre-delivery inspection. Any

shortages of literature should be reported to the dealer at that time

Appliances

Air Conditioner (Roof)

Awnings Back-up Monitor Central Vacuum DVD Player Fireplace Furnace Home Theater System Ice Maker Microwave Radios Range and Cooktop

Refrigerator Roof Vents

Water & Drainage

Toilet Washer/Dryer Combo Water Faucets Water Filter Water Heater Water Pump

Chassis

Air Conditioner Batteries Cruise Control

Leveling Jacks

Propane

Propane Gas Tank Regulator

Electrical

Battery Converter Electrical Entry Step Generator GFCI Recepts Inverter Propane Gas Leak Detector

Allison Transmission

800-524-2303

www.allisontransmission.com

ASA Electronics

800-688-3135

www.asaelectronics.com

Atwood Mobile Products, Inc.

800-825-4328

www.atwoodmobile.com

Caterpillar

877-777-3126

www.cat.com

Cobra Electronics Corp.

773-889-3087

www.cobra.com

Cummins

800-343-7357

www.mantank.com

Dometic

800-544-4881

www.dometicusa.com

Evans Tempcon

800-878-7147

www.evanstempcon.com

Fantastic Vent

800-521-0298

www.fantasticvent.com

First Alert

800-323-9005

www.rstalert.com

Flair Interiors

574-534-2163

www.airinteriors.com

Flexsteel Industries

574-831-4050

www.exsteel.com

Ford

800-392-3673

www.Ford.com

Freightliner

800-385-4357

www.freightlinerchassis.com

800-353-3867

www.gmeet.com

Good Year

800-321-2136

www.goodyear.com

Hehr International, Inc.

574-935-5122

www.hehr-international.com

HWH Corporation

800-494-3213

www.hwhcorp.com

Intellitec

800-251-2408

www.intellitec.com

KIB Enterprises

800-250-7051

www.kibenterprises.com

KVH Industries, Inc.

401-847-3327 www.kvh.com

Kwikee Products Co. Inc.

800-736-9961

www.kwikee.com

Lippert Components

574-534-0001

www.lci1.com.com

Magnum Energy

425-353-8833

www.magnumenergy.com

Manchester Tank

800-877-8265

www.mantank.com

Michelin

800-847-3435

www.michelin.com

Mor/ryde

574-293-1581

www.morryde.com

MTI Industries, Inc.

800-383-0269

www.mtiindustries.com

Norcold

800-543-1219

www.norcold.com

Onan

800-888-6626

www.onan.com

Scope Technologies

574-295-0229

www.scopetechnologies.com

Select Comfort

888-580-9237

www.selectcomfort.com

Sharp

800-237-4277

www.sharpusa.com

SHURo, LLC

800-854-3218

www.shuro.com

Splendide

800-356-0766

www.splendide.com

TDI Products

866-713-1489

www.tdiproducts.com

Thetford

800-521-3032

www.thetford.com

Thor Motor Coach Inc.

(877)855-2867

www.thormotorcoach.com

TriMark Corp.

800-431-8616

www.trimarkcorp.com

Velvac

800-783-8871

www.velvac.com

Viracon

800-533-0482

www.viracon-autoglass.com

Visteon Corp.

800-847-8366

www.visteon.com

Winegard Co.

800-288-8094

www.winegard.com

Workhorse

800-877-294-6773

www.workhorse.com

Planning and Preparation

CAUTION

A thorough working knowledge of your motorhome is important if you are going to get the most out of the convenience and safety items built into your unit. Be as familiar with it as you are with your personal car or truck. Study all the booklets included in your Owner’s Information Kit. These booklets cover details of operation for the major appliances and equipment built into your motorhome for your comfort, convenience and safety . Your selling dealer should provide you with a complete walk through of your vehicle at the time of purchase. Any questions and concerns should be addressed at that time.

The vehicle licensing laws vary from state-to-state. Check with your state license bureau

or nearest branch ofce for the requirements of your state. Be sure to renew your

license if it has expired or will expire during your trip. Your motorhome is considerably larger and heavier than your car, therefore certain precautions should be exercised. A CDL license may not be required to operate your motorhome, but Thor Motor Coach recommends you attend a CDL class to better understand the motorhomes driving and handling characteristics. Thor Motor Coach wants your driving experience to be pleasant and enjoyable.

Talk to your insurance agent about the appropriate coverage for your motorhome. Always carry your policy card.

Follow a consistent schedule of inspection and maintenance for your motorhome. Your continuing safety and comfort depend on it. This manual includes recommended maintenance intervals and instructions. Adherence to these schedules will minimize the possibility of failure of any important system or part of your motorhome. The time spent inspecting and maintaining your motorhome will provide you with many years of recreational pleasure. Improper inspections or maintenance neglect may invalidate your Limited Warranty.

READ THE BOOK

LICENSES

INSURANCE

INSPECT AND MAINTAIN

Proper loading is one of the most important considerations when traveling in a motorhome. Your motorhome is built to withstand a certain maximum load. Check the

Federal Certication Label located in the driver’s area to determine the safe load limits.

For safety’s sake, NEVER OVERLOAD THE MOTORHOME. This chapter contains information about proper loading and weighing of your motorhome.

Know how to control your motorhome on the highway. Be familiar with passing and stopping requirements, and problems that can develop. Know how to brake properly, how to back up and how to turn. Practice in a secluded place until you become familiar with the handling characteristics and techniques of your motorhome. Don’t overlook the laws of your state that govern driving a motorhome. Your state Motor Vehicle

Department ofce can provide you with the applicable vehicle codes that spell out your

rights and responsibilities as a motorhome owner. Whenever you depart, be it from your home, rest area, or campsite, you should perform

these pre-travel checks: Tires should be inspected before each trip for uneven wear, road damage, foreign

objects, peeling or bulging, and correct tire pressure. Heat generated by surface friction will increase the tire’s air pressure, therefore do not bleed air out of a hot tire.

Check tire pressure after the vehicle has been parked for at least one hour. Inate tires to recommended pressure as indicated on the Federal Certication Label located

above the Drivers area.

Proper tire ination is extremely important.

LOADING AND WEIGHT DISTRIBUTION

CONTROL OF THE MOTORHOME

PRE-TRAVEL CHECK

Tires

When purchasing a new tire, be certain it is the same size and has the same ply rating and load range as the original tire. DO NOT mix radial ply with bias or bias-belted tires.

Planning and Preparation

CAUTION

Be sure to read the tire manufactuer’s use and maintenance guide.

Wheel Lugs

Windshield

Lights

Rearview Mirror

Power Cord

Water Fill

Sewage

Entry Step

Must be tightened to the specications in the Chassis Manufacturer’s Owner’s Manual.

Should be clean, wiper blades inspected, and windshield washer reservoir lled.

Should be tested, including brake lights, warning ashers, clearance lights, tail lights,

turn signals and headlights. Clean all lens covers. Should be adjusted so the driver can see to the rear on both the right and left side of

the unit.

(120 Volt shoreline) must be unplugged from the external source and properly stored

for transit, also making sure the cord hatch is secured. Hoses must be disconnected, properly drained and stored, and the caps and hatches

secured. Fill the fresh water tank as required prior to storing hoses. Should be emptied from the holding tanks before traveling. Termination valves must

be closed and locked. The sewer hose must be removed from the termination valve outlet and stored. Termination cap must be securely fastened to the termination outlet.

Must be returned to its travel position. Pay special attention to this every time you move your unit. Severe damage may result if not retracted during transit.

Levels at the monitor panel should be checked, and gas line connections should be checked for leaks.

Propane Tank

Doors And Drawers

Compartment Doors

Refrigerator Door

Windows And Vents

OPENING

CHECKLIST

Note: Some states prohibit vehicles equipped with propane tanks from using

tunnels. A few other states prohibit traveling with the service valve open and the pilot lights lit. Check the regulation of the states through

which you intend to travel.

Should be closed and secured. Loose items should be secured or stored away.

Be sure all loose items are secured or properly stored while the vehicle is in motion. Possible overlooked items may include canned goods, small appliances (on countertop), cooking pans (on range), or free standing furniture. These items could become dangerous projectiles during a sudden stop.

Storage and equipment should be closed and locked, also making sure that loose items are secured or stored for transit.

Door should be secured with the travel latch, and the items inside made ready for transit.

Should be closed and secured or adjusted as desired.

If the motorhome was properly and carefully prepared for storage, taking it out of

storage will not be difcult. The following checklist assumes that you stored your RV

with care. If you didn’t, and extensive freeze damage or other serious deterioration has occurred, consult your dealer or an authorized service center for advice.

• Thoroughly inspect the outside of your RV. Look for animal’s nests in wheel wells, in engine, air cleaner, or in other out of the way places. Clean all appliance exhaust

Planning and Preparation

vents, ceiling vents and air conditioning covers.

• Changing the wiper blades on your motorhome is similar to your car. Remove the screw, take off the old blade, and replace with a similar style and length blade. Lubricating pivot points with thin lubricating oil is also recommended.

• Check that all furnace, water heater and refrigerator openings are free of debris, insect nests, webs, etc.

• Open all doors and compartments. Check for animal or insect intrusion, water damage, or other deterioration.

• Check charge level in batteries. Rell with distilled water and recharge if necessary.

Reinstall batteries if necessary. Be sure cable ends and terminals are clean and free of corrosion. Turn the Battery Disconnect Switch off if applicable.

• Check tire pressure. Inate to the specied cold pressure.

• Remove coverings from windows if necessary.

• Open vents and windows for ventilation.

• Drain, ush and sanitize the fresh water system. Inspect drain lines for leaks.

Replace if necessary. Do not try to repair, as this is usually ineffective.

• Install a new water lter (if your unit is equipped with this).

• Operate all faucets and xtures in the fresh water system. Check for leaks at all joints and ttings. Repair if necessary.

• Check 12 Volt circuit breakers and inspect all fuses.

• Operate all 12 Volt lights and accessories.

• Install new batteries in battery operated devices.

• Test propane, smoke and carbon monoxide detectors. Replace the batteries if

necessary.

• Check the monitor panel operation.

• Open and operate all vents and vent fans. Remove any outside coverings if

applicable.

• Inspect 120 Volt electrical system which includes power cord, converter, all outlets and exposed wiring. If defects are found, consult your servicing dealer or an authorized service center.

• Operate 120 Volt appliances and air conditioner (s). Be sure to uncover air conditioner shroud(s).

• Inspect the propane system and check for leaks. If propane tank shows signs

of rust or corrosion, have it inspected by a qualied propane technician. Rell if

necessary.

• Operate each propane appliance. Observe all burner/pilot ames for proper color

and size.

• If necessary, have propane regulator adjusted for proper pressure by a qualied

Planning and Preparation

technician.

• Check sealants around all roof and body seams and windows. Reseal if necessary.

• Lubricate all exterior locks, hinges, and latches.

• Wash and wax exterior. Inspect body for scratches or other damage. Touch up or

repair as necessary. Flush underside of the motorhome thoroughly.

• Check all the chassis uid levels including engine oil, coolant, power steering uid, brake uid, transmission, rear axle oil and washer uid. Top off if necessary.

• Check all exterior lights; clearance, brake, turn, and reverse should be fully

functional.

WEIGHTS

Federal Weight Label

Your motorhome should be ready for a new traveling season. Your dealer can check your preparation and correct any defects or make any necessary adjustments.

These items are the absolute minimum requirements necessary for pre-travel.

Your motor home is designed to carry the loads dened by the Gross Axle Weight Rating (GAWR - the value specied by the chassis manufacturer as the load carrying capacity of a single axle system, as measured at the tire/ground interface.) The Gross Vehicle Weight Rating (GVWR - the maximum permissible loaded weight of the motor home) is shown on the vehicle information sticker posted near the driver’s side front

window or inside the driver’s side door jam. These ratings are for a fully loaded vehicle including passengers and normal belongings

EXCEEDING THE GAWR OR GVWR OF YOUR MOTOR HOME CAN CAUSE UNDESIRABLE HANDLING CHARACTERISTICS and may even create a safety hazard. Modification of your vehicle to carry additional equipment or vehicles is not recommended and may void your warranty.

Note:

Be sure the weight of passengers, equipment and supplies does not cause your motor home to exceed axle loads and overall vehicle loads for which it was designed. If in doubt, weigh the vehicle at a public scale. Keep in mind the number of safety belts in a unit are there for the convenience and use of the owner. Carrying the number of people equal to the number of seat belts may exceed the weight ratings. A motor home has the potential to be overloaded and removal or redistribution of weight may be necessary from time to time to stay within weight ratings. Your motor home includes a "Weight Information Label." This label provides specific weight information for your motor home as a guideline so that you can determine the load carrying

capabilities.

Capacity

The Thor Motor Coach Motor Home WEIGHT SPECIFICATIONS yellow label

concisely states the occupant and cargo carrying capacity of your motor home ( per the requirements of 49 CFR part 571.120 as issued by the National Highway Trafc Safety Administration - NHTSA).

The yellow MOTOR HOME OCCUPANT AND CARGO CARR YING CAPACITY weight

label is afxed to the interior side of the forward-most door of your motor home on the

Planning and Preparation

MOTOR HOME OCCUPANT AND CARGO CARRYING CAPACIT Y

VIN: # # # # # # # # # # # # # # # # #

THE COMBINED WEIGHT OF OCCUPANTS AND CARGO SHOULD NEVER EXCEED:

XXX kg or XXX lbs

SAFETY BELT EQUIPPED SEATING CAPACITY: XXX

CAUTION:

A FULL LOAD OF WATER EQUALS XXX kg OR XXX lbs OF CARGO @ 1kg/L (8.3 lb/gal)

AND THE TONGUE WEIGHT OF A TOWED TRAILER COUNTS AS CARGO

passenger side This label indicated how much weight you can safely carry within the

vehicle and is afxed to the entrance door, directly below the window screen.

The total weight of passengers, cargo, trailer tongue weight, and water should never exceed the value shown on the label.

A typical example of this label is shown below for reference purposes only. The numbers shown on this page may not be applicable to your vehicle. Please reference

the Yellow label afxed directly to the door of your motor home for your actual Occupant

and Cargo Carrying Capacity:

Note: DO NOT OVERLOAD THE MOTOR HOME

When loading your cargo, be sure it is distributed evenly to prevent overloading front to back and side to side. Heavy items should be placed low and as close to the axle positions as reasonable. Too many items on one side may overload a tire.

Periodically weigh the motor home at a public scale to determine axle loads. The following procedure is suggested, although any method recommended by the scale operator which correctly determines weight value is acceptable. During all measurements, it is important to keep the vehicle as level as possible.

To weigh your motor home correctly, measure the fully loaded vehicle axle by axle and wheel position by wheel position. You can find several certified public or commercial scales at moving and storage lots, farm suppliers with grain elevators, gravel pits, recycling companies and large commercial truck stops. You can also look in the telephone book under “weighers” or “weighing”. Allow adequate time, since the entire weighing process can take up to 30 minutes. There may be a small fee for each weight taken, but the expense is a worth while investment toward the safe and economical operation of your motor home.

Your motor home must be weighed fully loaded. That is with passengers, food,

clothing, fuel, water, propane, supplies etc. Any towed vehicle (car/pickup, boat, or trailer ) or item loaded on brackets on the back of the motor home should also be

included in the weighing.

1. The following steps are suggested when using a long platform scale: a. Pull onto the scale so that only the front axle is on the platform with the end of the scale midway between the front and rear axles and record the scaled weight.

b. Pull forward until the full unit is on the scale and record the weight. c. Pull forward so that only the rear axle is on the scale and record the weight.

WEIGHING YOUR LOADED MOTORHOME

Where To Weigh Your Motorhome

How To Weigh Your Motorhome

Reading a

Reading b

Reading c

Planning and Preparation

CAUTION

Note:

To obtain the individual wheel position weights, repeat this process with only one side of the motor home on the scale. To determine individual wheel position weights, it is

necessary to repeat the previous three steps (1a, 1b, and 1c), but this time, use only

one side of the scale. To calculate the opposite side of the vehicle wheel position weight, subtract this side’s weights from the weights recorded in steps 1a, 1b, and 1c.

Your motor home must remain as level as possible on the scale, even though an axle or side is not physically on the scale. To obtain the side-to-side weights, there must be enough space on either side of the scale to allow the motor home to be partially

off the scale. Individual wheel position weights must not exceed the maximum tire load capacity.

on the sidewall of the tire.

Even though the weight of the total axle may be within the axle's rating, it may be overloaded on one side. This causes one wheel position to be overloaded. Therefore, side-to-side weighing should be done.

Maximum tire load capacity can only be achieved by utilizing the maximum allowable pressure (psi) as listed

Note: The above information is provided by the Tire Industry

Safety Council Rubber Manufacturer’s Association. Used with

permission. ( http://www.rma.org/tire_safety/ )

Weight Distribution

For improved accuracy, Thor Motor Coach recommends using a segmented 4-pad scale, when possible, to determine individual wheel weights. The corner weights

should not exceed half of the respective Gross Axle Weight Rating (GAWR) or the

maximum load rating for the tire or set of dual tires at the rear, whichever is less. The maximum load rating for the tire can be found embossed on the tire’s sidewall. If any of the corner weights exceed half of the listed GAWR or tire ratings, relocate the passengers and redistribute or remove a portion of the cargo until the weight is within the proper limits for all four corners of the vehicle.

Note: Additional cargo carrying capacity can be obtained by reducing the

amount of fresh water carried while driving. Check vehicle weight periodically to obtain optimum mileage from tires and

improve handling. Tires should always be inflated as recommended in the chassis manufacturer’s instructions or on the tire sidewall. See your chassis operator’s manual.

Improper weight distribution or too much weight on your motorhome’s suspension system can cause spring, shock absorber, or brake failure, handling or steering problems, irregular tire wear, tire failure or other damage.

An overloaded motor home is hard to drive and hard to stop. In cases of serious overloading, brakes can fail completely, particularly on steep hills. The load a tire will carry safely is a combination of the size of tire, its load range, and corresponding inflation pressure.

Planning and Preparation

The following is an explanation of commonly used weight abbreviations:

• Gross Vehicle Weight Rating (GVWR) is the maximum permissible

weight of this motor home.

• Unloaded Vehicle Weight (UVW) is the weight of this motor home as

manufactured at the factory with full fuel, engine oil, and coolants.

• Occupant and Cargo Carrying Capacity (OCCC) is equal to the GVWR

minus UVW and LP. In other words, OCCC is how much weight in occupants, cargo, water and trailer tongue weight that can be added to the motor home without exceeding the GVWR.

• Gross Combined Weight Rating (GCWR) means the maximum

allowable loaded weight of this recreation vehicle with its towed trailer or towed vehicle.

• Gross Axle Weight Rating (GAWR) is the value specied as the load

carrying capacity of a single axle system, as measured at the tire- ground interfaces.

• If a boat, trailer or other vehicle is being towed, it should be weighed and combined with the towing vehicle's weight to ensure the total weight does not exceed the GCWR.

Identication and Safety

It is advisable to contact the Department of Motor Vehicles in each respective state, for up-to-date information regarding operation and licensing requirements for your particular motor home.

The state of California currently requires operators of motor homes over 40 feet in length to obtain a non-commercial class B license. California has also enacted legislation limiting use of motor homes in excess of 40 feet, to approved roadways. You may contact Caltrans at www.dot.ca.gov or 916-654-5741 for current information regarding these California statues.

The motor home serial number label is mounted on the inside wall next to the driver’s seat on a Class A motor home and on the inside of the driver’s door post on a Mini motor home. Refer to the chassis owner’s manual for the location of the chassis vehicle identification number on all motorized motor homes.

Note: Always give model, year, and the V.I.N. number information

when ordering parts. Also, we recommend that you keep a copy of this information separate from the motor home in the event theft or vandalism requires you to supply a copy to the authorities.

Decals and data plates used throughout the motor home aid in its safe and efficient operation; others give service instructions. Read all decals, data, and instruction plates before operating your motor home.

LAWS OF THE ROAD

Note: When any decal, data, or instruction plate is damaged,

painted over, removed, etc.; the item should be replaced immediately.

The following warnings are posted throughout the motor home to provide information on Propane safety. They have been installed not only because of the requirement to do so, but also as a constant reminder to occupants of the motor home to exercise proper caution when using or being around Propane appliances and equipment. We are listing them here so you may study them and make sure that you and your family understand and follow them.

IT IS NOT SAFE TO USE COOKING APPLIANCES FOR COMFORT HEATING. COOKING APPLIANCES NEED FRESH AIR FOR SAFE OPERATION.

TO ENSURE PROPER VENTILATION BEFORE OPERATING A PROPANE APPLIANCES YOU SHOULD OPEN OVERHEAD VENTS, TURN ON THE EXHAUST FAN, AND OPEN A WINDOW .

Warning labels are located in the cooking area to remind you to provide an adequate supply of fresh air for combustion. Unlike homes, the amount of oxygen supply is limited due to the size of the motor home, and proper ventilation when using the cooking appliances will avoid dangers of asphyxiation.

Identication and Safety

FIRE SAFETY

Fire safety is an important part of owning a motor home. Make sure that everyone traveling in the motor home is familiar with the location of exits, including emergency exit windows should an emergency arise. The following basic rules of fire prevention can help eliminate the possibility of a fire:

• Never store flammable liquids within the motor home.

• Keep cooking surfaces clean.

• Never clean with a flammable liquid.

• Never leave cooking food unattended.

• Never smoke in bed, and always use an ashtray.

• Never allow children to play with Propane gas or

electrical equipment.

• Never use an open flame as a flashlight.

• Always repair faulty or damaged wiring and electrical

components.

• Never overload electrical circuits.

• Locate and repair Propane gas leaks immediately.

• Don’t allow rubbish to accumulate.

• Spray fabrics annually with a flame retardant.

If a fire does start, make sure to follow these basic rules of safety:

1. Have everyone evacuate the motor home as quickly as possible.

2. After everyone is clear, check the fire to see if you can attempt to put it out. If it is too large, or the fire is fuel fed, get clear of the motor home and have the fire department handle the emergency.

3. DO NOT attempt to use water to put out the fire. Water can spread some types of fire, and electrocution is possible with an electrical fire.

EXTINGUISHER

FIRE

DO NOT STORE PROPANE CONTAINERS INSIDE THE MOTOR HOME. Propane containers are equipped with safety devices which relieve excessive pressure by discharging gas to the atmosphere. Failure to comply could result in explosion resulting in death or serious

injury.

Portable fuel burning equipment including wood or charcoal burning grills and stoves should not be used inside the motor home because they may cause fire or asphyxiation.

Underwriter Laboratories classify fires into three types:

Class A: Fires in wood, paper, fabric, rubber, and certain plastics Class B: Flammable liquids such as grease, cooking oils, gasoline, or kerosene Class C: Electrical fires started from live electrical wires, from short circuits, motors,

or switches The fire extinguisher, which is located by the entry door of the motor home, is a chemical

type suitable for extinguishing small fires of the class B or C type. Extinguishers are designed to put out fires in the initial stage, not when it is blazing out of control. If a fire cannot be approached within 10’, the extinguisher will not be effective.

To fight a fire with an extinguisher, first remove the tamper tape which covers the discharge push button. Hold it upright and stand six to ten feet from the fire with a clear path to an exit. Press the button down all the way, aimed at the base of the fire and spray with quick motions from side to side.

Identication and Safety

Avoid inhaling the dry chemicals. Although non-toxic, they could cause temporary irritation and vomiting. When the fire is out, clean up the area as soon as possible. The dry chemicals are non-corrosive, but some residue may cause surface damage if left too long.

To keep the fire extinguisher in proper operating conditions:

1. Check Pressure monthly or more often. Check the nozzle for obstruction. Press the green pin below the nozzle. If it returns and sticks out from the extinguisher, it is operable. If the pin does not come back, discard extinguisher. Refillable models have a pressure gauge to check.

2. Check the Tamper Tape to make sure it is intact. DO NOT test the extinguisher. Even a partial discharge may cause leakage.

3. When checking the extinguisher for pressure, enter the date checked on the Inspection Tag furnished with the motor home. Regular inspections will help insure the condition.

4. Agitate Dry Chemical every six (6) months by inverting the bottle and lightly shaking for several seconds. This will help prevent the dry chemical from settling due to in motion vibrations.

THE SMOKE ALARM CANNOT OPERATE WITHOUT A 9 VOLT BATTERY. Removing the battery for any reason, or failing to replace the battery at the end of it's service life, removes your protection. Refer to the manufacturer owner’s manual for proper replacement batteries.

Test smoke detector operation after vehicle has been in storage, before each trip, and at least once per week during use. Replace battery every six months.

The motorhome should never be operated or occupied unless the smoke detector is present and functioning properly.

The smoke alarm will only indicate the presence of smoke that reaches the sensor.

The smoke alarm is not designed to sense gas, heat or flames.

For instruction on programming the alarm refer to the Smoke Alarm User’s Manual within your Owner’s Packet for detailed setup information.

Never remove a fuse or battery providing power to a Carbon Monoxide, LP, or Smoke alarm for the pupose of turning the alarm off.

SMOKE DETECTOR

Identication and Safety

Testing Procedure

DO NOT STAND CLOSE TO THE ALARM WHEN THE HORN IS SOUNDING. Exposure at close range may be harmful to your hearing. When testing, step away when the horn starts sounding.

NEVER USE AN OPEN FLAME OF ANY KIND TO TEST THIS UNIT. The built-in test switch accurately tests the unit’s operation as required by Underwriters Laboratories, Inc. (UL).

It is important to test this unit every week to make sure it is working properly . Using the test button is the recommended way to test this Smoke Alarm. Press and hold the test

button on the cover of the unit until the alarm sounds (the unit may continue to alarm for a few seconds after you release the button). If it does not alarm, make sure the

unit is receiving power and test it again. If it still does not alarm, replace it immediately . During testing you will hear a loud, repeating horn pattern: 3 beeps, pause, 3 beeps, pause; and the Red LED will flash rapidly.

Note: If the unit does not alarm, make sure the batteries are correctly

installed and test again. If the unit still does not alarm, replace it immediately.

Regular Maintenance

Choosing a

Replacement Battery

This unit has been designed to be as maintenance free as possible, but there are a few simple things you must do to keep it working properly. Use only the replacement batteries listed below. The unit may not operate properly with other batteries. Never use rechargeable batteries since they may not provide a constant charge.

• Test it at least once a week.

• Clean the Smoke Alarm at least once a month; gently vacuum the outside of the

Smoke Alarm using your house hold vacuum’s soft brush attachment. Test the Smoke Alarm. Never use water, cleaners or solvents since they may damage the unit.

• If the Smoke Alarm becomes contaminated by excessive dirt, dust and/or grime, and cannot be cleaned to avoid unwanted alarms, replace the unit immediately.

• Relocate the unit if it sounds frequent unwanted alarms. See product manual under “Locations to Avoid for Smoke Alarms” for details.

• When the battery becomes weak, the Smoke Alarm unit will “chirp” about once a minute. This low battery warning should last 7 days, but you should replace the battery immediately to continue your protection.

Note: If locking pin is engaged see "Locking Feature" section for unlocking instructions.

Your Smoke Alarm requires one standard 9V battery. The following batteries are

acceptable as replacements: Duracell #MN1604, (Ultra) #MX1604; Eveready (Energizer) #522. You may also use a Lithium battery like the Ultralife U9VL-J for

longer service life between battery changes.

Identication and Safety

Carbon monoxide is a colorless, tasteless, odorless gas. It is a by-product of combustion in the engine, generator and propane appliances. The engines in your motorhome and generator system produce it constantly while they are running. CARBON MONOXIDE IS DEADLY. Please read and understand the following precautions to protect yourself and others from the effects of carbon monoxide poisoning.

DO NOT ALTER OR MODIFY ANY COMPONENT OF THE EXHAUST SYSTEM AT ANY TIME. Inspect the exhaust system at regular intervals for damage. If you suspect or locate damage to the system, have it repaired immediately

by a qualied service facility.

NEVER SLEEP WHILE THE ENGINE OR GENERATOR IS RUNNING. Be aware of carbon monoxide poisoning and its symptoms: Dizziness, Severe Headache, Vomiting, Weakness, Sleepiness, Muscular Twitching, and Throbbing in Temples. If anyone in the motor home experiences any of these symptoms, shut off the engine, and immediately go outside into fresh air. Get medical attention as soon as possible.

Over-filling the Propane gas tank can result in uncontrolled gas flow which can cause fire or explosion. A properly filled tank will contain approximately 80% of its volume as liquid Propane. An 80% automatic shut-off valve is installed on the Propane gas tank which will automatically prevent further filling when the gas volume has reached 80% of tank capacity.

Carbon Monoxide Safety Precautions

LP SAFETY

This tank is equipped with an automatic valve designed to close at 80% liquid full. Always open 20% fixed liquid level bleeder gauge while filling. Stop filling if liquid appears before valve shuts off.

ALL PROPANE GAS IS CONTAINED UNDER PRESSURE. DUE TO THE DANGEROUS POTENTIAL OF ANY COMPRESSED GAS, IT IS MANDATORY THAT THE FOLLOWING REQUIREMENTS FOR THE USE OF THIS TANK BE FOLLOWED: Tanks are to be installed, fueled and maintained in accordance with the state and local codes, rules, regulations or laws and in accordance with the NFPA Pamphlet 58, division IV.

Only personnel trained in the handling of Propane may fill, test or repair the Propane gas system.

IF YOU SMELL GAS, EXTINGUISH ANY OPEN FLAMES, PILOT LIGHTS, AND ALL SMOKING MATERIALS. DO NOT TOUCH ELECTRICAL SWITCHES. Shut off the gas supply at the tank valve(s) or gas supply connection. Open doors and other ventilation openings. Do not use the range hood. Leave the area until the odor clears and have the system checked by a trained professional

before using again.

Propane gas regulators must always be installed with the diaphragm vent facing downward. Regulators that are not in compartments have been equipped with a protective cover. Make sure that the regulator vent faces downward and the cover is kept in place to minimize vent blockage which could result in excessive gas pressure causing fire or explosion.
