Thor Gas Hot Plate
Installation and Operation Instructions
Model: GE756-P, GE756-N, GE757-P, GE757-N
IMPORTANT FOR FUTURE REFERENCE
Please complete this information and retain this manual for the life of the equipment. For Warranty
Service and/or parts, this inform ation is required.
Model Number Serial Number Date Purchased
WARNING: For your safety, do not store or use gasoline or other flammable vapors or
liquids in the vicinity of this or any other appliances. Keep the area free and clear of
combustible.
WARNING： Improper installation, adjustment, alteration, service or maintenance can
cause property damage, injury, or death. Read the installation operating and maintenance
instructions thoroughly before installing, or servicing this equipment.
WARNING：Instructions must be posted in a prominent location. All safety precautions
must be taken in the event the user smells gas. Safety information can be obtained from
your local gas supplier.
15 Badgally Road, Campbelltown
NSW 2560
Contents
Introduction .................................................................................................
Specifications ..............................................................................................
General
Pack Contents
Gas Supply Requirements
Dimensions ..................................................................................................
Installation ..................................................................................................
Installation Requirements
Unpacking
Location
Clearances
Assembly
Gas Connection
Operation ......................................................................................................
Operation Guide
Description of Controls
Open Burners
Cleaning and Maintenance ..........................................................................
General
After Each Use
Daily Cleaning
Weekly Cleaning
Periodic Maintenance
Trouble Shooting ..........................................................................................
Replacement Parts List ...................................................................................13
Explosion
Drawing ..................................................................................14
Spare Parts List….........................................................................................15
1
1
2
3
5
7
12
10
1
Introduction
We are confident that you will be delighted with your Thor Gas Hot Plate, and it will become a
most valued appliance for you.
To ensure you receive the utmost benefit from your new Gas Hot Plate, there are two important things
you can do.
Firstly:
Please read the instruction book carefully and follow the directions given. The time taken will be well
spent.
Secondly:
If you are unsure of any aspect of the installation, instructions or performance of your appliance,
contact your dealer promptly.
CE Only:
These instructions are only valid if the country code appears on the appliance. If the code does not
appear on the appliance, refer to the supplier of this appliance to obtain the technical instructions for
adapting the appliance to the conditions for use in that country.
W A RN I N G:
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE CAN CAUSE PROPERTY
DAMAGE, INJURY OR DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE INSTR UCTIONS
THOROUGHLY BEFORE INSTALLING OR SERVICING THIS APPLIANCE.
W A RN I N G:
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE USER SMELLS GAS ARE TO BE POSTED IN A
PROMINENT LOCATION. THIS INFORMATION SHALL BE OBTAINED BY CONSULTING THE LOCAL GAS SUPPLIER.
W A RN I N G:
GREAT CARE MUST BE TAKEN BY THE OPERATOR TO USE THE EQUIPMENT SAFELY TO GUARD IT
AGAINST RISK OF FIRE.
•
THE APPLIANCE MUST NOT BE LEFT ON UNATTENDED.
•
IT IS RECOMMENDED THAT A REGULAR INSPECTION IS MADE BY A COMPETENT SERVICE PERSON TO
ENSURE CORRECT AND SAFE OPERATION OF YOUR APPLIANCE IS MAINTAINED.
•
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPOURS OR LIQUIDS IN THE VICINITY OF THE
APPLIANCE.
•
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
CAUTION
THIS APPLIANCE IS;
•
FOR PROFESSIONAL USE AND IS TO BE USED BY QUALIFIED PERSONS ONLY.
•
ONLY QUALIFIED SERVICE PERSONS ARE TO CARRY OUT INSTALLATION, SERVICING AND GAS CONVERSION
OPERATIONS.
•
COMPONENTS HAVING ADJUSTMENTS PROTECTED BY THE MANUFACTURER SHOULD NOT BE ADJUSTED BY
THE USER/OPERATOR.
•
DO NOT OPERATE THE APPLIANCE WITHOUT THE LEGS SUPPLIED FITTED.
:
2
SPECIFICATION
General
Commercial heavy duty hot plate with cast iron trivets and burners, and fitted with full pilot and flame failure
protection.
Pack Contents
The following is i ncluded:
Thor Gas Hot Plate
Feet
Instruction Manual
Gas Suppl y Requirements
Natural Gas Propane
GE756-N GE757-N GE756-P GE757-P
Single burner Heat Input 32.5 MJ 32.5 MJ 32.5 MJ 32.5 MJ
Heat Total
Burner Operating
Supply Pressure
Gas Connection
65 MJ 195 MJ 65 MJ 195 MJ
1.0kPa 1.0kPa 2.75kPa 2.75kPa
1.0kPa 1.0kPa 2.75kPa 2.75kPa
¾” BSP ¾” BSP ¾” BSP ¾” BSP
The burner operating pressure is to be measured at the manifold test point with two burners
operating at full setting. The operating pressure is ex-factory set, through the appliance
regulator and is not to be adjusted.
Minimum input Heat of burner: 21MJ for LPG AND LPG
Size of the pan: The biggest pan for open burner is 280mm.
3

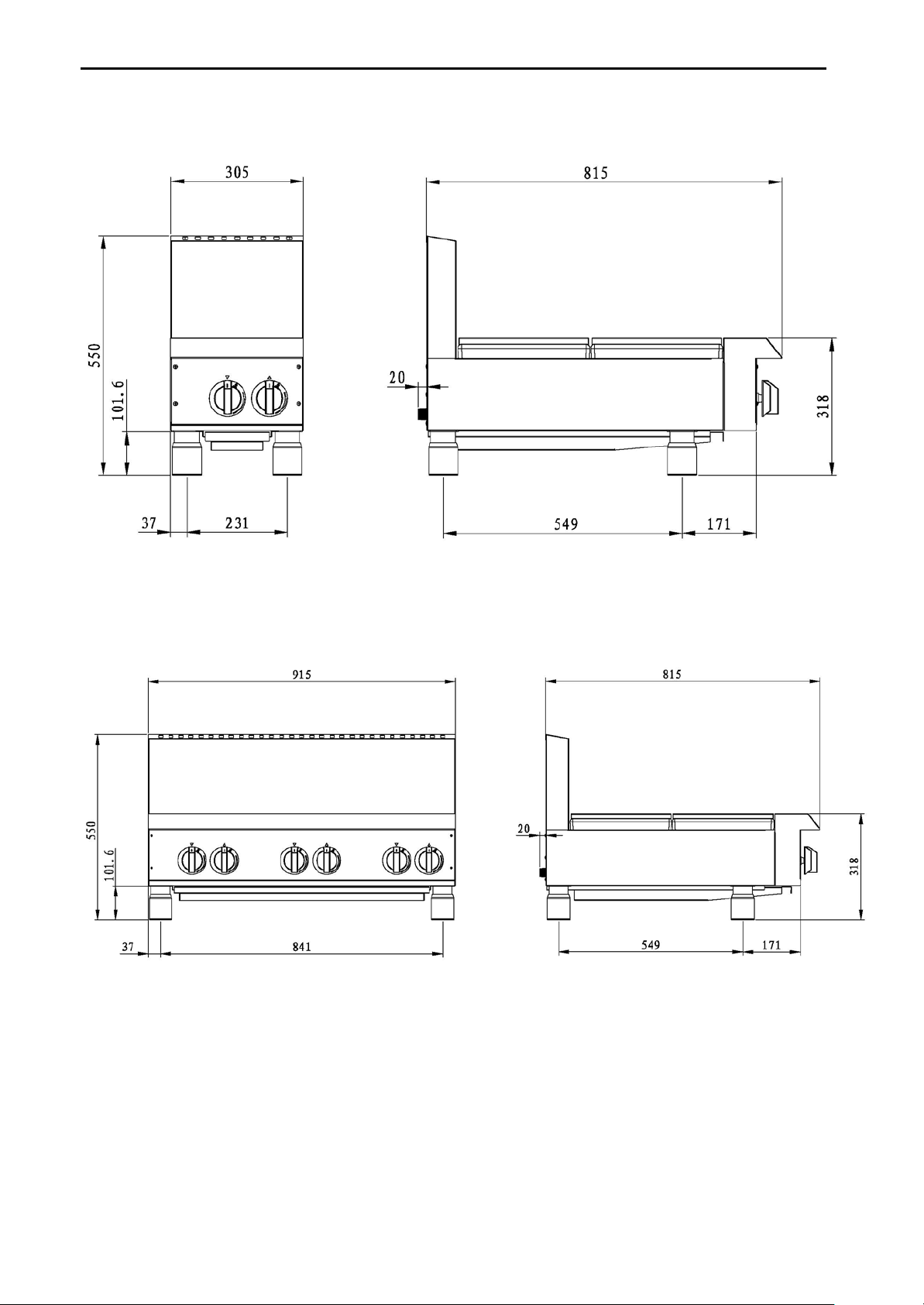

Dimensions
GE756-P / GE756-N
GE757-P / GE757-N
4
Installation
Installation Requirements
NOTE:
•
It is most important that this appliance is installed correctly and that operation is correct before
Our Gas Hot Plates are designed to provide years of satisfactory service and correct installation is essential to
achieve the best performance, efficiency and trouble-free operation.
This appliance must be installed in accordance wit h National installation codes and in addition , in accordance
with relevant National / Local codes covering gas and fire safety.
Australia:
AS 5601/AG 601 (to be AS 5601) - Gas Insta llations
New Zealand:
NZS 5261 - Gas Installation.
United Kingdom:
Gas Safety (Installation and Use) Regulations 1998
BS 6173-Installation of Catering Appliances.
BS 5440-1&2 Installation Flueing & Ventilation.
Ireland:
IS 820-Non Domestic Gas Installations.
Installations must be ca rried out by qualified persons only. Failure to install equipment to the
relevant codes and manufacturer’s specifications shown in this section will void the warranty.
Components having a djustments protect ed by the manufacturer are only to be adjusted by an
authorized service agent. They are not to be adjusted by the installation person.
Unpacking
Location
1. Installation must allow for a sufficient flow of fresh air for the combustion air supply.
2. Installation must include adequate ventilation means, to prevent dangerous build-up of combustion
3. Any gas burning app liance requires adequate clearance and ventilation for optimum and trouble-free
4. Position the appliance in its approximate working position.
5. All air for burner combustion is supplied from underneath the unit. The legs must always be fitted
6. Components having adjustments prot ected by manufacturer are only allowed to be adjusted by an
use. Installation shall comply with local gas, health and safety requirements.
•
This appliance shall be installed with sufficient ventilation to prevent the occurrence of
unacceptable concentrations of substances harmful to health.
•
Remove all packaging and transit protection from the appliance including all protective plastic coa ting
from the exterior stainless steel panels.
•
Check equipment and parts for damage. Report any damage immediately to the carrier and distributor.
•
Ensure that the 4 adjustable feet are fitted with the protruding centre screw.
•
Report any deficiencies to the distributor who supplied the appliance.
•
Check that the available gas supply is correct to that shown on the rating p late located on the right hand
panel.
products.
operation. The minimum installation clearances shown below are to be adhered to.
and no obstructions placed on the underside or around the base of the unit, as obstructions will
cause incorrect operation and / or fail ure of the appliance.
authorized service agent. They are not to be adjusted by the installation person.
