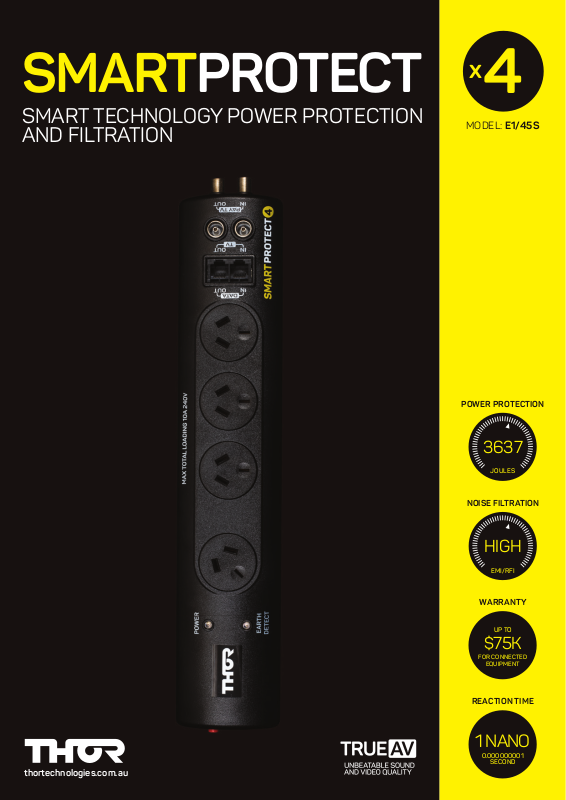

Thor E1-45S Specifications Sheet
SMARTPROTECT
x
4
SMART TECHNOLOGY POWER PROTECTION
AND FILTRATION
MODEL: E1/45S
POWER PROTECTION
3637
JOULES
NOISE FILTRATION
HIGH
EMI/RFI
WARRANTY
UP TO
$75K
FOR CONNECTED
EQUIPMENT
thortechnologies.com.au
REACTION TIME
1 NANO
0.000000001
SECOND
FEATURES
MODEL: E1/45S
4 PROTECTED
OUTLETS
AERIAL
PROTECTION
PAY TV
PROTECTION
DATA/VOICE
PROTECTION
NBN COMPATIBLE
LARGE PLUG
ADAPTOR
1.2M CABLE
LENGTH
FIRE
RETARDENT
6 YEAR
REPLACEMENT
WARRANTY
PROTECTS
SMARTPROTECT
CLEVER PROTECTION
FOR SMART TECHNOLOGY
SmartProtect 4 does more than protect your
valuable electronic equipment. The space saving
design now means you can have surge protection
and filtration anywhere.
1
Pay TV connection (in and out)
2
RJ 45 data protection (1 in and 1 out)
3
Single Bank (4 outlets): Surge protection
and fi ltering
4
Large plug adaptor
5
Resettable safety 10 amp circuit breaker
4
1
2
OLED/LCD TV
HIFI AND
HOME THEATRE
ACTIVE/PASSIVE
SPEAKERS
COMPUTERS
PRINTERS AND
SCANNERS
The Thor SmartBrain not only protects from surges,
it also fi lters and cleans electrical frequency noise to
give you unbeatable sound and video quality. Enjoy
a truer AV experience with better picture quality and
purer sound.
TECHNICAL SMARTS
Supply voltage 240/V AC 50/Hz | Maximum current rating | 10amps/2400
W (VA) | Reaction time less than 1 nanosecond | Maximum transient spike
impulse current 86,000 amps (equivalent to 21,500 amps using UL1449
standard) | Maximum energy dissipation | 3637 Joules (equivalent to 846
Joules using UL1449 standard) | Protection modes (all 4 outlets protects
on all 3 conductors): Active/Neutral, Active/Earth, Neutral/Earth | EMI/RFI
noise reduction fi lter type | Total number of protected AC outlets: 4 | Pay
TV ‘F’ type connection: 1 in and 1 out | AV/TV antenna coax connection:
1 in and 1 out | RJ 45 data protection: 1 in and 1 out | Earth potential
rise protection | Earth leakage range less than | 1 milli amp | Operating
conditions: Indoor/AC mains | Operating temperatures: -10C/+60C | Cable
length: 1.2m | Model No: E1/45S
INSIDE THE SMART BRAIN
All serious power protection diverts excess energy to earth fi rst. If there
is good earth connection then the protector will last longer. E1/45s has an
earth detection LED for this reason.
SmartBrain entry level fi lter is a passive technology. Managing to cover a
more comprehensive range of shielding to like competitors by “cleaning” a
wider range of unwanted frequency noise.
3
4
5
THOR Technologies Pty Ltd
PO Box 95, Karrinyup Western Australia 6921
thortechnologies.com.au
In the interest of product improvement and development THOR Technologies reserves the right at any time to modify or alter product design.
AUSTRALIAN DESIGNED
AND ENGINEERED
Made in China
