Thomson SpeedTouch 706WL User Manual

SpeedTouch™706 (WL)
Residential ADSL Gateway with VoIP (MGCP)
User’s Guide
Power
Ethernet
WLAN
DSL
Internet
SpeedTouch™
706 (WL)
User’s Guide
MGCP
Copyright
Copyright ©1999-2006 THOMSON. All rights reserved.
Distribution and copying of this document, use and communication of its contents is not permitted without written authorization from THOMSON. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by THOMSON. THOMSON assumes no responsibility or liability for any errors or inaccuracies that may appear in this document.
Thomson Telecom Belgium Prins Boudewijnlaan, 47 B-2650 Edegem Belgium
http://www.thomson-broadband.com
Trademarks
The following trademarks are used in this document:
SpeedTouch™ is a trademark of THOMSON. DECT is a trademark of ETSI. Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. Ethernet™ is a trademark of Xerox Corporation. Wi-Fi® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. "Wi-Fi CERTIFIED", "Wi-Fi ZONE", "Wi-Fi Alli-
ance", their respective logos and "Wi-Fi Protected Access" are trademarks of the Wi-Fi Alliance.
UPnP™ is a certification mark of the UPnP™ Implementers Corporation. Microsoft®, MS-DOS®, Windows® and Windows NT® are either registered trademarks or trademarks of Microsoft Corpo-
ration in the United States and/or other countries.
Apple® and Mac OS® are registered trademarks of Apple Computer, Incorporated, registered in the United States and
other countries.
UNIX® is a registered trademark of UNIX System Laboratories, Incorporated. Adobe®, the Adobe logo, Acrobat and Acrobat Reader are trademarks or registered trademarks of Adobe Systems, Incor-
porated, registered in the United States and/or other countries.
Other brands and product names may be trademarks or registered trademarks of their respective holders.
Document Information
Status: v2.0 (August 2006) Reference: E-DOC-CTC-20051017-0152 Short Title: User’s Guide ST706 (WL) R6.1

Contents

Contents
About this User’s Guide .............................................. 1
1 Getting to know your SpeedTouch™ ......................... 3
1.1 SpeedTouch™ LED Behaviour ........................................................ 4
1.2 Accessing your SpeedTouch™ ....................................................... 6
1.2.1 Access via the Web Interface.......................................................................................... 7
1.2.2 Access via CLI................................................................................................................... 8
1.2.3 Access via FTP................................................................................................................ 10
1.2.4 Remote Assistance ........................................................................................................ 13
2 Local Network Setup .................................................. 15
2.1 Wired Ethernet ............................................................................. 16
2.2 Wireless Ethernet ......................................................................... 17
2.2.1 Wireless Basics .............................................................................................................. 18
2.2.2 Connecting Wireless Clients for the First Time ........................................................... 20
2.2.3 Wireless Security ........................................................................................................... 22
2.2.4 Connecting Additional Wireless Clients.......................................................................24
2.2.5 Extending the Range of Your Wirelstess Network......................................................26
3 Internet Connectivity Dial-In Clients ......................... 29
3.1 SpeedTouch™ Web Pages ............................................................ 31
3.2 Internet Gateway Device Control Agent ...................................... 33
E-DOC-CTC-20051017-0152 v2.0
i
Contents
4 Voice over IP................................................................ 35
4.1 Telephony Setup .......................................................................... 36
4.2 Supplementary Telephony Services ............................................. 38
5 SpeedTouch™ Web Interface ....................................41
5.1 Navigation .................................................................................... 42
5.1.1 Menu............................................................................................................................... 43
5.1.2 Language Bar ................................................................................................................. 44
5.1.3 Navigation Bar ............................................................................................................... 45
5.1.4 Notification Area............................................................................................................46
5.1.5 Tasks ...............................................................................................................................47
5.2 Home ............................................................................................ 48
5.3 SpeedTouch ................................................................................. 49
5.3.1 Information.....................................................................................................................50
5.3.2 SpeedTouch™ Easy Setup............................................................................................51

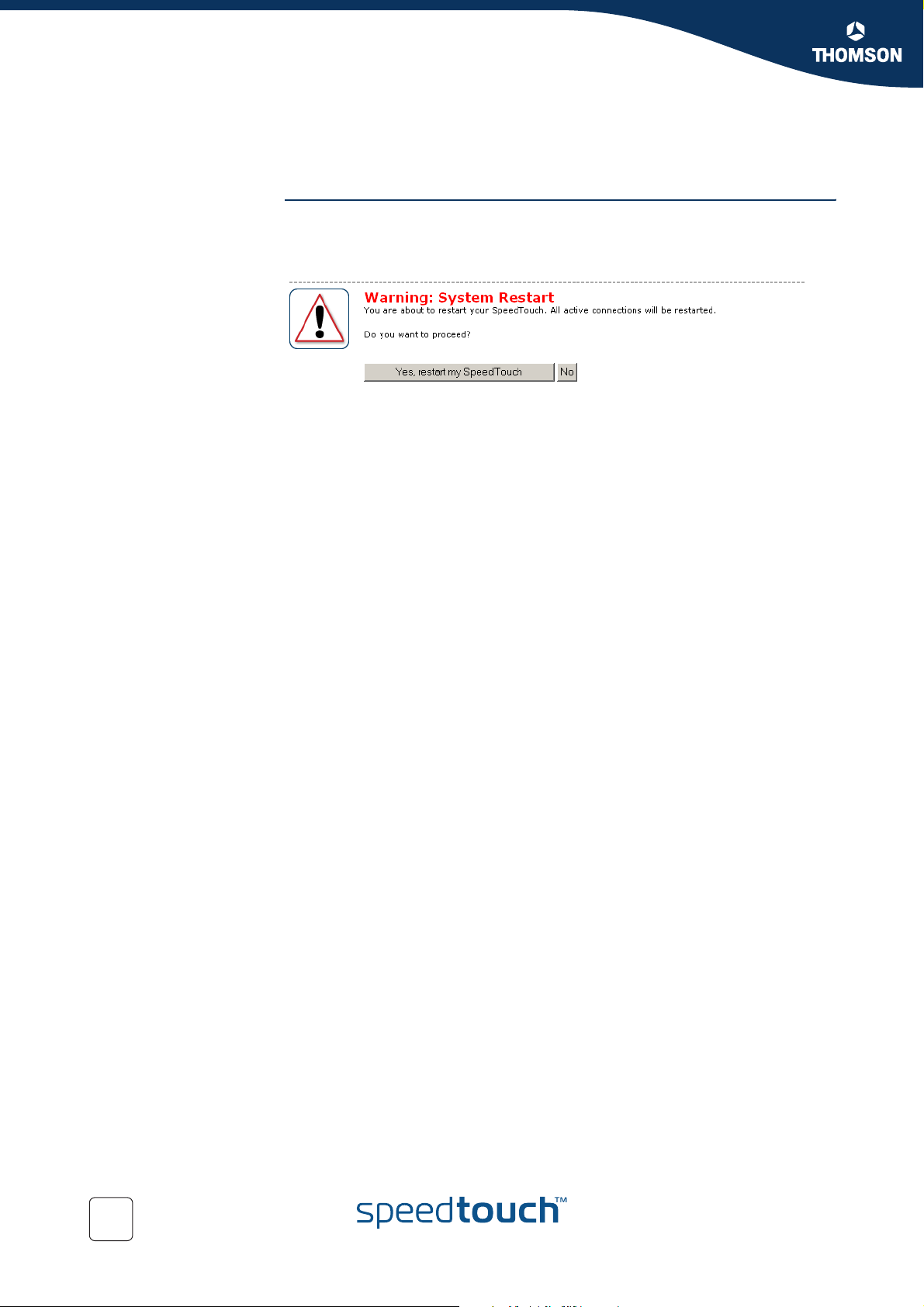

5.3.3 Restart.............................................................................................................................52
5.3.4 Configuration ................................................................................................................. 53
5.3.5 Back up & Restore..........................................................................................................54
5.3.6 Reset to Factory Defaults .............................................................................................. 55
5.3.7 Event Logs...................................................................................................................... 56
5.4 Broadband Connection................................................................. 57
5.4.1 Connectivity Check ........................................................................................................58
5.4.2 DSL Connection .............................................................................................................59
5.4.3 Internet Services ............................................................................................................ 60
5.4.4 Internet Service Settings...............................................................................................61
ii
E-DOC-CTC-20051017-0152 v2.0
Contents
5.5 Toolbox ........................................................................................ 62
5.5.1 Remote Assistance ........................................................................................................ 63
5.5.2 Telephony.......................................................................................................................64
5.5.3 Game & Application Sharing ........................................................................................65

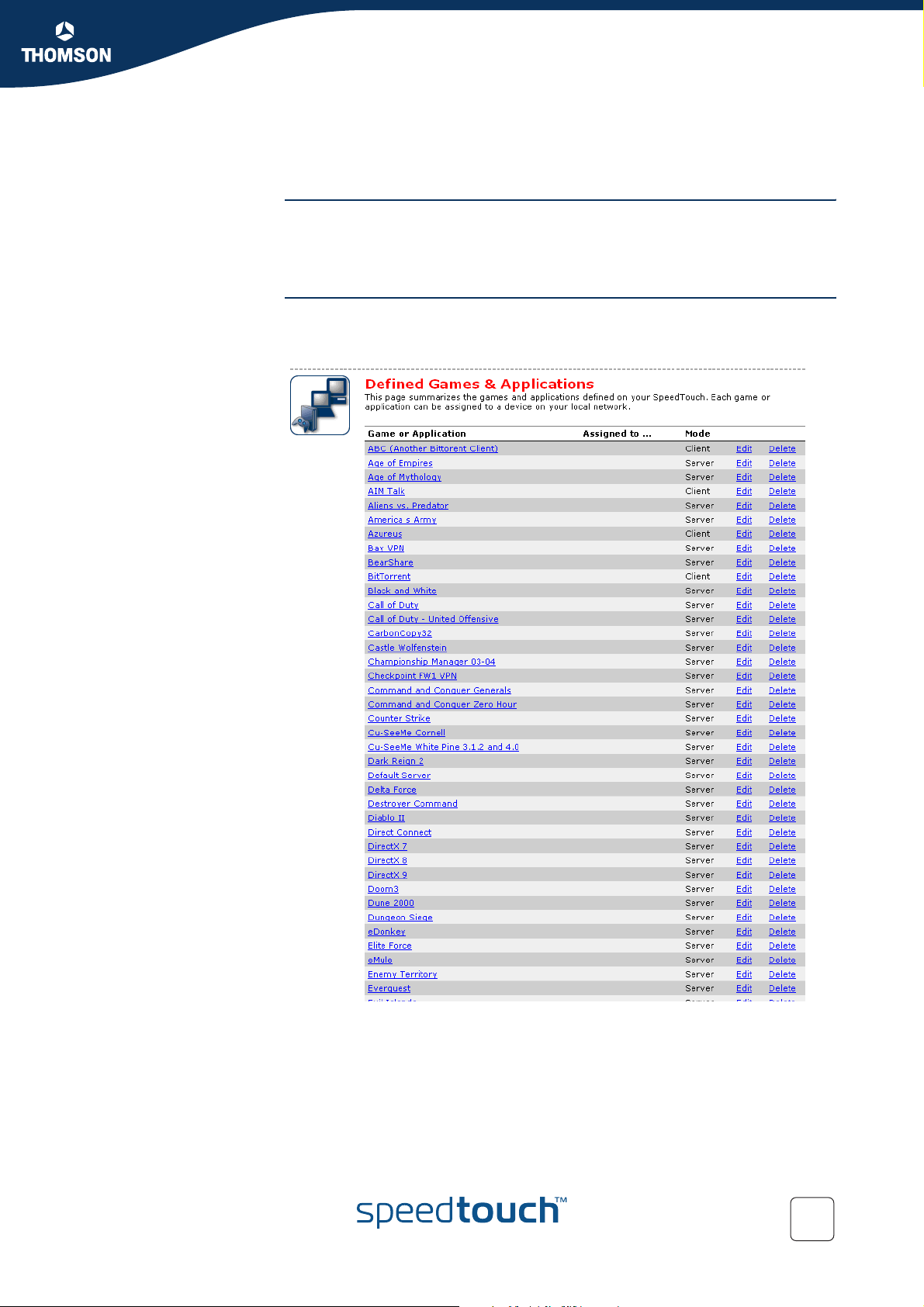

5.5.4 Defined Games & Applications..................................................................................... 67
5.5.5 Game or Application Definition....................................................................................68
5.5.6 New Game or Application.............................................................................................70
5.5.7 Parental Control ............................................................................................................. 71
5.5.8 Content Level ................................................................................................................. 74
5.5.9 Firewall ...........................................................................................................................75
5.5.10 Intrusion Detection ........................................................................................................ 78
5.5.11 Dynamic DNS ................................................................................................................. 79
5.5.12 User Management ......................................................................................................... 80
5.5.13 Edit User .........................................................................................................................82
5.5.14 Change Default User......................................................................................................83
5.5.15 Add User......................................................................................................................... 84
5.6 Home Network ............................................................................. 85
5.6.1 Devices............................................................................................................................ 86
5.6.2 Device Settings ..............................................................................................................87
5.6.3 Assign Public IP.............................................................................................................. 89
5.6.4 Wireless Device Settings...............................................................................................90
5.6.5 Access Point Settings .................................................................................................... 91

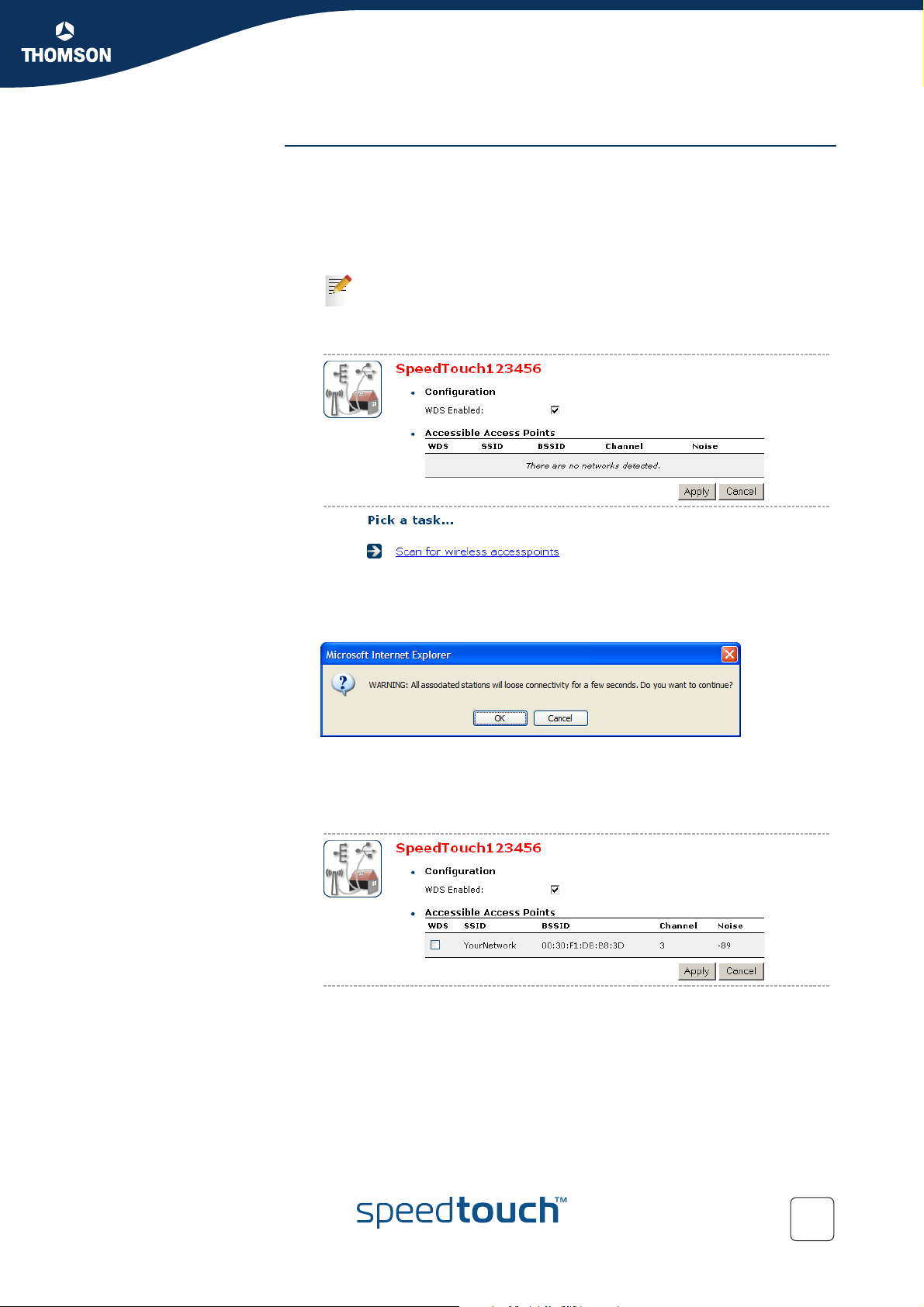

5.6.6 Configuring WDS........................................................................................................... 95
5.6.7 Interfaces ........................................................................................................................96
5.6.8 Interface Settings........................................................................................................... 97
5.6.9 DHCP Pool ...................................................................................................................... 98
6 Troubleshooting........................................................ 101
E-DOC-CTC-20051017-0152 v2.0
iii
Contents
6.1 General SpeedTouch™ Troubleshooting .................................... 102
6.1.1 Wired Ethernet Troubleshooting ................................................................................103
6.1.2 Wireless Ethernet Troubleshooting............................................................................104
6.2 UPnP™ on Windows XP Systems............................................... 105
6.3 Voice over IP Troubleshooting................................................... 107
6.4 Reset to Factory Defaults .......................................................... 108
iv
E-DOC-CTC-20051017-0152 v2.0

About this User’s Guide

About this User’s Guide

Used symbols The following symbols are used in this User’s Guide:

A note provides additional information about a topic.
A tip provides an alternative method or shortcut to perform an action.
A caution warns you about potential problems or specific precautions that
!
need to be taken.

Terminology Generally, the SpeedTouch™706(i) and the SpeedTouch™ 706(i) WL will be referred

to as SpeedTouch™ in this User’s Guide.
Documentation and
software updates
THOMSON continuously develops new solutions, but is also committed to improve its existing products.
For suggestions regarding this document, please contact
documentation.speedtouch@thomson.net
For more information on THOMSON's latest technological innovations, documents and software releases, visit us at: w
.
ww.speedtouch.com.
E-DOC-CTC-20051017-0152 v2.0
1
About this User’s Guide
2
E-DOC-CTC-20051017-0152 v2.0
Getting to know your SpeedTouch™

1 Getting to know your SpeedTouch™

Introduction With the SpeedTouch™706 (WL) (Wireless) Residential DSL Gateway with Voice

over IP (VoiP) you can build a secure home or small office network, seamlessly connecting wired and wireless devices, surf the Internet at high speed, make and receive phone calls over the Internet or over the traditional phone line - all combined in one device.

Installation For more information on how to set up, install and wire your SpeedTouch™ and set

up Internet connection, refer to the Installation and Setup Guide.

Configuration This User’s Guide will help you configuring your SpeedTouch™.

Before you begin Before connecting the SpeedTouch™, please read the SpeedTouch™ Quick

Installation Guide and the Safety Instructions and Regulatory Notices.
Chapter 1
E-DOC-CTC-20051017-0152 v2.0
3
Chapter 1
Getting to know your SpeedTouch™

1.1 SpeedTouch™ LED Behaviour

Front panel LEDs The SpeedTouch™ is equipped with a number of LEDs on its front panel, indicating

the state of the device during normal operation.
Power
Ethernet
WLAN
DSL
Internet
Voi ce
The following table shows the meaning of the different LEDs.
Indicator Description
Name Colour State
Power Green Solid on Power on, normal operation
Red Solid on Power on, self-test failed, indicating
device malfunction
Orange Solid on Bootloader active
Off Power off
Ethernet Green Blinking Ethernet activity
Solid on Ethernet connection, no activity
Off No Ethernet connection
WLAN Green Blinking Wireless activity, WPA encryption
Solid on No wireless activity, WPA encryption
Amber Blinking Wireless activity, WEP encryption
Solid on No wireless activity, WEP encryption
Red Blinking Wireless activity, no security
Solid on No wireless activity, no security
Red/
Toggling Wireless client registration phase
green
Off WLAN disabled
4
E-DOC-CTC-20051017-0152 v2.0
Getting to know your SpeedTouch™
Indicator Description
Name Colour State
DSL Green Blinking Pending DSL line synchronisation
Solid on DSL line synchronised
Off No DSL line
Internet Green Blinking Internet activity
Solid on Internet connectivity, no activity
Red Solid on Internet connection setup failed
Off No Internet connection
Voice Green Solid on VoIP service up
Blinking VoIP activity
Off VoIP service down
Chapter 1
E-DOC-CTC-20051017-0152 v2.0
5
Chapter 1
Getting to know your SpeedTouch™

1.2 Accessing your SpeedTouch™

Access methods Your SpeedTouch™ is accessible in one of the following ways:

Access Method Can be used to
Web browser Configure your SpeedTouch™ via HTTP or
HTTPS. For more information, see “1.2.1 Access via
the Web Interface” on page 7.
Command Line Interface (CLI) Fine-tune your SpeedTouch™ configuration.
For more information, see “1.2.2 Access via
CLI” on page 8.
File Transfer Protocol (FTP) Back up and restore data on your
SpeedTouch™. For more information, see “1.2.3 Access via
FTP” on page 10.
Remote Assistance Allow a remote user to help you configuring
your SpeedTouch™. For more information, see “1.2.4 Remote
Assistance” on page 13.
6
E-DOC-CTC-20051017-0152 v2.0

1.2.1 Access via the Web Interface

Chapter 1
Getting to know your SpeedTouch™
To access the
SpeedTouch™ via the
Web interface
Proceed as follows:
1 Open a Web browser.
2 In the address bar, type your SpeedTouch™’s IP address or DNS host name
(http://speedtouch.lan or 192.168.1.254 by default)
You can access the pages via HTTP or HTTPS.
For remote assistance the secure version HTTPS is used in combination with certificates. Simply provide your ISP with the link as shown, user name and password before he can log on to the pages. For more information, see “1.2.4 Remote Assistance” on page 13.
The SpeedTouch™ Home page appears, from where you can navigate to all the configurable aspects of the SpeedTouch™.
For more information on the Web pages, see “5 SpeedTouch™ Web Interface” on
page 41.
E-DOC-CTC-20051017-0152 v2.0
7
Chapter 1
Getting to know your SpeedTouch™

1.2.2 Access via CLI

To access the
SpeedTouch™ via the
Command Line
Interface (CLI)
You can access the Command Line Interface (CLI) via:
A Telnet session
This requires a TCP/IP connection between the host from which the Telnet session is opened and the SpeedTouch™. Your SpeedTouch™ and the connected computer must have an IP address in the same subnet.
Quote site commands (over FTP)
For more information, see “ Quote site command” on page 12.
For more information on CLI commands, see the SpeedTouch™ CLI Reference Guide.
8
E-DOC-CTC-20051017-0152 v2.0
Chapter 1
Getting to know your SpeedTouch™
To start a Telnet
session
Proceed as follows:
1 Open a telnet application.
You can use the Command Prompt window.
In Microsoft Windows XP for instance:
1 On the Windows taskbar, click Start.
2 Select (All) Programs > Accessories > Command Prompt
.
2 Connect to your SpeedTouch™.
In the Command Prompt window:
At the prompt, type
telnet followed by the IP address of your
SpeedTouch™ (192.168.1.254 by default).
3 Enter your SpeedTouch™ security user name and password.
The default user is ‘Administrator’ and the default password is blank.
As soon as you have opened a session to the CLI, the SpeedTouch™ banner is displayed, followed by the CLI prompt, as shown in the example below.
Username : Administrator
-----------------------------------------------------------------------
­* ______ SpeedTouch * ___/_____/\ * / /\\ Version X.X * _____/__ / \\ * _/ /\_____/___ \ Copyright (c) 1999-2005, * // / \ /\ \ THOMSON * _______//_______/ \ / _\/______ * / /\ \ / // /\ * __/ / \ \ / / / / _\__ * / / / \_______\/ / / / / /\ * /_/______/___________________/ /________/ /___/ \ * \ \ \ ___________ \ \ \ \ \ / * \_\ \ / /\ \ \ \ \___\/ * \ \/ /\ \\ \/ * \_____/ / \ \ \________\/ * /__________/ \ \ / * \ _____ \ /_____\/ * \ / /\ \ /___\/ * /____/\\/ * \ \ /___\/ * \____\/
----------------------------------------------------------------------­{Administrator}=>
E-DOC-CTC-20051017-0152 v2.0
9
Chapter 1
Getting to know your SpeedTouch™

1.2.3 Access via FTP

To access the SpeedTouch™ via the File Transfer Protocol
(FTP)
You can access the file system of the SpeedTouch™ via the File Transfer Protocol (FTP), in order to:
Restore or back up configuration files, templates or language packs.
Upgrade your configuration.
File system The SpeedTouch™ file system is stored on non-volatile memory and contains the
SpeedTouch™ software, service template files and (optionally) default setting files.
To open an FTP session Proceed as follows:
1 Open a Command Prompt window.
In Microsoft Windows XP for instance:
1 On the Windows taskbar, click Start.
2 Select
2 At the prompt, type ftp followed by the IP address of your SpeedTouch™
(192.168.1.254 by default).
3 Enter your SpeedTouch™ security user name and password.
The default user is ‘Administrator’ and the default password is blank.
The example below shows an FTP session to the SpeedTouch™ file system.
(
All) Programs > Accessories > Command Prompt
.
File system structure The structure of the file system is very simple: it consists of a single root directory
called root and a subdirectory called dl (download).
The root directory contains:
all the necessary files for the SpeedTouch™ to start correctly
the dl directory
The dl directory contains the software image.
If you made changes to the SpeedTouch™ configuration and saved them, a user.ini configuration settings file is created in the dl subdirectory.
10
E-DOC-CTC-20051017-0152 v2.0
Chapter 1
Getting to know your SpeedTouch™
File system access
rights
Common FTP
commands
In the different directories you have the following rights:
Directory Access rights
root NO read/write
dl read/write
Depending on the access rights you have in a directory, you can use one of the following commands:
Use the
to ...
command ...
cd access another directory than the one currently open.
Example: ftp>cd dl.
dir list the directory files.
Example: ftp>dir.
bin set the transfer mode to ‘binary’.
hash turn on the hashing option.
put upload files.
Example: ftp>put C:/MyBackupFiles/user.ini.
A configuration file must be uploaded to the dl directory.
get download files.
Example: ftp>get user.ini.
Downloading the configuration file must be done from the dl directory.
delete delete files.
bye quit FTP.
E-DOC-CTC-20051017-0152 v2.0
11
Chapter 1
Getting to know your SpeedTouch™
FTP file transfer To allow correct file transfers, set the transfer mode to “binary”: at the ftp prompt,
bin and press ENTER.
type
Turn on the hashing option to see the progression of the file transfer: At the ftp prompt, type
hash and press ENTER.
Example.
/home/doejohn{1}$ftp 192.168.1.254 Connected to 192.168.1.254 220 Inactivity timer = 120 seconds. Use 'site idle <secs>' to change. Name (192.168.1.254:doejohn): 331 SpeedTouch™ (00-90-D0-01-02-03) User 'doejohn' OK. Password requir ed. Password : ###### 330 OK ftp> ftp>bin 200 TYPE is now 8-bit binary ftp> ftp>hash 200Hash mark printing on (8192 bytes/hash mark). ftp>cd dl 250 Changed to /dl ftp>put C:\user.ini 200 Connected to 192.168.1.10 port 1271 150 Opening data connection for user.ini
226 File written successfully ftp: 256 bytes sent in 0,000Seconds 256000,000Kbytes/sec. ftp>
Quote site command All the CLI commands can be executed from within an FTP session. Only complete
CLI commands (in other words, the complete command syntax with all the parameters already specified) can be executed.
Example: To execute the CLI command currently assigned to SpeedTouch™ interfaces, at the FTP prompt, type ‘quote site ip iplist’ and press ENTER.
ftp> quote site ip iplist 200- Interface Type IP-address Point-to-point/Mask 200- 2 LocalNetwork Ethernet 10.0.0.138 255.255.255.0 200- 2 LocalNetwork Ethernet *192.168.1.254 255.255.255.0 200- 1 Internet Serial 81.240.198.191 81.240.198.1 200- 0 loop Internal 127.0.0.1 255.255.255.255 200­200 CLI command "ip iplist" executed ftp>
For more information on CLI commands, see the SpeedTouch™ CLI Reference Guide.
:ip iplist to list all IP addresses
12
E-DOC-CTC-20051017-0152 v2.0

1.2.4 Remote Assistance

Chapter 1
Getting to know your SpeedTouch™
To access the
SpeedTouch™ remotely
To enable remote
access
To disable remote
access
You can make your SpeedTouch accessible from the Internet with regard to remote support. In this way, you can allow your help desk to access your SpeedTouch™ remotely.
Proceed as follows:
1 Go to the SpeedTouch™ pages, as described in “1.2.1 Access via the Web
Interface” on page 7.
2 In the menu, select Toolbox > Remote Assistance.
3 Click Enable Remote Assistance.
4 Provide the following parameters to your help desk:
URL (the HTTPS link)
User name
Password
Your ISP is now able to access your SpeedTouch™ via the HTTPS link in combination with the provided certificate (a secure authentication mechanism).
For security reasons, remote assistance will be automatically disabled after 20 minutes of inactivity, or after restarting your SpeedTouch™.
Proceed as follows:
1 Go to the SpeedTouch™ pages, as described in “1.2.1 Access via the Web
Interface” on page 7.
2 In the menu, select Toolbox > Remote Assistance.
3 Click Disable Remote Assistance.
E-DOC-CTC-20051017-0152 v2.0
13
Chapter 1
Getting to know your SpeedTouch™
14
E-DOC-CTC-20051017-0152 v2.0
Local Network Setup

2 Local Network Setup

Introduction The SpeedTouch™ offers you the following local networking solutions:

Wired Ethernet
Wireless Ethernet on the SpeedTouch™706 WL

Device settings Once you have connected a device, you can personalise its settings. For more

information, see “ Configure” on page 88.
Chapter 2
E-DOC-CTC-20051017-0152 v2.0
15
Chapter 2
Local Network Setup

2.1 Wired Ethernet

Local network The Ethernet ports on the back panel allow you to connect the SpeedTouch™ to an

existing 10 or 100Base-T Ethernet network or one (or more) computer(s) with an installed Ethernet card.
Using the SpeedTouch™ Ethernet switch, you can create a local Ethernet network of up to two devices, without needing extra networking devices.
In the SpeedTouch™ package, a yellow full-wired straight-through RJ-45/ RJ-45 Ethernet cable is included.
Standard wiring
procedure
Use the yellow Ethernet cable provided to wire your computer's Ethernet port to one of the SpeedTouch™'s Ethernet ports.
The Ethernet cable can also be used to wire an Ethernet port of your SpeedTouch™ to any external Ethernet hub or switch.
Please follow the installation instructions supplied with the external hub or switch for connections and Ethernet cabling.

Ethernet link check Depending on the SpeedTouch™ model, LED indicators allow you to check your

Ethernet. See “1.1 SpeedTouch™ LED Behaviour” on page 4 for more information.

Device settings Once you have connected a device, you can personalise its settings.

For more information, see “ Device settings” on page 15.
Managed Ethernet
switch
Your SpeedTouch™ intelligently switches data between the devices on your LAN, using priority queuing to ensure that higher priority messages are delivered first and in real time. This feature maximizes your network performance.
The managed Ethernet switch allows you to configure a Virtual Local Area Network (VLAN), group ports or isolate a port, configure secure channel connections, define Quality of Service (QoS), and configure port mirroring, allowing monitoring from one port to another.
You can configure the managed Ethernet switch manually using CLI (For more information, see the SpeedTouch™ CLI Reference Guide).
16
E-DOC-CTC-20051017-0152 v2.0
Chapter 2
Local Network Setup

2.2 Wireless Ethernet

Introduction The SpeedTouch™706 WL Wi-Fi® certified IEEE 802.11g compliant wireless access

point allows multiple computers to connect wirelessly to your local network over the SpeedTouch™ Wireless LAN environment. The SpeedTouch™ is backward compatible with IEEE 802.11b, which means 802.11b and 802.11g devices can coexist in the same wireless network.
The Wireless Distribution System (WDS) on your SpeedTouch™ allows you to extend the range of your wireless network. To be able to use WDS, you will need to introduce an additional WDS-enabled access point into your wireless network.
To be able to connect the computers, make sure that a wireless client adapter (WLAN client) is installed on each computer you want to connect via the WLAN.
Wireless client
requirements
All wireless client adapters compliant to 802.11g and/or 802.11b can communicate with the SpeedTouch™ and other members of the SpeedTouch™ (W)LAN environment. However, be aware that only 802.11g compliant wireless clients are able to gain full profit of the 54 Mb/s (Max) bandwidth delivered by the SpeedTouch™.
It is highly recommended to use only wireless client adapters that are Wi-Fi™ certified to ensure smooth interoperability with the SpeedTouch™’s WLAN.
E-DOC-CTC-20051017-0152 v2.0
17
Chapter 2
Local Network Setup
Wireless Fidelity The Wi-Fi certification ensures that your SpeedTouch™ will interoperate with any
Network Name or SSID The WLAN's 'radio' link is a shared medium. As no physical connection exists

2.2.1 Wireless Basics

802.11b/g 802.11b is an IEEE standard, operating at 2,4 GHz at a speed of up to 11 Mb/s.
802.11g, a newer IEEE standard also operating at 2,4 GHz, gives you up to 54
Mb/s speed, more security and better performance.
Wi-Fi certified 802.11g and 802.11b compliant wireless device.
Access Point The SpeedTouch™ Wireless LAN Access Point (AP) behaves as a networking hub
allowing to wirelessly interconnect several devices to the local (W)LAN and to provide access to the Internet.
between the SpeedTouch™ and wireless clients, a name must be given to allow unique identification of your WLAN radio link. This is done by the Service Set ID (SSID), also referred to as Network Name. Wireless clients must be part of this SSID environment in order to be able to communicate with other clients on the (W)LAN ­including the SpeedTouch™.
Radio channels The 802.11g standard allows several WLAN networks using different radio channels
to be co-located. The SpeedTouch™ supports multiple radio channels and is able to select the best radio channel at each startup.
You can choose to set the channels automatically or manually.
The different channels overlap. To avoid interference with another access point, make sure that the separation (in terms of frequency) is as high as possible. It is recommended to keep at least 3 channels between 2 different access points.
The SpeedTouch™ supports all channels allowed for wireless networking. However, depending on local regulations, the number of channels actually allowed to be used may be additionally restricted, as shown in the table below.
Regulatory Domain Allowed Radio Channels
China 1 to 13
Europe 1 to 13
Israel 5 to 8
Japan 1 to 14
Jordan 10 to 13
Thailand 1 to 14
USA / Canada 1 to 11
18
E-DOC-CTC-20051017-0152 v2.0
Chapter 2
Local Network Setup
Antennas Direct the external antenna to allow optimization of the wireless link. If for example
the antenna is erect, wireless links in the horizontal plane are favoured. Please note that the antenna characteristics are influenced by the environment, that is by reflections of the radio signal against walls or ceilings. It is advisable to use the received signal strength as indicated by the wireless client manager to optimize the antenna position for the link to a given client.
Concrete walls weaken the radio signal and thus affect the connection.
E-DOC-CTC-20051017-0152 v2.0
19
Chapter 2
Local Network Setup

2.2.2 Connecting Wireless Clients for the First Time

Wireless default
settings
To prepare wireless
clients for the first time
After every Reset-to-Defaults, the SpeedTouch™ wireless access point configuration is returned to its initial default settings.
These default settings are:
Security level is low (security disabled) for an easy first use, meaning the data
will not be encrypted. Wireless security settings are described in
“2.2.3 Wireless Security” on page 22.
This default network name (SSID) is printed on the identification label located
on the bottom of your SpeedTouch™ and is unique for each device. It consists of the concatenation of the word “SpeedTouch” and 6 hexadecimal characters, without any spaces, for example SpeedTouch123456.
The SpeedTouch™ is broadcasting its network name (SSID).
The radio channel number is set to ‘automatically scan for the best radio
channel’.
Registration is not activated. New stations are allowed automatically. The
Access Control List is open and empty. No wireless client will be denied access to the SpeedTouch™ based on its physical hardware address.
The default wireless settings may differ from the settings listed above
!
depending on your Service Provider’s requirements. If this is the case, refer to the installation/configuration instructions provided by your Service Provider.
Make sure that:
The SpeedTouch™ is turned on and ready for service.
The SpeedTouch™ is in its default configuration.
If necessary, reset the SpeedTouch™ to its default configuration (See
“6.4 Reset to Factory Defaults” on page 108 for more information).
A wireless client adapter is installed on your computer.
The wireless client adapter’s IP configuration is set to dynamically obtain its IP
configuration (DHCP) - this is usually the default. For more information, see the documentation of your wireless client adapter.
To configure wireless
clients for the first time
20
The wireless client must be correctly configured for the default network name. As the SpeedTouch™ broadcasts its network name to the wireless clients, you can select the SpeedTouch™ wireless network from a list of available networks. Depending on your wireless client a wireless icon may become green or a message similar to the following may appear: “Successfully joined Wireless network SpeedTouch123456”.
Some wireless clients do not automatically join a wireless network. If so, follow the instructions for the wireless client software to initiate association.
E-DOC-CTC-20051017-0152 v2.0
Chapter 2
Local Network Setup
First-time association
example
The example below shows how the SpeedTouch™ wireless network is presented towards a Windows XP Service Pack 2 system.
Proceed as follows to associate your wireless client to the SpeedTouch™:
1 Click the network icon in the notification area:
The Wireless Network Connection window appears:
E-DOC-CTC-20051017-0152 v2.0
2 In the Choose a wireless network list, select the SpeedTouch™ wireless
network and click Connect.
The following window appears:
3 Click Connect Anyway.
Your computer is now connected to the SpeedTouch™ wireless network.
For other Operating Systems the wireless client will in most cases be configured via dedicated client managers.
21
Chapter 2
Local Network Setup
Security settings To personalise the wireless security settings on your SpeedTouch™:

2.2.3 Wireless Security

Introduction Since the SpeedTouch™ wireless environment is a radio environment, precautions
must be taken to ensure that your wireless network is safe from malicious intruders.
To secure your wireless network, the following wireless access point settings can be personalised:
Your Network Name (SSID)
ACL setting
Data encryption
1 Go to the SpeedTouch™ Web pages.
2 In the menu, select Home Network.
3 Click your WLAN.
4 In the upper right corner, click Configure.
5 On the Wireless Access Point page, you can modify the Security settings.
Network Name (SSID) On the Wireless Access Point page, you can give a new name to your Network
Name (SSID).
Under Security, you can clear Broadcast Network Name (SSID), to prohibit the Network Name from being broadcast.
22
E-DOC-CTC-20051017-0152 v2.0
Chapter 2
Local Network Setup
Access Control List
(ACL)
The SpeedTouch™ features a managed Access Control List (ACL) and a physical registration mechanism in the form of the Association / Registration button on the front panel of your SpeedTouch™.
On the Wireless Access Point page, you have the following options for the ACL:
New stations are
Allowed (automatically): All new stations can access the SpeedTouch™.
Allowed (via registration): Only allowed stations in the ACL have access.You
can add new stations via:
The Association / Registration button.
The Search for wireless devices task.
For more information, see “ Registering wireless clients” on page 24.
Not allowed: Only allowed stations in the ACL have access.
You can add new stations to the ACL only via the Search for wireless devices task. For more information, see “ Registering clients via Web pages” on
page 24.
Data encryption To set up wireless connectivity, you can choose different levels of security:
Security disabled (default)
No security; the data will not be encrypted, no authentication process will be used.
WEP (Wired-Equivalent Privacy)
Traffic between the SpeedTouch™ and the clients is encrypted by sharing a pre-defined 64-bit or a 128-bit Network key for secure communication with legacy 802.11b clients.
The default 64 bit hexadecimal WEP key is printed on the identification label located at the bottom of the SpeedTouch™ and is unique for each device.
WPA-PSK (Wi-Fi Protected Access Pre-Shared Key)
The highest form of security available for home users. Make sure that your wireless client and client manager are compatible with it.
The default WPA-Personal pass phrase is printed on the identification label located at the bottom of the SpeedTouch™ and is unique for each device.
The WPA-Personal pass phrase must consist of 8 to 63 ASCII characters or 8 to 64 HEX digits.
E-DOC-CTC-20051017-0152 v2.0
Wireless access points may already have been configured during the Home Install Wizard.
If you change wireless settings, wireless clients will be disconnected. In this
If
case, you need to reconfigure the wireless clients before you can connect to the Internet again.
23
Chapter 2
Local Network Setup

2.2.4 Connecting Additional Wireless Clients

Preconditions Make sure that:
The SpeedTouch™ is turned on and ready for service.
The SpeedTouch™ has been configured as DHCP server (default).
The wireless client adapters have been installed on all the computers you
want to connect to the WLAN.
Security issues Depending on the personalised wireless settings:
Make sure you use the same encryption or security level on the client as
on your SpeedTouch™. If for instance WPA-PSK is enabled on the SpeedTouch™, you must also configure the wireless client to use WPA­PSK and configure the same WPA-PSK pass phrase.
If the Network Name (SSID) is not broadcast, you must configure the
wireless client for the SpeedTouch™ Network Name. Refer to the documentation of your wireless client for more information.
If the SpeedTouch™ ACL settings are set to:
New stations are allowed (automatically), your device can access the
SpeedTouch™ WLAN without additional configuration.
New stations are allowed (via registration), you have to register your
wireless client(s).For more information, see “ Registering wireless
clients” on page 24.
New stations are not allowed, you have to search for wireless client(s)
using the SpeedTouch™ web pages, see “ Registering clients via Web
pages” on page 24.
Registering wireless
clients
Registering clients via
Web pages
If ‘New stations are allowed (via registration)’, you can add a wireless client to the ACL via:
Registering clients via Web pages
Registering clients via the association button
Proceed as follows to add a wireless client to the ACL:
1 Go to the SpeedTouch™ Web pages.
2 In the menu, select Home Network > Devices.
3 In the Pick a task list, click Search for wireless devices.
The SpeedTouch™ searches for new wireless stations that use the encryption key of the SpeedTouch™ Access Point.
The SpeedTouch™ takes you to the Home Network. The new station will be shown next to the name of the SpeedTouch™ WLAN.
4 Click the name of the new station.
5 Click Configure.
6 Select Allowed on WLAN, and then click Apply.
The device is added to the ACL and will always be allowed to connect to the SpeedTouch™.
24
E-DOC-CTC-20051017-0152 v2.0
Chapter 2
Local Network Setup
Registering clients via
the association button
Proceed as follows to register new wireless network clients via the association button:
1 Push the Association button on the SpeedTouch™front panel for at least two
seconds.
The WLAN LED toggles between green and red.
The ACL will be unlocked for a time frame of one minute. Any new wireless client successfully attempting to connect to the SpeedTouch™ (having the correct wireless settings, that is the network name and, if required, the network key) within the time frame of one minute, will be added to the table. The SpeedTouch™ automatically saves your current configuration at the end of the registration phase.
Some WLAN clients do not automatically join a WLAN. If so, follow the instructions for the WLAN client software to initiate the association.
2 Successfully registered stations are associated to the SpeedTouch™ WLAN.
Depending on your WLAN client adapter, a wireless icon may become green or a message similar to the following may appear: “Successfully joined Wireless network SpeedTouch123456”.
3 The wireless clients will be added to the SpeedTouch™ ACL.
4 After one minute the ACL is locked.
The registration procedure can be repeated as often as needed.
E-DOC-CTC-20051017-0152 v2.0
25
Chapter 2
Local Network Setup

2.2.5 Extending the Range of Your Wirelstess Network

Wireless Distribution
System (WDS)
The SpeedTouch™ features the Wireless Distribution System (WDS) functionality. This feature allows you to extend the range of your wireless network by introducing one or more WDS-enabled devices into your wireless network.
WDS enables data packets to pass from one wireless access point to another, as if the access points were ports on a wired Ethernet switch. WDS allows you to extend the range of your SpeedTouch™ by means of one or more wireless repeaters, like for instance a SpeedTouch™180. The following illustration depicts two WDS­enabled devices communicating via WDS.
WDS Link
SpeedTouch™180 SpeedTouch™706WL
The SpeedTouch™ allows you to add up to four wireless repeaters.
Repeaters extend the coverage area of your wireless LAN. However, bear in mind that throughput is reduced for wireless clients that are connected through a repeater.
Preconditions Make sure that:
Your wireless repeater is be WDS enabled.
Both your SpeedTouch™ and your wireless repeater use:
The same WEP key if WEP is enabled.
!
The same fixed channel.
The SpeedTouch™ and your wireless repeater do not necessarily need to use the same SSID. Using different SSIDs allows you to force your wireless clients to use either the access point of the SpeedTouch™ or the one of your wireless repeater.
WPA encryption is not supported when using WDS.
26
E-DOC-CTC-20051017-0152 v2.0
To configure WDS Proceed as follows:
1 Go to the SpeedTouch™ Web pages.
2 In the menu, select Home Network.
3 Click your WLAN.
4 In the upper right corner, click Configure.
If not already done, set a fixed channel and check whether the security settings (WEP encryption or no encryption) on your SpeedTouch™ are the same as on the repeater.
5 On the Wireless Access Point page, in the Pick a task list, click Configure WDS.
Chapter 2
Local Network Setup
6 Select WDS Enabled.
7 In the Pick a task list, click Scan for wireless access points.
A warning is displayed.
8 Click OK.
The SpeedTouch™ scans for access points on the same radio channel.
9 Select your repeater in the List of Accessible Access Points, and then click
Apply.
E-DOC-CTC-20051017-0152 v2.0
27
Chapter 2
Local Network Setup
28
E-DOC-CTC-20051017-0152 v2.0
Internet Connectivity Dial-In Clients

3 Internet Connectivity Dial-In Clients

Introduction If you want to set up initial Internet connectivity using the Home Install Wizard on

the Setup CD or the embedded Easy Setup, refer to the provided Installation and Setup Guide.

Access methods Depending on the configuration of the SpeedTouch™ you may have:

Direct access:
As soon as the initial configuration is finished, immediate and uninterrupted WAN access is provided.
If you have direct access, the remote organisation might ask for a user name and password on an Internet welcome page.
Dial-in access:
Access must be explicitly established, that is by “dialling” into a Broadband Remote Access Server (BRAS).
Depending on the SpeedTouch™ configuration, dial-in access is provided via the SpeedTouch™’s Routed PPPoA or Routed PPPoE packet services with embedded PPP client.
Chapter 3

Connection protocols The applied connection protocol model depends on the service profile you selected

to configure the SpeedTouch™ and should correspond with the Service Provider’s requirements. If, for instance, your ISP provides PPPoE, you should configure PPPoE.
You can find more information on connection protocols in the Internet Connection Configuration Guide.

Dial-in clients There are different ways to dial in, depending on the operating system on your

computer and your preferences.
Dial-in method: can be used on following
operating system:
Embedded PPP dial-in client:
1 Dial-in client on
embedded pages
2 Windows XP/UPnP
(Internet Gateway Device)
Windows, Mac, unix, other
Windows XP “3.2 Internet Gateway
For more information, see:
“3.1 SpeedTouch™ Web Pages”
Device Control Agent” on page 33
E-DOC-CTC-20051017-0152 v2.0
29
Chapter 3
Internet Connectivity Dial-In Clients
Embedded PPP dial-in
clients
Broadband host PPPoE
dial-in clients
The SpeedTouch™’s embedded PPP dial-in client allows you to establish an Internet connection for computers residing on your local network, using only one computer of the network to control the client.
If this computer runs:
Any Operating System
you can always use the SpeedTouch™ Web pages. See “3.1 SpeedTouch™ Web Pages” on page 31 to proceed.
Windows XP
you can use the Windows XP Internet Gateway Device Control Client. See “3.2 Internet Gateway Device Control Agent” on page 33 to proceed.
You can also connect to the Internet using a Broadband PPPoE dial-in application. The PPP over Ethernet connection scenario provides PPP-like dial-in behaviour over the virtual Ethernet segment.
To be able to use a broadband dial-in application on your computer for connecting to the Internet, the SpeedTouch™ needs to be configured for Bridged Ethernet or Routed PPPoE (with PPPoE relay) via the SpeedTouch™ Home Install Wizard on the Setup CD or the embedded Easy Setup. .
If your computer runs ... you can use ...
Windows XP the Windows XP broadband dial-in client
Mac OS X a Mac OS X broadband dial-in client
a broadband PPPoE dial-in client provided by you Service Provider
Upon availability of OS-specific PPPoE dial-in client applications, the latter method is Operating System independent.
For PPPoE session connectivity from a Mac OS 8.6/9.x, a Windows 95/ 98(SE)/ME/2000 or a Linux system, a host PPPoE dial-in application is mandatory.
30
E-DOC-CTC-20051017-0152 v2.0
Chapter 3
Internet Connectivity Dial-In Clients

3.1 SpeedTouch™ Web Pages

Introduction As the SpeedTouch™ Web pages are controllable from any Operating System with

an installed Web browser, the method to establish PPP sessions described later, can be used on any computer system.
For more information on Internet connection setup, refer to the provided Installation and Setup Guide.
Starting an Internet
session
Proceed as follows to start an Internet session:
1 Open a Web browser on your computer and browse to the SpeedTouch™ Web
pages (see “1.2.1 Access via the Web Interface” on page 7 for more information).
The SpeedTouch™ home page appears by default.
2 Click Connect at the appropriate broadband connection.
Monitoring your
Internet connection
E-DOC-CTC-20051017-0152 v2.0
You might be requested to enter your user name and password.
The SpeedTouch™ embedded PPP dial-in client establishes the Internet connection.
3 Browse the Web.
You can view and monitor your connection to the Internet as long as the session is running via:
The SpeedTouch™ System Information page: see “5.3.1 Information” on
page 50.
The SpeedTouch™ Diagnostics task: see “5.4.1 Connectivity Check” on
page 58.
31
Chapter 3
Internet Connectivity Dial-In Clients
Terminating an Internet
session
Proceed as follows to close an active PPP connection:
1 Go to the SpeedTouch™ Web pages.
2 Click Disconnect at the appropriate broadband connection.
The SpeedTouch™ embedded PPP dial-in client closes the Internet connection. The Internet Link status changes to Disconnected and your computer is offline.
32
E-DOC-CTC-20051017-0152 v2.0
Internet Connectivity Dial-In Clients

3.2 Internet Gateway Device Control Agent

Introduction Windows XP users can easily establish PPP sessions, thanks to the Windows XP

Internet Gateway Device (IGD) Discovery and Control Client that allows you to control the SpeedTouch™ directly from you computer.
The IGD Control Client only allows to connect or disconnect a fully configured connection.

Preconditions Make sure that:

The following subcomponents of the Windows XP Networking Services are
added to your Windows XP system:
UPnP™ (see “ SpeedTouch™ not detected by UPnP™ or IGD Control
Client” on page 105).
IGD Discovery and Control Client (see “ Adding IGD Discovery and
Control” on page 106).
UPnP™ is enabled on your SpeedTouch™. To enable UPnP, see “5.5.3 Game &
Application Sharing” on page 65.
Chapter 3
Starting an Internet
session
Proceed as follows to start an Internet session:
1 In the Windows taskbar, click Start.
2 Select (Settings >) Control Panel.
The Control Panel window appears.
3 Go to (Network and Internet Connections >) Network Connections.
The Network Connections window appears.
You will find an Internet Gateway icon, representing the SpeedTouch™ IGD Internet connection ability.
4 Double-click the Internet Connection icon.
The SpeedTouch™ embedded PPP dial-in client establishes the Internet connection. The Internet Gateway icon displays Connected and your computer is online.
5 Open a Web browser and surf the Internet.
E-DOC-CTC-20051017-0152 v2.0
33
Chapter 3
Internet Connectivity Dial-In Clients
Internet connection
status
Terminating an Internet
session
As long as the SpeedTouch™ embedded PPP dial-in client is connected, you can view the connection status and some counters by double-clicking the Internet Connection icon in the Network Connections window.
Proceed as follows to terminate an Internet session:
1 In the Windows taskbar, click Start.
2 Select (Settings >) Control Panel > (Network and Internet Connections >)
Network Connections.
3 In the Network Connections window, right-click the Internet Connection icon
and select Disconnect to close the session.
You can also double-click the icon. Then the Internet Connection Status window will appear on which a Disconnect button is available to close the session.
4 The SpeedTouch™ embedded PPP dial-in client will close the Internet
connection. The Internet Gateway icon displays Disconnected and your computers are offline.
34
E-DOC-CTC-20051017-0152 v2.0

4 Voice over IP

Voice over IP Internet telephony or Voice over IP (VoIP) can be defined as the transfer of
telephone calls over your Internet connection.
Chapter 4

Voice over IP

The SpeedTouch™ VoIP
solution

Multi-line service The voice service on your SpeedTouch™ provides additional lines without the need

Fax You can also connect a fax machine to your SpeedTouch™ in order to send and

Call agent The provider’s call agent contains the call control "intelligence". It creates, modifies

With your SpeedTouch™ you can make Internet and regular telephone calls using traditional analogue phones, connected to your SpeedTouch™.
As VoIP signalling protocol your SpeedTouch™ uses the Media Gateway
(
for additional copper pairs. The additional lines allow you to make and receive several internal and external Internet calls simultaneously.
receive faxes over your Internet connection or over the traditional phone line.
The following MGCP configuration parameters are provided by your ISP:
Control Protocol (MGCP), RFC 3435.
IP address and port number (usually 2727) of the provider’s call agent
and deletes connections in order to establish and control media sessions with other multimedia endpoints.
E-DOC-CTC-20051017-0152 v2.0
35
Chapter 4
Voice over IP

4.1 Telephony Setup

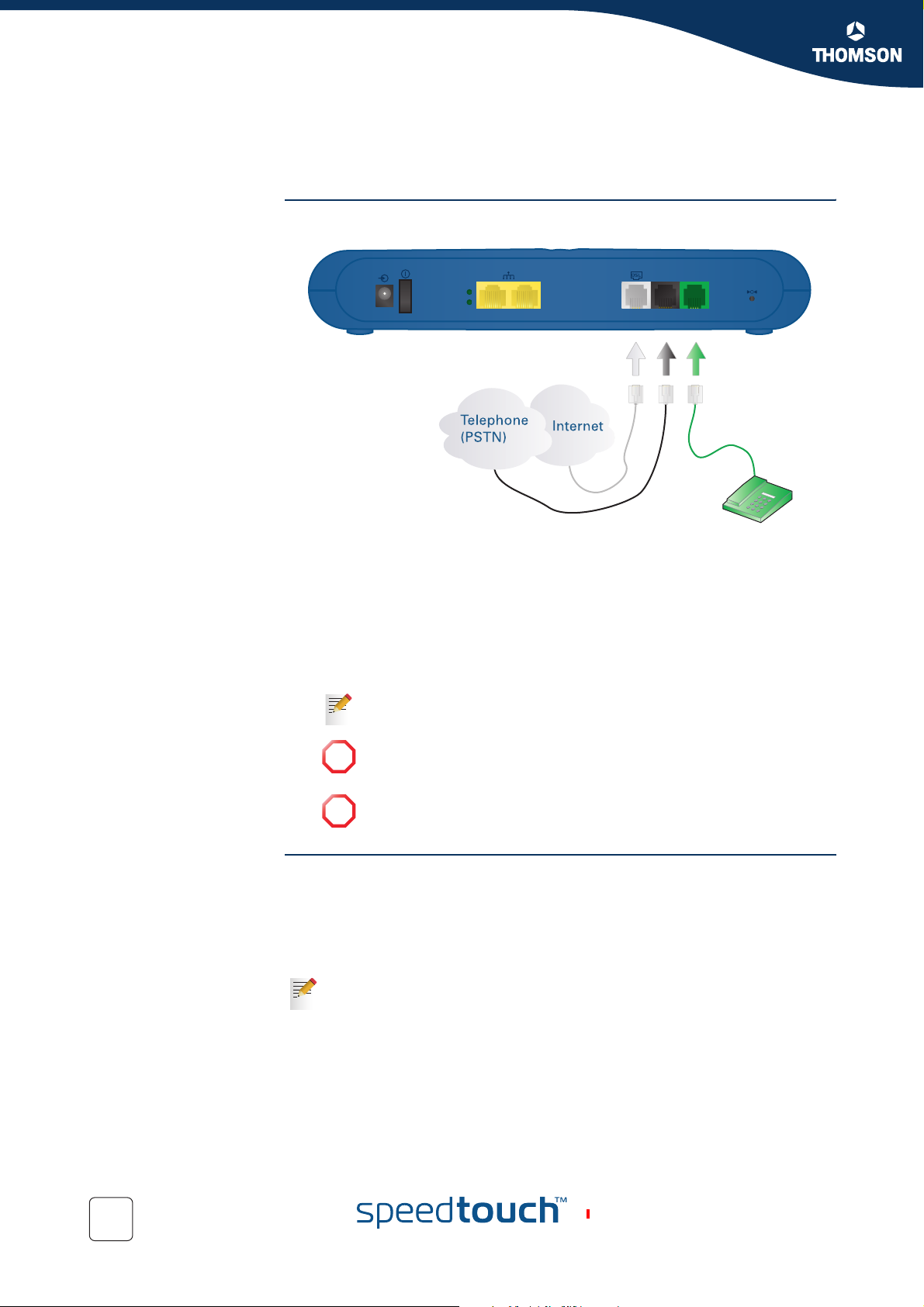

Telephony installation The SpeedTouch™ is equipped to connect one or two analogue phones or faxes.

1
ETHERNET
2
DSL PSTN PHONE RESET
2
1
Use a phone cable with RJ-11 connectors to:
1 Wire the SpeedTouch™ Phone port(s) to your phone(s) or fax.
2 If your SpeedTouch has a black-coloured port labeled "PSTN", you must
connect this port to the telephone output of your DSL splitter to allow regular phone calls with the same telephone set. In the other case, no additional connections are needed.
This is only required if you still want to make phone calls using the regular telephone line.
Be aware that, if the PSTN port (if provided) is not wired to your
!
telephone wall outlet or distributed filter, emergency calls are not always possible!
As distributed filters are country-specific, you cannot use the device
!
everywhere.

Telephony configuration The telephony service might already have been configured on your SpeedTouch™

during initial setup.
If not, follow the instructions below:
Enable the telephony service
Configure the telephony service
Your Internet connection must be up and running before you can configure Internet telephony.
36
E-DOC-CTC-20051017-0152 v2.0
Chapter 4
Voice over IP
Enable the telephony
service
Configure the telephony
service
Proceed as follows to enable the telephony service:
1 Go to the SpeedTouch™ Web pages.
For more information, see “1.2.1 Access via the Web Interface” on
page 7.
2 In the menu, select Toolbox > Telephony.
3 In the upper right corner, click Configure.
4 Select Service Enabled.
5 Click Apply.
Proceed as follows to configure the MGCP telephony service:
1 Go to the SpeedTouch™ Web pages.
2 In the menu, select Toolbox > Telephony.
3 In the upper right corner, click Expert configure.
4 Enter the IP address and the port number of the call agent, as provided by
your ISP.
Verifying telephone
connectivity
5 Click Apply.
Proceed as follows to verify the voice connection:
1 Make sure the SpeedTouch™ is turned on and ready for service.
2 Check whether your phone is properly attached to the SpeedTouch™.
3 Make sure the Internet telephony service is enabled and configured.
4 The VoIP Ready LED must be lit.
5 Pick up your phone, wait for the dialling tone, and dial the number. If you dial
a ‘#’ after the phone number, the phone number will be called instantly.
The phone(s) attached to the SpeedTouch™ can receive incoming VoIP calls, as long as your SpeedTouch™ is turned on and the VoIP Ready LED is lit.
For calls over the regular phone line, your phones are line powered by the telephone company and can therefore always be reached, even if the modem is turned off.
E-DOC-CTC-20051017-0152 v2.0
37
Chapter 4
Voice over IP

4.2 Supplementary Telephony Services

Supported telephony
services
Depending on your provider’s configuration, the following services will be available.
Service Description
Call Hold Allows you to put a call on hold, to dial another number, and
to switch between the active and held call whenever you want, or to terminate the active or held call.
Call Waiting Allows you to answer or reject an incoming call while you
are in a conversation.
Call Transfer Allows you to transfer a call to another person.
Conference Call (3 Parties)
Calling Line Identification Presentation (CLIP)
Calling Line Identification Restriction (CLIR)
Allows you to make a conference call.
Allows you to see the phone number of the person who is calling you on your phone display. If you cannot take the call, the phone number is stored on the SpeedTouch™ Web pages, guaranteeing you do not miss important calls. CLIP will only work if CLIR is deactivated on the calling phone.
Restricts the transmission of your phone number when you make a call, in order to protect your confidentiality. Your phone number will not appear on the screen of your partner. When this service is activated, your phone number will never be transmitted. To activate CLIR on call basis, see “ Using the services on
the phone” on page 39.
Forced FXO Allows you to force the SpeedTouch™ to make the phone
call over the PSTN, that is the regular telephone line.
For more information on how to use some of these services, see “Using the
services on the phone” on page 39.
38
E-DOC-CTC-20051017-0152 v2.0
Chapter 4
Voice over IP
Using the services on
the phone
The following table explains how to use a telephony service. The commands depend on your provider’s configuration and might be different from those described here. For more information, see your provider’s documentation.
Make sure your phone is off-hook when you dial the commands.
If your phone does not have an R or another hook flash button, put down the hook for 1/2 second and then dial the command number.
To use the service: Proceed as follows:
Call Hold To put person A on hold:
1 Dial R, 2 to put the call with person A on hold.
2 Dial R, 1 to retrieve the call on hold.
To put person A on hold and set up a call to person B:
1 Dial R, 2 to put the call with person A on hold.
2 Wait for the dialling tone, and dial the number
of person B.
3 Dial R, 2 to switch back to person A.
Person B is put on hold.
Call Waiting You are in a phone conversation with person A
while person B is calling you. The phone produces a waiting tone and - if CLIP is enabled and CLIR disabled - displays the number of person B.
Do one of the following:
To reject the incoming call, dial R, 0.
To terminate the first call and to switch to the
waiting call, dial R, 1.
If you do not want to terminate the first call,
dial R, 2 to keep the first caller on hold while answering the second call.
To return to person A while putting
person B on hold, dial R, 2.
To return to person A while terminating
the call with person B, dial R, 1.
E-DOC-CTC-20051017-0152 v2.0
Call Transfer You receive a phone call from person A and you
want to transfer him to person B.
1 Dial R, 2.
2 Wait for the dialling tone.
3 Dial the number of person B.
Person B picks up the phone.
4 Dial R, 4 to transfer the call.
5 Hang up.
39
Chapter 4
Voice over IP
To use the service: Proceed as follows:
Conference Call (3 Parties) To set up a conference call:
1 Call person A.
2 Dial R, 2.
Person A is put on hold.
3 Wait for the dialling tone.
4 Dial the number of person B.
Person B picks up the phone.
5 Dial R, 3.
Once the conference call has been established, you can:
1 Dial R, 2 to put the 2 calls on hold.
2 Dial R, 3 to retrieve the 2 held calls.
CLIR on call basis It is possible to hide your phone number for one
particular call. Dial *31* directly followed by the phone number of person A.
Forced FXO To make a phone call over the regular telephone
line:
1 Dial *01*.
2 Wait for the dialling tone, and then dial the
phone number of person A.

Command overview The table below lists all standard service codes of the telephony services. These

might be different on your SpeedTouch™, depending on your provider.
Phone command: Is used to:
R 0 drop a held call
reject an incoming call
R 1
R 2
terminate an active call and switch to the
waiting or held call
put a call on hold
switch between active and waiting or held call
put a conference call on hold
R 3
R 4
establish a 3-party conference call
transfer a call
40
*31*
*01*
make an anonymous call (use CLIR) on call
basis
use the regular telephone line
E-DOC-CTC-20051017-0152 v2.0
Chapter 5
SpeedTouch™ Web Interface

5 SpeedTouch™ Web Interface

Embedded The SpeedTouch™ comes with embedded Web pages, providing an interface to the

software installed on the device. It allows easy setup and management of the SpeedTouch™ via your Web browser from any PC connected to the SpeedTouch™.
See “1.2.1 Access via the Web Interface” on page 7 to access the pages.
SpeedTouch™
documentation
Consult:
The SpeedTouch™ Installation and Setup Guide
for more information on setup and installation procedures.
E-DOC-CTC-20051017-0152 v2.0
41
Chapter 5
SpeedTouch™ Web Interface

Navigation components The SpeedTouch™ Web interface consists of the following components:

5.1 Navigation

Menu
Language Bar
Navigation Bar
Notification Area
Tasks
Navigation bar
Menu
Notification area Language bar
Tasks
42
E-DOC-CTC-20051017-0152 v2.0
Chapter 5
SpeedTouch™ Web Interface

5.1.1 Menu

Menu items The menu is located on the left side of the page and consists of the following menu
items:
SpeedTouch:
Provides basic information on the SpeedTouch™.
Broadband Connection:
Allows you to view/configure your broadband connections.
Toolbox:
Allows you to assign games or applications to a device and secure your Internet connection.
Home Network:
Allows you to manage your local network.
Collapsing and
expanding the menu
You can collapse/expand the menu by clicking the arrow located at the top of the menu.
E-DOC-CTC-20051017-0152 v2.0
43
Chapter 5
SpeedTouch™ Web Interface

5.1.2 Language Bar

Language bar The language bar is located under the SpeedTouch™ logo and allows you to
change the language of the SpeedTouch™ Web interface.
The language bar will only be shown if more than one language is available.
!
44
E-DOC-CTC-20051017-0152 v2.0
SpeedTouch™ Web Interface

5.1.3 Navigation Bar

Navigation bar The navigation bar is located at the top of the page and allows you to:
View the current user name.
Click this name to change your password or switch to another user.
View the current position on the SpeedTouch™ Web interface.
Get context-related Help information.
Display level Depending on the page you are viewing, the following buttons will be available:
Overview to view a summary of the current status or configuration.
Details to view more detailed information on the current status or
configuration.
Configure to change the current settings.
Chapter 5
E-DOC-CTC-20051017-0152 v2.0
45
Chapter 5
SpeedTouch™ Web Interface

5.1.4 Notification Area

Notification area The notification area is located under the Navigation Bar and is used to display:
Error messages, indicated by a red traffic light.
Warnings, indicated by an orange traffic light.
Information, indicated by a green traffic light.
If none of these events occur, the notification area will not be shown.
46
E-DOC-CTC-20051017-0152 v2.0
SpeedTouch™ Web Interface

5.1.5 Tasks

Tasks To allow a quick configuration of your SpeedTouch™, some pages may offer you a
number of related tasks in the Pick a task list. These tasks will guide you to the page where you can perform the selected task.
Chapter 5
E-DOC-CTC-20051017-0152 v2.0
47
Chapter 5
SpeedTouch™ Web Interface

5.2 Home

SpeedTouch™ home
page
The SpeedTouch™ home page gives you a short overview of all the configurable aspects of the SpeedTouch™:
SpeedTouch
Broadband Connection
Toolbox
Home Network
48
E-DOC-CTC-20051017-0152 v2.0
SpeedTouch™ Web Interface

5.3 SpeedTouch

The SpeedTouch menu The SpeedTouch menu consists of the following items:

Information
Configuration
Event Logs

The SpeedTouch page The SpeedTouch page gives you some basic information on the SpeedTouch™:

Product Information
Configuration
Chapter 5
E-DOC-CTC-20051017-0152 v2.0
49
Chapter 5
SpeedTouch™ Web Interface

5.3.1 Information

Information The Information page summarizes important information on your SpeedTouch™.
You may need this information when you contact your helpdesk.
50
E-DOC-CTC-20051017-0152 v2.0
SpeedTouch™ Web Interface

5.3.2 SpeedTouch™ Easy Setup

Easy Setup Wizard The Easy Setup Wizard helps you to configure your SpeedTouch™ Internet
connection.
Proceed as follows to configure the SpeedTouch™ using the SpeedTouch™ Easy Setup wizard:
1 In the left menu, click SpeedTouch.
2 In the Pick a task list, click Set up.
The Easy Setup wizard will now guide you through the configuration of your SpeedTouch™.
Chapter 5
E-DOC-CTC-20051017-0152 v2.0
51
Chapter 5
SpeedTouch™ Web Interface

5.3.3 Restart

Restarting your
SpeedTouch™
Proceed as follows:
1 In the left menu, click SpeedTouch.
2 In the Pick a task list, click Restart.The following message appears:
3 Click Yes, restart my SpeedTouch.
The SpeedTouch™ restarts.
The SpeedTouch™ returns to the Home page.
52
E-DOC-CTC-20051017-0152 v2.0
SpeedTouch™ Web Interface

5.3.4 Configuration

Overview The Overview page displays the current configuration of your SpeedTouch™.
Details The Details page displays more detailed information on the current configuration of
your SpeedTouch™.
Configure The Configure page allows you to change the current configuration.
Chapter 5
If you want to:
Reconfigure your SpeedTouch™:
Click Configuration Wizard under Service Configuration. For more information, see “5.3.2 SpeedTouch™ Easy Setup” on page 51.
Configure the time settings of your SpeedTouch™:
Select Auto-configuration if you want the SpeedTouch™ to use a time
server to synchronise its clock to a dedicated time server.
Clear Auto-configuration to manually configure the SpeedTouch™ time
settings.
Disable/enable Web browsing interception or set it to automatic:
In the Web Browsing Interception list, click the Web browsing interception setting of your choice.
If you disable Web browsing interception or set it to automatic you
!
will not be able to use Parental Control.
Click Apply to apply and save your settings.
E-DOC-CTC-20051017-0152 v2.0
53
Chapter 5
SpeedTouch™ Web Interface

5.3.5 Back up & Restore

Introduction The Back up & Restore page allows you to:
Save your current configuration.
Restore a previously saved configuration.
Accessing the Backup
& Restore page
Saving your current
configuration
Restoring a previously
saved configuration
Proceed as follows:
1 In the SpeedTouch menu, click Configuration.
2 Click Configure.
3 In the Pick a task list, click Save or Restore Configuration.
Proceed as follows:
1 Click Back up Configuration Now.
2 Click Save.
3 Choose a location to save your backup file and click Save.
Proceed as follows:
1 Click Browse.
2 Select the configuration file you want to restore and click Open.
3 Click Restore Configuration Now.
The SpeedTouch™ loads your configuration and restarts.
At the end of the procedure, the SpeedTouch™ returns to the Home page.
54
E-DOC-CTC-20051017-0152 v2.0
Chapter 5
SpeedTouch™ Web Interface

5.3.6 Reset to Factory Defaults

Introduction The Reset to Factory Defaults page allows you to reset the SpeedTouch™ to return
to the initial configuration of your SpeedTouch™. All your changes will be deleted.The following message appears:
Resetting the
SpeedTouch™ factory
defaults
Proceed as follows:
1 In the left menu, click SpeedTouch.
2 In the Pick a task list, click Return to Factory Default Settings.
3 Click Yes, reset my SpeedTouch.
If you reset your SpeedTouch™ to factory default settings, all active
!
connections will be disconnected.
E-DOC-CTC-20051017-0152 v2.0
55
Chapter 5
SpeedTouch™ Web Interface

5.3.7 Event Logs

Event Logging The Event Logs page summarizes the last events recorded on your SpeedTouch™.
Recorded Events The Recorded Events table gives you an overview of the last event logs that have
been recorded since the SpeedTouch™ was turned on. The first column of the table indicates the importance of the event log.
Indicator Description
Informational
Warning
Error
Category The Category list allows you to filter the events shown in the Recorded Events
table. For example, by clicking Security you can view all security related events, for example generated by the SpeedTouch™ firewall.
56
E-DOC-CTC-20051017-0152 v2.0

5.4 Broadband Connection

Chapter 5
SpeedTouch™ Web Interface
The Broadband
Connection menu
The Broadband
Connection page
The Broadband Connection menu consists of following menu items:
DSL Connection
Internet Services
The Broadband Connection page gives you a short status overview of the connections configured on the SpeedTouch™.
Click View more to see more information on the selected broadband connection.
If you configured a dial-up connection, you can establish/terminate the connection by clicking Connect/Disconnect.
E-DOC-CTC-20051017-0152 v2.0
57
Chapter 5
SpeedTouch™ Web Interface

5.4.1 Connectivity Check

Introduction On this page, you can perform a connectivity check on an Internet service of your
SpeedTouch™. The following message appears:
Checking your Internet
connectivity
Analysing the test
results
Proceed as follows:
1 In the left menu, click Broadband Connection.
2 In the Pick a task list, click Check connectivity to the Internet.
3 In the Internet Service to Check list, click the Internet service that you want to
check.
4 Click Check Connectivity.
The SpeedTouch™ lists the test results in the Test Results list.
If the test is successful, you will get a list of green check marks. Otherwise a red cross will indicate which tests have failed.
58
E-DOC-CTC-20051017-0152 v2.0
SpeedTouch™ Web Interface

5.4.2 DSL Connection

Overview Click Overview to view basic information on your DSL connection.
Details Click Details to view more detailed information on your DSL connection.
Chapter 5
E-DOC-CTC-20051017-0152 v2.0
59
Chapter 5
SpeedTouch™ Web Interface

5.4.3 Internet Services

Internet Services
information
The Internet Services page displays information on your Internet Connection(s).
If you configured a dial-up connection you can establish/terminate the connection by clicking Connect/Disconnect.
To view more detailed information on a specific connection, click the View more link of the corresponding connection.
60
E-DOC-CTC-20051017-0152 v2.0

5.4.4 Internet Service Settings

Chapter 5
SpeedTouch™ Web Interface
Accessing the Internet
Service Settings page
Overview The Overview page gives you basic information on the selected Internet Service.
Details The Details page gives you more detailed information on the selected Internet
Proceed as follows:
1 In the Broadband Connection menu, click Internet Services.
2 Click the View more link of the Internet service you want to view.
If you configured a connection you can establish/terminate the connection by clicking Connect/Disconnect.
Service.
E-DOC-CTC-20051017-0152 v2.0
If you configured a dial-up connection you can establish/terminate the connection by clicking Connect/Disconnect.
61
Chapter 5
SpeedTouch™ Web Interface

The Toolbox menu The Toolbox menu consists of the following menu items:

5.5 Toolbox

Remote Assistance
Allows you to make your SpeedTouch™ accessible for remote support.
Telephony
Allows you to configure your Voice over IP (VoIP) network.
Game & Application Sharing
Allows you to share services and games that you run in your private network towards the Internet.
Parental Control
Allows you to block/allow access to specific Web sites.
Firewall
Allows you to configure the security level of the SpeedTouch™ firewall.
Intrusion Detection
Allows you to view the intrusions you are protected against.
Dynamic DNS
Allows you to assign a DNS host name to your broadband connection(s).
User Management
Allows you to manage the users configured on your SpeedTouch™.

The Toolbox page The Toolbox page gives you an overview of the available services and their current

status. You can click on the names of these services to go to the corresponding Web page.
62
E-DOC-CTC-20051017-0152 v2.0

5.5.1 Remote Assistance

Chapter 5
SpeedTouch™ Web Interface
Enabling Remote
Assistance
The Remote Assistance page allows you to make your SpeedTouch™ accessible for remote support.
If you want to enable remote assistance, you must be connected to the
!
Internet.
Proceed as follows to use remote assistance:
1 If necessary, type a password in the Password box.
2 Click Enable Remote Assistance.
3 Pass the information listed under:
URL
Username
Password
to your technical support, in order for them to be able to access your SpeedTouch™.
Once the technical support is connected, no other connections can be made.
Terminating remote
assistance
E-DOC-CTC-20051017-0152 v2.0
The remote assistance session ends:
if the technical support disables remote assistance.
after 20 minutes of inactivity.
after restarting your SpeedTouch™.
63
Chapter 5
SpeedTouch™ Web Interface

5.5.2 Telephony

Introduction The SpeedTouch™ is equipped with:
Overview On this page you can view information on your current VoIP configuration.
Two Phone ports allowing you to connect up to two phones for making phone
calls over the Internet.
One PSTN port allowing you to make phone calls over the Public Switched
Telephone Network (PSTN) network.
For more information on how to set up your Voice over IP (VoIP) network, consult the User’s Guide on the SpeedTouch™ Setup CD.
Configure On this page you can disable/enable the VoIP service by selecting or clearing the
Service Enabled check box.
Expert Configure On this page you can view/change the following MGCP parameters:
Call agent:
The IP address of your provider’s MGCP server.
Call agent port:
The port used by your call agent (usually port 2727). This port will be used to contact the call agent.
64
E-DOC-CTC-20051017-0152 v2.0
Chapter 5
SpeedTouch™ Web Interface

5.5.3 Game & Application Sharing

Overview The Overview page summarizes the applications or games installed on a particular
local host on your network, for which the SpeedTouch™ should accept inbound initiated connections coming from the Internet.
Configure On the Configure page, you can:
Select Use UPnP to enable UPnP on the SpeedTouch™.
UPnP provides NAT-Traversal: UPnP aware applications on a PC will automatically create Hyper-NAT entries on the SpeedTouch™ for incoming traffic on the protocol ports this type of traffic needs. As a consequence these applications are able to traverse the SpeedTouch™ without the need for extra and manual configuration.
UPnP is an architecture for transparent peer-to-peer connectivity of computers, intelligent appliances, and (wireless) devices. It enables seamless operation of a wide range of games and messaging applications.
For security reasons you are able to configure the UPnP policy towards
Windows XP and UPnP aware applications and Operating Systems.
In case you select the Use Extended Security check box, only limited UPnP operation between a host running MS Windows XP and the SpeedTouch™ is allowed: A local host is:
NOT allowed to connect/disconnect the SpeedTouch™ Internet Gateway
Device (IGD) connection.
Allowed to add/delete Hyper-NAT entries only for its own IP address, not
for other local hosts.
If you clear the Use Extended Security check box, all UPnP- and IGD-based communication between any local host and the SpeedTouch™ is allowed.
E-DOC-CTC-20051017-0152 v2.0
65
Chapter 5
SpeedTouch™ Web Interface
Assign a game or application to a specific network device.
66
E-DOC-CTC-20051017-0152 v2.0

5.5.4 Defined Games & Applications

Chapter 5
SpeedTouch™ Web Interface
Accessing the Defined
Games & Applications
page
The Defined Games &
Applications page
Proceed as follows to access the Defined Games & Applications page:
1 In the Toolbox menu, click Game & Application Sharing.
2 In the Pick a task list, click Modify a game or application.
This page gives you an overview of the games and applications defined on your SpeedTouch™. Each game or application can be assigned to a device on your local network.
E-DOC-CTC-20051017-0152 v2.0
If you want to:
View the translation rules of a game or application, click the name of the rule.
Change the translation rules of a game or application, click the Edit link of the
game or application.
Remove a game or application from your SpeedTouch™, click the Delete link
of the game or application.
67
Chapter 5
SpeedTouch™ Web Interface

5.5.5 Game or Application Definition

Accessing the Game or
Application Definition
page
Overview This page gives you an overview of the port mappings used to allow this service or
Configure Under:
Proceed as follows to access the Game or Application Definition page:
1 In the Toolbox menu, click Game & Application Sharing.
2 In the Pick a task list, click Modify a game or application.
3 Click the name of the game or application you want to view/change.
game to be initiated from the Internet.
Consult the user’s guide or support pages of your application to know which ports are being used by this application.
A service consists of one or more TCP/UDP port ranges. Each incoming port range can be translated into a different internal (local network) port range. Port ranges can be statically assigned to devices or dynamically assigned using an outgoing trigger.
Game or Application Name you can:
Change the name of the game or application.
Game or Application Definition you can:
Change the TCP/UDP port definition for this game or application.
68
E-DOC-CTC-20051017-0152 v2.0
Chapter 5
SpeedTouch™ Web Interface
Adding a Port
Translation rule
Proceed as follows:
1 Click the Edit link of the TCP/UDP port definition of the game or application.
2 In the Protocol list, click the protocol the game or application uses.
3 In the Port Range box, type the port range the game or application uses.
4 In the Translate To box, type the port range to which the SpeedTouch™ has to
translate the ports specified under Port Range.
5 If you want to make a dynamic translation rule you must specify a trigger
protocol and port.
As soon as the SpeedTouch™ receives outgoing traffic on this trigger port, it will activate this translation rule.
6 Click Apply.
E-DOC-CTC-20051017-0152 v2.0
69
Chapter 5
SpeedTouch™ Web Interface

5.5.6 New Game or Application

Creating a new game or
application
Proceed as follows:
1 In the Toolbox menu, click Game & Application Sharing.
2 In the Pick a task list, click Create a new game or application.The following
window appears:
3 Type the name of the game or application in the Name box.
4 Click:
Clone Existing Game or Application if you want to start from the port
mappings of the selected game or application.
Manual Entry of Port Maps if you want to manually configure the port
mapping for this game or application.
The SpeedTouch™ creates the game or application and takes you to the Game
or Application Definition page to configure the port mappings for this game or
application.
5 Enter the necessary port mappings and click Add.
70
E-DOC-CTC-20051017-0152 v2.0
SpeedTouch™ Web Interface

5.5.7 Parental Control

Parental Control The SpeedTouch™ allows you to block/allow particular Web sites:
Based on the Web site’s URL.
As within a Web site lots of references can be made to other URLs, it is recommended to use this feature in combination with content based filtering.
By redirecting a Web site to another Web site.
If your administrator account is configured as default user, make sure you
!
configure a password for this account or change the default user. Otherwise users on your local network can browse to your SpeedTouch™ to disable your filtering rules.
For more information, see “5.5.12 User Management” on page 80 and
“5.5.14 Change Default User” on page 83.
Overview The Overview page displays:
The current Address Based Filtering rules.
Chapter 5
Configure On the Configure page, you can:
Deny access to a specific web site.
Allow access to a specific Web site.
Redirect a Web site.
E-DOC-CTC-20051017-0152 v2.0
71
Chapter 5
SpeedTouch™ Web Interface
Deny access to a
specific Web site
Allow access to a
specific Web site
Use this feature if:
Allow is selected under Action for Unknown Sites.
Block is selected under Action for Unknown Sites and you want to make an
exception on an allow rule. For example: you are allowing “provider.com” but you want to deny access to “mail.provider.com”.
A content category/group is allowed by Content Based Filtering and you want
to make an exception. For example: you are allowing Web Mail content but you want to deny access to “mail.provider.com”.
Proceed as follows:
1 Type the URL of the Web site you want to block (for example
“mail.provider.com”) in the Web Site box.
2 In the Action list, click:
Block if you want to block this Web site.
Redirect if you want to redirect to another page. Type the address of the
redirect page in the Redirect box.
3 Click Add.
Use this feature if:
Block is selected under Action for Unknown Sites
Allow is selected under Action for Unknown Sites and you want to make an
exception on a block/redirect rule. For example: you are blocking “bank.com” but you want to allow access to “netbanking.bank.com”.
A content category/group is blocked by Content Based Filtering and you want
to make an exception. For example: you are blocking Finance / Investment content but you want to allow access to “netbanking.bank.com”.
Proceed as follows:
1 Type the URL of the Web site you want to allow (for example
“netbanking.bank.com”) in the Web Site box.
2 Click Allow in the Action list.
3 Click Add.
Redirect a Web site Proceed as follows:
1 Type the URL of the Web site you want to redirect (for example “cracks.am”)
in the Web Site box.
2 Click Redirect in the Action list.
3 Type the URL of the Web site you want to redirect to (for example
“mycompany.com/internetpolicy.htm”) in the Redirect box.
4 Click Add.
72
E-DOC-CTC-20051017-0152 v2.0
Chapter 5
SpeedTouch™ Web Interface
Redirecting all Web
sites
Configure content
based filtering settings
Proceed as follows:
1 Type “*” in the Web Site box.
2 Click Redirect in the Action list.
3 Type the URL of the Web site you want to redirect to (for example
“mycompany.com/internetpolicy.htm”) in the Redirect box.
4 Click Add.
5 Type the URL of the Web site you want to redirect to (for example
“mycompany.com/internetpolicy.htm”) in the Web Site box.
6 Click Allow in the Action list.
7 Click Add.
Under Content Based Filtering you can:
Enable/disable content based filtering.
Allow/block uncategorized Web sites.
Select a content level in the Content Level list.
To change a content level definition, click the Edit link of the content level you want to change. For more information, see “5.5.8 Content
Level” on page 74.
E-DOC-CTC-20051017-0152 v2.0
73
Chapter 5
SpeedTouch™ Web Interface

5.5.8 Content Level

Accessing the Content
Level page
Overview The Content Level page gives you an overview of the different categories and their
Configure This page allows you to change:
Proceed as follows:
1 In the Toolbox menu, click Web Site Filtering.
2 Click Configure.
3 Click the Edit link of the content level you want to edit.
rules.
The following icons indicate whether the content type is allowed or not.
Icon Description
The category/group is allowed.
The category/group is not allowed.
The group is partly allowed.
The content level name.
The content level description.
The content level configuration.
74
E-DOC-CTC-20051017-0152 v2.0
Chapter 5
SpeedTouch™ Web Interface

5.5.9 Firewall

About the firewall The firewall allows you to secure traffic from and to the SpeedTouch™. There are
different security levels, depending on the degree of security you need.
Overview The Overview page summarizes the overall security policy configured on your
SpeedTouch™.
Configure On the Configure page you can select the security level of the SpeedTouch™.
Security Levels Select one of following security levels:
BlockAll:
All traffic from and to the Internet is blocked. Game and Application Sharing is not allowed by the firewall.
Although BlockAll should block all connections, some mandatory types of traffic such as DNS will still be relayed between LAN and WAN via the SpeedTouch™.
Standard:
All outgoing connections are allowed. All incoming connections are blocked, except for inbound connections assigned to a local host via Game and Application Sharing.
Disabled:
All in- and outgoing traffic is allowed to pass through your SpeedTouch™, including Game and Application Sharing. This is the default firewall level.
The firewall levels only have impact on the forward hook. This means that the handling of traffic from and to the Web pages of the SpeedTouch™ is independent of the selected firewall level.
Protocol checks will be performed on all accepted connections, irrespective of the chosen level. You can only disable protocol checks via the CLI.
E-DOC-CTC-20051017-0152 v2.0
75
Chapter 5
SpeedTouch™ Web Interface
Details of a security
level
To view the details of the currently active security level:
1 In the Toolbox menu, click Firewall.
2 Click the Details link.
Following information is provided per rule that is part of the security level
The name of the rule
The Action that is applied on the traffic when the rule is valid
The Source and Destination interface or IP address (range) to which the rule
applies
The protocol or SpeedTouch™ Service for which the rule applies.
The number of Hits (number of times that the rule was applied to traffic).
Creating a new security
level
Proceed as follows:
1 In the Toolbox menu, click Firewall.
2 In the upper right corner, click Configure.
3 In the Pick a task list, click Create a new Security Level.
4 In the Name box, type a name for the new security level.
5 Choose an existing security level to clone from.
6 Click Apply.
Editing a security level Proceed as follows:
1 In the Toolbox menu, click Firewall.
2 In the upper right corner, click Configure.
3 Select a security level, and then click the Edit link.
The firewall settings of the selected security level appear.
4 You can:
Select a row using the Edit link to modify the security rule.
Click Add to create a new security rule.
5 Edit or define following parameters of the rule:
The Name of the security rule
The Source Interface and IP Address (range)
Use Any as IP address in case all traffic for the interface should be parsed.
76
Or you can type a User-defined IP address (range).
The Destination Interface and IP Address (range)
Use Any as IP address in case all traffic for the interface should be parsed.
Or you can type a User-defined IP address (range).
The Service type of the traffic; this can be a protocol (dns, smtp, ...) or a
specific SpeedTouch™ system service.
E-DOC-CTC-20051017-0152 v2.0
SpeedTouch™ Web Interface
6 Select an Action that should be done on traffic for which the security rules
applies:
Accept: to allow the traffic to pass
Deny: to drop the traffic (without notification)
Count: to let the traffic pass, but count it (Hits)
7 Click Apply.
Chapter 5
E-DOC-CTC-20051017-0152 v2.0
77
Chapter 5
SpeedTouch™ Web Interface

5.5.10 Intrusion Detection

Intrusion Detection Your SpeedTouch™ protects your network against malicious intrusions. The
Intrusion Detection page shows you the intrusions you are protected against.
The Protected Intrusions table shows the number of times the SpeedTouch™ actively protected your network against each intrusion since last statistics reset.
78
E-DOC-CTC-20051017-0152 v2.0
SpeedTouch™ Web Interface

5.5.11 Dynamic DNS

Dynamic DNS The Dynamic DNS service allows you to assign a dynamic DNS host name (for
example john.dyndns.org) to a broadband connection even if it is using a dynamic IP address. As soon as the device gets a new IP address, the dynamic DNS server updates its entry to the new IP address.
Overview Click Overview to view the different Dynamic DNS clients with their name, host
names, interface and IP address.
Configure On the Configure page, you can assign a Dynamic DNS host name to a broadband
connection. Proceed as follows:
1 Create an account at the Dynamic DNS service of your choice, for example:
www.dyndns.org
www.no-ip.com
www.dtdns.com
2 On the Dynamic DNS page, click Configure.
3 Select the Enabled check box.
Chapter 5
E-DOC-CTC-20051017-0152 v2.0
4 If necessary, click the broadband connection to which you want to assign the
Dynamic DNS hostname in the Interface list.
5 Type the user name and password of your Dynamic DNS service account in
the corresponding fields.
6 In the Service list, click your Dynamic DNS service.
7 In the Host box, type the host name you want to assign to this interface (for
example myspeedtouch.dyndns.org).
8 Click Apply.
79
Chapter 5
SpeedTouch™ Web Interface

5.5.12 User Management

Overview The Overview page gives you an overview of the currently configured users and
their privileges.
Click the name of a user to edit his user account.
Configure On the Configure page, you can:
Click Add to create a new user account.
Click Edit to change a user account.
Click Delete to remove a user.
Types of users The table below shows the types of users and their privileges:
User Privileges
root This is the root (master) account. This
user has all privileges without any exceptions or limitations.
SuperUser This user can perform any service via
any access channel from any access origin.
TechnicalSupport This user can perform any service via
any access channel from WAN origin only.
Administrator This user can perform any service via
any access channel from LAN or Local origin only.
LAN_Admin This user can perform only LAN
related configurations via any access channel from any origin.
80
Poweruser This user has access
to the GUI (Service/overview page) via HTTP or HTTPS access channel from LAN origin only.
E-DOC-CTC-20051017-0152 v2.0
Chapter 5
SpeedTouch™ Web Interface
User Privileges
WAN_Admin This user can perform only WAN
related configurations via any access channel from any origin.
User This user has access to the GUI
(Overview pages, remote assistance) via HTTP or HTTPS access channel from LAN origin only.
Guest This user does not have any privileges.
E-DOC-CTC-20051017-0152 v2.0
81
Chapter 5
SpeedTouch™ Web Interface

5.5.13 Edit User

Editing a user account Proceed as follows:
1 In the Toolbox menu, click User Management.
2 Under Local User Data, click the name of the user you want to edit.
The Edit User page appears. On this page, you can:
Click Reset Password to reset the password of the selected user to the
user name. So, if you reset the password of John his password will be “John”.
Change the administration rights of the selected user.
You can not change the administration rights of the account you
!
are logged on with.
82
E-DOC-CTC-20051017-0152 v2.0
Chapter 5
SpeedTouch™ Web Interface

5.5.14 Change Default User

The Default User page On this page you can change the default user. If users browse to the SpeedTouch™
Web pages, they will be automatically logged on with this account.
To allow users to automatically log on under this account, this default user
!
account must be configured with a blank password.
Changing the default
user
Proceed as follows:
1 In the Toolbox menu, click User Management.
2 In the Pick a task list, click Set the default user.
3 The Change Default User page appears.
4 In the User Name list, click the name of the new default user.
5 Click Change Default User to confirm your choice.
E-DOC-CTC-20051017-0152 v2.0
83
Chapter 5
SpeedTouch™ Web Interface

5.5.15 Add User

Adding users Proceed as follows:
1 In the Toolbox menu, click User Management.
2 In the Pick a task list, click Add new user.
3 The Add User page appears.
4 Under User definition you can configure:
The name of the new user.
The password of the new user will be equal to the user name; for
!
example if the user name is John Doe, the password will be John Doe. Also when resetting a user, the password will be changed into the user name.
The administration rights of the new user.
You can only add users with less than or equal administration
!
rights as yourself.
84
E-DOC-CTC-20051017-0152 v2.0

5.6 Home Network

Home Network Menu The Home Network menu consists of the following items:

Devices
Allows you the view/configure the devices detected on your local network.
Interfaces
Allows you to view/configure the interfaces that are available on the SpeedTouch™.
Chapter 5
SpeedTouch™ Web Interface
The Home Network
page
Viewing (wireless) client
information
Viewing Telephony
information
The Home Network page gives you an overview of your SpeedTouch™ network.
If you click on a (wireless) client you can:
View the (wireless) client’s network settings.
Configure the (wireless) client’s network settings by clicking Configure.
If you click Telephony you can view/change your VoIP configuration.
For more information, see “5.5.2 Telephony” on page 64.
E-DOC-CTC-20051017-0152 v2.0
85
Chapter 5
SpeedTouch™ Web Interface

5.6.1 Devices

Overview The Overview page gives you an overview of the devices that are currently
connected to the SpeedTouch™ network. Click on a device name to get more information on a specific device.
The detected device ‘dsldevice’ is the SpeedTouch™ itself.
Configure The Configure page gives you an overview of the devices that are currently
connected to the SpeedTouch™ network.
If you want to:
Get more information on a specific device, click on the name of the device.
See “5.6.2 Device Settings” on page 87 for more information.
Edit a device from the Detected Device(s) list, click Edit.
Delete a device from the Detected Device(s) list, click Delete.
Once a device connects to the SpeedTouch™ network, it will remain listed in the Detected Device(s) list until you delete it.
86
E-DOC-CTC-20051017-0152 v2.0

5.6.2 Device Settings

Chapter 5
SpeedTouch™ Web Interface
Accessing the device
settings page
Overview The Overview page displays the following items:
Proceed as follows:
1 In the Home Network menu, click Devices.
2 In the Detected Device(s) list, click the name of the device you want to view.
Information allows you to view:
Status shows whether the device is currently connected to the
SpeedTouch™ network.
Type shows the device type.
Connected To shows the interface to which the device is currently
connected.
Addressing allows you to view:
Physical Address shows the MAC address of the device.
IP Address Assignment shows whether the device is using a static or
dynamic IP address.
IP Address shows the current IP address of the device.
Always use the same address indicates whether the wireless client has a
static DHCP lease or not.
DHCP Lease Time displays the time for which the wireless client can use
this IP address.
Connection Sharing:
Gives you an overview of the games or services that are currently assigned to this device. Click the name of the game or service to view the used port mappings. For more information, see “5.5.5 Game or Application Definition” on page 68.
E-DOC-CTC-20051017-0152 v2.0
87
Chapter 5
SpeedTouch™ Web Interface
Configure The Configure page allows you to:
Change the device information.
Allow a game or service running on this device to be initiated from the
Internet.
88
E-DOC-CTC-20051017-0152 v2.0
Chapter 5
SpeedTouch™ Web Interface

5.6.3 Assign Public IP

Introduction On this page you can assign the public IP address of your Internet Connection(s) to
a specific device on your local network. You might want to do this if:
You do not want to use the Network Address Translation engine of your
SpeedTouch™.
This device is running server applications (Web server,...) and you want it to be
accessible from the Internet.
You can also achieve this by creating a port mapping for the specified server, as described in “5.5.3 Game & Application Sharing” on
page 65.
This device has to be considered as the unique access point to your local
network (DMZ).
Be aware that the device to which you assign the public IP address will lose
!
all security offered by the SpeedTouch™.
Assigning the public IP
address to a device
Proceed as follows:
1 In the Home Network menu, click Devices.
2 In the Pick a task list, click Assign the public IP address of a connection to a
device.
3 Click the Edit link of your Internet connection.
4 In the Device list, select the device you want to assign the public address to.
5 Click Apply.
The SpeedTouch™ prompts you to make some adjustments as a result of the new configuration.
6 Click OK.
7 Release and renew the IP address of the device.
E-DOC-CTC-20051017-0152 v2.0
For more information, see your operating system’s user guide or help.
8 If necessary, reassign server applications to this device.
89
Chapter 5
SpeedTouch™ Web Interface

5.6.4 Wireless Device Settings

Availability This page is only available on SpeedTouch™ devices equipped with a wireless
access point.
Accessing the wireless
device settings page
Overview The Overview page displays the following items:
Proceed as follows:
1 In the Home Network menu, click Devices.
2 In the Detected Device(s) list, click the name of the wireless device you want to
view.
Information allows you to view:
Status displays whether the device is currently connected to the
SpeedTouch™ network.
Type displays the device type.
Connected To displays the interface to which the device is currently
connected.
Allowed on LAN indicates whether the wireless client is allowed to
connect to the SpeedTouch™ WLAN.
Addressing allows you to view:
Physical Address displays the MAC address of the device.
IP Address Assignment displays whether the device is using a static or
dynamic IP address.
IP Address displays the current IP address of the device.
Always use the same address indicates whether the wireless client has a
static DHCP lease or not.
DHCP Lease Time displays the time for which the wireless client can use
this IP address.
Connection Sharing:
Gives you an overview of the games or services that are currently assigned to this device. Click the name of the game or service to view the used port mappings. For more information, see “5.5.5 Game or Application Definition” on page 68.
90
Configure On the Configure page you can:
Change the device information.
Assign a static DHCP server lease to this device by selecting the Always use
the same address check box.
Allow a game or service running on this device to be initiated from the
Internet.
E-DOC-CTC-20051017-0152 v2.0
SpeedTouch™ Web Interface

5.6.5 Access Point Settings

Availability This page is only available on SpeedTouch™ devices equipped with a wireless
access point.
Chapter 5
Accessing the Access
Point settings
Overview The Overview page displays a brief overview of the current configuration.
Details The Details page displays a more detailed overview of the current configuration.
Proceed as follows:
1 In the left menu, click Home Network.
2 Under Wireless, click the name of the Access Point you want to view or
configure.
The Access Point names have the following format: “WLAN: “ + Network Name, for example “WLAN: SpeedTouch123456”.
Under Configuration, the following fields are available:
Interface Enabled:
Indicates whether the wireless interface is enabled or disabled.
Physical Address:
Displays the Base Service Set Identifier (BSSID) of the selected Access Point.
Network Name (SSID):
Displays the network name of your WLAN.
Interface Type:
Displays one of the following interface types:
802.11b
Only stations that are configured in 802.11b mode can associate.
802.11b(legacy)/g
This is a special compatibility mode for 802.11b/g and is in fact designed for older types of b-clients. Use this mode if you are experiencing problems with wireless clients that connect to the SpeedTouch™ Access Point.
802.11b/g
Only stations that are configured in 802.11b/g mode can associate.
802.11g
Only stations that are configured in 802.11g mode can associate.
Actual Speed:
Displays the current transmission speed.
Channel Selection:
Displays whether you select a fixed channel yourself or the SpeedTouch™ selects a channel for you.
Region:
Displays your region.
Channel:
Displays the channel that is currently used by the Access Point.
E-DOC-CTC-20051017-0152 v2.0
91
Chapter 5
SpeedTouch™ Web Interface
Allow multicast from Broadband Network:
Displays whether you to allow/deny multicast messages from the Internet.
Large bandwidth streams, like video streams, have a large impact on your wireless performance.
WMM:
Displays whether WMM is enabled or disabled.
WMM or Wi-Fi MultiMedia enhances QoS at wireless driver level. It provides a mechanism to prioritise wireless data traffic to and from the associated (WMM capable) stations.
Under Security the following fields are available:
Broadcast Network Name:
By default the SpeedTouch™ broadcasts its network name, allowing you to easily recognise your wireless network in the list of available networks. Once you have configured your wireless clients, it is recommended to disable this feature by clearing this check box.
Allow New Devices:
Allows you to change the access control used by the SpeedTouch™.
Encryption:
Allows you to select an encryption level for your wireless network. The following encryption methods are supported by the SpeedTouch™:
The Wired Equivalent Protocol (WEP)
WPA-Pre Shared Key (WPA-PSK)
The default WEP key and the default WPA key are printed on the SpeedTouch™ bottom label.
Before configuring the SpeedTouch™ encryption, make sure you
!
know which encryption methods are supported by your wireless client.
Configure On the Configure page, you can change the configuration details displayed on the
Details page.
WEP The Wired Equivalent Privacy (WEP) algorithm protects wireless communication
from eavesdropping.
WEP relies on a secret key that is shared between the wireless client (for example a laptop with a wireless Ethernet card and the SpeedTouch™. The fixed secret key is used to encrypt packets before they are transmitted. Meaning during transmission between client and AP ("in the air") the information in the packets is encrypted.
If your wireless client(s) support(s) WPA-PSK we recommend you to use WPA-PSK, because WEP encryption has been proven to have some security issues.
To enable WEP:
1 Select Use WEP Encryption
2 In the WEP Key Length list, click the desired Data Security level (either 64-bit
or 128-bit and Alphanumeric or Hexadecimal).
3 In the Encryption key box, type a Network key of your choice. In case of:
64 bit, Alphanumeric:
The 40-bit Network key must consist of 5 alphanumeric characters.
64 bit, Hexadecimal:
The 40-bit Network key must consist of 10 hexadecimal digits.
92
E-DOC-CTC-20051017-0152 v2.0
Loading...
