THOMSON SpeedTouch Configuration Manual

Download

SpeedTouch™608WL and SpeedTouch™620 only

SpeedTouch™

(Wireless) Business DSL Router

Hyper-NAT Configuration Guide

Release R5.3.0

SpeedTouch™

Hyper-NAT Configuration Guide

R5.3.0

Passing on, and copying of this document, use and communication of its contents is not permitted without written authorization from THOMSON. The content of this document is furnished for informational use only, may be subject to change without notice, and should not be construed as a commitment by THOMSON. THOMSON assumes no responsibility or liability for any errors or inaccuracies that may appear in this document.

Thomson Telecom Belgium Prins Boudewijnlaan, 47 B-2650 Edegem Belgium

www.speedtouch.com

Trademarks

The following trademarks are used in this document:

 SpeedTouch™ is a trademark of THOMSON.  Microsoft®, MS-DOS®, Windows® and Windows NT® are either registered trademarks or trademarks of Microsoft Corpora-

tion in the United States and/or other countries.

 UNIX® is a registered trademark of UNIX System Laboratories, Incorporated.  Apple® and Mac OS® are registered trademarks of Apple Computer, Incorporated, registered in the United States and other

countries.

 Adobe, the Adobe logo, Acrobat and Acrobat Reader are trademarks or registered trademarks of Adobe Systems, Incorpo-

rated, registered in the United States and/or other countries.

 Netscape® and Netscape Navigator® are registered trademarks of Netscape Communications Corporation.  Ethernet™ is a trademark of Xerox Corporation.  UPnP™ is a certification mark of the UPnP™ Implementers Corporation.  Wi-Fi® and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. "Wi-Fi CERTIFIED", "Wi-Fi ZONE", "Wi-Fi Alli-

ance", their respective logos and "Wi-Fi Protected Access" are trademarks of the Wi-Fi Alliance.

Other products may be trademarks or registered trademarks of their respective manufacturers.

Document Information

Status: v1.0 (March 2005) Reference: E-NIT-CTC-20040716-0004 Short Title: Hyper-NAT Configuration Guide ST R5.3.0

E-NIT-CTC-20040716-0004 v1.0

Contents

About this Hyper-NAT Configuration Guide ............ 5

1 Introduction ................................................................... 7

1.1 The need for address translation ................................................... 8

1.2 What is address translation............................................................ 9

2 NAT, PAT and NAPT ................................................... 11

3 Dynamic versus static address translation............... 13

4 Address translation flavours...................................... 15

4.1 Traditional or outbound address translation ............................... 16

4.1.1 Basic NAT ................................................................................................... 17

4.1.2 Network Address Port Translation (NAPT) ....................................................... 18

4.2 Two-Way NAT............................................................................... 19

4.3 N-N NAT ....................................................................................... 20

4.4 M-N NAT or Multi NAT ................................................................. 21

4.5 Transparent NAT .......................................................................... 22

4.6 Port range shifting ....................................................................... 23

4.7 Translation templates .................................................................. 24

E-NIT-CTC-20040716-0004 v1.0

5 Application level gateways ........................................25

6 Network address translation configuration on the

SpeedTouch™ ............................................................. 27

6.1 Configure address translation on the GUI ................................... 28

6.1.1 Configuring Hyper-NAT on the Web Pages....................................................... 29

6.1.2 Enable/disable address translation on an interface............................................. 30

6.1.3 Create an address translation mapping ............................................................ 31

6.1.4 Create a template......................................................................................... 34

6.2 Configure address translation on the CLI .................................... 37

6.3 Configure NAT maps .................................................................... 40

6.3.1 Basic NAT ................................................................................................... 41

6.3.2 Two-Way NAT ............................................................................................. 42

6.3.3 N-N NAT ..................................................................................................... 43

6.3.4 Multi NAT ................................................................................................... 44

6.3.5 Transparent NAT.......................................................................................... 46

6.4 Configure NAPT maps.................................................................. 48

6.4.1 Basic NAPT ................................................................................................. 49

6.4.2 NAPT using default server ............................................................................. 50

6.4.3 NAPT using transparent default server ............................................................ 51

6.4.4 NAPT using transparent default server and port range constraint (=IP Passthrough) . 52

6.4.5 NAPT using host function.............................................................................. 53

6.4.6 NAPT using transparent host function............................................................. 54

6.4.7 NAPT using dynamic port range constraint ...................................................... 55

6.5 Configure port shifting maps ....................................................... 56

6.5.1 Inbound port shifting..................................................................................... 57

6.6 Configure templates .................................................................... 58

6.6.1 X+n templates ............................................................................................ 60

About this Hyper-NAT Configuration Guide

E-NIT-CTC-20040716-0004 v1.0

About this Hyper-NAT Configuration Guide

Used Symbols

Terminology

Generally, the SpeedTouch™608 or SpeedTouch™620 will be referred to as SpeedTouch™ in this Hyper-NAT Configuration Guide.

Typographical

Conventions

In interactive input and output, typed input is displayed in a bold font and commands are displayed

like this.

Comments are added in italics.

Example:

Documentation and

software updates

THOMSON continuously develops new solutions, but is also committed to improve its existing products.

For suggestions regarding this document, please contact

documentation.speedtouch@thomson.net

For more information on THOMSON's latest technological innovations, documents and software releases, visit us at:

www.speedtouch.com

A note provides additional information about a topic.

A tip provides an alternative method or shortcut to perform an action.

A caution warns you about potential problems or specific precautions that need to be taken.

=>language list CODE LANGUAGE VERSION FILENAME en* english 4.2.0.1 <system>

Only one language is available

About this Hyper-NAT Configuration Guide

E-NIT-CTC-20040716-0004 v1.0

Introduction

E-NIT-CTC-20040716-0004 v1.0

1Introduction

Introduction Internet technology is based on the IP protocol and in order to communicate via IP,

each device participating in the communication must have a unique IP address. This presents a problem, since the Internet is expanding at an exponential rate. Address translation is a method for connecting multiple computers to the Internet (or any other IP network) sharing one public IP address. This allows home users and small businesses to connect their network to the Internet cheaply and efficiently.

The impetus towards increasing the use of address translation comes from a number of factors:

 A world shortage of IP addresses

 Security needs

 Ease and flexibility of network administration

The need for address translation

E-NIT-CTC-20040716-0004 v1.0

1.1 The need for address translation

IP addresses While the number of available addresses seems large, the Internet is growing at such

a pace that it will soon be exhausted. The next generation IP protocol, IP version 6, allows for more addresses, but it will take years before the existing network infrastructure will be fully migrated to the new protocol.

Address translation allows a single device, such as the SpeedTouch™, to act as an agent between the Internet (or public network) and a local (or private) network. This means that only one, unique IP address is required to represent an entire group of computers. The outside world is unaware of this division and thinks that only one computer is connected.

Security Many people view the Internet as a "one-way street"; they forget that while their

computer is connected to the Internet, the Internet is also connected to their computer. That means that anybody with Internet access can potentially access resources on their computers (such as files, e-mail, company network etc.). Most personal computer operating systems are not designed with security in mind, leaving them wide open to attacks from the Internet.

The security implications can be disastrous. Confidential company information such as product plans or marketing strategies can be stolen, this can lead to major financial losses or even cause the company to fold.

Implementing address translation automatically provides firewall-style protection between your private network and public networks (the Internet or other public networks). Address translation only allows connections that originate from inside the private network. Basically, this means that a computer on a public network cannot connect to your computer unless your computer has initiated the contact. You can browse the Internet and connect to a site, and even download a file; but somebody else cannot latch onto your IP address and use it to connect to a port on your computer.

In specific circumstances (static address translation) devices from public networks are allowed to initiate connections to computers on the private network. This is only done when specifically granted by the local network after appropriate configuration.

Administration A real benefit of address translation is apparent in network administration. For

example it is possible to move a Web server or FTP server to another host without having to worry about broken links. Simply change the inbound mapping at the Internet Gateway to reflect the new host location. Also changes in the private network are easily made without any problems, because the only public IP address either belongs to the Internet Gateway or comes from a pool of global addresses.

The device performing address translation should be secure/protected.

What is address translation

E-NIT-CTC-20040716-0004 v1.0

1.2 What is address translation

Introduction Using address translation, the IP and/or TCP/UDP port identifications can change

while traversing the network.

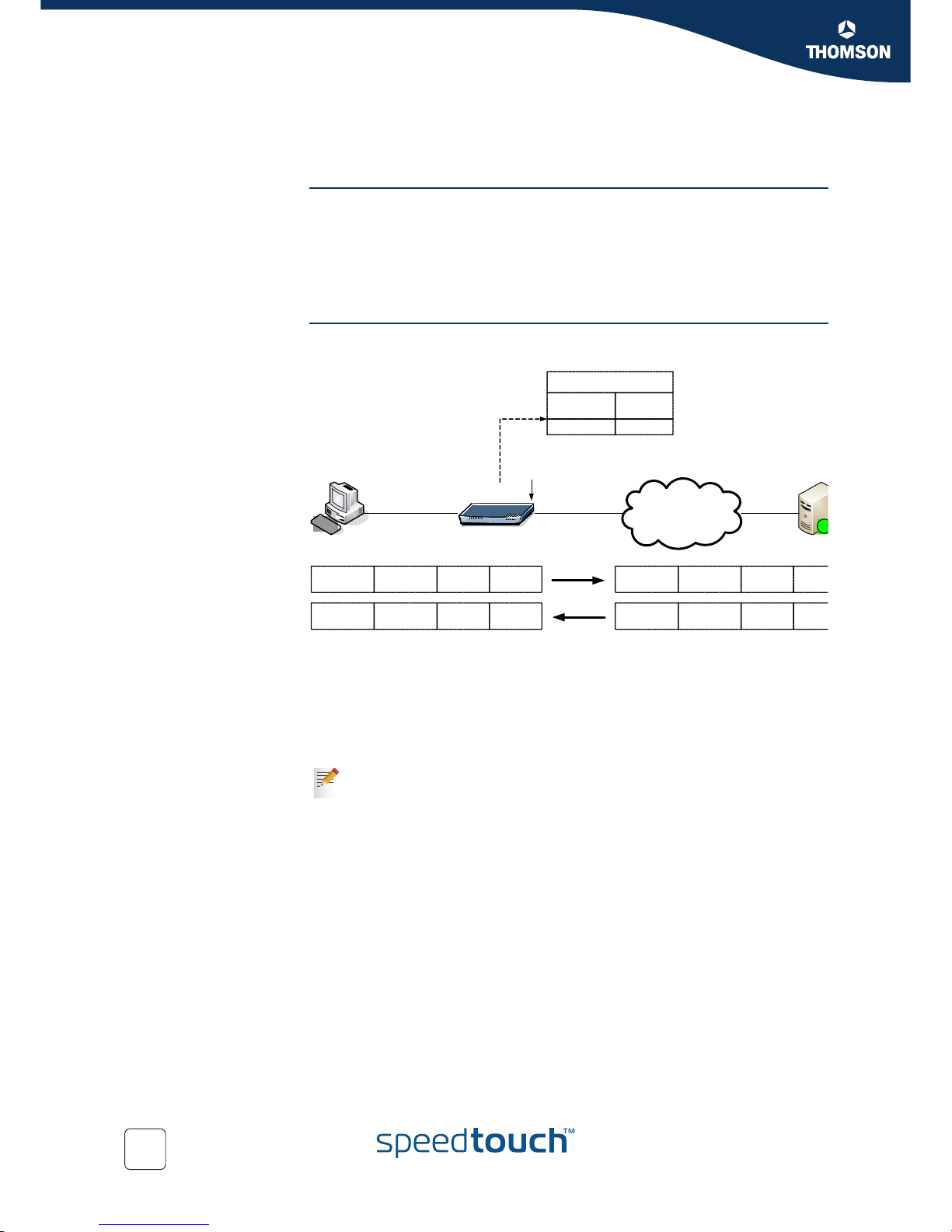

IP address translation

Figure 1: IP address translation

Quite some private networks use private IP addresses, meaning that these host are not known (and as such cannot be routed) within the Internet (= public network). When such a host would enter the Internet, one should assign it an IP identification, which is allowed to be used in the public network.

This is what will be done. The private network will have an exit point towards the public network (typically called a gateway) and this exit point will convert the IP address of the private network towards a valid public IP address. The reverse procedure is followed when a packet is received back from the public network.

As the address translation is only performed on-demand and due to the fact that not all private hosts need access to the public network at the same time, a small pool of available public IP addresses on the WAN interface of the modem will be sufficient, this means sparing out addresses.

TCP/UDP port

translation

This type of translation will commonly be used in conjunction with IP address translation. Not only the IP address will be changed but also the port number.

The main advantage of this way of working is that the same public IP address can be assigned to two different private LAN nodes, yet using a different port numbering scheme, which in fact boils down to IP address multiplexing.

As several nodes can use the same IP address, a considerable saving is done on the amount of public IP addresses needed.

Private Public

SpeedTouchTM

Address

Translation

What is address translation

E-NIT-CTC-20040716-0004 v1.0

NAT, PAT and NAPT

E-NIT-CTC-20040716-0004 v1.0

2NAT, PAT and NAPT

Introduction Three different categories of address translation exist, namely:

 Network Address Translation (NAT): a private IP address X is translated into a

public IP address Y.

 Port Address Translation (PAT): a UDP/TCP port number X is translated into a

port number Y.

 Network Address and Port Translation (NAPT): both the private IP address and

port number are translated.

NAT If NAT is enabled, then a private IP address is changed into a temporary public IP

address. The NAT translation technique is often used in dial-up or for on-demand connections in which remote connections go up and down frequently. When the user is connected, s/he is assigned a single external IP address; once that user disconnects, the IP address is released and becomes free for use again.

HTTP to 30.0.0.1

Figure 2: NAT example

As illustrated above, the SpeedTouch™ NAT box has an internally configured mapping from the private IP address to a public one and vice versa. It is transparent for NAT whether this table information is persistent or not.

Important to notice is that 30.0.0.1 thinks he receives a message from 20.0.0.1 instead of 192.168.0.1. So NAT hides the original originator.

PAT PAT only changes the port number (TCP or UDP) of the packet. In most cases PAT is

used in combination with NAT. When NAT and PAT are used together, this is called NAPT.

A common practise is that for outgoing packets the source port number is changed and for incoming packets it will be the destination port.

PAT is also used when a service is not running on the default internal port. E.g. webs er vice on port 8080 instead of 80. This will be explained later on in this document.

Public

SpeedTouch

192.168.0.1 192.168.0.254

20.0 .0.1 30.0 .0.1

Private Public

192.168.0.1 20.0.0.1

Src : 192.168 .0.1 Dst : 30.0.0.1

Src : 20.0.0.1 Dst : 30.0.0.1

Src : 30. 0.0. 1 Ds t: 20. 0.0. 1

Src : 30.0.0.1 Dst : 192.168 .0.1

NAT, PAT and NAPT

E-NIT-CTC-20040716-0004 v1.0

NAPT Network Address & Port Translation (NAPT) is the most popular form of address

translation. It is used almost exclusively by access devices designed to hide small-tomedium sized networks behind a single public IP address. NAPT works by translating the source IP address and the source port number on the public interface.

HTTP 30.0.0.1

Figure 3: NAPT example

In case a HTTP session is initiated which has to pass the NAPT enabled box, both the source IP address and source port number will be translated for outgoing packets. For incoming connections (belonging to the outgoing connections), the destination IP address and port number will be changed.

Figure 4: NAPT for multiple hosts (share the same IP address)

Suppose that two hosts want to share one common IP address. For outgoing traffic there will be no issue: both the IP addresses “192.168.0.1” and “192.168.0.2” are translated into this same IP address. But, as soon as packets come back (incoming), the NAPT box has to know to which of the two 192.168.0.x addresses the address translation needs to be performed.

This is where port translation comes into action: the destination port number in the incoming packet will be used as input to decide to which of the 192.168.0.x addresses to translate the address.

` `

Public

192.168.0.1 192.168.0.254

20.0.0.1 30.0.0.1

Private Pub lic

192.168.0.1/600 20.0.0.11/1025

SpeedTouch

NAPT enabled

Src : 192.168 .0.1/600 Dst : 30.0.0.1 /80

Src : 20.0.0. 1/1025 Dst : 30.0.0. 1/80

Src : 30.0.0.1 /80 Dst : 20.0.0.1 /1025

Src : 30.0.0.1 /80 Dst : 192.168 .0.1/600

Public

192.168.0.1

30.0.0.1

Private Public

192.168.0.1/734 20.0 .0.1/403

20.0. 0.1/908192.168.0.2/521

192.168.0.2

192.168.0.254

20.0.0.1

SpeedTouch

NAPT enabled

Dynamic versus static address translation

E-NIT-CTC-20040716-0004 v1.0

3 Dynamic versus static address translation

Address translation per

interface

Figure 5: Address translation per interface

Typically several public IP addresses can be assigned to one network device that gives access to the public network. The routing logic of the network device will decide to which interface a packet coming from the private network needs to be send. For each interface to the public network, it’s possible to activate or deactivate address translation. In the SpeedTouch™, interfaces can be enabled in three modes:

 Disabled: no address translation on the interface.

 Enabled: address translation is enabled, but when there is no address

translation map, the packet is dropped.

 Transparent: address translation is only performed when there is a address

translation map defined.

This last one has nothing to do with transparent NAT, but with the behaviour of the interface.

When a packet arrives at the NAT module and a address translation map is found, the packet will be translated when the interface is in enabled or transparent mode. If there is no address translation map found, the packet will be dropped in enabled mode but passed in transparent mode. The NAT module becomes transparent as it were.

Inbound/outbound

connections

An address translation map is used for mapping one or more private IP addresses into one or more public IP addresses on a specific interface.

Private Public

SpeedTouch

Network A Network B

Inbound connections

Outbound connections

SpeedTouch

NAT enabled

interface

Dynamic versus static address translation

E-NIT-CTC-20040716-0004 v1.0

Figure 6: Inbound/outbound connections

All connections, leaving from an interface where NAT is enabled are called outbound

connections.

Connections arriving on the NAT enabled interface are called inbound connections.

Dynamic address

translation

Outgoing connections typically use dynamic address translation. For example a connection initiated from IP address X in the private network will be translated into public IP address Y on an enabled public interface. This mapping will be added dynamically in an internal table of the device and will exist only for the lifetime of that connection.

This also implies that, when resetting the device, this dynamic – non-persistent – table entry will be lost. It is necessary to enable address translation on a public interface to take profit of this dynamic translation.

Static address

translation

Connections initiated from the public network (so called incoming connections) make use of static address mapping. An incoming initiator packet will need to pass the static address translation table before being forwarded to the private network. This information is non-volatile and needs to be configured in advance. Different configuration flavours exist to configure this static mapping (individual, template, default) and will be discussed further on in the document.

Applicability of address

translation

Address translation is used in case:

 Multiple private hosts access a public network through the same gateway

(single public address on the gateway).

 The inside address is not routable on the outside network.

 The user wants to prevent the inside address(es) from outside attacks.

 The user wants to avoid network renumbering when changing service

provider.

 The user wants to make servers accessible from the outside network.

Netwo rk A Netwo rk B

Outbound connections

Inbound connections

SpeedTouch

NAT enabled

interface

Address translation flavours

E-NIT-CTC-20040716-0004 v1.0

4 Address translation flavours

Introduction Network Address Translation is a method by which IP addresses are mapped from

one address realm to another, providing transparent routing to end hosts.

Several flavours of network address translation transforms can be defined depending on the relationship between inside IP addresses and outside IP addresses.

Topi c Pag e

4.1 Traditional or outbound address translation 16

4.2 Two-Way NAT 19

4.3 N-N NAT 20

4.4 M-N NAT or Multi NAT 21

4.5 Transparent NAT 22

4.6 Port range shifting 23

4.7 Translation templates 24

Traditional or outbound address translation

E-NIT-CTC-20040716-0004 v1.0

4.1 Traditional or outbound address translation

Introduction Traditional NAT (sometimes referred to as outbound address translation) is the most

common method of using address translation. Its primary use is to translate private addresses to legal addresses for use in a public network. When configured for dynamic operation, hosts within a private network can initiate access to the public network. On the contrary external nodes on the outside network will not be able to access the private network.

Two types of traditional NAT exist — basic NAT and NAPT.

Basic NAT

E-NIT-CTC-20040716-0004 v1.0

4.1.1 Basic NAT

Introduction With Basic NAT, a block of public addresses are set aside for translating addresses of

hosts in a private domain as they originate sessions to the public domain.

Basic NAT involves only address translation, no port mapping is done. This requires an external IP address for each simultaneous connection.

Basic NAT example

Figure 7: Basic NAT example

Host 192.168.0.1 sends a packet to the Web server 30.0.0.1. As soon as the packet is processed by the SpeedTouch™ its source IP address is translated into the outside IP address 20.0.0.1 and forwarded to the Web server.

Basic NAT is the least secure translation method. By not defining the translation to the port level, and accepting return information on any port, basic NAT can leave private hosts open to port access.

Public

192.168.0.1

192.168.0.254

20.0.0.1 30.0.0.1

Src IP

192.168.0.1

Des t IP

30. 0.0.1

Src port

5500

Dest port

Src IP

20.0.0.1

Dest IP

30.0.0.1

Src port

5500

Dest port

Src IP

30.0.0.1

Des t IP

192.168.0.1

Src port

Dest port

5500

Src IP

30.0.0.1

Dest IP

20.0.0.1

Src port

Dest port

5500

NAT box Internal Mappings

Inside IP

192.168.0.1

192.168.0.2

Ouside IP

20.0.0.1

20.0.0.2

Des t. IP

30.0.0.1

192.168.0.2

SpeedTouch

NAT enabl ed

Network Address Port Translation (NAPT)

E-NIT-CTC-20040716-0004 v1.0

4.1.2 Network Address Port Translation (NAPT)

Introduction NAPT extends the notion of translation one step further by also translating the

transport identifier (For example TCP and UDP port numbers, ICMP query identifiers). NAPT allows a set of hosts to share one single public address. Note that NAPT can be combined with Basic NAT so that a pool of public addresses are used in conjunction with port translation.

NAPT example

Figure 8: NAPT example

Host 192.168.0.1 and 192.168.0.2 both send a packet to the Web server 30.0.0.1. The SpeedTouch™ translates the inside IP addresses into the outside IP address

20.0.0.1.

For returning packets, the SpeedTouch™ needs to know to which 192.168.0.x address the translation needs to be performed, that’s why the SpeedTouch™ also translates the source port numbers.

Public

192.168.0.2

192.168.0.254

20.0.0.1 30.0.0.1

Src IP

192.168.0.1

Dest IP

30.0.0.1

Src port

5500

Dest port

Src IP

20.0.0.1

Des t IP

30.0.0.1

Src port

2013

Dest port

Src IP

192.168.0.2

Dest IP

30.0.0.1

Src port

5500

Dest port

Src IP

20.0.0.1

Des t IP

30.0.0.1

Src port

4013

Dest port

192.168.0.1

NAT box Internal Mappings

Inside IP Insid e Po rt

Outsid e

Port

192.168.0.1 5500 2013

Dest.

Port

192.168.0.2 5500 4013 80

Ousid e IP

20.0. 0.1

Des t. IP

30.0.0.1

SpeedTouch

NAT enabl ed

Two-Way NAT

E-NIT-CTC-20040716-0004 v1.0

4.2 Two-Way NAT

Introduction Traditional NAT is designed to handle only outbound transactions; clients on the local

network initiate requests and devices on the Internet send back responses. However, in some circumstances, we may want to go in the opposite direction. That is, we may want to have a device on the outside network initiate a transaction with one on the inside. To permit this, we need a more capable type of NAT. This enhancement goes by various names, most commonly Bidirectional NAT, Two-Way NAT and Inbound NAT. All of these convey the concept that this kind of NAT allows both the type of transaction we saw in the previous topic and also transactions initiated from the outside network

Two-way NAT example

Figure 9: Two-Way NAT example

Host 30.0.0.1 wants to make a connection to the Web server 192.168.0.1 on the private network.

There’s a static mapping in the SpeedTouch™ which maps the private IP address

192.168.0.1 to 20.0.0.1. Host 30.0.0.1 knows IP address 20.0.0.1 and sends the packet to the SpeedTouch™. The SpeedTouch™ translates the outside address

20.0.0.1 to the inside address 192.168.0.1 and forwards the packet.

Public

192.168.0.1 192.168.0.254

20.0.0.1 30.0.0.1

SpeedTouch

Src IP

30 .0.0. 1

Dest IP

192.168.0.1

Src port

5500

Dest port

Src IP

30.0.0.1

Des t IP

20.0.0.1

Src port

5500

Dest port

Src IP

192.168.0.1

Dest IP

30.0.0.1

Src port

Dest port

5500

Src IP

20.0.0.1

Des t IP

30.0.0.1

Src port

Dest port

5500

20.0. 0.1: stati c dest. address

NAT box Internal Mappings

Inside IP Insid e Po rt

Outsid e

Port

192.168.0.1 5500 5500

Dest.

Port

Ousid e IP

20.0. 0.1

Des t. IP

30.0.0.1

NAT enabl ed

N-N NAT

E-NIT-CTC-20040716-0004 v1.0

4.3 N-N NAT

Introduction N-N NAT is the generalization of Two-Way NAT or Basic NAT.

A chosen range of inside hosts (N inside IP addresses) can be mapped to an equivalent range of outside IP addresses (N outside IP addresses) for inbound and outbound traffic.

M-N NAT or Multi NAT

E-NIT-CTC-20040716-0004 v1.0

4.4 M-N NAT or Multi NAT

Introduction A chosen set of inside hosts (M inside IP addresses) can be mapped to a set of

outside IP addresses (N outside IP addresses) for outbound traffic only. This feature is called Many-to-Few NAT: M-N NAT (with M > N).

Multi NAPT example

Figure 10: Multi NAT example

A pool of public addresses is used. The first host that wants to make a connection to the public network gets the first address of the pool. The second host gets the second address of the pool and so on.

Public

192.168.0.2

192.168.0.254

20.0.0.1

30.0.0.1

Src IP

192.168.0.1

Dest IP

30.0.0.1

Src port

5500

Dest port

Src IP

20.0.0.1

Des t IP

30.0.0.1

Src port

5500

Dest port

Src IP

192.168.0.2

Dest IP

30.0.0.1

Src port

5500

Dest port

Src IP

20.0.0.2

Des t IP

30.0.0.1

Src port

5500

Dest port

192.168.0.1

POOL:

20.0. 0.1-20.0.0 .4

NAT box Internal Mappings

Inside IP

192.168.0.1

192.168.0.2

Ouside IP

20.0.0.1

20.0.0.2

Des t. IP

30.0.0.1

SpeedTouch

NAT enabl ed

Transparent NAT

E-NIT-CTC-20040716-0004 v1.0

4.5 Transparent NAT

Introduction First of all there is a difference between Transparent NAT and Transparent Interface.

For more information on Transparent Interface see “ Address translation per

interface” on page 13

Transparent NAT translates an inside address into the same outside IP address. In fact, no translation happens and the IP packets passing through the SpeedTouch™ remains untouched.

Transparent NAT

example

Figure 11: Transparent NAT example

Host 20.0.0.1 receives the same address as the outside public IP address. In fact there is no translation.

The SpeedTouch™ just forwards the packets.

The

The applicability of transparent NAT is explained in section

“6.3.5 Transparent NAT” on page 46

Public

20.0.0.1 20.0.0.254

20.0.0.1 30.0.0

SpeedTouch

Src IP

20.0.0.1

Dest IP

30.0.0.1

Src port

5500

Dest port

Src IP

20.0.0.1

Dest IP

30.0.0.1

Src port

5500

Dest p

Src IP

30.0.0.1

Dest IP

20.0.0.1

Src port

Dest port

5500

Src IP

30.0.0.1

Dest IP

20.0.0.1

Src port

Dest p

550

NAT box Internal Mappings

Inside IP

20.0.0.1

Ouside IP

20.0.0.1

NAT enabled

Port range shifting

E-NIT-CTC-20040716-0004 v1.0

4.6 Port range shifting

Introduction For inbound traffic, port shifting allows to shift a UDP/TCP outside port range to a

UDP/TCP inside port range.

Port range shifting is used in case:

 Multiple private hosts serving the same service must be accessible from

the outside network.

 A well-known port for a service must be hidden from the outside network.

Port range shifting

example

Figure 12: Port range shifting example

In the first entry listed in the address translation table (NAT box Internal Mappings), the outside port 25 is mapped to inside port 25. So there’s no change.

In the second entry outside port 8080 is mapped to inside port 80. This is to hide the Web service from the outside network.

Public

192.168.0.2

192.168.0.1

20.0.0.1 30.0.0.1

SpeedTouch

Src IP

30.0.0.1

Dest IP

192.168.0.1

Src port

9483

Dest port

Src IP

30.0.0.1

Dest IP

20.0.0 .6

Src port

9483

Dest port

Src IP

30.0.0.1

Dest IP

192.168.0.2

Src port

5098

Dest port

Src IP

30.0.0.1

Dest IP

20.0.0 .6

Src port

5098

Dest port

8080

192.168.0.1

20.0.0.6: port forw arding address

NAT box Internal Mappings

Inside IP

Inside Port

Outside

Port

192.168.0.1

192.168.0.2

8080

Ouside IP

20.0.0.6

PAT enabled

Translation templates

E-NIT-CTC-20040716-0004 v1.0

4.7 Translation templates

Introduction Life is easy and nice in case the interface on the public network has a permanently

assigned IP address. However, what to do with public interfaces which have a dynamically assigned IP address. For example in the case of PPPoA, 50.0.0.1 can change to 50.0.0.x the next time the dial-up connection is established.

In order to still be able to configure incoming connections for these types of interfaces, the concept of templates is available.

A template assigns a wildcard (0.0.0.x) to the IP address of the public interface. When a PPP session is established, the wildcard is replaced by the effectively dynamically assigned IP address of the PPP interface.

Translation template

example

Figure 13: Template example

The first entry listed in the address translation table (NAT box Internal Mappings) is the template we created and is persistently stored. The second one is a temporary entry which was added to the PPP setup, it is an “instance” of the template. This instance is now a fully functional static address mapping entry with a lifetime equal to the lifetime of the PPP connection.

Public

192.168.0.1

192.168.0.254

50.0.0.12 50.0.0.

SpeedTouch

Src IP

50.0.0.200

Dest IP

192.168.0.1

Src port

Dest port

5500

Src IP

50.0.0.200

Dest IP

50.0.0.12

Src port

Dest

0.0.0.1: wildcard

NAT box Internal Mappings

Inside IP Ins ide Port

Outside

Port

192.168.0.1 5500 2013

Ouside IP

0.0.0.1

50.0.0.12

Des t. IP

50.0.0.200

NAT enabled

Application level gateways

E-NIT-CTC-20040716-0004 v1.0

5 Application level gateways

Introduction Some of the advanced protocols or applications have more complicated requirements

than other traditional ones and lead to significant problems when deployed in concert with NAT implementations.

The main structural issues that lead to NAT-unfriendly situations are:

Bundled session

applications

Some advanced applications use several connections for a single call. They exchange IP address and port parameters within control sessions to establish the subsequent data sessions. Address translation engines cannot know the inter-dependency of the bundled sessions and would treat each session as to be unrelated to another one.

As examples,

 H.323 uses two Transmission Control Protocol (TCP) connections and

several User Datagram Protocol (UDP) sessions for a single call.

 A SIP call may use a TCP control connection or several UDP sessions for

data transfer.

 In the FTP protocol, the control messages and the data transfer use

entirely separate TCP connections.

 During an RTSP session, an RTSP client may open and close several

sessions to the server to issue RTSP requests.

Use of ephemeral

(dynamic and greater

than 1024) ports in the

connection call setup

process

As examples,

 H.323 protocol: the H.245 and the RTP connections use ephemeral ports.

 SIP protocol: the RTP connection use momentary ports.

Included IP address and

port information within

the packet payload

Address translation doesn’t typically decode and process payload fields so those applications would fail because of address translation.

As examples,

 H.323 & SIP protocols have addressing information for the data

connections buried in the control packets payload.

 Internet Locater Service (ILS): the ILS logins, carried in the packet

payload, conclude the source IP address of the caller.

 FTP: the FTP layer 3 connection addressing is embedded within the

payload of a control packet (‘PORT’, ‘PASV’ messages).

 Internet Relay Chat (IRC) service: Commands carried over the IRC-DCC

(Direct Client To Client Protocol) connection include the IP address and the TCP port where the Acceptor client should connect to the Initiator client

 For the buildup of a RTSP session, the setup message includes the

expected UDP port for the client and the server.

 RealAudio clients set up an outgoing TCP control connection to initiate

conversation with a real-audio server. Audio session parameters, including the port number on which the incoming audio traffic will be received by the clients, are embedded in the TCP control session as byte stream.

 The IPv6-to-IPv4 protocol defines a mechanism for interconnecting IPv6

sites over an IPv4 network and its implicit tunnel setup requires that IP addressing information is carried in the IPv6 packet payload.

Application level gateways

E-NIT-CTC-20040716-0004 v1.0

Specific session

information required to

de-multiplex incoming

traffic

The following protocols can be given as examples:

 IPSec: The “SPI” field available in the ESP protocol is used to identify a

session.

 PPTP: In GREv1 frames, the “CallID” field is used as a de-multiplexing

identifier.

 6to4 protocol: The “InterfaceID” field, contained in the IPv6 header of a

packet, is used to identify each session.

For those applications, address translation is assisted by Custom Application Level Gateways (ALGs) that execute the specific processing required to provide a transparent routing solution to end hosts; the ALGs determine what kind of packet is being processed and if needed examine and adjust packet’s payload fields.

The following ALGs are embedded in the SpeedTouch™ routers; they are bound on the mentioned default ports:

For some applications working in a UPnP infrastructure, you can also rely on the UPnP NAT traversal capability of the SpeedTouch™ to support them across address translation.

UPnP NAT Traversal is a set of capabilities that allows applications to

 discover they are behind an address translation device,

 learn the outside IP address,

 and automatically configure appropriate static NAT mapping on the address

translation device so that incoming packets be properly routed back to the application.

If the host’s IP address and port are included in packet payloads, the applications also update them directly with the proper outside IP address & port. Currently, applications running on Windows platform (XP, 98, 98SE, ME) support UPnP NAT traversal.

To enable UPnP feature on the SpeedTouch™, use the following CLI command:

:connection bindlist Application Proto Portrange Flags JABBER tcp 15222 JABBER tcp 5222 FTP tcp 21 IRC tcp 6660 H323 tcp 1720 ILS tcp 1002 ILS tcp 389 RTSP tcp 554 RAUDIO(PNA) tcp 7070 CU/SeeMe udp 7648 SIP udp 5060 IKE udp 500 ESP esp 0 PPTP tcp 1723 IP6TO4 6to4 0

:system config upnp=enabled :system config upnp discovery: enabled mdap discovery: enabled drst support: enabled digest authentication: enabled

Network address translation configuration on the SpeedTouch™

E-NIT-CTC-20040716-0004 v1.0

6 Network address translation configuration on

the SpeedTouch™

Overview This chapter covers the following topics:

Network setup The following network setup will be used for all scenarios in this chapter.

Figure 14: network setup

Topi c Pag e

6.1 Configure address translation on the GUI 28

6.3 Configure NAT maps 40

6.4 Configure NAPT maps 48

6.5 Configure port shifting maps 56

6.6 Configure templates 58

192.168.0.1/24

SpeedTouch

Internet

192.168.0.254/24

20.0.0.1/8

PPPoA

192.168.0.2/24 `

30.0.0.1/8

Configure address translation on the GUI

E-NIT-CTC-20040716-0004 v1.0

6.1 Configure address translation on the GUI

Introduction This covers following topics:

 Configuring Hyper-NAT on the Web Pages

 Enable/disable address translation on an interface

 Create an address translation mapping

 Create a template

Configuring Hyper-NAT on the Web Pages

E-NIT-CTC-20040716-0004 v1.0

6.1.1 Configuring Hyper-NAT on the Web Pages

Step by step

configuration

Proceed as follows:

1 Open a web browser and browse to the SpeedTouch™ web pages at http://

speedtouch or http://192.168.1.254.

2 Switch to Expert mode

3 Browse to IP router > NAT

Enable/disable address translation on an interface

E-NIT-CTC-20040716-0004 v1.0

6.1.2 Enable/disable address translation on an interface

Step by step

configuration

Proceed as follows:

1 Select the Interfaces Menu

2 Select the Interface that has to be enabled/disabled.

3 use Save All to make the settings permanent.

Create an address translation mapping

E-NIT-CTC-20040716-0004 v1.0

6.1.3 Create an address translation mapping

Introduction An address translation map is used for mapping one or more private IP addresses into

one or more public IP address on a specific interface.

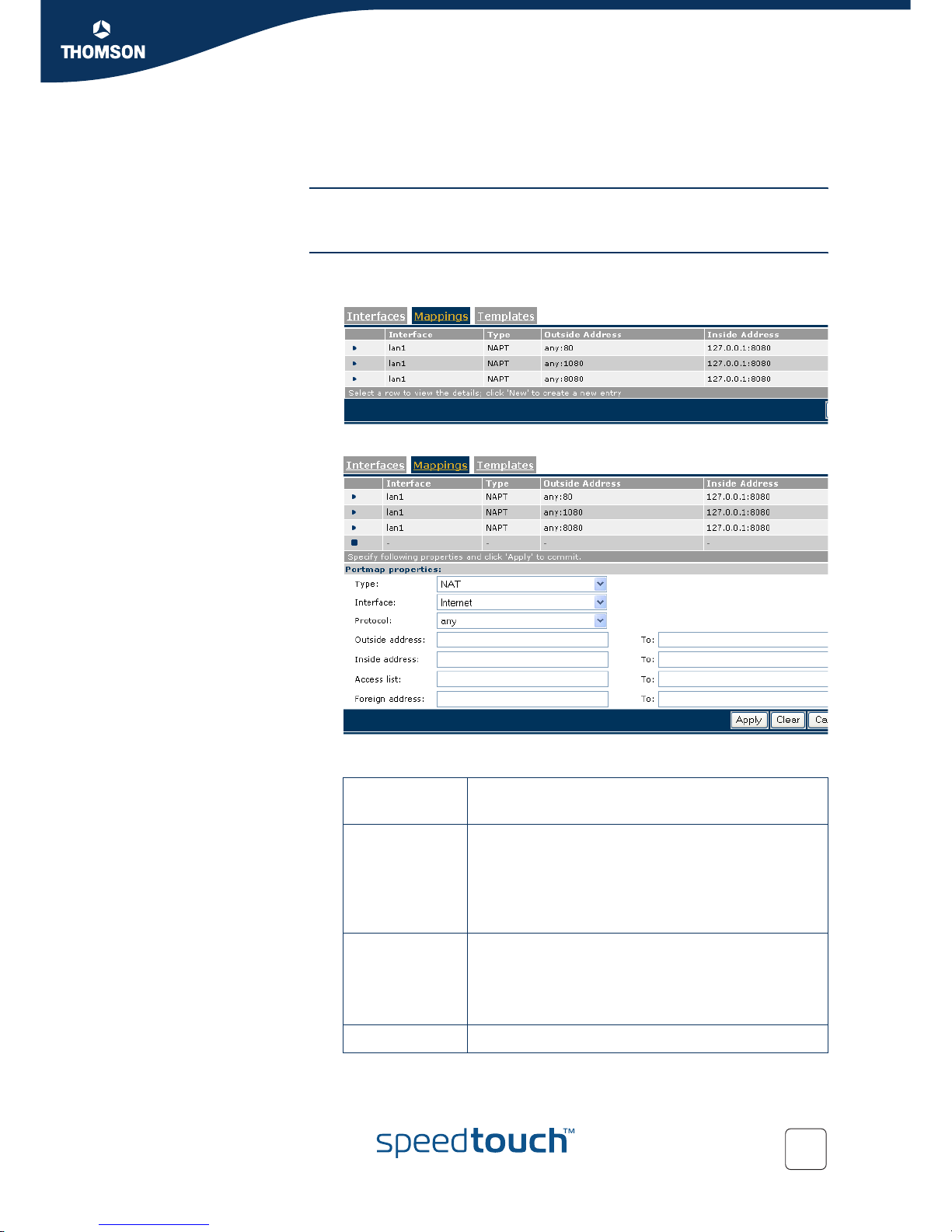

Create a NAT map Proceed as follows:

1 Select the Mappings menu and click New to create a new map

2 Select NAT from the Type list.

3 Select or fill in all required information:

Portmap properties

Description

Interface The name of the IP interface that needs to be address

translated. Note: The interface must previously have been NAT enabled, see “6.1.2 Enable/disable address translation

on an interface” on page 30.

Any interface means all interfaces.

Protocol The IP protocol on which address translation has to be

applied. Advantage: To link specific traffic (protocol dependent) to a chosen private host. Any protocol means all protocols.

Outside address The outside (typically public) IP address(es).

Create an address translation mapping

E-NIT-CTC-20040716-0004 v1.0

4 Click Apply.

Create a NAPT map Proceed as follows:

1 Select the Mappings menu and click New to create a new map

2 Select NAPT from the Type list.

3 Select or fill in all required information:

Inside address The inside (typically private) IP address(es) to enable

inbound sessions.

Access list You can use the access list to define the address (es)

that are allowed to use the outbound connections.

Foreign address The foreign address is used to define the address (es)

that are allowed to use the inbound connections.

Portmap properties

Description

Interface The name of the IP interface that needs to be address

translated. Note: The interface must previously have been enabled for address translation, see “6.1.2 Enable/disable

address translation on an interface” on page 30.

Create an address translation mapping

E-NIT-CTC-20040716-0004 v1.0

4 Click Apply.

Protocol The IP protocol on which address translation has to be

applied. Advantage: To link specific traffic (protocol dependent) to a chosen private host. Any protocol means all protocols.

Outside address

-> Portrange

The outside (typically public) IP address(es) (range). The outside port number or range.

Inside address

-> Portrange

The inside (typically private) IP address(es) (range) to enable inbound sessions. The inside port number or range.

Access list You can use the access list to define the address (es)

that are allowed to use the outbound connections.

Foreign address The foreign address is used to define the address (es)

that are allowed to use the inbound connections.

Create a template

E-NIT-CTC-20040716-0004 v1.0

6.1.4 Create a template

Create a NAT template Proceed as follows:

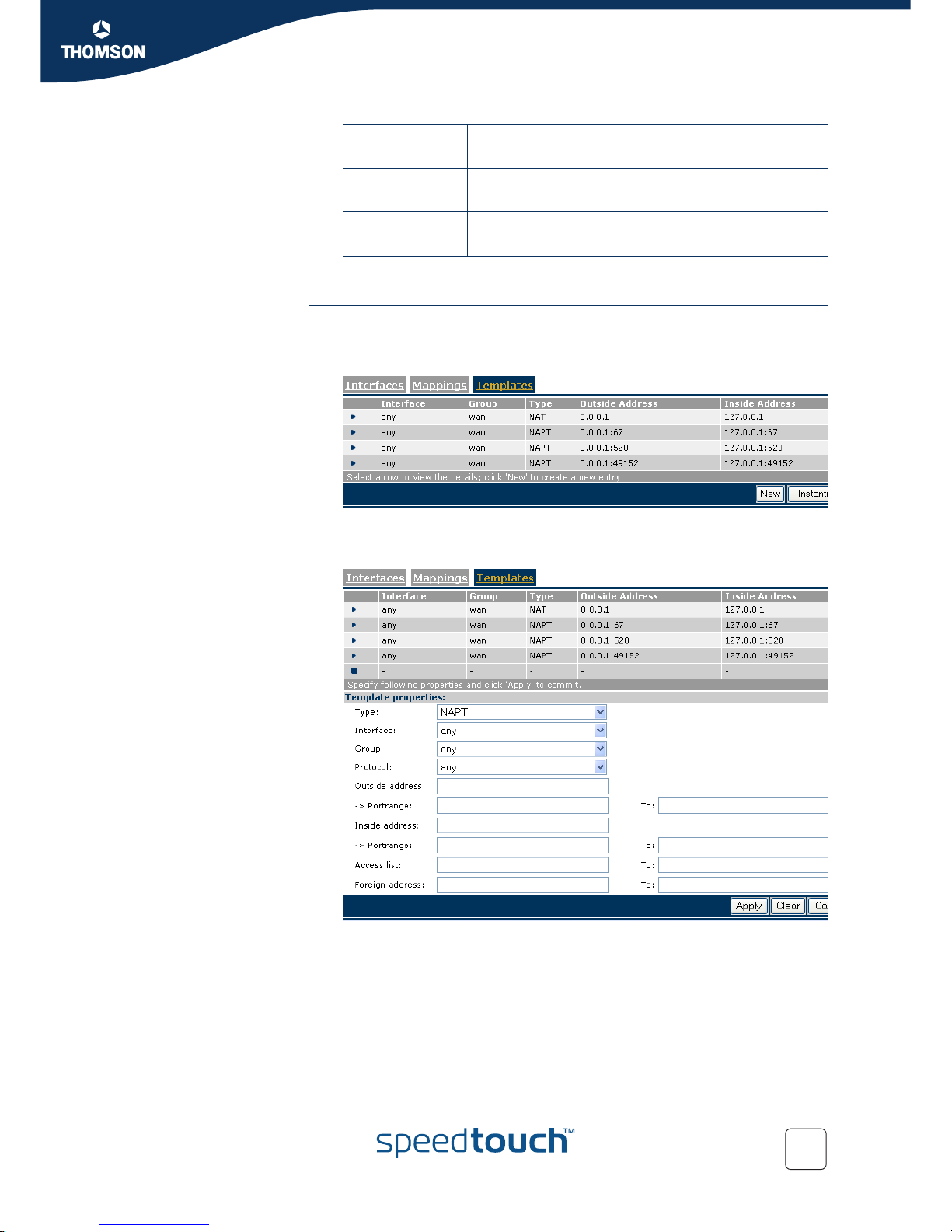

1 Select the Te mp la te s menu and click New to create a new template

2 Select NAT from the Type list.

3 Select or fill in all required information:

Portmap properties

Description

Interface The name of the IP interface that needs to be address

translated. Note: The interface must previously have been enabled for address translation, see “6.1.2 Enable/disable

address translation on an interface” on page 30.

Group The IP interface group scope for this template.

Protocol The IP protocol on which address translation has to be

applied. Advantage: To link specific traffic (protocol dependent) to a chosen private host. Any protocol means all protocols.

Outside address The outside (typically public) IP address(es) (range).

Create a template

E-NIT-CTC-20040716-0004 v1.0

4 Click Apply.

Create a NAPT

template

Proceed as follows:

1 Select the Te mp la te s menu and click New to create a new template

2 Select NAPT from the Type list.

Inside address The inside (typically private) IP address(es) (range) to

enable inbound sessions.

Access list You can use the access list to define the address(es)

that are allowed to use the outbound connections.

Foreign address The foreign address is used to define the address(es)

that are allowed to use the inbound connections.

Create a template

E-NIT-CTC-20040716-0004 v1.0

3 Select or fill in all required information:

4 Click Apply.

Portmap properties

Description

Interface The name of the interface that needs to be address

translated. Note: The interface must previously have been enabled for address translation, see “6.1.2 Enable/disable address

translation on an interface” on page 30.

Group The IP interface group scope for this template.

Protocol The IP protocol on which address translation has to be

applied. Advantage: To link specific traffic (protocol dependent) to a chosen private host. Any protocol means all protocols.

Outside address

-> Portrange

The outside (typically public) IP address(es) (range). The outside port number or range.

Inside address

-> Portrange

The inside (typically private) IP address(es) (range). The inside port number or range.

Access list You can use the access list to define the address (es) that

are allowed to use the outbound connections.

Foreign address The foreign address is used to define the address (es) that

are allowed to use the inbound connections.

Configure address translation on the CLI

E-NIT-CTC-20040716-0004 v1.0

6.2 Configure address translation on the CLI

Introduction This covers following topics:

 Configuring Hyper-NAT on the CLI

 How to enable/disable address translation on an interface

 How to create an address translation mapping

 How to create a template

Configuring Hyper-NAT

on the CLI

With the CLI command :nat help, you can see all nat commands.

:iflist shows all the interfaces and there state.

How to enable/disable

address translation on

an interface

With the command :nat ifconfig, it is possible to modify the address translation state of an interface.

nat help Following commands are available :

ifconfig : Modify address translation on an IP interface. iflist : Display all interfaces. mapadd : Add an address mapping to a nat enabled interface. mapdelete : Delete an address mapping from a nat enabled interfa ce. maplist : Display address mappings. tmpladd : Add an address mapping template. tmpldelete : Delete an address mapping template. tmpllist : Display address mapping templates. tmplinst : Instantiate address mapping templates for a given dy namic

address. config : Display/Modify global NAT configuration. flush : Flush current NAT configuration.

{Administrator}=>

=>:nat iflist Interface NAT loop disabled Internet enabled lan1 transparent wan1 enabled dmz1 disabled guest1 disabled ppp_pppoa disabled

=>:nat ifconfig intf=ppp_pppoa translation=enabled

Configure address translation on the CLI

E-NIT-CTC-20040716-0004 v1.0

How to create an

address translation

mapping

The command :nat mapadd, is used for adding address translation mappings.

How to create a

template

The command :nat tmpladd, is used for adding templates.

=>:nat mapadd intf = ppp_pppoa [type] = nat [outside_addr] = [inside_addr] = [access_list] = [foreign_addr] = [protocol] = [outside_port] = [inside_port] =

Portmap properties

Description

Interface The name of the IP interface that needs to be address

translated. Note: The interface must previously have been enabled for address translation, see “6.1.2 Enable/disable address

translation on an interface” on page 30.

Type The type of the template, NAT of NAPT.

Outside address The outside (typically public) IP address(es) (range).

Inside address The inside (typically private) IP address(es) (range).

Access list You can use the access list to define the address (es) that are

allowed to use the outbound connections.

Foreign address The foreign address is used to define the address (es) that

are allowed to use the inbound connections.

Protocol The IP protocol on which address translation has to be

applied. Advantage: To link specific traffic (protocol dependent) to a chosen private host. Any protocol means all protocols.

Outside port The outside port number or range.

Inside port The inside port number or range.

=>:nat tmpladd [intf] = ppp_pppoa [group] = [timeout] = [type] = [outside_addr] = 0.0.0.1 [inside_addr] = [access_list] = [foreign_addr] = [protocol] = [outside_port] = [inside_port] =

Configure address translation on the CLI

E-NIT-CTC-20040716-0004 v1.0

Portmap properties

Description

Interface The name of the IP interface that needs to be address

translated. Note: The interface must previously have been enabled for address translation, see “6.1.2 Enable/disable address

translation on an interface” on page 30.

Group The IP interface group scope for this template.

Timeout The lifetime for the template.

Type The type of the template, NAT of NAPT.

Outside address The outside (typically public) IP address(es) (range).

Inside address The inside (typically private) IP address(es) (range).

Access list You can use the access list to define the address (es) that are

allowed to use the outbound connections.

Foreign address The foreign address is used to define the address (es) that

are allowed to use the inbound connections.

Protocol The IP protocol on which address translation has to be

applied. Advantage: To link specific traffic (protocol dependent) to a chosen private host. Any protocol means all protocols.

Outside port The outside port number or range.

Inside port The inside port number or range.

Configure NAT maps

E-NIT-CTC-20040716-0004 v1.0

6.3 Configure NAT maps

Introduction This section explains the configuration of the different NAT maps.

General remarks Depending on the NAT flavour some configuration information is mandatory other

not.

In this chapter we put the mandatory information in emphasis.

The following information is always mandatory:

 Interface

 Outside address

Not mandatory information is:

 Protocol

When selecting a protocol, then the map will only have affect for that protocol.

 Access list

You can use the access list to define the address (es) that are allowed to use the outbound connections.

 Foreign address

Foreign address is to define the address (es) that are allowed to use the inbound connections.

Topi c Pag e

6.3.1 Basic NAT 41

6.3.2 Two-Way NAT 42

6.3.3 N-N NAT 43

6.3.4 Multi NAT 44

6.3.5 Transparent NAT 46

If you leave protocol, access list or foreign address empty. This means that every protocol (for protocol field) or every IP address (es) (access list, foreign address) is valid.

Basic NAT

E-NIT-CTC-20040716-0004 v1.0

6.3.1 Basic NAT

Introduction Prerequisites:

 Outbound: An inside host address (source address) is translated into an outside

address.

 Inbound: No traffic can be initiated.

GUI Create a new NAT map and fill in the required information.

The NAT map will be mapped when an inside host (within the access list) connects to an outside host. Only one inside host can use the NAT map at the same time.

CLI

Portmap property

Value

Interface ppp_pppoa

Protocol any

Outside address 20.0.0.1 (the public IP you have)

Access list Define IP address (es) or leave empty.

=>:nat mapadd intf=ppp_pppoa type=nat outside_addr=20.0.0.1

Two-Way NAT

E-NIT-CTC-20040716-0004 v1.0

6.3.2 Two-Way NAT

Introduction Prerequiresites:

 Outbound: An inside host address (source address) is translated into an outside

address.

 Inbound: An outside address (destination address) is translated into an inside

host address.

GUI Create a new NAT map and fill in the required information.

Traffic can be initiated from the inside address 192.168.1.64 or from any outside address.

CLI

Traffic can initiated inbound and outbound.

Specifying an inside address is allowing inbound connections.

Portmap properties

Value

Interface ppp_pppoa

Protocol any

Outside address 20.0.0.1 (the public IP you have)

Inside address 192.168.1.64 (Define the IP address, to use for inbound

connections)

Access list Define IP address (es) or leave empty.

Foreign address Define IP address (es) or leave empty.

This is in fact the same as N to N NAT with N equals to one.

=>:nat mapadd intf=ppp_pppoa type=nat outside_addr=20.0.0.1 inside_addr

192.168.1.64

N-N NAT

E-NIT-CTC-20040716-0004 v1.0

6.3.3 N-N NAT

Introduction Prerequisites:

 Outbound: A set of inside host addresses (source addresses) are translated into

a set of outside addresses.

 Inbound: A set of outside addresses (source addresses) are translated into a set

of inside host addresses.

GUI Create a new NAT map and fill in the fields.

The NAT map will be mapped when an inside/outside host connects to an outside/ inside host. There can only be as many connections as specified in the range. In this example there can be 2 connections.

CLI

Traffic can be initiated inbound and outbound.

N-N NAT is an extension of Two-Way NAT to multiple hosts. The number of addresses in inside address range and outside address ranges must be equal.

Portmap properties

Value

Interface ppp_pppoa

Protocol any

Outside address 20.0.0.1 to 20.0.0.2 (the public IP addresses you have)

Inside address 192.168.1.64 to 192.168.1.65

Access list Define IP address (es) or leave empty.

Foreign address Define IP address (es) or leave empty.

=>:nat mapadd intf=ppp_pppoa type=nat outside_addr=20.0.0.[1-2] inside_addr=192.168.1.[64-65]

Multi NAT

E-NIT-CTC-20040716-0004 v1.0

6.3.4 Multi NAT

Introduction Prerequisites:

 Outbound: A set of inside host addresses (source addresses) are translated into

a set of outside addresses.

 Inbound: No traffic can be initiated.

GUI Create a new NAT map and fill in the fields.

When an inside host (within the access list) connects to an outside host, the SpeedTouch™ selects an available outside address (not used for another connection yet) to allow outbound traffic. When all outside addresses are in use, no other connection is allowed to use the NAT map.

CLI

Traffic can only be initiated by an inside host.

Portmap properties

Value

Interface ppp_pppoa

Protocol any

Outside address 20.0.0.1 to 20.0.0.2 (the public IP you have)

Access list Define IP address (es) or leave empty.

=>:nat mapadd intf=ppp_pppoa type=nat outside_addr=20.0.0.[1-2]

Multi NAT

E-NIT-CTC-20040716-0004 v1.0

template instantiation



The entry with outside address 20.0.0.[1..2]: The created NAT map.

 The entry with outside address 20.0.0.1:

Inside host 192.168.1.64 makes a connection to an outside host (e.g.

30.0.0.1) The SpeedTouch™ uses the first available address 20.0.0.1 to make an outbound connection.

 The entry with outside address 20.0.0.2:

Inside host 192.168.1.65 makes a connection to an outside host (e.g.

30.0.0.1) The SpeedTouch™ uses the second available address 20.0.0.2 to make an outbound connection.

From that moment the association between internal and external IP address is made, also inbound connections can be made.

Transparent NAT

E-NIT-CTC-20040716-0004 v1.0

6.3.5 Transparent NAT

Introduction A Transparent NAT map is considered as transparent if inside and outside address

are equal. No translation is performed on packet headers. A transparent map is used in order to avoid issues with NAT unfriendly applications.

There are different transparent maps:

 Transparent Basic NAT

 Transparent Two-Way NAT

 Transparent N-N NAT

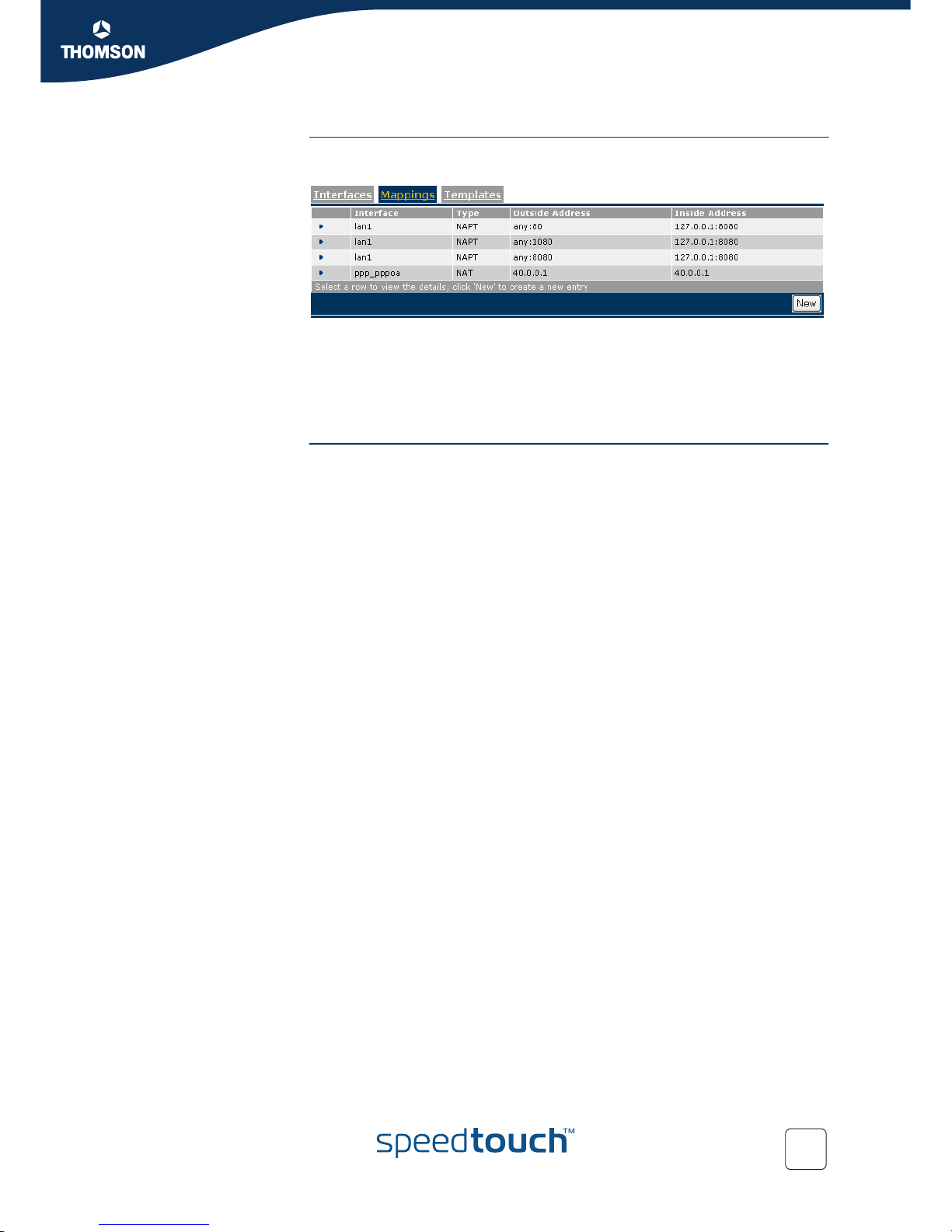

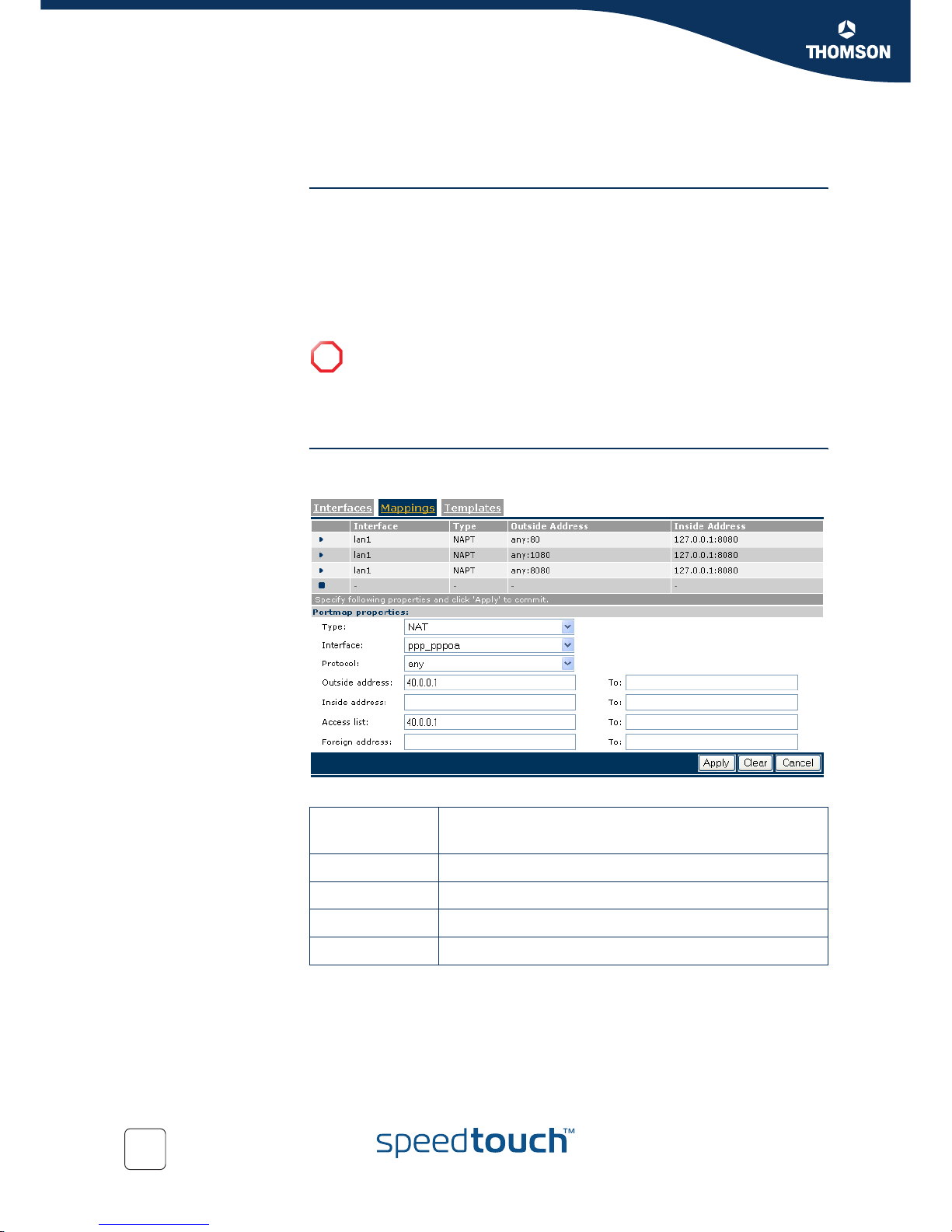

Transparent Basic NAT Create a new NAT map and fill in the fields.

Transparent Basic NAT is only for outbound sessions. In this case the access list and the outside address will be the same. For example 40.0.0.1.

Transparent Basic NAT is applicable for protocols with the host address in the payload. NAT would translate the host address, but not the payload, by which the packet becomes invalid.

For every transparent natmap it is necessary to add:

 an interface route on the SpeedTouch™ to the LAN device (inside

address).

 a proxy ARP on the SpeedTouch™, to reach the default gateway (BAS)

from the LAN device.

Portmap properties

Value

Interface ppp_pppoa

Protocol any

Outside address 40.0.0.1 (the public IP you have)

Access list 40.0.0.1

Transparent NAT

E-NIT-CTC-20040716-0004 v1.0

Transparent Two-Way

NAT

Transparent NAT is more used for inbound sessions for example to send packets to a private server with his private IP address. This to avoid re-configuration. You can do the same with N-N NAT.

Another applicability for transparent NAT is IP-passthrough, see “6.4.4 NAPT using

transparent default server and port range constraint (=IP Passthrough)” on page 52.

Transparent N-N NAT This is the same like Two-Way NAT for multiple host. The number of addresses in

inside address range and outside address ranges must be equal.

Configure NAPT maps

E-NIT-CTC-20040716-0004 v1.0

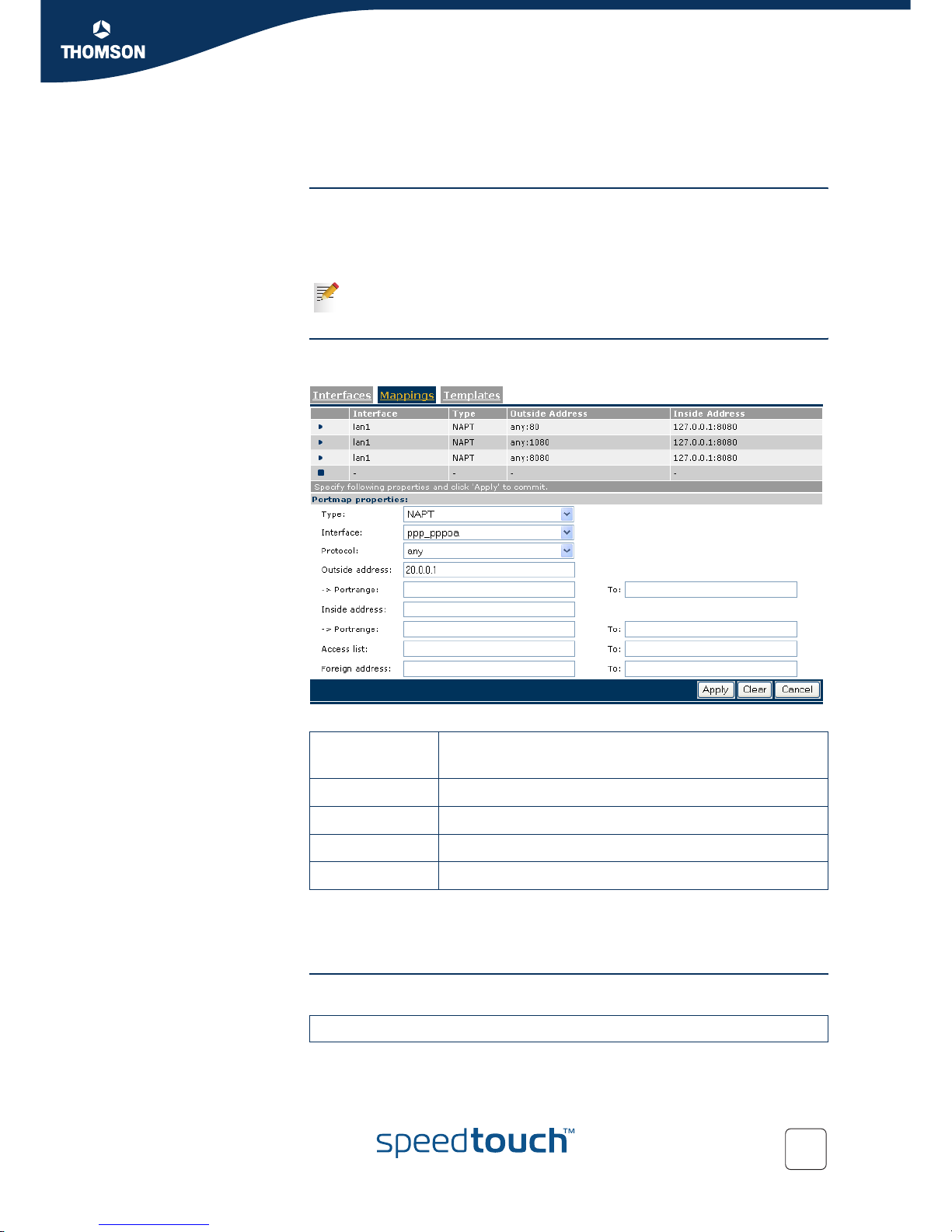

6.4 Configure NAPT maps

Introduction This section explains the configuration of the different NAT maps.

Topi c Pag e

Basic NAPT 49

6.4.2 NAPT using default server 50

6.4.3 NAPT using transparent default server 51

6.4.5 NAPT using host function 53

6.4.6 NAPT using transparent host function 54

6.4.7 NAPT using dynamic port range constraint 55

Basic NAPT

E-NIT-CTC-20040716-0004 v1.0

6.4.1 Basic NAPT

Introduction Prerequisites:

 Outbound: Inside host addresses (source addresses) are translated into the

outside address, using port translation to differentiate traffic.

 Inbound: No traffic can be initiated.

GUI Create a new NAT map and fill in the fields.

The NAPT map is mapped when an inside host (within the access list) connects to an outside host. Now all the host can use the NAPT map at the same time.

CLI

Traffic can only be initiated by an inside host.

Portmap properties

Value

Interface ppp_pppoa

Protocol any

Outside address 20.0.0.1 (the public IP you have)

Access list Define IP address (es) or leave empty.

=>:nat mapadd intf=ppp_pppoa type=napt outside_addr=20.0.0.1

NAPT using default server

E-NIT-CTC-20040716-0004 v1.0

6.4.2 NAPT using default server

Introduction Prerequisites:

 Outbound: Inside host addresses (source addresses) are translated into the

outside address, using port translation to differentiate traffic.

 Inbound: The outside address (destination address) is translated into the inside

host address (default server).

GUI Create a new NAPT map and fill in the fields.

All inbound packets received on public interface 20.0.0.1, for which no NAT context exist, will be forwarded to the default server 192.168.1.64. Outbound packets can be send from any part within the private network.

CLI

If there are many servers runner on the same computer and you don't feel like creating a long list of static translations, nat defserver is your answer, it forwards all unsolicited traffic to a single computer. Traffic can be initiated inbound and outbound.

Portmap properties Value

Interface ppp_pppoa

Protocol any

Outside address 20.0.0.1

Inside address 20.0.0.1 (address of the default server)

Access list Define IP address (es) or leave empty.

Foreign address Define IP address (es) or leave empty.

=>:nat mapadd intf=ppp_pppoa type=napt outside_addr=20.0.0.1 inside_addr 192.168.1.64

NAPT using transparent default server

E-NIT-CTC-20040716-0004 v1.0

6.4.3 NAPT using transparent default server

Introduction In configuration “6.4.1 Basic NAPT” on page 49 the inside address and outside

address might be exactly the same (strictly same address). In this case, transparent address translation applies for inbound traffic. No translation is to be made. The description of the NAPT map is ‘NAPT using transparent default server’.

This is not the most optimal NAPT configuration because there can be port overlaps.

So a better scenario is the following one.

NAPT using transparent default server and port range constraint (=IP Passthrough)

E-NIT-CTC-20040716-0004 v1.0

6.4.4 NAPT using transparent default server and port range constraint (=IP Passthrough)

GUI Create a new NAPT map and fill in the fields.

If you pass an IP address coming from a DHCP server in the WAN site, to a host in the private network, then you need a transparant NAT map to make this one available.

CLI

Portmap properties Value

Interface pppoa

Protocol any

Outside address

-> Portrange

20.0.0.1 50000 to 60000

Inside address 20.0.0.1 (address of the default server)

Access list Define IP address (es) or leave empty.

Foreign address Define IP address (es) or leave empty.

=>:nat mapadd intf=ppp_pppoa type=napt outside_addr=20.0.0.1 inside_addr 192.168.1.64 outside_port=50000-60000

NAPT using host function

E-NIT-CTC-20040716-0004 v1.0

6.4.5 NAPT using host function

Introduction In configuration “6.4.1 Basic NAPT” on page 49 the inside address might be an IP

address of the SpeedTouch™ itself. The description of the NAPT map is ‘NAPT using

host function’.

Traffic can be initiated inbound and outbound, all inbound traffic is sent to the SpeedTouch™ itself.

NAPT using transparent host function

E-NIT-CTC-20040716-0004 v1.0

6.4.6 NAPT using transparent host function

Introduction In configuration “6.4.1 Basic NAPT” on page 49 the inside address and outside

address might be an IP address of the SpeedTouch™ itself. The description of the NAPT map is ‘NAPT using transparent host function’.

Traffic can be initiated inbound and outbound, all inbound traffic is sent to the SpeedTouch™ itself.

NAPT using dynamic port range constraint

E-NIT-CTC-20040716-0004 v1.0

6.4.7 NAPT using dynamic port range constraint

Introduction Prerequisistes:

 Outbound: Inside host addresses (source addresses) are translated into the

outside address, using port translation to differentiate traffic. The dynamic port range use for translation is restricted to a chosen port range.

 Inbound: No traffic can be initiated.

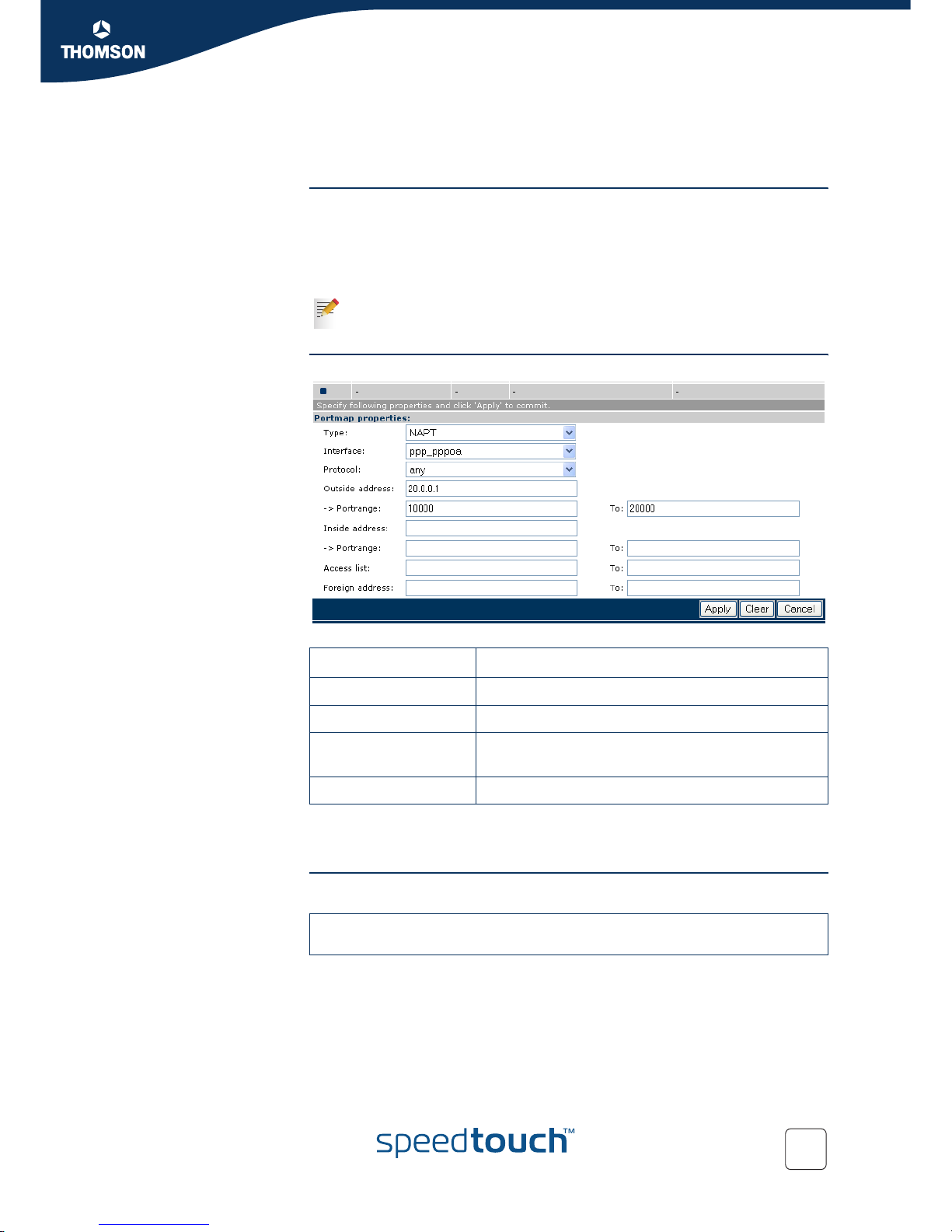

GUI Create a new NAPT map and fill in the fields.

The NAPT map will be mapped when an inside host connects to an outside host. Port translation will always be between port 10000 and 20000.

CLI

Traffic can only be initiated by an inside host.

Portmap properties Value

Interface pppoa

Protocol any

Outside address

-> Portrange

20.0.0.1 10000 to 20000

Access list Define IP address (es) or leave empty.

=>:nat mapadd intf=ppp_pppoa type=napt outside_addr=20.0.0.1 outside_port=10000-20000

Configure port shifting maps

E-NIT-CTC-20040716-0004 v1.0

6.5 Configure port shifting maps

Inbound port shifting

E-NIT-CTC-20040716-0004 v1.0

6.5.1 Inbound port shifting

Introduction This is an extension of Two-Way NAT where ports of inbound traffic are statically

translated from outside port range to inside port range. Port ranges must have the same size.

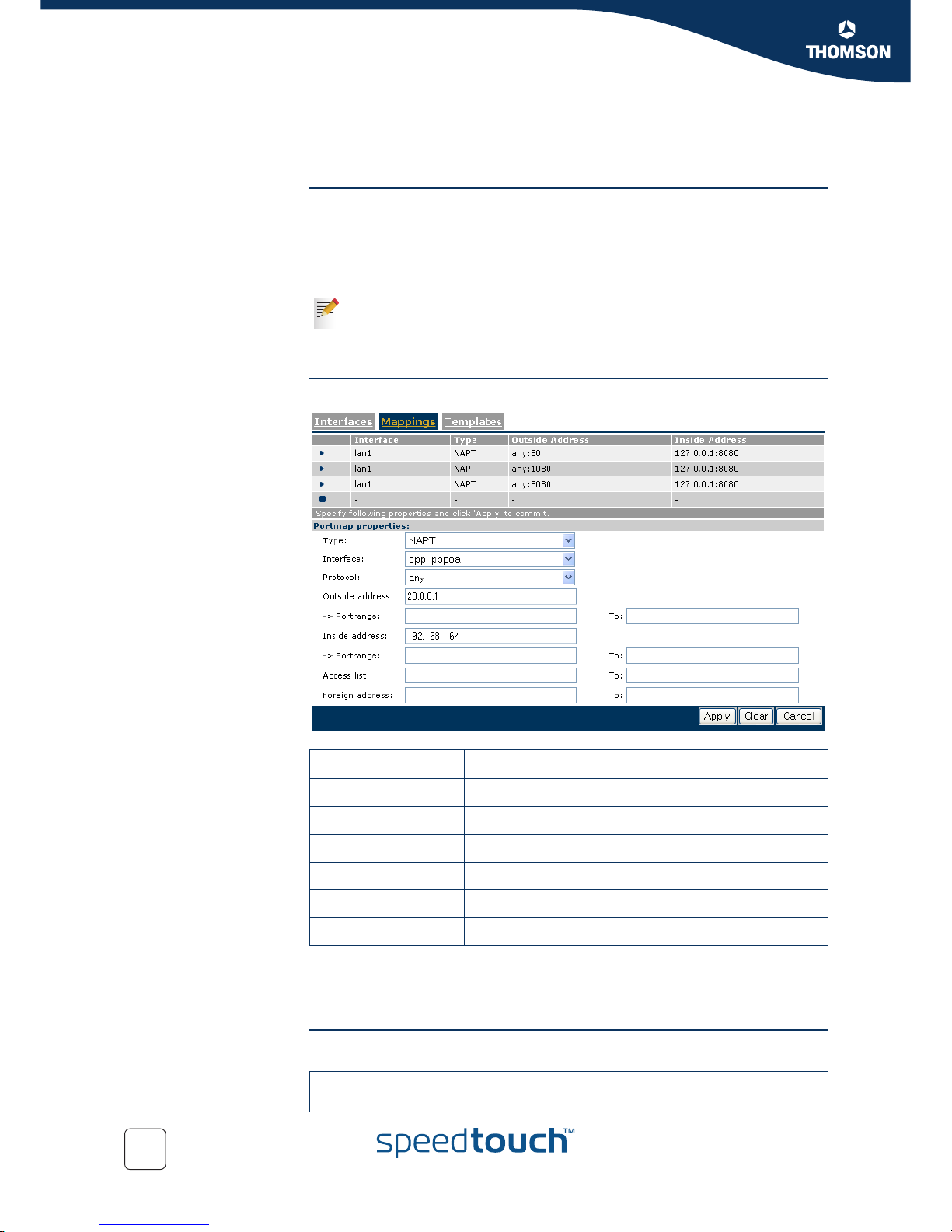

GUI Create a new NAT map and fill in the fields.

 An inbound connection to 20.0.0.1 on port 8080, will be forwarded to inside

address 192.168.1.64 on port 80

 An inbound connection to 20.0.0.1 on port 8081, will be forwarded to inside

address 192.168.1.64 on port 81.

CLI

Portmap properties Value

Interface pppoa

Protocol tcp (then address translation will only be applied on

TCP packets)

Outside address

-> Portrange

20.0.0.1 8080 to 8081 (your own choice)

Inside address

-> Portrange

192.168.1.64 80 to 81 (your own choice)

Access list Define IP address (es) or leave empty.

Foreign address Define IP address (es) or leave empty.

=>:nat mapadd intf=ppp_pppoa type=napt outside_addr=20.0.0.1 inside_addr=192.168.1.64 outside_port=8080-8081 inside_port=80-81

Configure templates

E-NIT-CTC-20040716-0004 v1.0

6.6 Configure templates

Introduction Templates are used when the public interfaces gets dynamically assigned IP address.

A template assigns a wildcard (0.0.0.x) to the IP address of the public interface.

Network setup

GUI

Create a NAT template and fill in the fields.

When a PPP connection is established, the wildcard is replaced by the dynamically assigned IP address of the PPP interface. Select the Mappings menu.

This is the automatically created NAT map, based on the template. The wildcard is replaced by the dynamically assigned IP address 101.101.101.47. Any inside address can use this mapping.

192.168.0.1

SpeedTouch

Public network

101.101.101.x

192.168.0.254

Wildcard: 0.0.0.1

PPPoA

192.168.0.2
