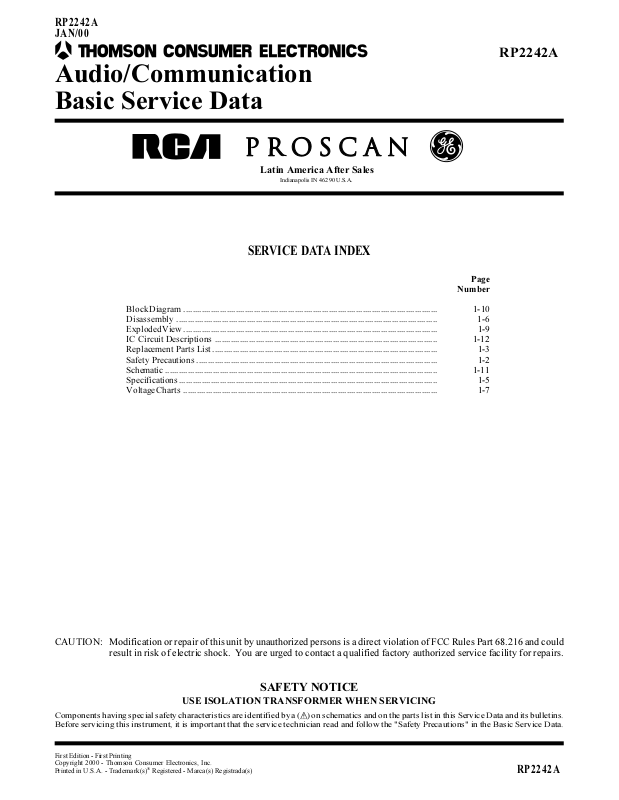

Thomson RP2242A Schematic

RP2242A
JAN/00

Audio/Communication
Basic Service Data

Latin America After Sales

Indianapolis IN 46290 U.S.A.

SERVICE DATA INDEX

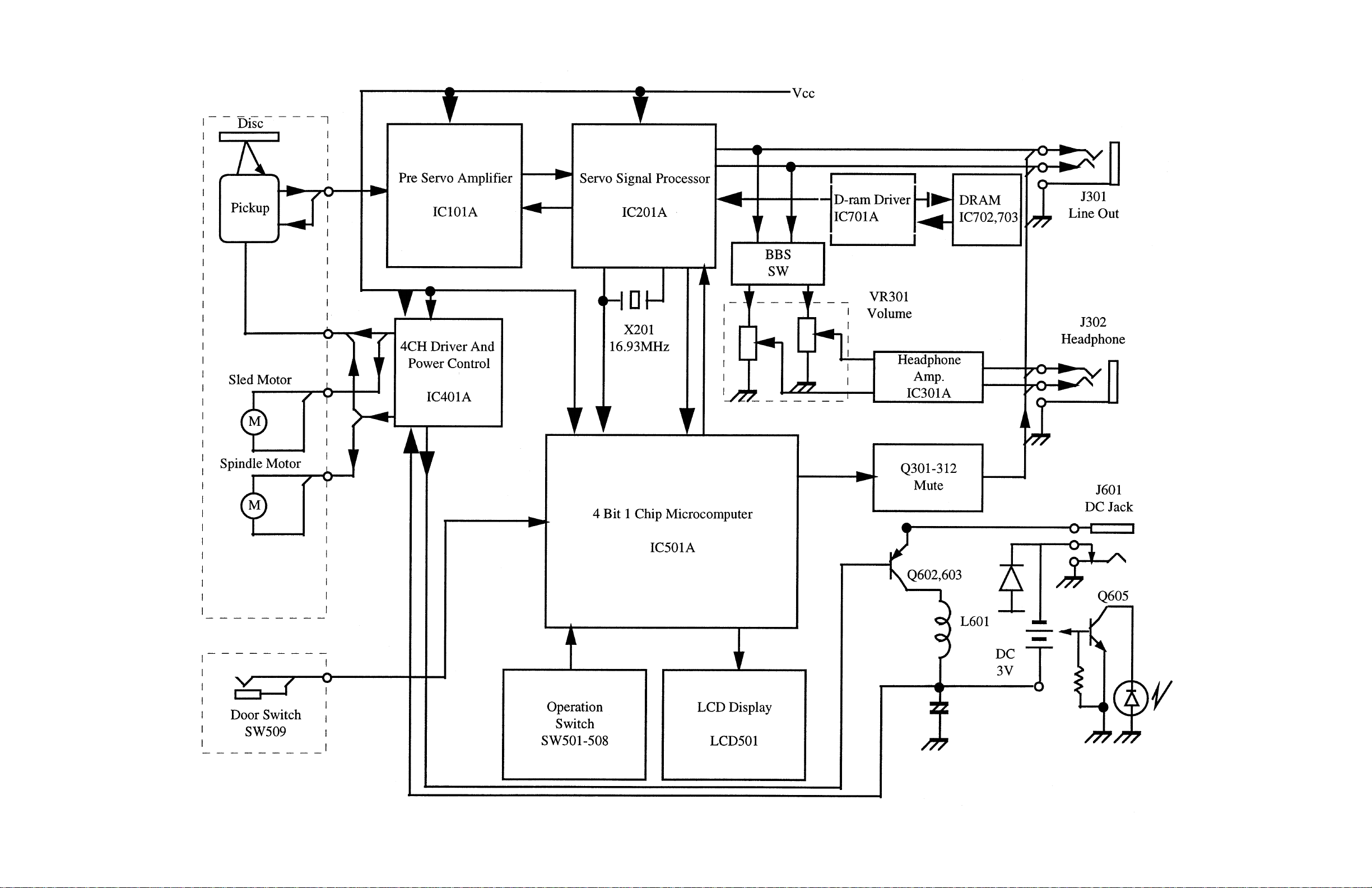

Block Diagram ................................................................................................................ 1-10

Disassembly ................................................................................................................... 1-6

Exploded View ................................................................................................................ 1-9

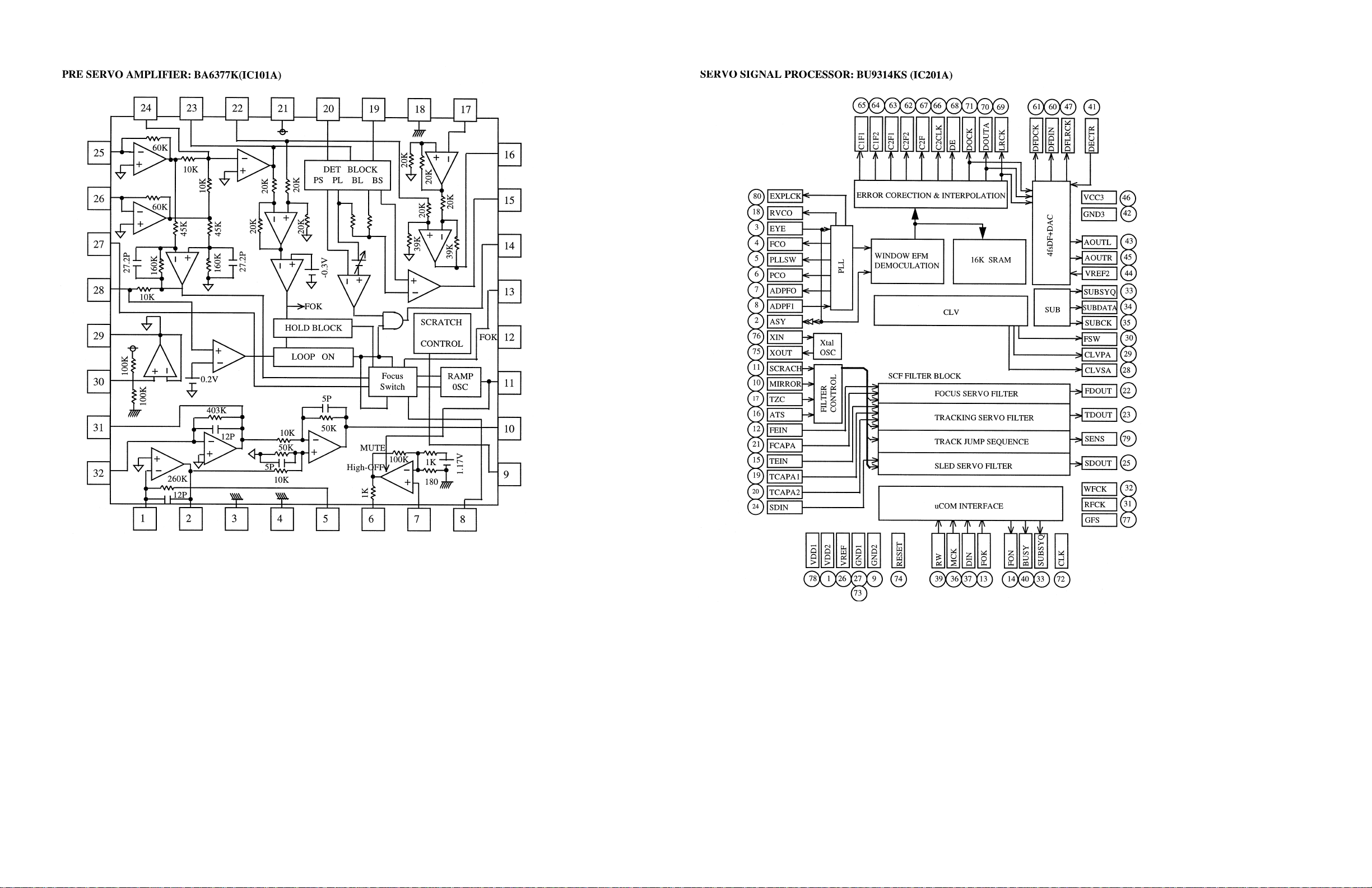

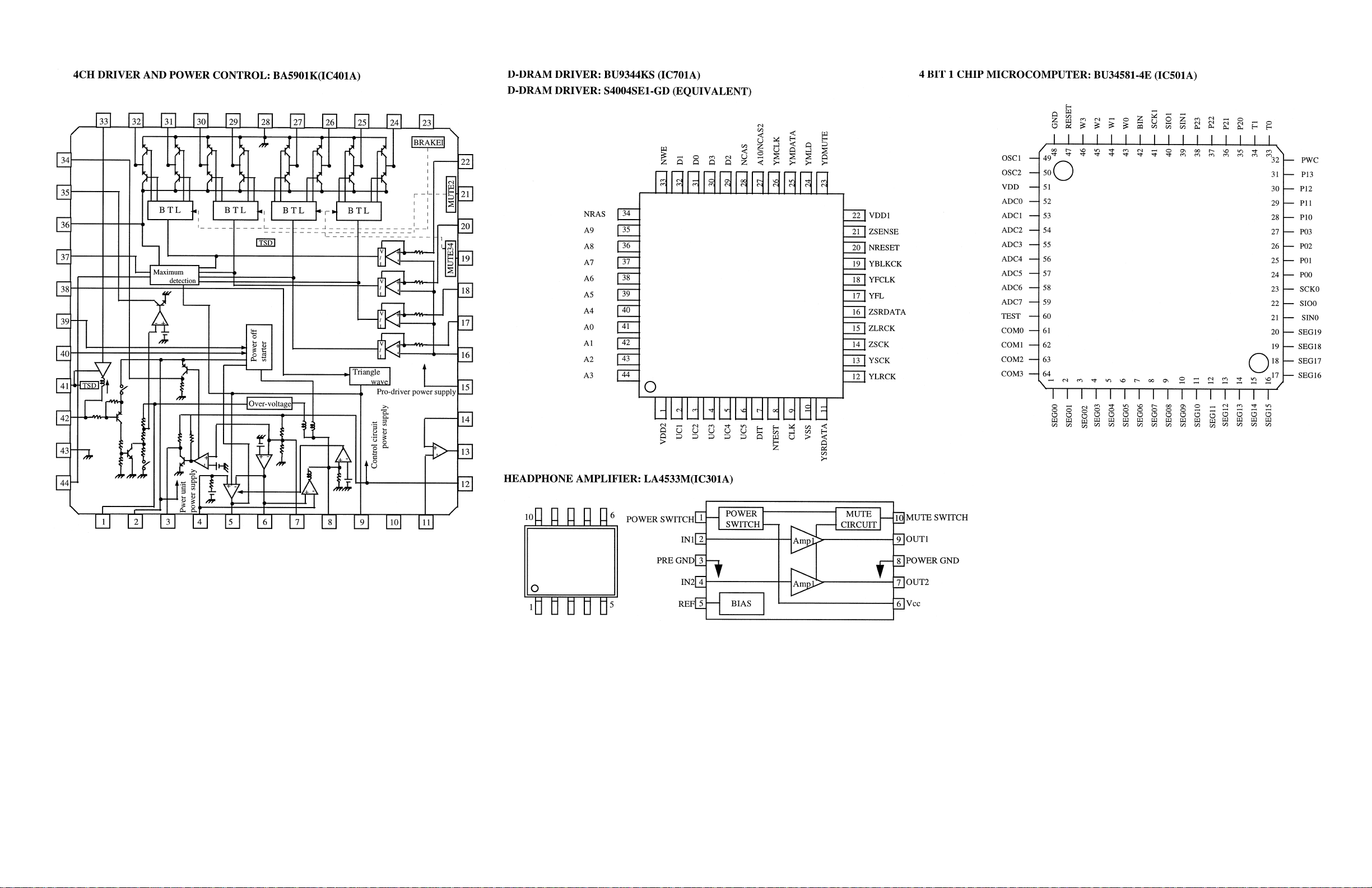

IC Circuit Descriptions .................................................................................................. 1-12

Replacement Parts List ................................................................................................... 1-3

Safety Precautions .......................................................................................................... 1-2

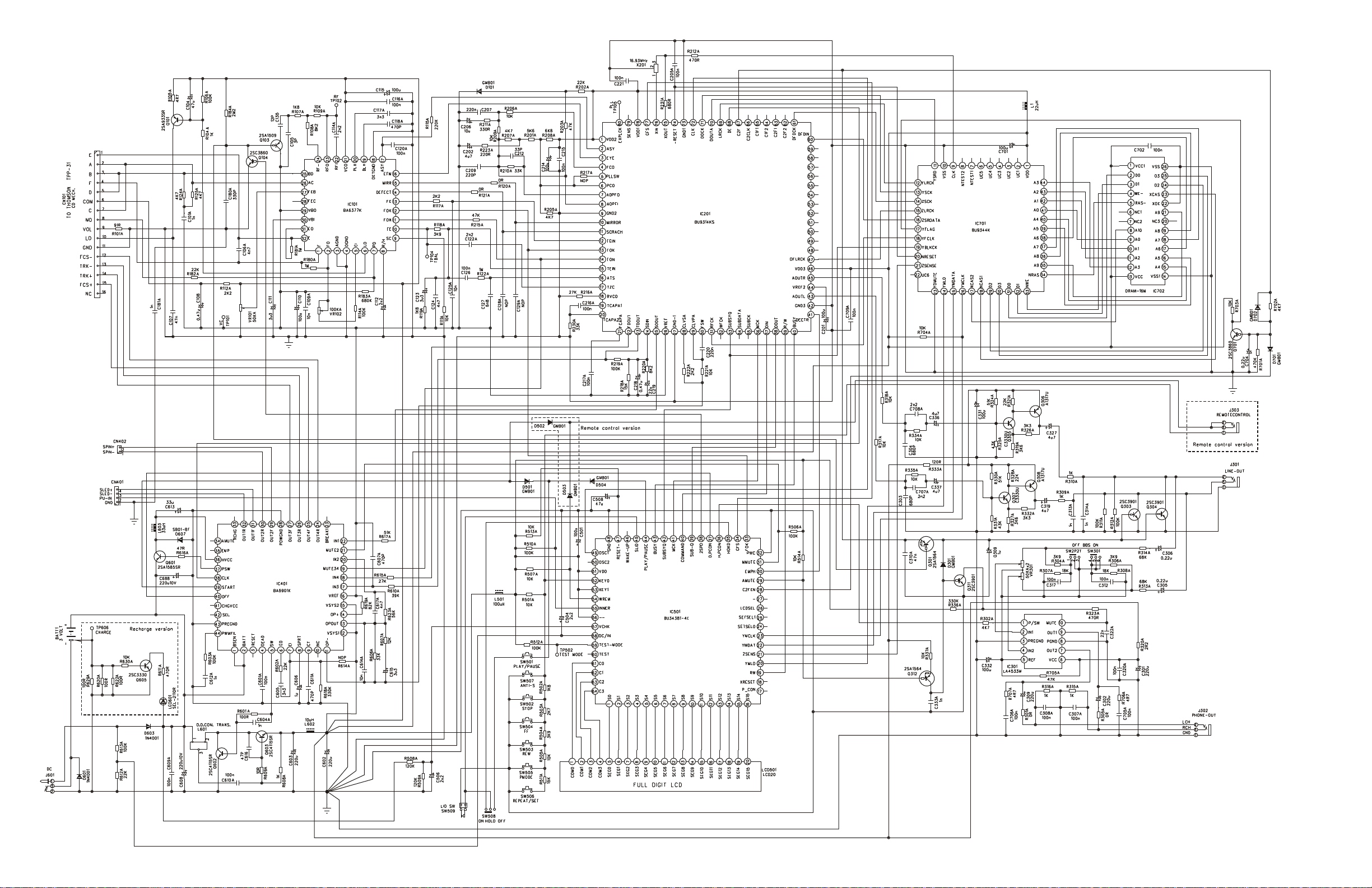

Schematic ........................................................................................................................ 1-11

Specifications .................................................................................................................. 1-5

Voltage Charts ................................................................................................................ 1-7

RP2242A

Page

Number

CAUTION: Modification or repair of this unit by unauthorized persons is a direct violation of FCC Rules Part 68.216 and could

result in risk of electric shock. You are urged to contact a qualified factory authorized service facility for repairs.

SAFETY NOTICE

USE ISOLATION TRANSFORMER WHEN SERVICING

Components having special safety characteristics are identified by a ( ) o n schematics and on the parts list in this Service Data and its bulletins.
Before servicing this instrument, it is important that the service technician read and follow the "Safety Precautions" in the Basic Service Data.

First Edition - First Printing
Copyright 2000 - Thomson Consumer Electronics, Inc.
Printed in U.S.A. - Trademark(s)

®

Registered - Marca(s) Registrada(s)

RP2242A

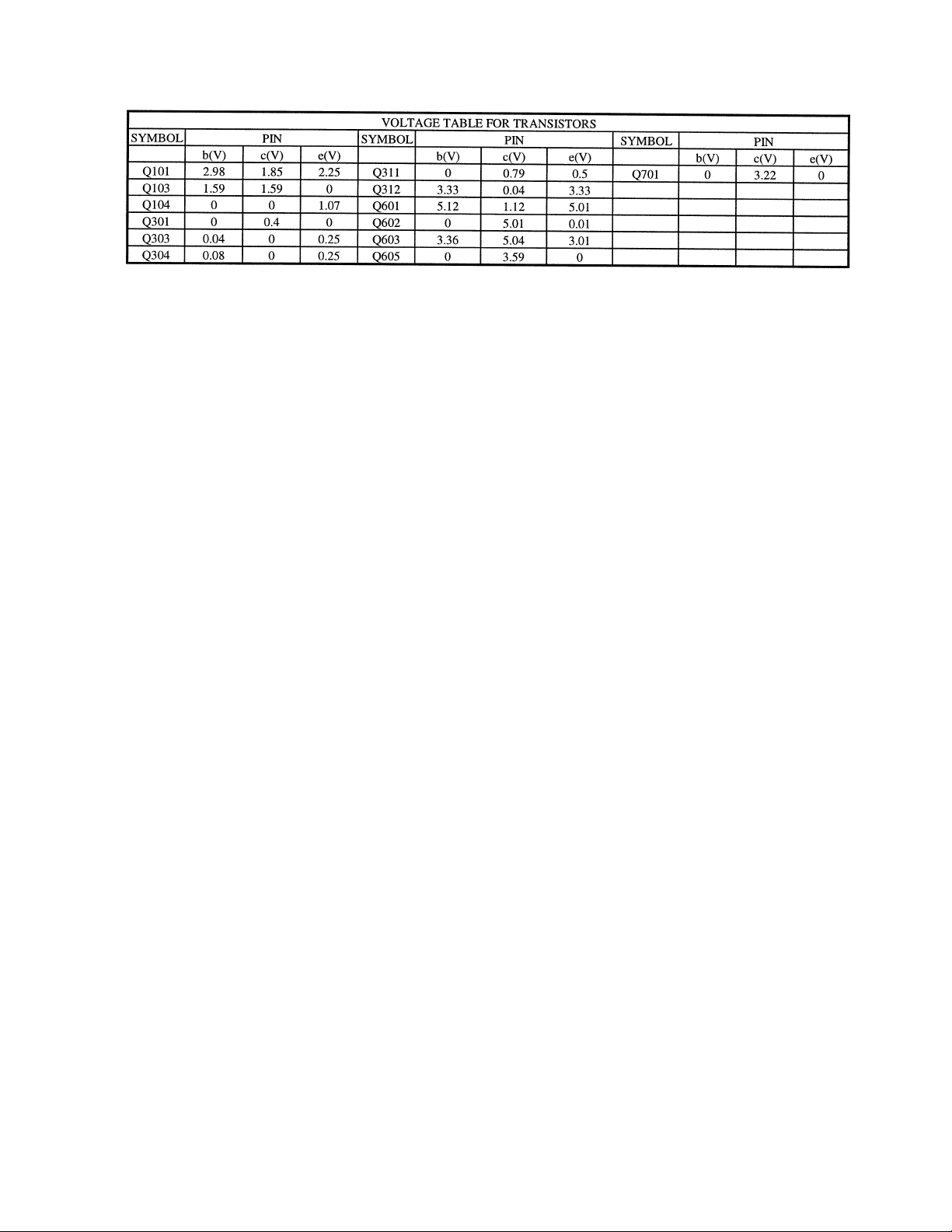

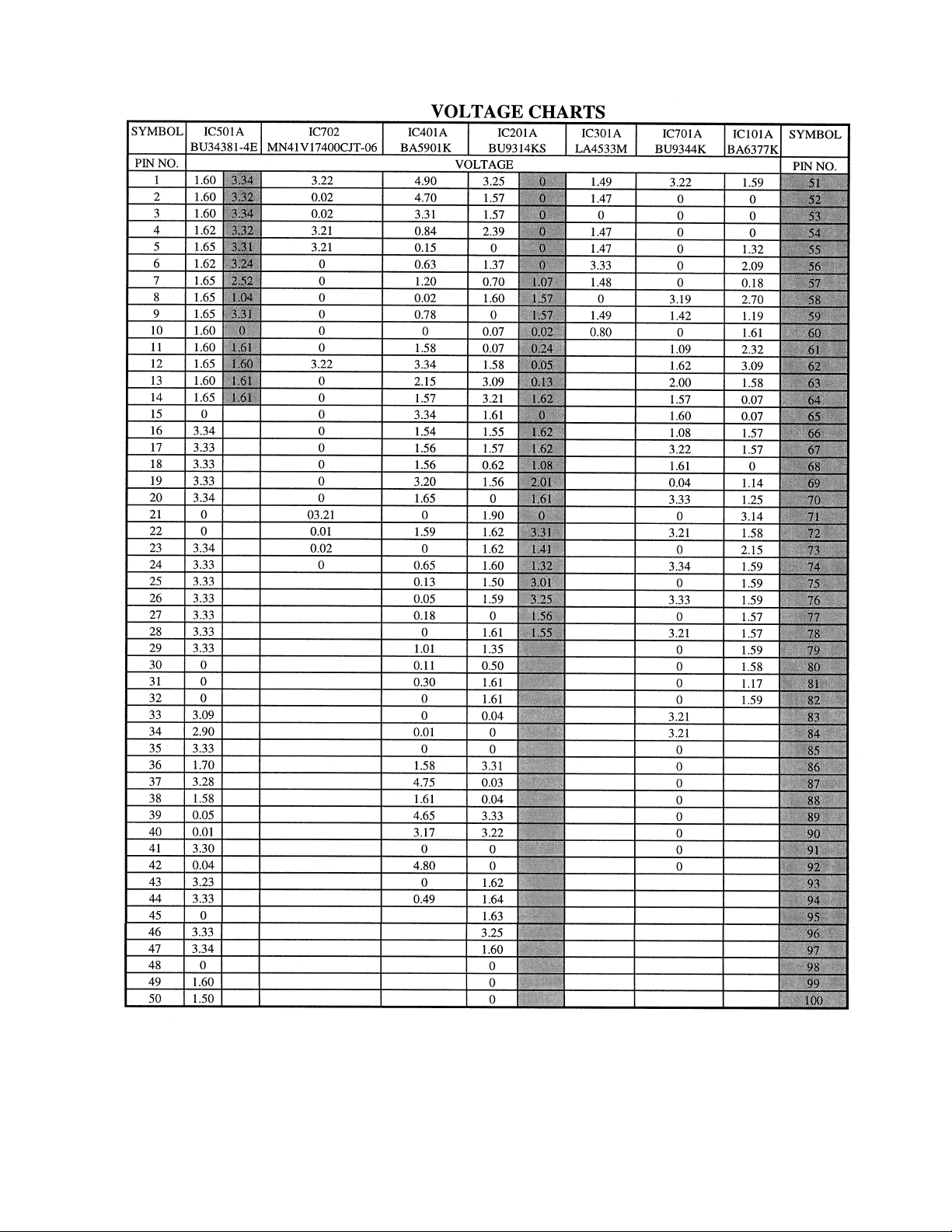

RP2242A VOLTAGE CHARTS

1-7

RP2242A VOLTAGE CHARTS

1-8

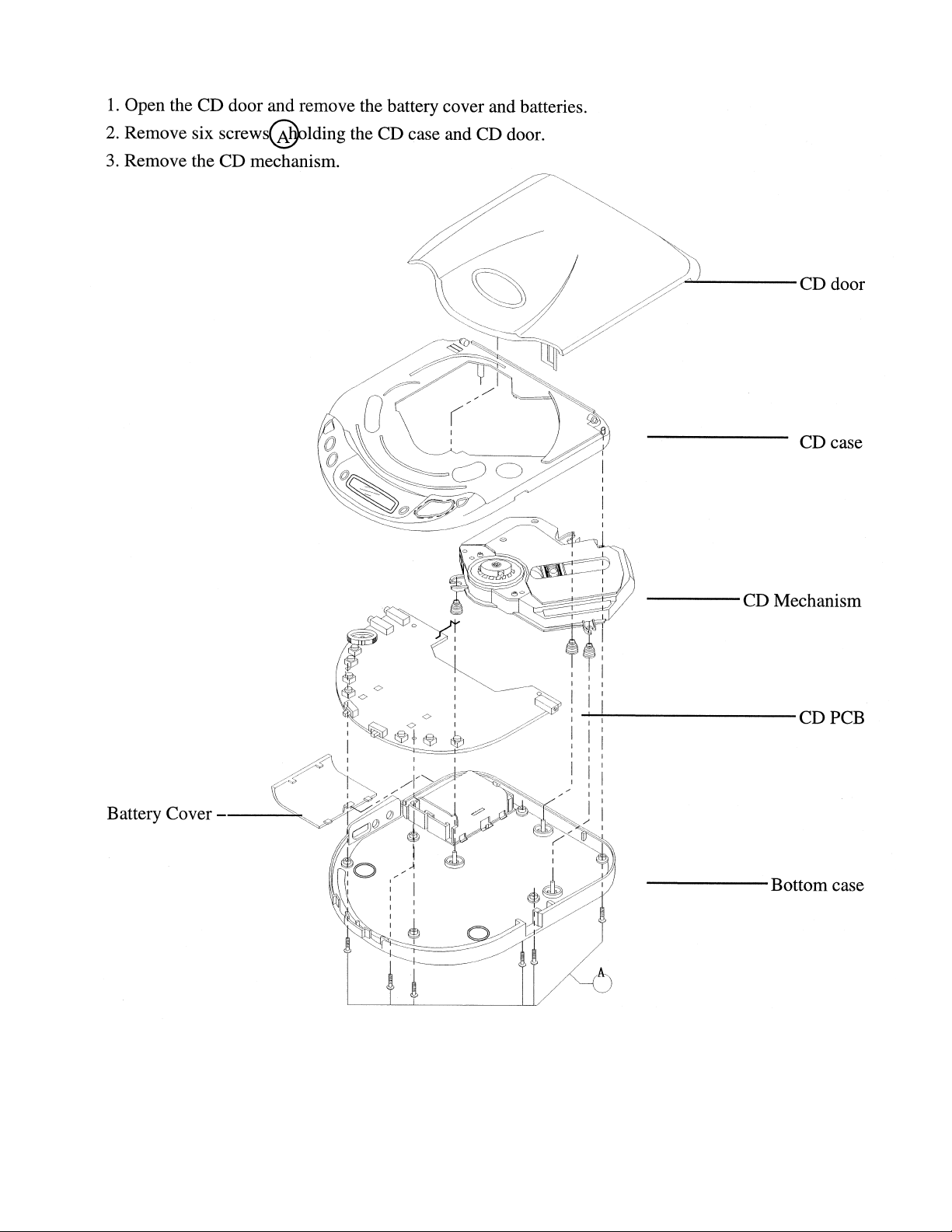

RP2242A DISASSEMBLY

1-6

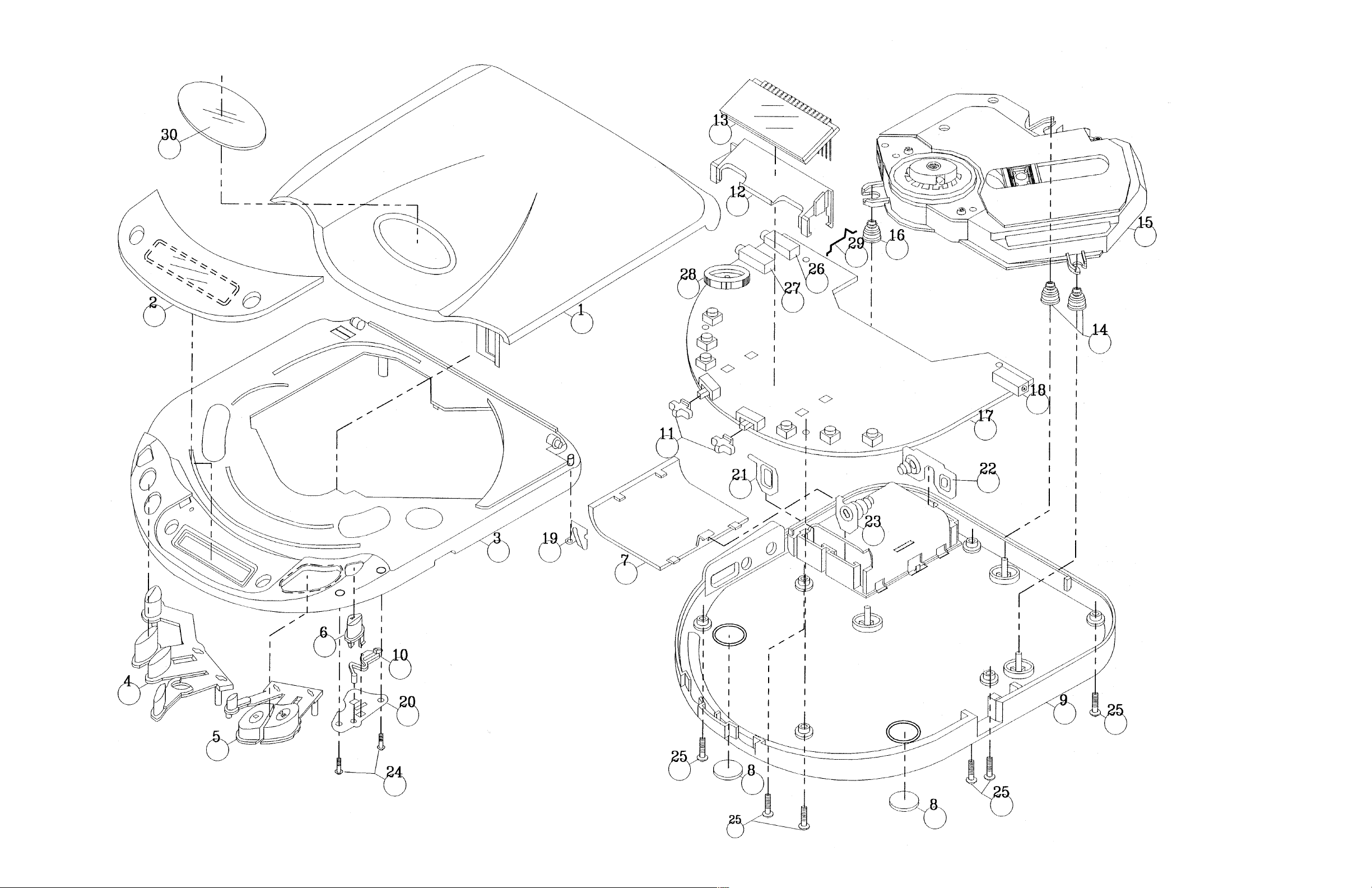

RP2242A EXPLODED VIEW

1-9

SAFETY PRECAUTIONS

1. Before returning the instrument to the customer, always
make a safety check of the entire instrument, including, but not
limited to, the following items:

a. Be sure that no built-in protective devices are defective and/

or have been defeated during servicing. (1) Protective
shields are provided on this instrument to protect both the
technician and the customer. Correctly replace all missing
protective shields, including any removed for servicing
convenience. (2) When reassembling the instrument, be
sure to put back in place all protective devices, including, but
not limited to, nonmetallic control knobs, insulating fishpapers,
adjustment and compartment covers/shields, and isolation
resistor/capacitor networks. Do not operate this instrument

or permit it to be operated without all protective devices
correctly installed and functioning. Servicers who defeat
safety features or fail to perform safety checks may be
liable for any resulting damage, and may expose
themselves and others to possible injury.

b. Be sure that there are no cabinet openings through which an

adult or child might be able to insert their fingers and contact
a hazardous voltage. Such openings include, but are not
limited to, (1) excessively wide cabinet ventilation slots, and
(2) improperly fitted and/or incorrectly secured cabinet covers.

c. Leakage Cold Check - With the instrument AC plug removed

from any AC source, connect an electrical jumper across the
two AC plug prongs. Place the instrument AC switch in the
on position. Connect one lead of an ohmmeter to the AC plug
prongs tied together and touch the other ohmmeter lead in
turn to each push button/customer control, exposed metal
screws, metallized overlays and to each cable connector. If
the measured resistance is less than 1.0 megohm or greater
than 5.2 megohm an abnormality exists that must be corrected
before the instrument is returned to the customer. Repeat
this test with the AC switch in the off position.

d. Leakage Current Hot Check

On completely assembled instrument, plug the AC line cord
directly into a 120V AC outlet. (Do not use an isolation
transformer during this test.) Use a leakage current tester or
a metering system that complies with American National
Standards Institute (ANSI) C101.1 Leakage Current for

Appliances and Underwriters Laboratories (UL) 1492 (Section

67). Measure for current from a known earth ground (metal

waterpipe, conduit, etc.) to all exposed metal or conductive
parts of the instrument (antenna connections, handle bracket,
metal cabinet, screwheads, metallic overlays, push-buttons,
control shafts, etc.), especially any exposed metal parts that
offer an electrical return path to the chassis. Any current
measured must not exceed 0.5 milliamp. Reverse the
instrument power cord plug in the outlet and repeat the test.

ANY MEASUREMENTS NOT WITHIN THE LIMITS
SPECIFIED HEREIN INDICATE A POTENTIAL SHOCK
HAZARD THAT MUST BE ELIMINATED BEFORE
RETURNING THE INSTRUMENT TO THE CUSTOMER OR
BEFORE CONNECTING TO ANTENNA OR
ACCESSORIES.

e. Interconnected Equipment AC Leakage Test

Avoid shock hazards. The instrument, accessory, or cable(s)
to which this instrument is connected should have the
applicable sections of the leakage resistance cold check and
the leakage current hot check performed. Do not connect
this instrument to an antenna, cable or accessory that
exhibits excessive leakage currents.

2. Read and comply with all caution and safety-related notes on or
inside the instrument cabinet, and on the chassis.

3. Design Alteration Warning - Do not alter or add to the mechanical
or electrical design of this instrument. Design alterations and
additions, including, but not limited to, circuit modifications and
the addition of items such as auxiliary audio output connections,
cables and accessories, etc., might alter the safety characteristics
of this instrument and create a hazard to the user. Any design
alterations or additions will void the manufacturer's warranty and
will make you, the servicer responsible for personal injury or
property damage resulting therefrom.

4. Observe original lead dress. Take extra care to assure correct
lead dress in the following areas: (a) near sharp edges, (b) near
thermally hot parts - be sure that leads and components do not
touch thermally hot parts, and (c) the AC supply. Always inspect
in all areas for pinched, out-of-place, or frayed wiring. Do not
change spacing between components and the printed-circuit
board. Check AC power cord for damage.

5. Components, parts and/or wiring that appear to have overheated
or are otherwise damaged should be replaced with components,
parts or wiring that meet original specifications. Additionally,
determine the cause of overheating and/or damage and, if
necessary, take corrective action to remove any potential safety
hazard.

6. PRODUCT SAFETY NOTICE - Many electrical and mechanical
parts have special safety-related characteristics, some of which
are often not evident from visual inspection, nor can the protection
they give be obtained by replacing them with components rated
for higher voltage, wattage, etc. Parts that have special safety
characteristics are identified in this service data by a ( ! ) on
schematics and in the parts list. Use of a substitute replacement
that does not have the same safety characteristics as the
recommended replacement part in this service data parts list
might create shock, fire and/or other hazards. Product Safety is
under review continuously and new instructions are issued
whenever appropriate. For the latest information, always consult
the appropriate current service literature.

1-2

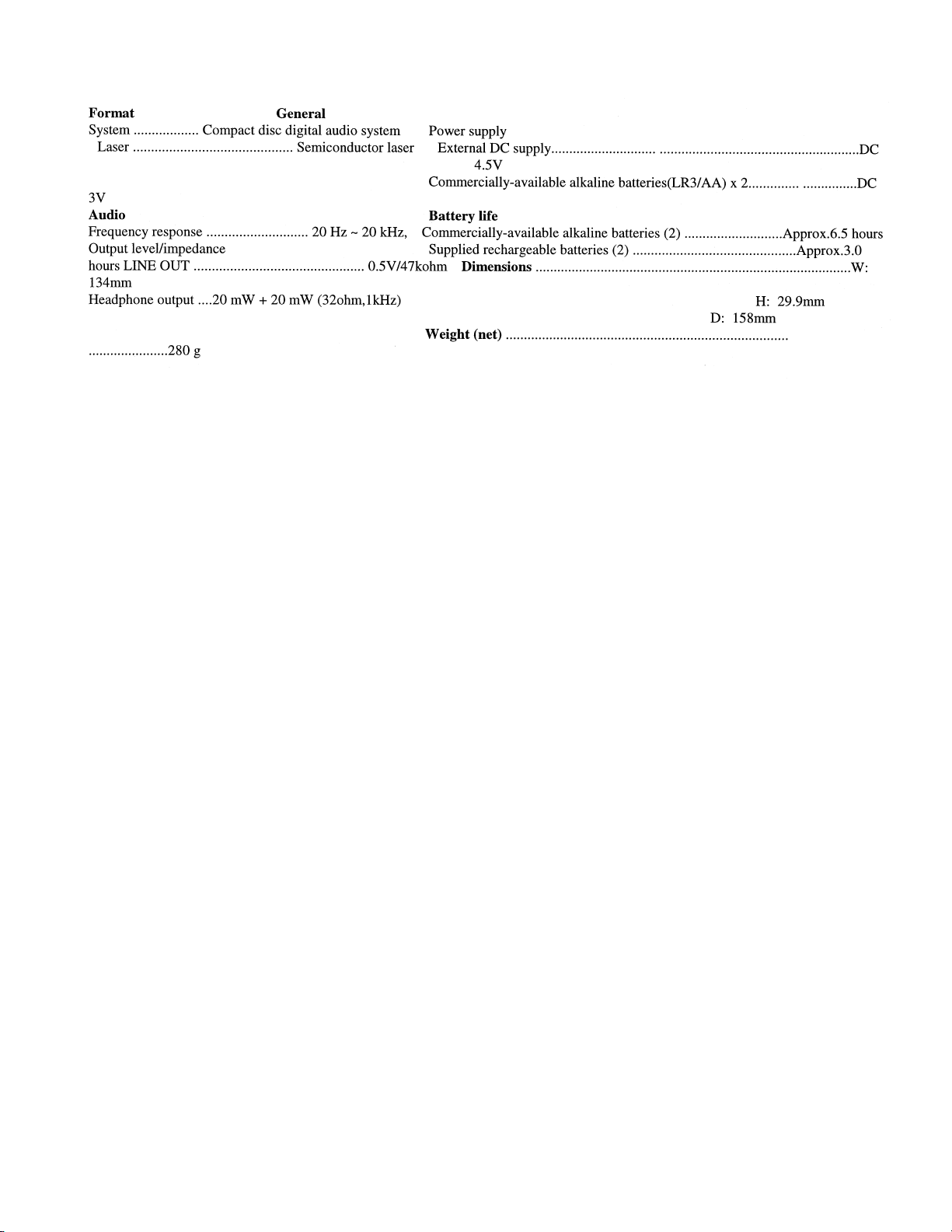

RP2242A SPECIFICATIONS

1-5

REPLACEMENT PARTS

1 - 3

January

2000

RP2242A

1 - 3

BEFORE REPLACING PARTS, READ THE FOLLOWING:
Approved Substitute Stock Numbers - Before ordering stock numbers

in the part list, look for an approved substitute stock number in the
current Price Schedule. This will minimize your service time and
avoid ordering parts you already have in stock.

PRODUCT SAFETY NOTE: Components marked with a critical
safety symbol have special characteristics important to safety.
Before replacing any of these components, carefully read the
PRODUCT SAFETY NOTICE in the basic service data. Do not
degrade the safety of the set through improper servicing. Although
assemblies as a whole may not be marked with a critical safety
symbol , replacement of assemblies with other assemblies not
approved may result in a safety hazard.

Critical Safety Symbol
Not Eligible For Warranty

@NOTE: When ordering components that are listed more than once in this part list, always adhere to the serial number application guidelines
given in the description column. If a serial number application guideline is not given, always select the component with a value, rating, other
specification or identification marking(s) that match those of the corresponding component in the instrument you are servicing.

StockSymbol DescriptionDrawing Symbol StockDescription Drawing

Warranty Status of Assemblies and Parts - All assemblies and
components shown in this part list are eligible for warranty exchange
or replacement except those with a dot shown to the left of the
Description. Assemblies and components with a dot to the left of the
Description are NOT eligible for warranty exchange or replacement.

Warranty replacement of cabinet parts requires the approval of a
Thomson Consumer Electronics Field Service Manager.

Warranty Status and Specifications of assemblies and components
are subject to change without notice. Consult the TCE Parts Pricing
Microfiche for the latest warranty status information.

RP2242A
CABINET ASY

1 9A34884 DOOR CD113971302285
2 6A34885 LENS DISPLAY11797030006
3 98A34886 CABINET TOP10397039303
4 43A34887 BUTTON CD L12897032055
5 43A34888 BUTTON CD R12897032155
6 43A34889 BUTTON CD DOOR OPEN12897030055
7 9A34890 DOOR BATTERY11197030055
8 45A28458 FOOT RUBBER13610010100
9 98A34891 CABINET BOTTOM10497030055
11 43A34892 KNOB SLIDE A12797036055
13 63A34894 DISPLAY LED02961381001
15 73A34895 MECHANISM CD TPP-3116000031000
18 41A28410 JACK DC02134503101
19 3A34896 SPRING CD DOOR16297031303
21 2A28386 CONTACT BATTERY +04197031002
22 2A28388 CONTACT BATTER +/-04197033002
23 2A28387 CONTACT BATTERY -04197032002
26 41A28409 JACK STEREO GR02123505102
27 41A28408 JACK STEREO BLK02123505101
28 49A28403 RES CONTROL VOLUME 50K01020503168
29 3A28415 SPRING RECHARGE

30 6A34897 LENS CD DOOR11697133002
KNO 43A34893 KNOB SLIDE B12797036155

13397035106

CONTACT

ELECTRICAL COMPONENTS

D101 16A29089 DIODE GMB01-BT00400001401
D301 16A29089 DIODE GMB01-BT00400001401

D504 16A29089 DIODE GMB01-BT00400001401
D603 16A29090 DIODE IN-400100404001300
D607 16A28402 DIODE SB10-03A3-BT00401003400
D701 16A29089 DIODE GMB01-BT00400001401
D702 16A29089 DIODE GMB01-BT00400001401
IC101A 33A34898 IC BA6377K00206377140
IC201A 33A34899 IC BU9314KS00209314140
IC301A 33A28390 IC LA453M00204533040
IC401A 33A33734 IC BA5901K00205901140
IC501A 33A34902 IC BU34381-0E00234381140
IC701A 33A34900 IC BU9344K00209344140
IC702A 33A34901 IC MN41V17400CTJ-0600217400010
LED6001 15A28414 TRANSISTOR 2SC3330TAC01912000110
Q101 15A34906 TRANSISTOR 2SA9333SR00310933148
Q104 15A28399 TRANSISTOR 2SC3860AC00303860040
Q303 15A34903 TRANSISTOR 2SC3901-AC00303901040
Q304 15A34903 TRANSISTOR 2SC3901-AC00303901040
Q305 15A29088 TRANSISTOR 2SC3330-T-AC00303330040
Q305 15A29088 TRANSISTOR 2SC3330-T-AC00303330040
Q306 15A25193 TRANSISTOR 2SA1317U0030137041
Q307 15A29088 TRANSISTOR 2SC3330-T-AC00303330040
Q308 15A25193 TRANSISTOR 2SA1317U0030137041
Q310 15A28397 TRANSISTOR 2SA1564AC00301564040
Q311 15A34903 TRANSISTOR 2SC3901-AC00303901040
Q312 15A28397 TRANSISTOR 2SA1564AC00301564040
Q601 15A34904 TRANSISTOR 2S1585SR00301585149
Q602 15A34905 TRANSISTOR 2SD1246T00304115149
Q603 15A34905 TRANSISTOR 2SD1246T00304115149
Q701 15A28399 TRANSISTOR 2SC3860AC00303860040
SW301 39A34907 SWITCH02012203105
SW501 39A28465 SWITCH TACT02031100154

1 - 4

REPLACEMENT PARTS

January

2000

1 - 4

StockSymbol DescriptionDrawing Symbol StockDescription Drawing

SW502 39A28465 SWITCH TACT02031100154
SW503 39A28465 SWITCH TACT02031100154
SW504 39A28465 SWITCH TACT02031100154
SW505 39A28465 SWITCH TACT02031100154
SW506 39A28465 SWITCH TACT02031100154
SW507 39A28465 SWITCH TACT02031100154
SW508 39A28404 SWITCH02011203103
SW509 39A34908 SWITCH DETECTOR02031100053

MISCELLANEOUS

ADA 54979 ADAPTER AC 120V DC4.5

HEA 68A34909 HEADPHONE STEREO05322732419

05997033202

500MA

(Continued)

RP2242A SCHEMATIC DIAGRAM

1-11

RP2242A BLOCK DIAGRAM

1-10

RP2242A IC CIRCUIT DESCRIPTION

1-12

RP2242A IC CIRCUIT DESCRIPTION

1-13
