Thomson RP1812A Schematic

Page 1
RP1812A SEPT/99

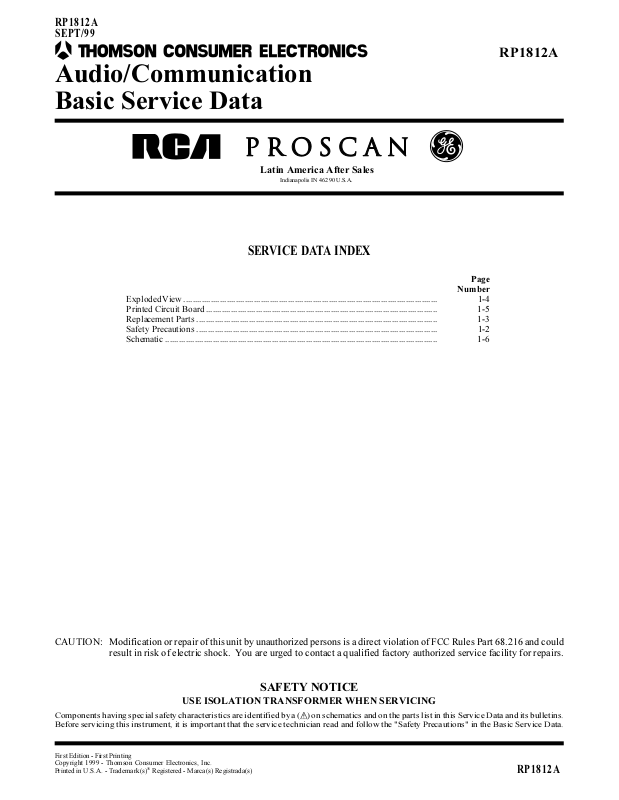

Audio/Communication Basic Service Data
Latin America After Sales
Indianapolis IN 46290 U.S.A.
SERVICE DATA INDEX
Exploded View ................................................................................................................ 1-4
Printed Circuit Board ...................................................................................................... 1-5
Replacement Parts .......................................................................................................... 1-3
Safety Precautions .......................................................................................................... 1-2
Schematic ........................................................................................................................ 1-6
RP1812A
Page
Number
CAUTION: Modification or repair of this unit by unauthorized persons is a direct violation of FCC Rules Part 68.216 and could
result in risk of electric shock. You are urged to contact a qualified factory authorized service facility for repairs.
USE ISOLATION TRANSFORMER WHEN SERVICING
Components having special safety characteristics are identified by a ( ) o n schematics and on the parts list in this Service Data and its bulletins. Before servicing this instrument, it is important that the service technician read and follow the "Safety Precautions" in the Basic Service Data.
First Edition - First Printing Copyright 1999 - Thomson Consumer Electronics, Inc. Printed in U.S.A. - Trademark(s)
®
Registered - Marca(s) Registrada(s)
RP1812A
Page 2

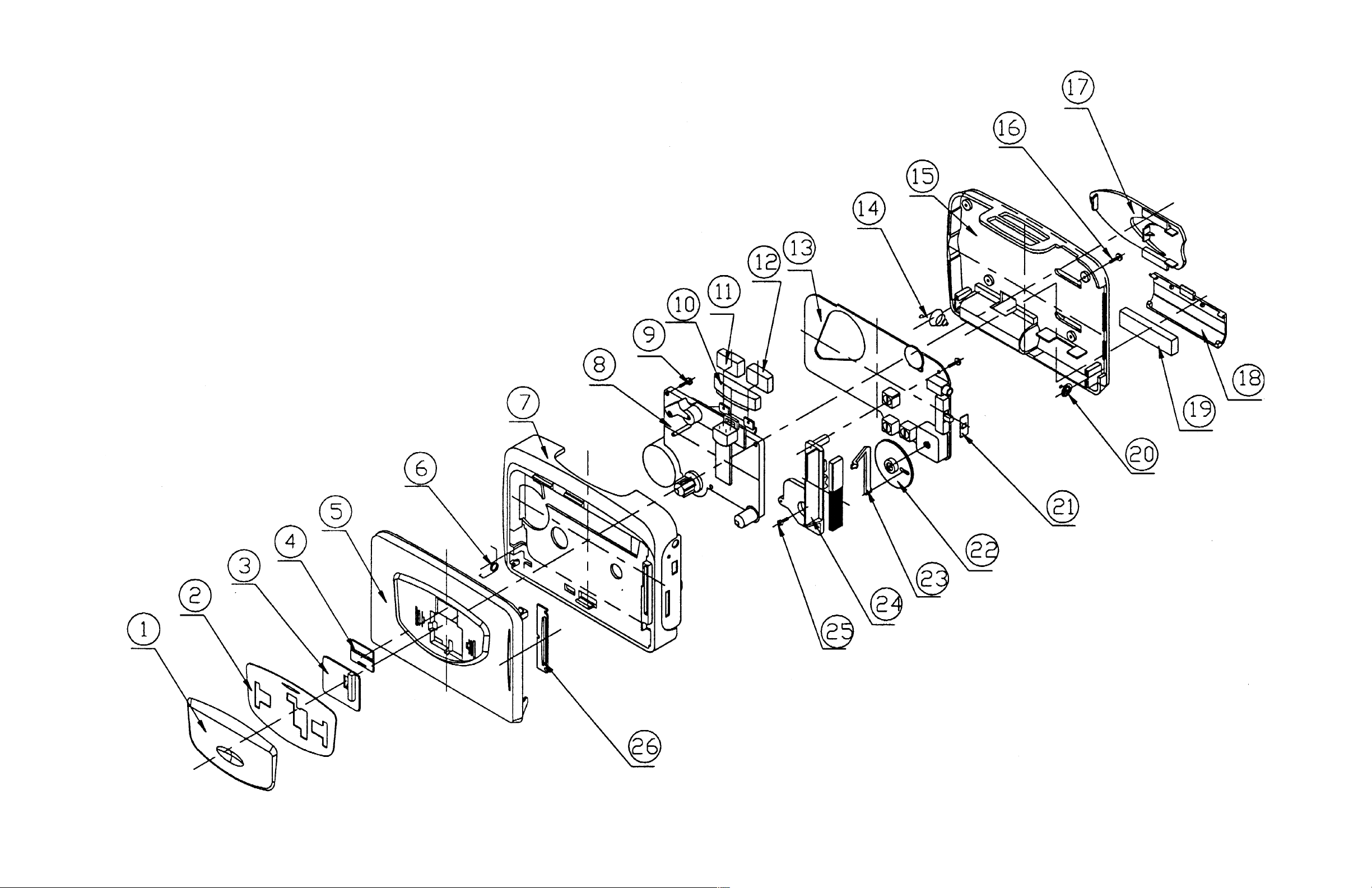

RP1812A EXPLODED VIEW
Page 1-4
Page 3
REPLACEMENT PARTS
1 - 3
Septembe
1999
RP1812A
1 - 3
BEFORE REPLACING PARTS, READ THE FOLLOWING: Approved Substitute Stock Numbers - Before ordering stock numbers
in the part list, look for an approved substitute stock number in the current Price Schedule. This will minimize your service time and avoid ordering parts you already have in stock.
PRODUCT SAFETY NOTE: Components marked with a critical safety symbol have special characteristics important to safety. Before replacing any of these components, carefully read the PRODUCT SAFETY NOTICE in the basic service data. Do not degrade the safety of the set through improper servicing. Although assemblies as a whole may not be marked with a critical safety symbol , replacement of assemblies with other assemblies not approved may result in a safety hazard.
Critical Safety Symbol Not Eligible For Warranty
@NOTE: When ordering components that are listed more than once in this part list, always adhere to the serial number application guidelines given in the description column. If a serial number application guideline is not given, always select the component with a value, rating, other specification or identification marking(s) that match those of the corresponding component in the instrument you are servicing.
StockSymbol DescriptionDrawing Symbol StockDescription Drawing
Warranty Status of Assemblies and Parts - All assemblies and components shown in this part list are eligible for warranty exchange or replacement except those with a dot shown to the left of the Description. Assemblies and components with a dot to the left of the Description are NOT eligible for warranty exchange or replacement.
Warranty replacement of cabinet parts requires the approval of a Thomson Consumer Electronics Field Service Manager.
Warranty Status and Specifications of assemblies and components are subject to change without notice. Consult the TCE Parts Pricing Microfiche for the latest warranty status information.
RP-1812A CABINETS ASY
5 9A32521 DOOR CASS521215000RCA01 7 98A32522 CABINET FRONT501215000RCA01 10 43A32523 KNOB PLAY540008310RCA01 11 43A32524 KNOB STOP540005310RCA01 12 43A32525 KNOB F.FWD540006310RCA01 14 3A25648 SPRING BATT -73000121620 15 98A32526 CABINET BACK502215000RCA01 17 3A32527 CLIP BELT552031000RCA01 18 9A32528 DOOR BATTERY522310000RCA01 22 43A32529 KNOB TUNING54000121500 23 90A32530 POINTER31003121500 26 6A32531 LENS DIAL53121500000
ELECTRICAL COMPONENTS
DEC 92A32538 DECK CASS22000700200 IC1 33A32532 IC TA2111F10500211100 IC2 33A26769 IC LAG665F10500066500 JAC 8A32535 JACK PHONE STEREO1650200500 LED 16A32533 LED RED11501221801 RES 42A32534 RESISTOR VAR VOLUME12533500300 SWI 39A32536 SWITCH SLIDE 2P2T17001020215 SWI 39A32537 SWITCH SLIDE 4P3T17001040305
MISCELLANEOUS
HEA 68A32539 HEADPHONE STERRO2051301810 LAB 4A32540 LABELPOPRP1812 USE UCRP1812 USE & CARE GUIDEUCRP1812
Page 4
RP1812A PRINTED CIRCUIT BOARD
Page 1-5
Page 5

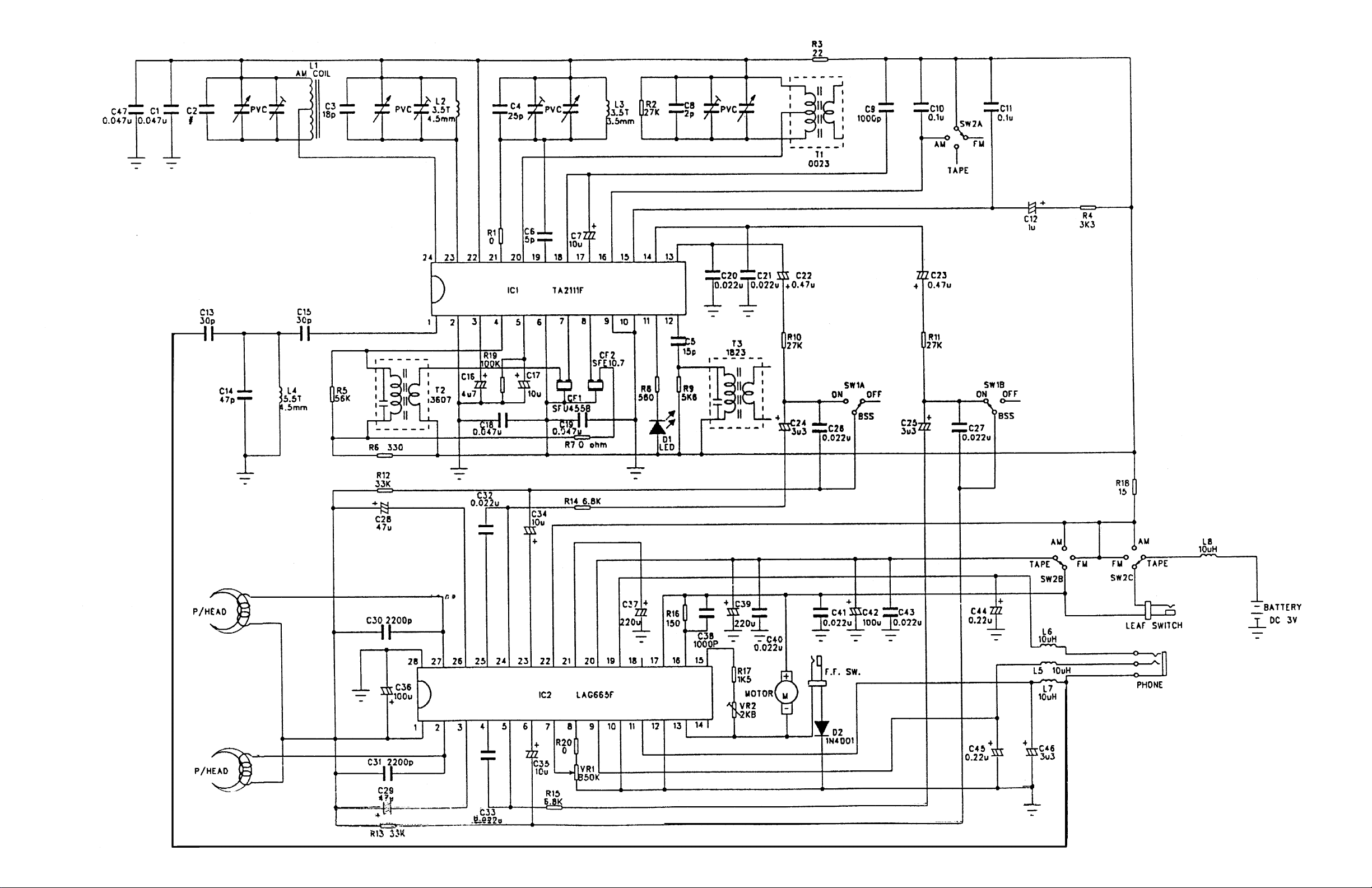

RP1812A SCHEMATIC
Page 1-6
