JPEG CD
EN
37

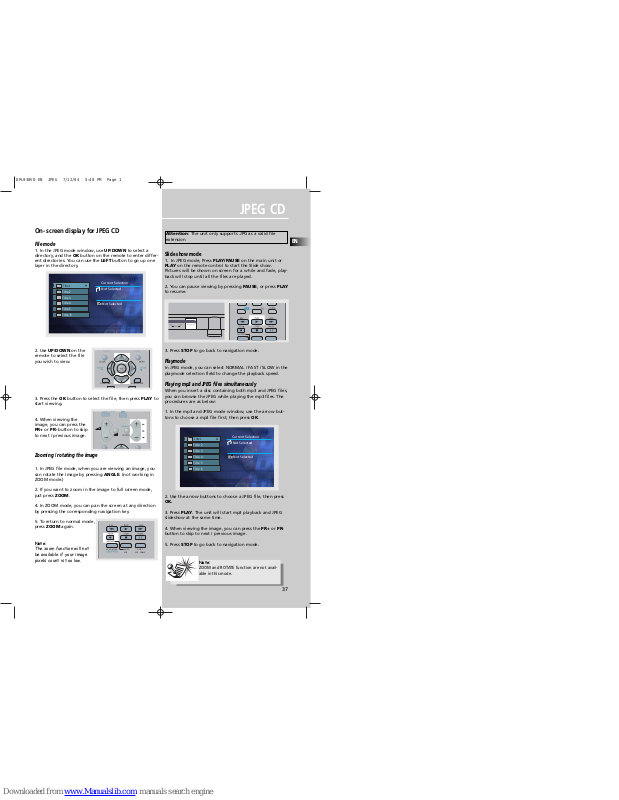

On- screen display for JPEG CD
File mode
1. In the JPEG mode window, use UP/DOWN to select a
directory, and the OK button on the remote to enter different directories. You can use the LEFT button to go up one
layer in the directory.
2. Use UP/DOWN on the
remote to select the file
you wish to view.
3. Press the OK button to select the file, then press PLAY to
start viewing.
4. When viewing the
image, you can press the
PR+ or PR- button to skip
to next / previous image.
Zooming / rotating the image
1. In JPEG file mode, when you are viewing an image, you
can rotate the image by pressing ANGLE. (not working in
ZOOM mode.)
2. If you want to zoom in the image to full screen mode,
just press ZOOM.
4. In ZOOM mode, you can pan the screen at any direction
by pressing the corresponding navigation key.
5. To return to normal mode,
press ZOOM again.
Note:
The zoom function will not
be available if your image
pixels count is too low.
Slide show mode
1. In JPEG mode, Press PLAY/PAUSE on the main unit or
PLAY on the remote control to start the Slide show.
Pictures will be shown on screen for a while and fade, playback will stop until all the files are played.
2. You can pause viewing by pressing PAUSE, or press PLAY
to resume.
3. Press STOP to go back to navigation mode.
Playmode
In JPEG mode, you can select NORMAL / FAST / SLOW in the
playmode selection field to change the playback speed.
Playing mp3 and JPEG files simultaneously
When you insert a disc containing both mp3 and JPEG files,
you can browse the JPEG while playing the mp3 files. The
procedures are as below:
1. In the mp3 and JPEG mode window, use the arrow buttons to choose a mp3 file first, then press OK.
2. Use the arrow buttons to choose a JPEG file, then press
OK.
3. Press PLAY. The unit will start mp3 playback and JPEG
slideshow at the same time.
4. When viewing the image, you can press the PR+ or PR-
button to skip to next / previous image.
5. Press STOP to go back to navigation mode.
Title1
Title 2
Title 3
Title 4
Title 5
Title 6
Current Selection
Not Selected
Not Selected
SUBWOOFER
SURROUND
AV
REV
FWD
PR
AUX 2
VCR
AUX 1
SAT - CABLE
REV
FWD
Attention: The unit only supports .JPG as a valid file
extension
Note:
ZOOM and ROTATE function are not available in this mode.
Title1
Title 2
Title 3
Title 4
Title 5
Title 6
Current Selection
Not Selected
Not Selected
DPL930VD-EN JPEG 7/12/04 5:40 PM Page 1
DivX
EN
39
Div X
On- screen display for Div X
Your player is an Official DivX Certified™ product that
Plays DivX ® 5, DivX ® 4, DivX ® 3, and DivX ® VOD video
content, in compliance with DivX Certified™ technical
requirements.The correct playing of DivX in your player,
depends on the preparation and production of the audio
and video files, the codecs used, the type of recording
equipment employed and the parameters of your computer. It is therefore possible that you cannot play a DivX file
or that part or all of it is defective.
It also sometimes happens that you can play the images
(video) but not the sound (audio).
File mode
1. In the Div X mode window, use UP/DOWN to select a Div
X file you wish to view.
2. Use OK to select the file into the right column.
3. Press PLAY to start playback.
Selecting an audio language
1. Press INFO to open the audio menu.
2. Press UP/DOWN to select the audio channel you want.
Selecting a subtitle language
1. Press INFO to open the subtitle menu.
2. Press UP/DOWN to select the subtitle you want.
38
Title1
Title 2
Title 3
Title 4
Title 5
Title 6
Current Selection
Not Selected
Not Selected
PLAY
00:00:00
Z
Z
Z
avi
Movie 1
Audio
Sleep
Subtitle
Time
indicator
SUBWOOFER
SURROUND
AV
REV
FWD
SUBWOOFER
SURROUND
SUBWOOFER
SURROUND
EQ. LEVEL
INFO RDS
PTY
Note:
This feature only works if the disc was created with multiple audio tracks.
Note:
This feature only works if the disc was created with subtitles.
SUBWOOFER
SURROUND
To rent (purchase) DivX VOD files
DivX VOD files are similar to DVD video rental discs.The difference lies in the access to the media. DivX VOD files are
downloaded after paying a rental from certain commercial
web sites. Prior to downloading a VOD you need to input
the registration number of your DVD player on
the purchase form of the site.
Follow the instructions below to find the registration number of your player:
1. Insert a disc and select the Play Mode option from the
player menu.
2. In the Play Mode menu, select DivX.The registration
number is displayed on the screen of the television set.
3. Write down this VOD 8-character registration number in
order to fill in the form on the web site you purchase your
DivX VOD files from.
Play
Play Mode
Parental Control
Display
Sound
DIVX(R) Registrati
Note:
To guarantee playback of DivX files the
audio must be mp3 format. DivX
Certified devices can play back any
interleaved mp3 audio at any bitrate, both CBR and
VBR.The audio must be sampled at standard
frequencies, such as 32 kHz, 44.1kHz, and 48kHz,
and must conform to the AVI file specification.
Apart from mp3, the audio formats recognised by
your player are MPEG layer 1/2,AC3, DTS, PCM.
Formats such as AAC and Ogg Vorbis are not supported by this player.
Note:
If you cannot play a DivX VOD file
recorded on a CD-R disc after down-
loading it, the rental period allocated
during purchasing from the web site may have
expired. It may also be that the recorded file is not
compatible with your player because of different
versions or incorrect download parameters.The
parameters used during the copying to CD-R may
also be a cause. Since it is not possible here to supply all the information, parameters and advice relating to the use of DivX VOD files, we recommend
that you visit specialised web sites such as
www.divx.com/vod.
Note:
Before making use of DivX or mpeg4
files, please be sure of their origin and
that you have legally purchased or
rented the contents. Pirate copying is illegal and
may result in sanctions. Private copies of your own
material for your own use may be legal in some
countries. Make sure you are aware of applicable
laws.
DPL930VD-EN JPEG 7/12/04 5:40 PM Page 2
