THOMSON ACG905-C User Manual

Page 1
1

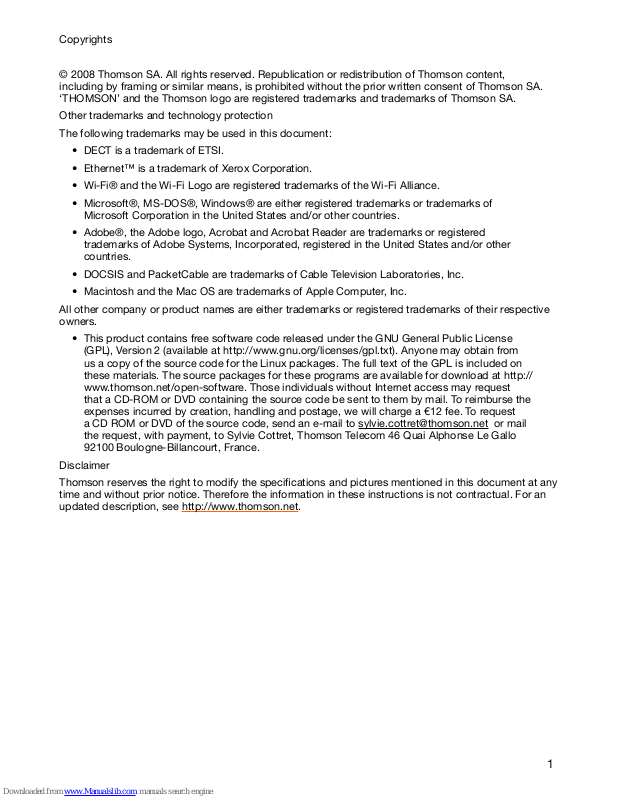

Copyrights
© 2008 Thomson SA. All rights reserved. Republication or redistribution of Thomson content, including by framing or similar means, is prohibited without the prior written consent of Thomson SA. ‘THOMSON’ and the Thomson logo are registered trademarks and trademarks of Thomson SA.
Other trademarks and technology protection
The following trademarks may be used in this document:
All other company or product names are either trademarks or registered trademarks of their respective owners.
Disclaimer
Thomsonreservestherighttomodifythespecicationsandpicturesmentionedinthisdocumentatany
time and without prior notice. Therefore the information in these instructions is not contractual. For an updated description, see http://www.thomson.net.
Page 2
2
Page 3
3
Safety
Safety Recommendations
Using Equipment Safely
Your Advanced Cable Gateway has been manufactured to meet American safety standards, but care must be taken to ensure proper performance.
It is important that you read this booklet completely, especially the safety instructions below. If you have any doubts about the installation, operation, or safety of the Gateway, please contact your Customer Service.
Avoiding the Risk of Electric Shock
Do not put anything on the Gateway which might spill or drip into it • (e.g. lighted candles or liquids containers). Do not splash it with a liquid. If an object or liquid does get inside the Gateway, unplug it immediately and contact Customer Service.
Connecting to the Power Supply
If you are in any doubt about the • power source, the plug, or connection, please consult Customer Service.
Ensuring optimum performance
Environmental Information
Page 4
4
Safety
Meaning of Symbols
This symbol is intended to alert the user to the presence of un-insulated “dangerous voltage” within the product housing that may be of sufcient magnitude to constitute a risk of shock.
This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions accompanying the product.
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
Base Station:
This device should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. This transmitter and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
Portable Part (Phone):
For hand held operation, this phone has been tested and meets the FCC RF exposure guidelines.
North American Cable Installer
This reminder is provided to call your attention to Article 820-40 of the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular, species that the cable ground shall be connected to the grounding system of the building as close to the point of cable entry as practical.
Model Type ACG905 -- C Operating Voltage 120V AC / 60 Hz / 0.5A Typical Power Consumption 25W max Weight 0.872 Ib / 0,395 kg Dimensions (W x H x D) 7.79 x 7.68 x 3.94 Inch Operating Temperature Range 59 to 95° F / 15 to 35°C Storage Temperature Range - 4 to 158°F / - 20 to 70°C Remote Control Battery Type Li-Ion 11.1V 2,150 mAh
Technical Specications
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following 2 conditions: 1. This device may not cause harmful interference; 2. This device must accept any interference received, including interference that may cause undesired operation. Responsible party (contact for FCC matter only):
THOMSON Inc. 101 W. 103rd St. Indianapolis, IN 46290 U.S.A.
Page 5
5
Contents
Table of Contents
Safety Recommendations 3
About your Advanced Cable Gateway 10
Key Features 10
Main Technical Characteristics 10
Computer Requirements 11
Before You Start 12
Box Contents 12
Gateway Overview 13
Front Panel 13
Rear Panel 14
Inserting Batteries 15
About Your Handset 16
Charging the Handset 17
Handset 19
Installing the Handset Batteries 19
Handset Technical Specication 20
Set-up 21
Connecting the Advanced Cable Gateway with other Devices 21
Connection Between Devices 22
1. How Does the Gateway Work? 22
2. What do you need to enjoy all services? 23
3. Establish an Internet Account 24
Connecting the Advanced Cable Gateway to a 25
Single Computer 25
1. Attaching the Cable TV Wire to the Advanced Cable Gateway 25
Ethernet Connection to One or Two Computers 26
Connecting More Than Two Computers to the Advanced Cable Gateway 27
Page 6
6
Contents
Telephone or Fax Connection 27
Legend 28
Activating the Advanced Cable Gateway 28
Lights Guide 28
Self Installation 31
Starting the Self Installation 31
Wi-Fi Connection 32
Light Indicators on the Front Panel 32
Wireless Internet Access for Your Computer 33
For a PC: 33
For a MAC: 33
Web Conguration 34
Accessing the Web Conguration 35
Overview 36
1. Handset Layout 36
2. Using the Keys 37
Day to Day Use 39
Making Calls 39
Receiving Calls 39
Ending Calls 39
Mute 40
Call Volume 40
Handset Screen Icons 41
Online Services 43
CreateUserProle 43
LoginUsingaUserProle 44
ProleSettings 45
Delete User 45
Auto Logout 46
Change Display Name 46
Page 7
7
Contents
Call Log 47
Missed Calls 47
Missed Call Alert (pop up) 49
Answered Calls and Dialed Calls 50
Email 51
Access to your email 51
Options for Emails 52
Using the Address Book for Emails 54
Direct Entry Address 55
Address Book 56
Create Address Entry 56
Address Editing 58
Address Deleting 59
Copy to Phone Option 60
Calling Directly from Address Book 61
Voicemail 62
Acessing Your Voicemails 62
Playing Voicemail 63
Delete the Voicemail 64
Call the Voicemail Back 65
Save Number 65
Yellow Pages 66
All Directory Listings Search 67
Local Search Options 68
Saving Search Results 69
Dialing Search Results 69
Weather Updates 70
Headlines 71
News 71
Sports 71
Horoscope 72
Daily Diversions 72
Page 8
8
Contents
Outline of Web Manager 73
Gateway – Status Web Page Group 74
1. Software 74
2. Connection 75
3. Password 75
Gateway – Telephony Web Page Group 76
1. Base 76
2. Handsets 76
Gateway – Router Web Page Group 77
1. LAN 77
2. WAN 78
3. Computers 78
4. Firewall 79
Minimum Level of Security 79
Medium Level of Security 79
5. Forwarding 80
Maximum Level of Security 80
6. DMZ Host 82
Gateway – Wireless Web Page Group 83
Performance 83
Authentication 83
Security 84
1. 802.11b/g Basic 84
2. 802.11b/g Security 86
3. Access Control 88
EMTA settings – Basic Web Page Group 89
1. Status 89
2. CM Hardware 90
3. Event Log 90
4. CM State 91
Customizing Your Handset 92
Page 9
9
Contents
1. Charts of the Menus 92
2. Ring Tone 93
3. Time 94
4. Phone Settings 95
5. Call Lists 96
6. Using Your Phone With Multiple Handsets 97
Additional Information 99
Frequently Asked Questions 99
Troubleshooting 101
FCC Declaration of Conformity and Industry Canada Information 103
Additional Headsets 104
Service Information 105
Glossary 106
Index 109
Page 10
10
Introduction
About your Advanced Cable Gateway
Key Features
Thank you for choosing the ACG905, the new generation of Thomson Gateways with enhanced functionalities. The Advanced Cable Gateway offers the following services:
Multi-Line Capability, Up to 5 Handsets*•
Access to Voicemail, Address Book, News, Weather and other • features via your Handset(s)
Built-in router functionality for home networking•
WiFi•
Main Technical Characteristics
DOCSIS 2.0 and PacketCable 1.5 Compliant•
Built-in DECT Technology•
Wireless (Add-On PC Card included)•
2 Ethernet Ports, 1 USB2.0 and 1 RJ11 Telephone Line•
Battery back-up•
Security Through Built-In Firewall and WEP, WPA, WPA2, BPI+ • Protocols
Easy Access to Advanced Diagnostics Web Pages•
* Refer to page yada yada for information on ordering additional Handsets.
Page 11
11
Introduction
IBM PC COMPATIBLE MACINTOSH
CPU
Pentium preferred Power PC
Operating System
Windows NT/2000/Me/XP/ Vista, Linux
Mac OS 10.4x or higher
Video
VGA or better (SVGA preferred)
VGA or better (SVGA built-in preferred)
Ethernet
10BaseT or 100BaseT 10BaseT or 100BaseT
An Ethernet card makes it possible for your computer to pass data to and from the internet. You must have an Ethernet card and software drivers installed in your computer. You will also need a standard Ethernet cable to connect the Ethernet card to your Advanced Cable Gateway.
Software
A TCP/IP network protocol for each machine Microsoft Internet Explorer 6.0 or later or Mozilla Firefox.
Computer Requirements
For the best possible performance from your Advanced Cable Gateway, your personal computer must meet the following minimum system requirements:
Note:
The minimum requirements may vary among different cable companies.
Page 12
12
Parts and Putting them Together
Before You Start
Box Contents
CAUTION
Advanced Cable Gateway
Battery
Rechargeable
Batteries
DC adapter for
DECT handset
Ethernet Cable
Power Cord
WiFi Card
DECT handset TH-58 with Dock
Page 13
13
Parts and Putting them Together
Assemble
Gateway Overview
Front Panel
POWER
Power
BATTERY
Battery Back-Up Level
(low / full / empty or no battery detected)
DS/US
Cable DOCSIS State;
LED ON during start-up operation
ONLINE
Internet Active
LINK
CPE Activity
LED ON when a PC is connected to the Ethernet port
TEL
Voice Over IP Information
Page 14
14
Parts and Putting them Together
Rear Panel
Back-Up Battery Cover
Power Input
Page USB RESET
120V AC. 60Hz, 0.5A
ETHERNET 1 ETHERNET 2 TEL CABLE
PAGE
To ring all connected Handsets ( short press ) or Add another DECT Handset to the Gateway ( press for more than 12 seconds ) or Reset to factory settings ( press at power off; keep pressing for 5 seconds while powering on the ACG)
USB
USB 2.0 Connector ( master )
RESET
Reset ( short press )
ETHERNET 1
Ethernet 10/100 BaseT RJ-45 Connector
ETHERNET 2
Ethernet 10/100 BaseT RJ-45 Connector
TEL
Telephone RJ-11 Connector
CABLE
Cable Input; F-Connector
Page 15
15
Parts and Putting them Together
Assemble
Inserting Batteries
To install batteries into the Advanced Cable Gateway:
Ensure the power cord is 1. unplugged. Remove the battery cover on the rear panel. There are two battery compartments. One battery is included with the Advanced Cable Gateway.
For an additional battery please contact your local operator.
Push the slider up/down to allow 2. for battery insertion.
Insert the battery into the 3. compartment marked “Battery 1”.
Readjust the slider to prevent the 4. battery from moving and replace the battery cover. Plug the power cord into an electrical outlet that is not controlled by a wall switch (this will assure that the unit has uninterrupted power). The battery will fully charge within 5 hours.
Page 16
16
Parts and Putting them Together
As with any radio link, the quality of communication depends on the location of the equipment and the environment in which it is used.
In particular your TH58 Handset must be protected from:
excessive heat (radiators, direct sunlight, etc.)
vibration
dust
Never allow your phone to come into contact with:
water
aerosols
To reduce the risk of interference and maximize reception, take particular care not to locate the Handset or Dock close to:
halogen lamps (and other heat sources)
windows
large metal objects
reinforced concrete
televisions
music centers
uorescent lighting
burglar alarms
microwave ovens
computers, etc
About Your Handset
In order to understand the key features of your TH58 Handset, it is recommended that you read this guide carefully, including all the safety instructions, before using the product. It is recommended that you inform other members of your family (especially your children) of the detailed warnings given in this guide.
Caregivers of young children should monitor them at all times in the presence of this product.
In particular, children should never be allowed to put unsuitable or dangerous metal or plastic articles into their mouths.
When your TH58 Handset is connected to the Internet, you may download software updates for the base and handset. Applying these updates and the improvements they contain may slightly modify the menus shown in this User’s Guide.
To clean your Handset, use an antistatic cloth.
Page 17
17
Parts and Putting them Together
Assemble
CAUTION
The DECT Handset dock can be plugged into the Advanced Cable Gateway.
In this situation, the Advanced Cable Gateway will be charging your handset.
or
The DECT Handset dock can be stationed away from the Advanced Cable Gateway.
In this situation, be certain that the DC adapter is attached to both the dock and a power outlet.
Charging the Handset
The DECT Handset will charge when securely placed in the Handset Dock so long as the dock has power.
The dock can charge your handset in two ways.
DECT Handset
in its Dock
DC Adapter
DECT Handset Dock
attached to
ACG
DC adapter connector
goes here
Dock snaps onto front of ACG here
Back of Dock
Page 18
18
Parts and Putting them Together
Unplug the power cord to the 1. Advanced Cable Gateway.
Remove the little ACG Cover 2. on the front panel.
Attach the DECT Handset 3. Dock where the cover was.
Place the Handset into its 4. receptacle on top of the Dock.
Plug the power cord back into 5. an outlet.
Handset Dock
ACG Cover
To plug your DECT Handset Dock on the Gateway, follow the instructions below:
Once installation is complete, you should leave the phone on the charger for at least 5 hours before using it for calls and browsing content in order to maximize battery performance and life.
Page 19
19
Parts and Putting them Together
Assemble
Handset
Installing the Handset Batteries
Slide the battery door off the back of the Handset.•
Insert the batteries • (included) into the housing in the Handset being careful to align the + / - ends correctly (refer to the graphics in the housing).
Check that the screen lights up, then replace the cover.•
Wait for about 1 minute to allow the system to start up.•
When your handset is registered to its base, •
the screen displays the number “1” alongside the
(green - has
signal) symbol.
Note: Only use rechargeable batteries with exactlythesamespecications
as those supplied with the product.
Note: The use of a non-rechargeable or incompatible batteries may
damage the product and may be hazardous to health (please refer to
“TechnicalSpecications”onpage??).
CAUTION
Caution - special care should
always be taken with the loudspeaker - never allow anything to poke through or pour into the holes. It is very delicate.
Page 20
20
Parts and Putting them Together
Free Field Range
Up to 984 feet*
Indoor Range
Up to 164 feet*
Number of Handsets
1 supplied
The base may be used with up to 5 handsets
Electrical Connection
Powered from charger or direct to handset (black power adapter unit):
Input: 100-240V AC 50/60 Hz
Output: 5V DC 200 mA
Rechargeable Battery
2 x 1.2V / 750 NIMH rechargeable batteries
Operating Temperature Range
0 - 50°C
* Varies according to environment.
Handset Technical Specication
Page 21
21
Parts and Putting them Together
Assemble
Set-up
Connecting the Advanced Cable Gateway with other Devices
The Gateway, as illustrated below, has the ability to connect with a wide variety of equipment that you may have including PCs, analog phone, etc...
printer
storage
computer (1)
computer (2)
analog phone
fax
cable
splitter
TV
music
box
(For Future Use)
WiFi* computer
PC card
Handset
with
dock
Wireless
Connections
Te lephone
Connections
Cable
Connections
Ethernet
Connections
(For Future Use)
USB
Connections
RF
RF
RJ-45
RJ-45
USB
RJ-11
Advanced
Cable
Gateway
USB
Page 22
22
Parts and Putting them Together
Connection Between Devices
This illustration shows a cable company that offers DOCSIS- and PacketCable- compliant voice/data services.
1. How Does the Gateway Work?
The Advanced Cable Gateway provides high-speed Internet access as well as cost-effective, telephone voice and fax/modem services for residential subscribers over a CATV (cable TV) infrastructure. It can inter-operate with the PacketCable compliant head end equipment and provide IP-based voice
communications.TheIPtrafccantransferbetweentheAdvancedCable
Gateway and DOCSIS compliant head end equipment. The data security secures upstream and downstream communications.
Page 23
23
Parts and Putting them Together
Assemble
2. What do you need to enjoy all services?
The Right Cable Company :
Make sure your local cable company provides data services that use cable TV industry-standard DOCSIS compliant and PacketCable compliant technology.
Internet/Telephone Service Provider (ISP/TSP) : Your cable company provides you access to an Internet Service Provider (ISP) and Telephone Service Provider (TSP). The ISP is your gateway to the Internet and provides you with a pipeline to access Internet content on the World Wide Web (WWW). The TSP provides you with telephone access to other modems or other telephone services over the Public Switched Telephone Network (PSTN).
Check with your cable company to make sure you have everything you need to begin.
Your cable company will know if you need to install special software or
re-congure your computer to make your cable internet service work for you.
Page 24
24
Parts and Putting them Together
3. Establish an Internet Account
You need to contact your cable company to establish an Internet account before you can use your Advance Cable Gateway.
You should have the following information ready (this can be found on the sticker attached to the Gateway):
The Serial Number•
The Model Number•
The Cable Modem (CM) Media Access Control (MAC) Address•
The Terminal Adapter (EMTA) MAC Address•
SSID, WPA2-PSK Information •
Please verify the following with the cable company
Your internet account has been set up. • (The Media Terminal Adapter will provide data service if the cable account is set up but no telephone service is available.)
You have a cable outlet near your PC and it is ready for Cable Modem • service.
Important Information:
Your cable company should always be consulted before installing a new cable outlet.
Do not attempt any rewiring without contacting your cable company rst.
Note: It is important to supply power to the modem at all times.
Keeping your modem plugged in will keep it connected to the Internet. This means that it will be ready whenever you need it.
Page 25
25
Parts and Putting them Together
Assemble
Connecting the Advanced Cable Gateway to a
Figure 1
For optimum performance, be sure to connect your Advanced Cable Gateway to the rst point the cable enters your home.
The splitter must be rated for at least 1GHz.
Grounding Wire
Grounding Rod
New Cable Wire
ACG
Modem
TV
converter
TV
converter
TV
converter
Splitters -
New 2-way splitter: One leg goes directly to the ACG (modem) One leg goes directly to the IN on the next splitter
Cable Drop
Single Computer
This section of the manual explains how to connect your Advanced Cable Gateway to the ethernet port on your computer and install the necessary software.
Please refer to Figure 1 (below) to help you connect your ACG Modem for the best possible connection.
1. Attaching the Cable TV Wire to the Advanced Cable Gateway
LocatetheCableTVwire.Youmaynditbylocatingequipmentthatis connected directly to the Cable TV wire such as:
a TV a Cable TV converter box or a VCR.
The Cable TV line will be connected to the socket which should be labeled:
IN CABLE IN CATV CATV IN, etc.
The line will be coming out from under a baseboard, heater, or other location.
Refer to Figure 1 (below) for the wiring example.
Page 26
26
Parts and Putting them Together
computer (2)
computer (1)
wall
outlet
cable
connection
RF
RJ-45
RJ-45
Advanced
Cable
Gateway
Handset
Ethernet Connection to One or Two Computers
Make the connections to the modem in the following sequence:
Connect one end of the coaxial cable to the cable connection on the wall, and the other end to the CABLE connector on the Advanced Cable Gateway.
Connect one end of the power cord into the 120V, 60Hz, 0.5A socket on the Advanced Cable Gateway and the other end into the power plug in the wall.
Connect one end of the Ethernet cable (straight-wired, see below) to the Ethernet port on the back of your computer and the other end to the ETHERNET port on the Advanced Cable Gateway.
Note: The Gateway is equipped with two Ethernet ports, making additional equipment unnecessary.
Note: Make sure that the Ethernet cable is straight-wired (not “null” or
crossover-wired).
However, you will need a crossover-type cable if you are connecting the Gateway to a hub or a hub within a port switch that provides the same function.
Page 27
27
Parts and Putting them Together
Assemble
If you want to create hard wired connections to the ACG for more than two computers, you will need to purchase a Hub (Switch) for that purpose and the cabling necessary for those additional connections. Although a 10BaseT Hub or Switch can be used, it is not recommended. A 100BaseT Hub or Switch is recommended. Follow the installation guidelines that accompany this equipment.
Connecting More Than Two Computers
Telephone or Fax Connection
When properly connected, most telephone devices can be used with the Advanced Cable Gateway. Here is how to make that connection
Note: If you have any questions concerning telephone connection, please
contact your service provider.
Note: There is only one TEL connection available on the rear panel of the
AGC.
analog
phone
Advanced
Cable
Gateway
Connect a standard phone line cord directly from the phone (fax machine, answering machine, caller ID box, etc.) to the TEL port on the Advanced Cable Gateway.
To make a normal telephone call, pick up the handset; listen for a dial tone, then dial the desired number using this new connection. For services such as call waiting, use the hook switch (or FLASH button) to change calls.
to the Advanced Cable Gateway
Page 28
28
Activating Services
Activating the Advanced Cable Gateway
After installation of the Advanced Cable Gateway, each time you turn it on (each time the modem is reconnected to the power), it goes through several steps before it can be used.
Each of these steps is represented by a different pattern of ashing lights on the front of the modem.
Lights Guide
Legend
ON
LED is on.
SLOW BLINK
LED is blinking slowly.
OFF
LED is off.
FAST BLINK
LED is blinking quickly.
X
LED can be in any state (on, off or blinking).
IfDS/US,ONLINE,andLINKledsashsimultaneouslyitmeanstheAdvanced
Cable Gateway is automatically updating its system software. Please wait for the lights to stop ashing. You cannot use your modem during this time. Do not remove the power supply or reset the Advanced Cable Gateway during this process.
Page 29
29
Activate
Activating Services
LED LABEL
Power
Battery
( LED desc.
when battery
is inserted )
DS/US ONLINE LINK TEL
Boot Up
Operation
Power On during 0.25s
OFF ON ON ON ON ON
From Power On to System Synchronization complete
ON ON
SLOW BLINK
SLOW
BLINK
OFF OFF
Before DS scanning: during 1s
ON ON ON ON X* OFF
DOCSIS Start-Up Operation
Note 1
DS scanning & acquiring SYNC
ON ON
FAST
BLINK
OFF X OFF
From SYNC completed, receiving UCD to ranging completed
ON ON
SLOW BLINK
OFF X OFF
DHCP
ON ON ON
FAST
BLINK
X OFF
cong le download
ON ON ON
SLOW
BLINK
X OFF
Registration & BPI initialization
ON ON
FAST
BLINK
FAST
BLINK
X OFF
Operational (NACO On)
ON ON ON
ON
X OFF
Operational (NACO Off)
ON ON ON
OFF
X OFF
Telephone
Provisioning
ON ON ON
ON
X
FAST
BLINK
Registered
ON ON ON
ON
X ON
Not available
ON ON ON
ON
X OFF
LAN Active
No Ethernet or WiFi Link
ON ON ON
ON
OFF X
Ethernet or WiFi Link
ON ON ON
ON
ON X
Tx/Rx Ethernet or WiFi
Trafc
ON ON ON
ON
SLOW
BLINK
X
ACG in dect association mode = Page button has been pressed for more than 12s
ON ON ON
ON
FAST
BLINK
X
* “X” indicates that this LED is not used to show the state of operation described on this line.
Check in this column for the state in which this LED is ON.
Note 1- “Flash” indicates a CM or EMTA initialization process in progress.
A “Flash” that does not stop indicates an initialization error.
Note 2- During an AC Power Failure with a bad battery, the operation of the device
may not be possible due to lack of battery power; all LEDs may be “Unlit”.
Page 30
30
Activating Services
LED LABEL
Power
Battery
( LED desc.
when battery
is inserted )
DS/US ONLINE LINK TEL
EMTA Normal Operation
AC Power Good
Good Battery
all lines
On-
Hook
ON
ON
CM Normal Operation
CM Normal Operation
CM Normal Operation
ON
1 line
or more
Off-Hook
ON
SLOW
BLINK
Low Battery
all lines
On-
Hook
ON
SLOW
BLINK
ON
1 line
or more
Off-Hook
ON
SLOW
BLINK
Bad Battery
all lines
On-
Hook
ON
OFF
NOTE 2
ON
1 line
or more
Off-Hook
ON
SLOW
BLINK
AC Power Failure
Good Battery
all lines
On-
Hook
FLASH
OFF
OFF OFF
OFF
ON
1 line
or more
Off-Hook
FLASH
SLOW
BLINK
Low Battery
all lines
On-
Hook
FLASH
SLOW
BLINK
ON
1 line
or more
Off-Hook
FLASH
SLOW
BLINK
Bad Battery
all lines
On-
Hook
OFF
OFF
NOTE 2
NOTE 2 NOTE 2
NOTE
2
1 line
or more
Off-Hook
OFF
SW Download
Operation
During Software download & while updating the FLASH memory
ON ON
SLOW BLINK
SLOW
BLINK
SLOW
BLINK
X
Restore
to Factory
Settings
ACG is powered off. Press the Page button while powering on the ACG. Hold the page button for 5s
Turn on all LEDs when factory RESET starts
EMTA Reset
(soft Reset)
Upon pressing the Rest button
LEDs behave as if the device is powering up
Page 31
31
Activate
Activating Services
Self Installation
To enjoy all Gateway services (multi-line capability, access to address book etc…),youmustrstsetupyourGateway.
To ease the installation, your DECT Handset is programmed with the self installation guide, which will lead you “step-by-step” through the whole installation process.
Starting the Self Installation
Check all connections for the Advanced Cable Gateway and the 1. Handset. Turn the Handset ON.
Wait until you see instructions on the Handset. 2. Thestandardmessageowisdescribedinthegurebelow. If you are having troubles with this installation, please refer to the Handset user guide pages xx to xx.
You are now ready to use the Advanced Cable Gateway. Enjoy!3.
Please wait while we test
your cable connection
Continue
Registration
Connection was successful.
Press ‘Continue’ to register your phone with the server. This is a one-time process.
Please wait while we register your phone.
Users Menu
Activate your Comcast
Digital Voice service
Oct 14, Sat 10:00
Power On
Page 32
32
Activating Services
Wi-Fi Connection
The Advanced Cable Gateway is ready to support Wi-Fi and comes with a card. Follow these instructions for installation:
FRONT of WiFi card
(this side must face you
during insertion)
BACK of WiFi card
Ensure the power cord is unplugged.
Remove the protective cover over the WiFi slot located on the upper right hand side of the gateway.
Make certain that the front of the WiFi card is facing you.
Insert the WiFi card in the slot as far as it will go without forcing it.
Plug the power cord into the wall socket.
Cover for WiFi slot removed
WARNING: The Gateway must be
unplugged from the wall socket before you attempt to install the WiFi card.
Light Indicators on the Front Panel
After the card is inserted and the ACG Gateway is plugged back into the power outlet, you will know that the connection is successful when the PWR LED on the front of the Gateway shows a green light.
Also
WhenyourstturntheGatewaybackon,the
LINK LED will blink a green light - fast; when the card connects to the network sucessfully, it will blink - slowly.
Slot for WiFi
with
cover removed
Page 33
33
Activate
Activating Services
Wireless Internet Access for Your Computer
WiFionyouAdvancedCableGatewayispreconguredwithanetworkname
(SSID) and WPA key (a security password to prevent others access to your wireless network). This information is printed on the label on the outside of your ACG as shown in the following diagram:
In order to take advantage of the WiFi connection available to you with the Gateway you will need to setup your computer. Setup will be different depending on the year, brand, model and installed software of your computer. Please follow the instructions received with you computer that explain how to connect to a wireless network. If you are using a recent version of Microsoft Windows, one of the following methods may apply (consult your computer/laptop instructions if one of these methods does not work)
Method 1:
Click on “Wireless” icon in the bottom right hand portion of your • screen
Select,”View Wireless Networks”•
Highlight “SSID” from the list and press “Connect”•
When prompted, enter the WPA key twice and press “Connect”•
Method 2:
Go to “Start” - “Control Panel” - “Network Connections”•
Double click “Wireless Network Connections”•
Highlight “SSID” from the list and press “Connect”•
When prompted, enter the WPA key twice and press “Connect”•
Method 3:
Go to “Start” - “Network Connections”•
Double click “Wireless Network Connections”•
Highlight “SSID” from the list and press “Connect”•
When prompted, enter the WPA key twice and press “Connect”•
WPA
SSID
S/N 87003 - 8174B0018
MODEL : ACG905--C
CM MAC@ 00D059E132E4
Rating: 120V AC, 60Hz, 0.5A
SSID: COMCAST-ACG-32E4 WPA key: 12340678C9
HW version: 05
FCC ID WBJ ACG905C001THFR
I.T.E.
Page 34
34
Activating Services
Web Conguration
To make sure that you can access the Internet successfully, please check the following:
Make sure the Ethernet connection between the Advanced Cable • Gateway and your computer is OK.
For wireless networking (see page ??),youwillneedaWiFi-certiedwireless client adapter for each computer you want to connect wirelessly.
If your computer does not have WiFi capability, you should equip it with a WiFi accessory (norm 802.11b/g).
Page 35
35
Activate
Activating Services
Accessing the Web Conguration
The Advanced Cable Gateway (ACG905) offers local management capability
throughabuiltinHTTPserverandanumberofdiagnosticandconguration webpages.Youcancongurethesettingsbywayofthewebpageandapply
them to the device. OnceyourhostPCisproperlycongured;pleaseproceedasfollows:
Start your web browser and 1. type
http://cable.cong/
After connecting to the site, 2. you will be asked to enter username and password. By default, the Login Name is: ______ (leavetheeldblank) Password is: admin
If you log in successfully, the main webpage will appear.
Connect to 192.168.100.1
? X
Thomson
User name:
Password:
Remember my password
OK
Cancel
Loading...
